Crystal structure of 3-(adamantan-1-yl)-4-methyl-5-{[(4-nitrophenyl)methyl]sulfanyl}-4H-1,2,4-triazole, C20H24N4O2S

  • Lamya H. Al-Wahaibi , Mohammed S. M. Abdelbaky , Santiago Garcia-Granda , Edward R. T. Tiekink and Ali A. El-Emam ORCID logo EMAIL logo
Published/Copyright: September 7, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 6

Abstract

C20H24N4O2S, monoclinic, C2/c (no. 15), a = 28.5901(10) Å, b = 6.4383(4) Å, c = 20.060(1) Å, β = 99.682(4)°, V = 3639.9(3) Å3, Z = 8, R gt (F) = 0.0557, wR ref (F 2) = 0.1514, T = 150 K.

CCDC no.: 2203657

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless prism
Size: 0.18 × 0.08 × 0.06 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 1.78 mm−1
Diffractometer, scan mode: Xcalibur, ω
θ max, completeness: 75.8°, >99%
N (hkl) measured , N(hkl) unique, R int: 16,466, 3726, 0.094
Criterion for I obs, N(hkl) gt: I obs > 2 σ(I obs), 2330
N(param)refined: 245
Programs: CrysAlisPRO [1], SHELX [2, 3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso∗/U eq
S1 0.42766 (3) 0.30733 (16) 0.68614 (4) 0.0418 (3)
O1 0.53920 (9) 0.7788 (5) 0.98621 (14) 0.0587 (8)
O2 0.52822 (10) 1.0658 (5) 0.93034 (14) 0.0590 (8)
N1 0.33771 (10) −0.0530 (5) 0.57618 (13) 0.0421 (7)
N2 0.36515 (11) 0.0031 (5) 0.63718 (14) 0.0465 (8)
N3 0.37213 (8) 0.2435 (4) 0.56105 (13) 0.0336 (6)
N4 0.52057 (9) 0.8800 (5) 0.93738 (15) 0.0422 (7)
C1 0.34254 (10) 0.0918 (5) 0.53107 (15) 0.0315 (7)
C2 0.38512 (10) 0.1800 (6) 0.62679 (15) 0.0360 (8)
C3 0.32083 (10) 0.0738 (5) 0.45725 (14) 0.0271 (6)
C4 0.29333 (10) 0.2690 (5) 0.42840 (15) 0.0293 (7)
H4A 0.268038 0.300134 0.455099 0.035∗
H4B 0.315172 0.389336 0.432052 0.035∗
C5 0.27119 (10) 0.2354 (5) 0.35415 (15) 0.0314 (7)
H5 0.253704 0.363681 0.336292 0.038∗
C6 0.31046 (10) 0.1901 (5) 0.31286 (15) 0.0323 (7)
H6A 0.332693 0.309005 0.316063 0.039∗
H6B 0.296430 0.170365 0.264695 0.039∗
C7 0.33727 (10) −0.0068 (5) 0.34022 (15) 0.0310 (7)
H7 0.362769 −0.036683 0.313019 0.037∗
C8 0.35982 (10) 0.0247 (5) 0.41457 (15) 0.0319 (7)
H8A 0.382847 0.140705 0.418213 0.038∗
H8B 0.377117 −0.102573 0.431997 0.038∗
C9 0.30278 (10) −0.1896 (5) 0.33431 (15) 0.0335 (7)
H9A 0.319950 −0.317638 0.351308 0.040∗
H9B 0.288646 −0.211691 0.286306 0.040∗
C10 0.28578 (10) −0.1110 (5) 0.44985 (15) 0.0319 (7)
H10A 0.302774 −0.238652 0.467633 0.038∗
H10B 0.260439 −0.083809 0.476812 0.038∗
C11 0.26358 (10) −0.1440 (5) 0.37571 (15) 0.0322 (7)
H11 0.241077 −0.263907 0.372130 0.039∗
C12 0.23666 (10) 0.0526 (5) 0.34851 (16) 0.0338 (7)
H12A 0.221975 0.031871 0.300654 0.041∗
H12B 0.211094 0.082046 0.374889 0.041∗
C13 0.38872 (12) 0.4329 (6) 0.53311 (18) 0.0436 (9)
H13A 0.418684 0.476551 0.560731 0.065∗
H13B 0.364956 0.542582 0.533101 0.065∗
H13C 0.393692 0.407107 0.486661 0.065∗
C14 0.39039 (10) 0.4716 (6) 0.73011 (17) 0.0387 (8)
H14A 0.372873 0.574265 0.698623 0.046∗
H14B 0.367201 0.386281 0.749522 0.046∗
C15 0.42390 (10) 0.5799 (6) 0.78545 (16) 0.0347 (7)
C16 0.44075 (11) 0.4790 (6) 0.84613 (16) 0.0364 (8)
H16 0.430261 0.342067 0.853324 0.044∗
C17 0.47270 (10) 0.5762 (6) 0.89623 (16) 0.0380 (8)
H17 0.484404 0.507332 0.937555 0.046∗
C18 0.48700 (10) 0.7756 (5) 0.88441 (16) 0.0330 (7)
C19 0.47070 (11) 0.8812 (6) 0.82517 (17) 0.0378 (8)
H19 0.480956 1.018943 0.818596 0.045∗
C20 0.43898 (10) 0.7814 (6) 0.77548 (17) 0.0389 (8)
H20 0.427447 0.851266 0.734265 0.047∗

Source of material

To a solution of 5-(adamantan-1-yl)-4-methyl-4H-1,2,4-triazole-3-thiol [5] (1.25 g, 5.0 mmol) in DMF (10 mL), 4-nitrobenzyl chloride (1.08 g, 5.0 mmol) and anhydrous potassium carbonate (0.69 g, 5 mmol) were added; the mixture was then stirred at room temperature for 8 h. After this, ice-cold water (10 mL) was added to the reaction mixture with continuous stirring for 1 h. The precipitated crude product was filtered, washed with cold water, dried and crystallised from aqueous ethanol to yield 1.71 g (89%) of the title compound as colourless prisms. M. pt: 443–445 K (uncorrected). Anal. Calcd. for C20H24N4O2S: C, 62.48; H, 6.29; N, 14.57; S, 8.34%. Found: C, 62.44; H, 6.31; N, 14.53; S, 8.32%. 1H NMR (CDCl3, 700.17 MHz): δ 1.78 (s, 6H, adamantane-H), 1.98–2.02 (m, 9H, adamantane-H), 3.32 (s, 3H, CH3), 4.35 (s, 2H, benzylic CH2), 7.36 (d, 2H, Ar–H, J = 8.5 Hz), 8.01 (d, 2H, Ar–H, J = 8.5 Hz). 13C NMR (CDCl3, 176.08 MHz): δ 33.25 (CH3), 28.0, 35.14, 37.16, 40.60 (adamantane-C), 36.30 (benzylic-CH2), 122.84, 130.30, 142.53, 146.02 (Ar–C), 149.64, 161.26 (triazole-C). Single crystals for X-ray diffraction were obtained by slow evaporation of a solution of the title compound in ethanol:chloroform (2:1, v/v) held at room temperature.

Experimental details

The C-bound H atoms were geometrically placed (C–H = 0.95–1.00 Å) and refined as riding with U iso (H) = 1.2–1.5 U eq (C).

Comment

Considerable attention has been devoted to adamantane-based derivatives owing to their diverse chemotherapeutic activities [6], [7], [8]. For example, several adamantane-linked 1,2,4-triazole derivatives have been identified as efficient therapies for the treatment of type 2 diabetes and obesity through the inhibition of 11β-hydroxysteroid dehydrogenase type 1 (11β-HSD1) [9, 10]. In an extension of on-going interest in the structural studies and potential biological applications of adamantane-linked 1,2,4-triazoles [11, 12], herein the crystal and molecular structures of the title compound, a potential 11β-HSD1 inhibitor [5], are described.

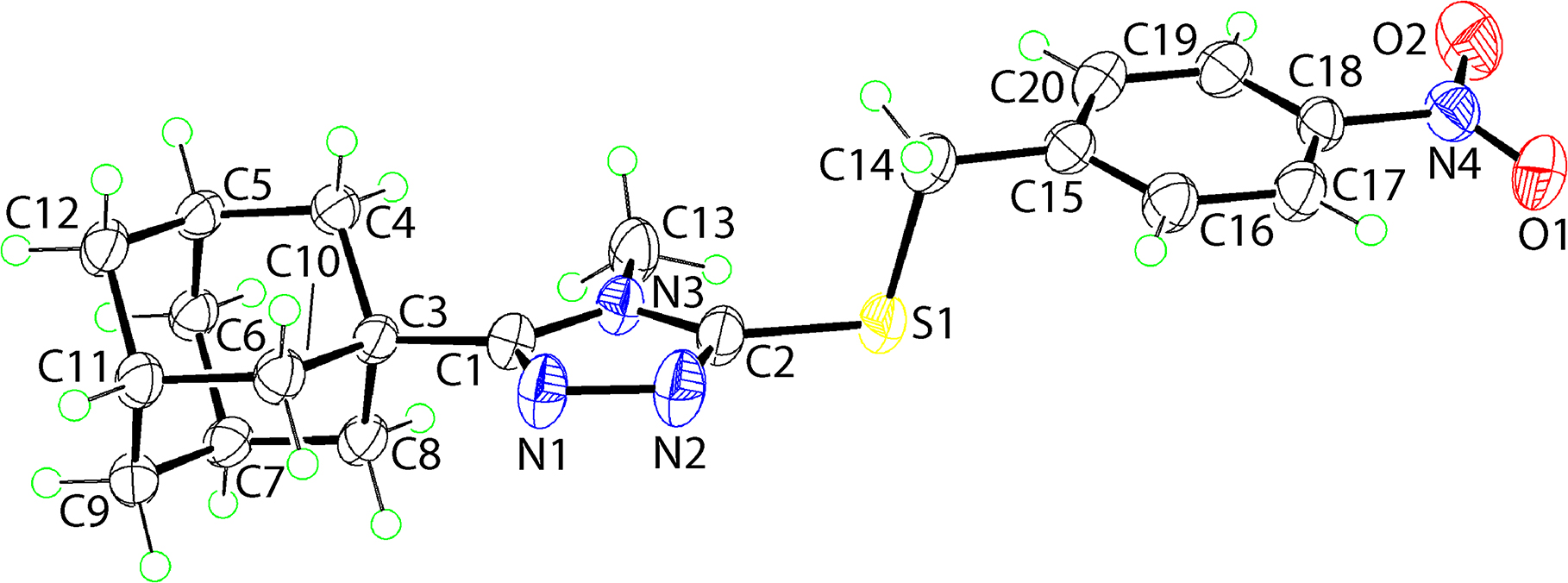

The molecular structure of (I) is shown in the figure (50% probability ellipsoids). The central 1,2,4-triazolyl ring is planar with a r.m.s. deviation for the five atoms being 0.004 Å with maximum deviations of ±0.003 Å noted for the N1 and C1 atoms. The C1–N1 and C2–N2 bond lengths of 1.323 (4) and 1.306 (4) Å, respectively, are experimentally equivalent, and systematically shorter than the C1–N3 and C2–N3 bond lengths of 1.364(4) and 1.371(4) Å, respectively, which are also experimentally the same. In connection with the last mentioned bonds, which are shorter than their standard single bond values, the decrease in the N1–N2 bond length [1.386(4) Å] is suggestive of substantial delocalisation of π-electron density in the five-membered ring. The adamantan-1-yl group is appended at the C1-position with the S-bound [(4-nitrophenyl)methyl]sulfanyl substituent connected at the C2-position. A significant kink is apparent in the molecule, at the S–CH2– link, as seen in the C2–S1–C14 [101.77(14)°] and C15–C14–S1 [105.8(2)°] bond angles although the four atoms are co-planar: the C2–S1–C14–C15 torsion angle = 176.9(2)°. As expected, the C2–S1 bond length of 1.756(3) Å, i.e. involving the ring-carbon atom, is shorter than the C14–S1 bond of 1.830(3) Å, involving the methylene-carbon atom. Despite the kink in the molecule, the aromatic residues are close to parallel with the dihedral angle between them being 11.21(17)°. Finally, the nitro group is twisted out of the plane of the phenyl ring it is connected to, as reflected in the O1–N4–C18–C17 torsion angle of 9.1(4)°.

The most closely related structure in the crystallographic literature available for comparison is the derivative with a nitrogen-bound phenyl group instead of a nitrogen-bound methyl group [12]. Here, the crucial central Cring–S–Cmethylene–Cphenyl torsion angle is 84.3 (3)° resulting in an orthogonal relationship between the triazolyl and phenyl rings. Similar conformations were noted in the 4-fluorophenyl (83.1(3)°) and 4-chlorophenyl (79.06(13)°) analogues. Presumably this change of conformation in these three molecules arises as a result of the steric congestion due to the nitrogen-bound phenyl rings [12]. However, other influences come into play as in the two other nitrogen-bound methyl derivatives, quite distinct conformations are apparent. Thus, in the 4-chloro species, a very similar conformation is noted as for the title compound (torsion angle = 179.32 (14)°) [11]. In the parent compound with an unsubstituted phenyl ring [13], the torsion angle of 163.3(2)° resembles that in the title compound, yet a more open conformation was noted as manifested in the dihedral angle of 51.42(8)° between the rings; the second independent molecule comprising the asymmetric-unit suffered from positional disorder but presented an analogous conformation.

In the absence of conventional hydrogen bonding, C–H⃛O, C–H⃛N and nitro-O⃛π interactions come to the fore in the molecular packing of (I). Thus, methyl-C–H⃛O (nitro) [C13–H13a⃛O1i: H13a⃛O1i = 2.55 Å, C13a⃛O1i = 3.103(5) Å with angle at H13a = 116° for symmetry operation (i): 1 − x, y, 3/2 − z], phenyl-C–H⃛O (nitro) C17–H17⃛O1ii: H17⃛O1ii = 2.56 Å, C17⃛O1ii = 3.342(5) Å with angle at H17 = 140° for (ii): 1 − x, 1 − y, 2 − z] and phenyl-C–H⃛N (triazolyl) C20–H20⃛N2iii: H20⃛N2iii = 2.60 Å, C20⃛N2iii = 3.496(4) Å with angle at H20 = 158° for (iii): x, 1 + y, z] interactions occur at separations within the respective sum of the van der Waals radii [14]. The prominent role of the nitro-O atoms in the molecular packing is emphasised by the presence of a nitro-O⃛π(triazolyl) interaction [N4–O2⃛Cg (N1–N3, C1, C2)iv: O2⃛Cg (N1–N3, C1, C2)iv = 3.259(3) Å with angle at O2 = 105.1(2)° for (iv): 1 − x, 1 + y, 3/2 − z]. The nitro-O atom approaches the triazole ring in a side-on fashion with the closest O2⃛C2 contact being short at 2.991(4) Å. The aforementioned contacts occur within layers that stack along the a-axis with the adamantan-1-yl residues projecting to either side. There are no directional interactions between layers.

A recent study on organotin compounds of adamantanyl-substituted carboxylates indicated very high contributions to the calculated Hirshfeld surfaces by H⃛H contacts owing to the relatively large volume occupied by these substituents [15]. Thus, analogous calculations were conducted for the title compound employing standard methods [16] and Crystal Explorer 17.5 [17]. The present analysis indeed showed H⃛H surface contacts contributed 50.9% to all contacts, despite the identified interactions giving rise to the described supramolecular layer. The next major contributions were due to N⃛H/H⃛N [13.6%], O⃛H/H⃛O [12.0%] and C⃛H/H⃛C [10.4%] contacts. After these, the only significant contacts to the Hirshfeld surface were from S⃛H/H⃛S [4.1%], O⃛N/N⃛O [2.2%], then O⃛C/C⃛O and S⃛C/C⃛S contacts, each contributing 1.7%.

Corresponding author: Ali A. El-Emam, Department of Medicinal Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura, 35516, Egypt, E-mail:

Funding source: Princess Nourah bint Abdulrahman University Researchers Supporting Project, Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia

Award Identifier / Grant number: PNURSP2022R3

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Princess Nourah bint Abdulrahman University Researchers Supporting Project No. PNURSP2022R3, Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku Oxford Diffraction. CrysAlispro; Rigaku Corporation: Oxford, UK, 2015.Search in Google Scholar

2. Sheldrick, G. M. SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

5. El-Emam, A. A., Ibrahim, T. M. Synthesis and anti-inflammatory and analgesic activity of some 3-(1-adamantyl)-4-substituted-5-mercapto-1,2,4-triazoles. Arzneim. Forsch. 1991, 41, 1260–1264.Search in Google Scholar

6. Spilovska, K., Zemek, F., Korabecny, J., Nepovimova, E., Soukup, O., Windisch, M., Kuca, K. Adamantane – a lead structure for drugs in clinical practice. Curr. Med. Chem. 2016, 23, 3245–3266; https://doi.org/10.2174/0929867323666160525114026.Search in Google Scholar PubMed

7. Wanka, L., Iqbal, K., Schreiner, P. R. The lipophilic bullet hits the targets: Medicinal chemistry of adamantane derivatives. Chem. Rev. 2013, 113, 3516–3604; https://doi.org/10.1021/cr100264t.Search in Google Scholar PubMed PubMed Central

8. Liu, J., Obando, D., Liao, V., Lifa, T., Codd, R. The many faces of the adamantyl group in drug design. Eur. J. Med. Chem. 2011, 46, 1949–1963; https://doi.org/10.1016/j.ejmech.2011.01.047.Search in Google Scholar PubMed

9. Olson, S., Aster, S. D., Brown, K., Carbin, L., Graham, D. W., Hermanowski-Vosatka, A., LeGrand, C. B., Mundt, S. S., Robbins, M. A., Schaeffer, J. M., Slossberg, L. H., Szymonifka, M. J., Thieringer, R., Wright, S. D., Balkovec, J. M. Adamantyl triazoles as selective inhibitors of 11β-hydroxysteroid dehydrogenase type 1. Bioorg. Med. Chem. Lett. 2005, 15, 4359–4362; https://doi.org/10.1016/j.bmcl.2005.06.040.Search in Google Scholar PubMed

10. Joharapurkar, A., Dhanesha, N., Shah, G., Kharul, R., Jain, M. 11β-Hydroxysteroid dehydrogenase type 1: potential therapeutic target for metabolic syndrome. Pharmacol. Rep. 2012, 64, 1055–1065; https://doi.org/10.1016/s1734-1140(12)70903-9.Search in Google Scholar PubMed

11. Al-Wahaibi, L. H., Joubert, J., Blacque, O., Al-Shaalan, N. H., El-Emam, A. A. Crystal structure, Hirshfeld surface analysis and DFT studies of 5-(adamantan-1-yl)-3-[(4-chlorobenzyl)sulfanyl]-4-methyl-4H-1,2,4-triazole, a potential 11β-HSD1 inhibitor. Sci. Rep. 2019, 9, 19745; https://doi.org/10.1038/s41598-019-56331-z.Search in Google Scholar PubMed PubMed Central

12. Osman, D. A., Macías, M. A., Al-Wahaibi, L. H., Al-Shaalan, N. H., Zondagh, L. S., Joubert, J., Garcia-Granda, S., El-Emam, A. A. Structural insights and docking analysis of adamantane-linked 1,2,4-triazole derivatives as potential 11β-HSD1 inhibitors. Molecules 2021, 26, 5335; https://doi.org/10.3390/molecules26175335.Search in Google Scholar PubMed PubMed Central

13. Al-Abdullah, E. S., El-Emam, A. A., Ghabbour, H. A., Chantrapromma, S., Fun, H.-K. 5-(Adamantan-1-yl)-3-(benzylsulfanyl)-4-methyl-4H-1,2,4-triazole. Acta Crystallogr. 2012, E68, o2427–o2428; https://doi.org/10.1107/s1600536812030784.Search in Google Scholar

14. Spek, A. L. checkCIF validation ALERTS: what they mean and how to respond. Acta Crystallogr. 2020, E76, 1–11; https://doi.org/10.1107/s2056989019016244.Search in Google Scholar

15. Basu Baul, T. S., Manne, R., Duthie, A., Liew, L. Y., Chew, J., Lee, S. M., Tiekink, E. R. T. Synthesis, structural and in vitro biological evaluation of diamondoid-decorated lipophilic organotin(IV) derivatives. J. Organomet. Chem. 2021, 941, 121802; https://doi.org/10.1016/j.jorganchem.2021.121802.Search in Google Scholar

16. Tan, S. L., Jotani, M. M., Tiekink, E. R. T. Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. 2019, E75, 308–318; https://doi.org/10.1107/s2056989019001129.Search in Google Scholar

17. Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D., Spackman, M. A. CrystalExplorer: a program for Hirshfeld surface analysis, visualization and quantitative analysis of molecular crystals. J. Appl. Crystallogr. 2021, 54, 1006–1011; https://doi.org/10.1107/s1600576721002910.Search in Google Scholar PubMed PubMed Central

Received: 2022-07-14
Accepted: 2022-07-19
Published Online: 2022-09-07
Published in Print: 2022-12-16
