Oxidation–reduction reactions and hydrogenation of steels of different structures in chloride-acetate solutions in the presence of iron sulfides

1 Introduction

A large percentage of oil and gas, which are extracted in the world, contains hydrogen sulfide (Hernández-Espejel et al. 2010; Smith and Joosten 2006; Smith et al. 2011; Yavorskiy et al. 2016) and sulfur-containing organic compounds which can generate it (Benavides et al. 2007; Jacob et al. 2008). Hydrogen sulfide accelerates corrosion (Ren et al. 2005; Sun and Nesic 2007; Tang et al. 2010; Zhou et al. 2013) and causes hydrogen embrittlement (Khoma 2010; Marcus 2011; Radkevych and Pokhmurs’ kyi 2001; Woodtli and Kieselbach 2000) of steels according to steady views. Therefore, decreases exploitation resource of equipment and pipelines in gas-exploration and processing industries (Haibin and Zhenling 2010). It causes annual losses due to metal losses and accidents involving personnel accidents (NACE International 2016). The medium containing hydrogen sulfide is catalyzing the formation of hydrogen atoms on the steel surface. Its absorption is depended on chemical potential at the interface and diffusion rate, which is determined by the chemical composition and steel structure, temperature and mechanical factors, etc.

In hydrogen sulfide media corrosion promotes formation on steels of mackinawite, the crystalline lattice of which contains numerous defects (Vedage et al. 1993). It can be converted into more stable sulfides later. On Armco iron with increasing concentration of hydrogen sulfide and pH media in corrosion products prevail pyrite (before 2.0 mg/L, pH ∼ 3.0), troilite (2–20 mg/L, pH = 7.0) and kansite (more than 20 mg/L, pH = 11.0) (Sardisco and Pitts 1965).

The increase of temperature contributes the formation of sulfides more enriched by Sulfur in the following sequence: mackinawite – cubic FeS – troilite - pyrrhotite – pyrite (Shi et al. 2016). The protective properties of sulfides are increasing with increased sulfur content. Investigations of the sulfides composition in 5% NaCl solution at different pH and concentration of hydrogen sulphide 0.2…20 mM on ferrite steel X65 showed that the sulfide film is consisted of mackinawite and crystalline FeS. As the concentration of hydrogen sulfide and pH are increasing, the compactness and film thickness increases (Huang et al. 2017). Investigation of the sulfides composition on low carbon steel in chloride- and acetate-containing media with 1.0 MPa H₂S showed that the corrosion products mainly consist of mackinawite and troilite. The blocking effect of sulfide films on hydrogen absorption is established (Zheng et al. 2013). Consequently, the composition of iron sulfides and their protective properties are depended on conditions: the structure and chemical composition of steel, the concentration of hydrogen sulfide, pH, temperature, pressure, etc. However, the effect of iron sulfides with different composition on the allocation and absorption of hydrogen by steels of different structures is not studied sufficiently.

The thickness and density of corrosion products can affect the diffusion of oxidants to the surface of the metal, and, consequently, the corrosion rate. Films presence can slow down the cathodic and anodic processes. So the formation of iron sulfides on the steels surface make effect on localization, corrosion, evolution and absorption of hydrogen, and determine the further their corrosion-mechanical destruction.

Thus, the determination of the influence of iron sulfides on the corrosion rate and hydrogenation of steels different structures is an extremely important issue in predicting behavior of metal in specific hydrogen sulfide environments.

2 Materials and methods

Armco iron, 0.8% C and 0.45% C steels were investigated. In order to obtain structures of equilibrium perlite (0.8% C steel) and ferrite-perlite (0.45% C steel) steels were annealed at T = 800 °С during 0.5 h. The chemical composition of samples is presented in Table 1 and microstructure of Armco iron and steels presented in Figure 1. Cylindrical samples were pressed into fluoroplastic bushes, then wet-ground with P1200 emery paper.

Figure 1:

Microstructure of Armco iron (a), 0.8% C steel (b), and 0.45% C steel (c).

Electrochemical studies of the samples were carried out in the chloride-acetate solution, which is the base of the NACE solution (NACE Standard 1996), at a temperature of 18 ± 2 °C. All solutions were prepared based on distilled water. Electrode potentials were measured as difference between working electrode and silver chloride reference electrode and recalculated to the potential of the hydrogen electrode. Platinum was used as an auxiliary electrode. The rate of the cathodic and anodic processes was calculated based on voltage–current dependences and Tafel slopes.

Iron sulfides FeS₂, FeS, and Fe₉S₈ were formed during 1 h after anodic polarization at E = −600 mV and concentrations of hydrogen sulfide 1, 10 and 100 mg/L in solutions with pH = 3.2; 7.2; 11.2, respectively. The H₂S content was determined by iodometric titration method. The value of the hydrogen index of the working solutions was controlled by pH-meter pH-673.M with a glass electrode ESL-63-07. X-ray phase analysis of samples was used to identify iron sulfides on DRON 3.0 M diffractometer, as shown in Figure 2.

Figure 2:

XDR diffractogram of iron sulfide samples obtained during 1 h after anodic polarization at E = −600 mV and concentrations of hydrogen sulfide 1: (a), 10 (b), and 100 (c) mg/L in solutions with pH = 3.2; 7.2; 11.2, respectively.

Figure 3:

SEM images of systems «steel-sulfide»: Armco iron + FeS₂ (a), Armco iron + FeS (b), Armco iron + Fe₉S₈ (c), 0.8% C steel + FeS₂ (d), 0.8% C steel + FeS (e), 0.8% C steel + Fe₉S₈ (f), 0.45% C steel + FeS₂ (g), 0.45% C steel + FeS (h), 0.45% C steel + Fe₉S₈ (i).

Electrolytic hydrogenation of the samples was performed at the same overvoltage E = −350 mV for 1 h duration in a solution of 0.5% CH₃COOH + 5% NaCl, in which the composition of the formed sulfide films did not change. Due to the much higher rate of hydrogen depolarization against oxygen, it was assumed that all amount of electricity which was passed through the electrochemical cell corresponded to the process of hydrogen evolution. Amount of hydrogen calculated according to the Faraday’s law.

The concentration of absorbed hydrogen was determined by vacuum extraction at elevated temperatures (Chuchman 2014). Hydrogen desorbed at 200 °С could be release from the metal over time at room temperature, while the hydrogen that desorbed at 800 °С is characterized by higher metal-binding energy (Takai and Watanuki 2003). The error of determination on Armco iron, 0.8% C and 0.45% C steels of С_Н200 was ±0.14; ±0.10; ±0.16 ppm, and С_Н800 was ±0.16; ±0.20; ±0.25 ppm, respectively. The total concentration of hydrogen in steels and Armco iron was equal to the sum of hydrogen concentrations determined at different temperatures and after 1 h in С_НΣ equal to С_Н200 + С_Н800 solutions.

3 Results and discussion

Corrosion of Armco iron and 0.8% C steel which at the absence of the iron sulfides in the freely aired 0.5% CH₃COOH + 5% NaCl solution was run under mixed cathodic anodic control with rates of ∼29.18 and 37.85 mpy respectively, and 0.45% C steel – run under anodic control with rate of ∼0.218 mA/cm². On armco iron pyrite (FeS₂) decreases, and kansite (Fe₉S₈) increases the rate of cathodic and anodic reactions. Troilite (FeS) increases the cathodic, but reduces the anodic reaction. The FeS₂ and FeS formation on Armco iron reduced the corrosion rate (determined by the anodic reactions) by ∼10 and 64%, respectively. And Fe₉S₈ increased in ∼2.4 times and run under mixed control (Table 2).

The presence of FeS₂, FeS, and Fe₉S₈ on 0.8% C steel led to decreasing of the corrosion rate in ∼4.0; 7.5; and 2.2 times, respectively. Sulfides contribute deceleration of the anodic rate and insignificant increasing of the cathodic reactions, resulted in corrosion run under anodic control. FeS₂ and FeS on ferrite–perlite practically do not change the rate of cathodic reactions and increase the anodic in ∼4.0 and 1.8 times, respectively. The presence of Fe₉S₈ on steel increased the rate of cathodic processes in ∼2.3 times and did not change the rate of anodic. Corrosion of 0.45% C steel at the formation of FeS₂ and FeS was run under cathodic, and Fe₉S₈ – under anodic control.

Electrochemical investigations of Armco iron with iron sulfides showed that in case of cathodic polarization (50 mV) of samples with FeS₂ currents are decreasing in ∼1.5 times, and with FeS and Fe₉S₈ – increasing in ∼1.6 and ∼3.0 times, respectively (Figure 4a).

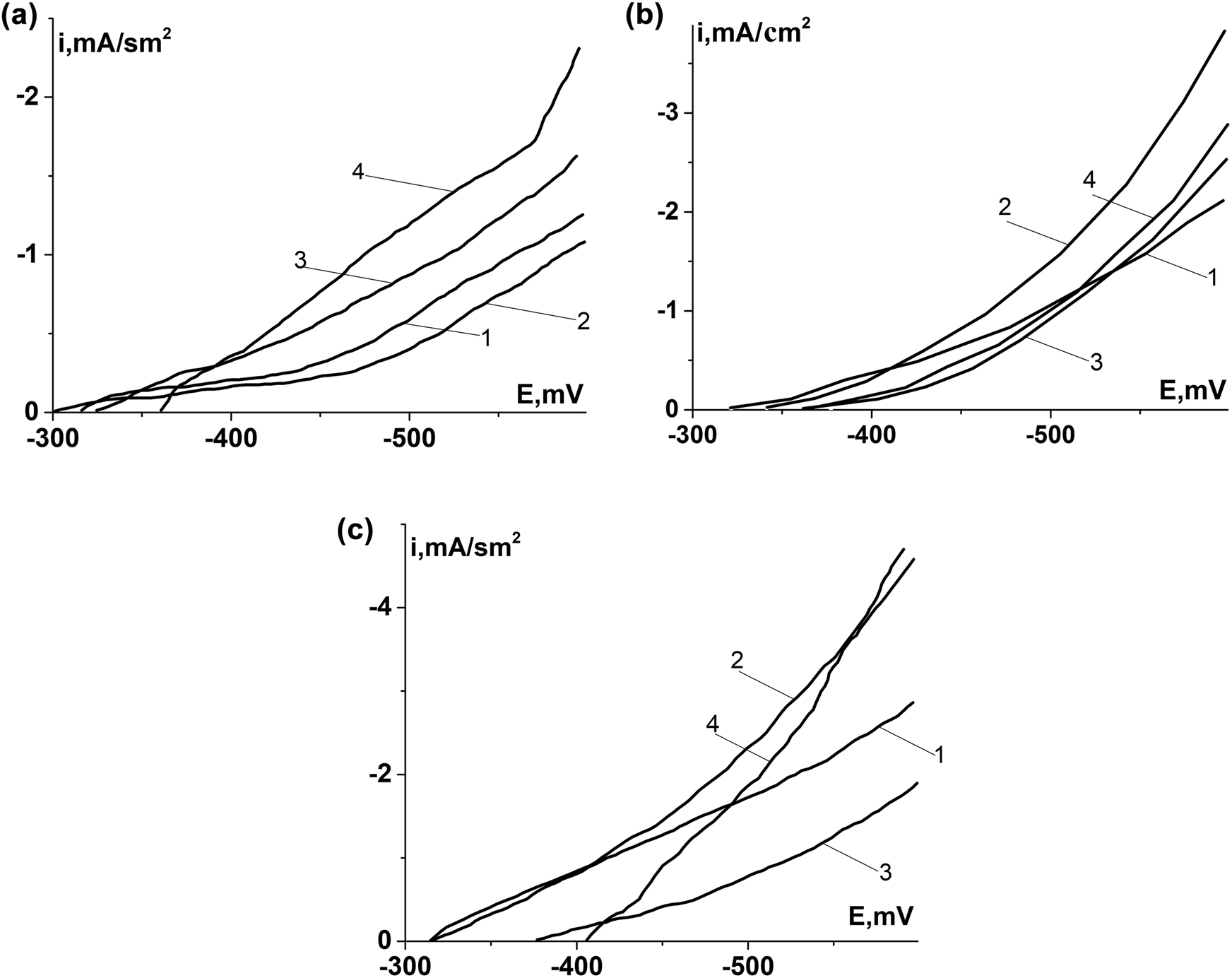

Figure 4:

Cathodic polarization curves of Armco iron (a), 0.8% C steel (b), and 0.45% C steel (c) without sulfides (1), with iron sulfides on their surfaces (2 – FeS₂; 3 – FeS; 4 – Fe₉S₈).

Cathodic currents in case of the same polarization on 0.8% C steel without sulfides were higher in ∼2.0 times than on Armco iron. The formation of Fe₉S₈ did not change the values, FeS – reduced in ∼1.2 times, and FeS₂ – increased in ∼1.3 times (Figure 4b). Consequently, the influence of sulfides on cathodic processes was depends on steel structure. The presence of two phases in the 0.45% C steel – ferrite and perlite led to increasing of the cathodic currents: compared with Armco iron in ∼6.0 and 0.8% C steel in ∼3.0 times. This is caused by interaction of the two phases and the peculiarities of the formation of grain boundaries between them. The formation of FeS₂ on 0.45% C steel did not affect cathodic polarization currents, FeS – reduced them in ∼2.1 times, and Fe₉S₈ – increased in ∼1.8 times (Figure 4c). In chloride-acetate solutions under cathodic polarization, Hydrogen evolution was a prevented reaction. The results indicate that its rate depends from structure of the steel and the chemical composition of iron sulfides on its surface. It can also be influenced by their adhesion and density (porosity).

The formation of FeS₂ on Armco iron didn’t affect rate of anodic reactions. FeS and Fe₉S₈ at anodic polarization of 50 mV increased its rate in ∼2.4 and ∼2.6 times respectively (Figure 5a). At the absence of sulfides, the currents of anodic reactions on 0.8% C steel compared with Armco iron higher in 1.4 times. FeS₂ and FeS led to decreasing of currents of the anodic processes in ∼6.7 and ∼3.2 times respectively, while Fe₉S₈ did not affect the rate (Figure 5b). Anodic reactions on 0.45% C steel over the same polarization run at maximum rate of 0.72 mA/cm². FeS₂ and Fe₉S₈ increased the rate of anodic reactions in ∼3.2 and ∼1.9 times, respectively, while the FeS reduced it in ∼3.0 times (Figure 5c). Consequently the influence of sulfides on rate of anodic processes was ambiguous and determined by the structure of steels and the nature of the sulfides on their surfaces.

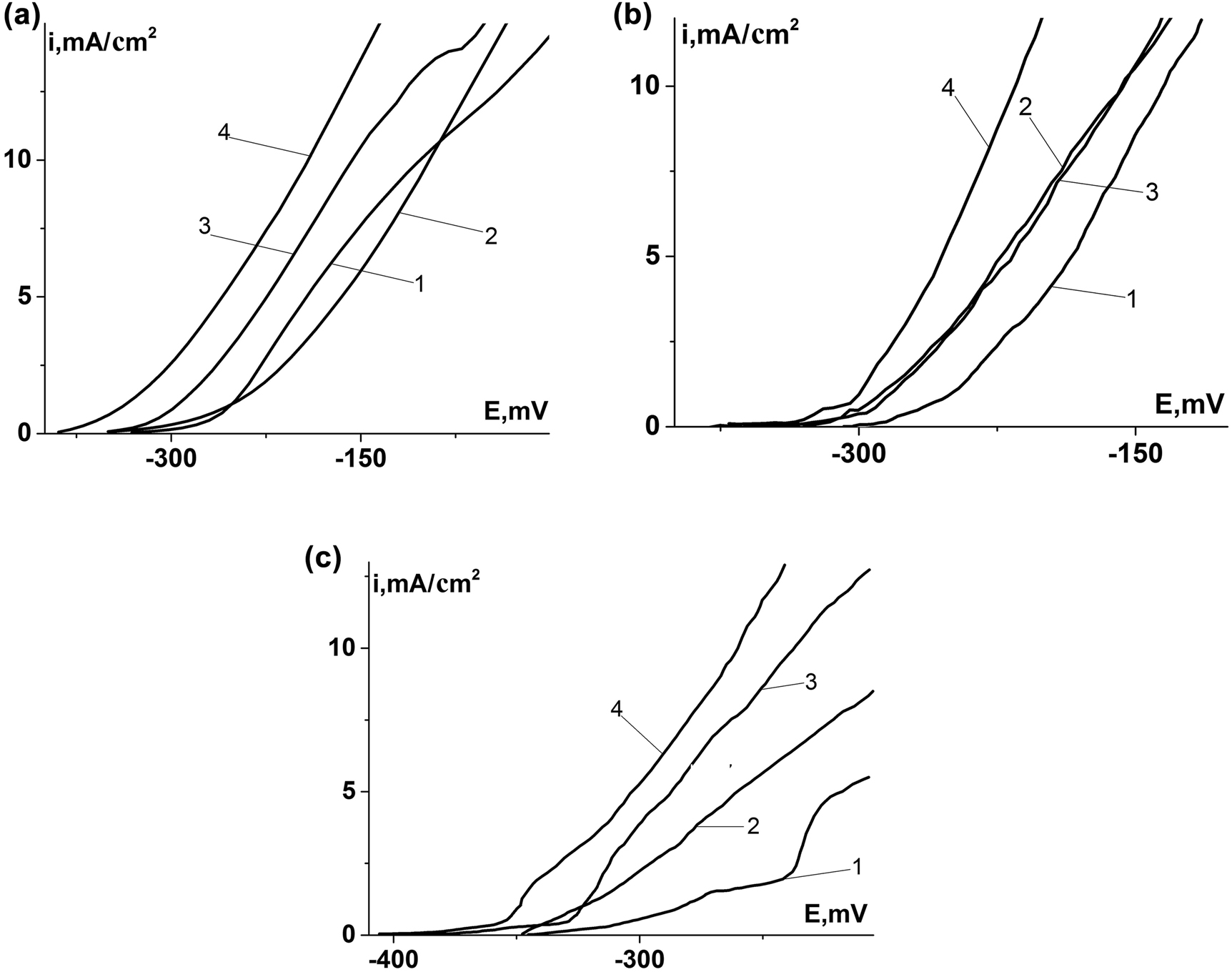

Figure 5:

Anodic polarization curves of Armco iron (a), 0.8% C steel (b), and 0.45% C steel (c) without sulfides (1), with iron sulfides on their surfaces (2 – FeS₂; 3 – FeS; 4 – Fe₉S₈).

It was established that is due to electrolytic hydrogenation of the investigated metals iron sulfides on their surface increased the volume of generated hydrogen (Figure 6). But FeS on the 0.8% C steel did not affect these processes. The most significant increase of hydrogen amount was observed in case of formation Fe₉S₈ on steels. At the same time, the volume of absorbed hydrogen also increased, excepted of pyrite and troilite on Armco iron and pyrite on 0.8% C steel (Figure 6b). At the presence of Fe₉S₈ on Armco iron hydrogen is reduced more than in ∼7.1 times, and hydrogenation increased only in ∼2.1 times. On 0.8% C and 0.45% C steels, where the volume of released hydrogen increases at presence of Fe₉S₈ in ∼3.8, volume of adsorbed hydrogen higher in ∼1.4 times.

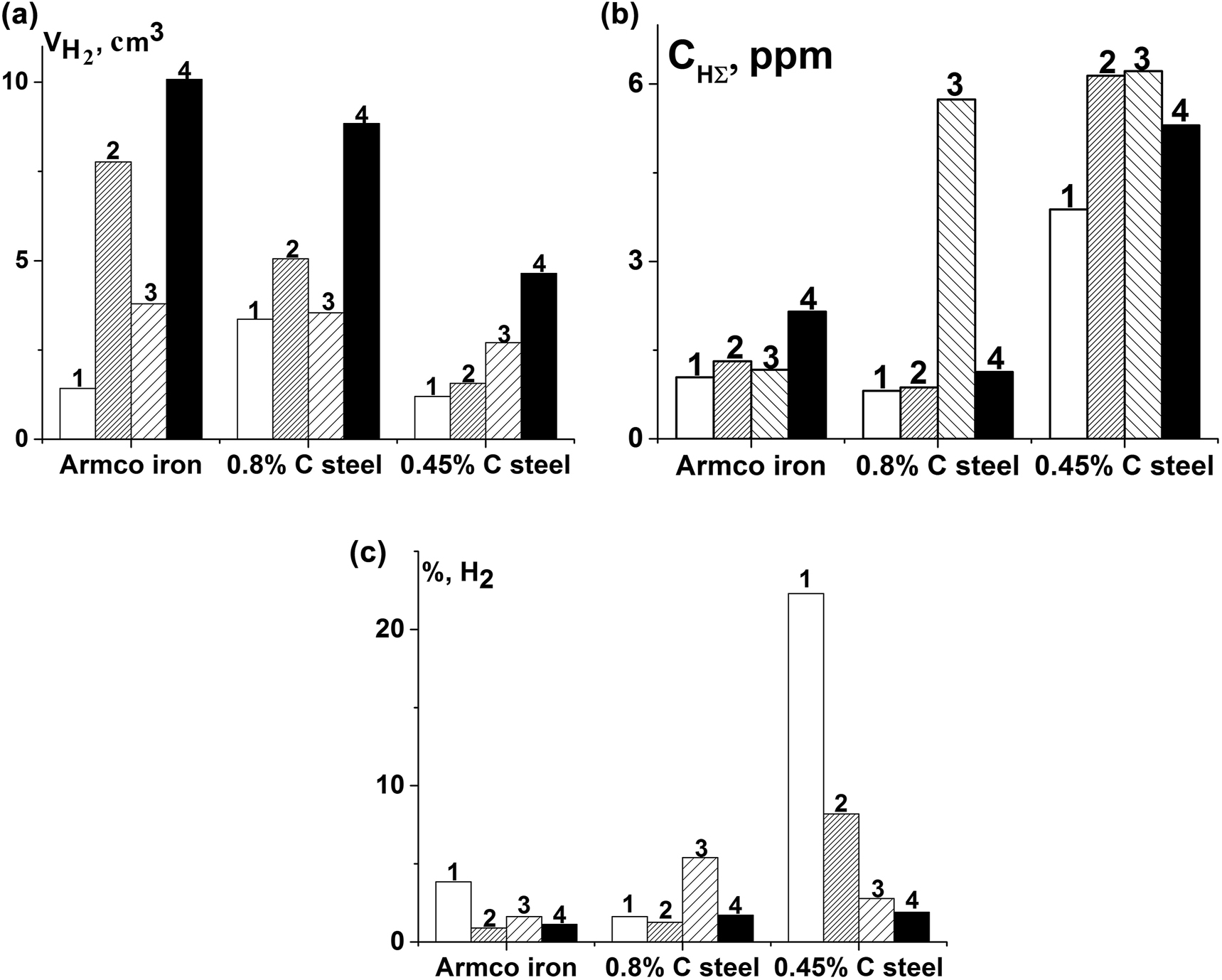

Figure 6:

The volume of generated hydrogen in the process of electrolytic hydrogenation (a) and absorbed hydrogen (b), part of absorbed hydrogen to its total amount, released under corrosion (c) without sulfides (1), and their presence on Armco iron, 0.8% C steel and 0.45% C steel (2 – FeS₂; 3 – FeS; 4 – Fe₉S₈).

The part of absorbed hydrogen on Armco iron, at the presence of sulfides, reduces in ∼2.4…4.3, while on 0.45% C steel in ∼2.7…11.8 times (Figure 6c). On 0.8% C steel their influence was different: FeS₂ and Fe₉S₈ slightly reduced the proportion of absorbed hydrogen, and FeS increased it in ∼3.3 times. However, this is not reduced the hydrogenation of the investigated metals. Iron sulfides differently affect the rate of individual stages of hydrogen release and can inhibit the absorption of hydrogen. Its evolution on steels consists of several stages. The first stage occurs without inhibition – the delivery of participants of the electro-chemical reaction to the metals surface. After that they are discharging and adsorbed atoms are forming. Such atoms can form molecular hydrogen or diffuse into metal. Sulfides preferentially increase the volume of the generated and absorbed hydrogen. It could be assumed that they slow down the reaction of catalytic recombination of hydrogen atoms, which occurs simultaneously with its desorption. The catalyst of this process was sulfide formed on the surface.

The mechanism of the influence of hydrogen sulfide on hydrogen absorption remains controversial. This is due to the large number of oxidation–reduction reactions, which can run on the surface of steels and the nature of transition complexes; corrosion products. The influence of hydrogen sulfide on the rate of anodic reactions based on literature data could be presented as follows: at the beginning of the interaction of steel with a hydrogen sulfide medium, a surface catalytically-active complex formed (Hansson et al. 2006; Sherar et al. 2011). Future, its oxidation run into [Fe(HS)]ads+, which in acidic environments promotes ionization of iron and regeneration of hydrogen sulfide according to reaction:

However, in case of steel corrosion in hydrogen sulfide media a number of sulfides can form, which solubility equilibrium is SP_FeS = 3.8·10⁻²⁰, SP_Fe2S3 ∼ 10⁻⁸⁸ (Wypych 2019). Consequently, when concentrations of sulfide ions more than ∼2.58 10⁻⁵³ mol/L can be formed sulfides on steel, which also affect the corrosion rate and reaction of hydrogen evolution, which is very sensitive to the surface state on which this process happened.

The influence of hydrogen sulfide on the rate of cathodic reactions based on its electrochemical reaction according to Shoesmith et al. (1980):

or electrochemical (Bolmer 1965; Kittel et al. 2013):

According to the hypothesis of surface catalysts the formation of adsorbed Hydrogen atoms occurs when the complex [Fe(H−S−Н)]ads restores. It is also does not take into account the formation of iron sulfides when steels are corroding. The exhaustion of hydrogen sulfide with the time exposure of metals in the environment also has not noticed. Based on these considerations and the obtained results, we proposed extended scheme of the influence of hydrogen sulfide on the corrosion rate and hydrogenation of steels by reactions of formation of the iron sulfides with various composition (Figure 7).

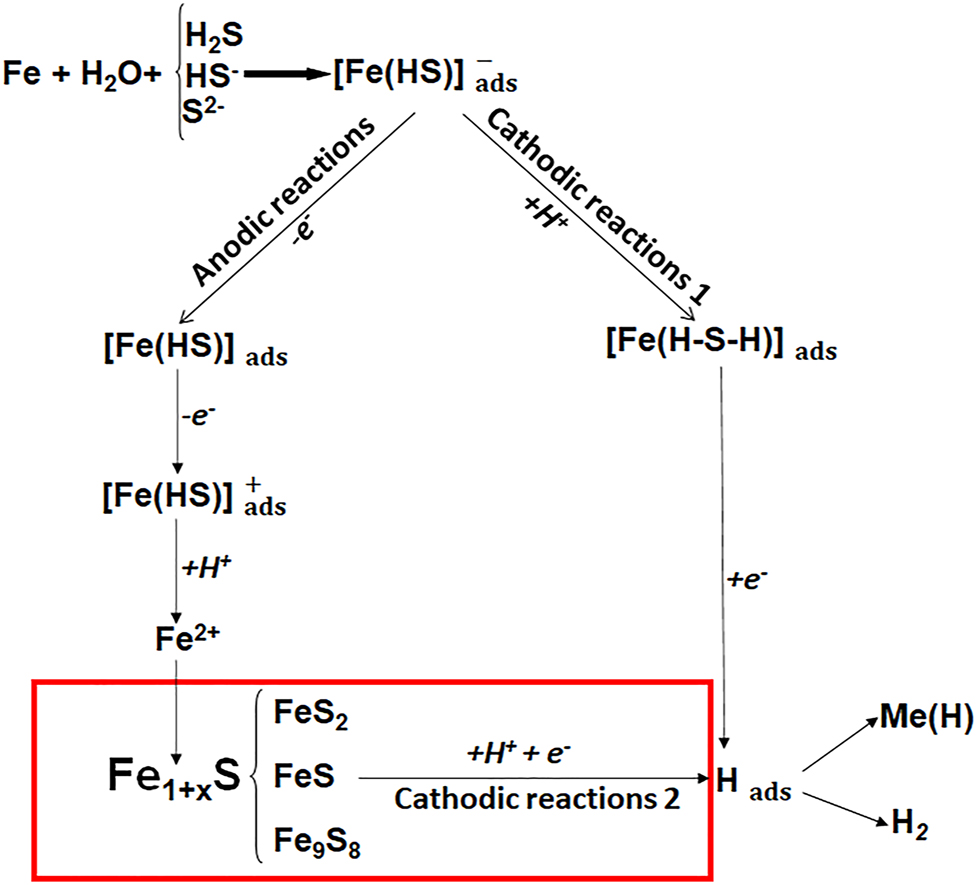

Figure 7:

A well-known scheme of electrode processes behind corrosion of steels in hydrogen sulfide media.

According our generalization of the well-known scheme the Fe²⁺ ions interact with sulfide ions and an unstable mackinawite is formed, which future, depends on the concentration of hydrogen sulfide in the medium, transform into pyrite, troilite, or kansite. Confirm our hypothesis small values of the solubility equilibrium of iron sulfides and the layer formation of sulfide-containing corrosion products on steels used in hydrogen sulfide-containing media. Cathodic reaction with the formation of adsorbed hydrogen atoms, depends on the adhesion and porosity of iron sulfides formed on the steel surface can run on the surfaces (cathodic reaction 2) or on steel (cathodic reaction 1). They can form molecular hydrogen as the result of catalytic recombination or electrochemical desorption or diffuse into metal, causing hydrogen embrittlement of steels. Taking into account that sulfides increase the amount of generated and absorbed hydrogen, it is possible to assume their slowing effect on the formation of molecular hydrogen. As a result, the surface concentration of atomic hydrogen and its chemical potential increases.

4 Conclusions

1. Armco iron in chloride-acetate solutions corrodes under the cathodic control, 0.8% C steel – under the mixed, and 0.45% C steel – under the anodic. The formation of iron sulfides on its surfaces leads to a change in the nature of limiting stage of corrosion. At the presence of pyrite and troilite on Armco iron it run under the anodic with a lower rate, and the kansite – cathodic–anodic control at a higher rate. On 0.8% C steel iron sulfides, regardless of its chemical composition, increase the efficiency of cathodic processes, but reduce the corrosion rate, which is determined by the anodic reactions. At the presence of pyrite and troilite on the surface 0.45% C steel, corrosion run under the cathodic control, and the kansite – anodic. The formation of sulfides on its surface led to the increase of corrosion rate. Consequently, the influence of sulfides on the rate of oxidation–reduction processes depends on the structure of steels.

2. It was established that pyrite and troilite does not affect the hydrogenation of Armco iron, and the kansite increases it by ∼50%. 0.8% C steel with kansite and troilite absorbs about 1.4 and ∼7.1 times more hydrogen and its content did not change with pyrite. The sulfides formation on 0.45% C steel increases it hydrogenation by ∼36…60%. Consequently, the hydrogenation of Armco iron and 0.8% C and 0.45% C steels was determined not only by its structure, but also by the nature of sulfide-containing corrosion products on the surface, which can slow down the catalytic recombination of hydrogen atoms.

3. A well-known scheme of electrode processes at steel corrosion in hydrogen sulfide media was generalized. It took into account formation of unstable sulfide of mackinawite with its subsequent transformation into pyrite, troilite, and kansite. They will affect kinetic of the cathodic reaction of formation adsorbed hydrogen atoms and its molation due to cathodic reaction or electrochemical desorption. These processes determine the chemical potential of adsorbed hydrogen atoms and its absorption by steels.
