Home Solvothermal synthesis and crystal structure of aqua-tris(p-acetamidobenzoate-κ2O,O′)-(2,2′-bipyridine-κ2N,N′)terbium(III) - water - methanol (1/1/1)
Article Open Access

Solvothermal synthesis and crystal structure of aqua-tris(p-acetamidobenzoate-κ2O,O′)-(2,2′-bipyridine-κ2N,N′)terbium(III) - water - methanol (1/1/1)

  • Zhuo-Wen Xu , Yu-Xuan Xia , Chang-Hong Li , Wei Li ORCID logo EMAIL logo and Yang Liu ORCID logo EMAIL logo
Published/Copyright: January 15, 2024
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 239 Issue 2

Abstract

C75H76N10O23Tb2, triclinic, P − 1 ‾ (no. 2), a = 10.4524(13) Å, b = 12.9626(16) Å, c = 15.2003(18) Å, α = 108.674(2)∘, β = 94.931(2)∘, γ = 101.617(2)∘, V = 1885.8(4) nm3, Z = 1, R gt (F) = 0.0236, wR ref (F 2) = 0.0584, T = 296 K.

CCDC no.: 2268022

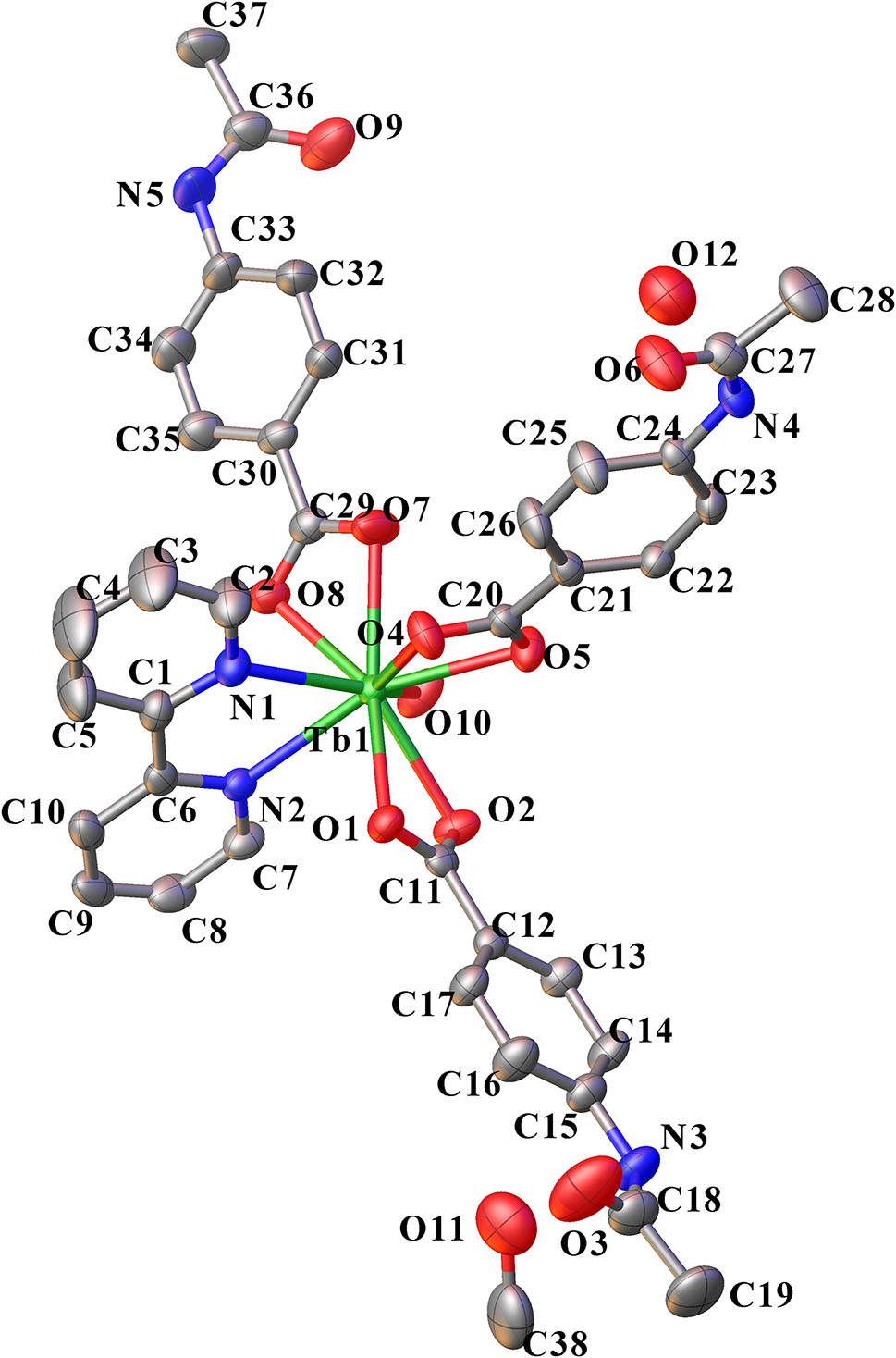

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.22 × 0.20 × 0.18 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 1.94 mm−1
Diffractometer, scan mode: φ and ω
θ max, completeness: 25.0°, >99 %
N(hkl)measured , N(hkl)unique, R int: 19,697, 6645, 0.027
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 6175
N(param) refined: 511
Programs: SHELX [1], [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.7370 (3) 0.6218 (3) 0.2255 (2) 0.0363 (7)
C2 0.5147 (4) 0.5380 (3) 0.1996 (3) 0.0539 (9)
H2 0.431205 0.538747 0.216121 0.065*
C3 0.5278 (5) 0.4481 (4) 0.1259 (3) 0.0803 (15)
H3A 0.454582 0.390240 0.092448 0.096*
C4 0.6513 (5) 0.4458 (4) 0.1027 (4) 0.0907 (17)
H4A 0.663249 0.385814 0.053305 0.109*
C5 0.7571 (4) 0.5328 (3) 0.1531 (3) 0.0666 (12)
H5A 0.841620 0.531915 0.138636 0.080*
C6 0.8460 (3) 0.7217 (3) 0.27809 (19) 0.0314 (6)
C7 0.9069 (3) 0.9027 (3) 0.3841 (2) 0.0386 (7)
H7 0.884160 0.963728 0.425822 0.046*
C8 1.0380 (3) 0.9127 (3) 0.3702 (2) 0.0477 (9)
H8 1.101405 0.979345 0.401884 0.057*
C9 1.0722 (3) 0.8237 (3) 0.3098 (2) 0.0483 (9)
H9 1.159581 0.828410 0.300311 0.058*
C10 0.9766 (3) 0.7266 (3) 0.2627 (2) 0.0417 (8)
H10 0.998506 0.664974 0.221224 0.050*
C11 0.6909 (2) 0.8099 (2) 0.54682 (19) 0.0278 (6)
C12 0.7295 (3) 0.8140 (2) 0.64509 (18) 0.0291 (6)
C13 0.7370 (3) 0.9099 (3) 0.7218 (2) 0.0365 (7)
H13 0.721211 0.973892 0.712166 0.044*
C14 0.7679 (3) 0.9111 (3) 0.8126 (2) 0.0414 (8)
H14 0.772006 0.975729 0.863375 0.050*
C15 0.7928 (3) 0.8171 (3) 0.8287 (2) 0.0372 (7)
C16 0.7869 (4) 0.7216 (3) 0.7526 (2) 0.0475 (8)
H16 0.803797 0.657871 0.762055 0.057*
C17 0.7559 (3) 0.7216 (3) 0.6625 (2) 0.0394 (7)
H17 0.752665 0.657182 0.611835 0.047*
C18 0.8376 (4) 0.7394 (4) 0.9548 (3) 0.0566 (10)
C19 0.8738 (5) 0.7732 (4) 1.0596 (3) 0.0780 (14)
H19A 0.928184 0.848481 1.084582 0.117*
H19B 0.921556 0.723067 1.073892 0.117*
H19C 0.794652 0.769706 1.087448 0.117*
C20 0.3353 (3) 0.71162) 0.41405 (19) 0.0302 (6)
C21 0.1972 (3) 0.6633 (2) 0.42178 (19) 0.0304 (6)
C22 0.1251 (3) 0.7255 (3) 0.48031 (19) 0.0339 (7)
H22 0.165493 0.798102 0.520555 0.041*
C23 −0.0064 (3) 0.6804 (3) 0.4793 (2) 0.0352 (7)
H23 −0.054052 0.723063 0.518913 0.042*
C24 −0.0689 (3) 0.5721 (2) 0.4199 (2) 0.0318 (6)
C25 0.0040 (3) 0.5076 (3) 0.3631 (3) 0.0466 (8)
H25 −0.035321 0.434067 0.324495 0.056*
C26 0.1353 (3) 0.5542 (3) 0.3647 (2) 0.0444 (8)
H26 0.183727 0.511079 0.326300 0.053*
C27 −0.2851 (3) 0.4309 (3) 0.3804 (2) 0.0420 (8)
C28 −0.4275 (3) 0.4243 (3) 0.3931 (3) 0.0601 (10)
H28A −0.484159 0.376665 0.335169 0.090*
H28B −0.443214 0.498078 0.410274 0.090*
H28C −0.445786 0.393841 0.441776 0.090*
C29 0.4749 (3) 0.8155 (2) 0.1956 (2) 0.0346 (7)
C30 0.4170 (3) 0.8238 (2) 0.10559 (19) 0.0349 (7)
C31 0.2819 (3) 0.8055 (3) 0.0819 (2) 0.0455 (8)
H31 0.226351 0.785567 0.121438 0.055*
C32 0.2283 (4) 0.8163 (4) −0.0001 (2) 0.0567 (10)
H32 0.137079 0.804292 −0.015079 0.068*
C33 0.3088 (4) 0.8448 (4) −0.0595 (2) 0.0579 (10)
C34 0.4442 (4) 0.8602 (4) −0.0380 (2) 0.0581 (10)
H34 0.498978 0.877522 −0.078952 0.070*
C35 0.4981 (4) 0.8498 (3) 0.0439 (2) 0.0484 (8)
H35 0.589222 0.860294 0.057980 0.058*
C36 0.1660 (4) 0.9164 (4) −0.1486 (2) 0.0532 (9)
C37 0.1250 (4) 0.9196 (5) −0.2447 (3) 0.0738 (13)
H37A 0.035800 0.928062 −0.250411 0.111*
H37B 0.129744 0.850902 −0.291667 0.111*
H37C 0.183090 0.981747 −0.253424 0.111*
C38a 0.9571 (8) 0.4811 (7) 0.9458 (6) 0.079 (3)
H38Aa 1.034544 0.466476 0.919417 0.119*
H38Ba 0.950664 0.454734 0.997907 0.119*
H38Ca 0.963143 0.560343 0.967167 0.119*
N1 0.6162 (2) 0.6243 (2) 0.24866 (16) 0.0352 (6)
N2 0.8121 (2) 0.8087 (2) 0.33960 (15) 0.0297 (5)
N3 0.8245 (3) 0.8236 (2) 0.92279 (18) 0.0485 (7)
H3 0.837028 0.889036 0.964954 0.058*
N4 −0.2056 (2) 0.5357 (2) 0.41835 (18) 0.0363 (6)
H4 −0.244010 0.587388 0.445342 0.044*
N5 0.2556 (4) 0.8580 (4) −0.1428 (2) 0.0862 (14)
H5 0.283334 0.825779 −0.193760 0.103*
O1 0.6679 (2) 0.71730 (17) 0.47911 (13) 0.0357 (5)
O2 0.6792 (2) 0.89745 (17) 0.53178 (14) 0.0397 (5)
O3 0.8186 (4) 0.6422 (3) 0.9033 (2) 0.0978 (12)
O4 0.4011 (2) 0.64844 (17) 0.36719 (16) 0.0419 (5)
O5 0.3865 (2) 0.81601 (17) 0.45097 (14) 0.0398 (5)
O6 −0.2464 (2) 0.3479 (2) 0.3406 (2) 0.0589 (7)
O7 0.3976 (2) 0.7850 (2) 0.24712 (16) 0.0548 (7)
O8 0.5978 (2) 0.83788 (19) 0.21936 (14) 0.0408 (5)
O9 0.1211 (3) 0.9640 (3) −0.08026 (19) 0.0765 (9)
O10 0.6173 (3) 0.99731 (18) 0.40177 (15) 0.0503 (6)
H10A 0.608751 1.033407 0.460587 0.075*
H10B 0.554676 1.013137 0.368946 0.075*
O11a 0.8397 (6) 0.4228 (5) 0.8742 (5) 0.0814 (18)
H11a 0.789970 0.464790 0.876261 0.122*
O12 −0.4135 (3) 0.1396 (3) 0.2976 (2) 0.0779 (8)
H12A −0.372104 0.206982 0.326121 0.117*
H12B −0.493514 0.144212 0.297781 0.117*
Tb1 0.57563 (2) 0.79869 (2) 0.36700 (2) 0.02488 (5)

  1. aOccupancy: 0.5.

1 Source of material

0.3 mmol p–acetylamino benzoic acid, 0.2 mmol 2,2′-bipyridine (2,2′-bipy) and 0.1 mmol terbium(III) acetate hydrate were dissolved in 15 mL mixed solvent (V methanol:V water = 3:1). The pH value was adjusted to about 6.5 with 0.1 M NaOH solution. The reaction mixture was refluxed for 4 h under stirring. After that, the mixture was placed in a 25 mL hydrothermal reaction kettle. The vessel was sealed and heated at 160 °C for 48 h. Afterwards the system was cooled to room temperature. The resultant solution was filtered and the filtrate was kept untouched and evaporated slowly at room temperature. The colorless and transparent crystals were obtain.

2 Experimental details

The H atoms bound to C atoms were placed in idealized positions and treated as riding on their parent atoms, with d(C–H) = 0.96 Å (methylene), with U iso(H) = 1.5U eq(C), and d(C–H) = 0.93 Å (aromatic), with U iso(H) = 1.2U eq(C).

3 Comment

In the domain of rare earth chemistry, the study of rare earth-organic complexes has attracted much attention due to their potential applications in many fields such as organic electroluminescent materials, agricultural light conversion film, high efficiency fluorescent powder for compact lamp, luminescence labeling, magnetic molecular materials, catalysis and so on [4], [5], [6]. Nowadays, much attention has been focused on Tb(III) and Eu(III) complexes with carboxylates as ligands [7], [8], [9]. p–Acetamidobenzoic acid is a widely used aromatic carboxylic acid: it is the raw material for the synthesis of non-barbiturate hypnotic sedative quinazoline-4-one derivatives [10], and also the raw material for the synthesis of fluorescent whitening agent and anti-asthma drug N-cinnamyl anthranilic acid [11]. As a ligand, p-acetaminobenzoate and the paracetaminobenzoic acid can coordinate with transition metal ions as end-group ligand or bridging ligand, and is also the donor and acceptor of hydrogen bond, which is conducive to the formation of structurally stable complexes [12] The ORTEP diagram is presented in the Figure. As shown in Figure, complex 1 consists of one Tb ion, three p-acetamidobenzoate anions (AAB), one 2,2′-bipy molecules, two water molecules and one methanol molecule. The central Tb ion is coordinated with two nitrogen atoms from 2,2′-bipy, and seven oxygen atoms from three AAB anions and one water molecule. The Tb(III) ion adopts a single-capped square antiprism coordination geometry, where the cap position is occupied by O10. Atoms O1, O4, N1 and N2 give the upper plane of the square antiprism, and atoms O2, O5, O7 and O8 determine the plane below. Their plane equations are −3.215x + 12.632y – 1.730z = 8.2531 and −4.989x + 12.392y + −3.405z = 4.3340. The average distance of the atoms in the plane is 0.0310 Å and 0.04631 Å, respectively, and their dihedral angle is 13.5°. The bond lengths Tb1–O1, Tb1–O2, Tb1–O4, Tb1–O5, Tb1–O7, Tb1–O8 and Tb1–O10 are 2.495(2), 2.4509(19), 2.386(2), 2.453(2), 2.428(2), 2.474(2) and 2.395(2) Å, respectively, which are in the normal ranges [11, 12]. The bond lengths of Tb1–N1 and Tb1–N2 are 2.537(2) and 2.527(2) Å, with the average to be 2.532 Å. Otherwise, the shortest center distance between aromatic cycles of 2-(tert-pentyl)anthracene group is 3.736 Å, little longer than 3.700 Å, indicating π–π stacking interaction between the aromatic rings.

Corresponding authors: Wei Li and Yang Liu, Department of Chemistry and Materials Science, Hengyang Normal University, Hengyang, Hunan 421008, China, E-mail: ,

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Sheldrick, G. M. SHELXS2018. Program for the Solution of Crystal Structures; University of Göttingen: Germany, 2018.Search in Google Scholar

2. Sheldrick, G. M. SHELXL2018. Program for the Refinement of Crystal Structures; University of Göttingen: Germany, 2018.Search in Google Scholar

3. Sheldrick, G. M. SHELTL. Sturcture Determination Software Suite Version 14; Bruker AXS: Madison, Wisconsin, USA, 2018.Search in Google Scholar

4. Zong, G. C., Ren, N., Zhang, J. J., Qi, X. X., Gao, J. Lanthanide complexes with 3-bromine-4-methyl benzoic acid and 1,10-phenanthroline. J. Therm. Anal. Calorim. 2016, 123, 105–116; https://doi.org/10.1007/s10973-015-4901-9.Search in Google Scholar

5. Ye, Y. Z., Wu, X. J., Wang, A. L. Synthesis, structure and property of a novel coordination polymer [Tb(C7H3NO4)(C6H4NO2)(H2O)]. Chin. J. Struct. Chem. 2014, 33, 1860–1864.Search in Google Scholar

6. Liu, G. X., Zha, X. C., Li, X. L. Synthesis, structure and luminescent properties of a new terbium(III) complex with 5-bromoisophthalic acid. Chin. J. Struct. Chem. 2012, 31, 173–178.10.7312/li--16274-032Search in Google Scholar

7. Ma, D. Y., Xiao, J. X., Guo, H. F., Liang, Y. Q., Yan, J. J., Lin, W. J., Ding, W. Q. Magnetic properties in mononuclear gadolinium(III) and terbium(III) complexes based on ethoxylphenylsubstituted nitronyl nitroxide radical and hexafluoroacetylacetonate ligand. Chin. J. Struct. Chem. 2016, 35, 361–370.Search in Google Scholar

8. Hu, B., Yao, X. Q., Xie, Y. Q., Zhang, Y. M., Wei, T. B. Synthesis, crystal structure and properties of two coordination polymers constructed by lanthanide and [5-amino-1,3,4-thiadiazol-2-yl]thioglycolic acid. Chinese J. Inorg. Chem. 2013, 29, 2422–2432.Search in Google Scholar

9. Heil, H., Steiger, J., Schmechel, R., Seggern, H. V. Tris(dibenzoylmethane)(monophenanthroline)europium(III) based red emitting organic light emitting diodes. J. Appl. Phys. 2001, 90, 5357–5362; https://doi.org/10.1063/1.1410319.Search in Google Scholar

10. Li, W., Li, C. H., Yang, Y. Q., Kuang, Y. F. Hydrothermal synthesis, crystal structure and thermal stability properties of complex [Zn(p–ABA)2(phen) (H2O)]H2O. Chin. J. Inorg. Chem. 2007, 23, 2023–2027.Search in Google Scholar

11. Wang, Z. H., Fan, J., Zhang, W. G. Studies of radii-dependent lanthanide coordination behavior with 4-acetamidobenzoate and 1,10-phenanthroline. Z. Anorg. Allg. Chem. 2009, 635, 2333–2339; https://doi.org/10.1002/zaac.200801412.Search in Google Scholar

12. Li, W., Tan, X. W., Li, C. H., Yang, Y. Q. Crystal structure of aqua[4-carboxylamino-benzoic acid−k2:O1:O2]bis[2,2′-bipyridine-k2:N1:N2]copper(II) complex, [Cu(2,2′-bipy) (C8H6O4N)2]⋯43(H2O). Z. Kristallogr. N. Cryst. Struct. 2011, 225, 715–716.Search in Google Scholar
Received: 2023-06-08
Accepted: 2023-12-30
Published Online: 2024-01-15
Published in Print: 2024-04-25
