Abstract

C22H10F4I2N4, monoclinic, P21/c (no. 14), a = 9.7940(3) Å, b = 5.34970(10) Å, c = 20.5119(5) Å, β = 101.673(3)°, V = 1052.49(5) Å3, Z = 2, R gt (F) = 0.0222, wR ref (F 2) = 0.0505, T = 293(2) K.

CCDC no.: 2211980

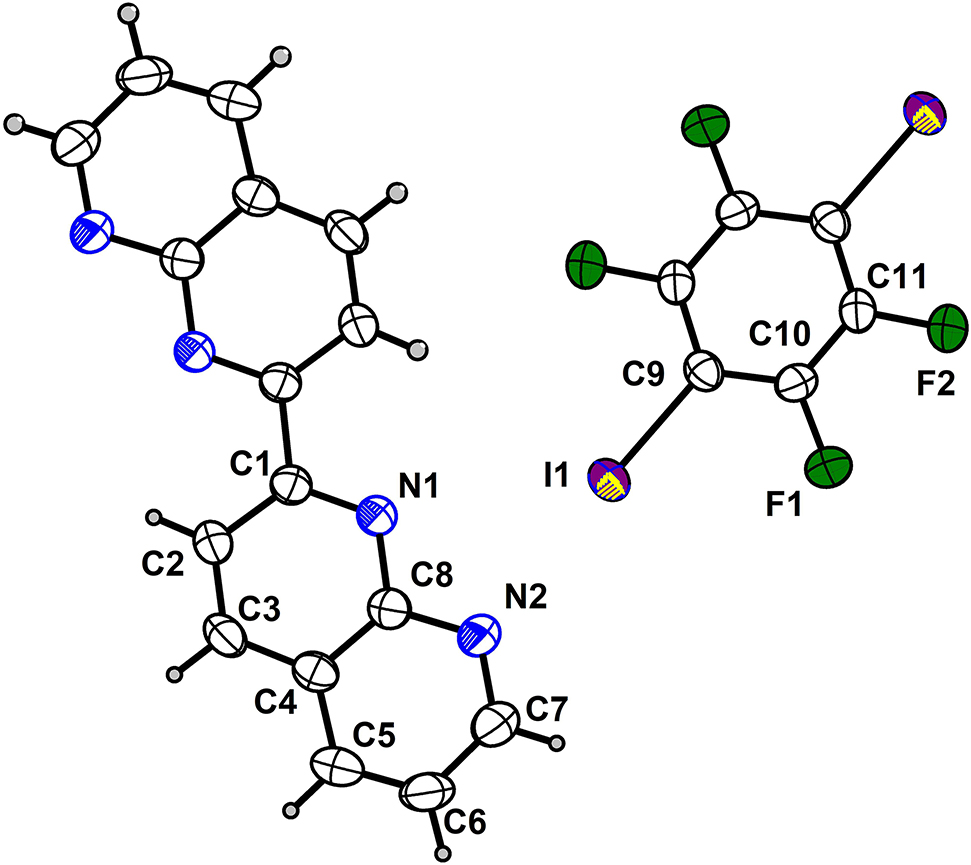

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Brown block
Size: 0.27 × 0.25 × 0.24 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 3.04 mm−1
Diffractometer, scan mode: SuperNova, ω
θ max, completeness: 28.5°, >99%
N(hkl)measured, N(hkl)unique, R int: 14098, 2416, 0.032
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2214
N(param)refined: 145
Programs: CrysAlisPRO [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
I1 0.62398 (2) 0.46696 (3) 0.40701 (2) 0.03647 (7)
F1 0.35218 (16) 0.1108 (3) 0.37691 (7) 0.0544 (4)
F2 0.26126 (16) −0.2467 (3) 0.44727 (8) 0.0530 (4)
C9 0.5491 (2) 0.1881 (4) 0.46221 (11) 0.0325 (5)
C10 0.4271 (3) 0.0595 (5) 0.43829 (12) 0.0355 (6)
C11 0.3794 (2) −0.1238 (5) 0.47488 (12) 0.0346 (5)
N1 0.8799 (2) 0.9095 (4) 0.42676 (10) 0.0355 (5)
N2 0.7324 (2) 0.8424 (4) 0.32636 (10) 0.0456 (6)
C1 0.9798 (3) 1.0408 (5) 0.46445 (12) 0.0343 (5)
C2 1.0463 (3) 1.2462 (5) 0.44131 (13) 0.0424 (6)
H2 1.1155 1.3341 0.4700 0.051*
C3 1.0077 (3) 1.3140 (5) 0.37630 (13) 0.0451 (6)
H3 1.0514 1.4474 0.3598 0.054*
C4 0.9009 (3) 1.1805 (5) 0.33396 (12) 0.0373 (6)
C5 0.8472 (3) 1.2394 (6) 0.26630 (13) 0.0491 (7)
H5 0.8849 1.3701 0.2458 0.059*
C6 0.7401 (3) 1.1026 (6) 0.23194 (14) 0.0550 (8)
H6 0.7028 1.1389 0.1876 0.066*
C7 0.6864 (3) 0.9064 (6) 0.26389 (14) 0.0542 (8)
H7 0.6130 0.8146 0.2393 0.065*
C8 0.8393 (3) 0.9797 (5) 0.36185 (13) 0.0354 (6)

Source of material

The 2,2′-bi(1,8-naphthyridine) (purity > 98%) was bought from J&K Scientific Ltd. (Beijing, China), and 1,4-diiodotetrafluorobenzene (purity > 98%) was purchased from Alfa Chemical Co., Ltd. (Zhengzhou, China). The solvent trichloromethane (analytical grade) was bought from a local chemical company. All of the chemicals were used as received. The crystalline compounds 2,2′-bi(1,8-naphthyridine) (1.29 mg, 0.005 mmol) and 1,4-diiodotetrafluorobenzene (2.01 mg, 0.005 mmol) were dissolved in approximately 10 mL of trichloromethane under gentle stirring. The solution was placed for crystallization by slow evaporation of the solvent at room temperature. After about two days, brown block crystals of title compound were obtained.

Experimental details

All the hydrogen atoms were placed in calculated positions, and then treated as riding atoms in the latter stages of refinement, with U iso(H) set to 1.2U eq(C).

Comment

The halogen bond is one of the most important noncovalent bonds [5], [6], [7], [8], [9], [10], [11]. In recent years, the application of the halogen bond has been extended to the fields of medicinal chemistry and advanced materials [8], [9], [10], [11]. According to a statistic in 2014, 34% of drugs at the research stage were halogenated drugs [9, 10]. This indicates that the formation probability of the halogen bond in medicinal chemistry is quite large. The important role of the halogen bond in perovskite solar cells has also been reviewed by Metrangolo and coworkers very recently [11]. In contrast to the conventional monocentric halogen bonds, the bifurcated halogen bonds were less studied [12]. In a very recent study, Wang investigated the bifurcated halogen bonds in the crystal structure of the cocrystal between 2,2′-bi(1,8-naphthyridine) and 1,2-diiodotetrafluoro-benzene [12].

All bond lengths and angles in the title crystal structure are in the normal ranges. The 2,2′-bi(1,8-naphthyridine) molecules and 1,4-diiodotetrafluorobenzene molecules are linked together by the bifurcated halogen bonds with d(I1⃛N1) = 3.412 Å, <(C9–I1⃛N1) = 139.44°, d(I1⃛N2) = 2.934 Å and <(C9–I1⃛N2) = 177.74° to form a zigzag chain. The interaction energy of the bifurcated halogen bond is −10.68 kcal/mol at the PBE0–D3/def2–TZVPP level of theory [13, 14], which is almost the same as the interaction energy of the bifurcated halogen bond in the crystal structure of the cocrystal between 2,2′-bi(1,8-naphthyridine) and 1,2-diiodotetrafluorobenzene [12]. The zigzag chains are stacked together by the π⃛π stacking interactions to form a layered structure. At the PBE0–D3/def2–TZVPP level of theory, the π⃛π stacking interaction energy between two 2,2′-bi(1,8-naphthyridine) molecules is −6.75 kcal/mol; the π⃛π stacking interaction energy between two 1,4-diiodotetrafluorobenzene molecules is −5.72 kcal/mol; the π⃛π stacking interaction energy between 2,2′-bi(1,8-naphthyridine) and 1,4-diiodotetrafluorobenzene is −6.77 kcal/mol. Let us add here that previous studies have proved that the PBE0–D3/def2–TZVPP calculations perform remarkably well for the study of the noncovalent interactions [15], [16], [17]. Obviously, the bifurcated halogen bonds are much stronger than all of these π⃛π stacking interactions. Different layers are linked by C–H⃛F hydrogen bonds into a 3D architecture.

Corresponding author: Yan Wang, College of Chemistry and Green Catalysis Center, Zhengzhou University, Zhengzhou 450001, Henan Province, P. R. China, E-mail:

Funding source: Postgraduate Education Reform and Quality Improvement Project of Henan Province http://dx.doi.org/10.13039/501100009101

Award Identifier / Grant number: YJS2022ZX06, YJS2021AL014

Funding source: National Supercomputing Center in Zhengzhou http://dx.doi.org/10.13039/501100004605

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This study was supported by the Postgraduate Education Reform and Quality Improvement Project of Henan Province (YJS2022ZX06, YJS2021AL014), National Supercomputing Center in Zhengzhou.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku. CrysAlisPro; Rigaku Inc.: Tokyo, Japan, 2015.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. Olex2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. SHELX – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

5. Cavallo, G., Metrangolo, P., Milani, R., Pilati, T., Priimagi, A., Resnati, G., Terraneo, G. The halogen bond. Chem. Rev. 2016, 116, 2478–2601; https://doi.org/10.1021/acs.chemrev.5b00484.Search in Google Scholar PubMed PubMed Central

6. Wang, H., Wang, W., Jin, W. J. σ–Hole bond versus π-hole bond: a comparison based on halogen bond. Chem. Rev. 2016, 116, 5072–5104; https://doi.org/10.1021/acs.chemrev.5b00527.Search in Google Scholar PubMed

7. Wang, W., Zhang, Y., Jin, W. J. Halogen bonding in room-temperature phosphorescent materials. Coord. Chem. Rev. 2020, 404, 213107; https://doi.org/10.1016/j.ccr.2019.213107.Search in Google Scholar

8. Wilcken, R., Zimmermann, M. O., Lange, A., Joerger, A. C., Boeckler, F. M. Principles and applications of halogen bonding in medicinal chemistry and chemical biology. J. Med. Chem. 2013, 56, 1363–1388; https://doi.org/10.1021/jm3012068.Search in Google Scholar PubMed

9. Xu, Z., Yang, Z., Liu, Y., Lu, Y., Chen, K., Zhu, W. Halogen bond: its role beyond drug-target binding affinity for drug discovery and development. J. Chem. Inf. Model. 2014, 54, 69–78; https://doi.org/10.1021/ci400539q.Search in Google Scholar PubMed

10. Mu, K., Zhu, Z., Abula, A., Peng, C., Zhu, W., Xu, Z. Halogen bonds exist between noncovalent ligands and natural nucleic acids. J. Med. Chem. 2022, 65, 4424–4435; https://doi.org/10.1021/acs.jmedchem.1c01854.Search in Google Scholar PubMed

11. Metrangolo, P., Canil, L., Abate, A., Terraneo, G., Cavallo, G. Halogen bonding in perovskite solar cells: a new tool for improving solar energy conversion. Angew. Chem. Int. Ed. 2022, 61, e202114793; https://doi.org/10.1002/anie.202114793.Search in Google Scholar PubMed PubMed Central

12. Wang, Z. Bifurcated halogen bond-driven supramolecular double helices from 1,2-dihalotetrafluorobenzene and 2,2′-bi(1,8-naphthyridine). Crystals 2022, 12, 937; https://doi.org/10.3390/cryst12070937.Search in Google Scholar

13. Adamo, C., Barone, V. Toward reliable density functional methods without adjustable parameters: the PBE0 model. J. Chem. Phys. 1999, 110, 6158–6169; https://doi.org/10.1063/1.478522.Search in Google Scholar

14. Grimme, S., Antony, J., Ehrlich, S., Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT–D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104; https://doi.org/10.1063/1.3382344.Search in Google Scholar PubMed

15. Wang, W., Zhang, Y., Wang, Y. B. Noncovalent π ⃛ π interaction between graphene and aromatic molecule: structure, energy, and nature. J. Chem. Phys. 2014, 140, 094302; https://doi.org/10.1063/1.4867071.Search in Google Scholar PubMed

16. Wang, W., Sun, T., Zhang, Y., Wang, Y. B. The benzene ⃛ naphthalene complex: a more challenging system than the benzene dimer for newly developed computational methods. J. Chem. Phys. 2015, 143, 114312; https://doi.org/10.1063/1.4931121.Search in Google Scholar PubMed

17. Wang, W., Zhang, Y., Wang, Y. B. Highly accurate benchmark calculations of the interaction energies in the complexes C6H6 ⃛ C6X6 (X = F, Cl, Br, and I). Int. J. Quant. Chem. 2017, 117, e25345; https://doi.org/10.1002/qua.25345.Search in Google Scholar
Received: 2022-08-24
Accepted: 2022-10-10
Published Online: 2022-10-24
Published in Print: 2022-12-16

© 2022 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
