Crystal structure of 9-bromo-4-(6-methoxypyridin-2-yl)-5,6-dihydrobenzo[h]quinazolin- 2-amine, C18H15BrN4O

  • Wenxuan Li , Lei Wang ORCID logo , Nan Jiang , Guige Hou ORCID logo and Yongjun Liu EMAIL logo
Published/Copyright: August 25, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 6

Abstract

C18H15BrN4O, monoclinic, P21/c (no. 14), a = 10.5097(7) Å, b = 6.6990(5) Å, c = 23.5623(15) Å, β = 92.038(6)°, V = 1657.8(2) Å3, Z = 4, R gt (F) = 0.0393, wR ref (F 2) = 0.0863, T = 150.00(10) K.

CCDC no.: 2161856

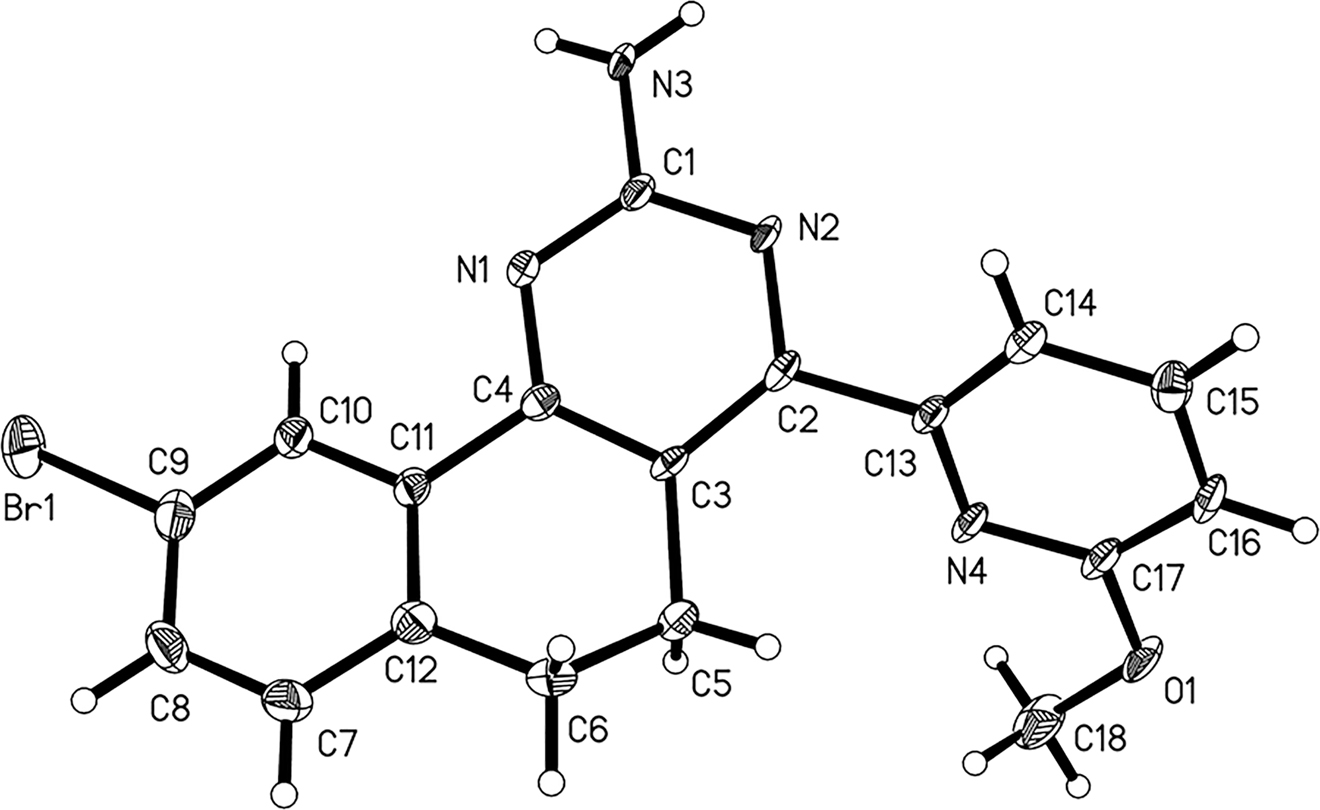

The molecular structure is shown in the figure. Displacement ellipsoids are drawn at the 40% probability level. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.16 × 0.15 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 2.49 mm−1
Diffractometer, scan mode: SuperNova
θ max, completeness: 25.5°, >99 %
N(hkl)measured, N(hkl)unique, R int: 7896, 3081, 0.036
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2406
N(param)refined: 220
Programs: CrysAlisPRO [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Br1 1.33315 (3) 0.83230 (5) 0.25784 (2) 0.04477 (14)
C1 1.0454 (2) 0.2605 (4) 0.44531 (10) 0.0183 (6)
C2 0.8366 (2) 0.3564 (3) 0.44517 (10) 0.0169 (6)
C3 0.8597 (2) 0.5074 (4) 0.40596 (10) 0.0167 (6)
C4 0.9861 (2) 0.5274 (3) 0.39116 (10) 0.0174 (6)
C5 0.7615 (3) 0.6493 (3) 0.38055 (11) 0.0215 (6)
H5A 0.688012 0.653329 0.404280 0.026*
H5B 0.733657 0.602393 0.343191 0.026*
C6 0.8179 (3) 0.8588 (4) 0.37575 (12) 0.0256 (6)
H6A 0.757810 0.943720 0.354915 0.031*
H6B 0.831027 0.914592 0.413498 0.031*
C7 0.9816 (3) 1.0156 (4) 0.31287 (12) 0.0298 (7)
H7 0.928966 1.126253 0.307889 0.036*
C8 1.0970 (3) 1.0121 (4) 0.28694 (12) 0.0329 (7)
H8 1.121989 1.118502 0.264583 0.039*
C9 1.1749 (3) 0.8473 (4) 0.29477 (11) 0.0283 (7)
C10 1.1400 (3) 0.6885 (4) 0.32797 (10) 0.0228 (6)
H10 1.193906 0.579433 0.333027 0.027*
C11 1.0239 (2) 0.6933 (4) 0.35366 (10) 0.0185 (6)
C12 0.9416 (3) 0.8579 (4) 0.34633 (11) 0.0227 (6)
C13 0.7096 (2) 0.3163 (3) 0.46814 (11) 0.0172 (6)
C14 0.6942 (3) 0.2976 (4) 0.52584 (11) 0.0210 (6)
H14 0.763109 0.313489 0.551330 0.025*
C15 0.5740 (3) 0.2548 (4) 0.54503 (11) 0.0232 (6)
H15 0.561393 0.240731 0.583695 0.028*
C16 0.4739 (3) 0.2333 (4) 0.50670 (11) 0.0222 (6)
H16 0.392304 0.204662 0.518408 0.027*
C17 0.4993 (2) 0.2562 (4) 0.44955 (11) 0.0220 (6)
C18 0.4196 (3) 0.2705 (5) 0.35378 (12) 0.0399 (8)
H18A 0.448715 0.405307 0.349457 0.060*
H18B 0.341712 0.252032 0.331866 0.060*
H18C 0.482925 0.179878 0.340707 0.060*
N1 1.07908 (19) 0.4041 (3) 0.40919 (8) 0.0185 (5)
N2 0.92941 (19) 0.2351 (3) 0.46611 (9) 0.0177 (5)
N3 1.1375 (2) 0.1310 (3) 0.46273 (10) 0.0259 (6)
H3A 1.205834 0.138369 0.446948 0.039 (10)*
H3B 1.118257 0.025852 0.481458 0.018 (7)*
N4 0.6112 (2) 0.2987 (3) 0.42948 (9) 0.0196 (5)
O1 0.39776 (17) 0.2323 (3) 0.41240 (8) 0.0280 (5)

Source of material

The intermediate (E)-7-bromo-2-((6-methoxypyridin-2-yl)methylene)-3,4-dihydronaphthalen-1(H)-one (BDHN) was prepared according to the literature method [4]. BDHN (1.00 g, 2.9 mmol), guanidine hydrochloride (1.39 g, 14.50 mmol), potassium hydroxide (0.81 g, 14.50 mmol), and potassium carbonate (0.80 g, 5.80 mmol) were dissolved in a mixed solution of anhydrous ethanol (15 mL) and 1,2-dichloroethane (15 mL). The mixture was heated to reflux for about 1.5 h. The process of the reaction was monitored by thin-layer chromatography (TLC). When the reaction was completed, the mixture was cooled to room temperature. After filtration, the filtrate was removed by rotary evaporator and the residue was purified on a silica-gel column with petroleum ether/ethyl acetate (8:1 v/v). Suitable single crystals of the title compound were collected by slow evaporation of a methanol solution under the ambient condition.

Experimental details

The H atoms were placed in idealized positions and treated as riding on their parent atoms, with d(C—H) = 0.96 Å(methyl), U iso(H) = 1.5U eq(C), and d(C—H) = 0.97 Å(methylene), U iso(H) = 1.2U eq(C), and d(C—H) = 0.93 Å(aromatic), U iso(H) = 1.2U eq(C). H atoms at the N atom were located in difference maps and treated as riding with free U iso.

Comment

Curcumin is one kind of α,β-unsaturated ketone compounds. It possesses suitable anti-inflammatory and antioxidant effects in humans [5, 6]. However, its poor solubility and instability hinder its application in medicine. In order to solve the disadvantages of curcumin derivatives, it is very important that their structures will be modified to improve their stability and solubility. Base on this point, 9-bromo-4-(6-methoxypyridin-2-yl)-5,6-dihydrobenzo[h]quinazolin- 2-amine was obtained by Claisen–Schmidt condensation and Michael addition reaction.

The single-crystal structure analysis shows that the title compound crystallizes in the monoclinic space group P21/c with one molecule in the asymmetric unit (cf. the figure). All bond lengths and bond angles are within the normal range and agree with the previously reported values [7, 8]. Because the C5 and C6 atoms are sp3 hybridized, pyrimidine and neighbouring benzene rings are not coplanar with a dihedral angle of 17.49(12)° between their planes. As shown in the figure, the pyridine ring has a significant rotation with respect to the pyrimidine ring. The dihedral angle between pyridine and pyrimidine ring is 50.83(8)°.

Corresponding author: Yongjun Liu, School of Pharmacy, the Key Laboratory of Prescription Effect and Clinical Evaluation of State Administration of Traditional Chinese Medicine of China, Binzhou Medical University, Yantai, 264003, P. R. China, E-mail:

Funding source: Shandong Provincial Natural Science Foundation http://dx.doi.org/10.13039/501100007129

Award Identifier / Grant number: ZR2019MB032

Funding source: College Youth Innovation Science and Technology Support Programme of Shandong Province http://dx.doi.org/10.13039/501100018627

Award Identifier / Grant number: 2020KJK003

Funding source: Key R&D Programme of Shandong Province http://dx.doi.org/10.13039/501100018532

Award Identifier / Grant number: 2019JZZY011104

Funding source: Shandong New Drug Loading & Release Technology and Preparation Engineering Laboratory

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by Shandong Provincial Natural Science Foundation (No. ZR2019MB032), College Youth Innovation Science and Technology Support Programme of Shandong Province (No. 2020KJK003), Key R&D Programme of Shandong Province (No. 2019JZZY011104). This study was financially supported by Shandong New Drug Loading & Release Technology and Preparation Engineering Laboratory.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku, O. D. CrysAlisPRO; Rigaku Oxford Diffraction Ltd: Yarnton, Oxfordshire, England, 2017.Search in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar PubMed

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Sun, Y., Gao, Z. F., Wang, C. H., Hou, G. G. Synthesis, crystal structures and anti-inflammatory activity of fluorine-substituted 1,4,5,6-tetrahydrobenzo[h]quinazolin-2-amine derivatives. Acta Crystallogr. 2019, C75, 1157–1165; https://doi.org/10.1107/s2053229619010118.Search in Google Scholar

5. Anand, P., Kunnumakkara, A. B., Newman, R. A., Aggarwal, B. B. Bioavailability of curcumin: problems and promises. Mol. Pharm. 2007, 4, 807–818; https://doi.org/10.1021/mp700113r.Search in Google Scholar PubMed

6. Hadizadeh-Bazaz, M., Vaezi, G., Khaksari, M., Hojati, V. Curcumin attenuates spatial memory impairment by anti-oxidative, anti-apoptosis, and anti-inflammatory mechanism against methamphetamine neurotoxicity in male Wistar rats: histological and biochemical changes. Neurotoxicology 2021, 84, 208–217; https://doi.org/10.1016/j.neuro.2021.03.011.Search in Google Scholar PubMed

7. Bonacorso, H. G., Rosa, W. C., Oliveira, S. M., Brusco, I., Pozza, C. C. D., Nogara, P. A., Wiethan, C. W., Rodrigues, M. B., Frizzo, C. P., Zanatta, N. Synthesis and antinociceptive activity of new 2-substituted 4-(trifluoromethyl)-5,6-dihydrobenzo[h]quinazolines. Bioorg. Med. Chem. Lett. 2016, 26, 4808–4914; https://doi.org/10.1016/j.bmcl.2016.08.021.Search in Google Scholar PubMed

8. Zhang, X. F., Luan, M. Z., Yan, W. B., Zhao, F. L., Hou, Y., Hou, G. G., Meng, Q. G. Anti-neuroinflammatory effects of novel 5,6-dihydrobenzo[h]quinazolin-2-amine derivatives in lipopolysaccharide-stimulated BV2 microglial cells. Eur. J. Med. Chem. 2022, 235, 114322; https://doi.org/10.1016/j.ejmech.2022.114322.Search in Google Scholar PubMed

Received: 2022-06-30
Accepted: 2022-08-11
Published Online: 2022-08-25
Published in Print: 2022-12-16
