Volume 11, Issue 14

The deep-learning revolution is providing enticing new opportunities to manipulate and harness light at all scales. By building models of light–matter interactions from large experimental or simulated datasets, deep learning has already improved the design of nanophotonic devices and the acquisition and analysis of experimental data, even in situations where the underlying theory is not sufficiently established or too complex to be of practical use. Beyond these early success stories, deep learning also poses several challenges. Most importantly, deep learning works as a black box, making it difficult to understand and interpret its results and reliability, especially when training on incomplete datasets or dealing with data generated by adversarial approaches. Here, after an overview of how deep learning is currently employed in photonics, we discuss the emerging opportunities and challenges, shining light on how deep learning advances photonics.

Over the past decade, two-dimensional (2D) Ti 3 C 2 T x MXenes demonstrated attractive characteristics such as high electrical conductivity, tunable layered structure, controllable interfacial chemical composition, high optical transparency, and excellent electromagnetic wave absorption, enabling Ti 3 C 2 T x MXenes as promising electrode materials in energy storage devices. Among these devices, flexible energy storage devices have attracted wide attention and developed rapidly due to the synchronously excellent electrochemical and mechanical properties. This review summarizes the recent progress of Ti 3 C 2 T x MXenes pertaining to novel material preparation and promising applications in energy storage and conversion including batteries, supercapacitors, solar cells, and solar steam generation. This work aims to provide an in-depth and reasonable understanding of the relationship between the unique nanostructure/chemical composition of Ti 3 C 2 T x MXenes and competitive electrochemical properties, which will facilitate the development of 2D Ti 3 C 2 T x MXenes for practical energy storage and solar energy conversion devices.

In artificial structures of molecular or quantum dot emitters in contact with single-layer graphene (SLG) Förster-type resonant energy transfer (FRET) can occur unconditionally due to the gapless band structure of SLG. A significant breakthrough for applications, however, would be the electrical modulation of FRET between arbitrary FRET pairs, using the SLG to control this process and taking advantage of the particular band structure and the monatomic thickness of SLG, far below the typical Förster radius of a few nanometers. For a proof of concept, we have therefore designed a Sandwich device where the SLG was transferred onto holey Si 3 N 4 membranes and organic molecules were deposited on either side of the SLG. The relative photoluminescence (PL) intensities of donor and acceptor molecules changed continuously and reversibly with the external bias voltage, and a variation of about 6% of FRET efficiency has been achieved. We ascribe the origin of the electrical modulation of FRET to important doping-dependent nonlocal optical effects in the near field of SLG in the visible range.

Colloidal suspensions crystallize by a natural sedimentation process under certain conditions, the initial volume fraction being one of the parameters that govern this process. Here, we have developed a simple in-situ , real-time, optical characterization technique to study silica colloidal suspensions during natural sedimentation in order to shed new light on this crystallization process. This technique monitors small variations in the wavelength of the reflectance features, allowing the analysis of the formation of the first layers of the crystal with sub-nanometer precision, and their dynamics, which is crucial to ensure a high quality in the final sample. The experimental results indicate that, in certain range of volume fraction, spontaneous crystallization of a colloidal fluid occurs at the bottom of the suspension, as a phase change, then through evaporation of the water it compacts to near close-packed and, eventually, dries. Understanding self-assembly at these scales is paramount in materials science and our results will contribute to improve and characterize the quality and crystallinity of the materials used in this process.

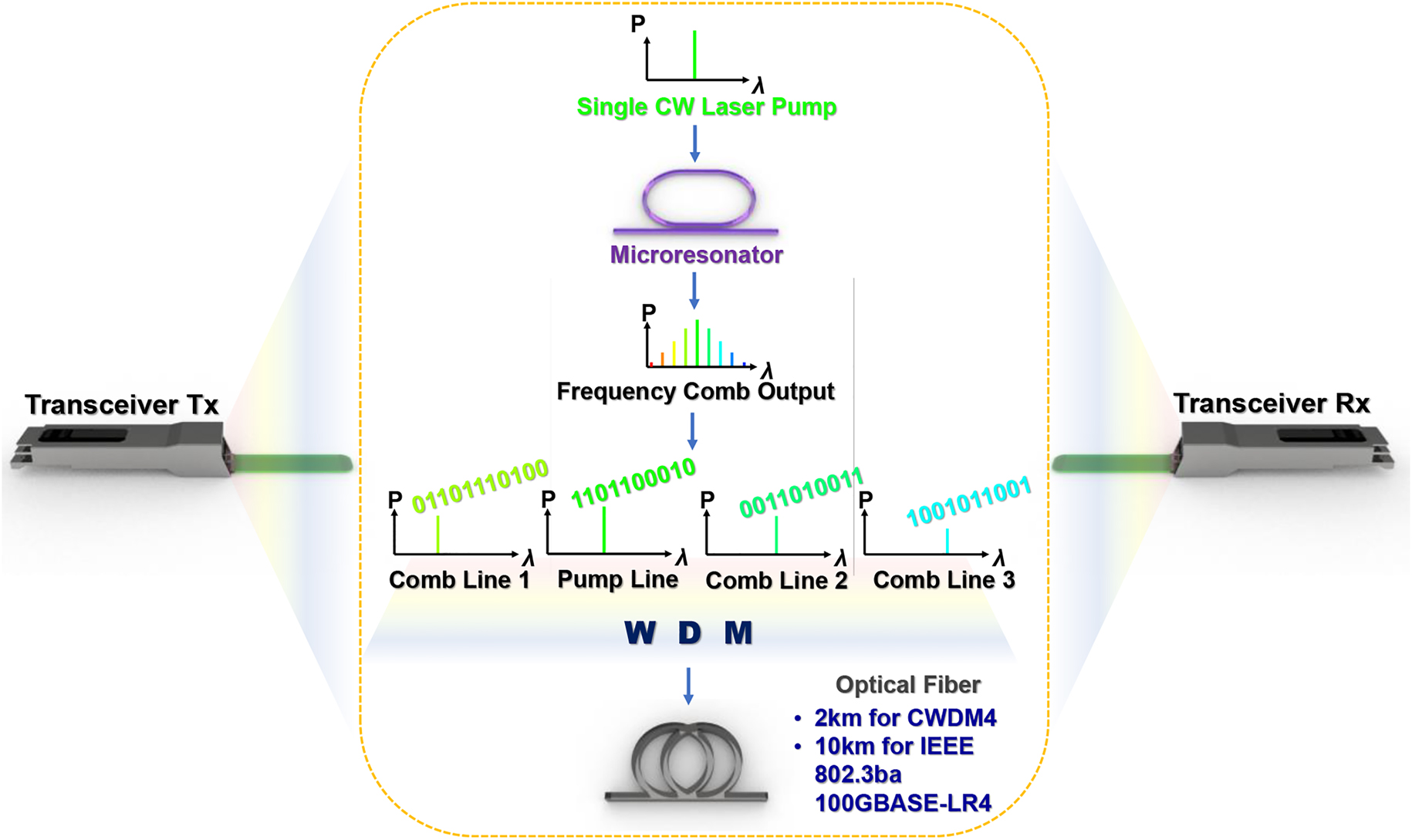

Globally, the long-haul transmission of ultra-high bandwidth data is enabled through coherent communications. Driven by the rapid pace of growth in interconnectivity over the last decade, long-haul data transmission has reached capacities on the order of tens to hundreds of terabits per second, over fiber reaches which may span thousands of kilometers. Data center communications operate in regimes featuring shorter reaches and higher cost sensitivity. While integrated microresonator frequency combs are poised to revolutionize light sources used for high-speed data transmission over fiber, recent progress has focused largely on coherent detection schemes. Furthermore, though state-of-the-art intensity modulators are advancing in speed, it has not been demonstrated in the literature if microresonator-based comb lines can accommodate higher intensity modulated direction data (IMDD) line rates in tandem with these advancements. In this manuscript, we demonstrate the use of microresonator frequency combs pumped with a single laser for the transmission of high-speed IMDD data. We demonstrate error-free transmission of 30 Gbs −1 per comb non-return-to-zero data over fiber lengths of 6 km, as well as bit error rates under the forward error correction limit for propagation through 20 km of optical fiber. 60 Gbs −1 and 42 Gbs −1 pulse modulation amplitude 4 (PAM4) data modulated on each frequency comb line is further quantified to have a bit error rate under the forward error correction limit for fiber reaches of up to 6 km and 20 km respectively. The results showcase CMOS-compatible microresonator frequency comb modulated using IMDD formats as a promising technology for high-speed transmission in the data center transceiver industry.

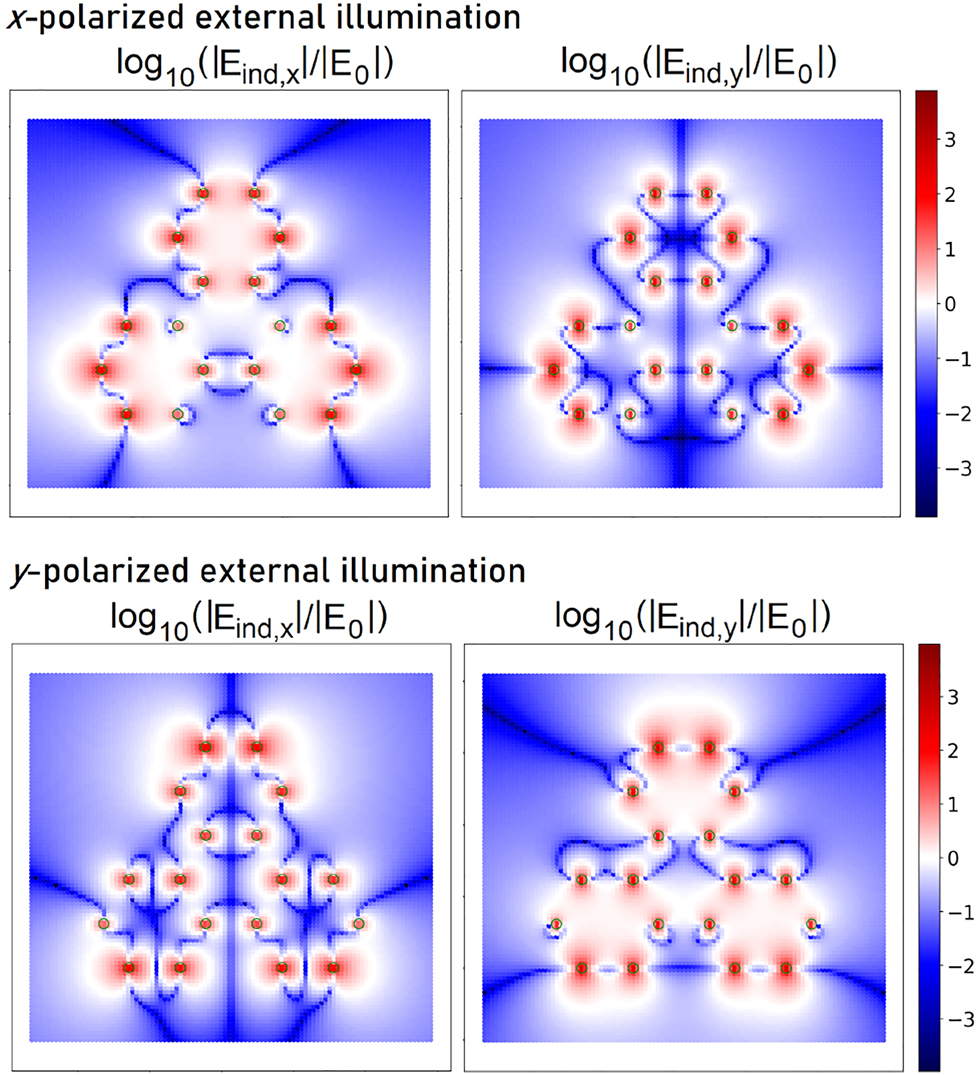

Graphene flakes acting as photonic nanoantennas may sustain strong electromagnetic field localization and enhancement. To exploit the field enhancement, quantum emitters such as atoms or molecules should be positioned in such close proximity to the flake that electron tunneling might influence the optical and electronic properties of the system. However, tunneling is usually not considered if the optical coupling mechanism between quantum emitters and nanoantennas is at focus. This work presents a framework for describing the electron dynamics in hybrid systems consisting of graphene nanoflakes coupled both electronically and optically to adatoms and subject to external illumination. Our framework combines the single-particle tight-binding approach with a nonlinear master equation formalism that captures both optical and electronic interactions. We apply the framework to demonstrate the impact of electron tunneling between the adatom and the flake on emblematic quantum optical phenomena: degradation of coherent Rabi oscillations and quenching of Purcell spontaneous emission enhancement in two-level adatoms in proximity of triangular graphene nanoflakes.

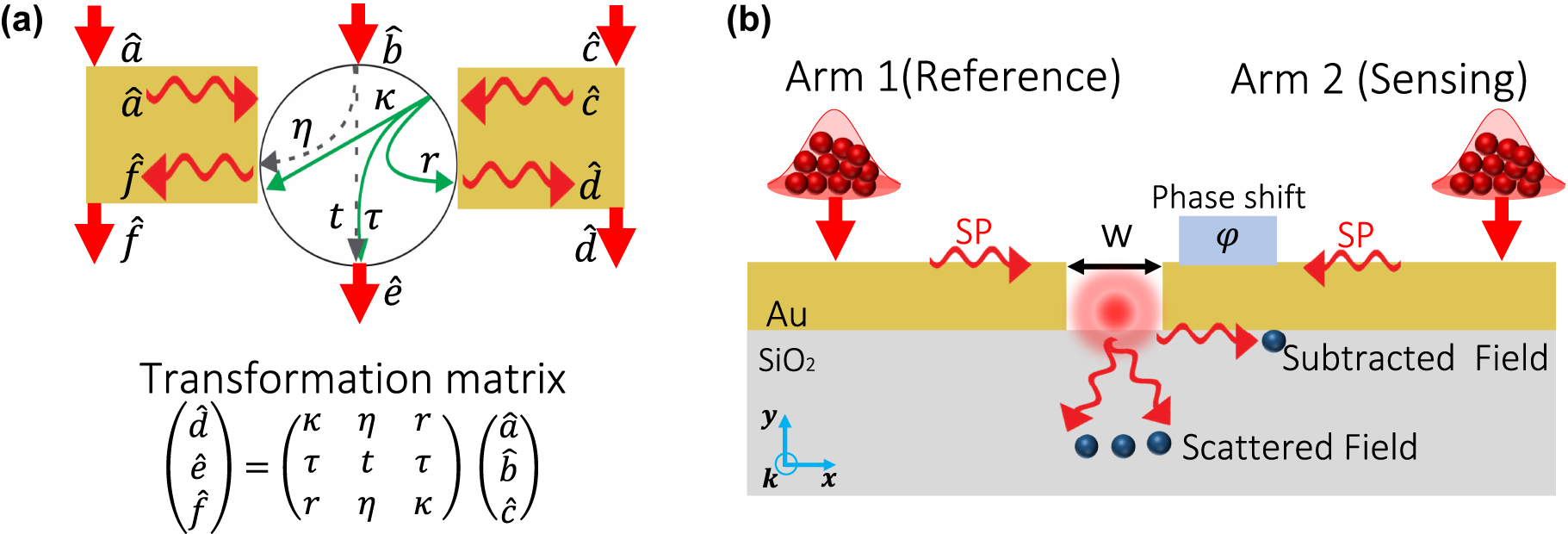

The possibility of using weak optical signals to perform sensing of delicate samples constitutes one of the main goals of quantum photonic sensing. Furthermore, the nanoscale confinement of electromagnetic near fields in photonic platforms through surface plasmon polaritons has motivated the development of highly sensitive quantum plasmonic sensors. Despite the enormous potential of plasmonic platforms for sensing, this class of sensors is ultimately limited by the quantum statistical fluctuations of surface plasmons. Indeed, the fluctuations of the electromagnetic field severely limit the performance of quantum plasmonic sensing platforms in which delicate samples are characterized using weak near-field signals. Furthermore, the inherent losses associated with plasmonic fields levy additional constraints that challenge the realization of sensitivities beyond the shot-noise limit. Here, we introduce a protocol for quantum plasmonic sensing based on the conditional detection of plasmons. We demonstrate that the conditional detection of plasmonic fields, via plasmon subtraction, provides a new degree of freedom to control quantum fluctuations of plasmonic fields. This mechanism enables improvement of the signal-to-noise ratio of photonic sensors relying on plasmonic signals that are comparable to their associated field fluctuations. Consequently, the possibility of using weak plasmonic signals to sense delicate samples, while preserving the sample properties, has important implications for molecule sensing, and chemical detection.

Dissipation, often associated with plasmons, leads to decoherence and is generally considered fatal for quantum nonlinearities and entanglement. Counterintuitively, by introducing a dissipative plasmonic nanoantenna into a typical cavity quantum electrodynamics (QED) system, we unveil the wide existence of the atom-photon quasi-bound state (qBS), a kind of exotic eigenstate with anomalously small decay, in the hybrid plasmonic-photonic cavity. To derive the analytical condition of atom-photon qBS, we formulate a quantized two-mode model of the local density of states by connecting the interacting uncoupled cavity modes to the macroscopic QED. With resonant plasmon-photon coupling, we showcase the single-atom qBS that improves the efficiency of single-photon generation over one order of magnitude; and the two-atom qBS that significantly enhances spontaneous entanglement generation compared with a bare photonic cavity. Notably, such single-atom and multi-atom qBS can be simultaneously accessed in realistic plasmonic-photonic cavities, providing a versatile platform for advanced quantum technologies, such as quantum light sources, quantum computation, and quantum information.

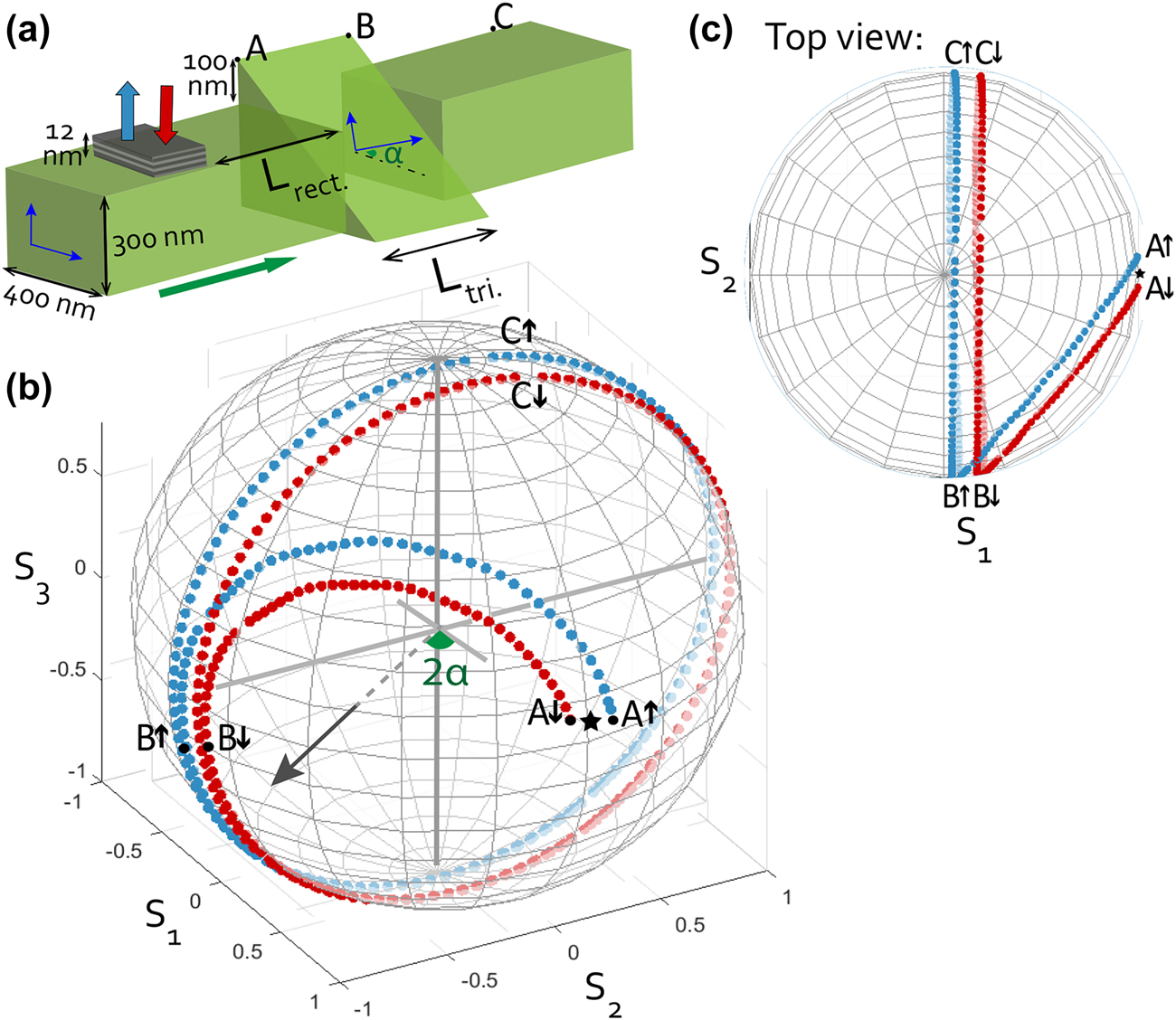

This study presents the design, fabrication and experimental demonstration of a magneto-photonic device that delivers non-volatile photonic memory functionality. The aim is to overcome the energy and speed bottleneck of back-and-forth signal conversion between the electronic and optical domains when retrieving information from non-volatile memory. The device combines integrated photonic components based on the InP membrane on silicon (IMOS) platform and a non-volatile, built-in memory element (ferromagnetic thin-film multilayers) realized as a top-cladding on the photonic waveguides (a post-processing step). We present a design where the phase of the guided light is engineered via two mechanisms: the polar magneto-optical Kerr effect (MOKE) and the propagation in an asymmetrical cross-section (triangular) waveguide. Thanks to its design, the device yields different mode-specific transmissions depending on the memory state it encodes. We demonstrate the recording of the magnetic hysteresis using the transmitted optical signal, providing direct proof for all optical magnetic memory reading using an integrated photonic chip. Using mathematical model and optical simulations, we support the experimental observations and quantitatively reproduce the Kerr signal amplitudes on-chip. A 1% transmitted power contrast from devices is promising indicating that in a shot noise limited scenario the theoretical bandwidth of memory read-out exceeds 50 Gbits/s.

Surface plasmon polaritons (SPPs) are propagating electromagnetic surface waves with local electric field enhancement and nondiffraction limit at optical frequencies. At terahertz (THz) frequencies, a metal line with periodic grooves can mimic the optical SPPs with the same high cut-off response, which is referred to as designer SPPs. Here, by replacing metal grooves with graphene sheets, a novel active metal–graphene hybrid SPP device achieves significant phase modulation. Theoretically, the dispersion curves of THz SPPs are determined by the dimensions and periodicity of the grooves. Changing the chemical potential of graphene sweeps the effective groove depth, which correspondingly shifts the SPP cut-off frequency and modulates the slow-wave phase. A prototype device is fabricated and characterized under varying bias applied for graphene. The experiment demonstrates that the cut-off frequency red shifts from 200 to 177 GHz, and the phase variation is as large as 112° at 195 GHz under a low bias from −0.5 to 0.5 V. Simultaneously, the SPP transmittance is modulated by a factor of more than 3 dB from 140 to 177 GHz due to the graphene absorption. The proposed structure reveals a novel approach to study the nonreciprocal and topological SPPs with active modulation in the THz range.

The photocatalytic degradation, as an environmental-friendly technology, has great significance for cost-effective and efficient catalysis processes, wherein piezo-photocatalysis can significantly increase the catalytic degradation rate using both solar and mechanical energy. Here, a ternary heterostructure PVDF/ZnO/Au (PZA) nanobrush photocatalyst with high piezo-photocatalytic efficiency was presented via low-temperature hydrothermal and chemical reduction methods. Under both solar and mechanical energy, the current response and degradation rate of the as-synthesized PZA nanobrush all increase significantly compared with that under solar alone and under mechanical energy alone, and the excellent recyclability is investigated. It is found that the PZA nanobrush with ultrasonic-assisted piezo-photocatalysis completely degrade MO of 20 mg/L in 60 min, which exhibits greater enhancement of photocatalytic activity than with stirring-assisted piezo-photocatalysis due to higher power. The high piezo-photocatalytic activity of PZA nanobrush is attributed to the surface plasmon resonance (SPR) coupling of Au and built-in electric field originating from the ZnO and PVDF, which can increase the absorption of visible light, promote the charge transfer and separation of photogenerated electrons/holes. This work introduces the SPR and bipiezotronic effect to improve plasmonic photocatalysis with PZA heterostructures, which offers a new solution in green technologies to design high-performance catalysts for the environmental remediation.

The early diagnosis of myocardial infarction can significantly improve the survival rate in emergency treatment, which is mainly implemented by the immunoassay for myocardial infarction biomarkers such as cardiac troponins in blood. In this work, a disposable optofluidic microtubule whispering gallery mode (WGM) immunosensor for label-free cardiac troponin I-C (cTnI-C) complex detection has been proposed and demonstrated with active interrogation enhancement. The disposable microtubule is simply fabricated by a silica capillary with pressurized tapering technology for thin-wall, and the cTnI antibodies are immobilized on the inner wall surface of the microtubule through the self-adherent polydopamine substrate. By configuring the two coupling microfibers, the double-fiber-coupled microtubule cavity can serve as a tunable filter for the mutual-coupled polarimetric fiber ring laser (FRL), whose output laser wavelength is determined by the cTnI-C concentration in the optofluidic microtubule with inherent microfluidic channel. Due to the cyclic-cumulative gain of the FRL, the characteristic resonant peak of optical sensing signal is enhanced in the spectral width compression and the optical signal-to-noise ratio improvement, and therefore the optical immunosensor for cTnI-C can be achieved by tracking the output laser wavelength of the FRL conveniently. The dynamic binding and unbinding process of cTnI-C antigen–antibody is illustrated by monitoring the lasing peak wavelength continuously. Our all-fiber immunosensor demonstrated here has the advantages of fast label-free detection, real-time monitor, high sensitivity and disposable sensing element, which can be an innovative detecting tool in early diagnosis of myocardial infarction.

Multichannel metasurfaces become one of the most significant development trends, as they exhibit versatile manipulation abilities on electromagnetic fields and provide a promising approach to constitute compact devices with various complex functions, especially in optical encryption due to its capabilities of multichannel, high complexity, and high concealment. However, the existent multichannel metasurfaces based optical encryption technology can only realize two channels in the near-field, or perform three channels in near- and far-field. In this paper, a four-channel display metasurface used to encrypt information by three optical parameters as security keys is firstly proposed and experimentally demonstrated, which is different from the previous three-channel metasurface combined nanoprinting and hologram in near- and far-field. The novel design strategy of the four-channel metasurface can effectively enhance the information capacity and increase the difficulty of leaks without causing manufacturing challenges and additional costs. In addition, the simulation and experimental results demonstrate that the designed metasurface with four independent channels can separately display distinguishable nanoprinting images under decoding keys of special optical parameters. The proposed four-channel display metasurface with advantages of high capacity and ultracompactness will pave a way for multichannel applications in nano display, information storage, optical anticounterfeiting, and other relevant fields.

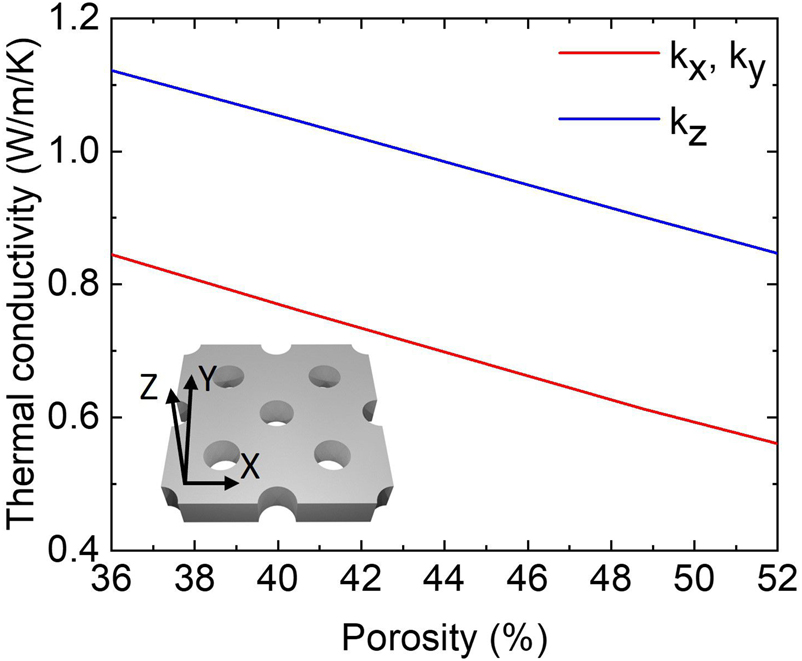

Photothermal heating with metallic nanostructures has the unique property of generating heat at the nanoscale owing to plasmon resonances. In this study, the heat transfer of anodic aluminum oxides (AAOs) coated with plasmonic titanium nitride (TiN) of 80 nm thickness are experimentally, numerically, and analytically studied, wherein TiN photothermally generated heat. High optical absorptance and photothermal heating efficiency are observed for the samples with pore sizes in the range of 161–239 nm, and the sample with the pore size of 239 nm exhibits the highest absorptance and photothermal heating efficiency. In addition, the numerical and analytical heat transfer analyses using the effective thermal conductivities for AAO-TiN samples are in reasonable agreement with experimental results, indicating the validity of effective thermal conductivities, which consider the periodic nature. These results can be extended to design other optically absorbing periodic structures for photothermal heating applications.

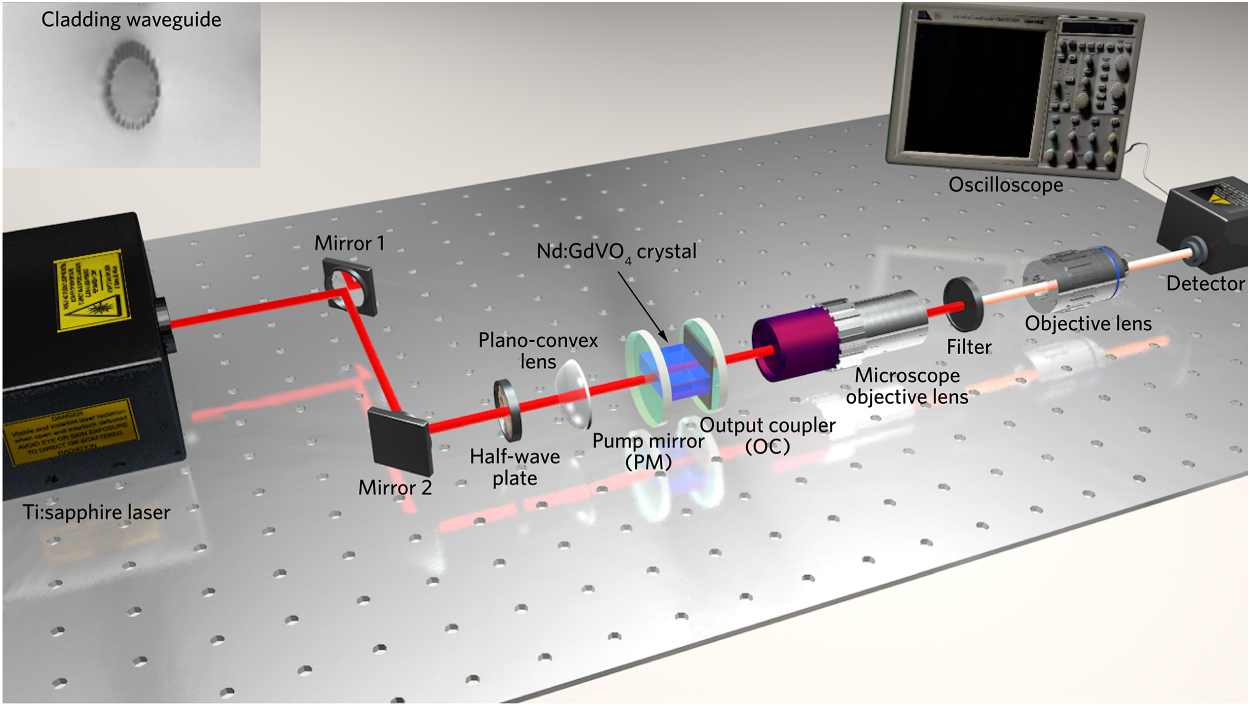

Two-dimensional (2D) ternary transition-metal dichalcogenides (TMDCs) are of great research interest because their superior layer-dependent optical modulation properties. In this work, three different kinds of TMDC nanosheets, including hafnium diselenide (HfSe 2 ), titanium diselenide (TiSe 2 ) and zirconium diselenide (ZrSe 2 ), are prepared by liquid phase exfoliation (LPE) technique. The high-quality material properties of these TMDC nanosheets are confirmed by Raman spectroscopy and X-ray diffraction analysis. Furthermore, the bandgap information of five-layer MSe 2 has been investigated via utilizing density functional theory. The calculation results exhibit ultra-narrow bandgap structure (lower than 1.1 eV) for all these three materials, indicating that MSe 2 is suitable for broadband photonic applications. By applying the fabricated MSe 2 as saturable absorbers, high-performance Q -switched mode-locked laser operation has been realized. The laser gain media are Nd:GdVO 4 cladding waveguides fabricated by femtosecond laser direct writing. As a result, the pulsed waveguide lasers are able to deliver approximately 6-GHz laser pulses with a signal-to-noise ratio of over 45 dB. The minimum pulse width is determined to be as short as 26 ps. The results demonstrated in this work exhibit the great potential of TMDCs and waveguide structures in applications of pulsed lasers with compact footprints.
