Volume 11, Issue 6

Multimode fibers (MMF) were initially developed to transmit digital information encoded in the time domain. There were few attempts in the late 60s and 70s to transmit analog images through MMF. With the availability of digital spatial modulators, practical image transfer through MMFs has the potential to revolutionize medical endoscopy. Because of the fiber’s ability to transmit multiple spatial modes of light simultaneously, MMFs could, in principle, replace the millimeters-thick bundles of fibers currently used in endoscopes with a single fiber, only a few hundred microns thick. That, in turn, could potentially open up new, less invasive forms of endoscopy to perform high-resolution imaging of tissues out of reach of current conventional endoscopes. Taking endoscopy by its general meaning as looking into , we review in this paper novel ways of imaging and transmitting images using a machine learning approach. Additionally, we review recent work on using MMF to perform machine learning tasks. The advantages and disadvantages of using machine learning instead of conventional methods is also discussed. Methods of imaging in scattering media and particularly MMFs involves measuring the phase and amplitude of the electromagnetic wave, coming out of the MMF and using these measurements to infer the relationship between the input and the output of the MMF. Most notable techniques include analog phase conjugation [A. Yariv, “On transmission and recovery of three-dimensional image information in optical waveguides,” J. Opt. Soc. Am. , vol. 66, no. 4, pp. 301–306, 1976; A. Gover, C. Lee, and A. Yariv, “Direct transmission of pictorial information in multimode optical fibers,” J. Opt. Soc. Am. , vol. 66, no. 4, pp. 306–311, 1976; G. J. Dunning and R. Lind, “Demonstration of image transmission through fibers by optical phase conjugation,” Opt. Lett. , vol. 7, no. 11, pp. 558–560, 1982; A. Friesem, U. Levy, and Y. Silberberg, “Parallel transmission of images through single optical fibers,” Proc. IEEE , vol. 71, no. 2, pp. 208–221, 1983], digital phase conjugation [I. N. Papadopoulos, S. Farahi, C. Moser, and D. Psaltis, “Focusing and scanning light through a multimode optical fiber using digital phase conjugation,” Opt. Express , vol. 20, no. 10, pp. 10583–10590, 2012; I. N. Papadopoulos, S. Farahi, C. Moser, and D. Psaltis, “High-resolution, lensless endoscope based on digital scanning through a multimode optical fiber,” Biomed. Opt. Express , vol. 4, no. 2, pp. 260–270, 2013] or the full-wave holographic transmission matrix method. The latter technique, which is the current gold standard, measures both the amplitude and phase of the output patterns corresponding to multiple input patterns to construct a matrix of complex numbers relaying the input to the output [Y. Choi, et al., “Scanner-free and wide-field endoscopic imaging by using a single multimode optical fiber,” Phys. Rev. Lett. , vol. 109, no. 20, p. 203901, 2012; A. M. Caravaca-Aguirre, E. Niv, D. B. Conkey, and R. Piestun, “Real-time resilient focusing through a bending multimode fiber,” Opt. Express , vol. 21, no. 10, pp. 12881–12887; R. Y. Gu, R. N. Mahalati, and J. M. Kahn, “Design of flexible multi-mode fiber endoscope,” Opt. Express , vol. 23, no. 21, pp. 26905–26918, 2015; D. Loterie, S. Farahi, I. Papadopoulos, A. Goy, D. Psaltis, and C. Moser, “Digital confocal microscopy through a multimode fiber,” Opt. Express , vol. 23, no. 18, pp. 23845–23858, 2015]. This matrix is then used for imaging of the inputs or projection of desired patterns. Other techniques rely on iteratively optimizing the pixel value of the input image to perform a particular task (such as focusing or displaying an image) [R. Di Leonardo and S. Bianchi, “Hologram transmission through multi-mode optical fibers,” Opt. Express , vol. 19, no. 1, pp. 247–254, 2011; T. Čižmár and K. Dholakia, “Shaping the light transmission through a multimode optical fibre: complex transformation analysis and applications in biophotonics,” Opt. Express , vol. 19, no. 20, pp. 18871–18884, 2011; T. Čižmár and K. Dholakia, “Exploiting multimode waveguides for pure fibre-based imaging,” Nat. Commun. , vol. 3, no. 1, pp. 1–9, 2012; S. Bianchi and R. Di Leonardo, “A multi-mode fiber probe for holographic micromanipulation and microscopy,” Lab Chip , vol. 12, no. 3, pp. 635–639, 2012; E. R. Andresen, G. Bouwmans, S. Monneret, and H. Rigneault, “Toward endoscopes with no distal optics: video-rate scanning microscopy through a fiber bundle,” Opt. Lett. , vol. 38, no. 5, pp. 609–611, 2013].

Computing metasurfaces are two-dimensional artificial nanostructures capable of performing mathematical operations on the input electromagnetic field, including its amplitude, phase, polarization, and frequency distributions. Rapid progress in the development of computing metasurfaces provide exceptional abilities for all-optical image processing, including the edge-enhanced imaging, which opens a broad range of novel and superior applications for real-time pattern recognition. In this paper, we review recent progress in the emerging field of computing metasurfaces for all-optical image processing, focusing on innovative and promising applications in optical analog operations, image processing, microscopy imaging, and quantum imaging.

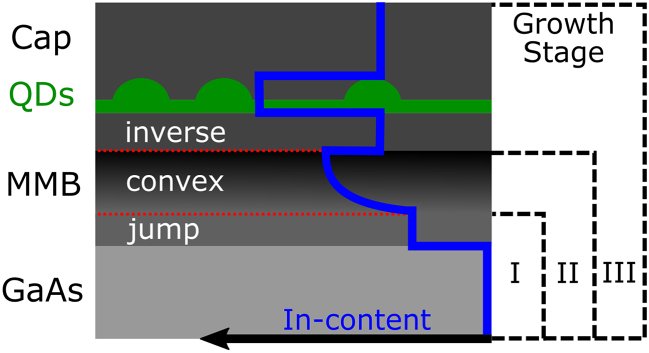

The GaAs-based material system is well-known for hosting InAs quantum dots (QDs) with outstanding optical properties, typically emitting at a wavelength of around 900 nm. The insertion of a metamorphic buffer (MMB) can shift this emission to the technologically attractive telecom C-band range centered at 1550 nm. However, the thickness of common MMB designs (>1 μm) limits their compatibility with most photonic resonator types. Here, we report on the metal–organic vapor-phase epitaxy (MOVPE) growth of a novel InGaAs MMB with a nonlinear indium content grading profile designed to maximize plastic relaxation within minimal layer thickness. This allows us to achieve the necessary transition of the lattice constant and to provide a smooth surface for QD growth within 180 nm. Single-photon emission at 1550 nm from InAs QDs deposited on top of this thin-film MMB is demonstrated. The strength of the new design is proven by integrating it into a bullseye cavity via nano-structuring techniques. The presented advances in the epitaxial growth of QD/MMB structures form the basis for the fabrication of high-quality telecom nonclassical light sources as a key component of photonic quantum technologies.

The ability of modulating optical properties at a lateral subwavelength scale is of crucial importance due to its potential applications for wide-angle holographic displays, optical communications, and interferometric sensors. Here, we present an electrically tunable metasurface whose optical properties can be element-wise controlled at the lateral subwavelength scale in the mid-infrared wavelength regime. Our proposed device facilitates an n -doped InAs layer as a dynamic-tunable layer, and the charge carrier concentration inside the InAs layer is tailored by external gate biases. This InAs active layer is sandwiched between top aluminum strip antennas and a bottom gold substrate, forming the metal–insulator–metal configuration. The change of the charge carrier concentration gives rise to modulation of the amplitude and phase of reflected light in a mid-infrared regime. Numerical investigations show the reflectivity contrast of 44%P with biases of −2.5–0 V and the phase change of 236° with biases of −15 V to +15 V at the wavelength of ∼5 μm. Versatile wavefront shaping such as beam focusing with Fresnel Zone plate and beam steering with saw-tooth phase grating is also provided.

The simultaneous and independent measurement of multiple movement forms is a significant issue to be solved in research. In this paper, we proposed a method that combines the self-interference of conjugated optical vortices and external interference of plane waves, and successfully realize the independent measurement of both rotation and rectilinear motion. Three kinds of interference schemes based on vortex beams are analyzed theoretically and verified experimentally. The results show that the double interference between conjugated optical vortices and Gaussian beam can detect the motion along and perpendicular to the beam propagation direction even under complex motion background, providing a powerful way to detect the multiple movement forms of a target. Our work may pave a new way for the detection of spatial noncooperative targets and stimulate the invention of new detection equipment.

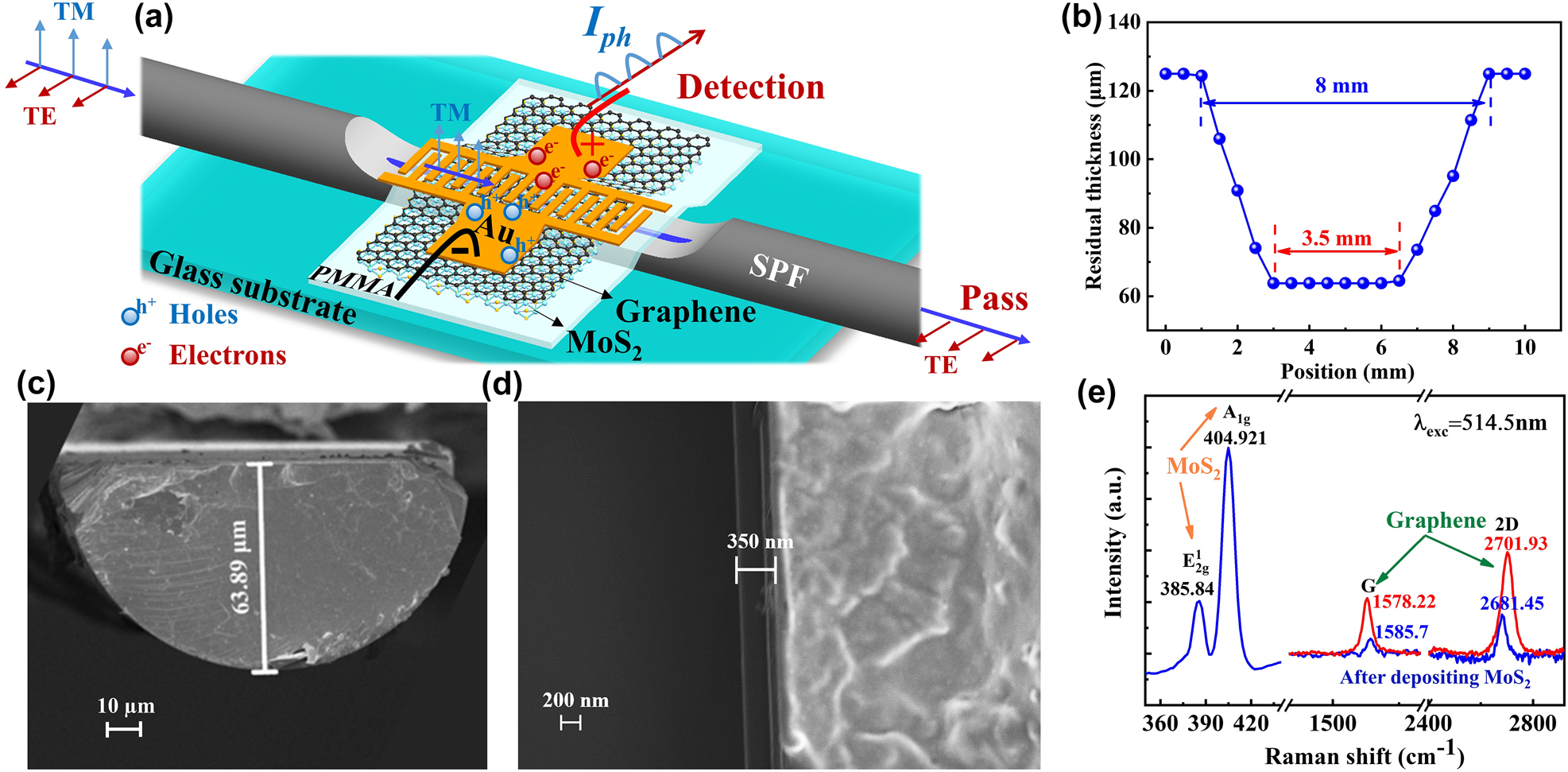

Two-dimensional (2D) materials exhibit fascinating and outstanding optoelectronic properties, laying the foundation for the development of novel optoelectronic devices. However, ultra-weak light absorption of 2D materials limits the performance of the optoelectronic devices. Here, a structure of MoS 2 /graphene/Au integrated onto the side-polished fiber (SPF) is proposed to achieve a high-performance fiber-integrated multifunction-in-one optoelectronic device. It is found that the device can absorb the transverse magnetic (TM) mode guided in the SPF and generate photocurrents as a polarization-sensitive photodetector, while the transverse electric (TE) mode passes with low loss through the device, making the device simultaneously a polarizer. In the device, the MoS 2 film and the Au finger electrode can enhance the TM absorption by 1.75 times and 24.8 times, respectively, thus allowing to achieve high performance: a high photoresponsivity of 2.2 × 10 5  A/W at 1550 nm; the external quantum efficiency (EQE) of 1.76 × 10 7 %; a high photocurrent polarization ratio of 0.686 and a polarization efficiency of 3.9 dB/mm at C-band. The integration of 2D materials on SPF paves the way to enhance the light–2D material interaction and achieve high performance multifunction-in-one fiber-integrated optoelectronic devices.

We propose how to achieve synthetic PT $\mathcal{PT}$ symmetry in optomechanics without using any active medium. We find that harnessing the Stokes process in such a system can lead to the emergence of exceptional point (EP), i.e., the coalescing of both the eigenvalues and the eigenvectors of the system. By encircling the EP, both nonreciprocal optical amplification and chiral mode switching can be achieved. As a result, our synthetic PT $\mathcal{PT}$ -symmetric optomechanics works as a topological optomechanical amplifier. This provides a surprisingly simplified route to realize PT $\mathcal{PT}$ -symmetric optomechanics, indicating that a wide range of EP devices can be created and utilized for various applications such as topological optical engineering and nanomechanical processing or sensing.

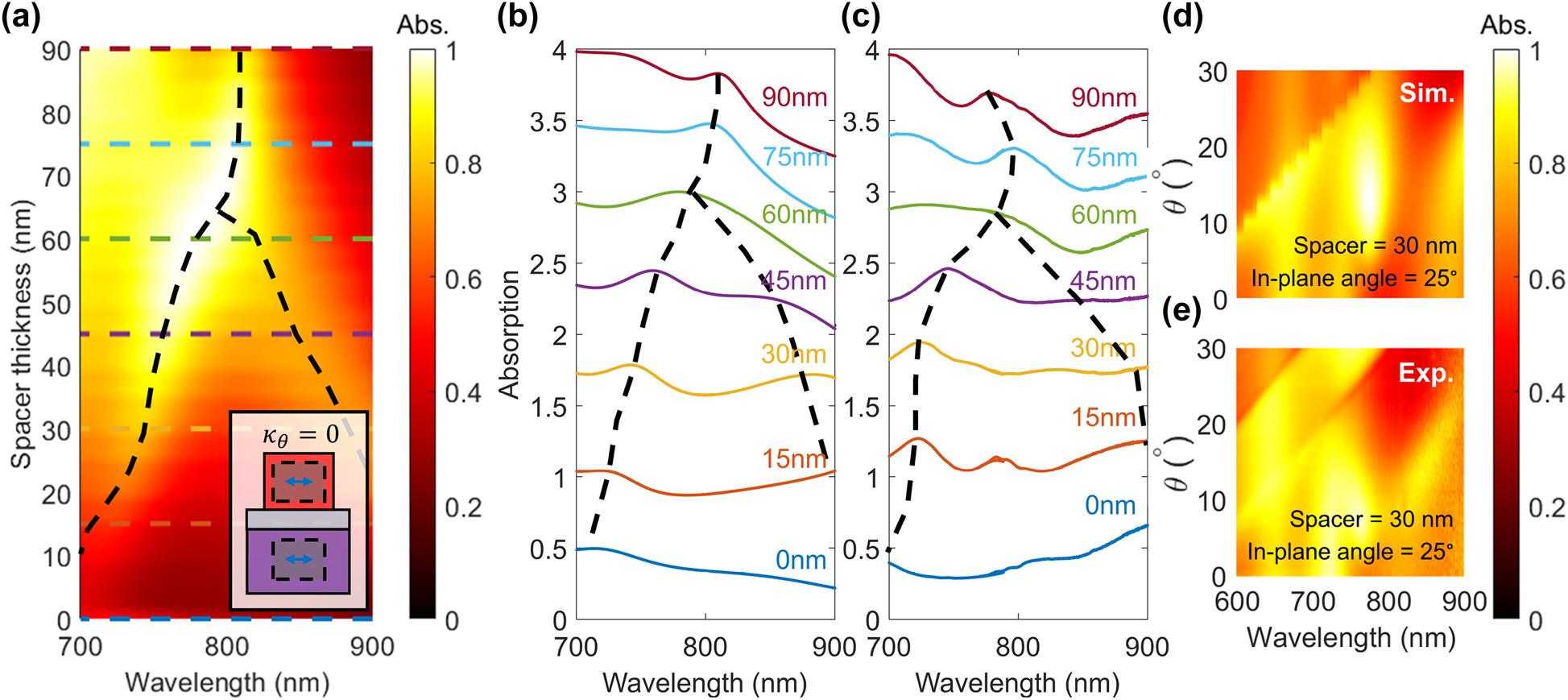

The synergy between topology and non-Hermiticity in photonics holds immense potential for next-generation optical devices that are robust against defects. However, most demonstrations of non-Hermitian and topological photonics have been limited to super-wavelength scales due to increased radiative losses at the deep-subwavelength scale. By carefully designing radiative losses at the nanoscale, we demonstrate a non-Hermitian plasmonic–dielectric metasurface in the visible with non-trivial topology. The metasurface is based on a fourth order passive parity-time symmetric system. The designed device exhibits an exceptional concentric ring in its momentum space and is described by a Hamiltonian with a non-Hermitian Z 3 ${\mathbb{Z}}_{3}$ topological invariant of V = −1. Fabricated devices are characterized using Fourier-space imaging for single-shot k -space measurements. Our results demonstrate a way to combine topology and non-Hermitian nanophotonics for designing robust devices with novel functionalities.

Optical displacement metrology is important in nanotechnology and used to identify positions and displacements of nanodevices. Although several methods have been proposed, a sensor with ultracompact size, angstrom-scale resolution, and large measurement range is still lacking. We propose an optical displacement sensor with wavelength modulation that can demonstrate subwavelength footprint and angstrom-level resolution with large measurement range in this study. The proposed sensor consists of two optical slot antennas. Surface plasmon polaritons (SPPs) are launched at antennas and interfere when a tightly focused broadband light source illuminates the sensor. Spectrum of output SPPs presents a dip, which depends on the position of focal spot of incident light and is used to extract displacement. A maximum resolution of 0.734 nm was obtained. Furthermore, we used interference fringe of two broadband beams as light source and the measurement range of the sensor is not limited by the size of the tightly focused light source while maintaining high resolution. The method utilizes a new mechanism of wavelength modulation to overcome the trade-off between the high resolution and large measurement range, and achieve a variety of potential applications for nanometrology in the future.

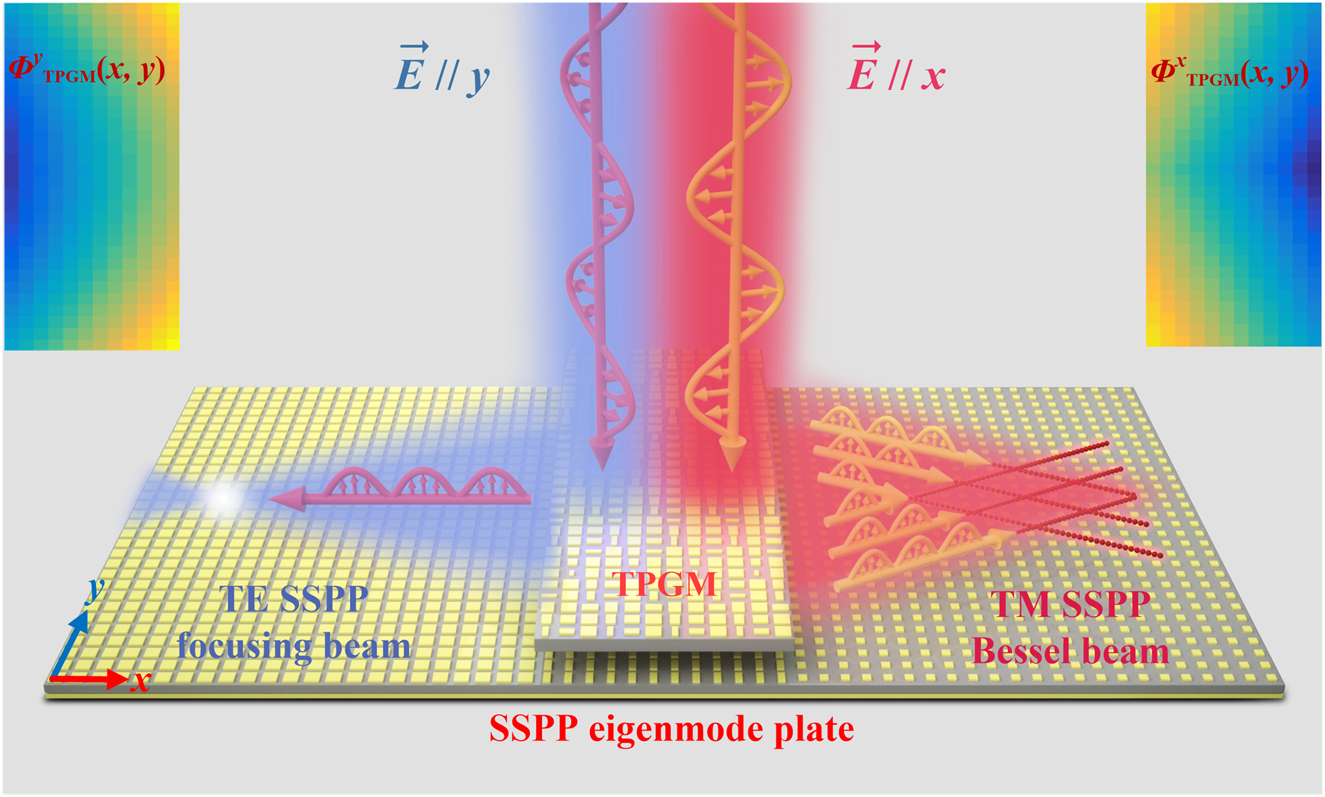

Tailoring the wavefronts of spoof surface plasmon polaritons (SSPPs) at will, especially with multifunctional integration, is of great importance in near-field photonics. However, conventional SSPP devices suffer from the issues of bulk configurations, limited functionalities, and single operating modes, which are unfavorable for electromagnetic (EM) integration. Here, a novel scheme is proposed to design bifunctional SSPP meta-devices based on the polarization dependent property via satisfying the comprehensive phase distributions and multi-mode momentum matching in a transmission geometry. As proof of the concept, we experimentally demonstrate a bifunctional SSPP meta-device in the microwave regime that can convert incident x - and y -polarized waves to transverse magnetic (TM)-mode SSPP Bessel beams and transverse electric (TE)-mode SSPP focusing beams, respectively. Our findings open a door to achieve near-field manipulation of SSPPs with multi-function and multi-mode integration, which can stimulate the applications of SSPP functional devices, such as near-field sensing, imaging, and on-chip photonics.

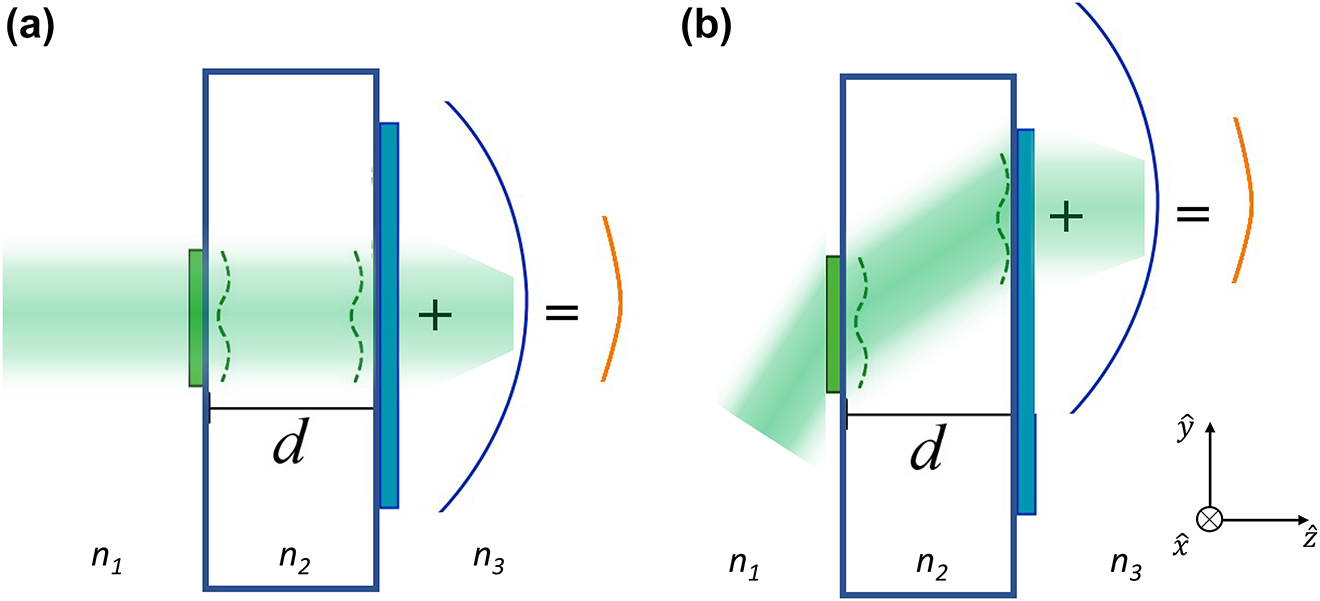

Metalenses are nanostructured surfaces with great potential for delivering miniaturized and integrated optical systems. A key property of metalenses is that, by using a double layer configuration, or doublet, they can achieve both diffraction-limited resolution and wide field-of-view imaging. The physical operation and limitations of such doublet systems, however, are still not fully understood, and designs are still based on numerical optimization of the phase profiles. Here, we show the fundamental limits of doublet systems and provide a universal design strategy without any need to resort to numerical optimization. We find an analytical relationship between the focal length and the spacer thickness; we identify the physical principles underlying the limitations on performance and obtain a universal dependence of the field of view as a function of resolution (numerical aperture). Our results will allow researchers to appreciate the regimes of resolution and field of view that are accessible for specific applications, to identify the conditions for optimum performance (such as required spacer thickness), and to conveniently design doublets without needing to resort to numerical optimizations.

The control of hot electron (HE) and thermal effects induced by plasmonic nanostructures has recently attracted considerable attention. When illuminated by light with different circular polarization states, the circular dichroism signal of molecules adsorbed by plasmonic chiral nanostructures can control HE and thermal effects. These effects have the potential to enhance reaction rates and to change selectivity patterns in photothermal catalysis. Here, we propose an aluminum L-shaped chiral nanostructure system in which HE and thermal effects can be controlled in different regions of the nanostructure by changing the chirality of the excitation light. A large difference of 12.75% in the HE effect but a virtually identical thermal effect can be achieved in different regions of the nanostructure by selecting the appropriate probed region, while a large thermal effect difference of 65.67% but a virtually identical HE effect can be achieved in one region of the nanostructure by changing the polarization state of the excitation light. In addition, the HE and thermal chiral selectivity effects of double L-shaped nanostructures are investigated as these structures can be more easily controlled during asymmetric chiral growth and crystallization. This work combined with plasmonic chirality is beneficial for quantifying HE and thermal effects in photochemical reactions and provides theoretical support for designing catalysts and optimizing plasmonic platforms. Additionally, the local controllability of HE and thermal effects plays an essential role in high-resolution photochemical reactions, especially in single-molecule photochemical reactions.

Self-accelerating polygon beams have drawn growing emphasis in optics owing to their exceptional characteristics of multiple self-accelerating channels and needle-like field distributions. Various approaches have been proposed to generate polygon beams, such as using spatial light modulators (SLMs) or plasmonic metasurfaces. However, SLMs impede the miniaturization of the optical system and both approaches are subject to low efficiencies and demand an extra physical lens with a long focal length for Fourier transform, which limits the quality and the diverse variability of polygon beams. In this article, we demonstrate the generation of high-quality accelerating polygon beams in broadband spectra of 500–850 nm by utilizing dielectric metasurfaces. These metasurfaces integrate the functionality of the Fourier transform lens to enable the resulting beams with a large curvature ratio for the self-accelerating channels and a relatively small size for the autofocus region. The curvature ratio of the beam at λ  = 633 nm is 31 times higher than the previously reported plasmonic-based method. While the size of the focused spot is 2.35 µm, which is reduced by nearly 15 times. The proposed beam generator provides ample opportunities for applications such as particle micromanipulation, beam shaping, laser fabrication, and biomedical imaging.

The intrinsic geometry of wavevector diagrams describes electronic or photonic transport at a given energy level. Lifshitz transition is an intriguing example of the topological transition in wavevector diagrams, which plays a critical role in abnormal transport with enhanced magnetoresistance or superconductivity. Here, we develop the spatial analogy of the Lifshitz transition, which provides a comprehensive topological perspective on transverse-spin interface states. We establish the excitation conditions of transverse-spin interface states, which require the “Lifshitz interface” – the interface between different topologies of wavevector diagrams – along with the gap in wavevector diagrams. Based on the detailed analysis of this topological phenomenon with respect to the dimensionality and gaps of wavevector diagrams across the Lifshitz interface, we show distinct parity of transverse spins and power flows in transverse-spin modes. The unique symmetry of interface states realizing Abraham-spin-momentum locking represents the gauge induced by the Lifshitz interface, which provides a novel insight into the Abraham–Minkowski controversy.

Biosensors based on terahertz (THz) metasurfaces have recently attracted widespread attention. However, few have been reported so far because it is a challenge to achieve ultrasensitive multidimensional detection in the THz spectrum. Here, we propose a novel THz biosensor that consists of a metasurfaces and a metal oxide semiconductor-like structure (MOSLS), which is based on patterned graphene–polyimide–perovskite. We varied the photoconductivity of the MOSLS via the electrostatic doping effect. The biosensor could detect whey protein down to a concentration limit of 6.25 ng/mL. Significant responses in frequency, phase, and transmission amplitude were all detected for different protein concentrations. The transmission value difference, frequency shift, and phase difference increased with the concentration of whey protein, clearly demonstrating multidimensional biosensing. Moreover, by applying lasers with different wavelengths, we have realized reversible biosensing in THz region for the first time. These results are very promising for applications of THz metasurfaces in the field of biosensing.
