Synthesis and structural characterization of three new mixed ligand alkaline-earth metal picrates

2.1 Materials and methods

All chemicals were used as received from commercial sources without any further purification. Infrared (IR) spectra of the solid samples taken up in KBr pellets were recorded on a Shimadzu (IR Prestige-21) FT-IR spectrometer in the range 4000–400 cm⁻¹ at a resolution of 4 cm⁻¹. Raman spectra of the solids and their aqueous solutions were measured by using an Agiltron PeakSeeker Pro Raman instrument with 785 nm laser irradiation and a laser power of 100 mW. X-ray powder patterns were recorded, on a Rigaku Miniflex II powder diffractometer using Cu-Kα radiation with a Ni filter. For single crystal structure determination, X-ray intensity data was collected on a Bruker D8 Quest Eco X-ray diffractometer, using graphite-monochromated Mo-Kα radiation. The structures were solved with Direct Methods using Shelxs-97 [42] and refinement was carried out against F² using Shelxl-2016 [42]. All non-hydrogen atoms were refined anisotropically. The H atoms bonded to the aromatic carbon atoms and the H atoms of the amide nitrogen atoms were located in difference maps but were positioned with idealized geometry and refined isotropically with U_iso(H) = 1.2 U_eq(C,N) using a riding model. The O–H hydrogen atoms were located in difference maps, and were refined using a riding model. Technical details of data acquisition and selected refinement results for 1–3 are given in Table 1.

2.2 Synthesis of [M(H₂O) _n (nic)₂(pic)₂] (n = 1 and M = Ba 1; n = 2 and M = Ca (or Sr) 2 or (3))

Picric acid (picH) is known to be an explosive chemical. In view of this, it is quite essential to follow appropriate safety regulations in the handling, storage and disposal of picric acid and compounds derived from it. In this study, all experiments were performed on a gram scale of picric acid. A mixture of BaCO₃ (0.395 g, 2 mmol) and picH (0.916 g, 4 mmol) was taken up in water (∼30 mL) to obtain a slurry. The slurry was stirred well and brisk effervescence could be observed accompanied by the formation of a yellow solution. Slow warming of the reaction mixture on a water bath maintained at ∼60 °C resulted in the formation of a clear, bright yellow solution after ∼20 min. The pH was close to neutral and the reaction mixture was filtered into a clean beaker containing an aqueous solution of nicotinamide (0.244 g, 2 mmol; ∼5 mL) and left undisturbed for crystallization. The yellow crystalline product was isolated by filtration, washed with ether and air-dried (yield: 1.22 g, 71%). The use of CaCO₃ (0.200 g, 2 mmol) or SrCO₃ (0.295 g, 2 mmol) instead of BaCO₃ afforded compounds 2 and 3 in good yields (1.08 g (78%) for 2 and 1.05 g for 3 (72%)).

Compound 1 IR data (KBr cm⁻¹): 3603(s), 3444(s), 3344(m), 3089(m), 1666(s), 1614(s), 1556(s), 1514(s), 1477(s), 1427(s), 1334(s), 1259(s), 1163(s), 1080(s), 1031(s), 968(w), 912(s), 831(m), 788(s), 744(m), 702(s), 642(w), 584(m), 518(w); Raman (cm⁻¹): 1554(w), 1333(s), 1309(s), 1159(w), 941(w), 823(m), 719(w).

Compound 2 IR data (KBr cm⁻¹): 3626(s), 3469(s), 3323–2500(br), 1693(s), 1612(s), 1565(s), 1514(w), 1487(w), 1429(s), 1334(s), 1267(s), 1163(s), 1080(m), 1029(m), 939(m), 914(s), 835(w), 790(s), 744(s), 704(s), 642(m), 582(w), 522(m); Raman (cm⁻¹): 1554(w), 1314(s), 1164(w), 941(w), 823(m), 702(w).

Compound 3 IR data (KBr cm⁻¹): 3624(s), 3473(s), 3361–2500(br), 1693(s), 1614(s), 1568(s), 1514(w), 1487(w), 1427(s), 1363(m), 1334(s), 1261(s), 1161(s), 1080(m), 1029(m), 939(w), 912(s), 835(w), 790(s), 744(s), 704(s), 6940(m), 520(m); Raman (cm⁻¹): 1559(w), 1309(s), 1159(w), 941(w), 823(m), 702(w).

3.1 Description of the crystal structures of compounds 1–3

The three compounds (1–3) described in this study crystallize in the centrosymmetric monoclinic space group C2/c. The crystal structures consist of an alkaline-earth metal located on a two-fold axis, a terminal aqua ligand, a crystallographically independent picrate anion and a unique nicotinamide moiety. The geometric parameters of the organic ligands (Table S1) in 1–3 are in the normal range [16, 43]. In the monoaqua compound [Ba(H₂O)(nic)₂(pic)₂] 1, the barium atom and the oxygen atom O1 of the water molecule are situated on a two-fold axis.

The central Ba atom is bonded to a terminal aqua ligand (O1), two symmetry related picrate ligands via the phenolate (O3) and a nitro oxygen atom (O4), four symmetry related nicotinamide ligands via their amide oxygen atom (O2) and the pyridine nitrogen atom (N2) resulting in a {BaO₇N₂} coordination polyhedron (Figure 1). The Ba–O/N bond lengths are scattered in a wide range between 2.6793(11) and 2.9329(14) Å (Table 2). The amide oxygen atom makes the shortest Ba1–O2 bond which is shorter than the Ba1–O3(phenolate) and Ba1–O1(aqua) bond lengths at 2.7107(12) and 2.834(2) Å, respectively. The nitro oxygen atom is involved in the longest Ba1–O4 distance of 2.9282(14) Å. The Ba–N distances are slightly longer (Ba1–N2ⁱⁱ = 2.9329(14) Å) than the longest Ba–O distance. The distinct Ba–O/N bond lengths and O–Ba–O/N bond angles ranging from 56.38(4) to 151.66(6)° reveal that the tricapped trigonal prismatic {BaO₇N₂} coordination polyhedron is quite distorted (Figure 2).

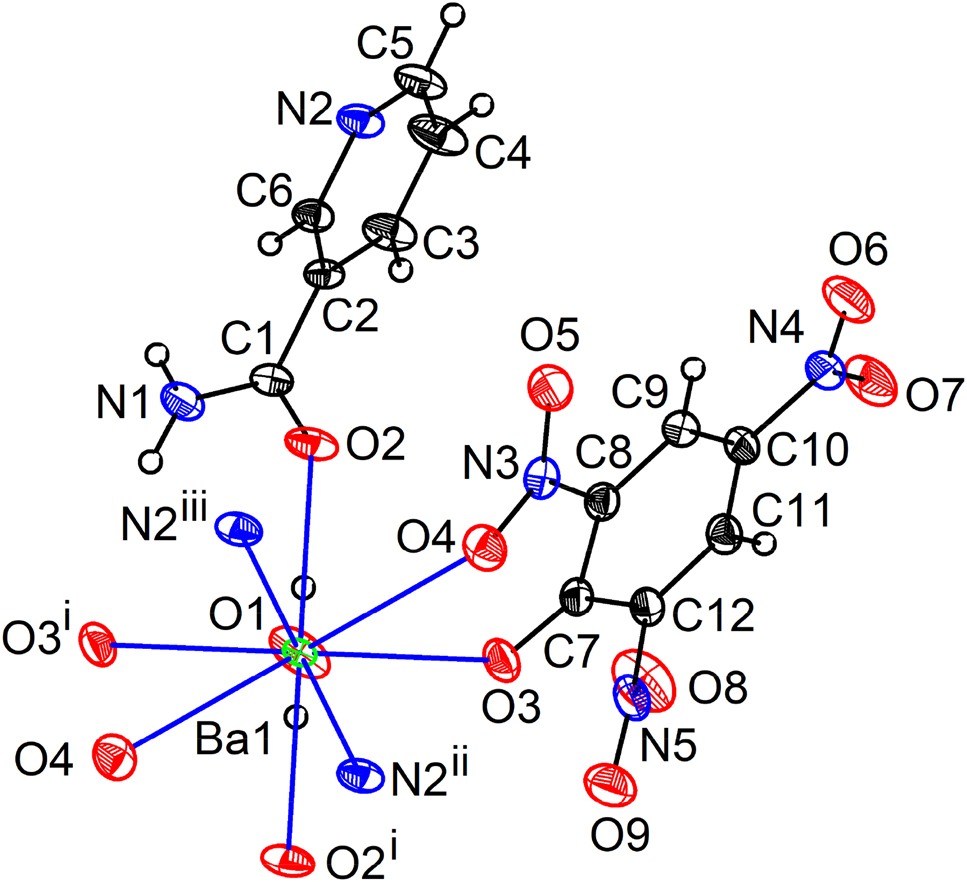

Figure 1:

The asymmetric unit of 1 showing nine-fold coordination around the Ba atom. Displacement ellipsoids are drawn at the 30% probability level for all non-hydrogen atoms.

Symmetry code: (i) −x+1, y, −z+3/2 (ii) x+1/2, y+1/2, z (iii) −x+1/2, y+1/2, −z+3/2.

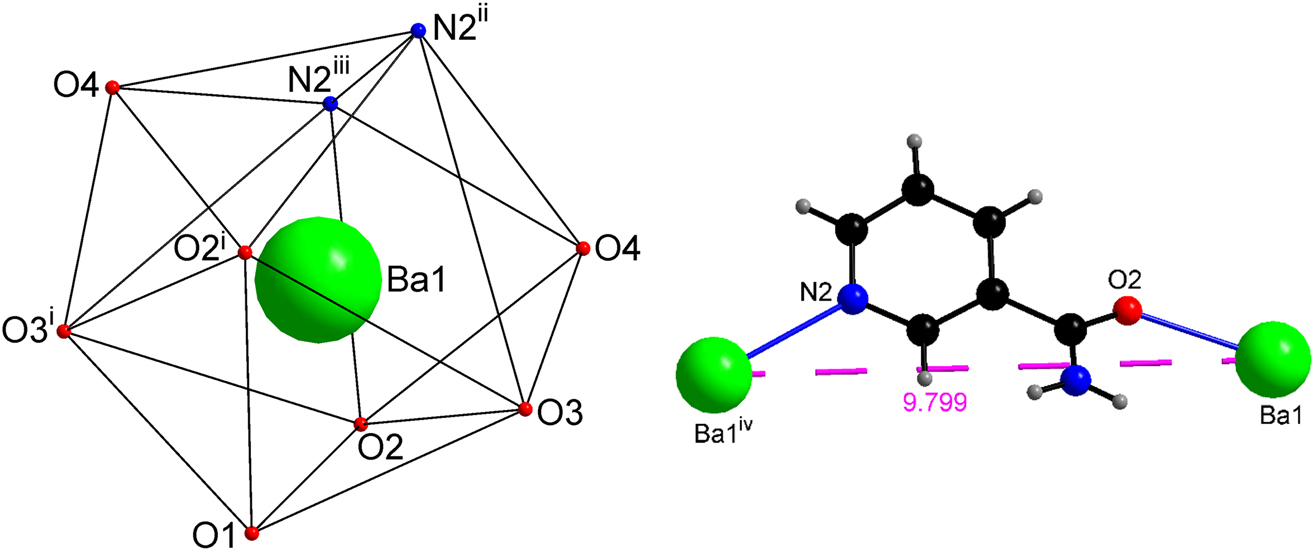

Figure 2:

The distorted tricapped trigonal prismatic {BaO₇N₂} coordination polyhedron (left). The (N, O) donor nic ligand bridges two symmetry related Ba cations (right). For symmetry code see Table 2.

The O-donor aqua and picrate ligands are bound to the Ba atom in monodentate and bidentate fashion, respectively. In contrast, the unique nicotinamide functions as a (N, O) donor and bridges two symmetry related Ba cations separated by 9.799 Å (Figure 2). This bridging mode of nic via the amide oxygen and pyridine N atom organizes the Ba cations into a layer (Figure 3) in the crystallographic ab plane, resulting in the formation of a two-dimensional coordination polymer (Figure 3). In view of its special position, each Ba cation is bridged via a nic ligand to four symmetry related Ba cations and all Ba···Ba separations in the layer are identical.

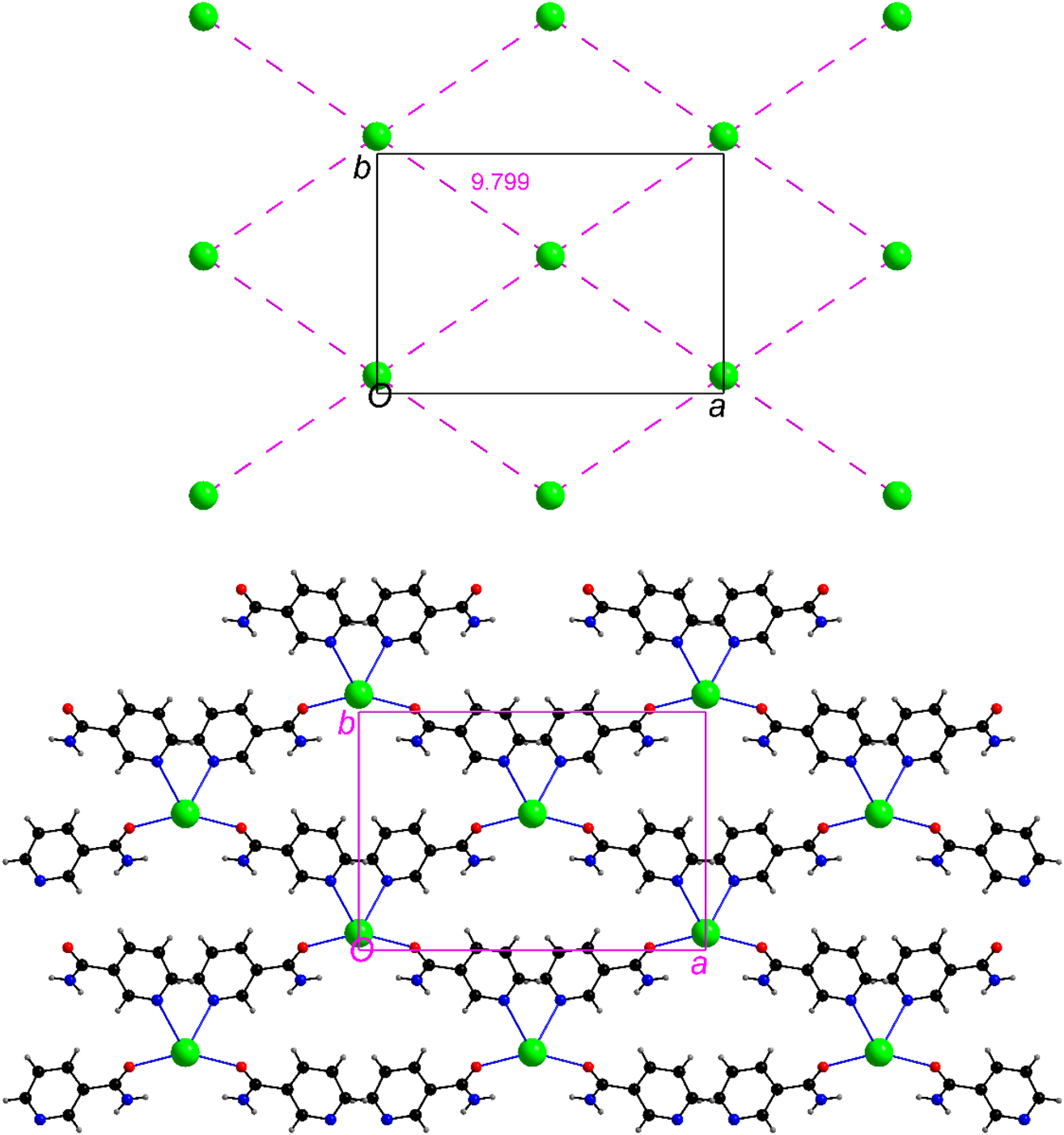

Figure 3:

A portion of the layer of Ba cations in 1 (top). The same arrangement showing only bridging nic ligands (bottom). For clarity, terminal ligands around the Ba atoms (Figure S1) are not shown.

Each Ba cation in the layer is further bonded to a terminal aqua and two symmetry related picrate ligands (Figure S1) accounting for the remaining five coordination sites. In view of the μ₂-bridging coordination, the {BaO₇N₂} polyhedra are discrete (Figure 4).

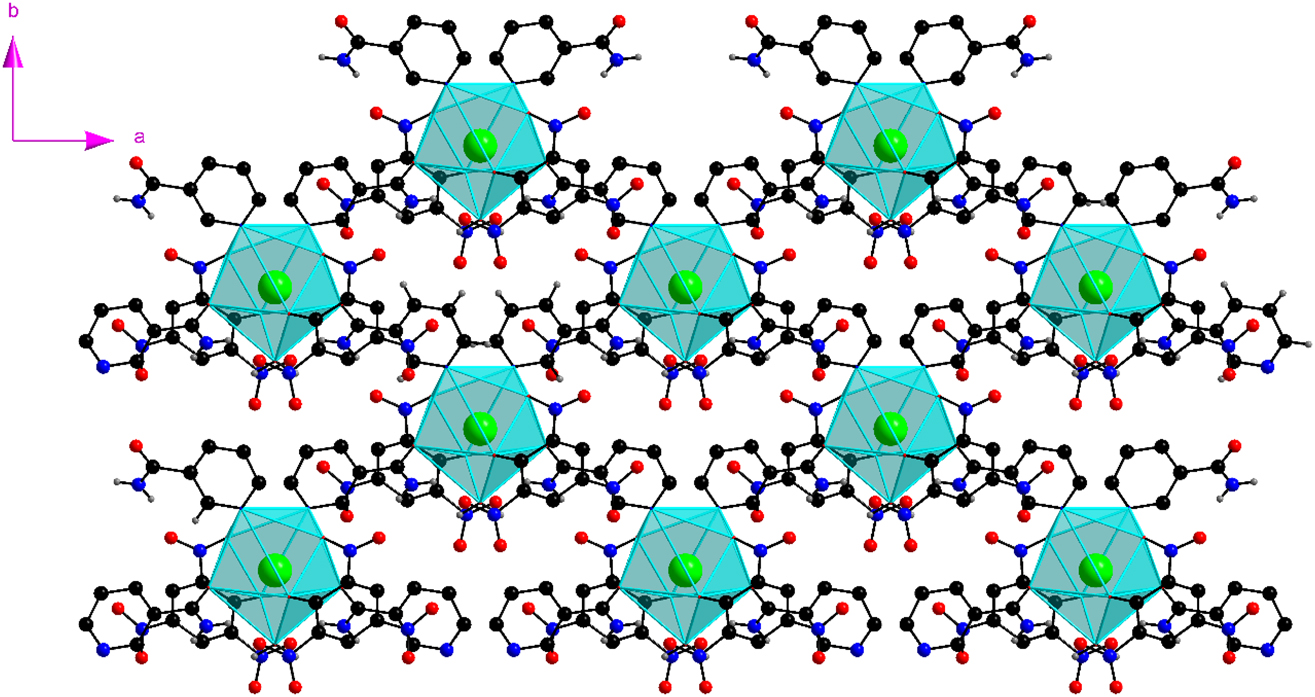

Figure 4:

The discrete {BaO₇N₂} polyhedra in 1. For clarity, the H atoms of the aromatic ring are not shown.

Unlike the monoaqua compound 1, which is a two-dimensional coordination polymer, the diaqua compounds [M(H₂O)₂(nic)₂(pic)₂] (M = Ca (or Sr) 2 (or 3)) are monomers and are isostructural. No pyridine N coordination is observed in 2 (or 3). As in 1, the water molecule and the picrate anion function as monodentate and bidentate O-donor ligands, respectively. However, the nicotinamide in 2 (or 3) functions as a monodentate O-donor ligand and is bonded to Ca (or Sr) atoms via the amide oxygen atom (O2) of the unique nicotinamide ligand resulting in a {MO₈} coordination polyhedron (Figure 5, Figure S2). The absence of any bridging ligands in 2 (or 3) explains their discrete nature.

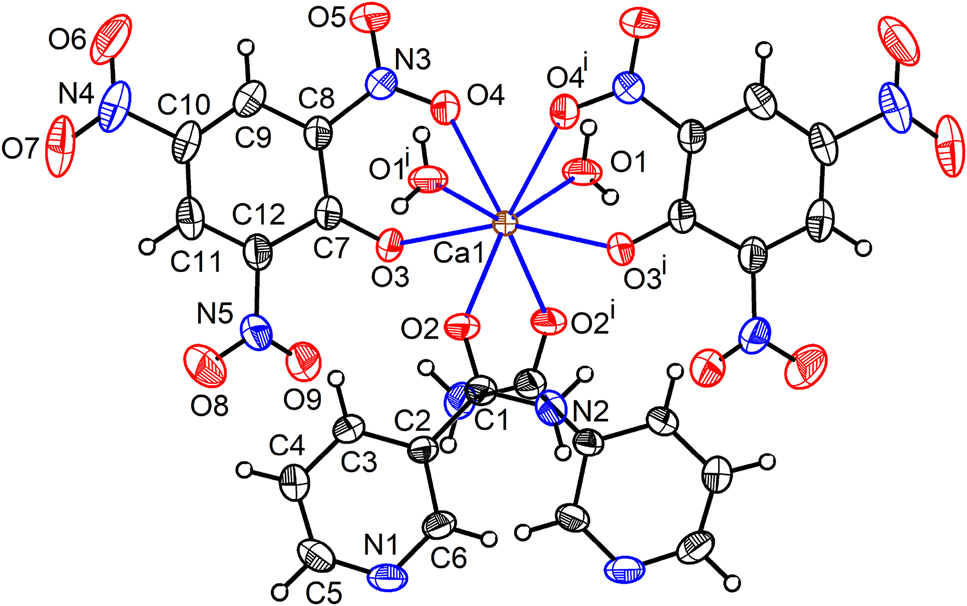

Figure 5:

The crystal structure of 2 showing eight-fold coordination around the Ca atom. Displacement ellipsoids are drawn at 50% probability level for all the non-hydrogen atoms.

Symmetry code: (i) −x+1, y, −z+3/2. For the crystal structure of the isostructural 3 see Figure S2.

The amide oxygen atom makes the shortest M–O2 bond (Ca1–O2 = 2.3578(16); Sr1–O2 = 2.481(3) Å) while the nitro oxygen atom exhibits the longest M–O4 bond length (Ca1–O4 = 2.5391(17); Sr1–O4 = 2.648(3) Å). The M–O3(phenolate) and M–O1(aqua) distances in the isostructural molecuels 2 and 3 are intermediate between the shortest and longest M–O bonds as in 1, with the M–O4 bond slightly longer than M–O3 (Table 2). The distinct M–O bond lengths and a wide range of bond angles (65.57(5)–159.46(8)° in 2; 62.61(8)–161.93(11)° in 3) indicate that the square-antiprismatic {MO₈} coordination polyhedron is distorted (Figure S3). The amide oxygen atom is involved in the shortest bond in the three compounds 1–3 described in this study. A similar observation has been made by us in our studies of alkaline-earth 4-nitrobenzoates [38], [39], [40].

In all three compounds 1–3, the H atoms of the aqua ligands, the hydrogen atoms bonded to the nitrogen atom of the amine group of nic and the H atoms attached to the carbon atoms of the pyridine ring (C4, C5 and C6 in 1; C6 in 2 (or 3)) of the nic ligand function as H-donors, while the phenolate O (O3) and the oxygen atoms of the nitro groups of the picrate anion function as hydrogen bond acceptors resulting in three varieties of H-bonding interactions (Table S2). An analysis of the short ring interactions [44] in 1–3 was performed using the program Platon [45], to determine the ring centroid to ring centroid distances (Cg···Cg) between adjacent aromatic rings. The values of these are found to be in the range 4.5669(2)–5.9138(2) Å in 1, (3.5476(2)–5.2823(3) Å in 2 and 3.5435(4)–5.9676(7) Å in 3) (Table S3; Figures S4–S6). As it has been reported that stacking interactions between aromatic rings can exist at a very long Cg···Cg distances [46], the observed data reveal the presence of π···π stacking in crystals of 1–3.

Several alkaline-earth metal picrates [47], [48], [49], [50], [51], [52], [53], [54] have already been structurally characterized (Table 3). An analysis of these structures and their atomic coordinates available in the CSD reveals a rich structural chemistry of this group of compounds. The free ligand picric acid which crystallizes in the polar space group Pca2₁ [55] forms several picrates, a majority of which crystallize in centrosymmetric space groups [16]. This trend can also be observed in alkaline-earth metal picrates. In addition to functioning as a charge balancing anion, the picrate anion is bonded to the alkaline-earth metal cations except for the case of [Mg(H₂O)₆](pic)₂·3H₂O. In this compound containing an octahedral [Mg(H₂O)₆]²⁺ moiety, the picrate is outside the coordination sphere of the cation. In [Ca(H₂O)(teg)(pic)](pic)·3H₂O a picrate anion is not bonded to Ca cation while the second one is coordinated in a bidentate manner. The bidentate (η²) binding mode of picrate, which involves the coordination of the phenolic oxygen atom and an oxygen atom of an ortho nitro group is observed in 12 of the 14 compounds in Table 3, especially in all the calcium picrates. Two barium picrates (entry no. 10, 11) containing two crystallographically unique picrates exhibit both monodentate (η¹) and bidentate binding modes (η²).

A survey of the metal coordination polyhedra in these compounds reveals many interesting features. Ten of the compounds are bonded to only O-donor ligands while in four cases including 1, coordination of N is observed. The Mg compound exhibits six-fold coordination while all Ca and Sr compounds exhibit eight-fold coordination. In the case of Ba the coordination number ranges from 8 (entry no. 10) to 11 in the Ba-picrate containing the diaza21-crown-7 ether (entry no. 12). A majority (10) of the compounds are discrete monomers which includes the single Mg-picrate and the picrates of Ca, while one Sr-picrate (entry no. 7) and three Ba picrates (entry no. 9, 13 and 14) are coordination polymers. The picrate ligand exhibits a µ₂-tridentate and µ₂-tetradentate bridging mode, respectively, in the water-rich [Ba(H₂O)₅(pic)₂]·H₂O (entry no. 9) and the anhydrous [Ba(DMSO)(pic)₂] (entry no. 13) coordination polymers. The µ₂-tridentate binding of picrate results in discrete {BaO₁₀} polyhedra as in 1, while the µ₂-tetradentate binding of the unique picrate and the bridging DMSO ligand in [Ba(DMSO)(pic)₂] results in the formation of a chain of face-sharing {BaO₁₀} polyhedra flanked by the picrate ligands. In [Sr(H₂O)₄(pic)₂]·H₂O a bridging aqua ligand is responsible for the polymeric structure while in 1, the neutral coligand nic is responsible for the two-dimensional structure. The monoaqua Ba compound 1 is the only example of a two-dimensional coordination polymer in this series of compounds.

3.2 Synthetic aspects and spectral characteristics of 1–3

The reaction of MCO₃ (M = Ca, Sr or Ba) with picric acid in water leads to a dissolution of the insoluble MCO₃ to afford water-rich metal picrates (entry nos. 2, 7 and 9 in Table 3) as documented in the literature [47, 48]. In recent work we have shown that solubilization of BaCO₃ in aqueous picric acid followed by reaction with DMSO results in the formation of the anhydrous compound [Ba(DMSO)(pic)₂]. In this study, the synthesis of compounds 1–3 was performed as shown below.

First, the insoluble metal carbonate was dissolved in aqueous picric acid by slow warming to obtain a yellow solution which was filtered. This was further reacted with nicotinamide to obtain 1–3 as yellow crystalline materials in good yield. The products thus obtained by slow evaporation of the reaction mixture were suitable for single crystal work. In the case of M = Mg, the above reaction resulted in the formation of a fine powder. A comparison of the experimental powder pattern of the bulk samples thus obtained with the theoretical pattern (Figures S7–S9) revealed that the materials are phase pure. The IR and Raman spectra of 1–3 (Figures S10 and S11) exhibit several bands which indicate the presence of the organic moieties. The IR bands at around 3600 and 3444 cm⁻¹ in 1 can be assigned to the stretching vibrations of the water molecule(s) OH₂ and of the –NH₂ group of the amide, respectively. The intense band at 1666 cm⁻¹ in 1 can be assigned for the amide carbonyl vibration of nic which occurs at a lower energy compared to that of the free nic ligand which exhibits a strong signal at 1690 cm⁻¹. Pure picric acid exhibits a strong signal at 1190 cm⁻¹ for the vibration of the C–O group and this occurs at 1160 cm⁻¹ in 1–3. The Raman spectra of all compounds exhibit an intense signal at ∼1309 cm⁻¹, which can be assigned for the symmetric stretching vibration of the nitro functionality.
