The viability of cell that encapsulated in calcium alginate hydrogel beads

2.1 MC3T3-E1 cell culture

MC3T3-E1 cells were purchased from the Basic Medical Cell Center, Chinese Union Medical University (Beijing, China). MC3T3-E1 cells were grown in a culture medium containing 10% fetal bovine serum and cultured in a 37°C, 5% CO₂ incubator. The cell morphology and growth status were observed under an inverted phase contrast microscope. The medium was changed every two days, and the cells were subcultured every three to four days.

2.2 Preparation of calcium alginate gel beads loaded with MC3T3-E1 cells

Referring to the method reported by Zhang et al. [18], MC3T3-E1 cells in the logarithmic growth phase were collected and resuspended to 2.5 × 10⁶ cells/mL in 1.5% (w/v) sodium alginate solution (produced by Dalian Aquaculture Plant, filtered and purified by Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian, China). The bead preparation instrument consisted of a YD-05 high-voltage electrostatic microcapsule preparation instrument (Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian, China), a WO109-1B injection pump execution unit, and a TJ-3A Syringe Pump Controller (Baoding Lange Constant Flow Pump Co., Ltd., Baoding, China). The cell suspension was added to 1.11% (w/v) CaCl₂ solution (analytically pure anhydrous CaCl₂, Shantou Xilong Chemical Plant, Shantou, China) using the bead-preparation instrument to perform the gelation reaction. Calcification was performed for 15 min to obtain calcium alginate gel beads (A-cell) containing cells.

2.3 Preparation of cell-free calcium alginate gel beads

We obtained cell-free calcium alginate gel beads (A-no cell) using the same method as above, without MC3T3-E1 cells.

2.4 CCK-8 assay to detect cell activity

Cells were divided into the experimental group (A-cell group) and the control group (A-no cell group), with eight replicates per group. A total of 100 µL of A-cell + 1,500 µL of culture medium was added to each well of the experimental group, while a total of 100 µL A-no cell + 1,500 µL of culture medium was added to each well of the control group. Cells were incubated at 37°C in a 5% CO₂ incubator. Media was changed every 1–2 days. The corresponding 24-well plates were removed at 2, 5, 8, 11, 14, and 21 days, washed three times with Tyrode’s HEPES buffer, and 500 µL Tyrode’s HEPES buffer + 50 µL CCK-8 reagent (DOJINDO, Japan) was added to each well. The plates were next incubated in a CO₂ incubator for 12 h at 37°C, after which a total of 300 µL of the liquid from each well was transferred to a 96-well plate. The optical density (OD) was then measured at 450 nm using a TECAN Sunrise microplate reader (Tecan, Switzerland).

2.5 Calcein-AM and PI double staining to detect live/dead cells

A-cell sets two replicates per group, except that there is no control group, the above operation before adding CCK-8 is the same as this experiment, plus 200 μL Tyrode’s HEPES buffer per well + 200 μL of staining solution containing Calcein-AM and PI (Calcein-AM with a final concentration of 2 μmol/L and PI of 2 μmol/L, DOJINDO, Japan), placed in a CO₂ incubatorfor 12 h at 37°C for 15 min, observed by a Nikon TE 2000U inverted fluorescence microscope (Nikon Optiphot, Japan). Live cells were stained green, while dead cells were stained red. Images from each group were obtained using the same parameters. Blue light was used to excite live cells, and green light was used to excite dead cells within the same field of view. Image pro plus 6.0 software (Media Cybernetics, USA) was used for cell count, fluorescence amount, and area calculation, and Photoshop CS3 software (Adobe, USA) for image overlap.

2.6 Statistics

SPSS software 13.0 for Windows (IBM SPSS Statistics, USA) was used to perform t-tests or one-way analysis of variance on the experimental data. When the variance was homogeneity, the LSD test was used for between-group comparison, while the Games–Howell test was used if the variance was heterogeneity; α = 0.05.

3.1 MC3T3-E1 cells

One day after the passage of MC3T3-E1 cells, long fusiform or polygonal cells were observed with good extension and clear cytoplasm (Figure 1).

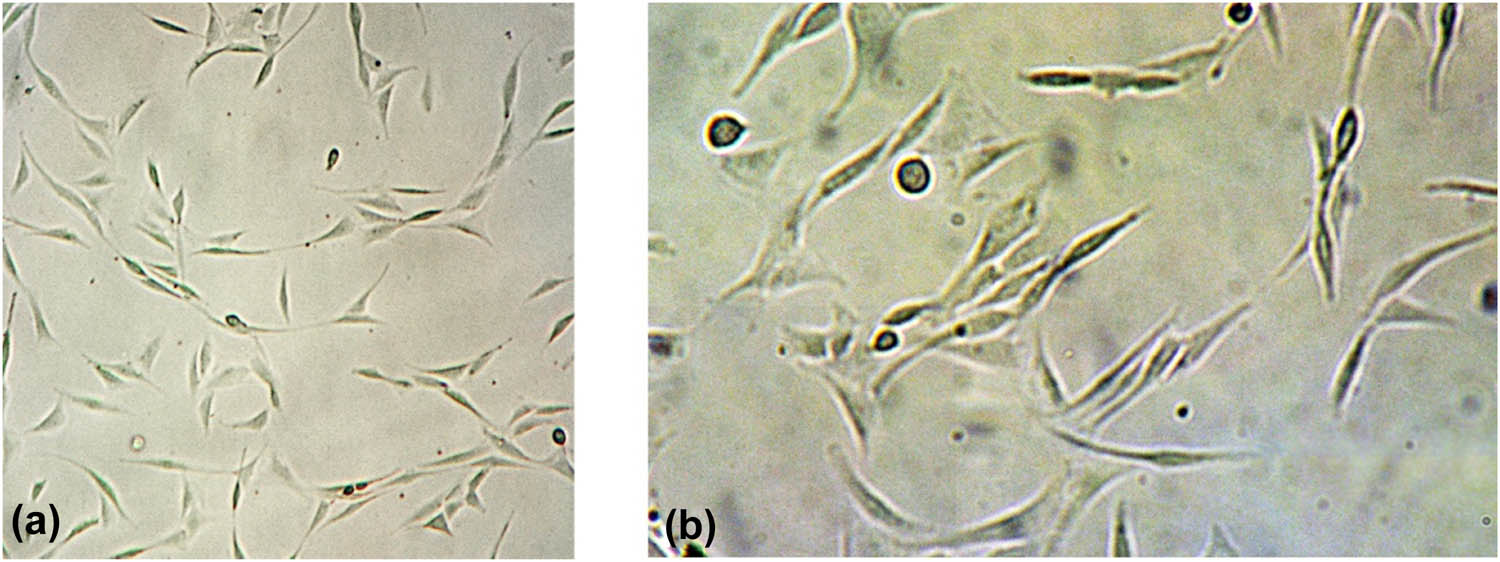

Figure 1

MC3T3-E1 cells 1 day after subculture. (a) (×40 magnification) and (b) (×100 magnification).

Figure 2

Principle and schematic of the preparation of calcium alginate hydrogel beads using the high-voltage electrostatic encapsulation method.

3.2 Calcium alginate gel beads

Sodium alginate droplets and calcium chloride form calcium alginate gel microspheres via a sol–gel phase transfer process (Figure 2), with the following reaction formula: 2nNaAlginate + nCa²⁺ → nCa(Alginate) + 2nNa⁺.

The particle size of the calcium alginate gel microspheres was related to the liquid flow rate and the viscosity. The particle size is also related to the electrostatic voltage, electrode distance, inner diameter of the needle, flow rate of the syringe, sodium alginate concentration and surface tension, and gelation volume and shrinkage coefficient.

3.3 Encapsulation of MC3T3-E1 cells by calcium alginate gel beads

Under an inverted phase contrast microscope, the calcium alginate gel microspheres appeared as semi-transparent circles with uniform size and smooth and continuous spherical contours. The cells in the microspheres were transparent and evenly dispersed (Figure 3).

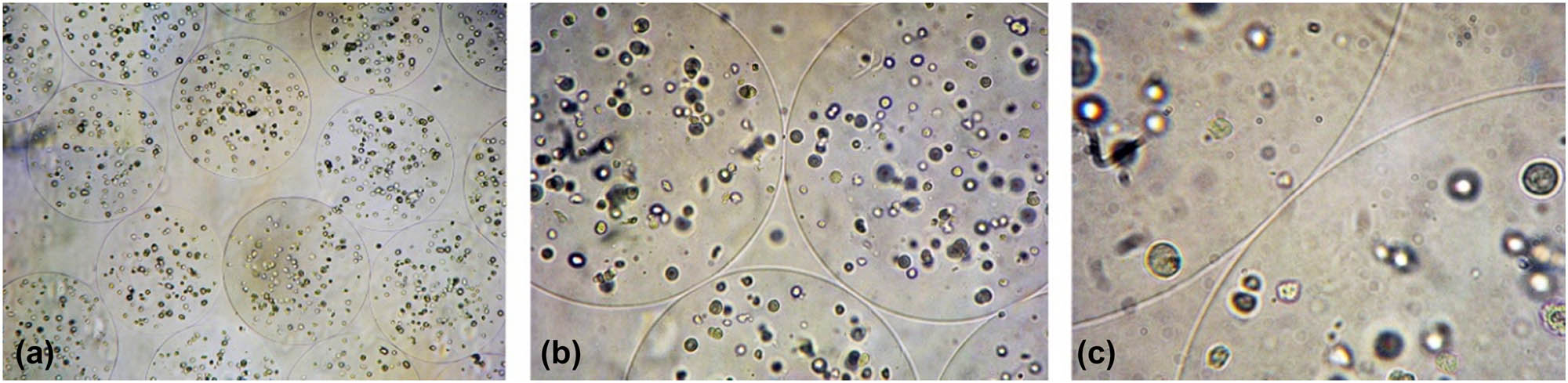

Figure 3

The alginate hydrogel beads with encapsulate MC3T3-E1 cells. (a) ×40 magnification; (b) ×100 magnification; (c) ×250 magnification.

3.4 CCK-8 method for the detection of cell activity

After different durations of in vitro culture, the cell OD values were obtained and are shown in Figure 4 (n = 8, X ± SD). The OD values of the A-cell group and the A-no cell group were significantly different at each time point (P < 0.001). The A-cell group had the highest OD value at 14 days. Compared to the OD values measured at other time points, the differences were significant. No significant differences were observed between the 2 day and 8 days OD values, while the 5 day OD value was significantly lower than the 2 and 8 day values. The OD value at 11 days was the lowest, while the OD value at 14 days increased until it was the highest, and then decreased. The OD value at 21 days was not significantly different than that at 5 days.

Figure 4

The alginate hydrogel beads with (A-cell) or without (A-no cell) MC3T3-E1 cells were cultured in vitro and the OD values are shown. Groups with different letters, a, b, c, and d, were significantly different (P < 0.001). Groups with the same letter were not significantly different (P > 0.05).

3.5 Calcein-AM and PI double staining method to detect cell activity

The results of double staining with Calcein-AM and PI at different times in A-cell cultures are shown in Figures 5 and 6. The green fluorescence of live cells was very bright at 2 days, the cells were dense, and the fluorescence intensity of live cells was the highest of all groups. Very few dead cells were observed. The green fluorescence intensity of live cells at 5 days was weaker than that at 2 days, while the red fluorescence intensity of dead cells was enhanced. The green fluorescence of viable cells at 8 days was stronger than that at 5 days but was weaker than that at 2 days. The number of dead cells did not change significantly from day 5. The green fluorescence of live cells at 11 days was weaker than that at 8 days, while dead cells were similar to that at 8 days. The number of live and dead cells was significantly increased at 14 days, while the intensity of green fluorescence was similar to that at 11 days. The number of viable cells was significantly decreased at 21 days compared with 14 days, while the fluorescence intensity was also decreased. The number of dead cells increased further, which was the most in all time points, and the red fluorescence intensity was not significantly different from that at 14 days.

Figure 5

The representative images of A-cells staining by Calcein-AM (green, live cell) and PI (red, dead cell) are shown. The A-cell were cultured in vitro for 2, 5, 8, 11, 14, and 21 days. A, B and C were ×40 magnified and displayed the same field; A and B were synthesized C. D, E and F were ×100 magnification and displayed the same field; D and E were synthesized F. The green fluorescence of live cells was very bright at 2 days, decreasing gradually to 8 days, then rise to the highest at 14 days, 21 days reduced to close to 8 days.

Figure 6

(a) Comparisons of the number of live (N_L) A-cells cultured in vitro at different times (n = 8, X ± SD). (b) Comparisons of the fluorescence intensity of live (F_L) A-cells cultured in vitro at different times. The difference between groups with different letters (a, b, c) was statistically significant (P < 0.05). Groups with the same letter were not significantly different (P > 0.05).

4.1 Calcium alginate gel beads encapsulate MC3T3-E1 cells

The preparation of calcium alginate gel beads was simple, the preparation process was mild, and the method of cell harvesting was simple. It has received certain attention in cell culture. Currently, it has successfully cultured, chondrocytes [19], and many more [20,21,22].

Sodium alginate molecules contain free carboxyl groups and hydroxyl groups [23] and can react with divalent metal ions such as calcium to form a gel of insoluble metal complexes with an “egg-box” structure. During the coagulation of sodium alginate and CaCl₂ into beads, the long-chain polysaccharide molecules collide, leaving many voids between the molecules. The formation of such voids provides a path for the penetration of solvent molecules. At the same time, because the matrix sodium alginate used is a biological polysaccharide, it is rich in hydrophilic groups such as hydroxyl, amino, and carboxyl groups. Thus, the hydrophilic gel microspheres formed from such biopolysaccharides have strong water absorption capacity and can quickly reach the swelling balance. The gel beads provide good hydrophilic swelling performance and porous characteristics to the spheres. During in vitro culture, oxygen, carbon dioxide, and macromolecular nutrients in the culture medium can enter the microspheres to supply the cells. Similarly, the metabolic waste of cells can also be discharged from the microspheres [23].

The supply of O₂, CO₂, and nutrients to the microspheres primarily depends on the permeability of the microspheres themselves, which depends on their pore size, their surface area (penetration area), and the distance between the surface of the microspheres and the cells within the microspheres (penetration distance). Permeability is proportional to the pore size and penetration area and inversely proportional to the penetration distance.

Abbah et al. [24] used alginate microspheres to encapsulate rat adipose tissue stem cells and induce their proliferation and differentiation to synthesize bone matrix. Weir and Xu [17] encapsulated hBMSCs in calcium alginate gel beads and found that the cells remained active, exhibited osteogenic differentiation, and synthesized minerals. Similarly, Wang et al. [25] induced the differentiation of BMSCs into osteoblasts using sodium alginate gel and detected the proliferation, growth morphology, and calcification of cells after the induction of Nodal and osteogenesis-related genes using MTT, toluidine blue staining, von Kossa staining, and RT-PCR assays, respectively. Thus, those data revealed that sodium alginate gel can promote the differentiation of BMSCs into osteoblasts.

4.2 Discussion of experimental results

In this study, MC3T3-E1 cells were encapsulated in calcium alginate gel microspheres, and cell viability was detected using CCK-8 assays at 2, 5, 8, 11, 14, and 21 days in vitro. MC3T3 was not encapsulated at the same time. Compared to the calcium alginate gel microspheres of E1 cells, the OD values were significantly different; Calcein-AM and PI was used to stain the live and dead MC3T3-E1 cells in the A-cell group, with a large number of live cells being observed at each time point. The results revealed that the cells in the calcium alginate gel microspheres were active after 21 days of culture, and that MC3T3-E1 cells could maintain activity in calcium alginate gel microspheres for a longer period of time.

The OD value was the highest on 14 days. Compared with the OD values measured at other time points, the difference was significant, thus, suggesting that calcium alginate gel microspheres encapsulated MC3T3-E1 cells during in vitro culture, and the activity was higher than at 14 days. Zhang et al. [18] prepared APA microcapsules encapsulating recombinant CHO cells (Chinese hamster ovary cells) using high-voltage electrostatic encapsulation and found that the recombinant CHO cells in the logarithmic growth phase could be used for encapsulation. It enters the logarithmic growth phase 2 days after encapsulation, following which, the growth rate gradually decreased, and the viable cell density was 4.17 × 10⁷/mL of microcapsules at 14 days. In this study, calcium alginate gel microspheres were used to encapsulate MC3T3-E1 cells in the logarithmic growth phase, with the activity of the cells being highest at 14 days. Our result was consistent with Zhang Ying.

No significant difference was observed between the 2 and 8 days OD values in this study, while the 5 days OD value was lower than that at 2 and 8 days. This difference was significant, indicating that the encapsulation process may cause cell damage. From 2 to 5 days, the poorly viable cells slowly, at the same time, the cell proliferation rate was slower than the cell death rate, and the OD value decreased at 5 days. From 5 to 8 days, it is possible that as the poorly activity cells died, the cells in good condition gradually proliferated, and the number and activity of cells increased. Cell viability increased from 11 days and reached the highest point at 14 days, suggesting that cell growth reached a stable period at 14 days. From 14 to 21 days, the cell activity was reduced and no significant difference was observed between the OD value at 21 and 5 days. However, the OD value at 21 days remained significantly higher than that at 11 days. After the cells reached a stable period at 14 days, they gradually died, leading to an increase in the number of dead cells and a decrease in the number of live cells. The number of cells continued to increase, the nutrient content of the culture fluid decreased, and the supply of nutrients and oxygen to the calcium alginate gel microspheres could not keep pace with the rate of cell proliferation and the rate of metabolite production; thus, the cells were affected by nutrient depletion, causing cell division to stop.

Weir and Xu [17] encapsulated hBMSCs in calcium alginate gel beads with a diameter of 2.2 mm. Cells were then cultured in vitro, and their activity was assessed using the Wst-1 assay. The results at 1, 7, 14, and 21 days, and the OD values were all approximately 1.0. At 21 days, the cells were active, osteogenic and differentiated, and they synthesized minerals. However, our experiment was different from Weir. In this study, the calcium alginate gel microspheres had a diameter of 200–300 µm and were cultured for 21 days in vitro. Our alginate beads were smaller and only one-tenth compared with Weir. Additionally, the cell activity was measured by CCK-8 assays; the OD values were 1.157 ± 0.053 at 14 days; and the calcium alginate gel microspheres had different sizes, different cell types, different cell numbers, and different reagents for measuring cell activity. However, the difference in OD values did not imply that the MC3T3-E1 cells in this study had low activity.
