Preparation and swelling properties of poly(acrylic acid-co-acrylamide) composite hydrogels

2.1 Materials

Acrylic acid (chemically pure, Kermel Chemreagent, Co., Ltd., Tianjin, China) was distilled under reduced pressure before use. Acrylamide (chemically pure, Fuchen Chemical Co., Ltd., Tianjin, China) was used as purchased. Bentonite (chemically pure, Trial Four Hervey Chemical Co., Ltd., Shanghai, China) and kaolin (chemically pure, Fuchen Chemical Co., Ltd., Tianjin, China) were milled through a 300-mesh screen. These were then dried at 105°C for 20 h prior to use. Potassium persulfate (KPS, analytical grade, Kermel Chemreagent, Co., Ltd., Tianjin, China) was recrystallized from water. N,N′-methylene bisacrylamide (MBA, chemically pure, Shanghai Chemical Reagent Factory, Shanghai, China) was used as purchased. Sodium hydroxide (analytical grade), surfactant (Span 60, sorbitan monostearate), sodium chloride (analytical grade), calcium chloride (analytical grade) and aluminium chloride (analytical grade) were purchased from Tianjin Kermel Chemical Reagent Co., Ltd., Tianjin, China and were used as purchased.

2.2 Preparation of the hydrogel

The experimental conditions for the preparation of composite hydrogels are shown in Table 1. A number of samples with different amounts of initiator, crosslinking agent, acrylamide, kaolin and bentonite were prepared at different reaction temperatures with varying neutralization degrees of acrylic acid by the following procedure. Acrylic acid was titrated at room temperature by using a 25 wt% solution of NaOH. The solution was continuously stirred during the addition of NaOH. The stirring was continued until the neutralization degree of the acrylic acid reached a constant value. The neutralized acrylic acid, acrylamide, kaolin, bentonite and surfactant (Span 60) were successively added in a 500 ml four-neck flask, which was equipped with a magnetic stirrer, a thermometer and a nitrogen line. Under nitrogen atmosphere, the crosslinking agent (MBA) and initiator (KPS) were added to the above mixture solution. The mixed solution was stirred at room temperature for 30 min and then, was heated slowly to a constant final value while being stirred. The temperature was maintained at this final value for 1 h. After the completion of the reaction, the product was washed several times with deionized water, cut and dried in an oven at 120°C until a dry powder with a constant weight was obtained. The powder was ground and screened through a 100-mesh sieve.

In the experiment (Table 1), the specific mass ratio of acrylamide over acrylic acid is 35–50%; the specific mass ratio of added kaolin over acrylic acid is 0–20%; the specific mass ratio of bentonite over acrylic acid is 0–20%; the specific mass ratio of added MBA over acrylic acid is 0.05–0.3%; the specific mass ratio of added KPS over acrylic acid is 0.1–0.35%.

2.3 Testing and characterization of hydrogel

3.1 Effect of different factors on water absorption of hydrogel

The effect of concentration of initiator on the Q value of hydrogel is shown in Figure 1A. It is seen that as the amount of initiator increased, the hydrogel’s Q value initially increased and then started to decrease. The hydrogel had the highest Q value at an initiator concentration of 0.25%. When the amount of initiator is low, the corresponding amount of the formed radicals in the reaction system is low. Under such conditions, the networking reactions among chemical species are not conducive to form the three-dimensional network of water absorbent resin. However, with an increase in the amount of the initiator, a large amount of monomer radicals are generated. The reaction is sped up and hence, the Q value of the hydrogel is increased. It should be noted that an excess amount of initiator will increase the network density among the materials and hence, will lead to smaller pores and decreased Q value for the hydrogel (20).

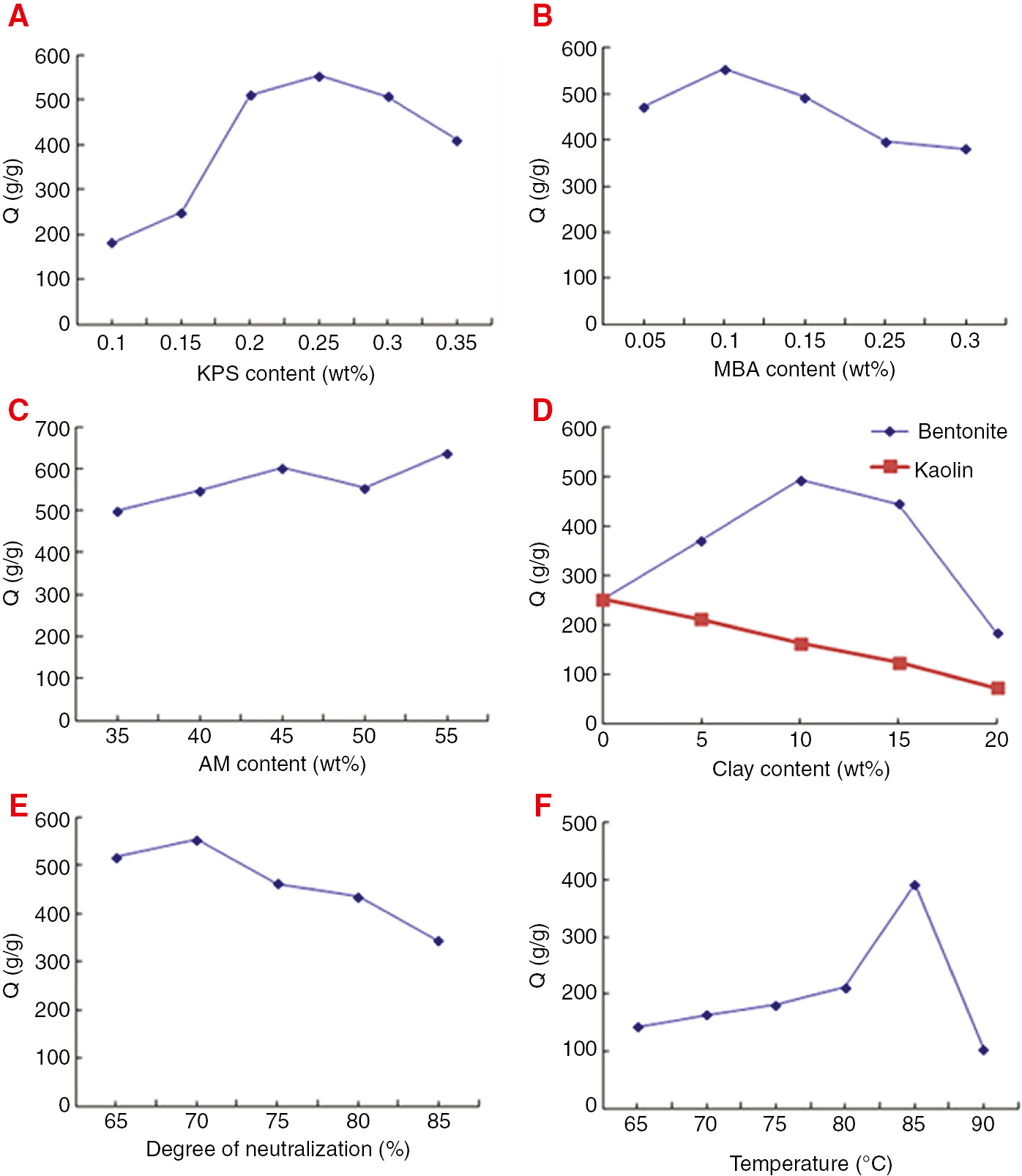

Figure 1:

Effect of KPS (A), MBA (B), AM (C), clay (D), degree of neutralization (E) and tempareture (F) on water absorbency of hydrogels.

The effect of the concentration of crosslinking agent on the hydrogel’s Q value is shown in Figure 1B. It is seen that as the amount of MBA increased, the Q value of the hydrogel initially increased and then started to decrease. The hydrogel showed the highest Q value for a crosslinking agent concentration of 0.1%. When the amount of crosslinking agent is low, the networking degree of the hydrogel is too low to form a three-dimensional network. Due to this reason, a polymer which has relatively high water solubility is formed. However, the strength and the water absorption ability of the hydrogel are low. When the amount of crosslinking agent is high, the network density increases. An increased network density leads to an excessive dense network and hence, lowers the water absorption ability of the hydrogel.

The effect of the concentration of the acrylamide on the Q value of the hydrogel is shown in Figure 1C. It is seen that with an increase in the amount of the acrylamide, the hydrogel’s Q value gradually increased. The hydrogel had the highest Q value at an acrylamide concentration of 55%. This because that the ratio hydrophilic polymer/inorganic compounds increases as AM is added (31).

The effect of the concentration of clay on the Q value of the hydrogel is shown in Figure 1D. It is seen that with an increase in the amount of bentonite, the Q value of the hydrogel initially increased and then started to decrease. The hydrogel had the highest Q value at a bentonite concentration of 10%. As described in a previous study, bentonite in a network acts as an additional network point (31). At suitable bentonite concentrations, the crosslinking density of the superabsorbent composite either does not change or changes only slightly, giving superabsorbent composite enough space to absorb and hold water molecules. However, when the bentonite is present in excess, the networking degree becomes too high. Water penetration into the bulk becomes difficult and therefore, is only absorbed on the surface. Due to this reason, the Q value of the hydrogel is decreased (32).

The effect of kaolin on hydrogel’s Q value is also shown in Figure 1D. It is seen that as the amount of kaolin increased, the Q value of the hydrogel gradually decreased. With an increase in the kaolin content, the physical crosslinking nodes of the hydrogel are increased. The space network becomes too dense. Meanwhile, the Q value of kaolin itself is relatively low. Both of these reasons lead to a lower Q value of the composite hydrogel.

Table 2 summarized the effects of two clays on the Q value of the hydrogel. The results showed that the H-29 hydrogel showed the highest Q values in both the deionized water and the 0.9 wt% NaCl solution for a bentonite and kaolin concentrations of 10% and 5%, respectively. The Q values were found to be 494 g/g and 95 g/g, respectively.

The effect of the neutralization degree of the acrylic acid on the hydrogel’s Q value is shown in Figure 1E. It is seen that for a neutralization degree of 70% or lower of the acrylic acid, the proportion of the functional groups present on the polymer chains became appropriate in number. Due to the complementary and coordinative effects among the functional groups, the hydrogel’s Q value increased. However, when the neutralization degree of the acrylic acid was too large in value, the soluble components in the hydrogel increased and it became soluble in deionized water. This ultimately resulted in a gradual drop in the Q value of the hydrogel.

The effect of reaction temperature on the Q value is shown in Figure 1F. It is seen that as the temperature increased, the Q value of the hydrogel initially increased and then started to decrease. The hydrogel had the highest Q value at a temperature of 85°C. At low temperatures, the system had a low initiator decomposition rate which led to low network density. Part of the polymer chain was water soluble and the viscosity of the system was large, resulting in a lower Q value for the gel. At very high reaction temperature, the decomposition rate of initiator was high resulting in a higher crosslinking density. Higher crosslinking density resulted in a denser network structure and a smaller water absorption space. So the Q value of the hydrogel decreased.

3.2 Fourier transform infrared (FTIR) analysis

Figure 2 shows the FTIR spectra of bentonite and kaolin. The peaks at 3617 cm⁻¹, 3554 cm⁻¹ and 3419 cm⁻¹ correspond to the stretching vibration of different hydroxyl groups while the peaks in the range of 900–1000 cm⁻¹ correspond to the Si-O stretching vibration.

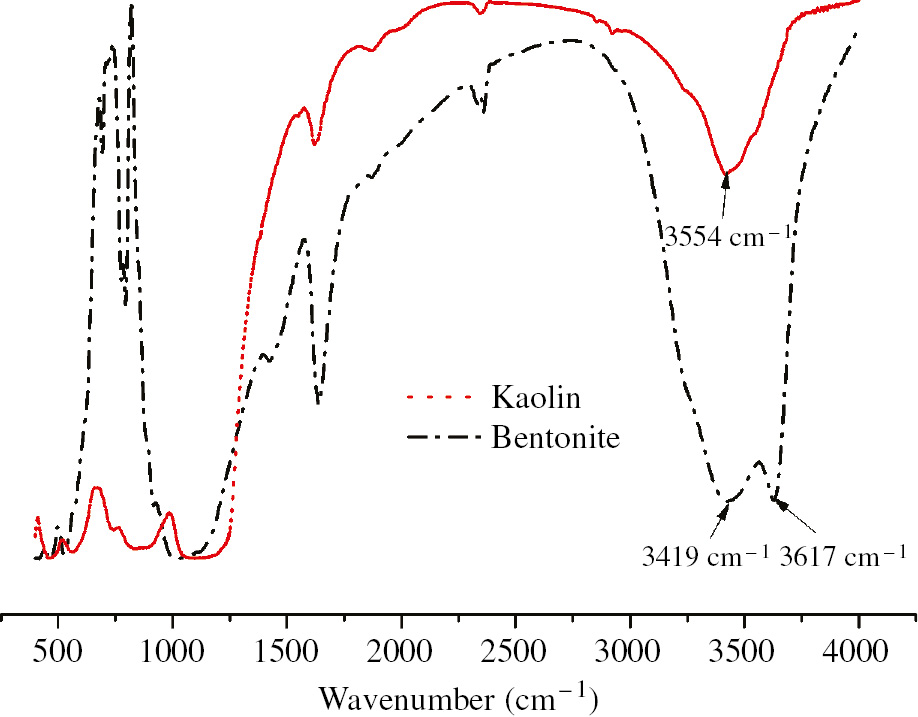

Figure 2:

FTIR of bentonite and kaolin.

Figure 3 shows the FTIR spectra of H-2, H-6 and H-10. The peak at 3439 cm⁻¹ corresponds to the stretching vibration of N-H bond in acrylamide unit. The peak at 2945 cm⁻¹ corresponds to the stretching vibration of -CH- in the acrylic acid unit. The peak at 1721 cm⁻¹ corresponds to the υ(C=O) of the carboxylate unit of acrylic acid. The peak at 1668 cm⁻¹ corresponds to the C=O stretching vibration in acrylamide unit. The peak at 1454 cm⁻¹ corresponds to the C-N stretching vibration. The peak at 1404 cm⁻¹ corresponds to the symmetric stretching vibration of carbonyl group in -COO-. The peak at 1175 cm⁻¹ corresponds to the -CO-O- stretching vibration in acrylic acid. The peak at 1010 cm⁻¹ corresponds to the relatively weak Si-O stretching vibration in bentonite and kaolin. The FTIR spectra of the composite hydrogel show all the characteristic peaks, which included -COOH (or -COONa), -CONH-, -CH- and Si-O. In addition, compared to Figure 8, the absorption peaks at 3698 cm⁻¹, 3621 cm⁻¹ and 3549 cm⁻¹ (corresponding to the -OH on the surface of bentonite and kaolin) were significantly weakened or disappeared (see Figure 3). It is suggested that the graft copolymerization between -OH groups on clay (bentonite or kaolin) and monomers (acrylic acid or acrylamide) takes place during the reaction. The synthesis process of gel is shown in Scheme 1.

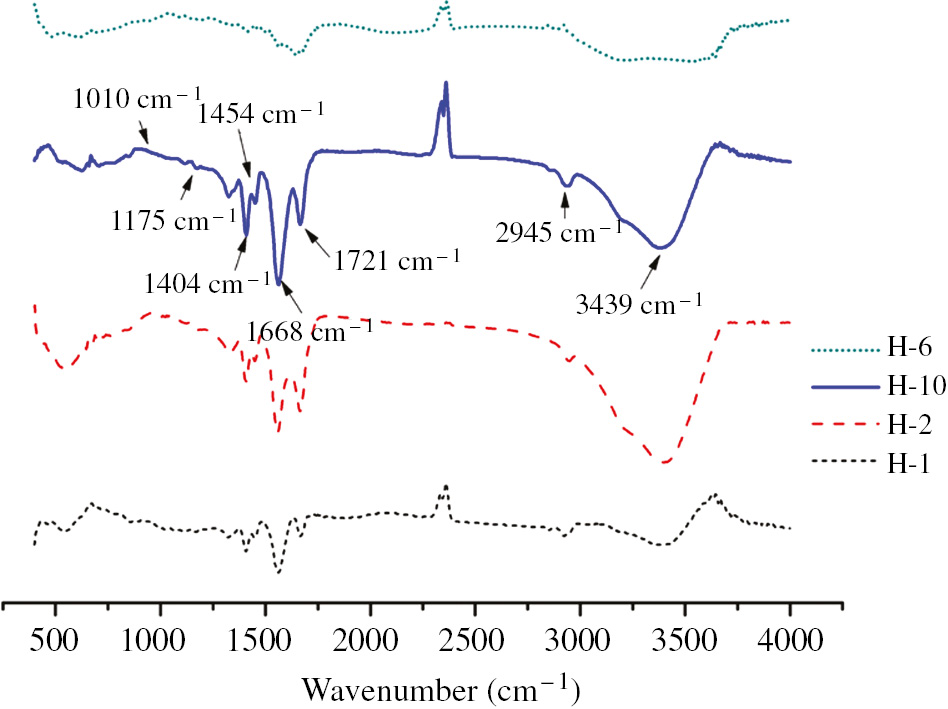

Figure 3:

FTIR of hydrogels.

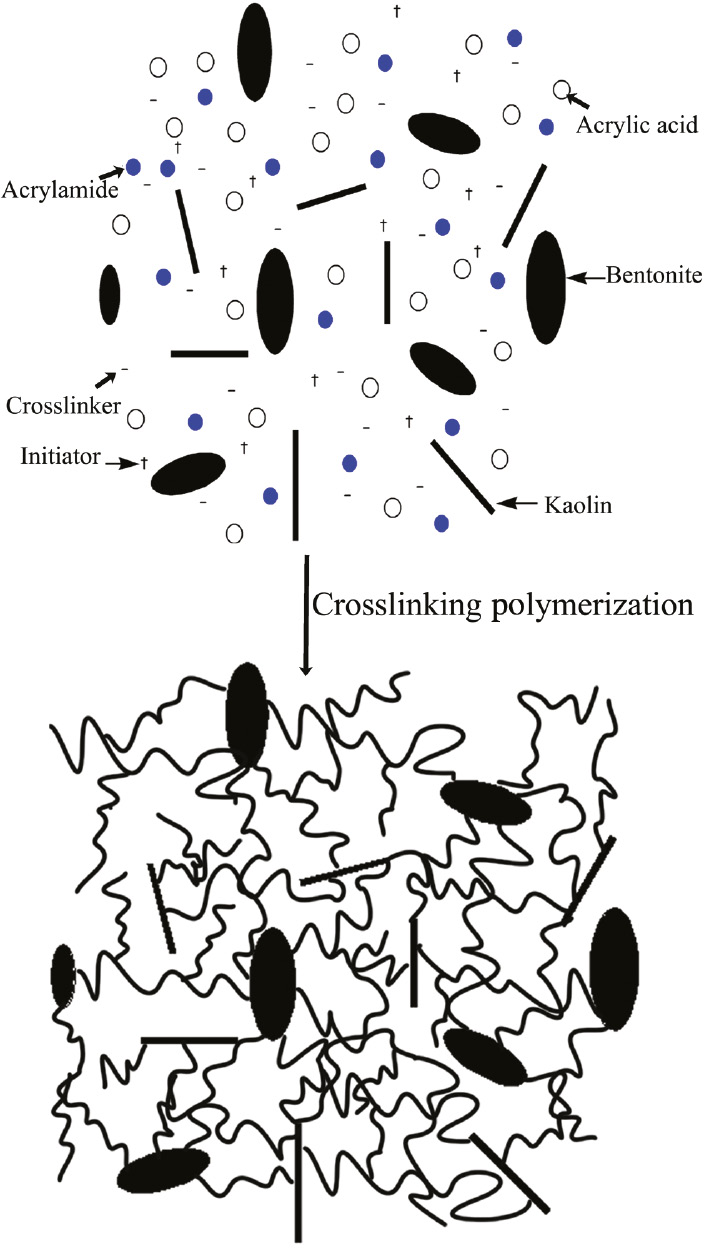

Scheme 1:

Proposed preparation mechanism for composite hydrogel.

3.3 XRD analysis

To study the dispersion of clay lamellae in hydrogel, XRD analysis of dry hydrogel with different proportions of raw materials was conducted (see Figure 4). It was seen that the diffraction peaks of bentonite and kaolin appeared at 2θ=7.0° which corresponded to the interlamellar spacing of the clay. The diffraction peaks of H-2, H-6 and H-10 composite hydrogel disappeared at 2θ=7.0° which indicated that the clay had been exfoliated and had uniformly been dispersed in the gel. Meanwhile, when the clay amount was relatively high, the diffraction peaks of H-10 gel were not obvious, which indicated that even a relatively high amount of clay could well be dispersed in hydrogel.

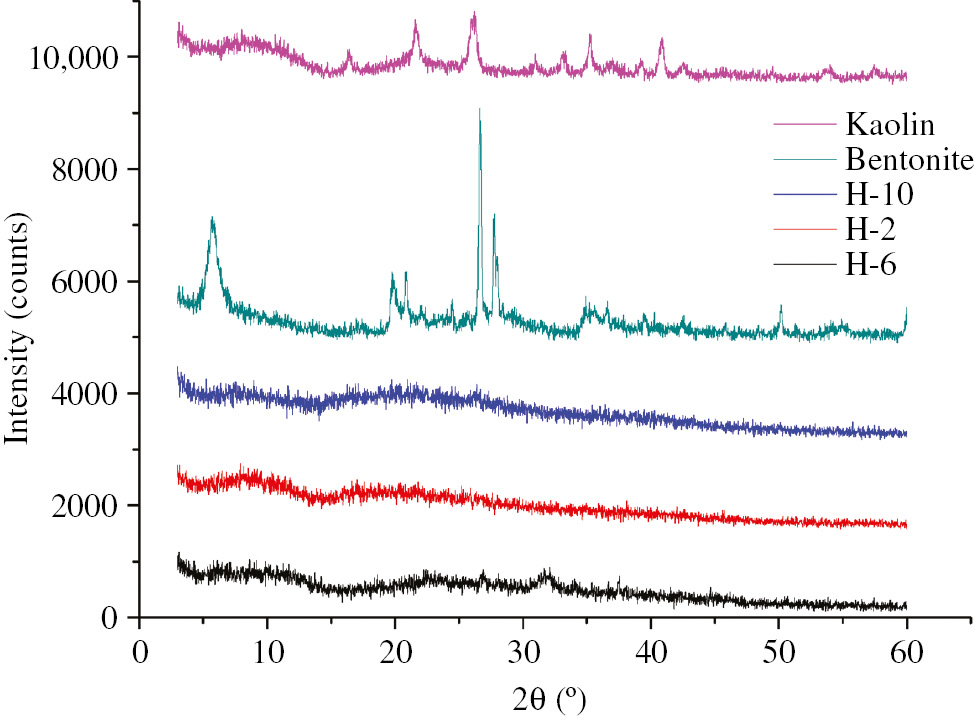

Figure 4:

XRD of bentonite, kaolin and hydrogels.

3.4 Micro-morphology analysis

Figure 5 shows the micro-structure of different freeze-dried composite hydrogels by SEM. It is seen that the section of H-1 (AA-AM gel) was relatively compact and had uneven structure. There are a lot of pores on the section of the clay composite hydrogel. The size and the shape of the pores changed with a change of the clay content. When the added amount of bentonite or kaolin reached a value of 5%, the section of H-2 and H-6 gels obtained relatively large pore structure. However, there was a significant morphological difference between the two clay composite gels. The hole diameter of the H-2 gel was significantly larger than that of the H-6 gel. This was due to the reason that kaolin, as a network point, plays a more important role than bentonite in the formation of the composite. In comparison to H-2 (5% bentonite) and H-6 (5% kaolin) gels, addition of 10% bentonite and 5% kaolin increased the hole number of H-29 and decreased its pore size. It was due to the reason that the clay acts as a physical crosslinking agent in the hydrogel. With an increase in clay content, crosslinking density of gel increased, causing an increase in the number of holes and a corresponding decrease in the pore size. These structures favored water absorption ratio of the gel, which is consistent with the water absorption results of the gel (as shown previously in Table 2). With an increase in the clay content, the section of H-30 composite hydrogel transformed from a pore structure to a lamellar structure. Haraguchi et al. proposed that the existence of the nano-clay affected the sublimation of ice during freeze-drying, which enables the gel to form layered pore structure (33). However, the section of H-33 gel was not a lamellar structure, but an uneven structure covered with some pores. This was mainly due to the reason that H-33 gel contained relatively larger amount of kaolin, which played an important role in physical crosslinking, leading to a denser structure with smaller pores.

Figure 5:

Scanning electron micrographs of hydrogels.

3.5 Thermal stability analysis

The thermogravimetric analysis results of H-1, H-4, H-8 and H-29 hydrogels are shown in Figure 6A. The results showed that the addition of kaolin and bentonite increased the thermal stability of the composite hydrogel. At 600°C, the residual weight percent of H-1 gel (without the addition of clay) was 33.6%. The residual weight percent of H-4 gel (with 15% of bentonite) was 40.2%. The residual weight percent of H-8 gel (with 15% of kaolin) was 40.7% and the residual weight percent of H-29 gel (with 15% of bentonite and 5% of kaolin) was 48.2%. These results indicated that the two clays of bentonite and kaolin are conducive to improve the thermal stability of the materials. Thermal stability improvement for a superabsorbent composite based on clay-poly(sodium acrylate) has previously been reported in the literature (31), (32).

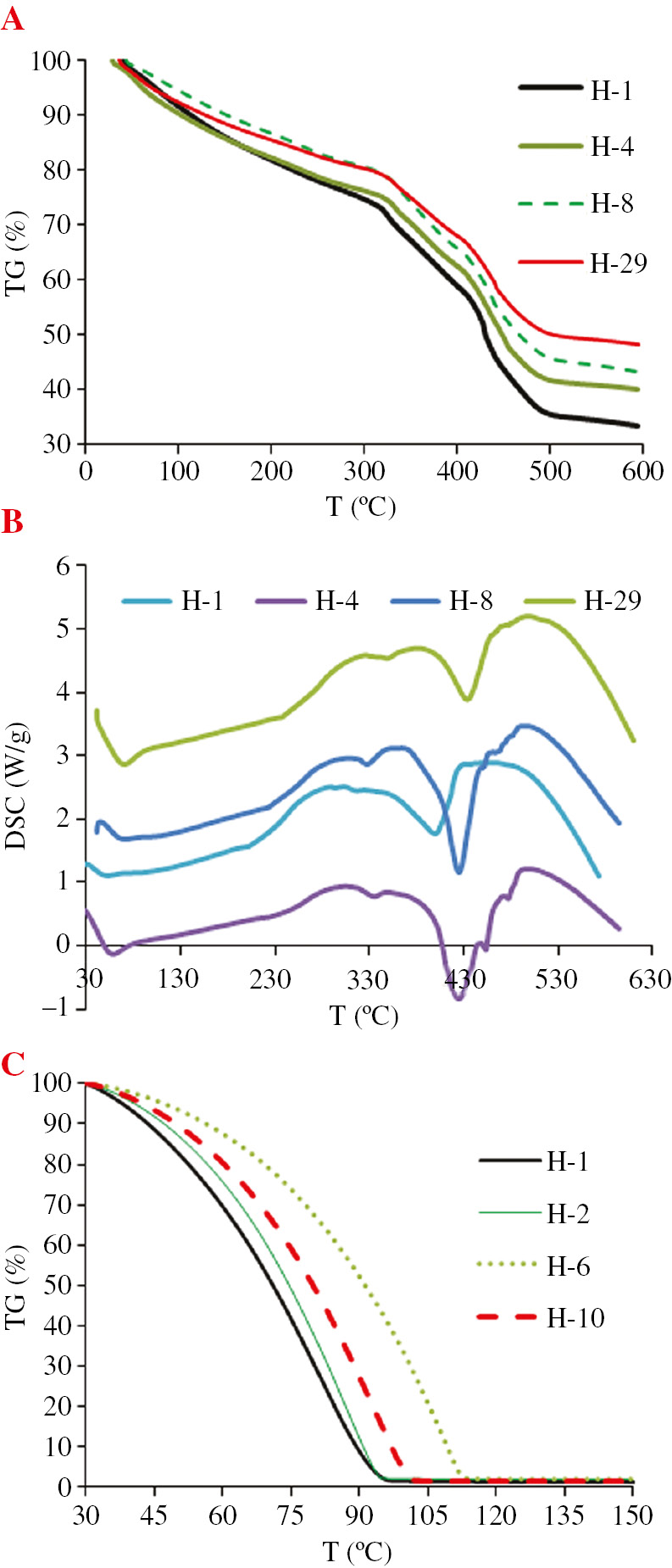

Figure 6:

Thermal stability and water retention of hydrogels.

The differential scanning calorimetry (DSC) analysis of the composite hydrogel shown in Figure 6B demonstrates that the endothermic processes of the gel from 30°C to 250°C are caused by the volatilization of free and bound water. As the temperature continues to increase, an exothermic conversion of the gel begins, which signals the thermal decomposition of the gel. The exothermic onset temperatures of clay-containing composite gels were significantly higher than those of single-clay hydrogels. This indicates that the addition two clays is able to significantly enhance the thermal stability of gels because of the shielding effects of clay, which obstruct the transfer of heat and prevent the loss of low-molecular-weight compounds formed by thermal decomposition.

3.6 Water preserving capability of composite hydrogel

Figure 6C showed the water preserving capability of water-saturated gel with the change of temperature. The results showed that with an increase in temperature, the water preserving capability of the hydrogel gradually decreased. Among all gels, the H-1 gel showed the fastest while the H-6 gel showed the slowest water loss rate. Table 3 showed that the water preserving capability of H-1 gel at 80°C was only 30.2%. The water preserving capability of H-2 gel (with 5% of bentonite) was 37.8% which was significantly higher than the H-1 hydrogel. More important is that this H-6 hydrogel “keeps” some water at temperatures above 100°C. This indicated that bentonite and kaolin could significantly improve the water preserving capability of hydrogel. Furthermore, kaolin showed a more obvious water preserving effect.

3.7 Repeated water absorption of composite hydrogel

Figure 7 showed the degree of water absorption recovery for different composite hydrogels after the process of “swelling-de-swelling-swelling”. The results showed that after the addition of kaolin or bentonite, the water absorption recovery ratio of the composite hydrogel significantly increased compared to the AA-AM gels. After four cycles of “swelling-de-swelling-swelling” process, the water absorption recovery ratio of H-1 gel (AA-AM gel) was only 52%. The water absorption recovery ratio of H-2 gel (with 5% of bentonite) was 73%. The H-29 gel (with 10% of bentonite and 5% of kaolin) showed relatively high water absorption recovery ratio which was found to be 79%. This indicated that appropriate amounts of bentonite and kaolin were helpful in improving the repeated water absorption property of the composite hydrogel.

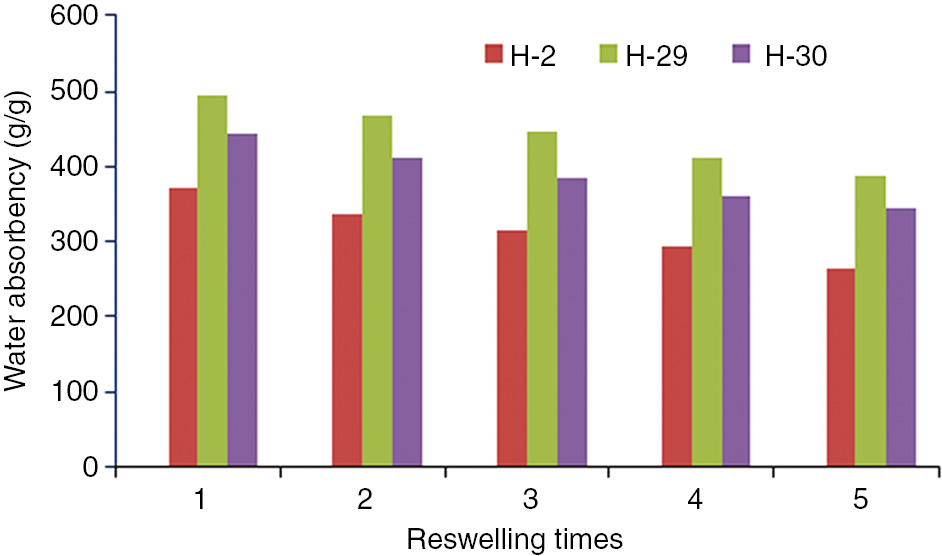

Figure 7:

Reswelling of hydrogels.

3.8 Rheological properties of composite hydrogel

Figure 8 shows the effect of bentonite and kaolin on storage modulus of the water-swollen form of the samples versus angular frequency. The storage modulus values showed an increasing trend with respect to the frequency change. When 5% of bentonite was added, the storage modulus of H-2 hydrogel reached a maximum in all the samples, which was higher than that of the reference hydrogel (H-1). However, when 5% kaolin was added or when both kaolin and bentonite were added, the storage modulus of the hydrogels (H-6, H-10, H-29, H-30) decreased and attained a value which was lower than that of the reference hydrogel (H-1). The storage modulus of the composite hydrogel decreased with an increase of clay content. This is because, smaller quantities of clay played the role of crosslinking sites in gel, resulting in a denser and more stable networking structure, which increases the crosslink density and storage modulus of the gel. However, higher clay content could cause an increase of viscosity in the reaction mixture, thus decreasing the probability of collisions between the monomers and the crosslinker which could initiate the growth of the polymer chain. Hence, at higher clay content, inhibiting role of clay to the polymerization progress dominates and leads to a decreased crosslink density, which in turn decreases the storage modulus (34).

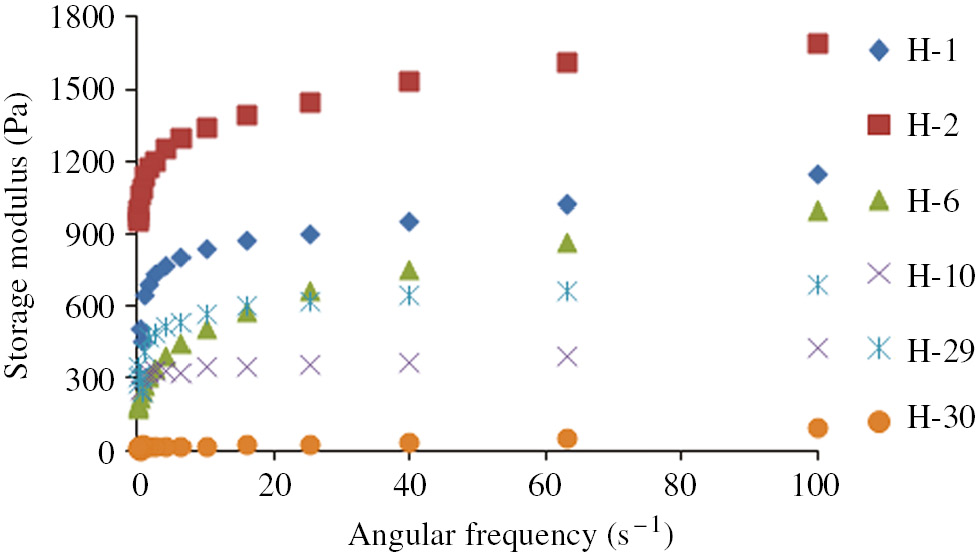

Figure 8:

Storage modulus of hydrogels.

3.9 Salt resistance of composite hydrogel

SAPs are usually used in salt containing environments. The water absorption of hydrogel is significantly affected by the salt. Therefore, the salt resistance is an important indicator to measure the effectiveness of SAP materials. To characterize the salt resistance of the composite hydrogel, a non-dimensional factor (f) was introduced in the present study. This non-dimensional factor (f) is defined as the ratio of water absorption ratio of hydrogel in NaCl solution to the water absorption ratio of hydrogel in deionized water. Table 4 showed f values of H-1, H-2, H-6, H-10, and H-29 hydrogel samples in different concentrations of NaCl solutions. The results showed that the f values of these five hydrogels followed the order: f(H-1)<f(H-2)<f(H-6)<f(H-10)<f(H-29). Bentonite and kaolin were introduced to the composite hydrogels which are not sensitive to salt. From Table 4, we might conclude that the presence of kaolin is the crucial factor (compare H-1 with H-6), while the effect of bentonite is marginal (compare H-1 with H-2, or H-6, H-10 and H-29). Qi et al. also suggested a similar conclusion (29).

3.10 The effect of salt solution on the water absorption of composite hydrogel

Figure 9 shows the effect of different salt solutions on the Q value of H-29 hydrogel. The Q value of the hydrogel decreased with an increase in the concentration of the salt solution. The Q value decreased more obviously when a high oxidative state salt solution (e.g. CaCl₂) was used. According to the Flory equation, the ionic strength of the solution depends on both the concentration and the charge of each individual ion. In fact the presence of ions in the solution decreases the osmotic pressure difference, the driving force for swelling, between the gel and the solution. The existence of the high oxidative state cation resulted in ion aggregation in the hydrogel’s interior (Ca and Al ions are known to form compact “complexes” with sodium polyacrylate). It led to the increase of the network density inside the hydrogel, which resulted in a significant reduction of Q value of the hydrogel in high oxidative state salt solution.

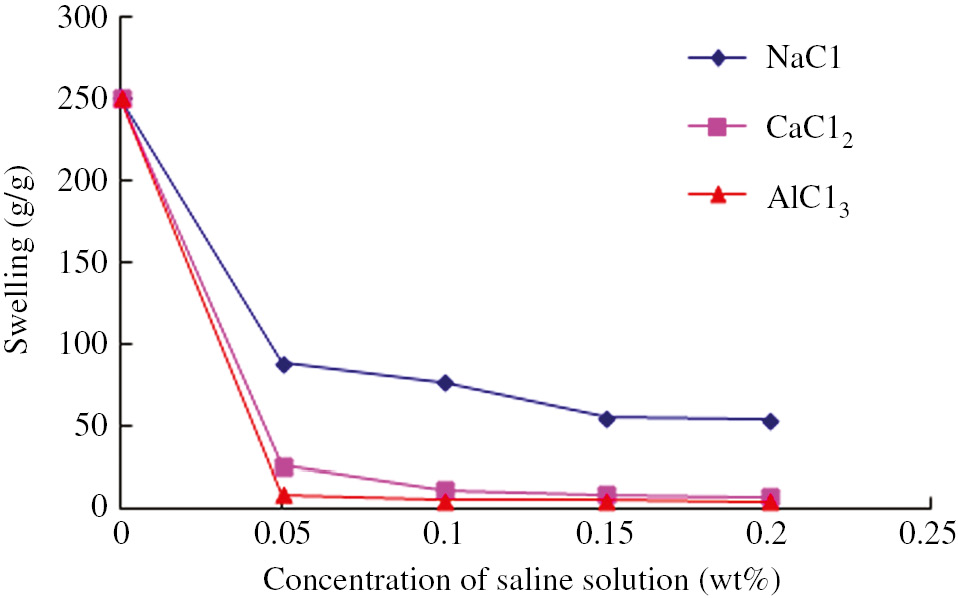

Figure 9:

Water absorbency of hydrogel in NaCl, MgCl₂ and AlCl₃ aqueous solutions with various concentions.
