Effects of soil amendments on selected soil chemical properties and productivity of tef (Eragrostis tef [Zucc.] Trotter) in the highlands of northwest Ethiopia

2.1 Description of the study area

The experiment was conducted in 2016 and 2017 main cropping season at Enerata site in the Gozamin district, East Gojam Zone, northwest Ethiopian highlands. The experimental site is located at the latitude of 10°23′N and the longitude of 37°44′E with an altitude of 2,481 m.a.s.l. The study years map is presented in Figure 1. The weather data source was Debre Markos Metrological Station, and based on 15 years (2003–2017) meteorological data, the average annual rainfall of the study areas was 1,335 mm with the mean minimum and maximum temperatures of 10.7 and 23.2°C, respectively. The monthly average of total rainfall and minimum and maximum temperatures of the study area for 15 years from 2003 to 2017 are presented in Figure 2. The total rainfall of the study years with a range of 0–271 mm per month is shown in Figure 2. The mean minimum and maximum temperatures of the study years were 11.2 and 23.0°C, respectively (Figure 2). The rainfall distribution of the study years is unimodal pattern, and the main rainfall extends from mid of June to October with peak in mid of July to end of August (Figure 2).

Figure 1

Location map of the study sites in Enerata, East Gojjam Zone, northwest Ethiopia.

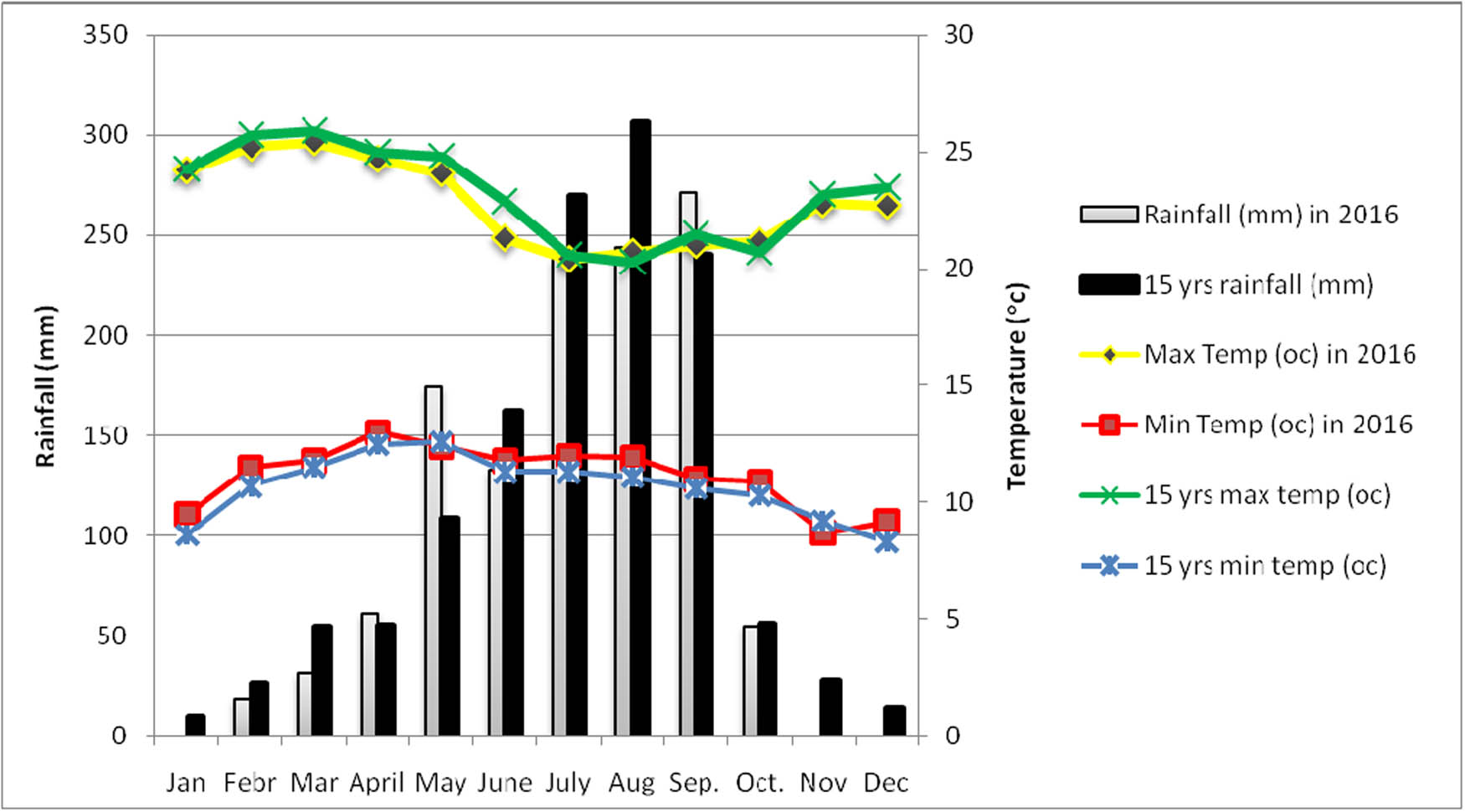

Figure 2

Monthly average rainfall and maximum and minimum temperatures of the study site for 15 years (2003–2017).

To characterize the soils of experimental years, soil sampling and analysis were carried out twice, first before starting the experiment in 2016 and second after the end of the experiment in 2017 by mixing samples collected at eight different spots along the two diagonal lines of the field at 0–30 cm depth with an auger. The composite soil sample was air-dried and crushed to a sieve size of 2 mm before being analyzed for important physico-chemical soil properties.

The Debre Markos soil laboratory analyzed the collected soil samples. The pH of the soil was measured with a pH meter in a 1:2.5 soil–H₂O ratio, as described by Hazelton and Murphy [21]. The Bouyoucos hydrometer method was used to determine the texture of the soil [22]. The Walkley–Black wet digestion process was used to extract soil organic carbon (OC) [23]. Total N was calculated using the Kjeldahl digestion method of Havlin et al. [24]. The Olsen NaHCO₃ extraction method was used to extract available soil P [25]. The 1 N ammonium acetate extraction method, as described by Black, was used to determine the cation exchange capacity (CEC) [26], whereas an atomic absorption spectrophotometer was used to assess Ca and Mg [27]. Table 1 shows the findings of the soil laboratory analysis.

Some selected physico-chemical soil properties before soil amendments application are listed as follows: the classification of the experimental soil is nitosol. The experimental soil’s textural class was clay, with a pH of 5.1, rated as strongly acidic based on the ratings of Hazelton and Murphy [21]. Total N content was 0.09%, rated low based on the ratings of Havlin et al. [24]. According to Walkley and Black [23], the soil’s OC concentration was 1.27%, which is low. The available P content of the experimental soil was 6.85 ppm, which is very low based on the rating of London [25]. Magnesium and Ca were low, while CEC was moderate (Table 1).

A composite animal manure sample was collected for the determination of its moisture content, pH, total N, OC, available P, and exchangeable Ca and Mg. Manure moisture content was determined by oven-drying the samples at 105°C for 24 h. The predetermined rate of manure was adjusted according to the procedure of FAO [28] moisture correction factor. The pH, total N, OC, available P, and exchangeable Ca and Mg were determined by the procedures listed in soil sampling and analysis (Table 1).

2.2 Experimental materials used for the study

The tef variety “Quincho” [(974 × 196)-HT′-387 (RIL355)], Dejen calcium carbonate (CaCO₃), cattle manure, urea, and diammonium phosphate (DAP) were used for the experiment.

2.3 Experimental treatments, design, and procedures

East Gojjam agriculture department and others [5] recommended 46/20 kg ha⁻¹ N/P fertilizer to improve soil fertility and enhance grain yield of tef in the Gozamin district. Abewa et al. [29] advised to use 2 t ha⁻¹ lime in northwestern Ethiopia for tef fields. According to Assefa et al. [30], the maximum rate of cattle manure (7.5 t ha⁻¹) produced the largest grain yield of tef, and as the rate of manure increased, the grain yield of tef increased. Our treatment combinations are based on these findings. Therefore, two rates of lime (0 and 2 t ha⁻¹), two rates of NP fertilizers (0/0 and 46/20 kg ha⁻¹), and three rates of cattle manure (0, 10, and 15 t ha⁻¹) were factorially combined and tested using randomized complete block design (RCBD) with three replications.

The experimental field was plowed four times using oxen-driven local plowing facility and divided further into blocks and plots as per the treatments and design manually. The gross plot size was 2 m × 3 m (6 m²) with the net plot area of 1.5 m × 2.4 m (3.6 m²). Lime was broadcasted and thoroughly mixed into soil 50 days before tef planting. Manure was collected under shade for 40 days and incorporated into soil one month before planting. Tef seeds were drilled in rows, which were spaced apart with 20 cm, in early July 2016 and 2017 at the recommended rate of 5 kg ha⁻¹. The whole phosphorous fertilizer was applied during the sowing of tef seeds, whereas N fertilizer was applied in split in such a way that the first half during sowing and the second half at tillering growth stage. Moreover, all the necessary field-management practices were carried out uniformly on all plots.

2.4 Crop data collection

Data of growth and yield related variables of tef were timely collected following their standard methods and procedures. Plant height, panicle length, and number of fertile tillers were measured on plant basis by taking ten randomly selected plants at physiologically maturity growth stage in the net plot area of each plot, whereas biomass, grain, and straw yields were measured from a net plot area and converted to hectare basis (t ha⁻¹). Above ground biomass yield of tef in each net plot area was weighed with sensitive electrical balance after harvesting and proper drying with sunlight. Grain yield and thousand grain weight were adjusted to 12.5% moisture content before proceeding to statistical analysis. Straw yield was estimated as the difference between biomass and grain yield. Thousand seeds samples were taken from clean tef grain yield of each plot and weighed.

2.5 Data analysis

3.1 Soil chemical properties as influenced by lime, NP fertilizers, and manure applications

The interaction of manure and NP fertilizer applications highly significantly (P < 0.01) increased the soil OC, total N, and CEC of the experimental site, according to the results of soil chemical properties after tef harvest (Table 2). Similarly, the interaction of lime and cattle manure in combination over the years had a highly significant (P < 0.01) effect on pH and OC (Table 3). The highest soil OC content (2.72%) and total N (0.23%) were achieved when 15 t ha⁻¹ cattle manure and N/P fertilizers were applied at a rate of 46/20 kg ha⁻¹ (Table 2). Furthermore, combining the highest cattle manure with lime resulted in a soil OC of 2.35% (Table 3).

The combined application of cattle manure and lime highly significantly (P < 0.01) affected calcium and magnesium. The maximum rate of manure application with lime resulted in the highest 14.5 meq per 100 g Ca and 2.63 meq per 100 g Mg values (Table 3). The combined application of cattle manure and lime had a significant (P < 0.05) effect on soil available P. The integrated application of 15 t ha⁻¹ cattle manure with lime produced the highest available P (13.3%) after tef harvest (Table 3).

3.2 Vegetative growth of tef as influenced by soil amendments

3.3 Grain yield and related parameters of tef as affected by soil amendments

3.4 Economic analysis

The partial budget analysis method of CIMMYT [33] was used to evaluate the expense and benefit of various treatments. The gross yields of 12 treatments were calculated using the final yield and straw results. The highest NB (2,252.91 USD ha⁻¹) of tef was obtained with 46/20 kg ha⁻¹ N/P fertilizer, 10 t ha⁻¹ cattle manure, and 2 t ha⁻¹ lime, followed by 2,027.64 USD ha⁻¹ with 46/20 kg ha⁻¹ N/P fertilizer, 15 t ha⁻¹ cattle manure, and 2 t ha⁻¹ lime, and the lowest (784.91 USD ha⁻¹) was obtained with the control (Table 6).

4.1 Soil chemical properties as influenced by lime, NP fertilizers, and manure applications

After tef harvest, the rise in OC content of experimental soils was most likely due to increased manure application with NP fertilizers (Table 2), and cattle manure is the source of carbon, which helps to improve soil quality and fertility. Woldesenbet et al. [8] found that when farm yard manure and NP fertilizers were applied to the soil, the organic matter content increased significantly. The maximum OC content was observed due to the application of manure and lime [34]. The addition of NP fertilizer and manure to the soil increased the soil’s OC content [35]. The maximum manure application with NP fertilizers in combined over years produced the highest total N content of 0.23% (Table 2). This may be due to manure that increases soil microbial biomass N, the living component of soil organic matter. Microbial biomass N is slowly transformed to inorganic N as organic material decomposes. N fertilization resulted in a considerable increase in total soil N in the first 30 cm of soil depth. Organic fertilizer’s residual effect on the physical and chemical properties of the soil increased the total N [36]. The combined application of 15 t ha⁻¹ cattle manure and 46–20 kg ha⁻¹ N–P resulted in a maximum CEC of 21.67 meq per 100 g in combined over years (Table 2). Tolanur [37] stated that organic and NP fertilizer application significantly increased soil CEC compared to NP fertilizer application alone, which is consistent with the current finding.

The combined application of lime and the maximum cattle manure resulted in a soil pH of 5.97, which was 0.75 pH units higher than the control (Table 3). This could be due to the increased microbial activity that occurs during the breakdown process and the creation of organic matter, which may have resulted in the release of additional exchangeable cations. Bekele et al. [13] found that mixing 7.5 tons of vermicompost with 4 tons of lime raised the pH of the experimental soil from 4.8 to 6.0. To correct soil acidity and increase crop yields, soil amendments such as lime and organic materials must be applied [38]. The highest Ca and Mg content of experimental soils was due to the application of manure with lime (Table 3). Repšienė and Skuodienė [39] found that applying manure and lime together substantially increased calcium and magnesium levels. The combined application of lime and manure increased the amount of Mg available in the soil [40].

The overall cattle manure application with lime resulted in the highest available P after harvest (Table 3). The increase in available P with lime may be attributed to a decrease in exchangeable acidity and an increase in organic P mineralization. The release of organic acids during decomposition increased the available P content of the soil, which aided in the release of P. Manure also aids in the formation of intermediate compounds that interact with phosphorus-fixing cations such as Al, iron, and other metal cations, lowering P adsorption capability. Bekele et al. [13] observed that the combined application of fertilizer with lime significantly increased available P. This may be attributed to a large increase in soil pH as a result of the lime effect, which decreased P fixation. Fekadu et al. [41] found that when compost and lime interact, the available P increases due to the desorption effects of the lime and compost.

Before planting tef, the soil pH, total N, OC, available P, and CEC of the study areas were found to be below the optimum requirements for tef production, in general. The soil laboratory results after harvest (2 years) showed that the integrated use of soil amendments resulted in substantial improvement in the overall condition of the soil as well as tef productivity. As a result, the optimal tef production can be achieved using the study area’s acidic soil amendments.

4.2 Vegetative growth of tef as influenced by soil amendments

Tef plant height increased as the rate of manure with NP fertilizer increased, indicating that ample supply of balanced essential nutrients from manure and NP fertilizers is responsible for the increase in plant height (Table 4). This could be due to manure’s ability to provide multiple plant nutrients as well as create a favorable plant growing environment by enhancing the soil’s moisture and nutrient status, all of which improve the plant’s development and overall performance. In line with this experiment, Bekele et al. [13] showed that the highest rate of organic manure and P fertilizer resulted in the tallest maize height. Similarly, Dastmozd et al. [42] found that combining organic and synthetic fertilizers increased plant height more than using only synthetic fertilizers. Dinka et al. [43] also found that organic manures and industrial fertilizers had a positive impact on barley mean plant height.

Addition of 10 t ha⁻¹ manure with NP fertilizer increased panicle length by 19 cm compared to control treatment (25 cm). Panicle length, which was 40 cm with sole application of NP fertilizer, increased to 44 cm when integrated with 10 t ha⁻¹ cattle manure (Table 4). Fertilizer application and effective nutrient use result in high photosynthetic productivity and dry matter accumulation, resulting in panicle length. This is due to the combined application of organic and inorganic fertilizers, which increases synchrony and reduces losses by converting inorganic N into organic forms. Arif et al. [44] found that combining organic and inorganic fertilizers significantly increased rice panicle length over control, which is consistent with our finding.

In comparison to sole application of either cattle manure or inorganic NP fertilizer, the combined application of NP fertilizer and 10 t ha⁻¹ manure resulted in a higher number of effective tef tillers (Table 4). This could be due to the synergistic effect of combining organic and mineral fertilizers, which could be attributable to increased macro- and micronutrient availability as well as more fertile spikes per plant. Our results are close to those of Prasad et al. [45], who found that using 10 t ha⁻¹ manure in combination with prescribed NP fertilizer resulted in a higher number of effective tillers (8.4) of barley. The combined application of compost and mineral fertilizers significantly increased productive tillers of rice over control and sole application of either inorganic or organic fertilizer [46].

4.3 Grain yield and related parameters of tef as affected by soil amendments

In combined over years, the application of NP fertilizer alone significantly increased TSW (0.34 g) over the control. Furthermore, combining 46/20 kg ha⁻¹ NP fertilizer with 10 t ha⁻¹ manure resulted in a higher TSW (0.37 g) than sole application either NP fertilizer or manure (Table 4). The possible reason could be the use of manure and inorganic NP fertilizers improved tef’s ability to partition dry materials into reproductive seed sinks. Dastmozd et al. [42] showed the application of 80 kg ha⁻¹ N and 1.8 t ha⁻¹ compost resulted in the highest TSW of wheat (42 g). The application of NP and cattle manure significantly affected barley TSW [4].

The combined application of 46/20 kg ha⁻¹ N/P fertilizer and 10 t ha⁻¹ of cattle manure with lime increased the combined over years grain yield by 266 and 35% when compared to the control treatment and sole application of NP fertilizer, respectively (Table 5). Thus, the synergistic effect of lime made a significant difference in terms of grain yield increment. In general, combining lime with fertilizer substantially increased tef grain yield in acidic soils as compared to fertilizer alone (Table 5). Increased tef grain yield due to the use of manure in combination with inorganic NP and lime could be related to the gradual release of nutrients into the soil after manure decomposition, resulting in enhanced plant growth and yield components. Furthermore, it could be attributed to the addition of both macro- and micronutrients from the manure, indicating that even a full rate of inorganic NP was insufficient for tef development in the study area. As a result, in acidic soils, lime application could be combined with the optimal amounts of inorganic and organic fertilizers. Golla [19] found that integrated acidic soil management improved yield stability and maximized nutrient use quality, which is in line with our findings. These findings were consistent with those of Demissie et al. [14], which found that using organic and commercial fertilizers in combination with lime improved barley yields more than their main effect. Tesfahun [47] also found that applying combined organic and inorganic nutrient sources alone was insufficient to substantially increase barley grain yield without the addition of lime. Boke and Fekadu [48] concurred that lime is essential but must be supplemented with other nutrients. The increasing effect of grain yield of tef could be mainly due to increasing of effective tillers, panicle length, TSW, and biomass yield in this study.

The combined application of 46/20 kg ha⁻¹ N/P fertilizer and 15 t ha⁻¹ of cattle manure with lime increased total biomass yield by 36 and 194% compared to the recommended rates of NP fertilizers and the control, respectively (Table 5). The luxuriant vegetative development of tillers, plant height, and panicle length responsible for the highest biomass output is most likely due to the combined impact of lime and NP fertilizer, as well as large manure doses. These findings were consistent with those of Bekele et al. [13], which found that the maximum rates of manure, P fertilizer, and lime produced the highest biomass yield of maize (12.18 t ha⁻¹). According to Fekadu et al. [41], applying 8 t ha⁻¹ manure, 30 kg ha⁻¹ P, and 3.6 t ha⁻¹ lime increased the biological yield of faba bean from 1.91 to 4.43 t ha⁻¹. The combined use of organic and industrial fertilizers resulted in a highly significant difference in bread wheat and rice biomass yield [49]. The interaction effects of lime, manure, and P fertilizer on maize biomass yield were found to be significant [47].

The highest rate of animal manure with lime and NP fertilizer resulted in the highest straw yield (Table 5). This may be because when acidic soils were treated with organic manure and mineral NP combined with lime, the supply of critical nutrients for crop growth and development increased. Similarly, Demissie et al. [14] found that increasing the rate of cattle manure, as well as NP fertilizer and lime, increased barley straw yield. The application of 8 t ha⁻¹ farm yard manure, P fertilizer, and lime substantially increased the yield of faba bean straw from 1,037 to 2,904 kg ha⁻¹ [41].

4.4 Economic analysis

The highest MRR of 1,100% was achieved by combining the application of 2 t ha⁻¹ lime with 10 t ha⁻¹ cattle manure and 46/20 kg ha⁻¹ N/P fertilizer (Table 6), implying that for every Birr invested in tef production, the producers will receive 11.00 Birr after recovering their investment CIMMYT [33]. Using manure rates more than 10 t ha⁻¹ in combination with 2 t ha⁻¹ lime and 46/20 kg ha⁻¹ N/P fertilizer will result in higher variable costs with no compensatory advantage. This represents an increase in net return of at least 1 Birr for every Birr invested. Therefore, the manure rate of 10 t ha⁻¹ in combination with 2 t ha⁻¹ lime and 46/20 kg ha⁻¹ N/P fertilizer application, which had the highest grain yield (Table 5) and, thus, had higher NB (2,252.91 USD ha⁻¹) and acceptable MRR (1,100%), can be recommended for farmers in the area. In line with this finding, Ryan et al. [50] found similar results. Thus, for increased grain yield of tef in strongly acidic soils, a combination of 2 t ha⁻¹ lime, 10 t ha⁻¹ cattle manure, and 46/20 kg ha⁻¹ N/P fertilizer is ideal and could be recommended.
