The crystal structure of (5-(2,3-dihydro-1,4-benzodioxin-6-yl)-2-sulfanylidene-1,3,4-oxadiazol-3(2H)-yl)(3-methylphenyl)methanone, C18H14N2O4S

  • Zi-Hui Jiang ORCID logo und Yue-Hu Chen EMAIL logo
Veröffentlicht/Copyright: 24. April 2025
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 240 Heft 4

Abstract

C18H14N2O4S, triclinic, P1̄ (no. 2), a = 8.0785(6) Å, b = 8.4022(6) Å, c = 13.7881(10) Å, α = 81.537(2)°, β = 75.581(2)°, γ = 64.198(2)°, V = 815.24(10) Å3, Z = 2, R gt (F) = 0.0437, wR ref (F 2) = 0.1159, T = 273 K.

CCDC no.: 2442735

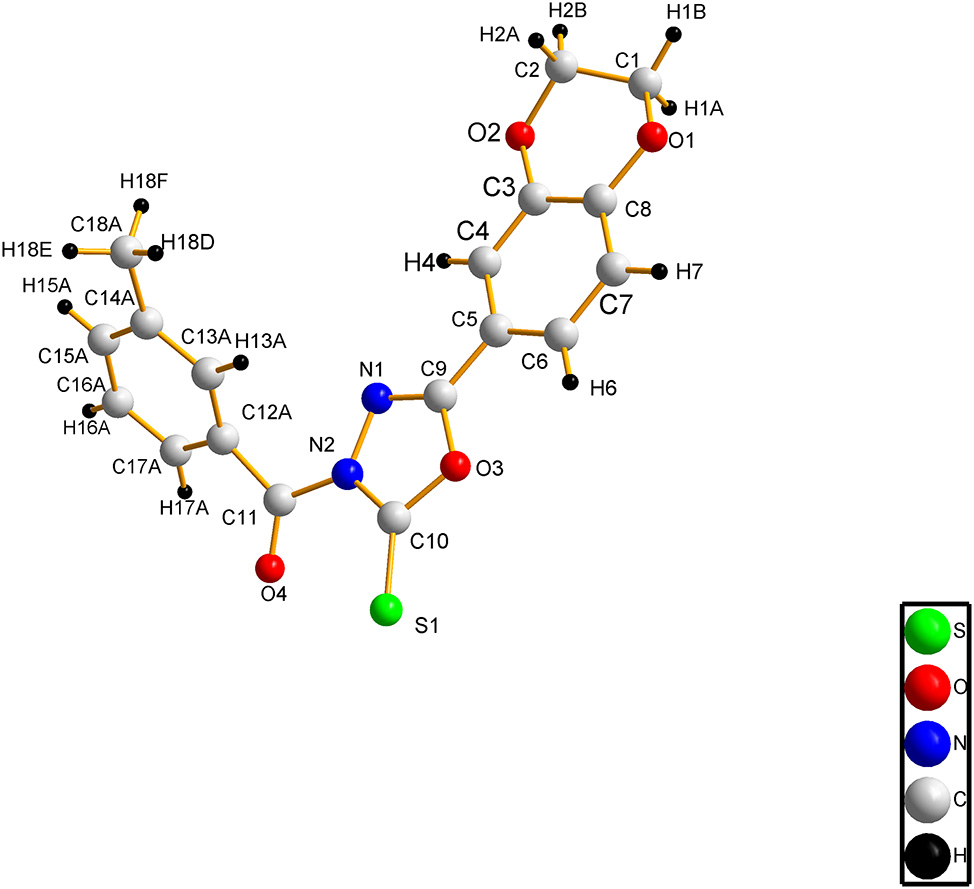

The molecular structure is shown in the figure. Table 1 contains the crystallographic data. The list of the atoms including atomic coordinates and displacement parameters can be found in the cif-file attached to this article.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.47 × 0.35 × 0.32 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.23 mm−1
Diffractometer, scan mode: Bruker APEX2, φ and ω scans
θ max, completeness: 27.5°, 99 %
N(hkl)measured, N(hkl)unique, R int: 8461, 3683, 0.021
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2,784
N(param)refined: 292
Programs: Bruker 1 , Olex2 2 , SHELX 3 , 4

1 Source of materials

5-(2,3-Dihydrobenzo[b][1,4]dioxin-6-yl)-1,3,4-oxadiazole-2-thiol (0.236 g, 1 mmol), potassium carbonate (0.207, 1.5 mmol) and 3-methylbenzoylchloride (0.155 g, 1 mmol) were mixed in dry N,N-dimethylformamide (20 mL) and stirred for 4 h. The precipitate was collected by filtration, washed with cold ethanol, dried, and recrystallized from petroleum ether/ethyl acetate. Colourless block crystals were obtained by slow evaporation.

2 Experimental details

Absorption corrections were applied by using multi-scan program. 1 Using Olex2, 2 the structure was solved with the ShelXT 3 structure solution program and refined with the ShelXL 4 refinement package.

3 Comment

Several groups have long been intrigued by 1,3,4-oxadiazole-2(3H)-thione derivatives containing a 1,4-benzodioxane skeleton, because of their diverse biological activities, including anti-tumor, antibacterial, anti-inflammatory, and adrenergic antagonism. 5 , 6

The molecular structure comprises four distinct planes: the benzene ring plane, the oxadiazole ring plane, the benzene ring plane within the 1,4-benzodioxane structure, and the dioxane ring plane. These planes collectively form the fundamental framework of the molecule. The dihedral angles between the benzene ring plane and the other three planes are 52.14°, 51.18°, and 50.7°, respectively. The dihedral angles between the oxadiazole plane and the remaining two planes are 5.66° and 4.06°. Additionally, the dihedral angle between the benzene ring plane and the dioxane ring plane within the 1,4-benzodioxane structure is 1.81°. The single-crystal structure analysis confirms that all bond lengths and bond angles of the compound fall within a reasonable range. 7

Corresponding author: Yue-Hu Chen, Qilu Medical University, Renmin Road, Zibo, China, E-mail:

References

1. Bruker. Apex3 v. 2016.9-0 and SAINT v. 8.37A; Bruker Axs Inc.: Madison, Wisconsin, USA, 2016.Suche in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. SHELXT – Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. 2015, A71, 3–8. https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

5. Sun, J.; Zhang, C. P.; Chen, C. H.; Guo, X. M.; Liu, C. S.; Zhou, Y.; Hu, F. L. Design, Synthesis and Molecular Docking of 1,3,4-Oxadiazole-2(3h)-Thione Derivatives Containing 1,4-Benzodioxane Skeleton as Potential FabH Inhibitors. Chem. Biodiversity 2023, 20, e202201060. https://doi.org/10.1002/cbdv.202201060.Suche in Google Scholar PubMed

6. Guo, X. M.; Liu, C. S.; Tong, J. P.; Wang, Z. L.; Feng, X. K.; Li, D. D.; Sun, J. Synthesis of New 1,4-Benzodioxin Derivatives Containing Thiazolidin-4-One Skeleton, Molecular Modelling and Docking as Antibacterial Agents. J. Mol. Struct. 2025, 1322, 140424. https://doi.org/10.1016/j.molstruc.2024.140424.Suche in Google Scholar

7. Zuo, L.; Zhou, X.; Liu, Y.; Gu, Y.; Jiang, Y.; Lian, X.; Liu, H.; Jia, Q. and Shan, G. The crystal structure of N-(3-bromo-4-fluorophenyl)-N′-hydroxy-4-{[2-(4-methylphenyl)ethyl]amino}-1,2,5-oxadiazole-3-carboximidamide. Z. Kristallogr. - N. Cryst Struct. 2025, 240, 175–177. https://doi.org/10.1515/ncrs-2024-0380.Suche in Google Scholar
Received: 2025-03-06
Accepted: 2025-04-10
Published Online: 2025-04-24
Published in Print: 2025-08-26

© 2025 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
