(Z)-N-tert-butyl-1-(2-(3,5-dichlorobenzamido)phenyl) methanimine oxide, C18H18Cl2N2O2

  • Xia Mi EMAIL logo , Jingyu Zhang and Jing Yang
Published/Copyright: March 15, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 4

Abstract

C18H18Cl2N2O2, monoclinic, P21/n (no. 14), a = 8.5266(3) Å, b = 17.9521(7) Å, c = 11.8709(4) Å, β = 97.288(3)°, V = 1802.41(10) Å3, Z = 4, Rgt(F) = 0.0515, wRref(F2) = 0.1497, T = 293(2) K.

CCDC no.: 1884686

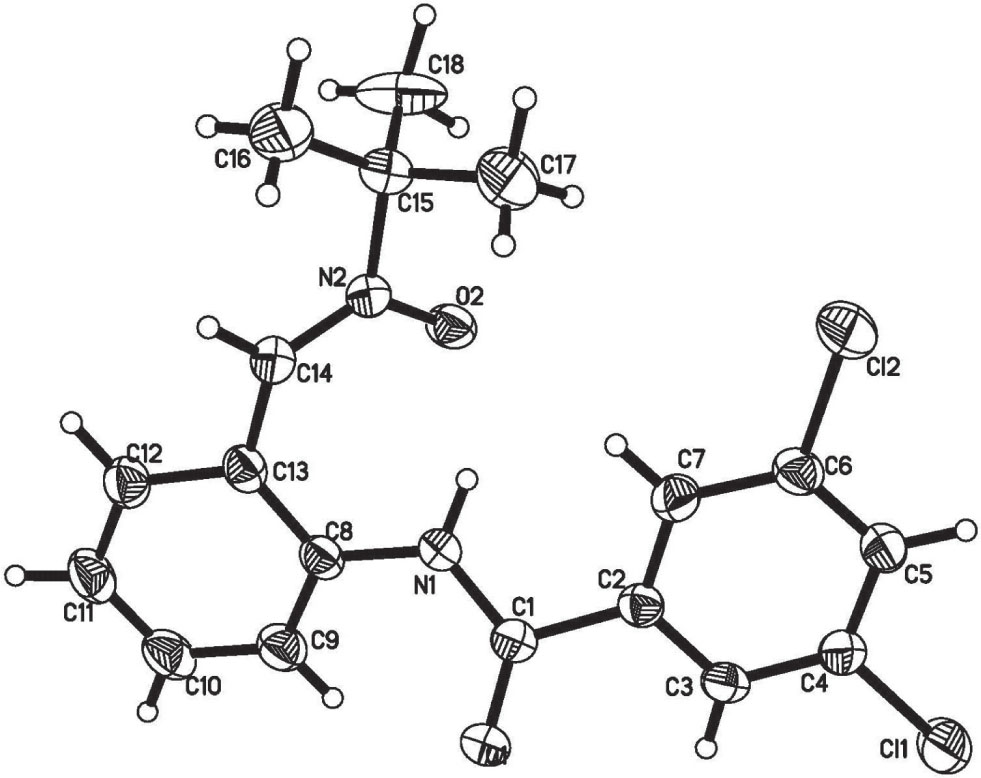

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Prism, colorless
Size:0.16 × 0.15 × 0.1 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:3.34 mm−1
Diffractometer, scan mode:Xcalibur, φ and ω-scans
θmax, completeness:67.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:7211, 3226, 0.030
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2616
N(param)refined:262
Programs:CrysAlisPRO [1], OLEX2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.7343(2)0.37127(11)−0.14162(16)0.0616(5)
O20.91319(18)0.54987(11)0.15085(15)0.0567(4)
H140.567(3)0.6076(18)0.142(3)0.064(8)*
N10.7921(2)0.46754(11)−0.01806(17)0.0473(4)
H10.853(3)0.4831(17)0.042(3)0.056(8)*
N20.7816(2)0.57343(11)0.18308(17)0.0472(4)
Cl11.19920(11)0.17705(6)−0.02130(8)0.0984(4)
Cl21.08811(12)0.32755(5)0.34982(6)0.0871(3)
C10.8065(3)0.39704(14)−0.05467(19)0.0470(5)
C20.9191(2)0.34926(13)0.02263(19)0.0457(5)
C30.9938(3)0.29141(14)−0.0262(2)0.0504(5)
H30.978(3)0.2827(18)−0.100(3)0.061*
C41.1005(3)0.24796(15)0.0409(2)0.0542(6)
C51.1327(3)0.25780(15)0.1568(2)0.0541(6)
H51.206(3)0.2270(19)0.199(3)0.065*
C61.0540(3)0.31410(15)0.2032(2)0.0537(6)
C70.9486(3)0.36066(14)0.1387(2)0.0530(5)
H70.896(3)0.3992(19)0.170(3)0.064*
C80.7006(2)0.52458(13)−0.0750(2)0.0468(5)
C90.6745(3)0.52720(17)−0.1931(2)0.0598(6)
H90.718(4)0.491(2)−0.229(3)0.072*
C100.5779(4)0.58187(18)−0.2471(2)0.0674(7)
H100.561(4)0.582(2)−0.324(3)0.081*
C110.5075(4)0.63395(17)−0.1861(3)0.0674(7)
H110.442(4)0.672(2)−0.216(3)0.081*
C120.5362(3)0.63345(15)−0.0692(3)0.0591(6)
H120.485(4)0.6685(19)−0.023(3)0.071*
C130.6359(2)0.57980(13)−0.0111(2)0.0476(5)
C140.6548(3)0.58641(14)0.1120(2)0.0516(5)
C150.7921(3)0.58908(16)0.3093(2)0.0589(6)
C16a0.6376(12)0.6159(7)0.3427(13)0.103(3)
H16Aa0.55580.58080.31750.155*
H16Ba0.61190.66350.30820.155*
H16Ca0.64650.62070.42390.155*
C16Ab0.635(5)0.593(3)0.355(5)0.103(3)
H16Db0.65220.60250.43560.155*
H16Eb0.58040.54610.34210.155*
H16Fb0.57180.63200.31800.155*
C17a0.8336(9)0.5139(4)0.3677(4)0.0891(17)
H17Aa0.83490.51930.44830.134*
H17Ba0.93600.49810.35160.134*
H17Ca0.75600.47750.33980.134*
C17Ab0.913(3)0.5425(14)0.3776(16)0.0891(17)
H17Db1.01300.56770.38540.134*
H17Eb0.92240.49560.34000.134*
H17Fb0.88170.53390.45140.134*
C18a0.9270(9)0.6441(5)0.3340(5)0.108(3)
H18Aa0.89700.69100.29890.162*
H18Ba1.01870.62530.30420.162*
H18Ca0.95080.65080.41460.162*
C18Ab0.836(3)0.6744(17)0.327(2)0.108(3)
H18Db0.76690.70380.27400.162*
H18Eb0.94340.68220.31380.162*
H18Fb0.82320.68890.40290.162*

  1. Occupancies: a = 0.785(10), b = 0215(10)

Source of materials

The title compound was prepared by the reaction of arylnitrone (0.2 mmol) and dioxazolones (0.22 mmol) with [IrCp*Cl2]2/AgNTf2 (2 mol%/8 mol%) as catalyst, and 1,2-dichloroethane (1 mL) as solvent. The reaction mixture was stirred at room temperature for 0.5 h under a natural atmosphere. The solvents were removed under reduced pressure and the residue was purified by chromatography to give the target title product. The compound was crystallized by slow evaporation from a mixture solution of CH2Cl2 and hexane at room temperature.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Nitrones are important and useful intermediates in chemical synthesis and can be easily converted into various heterocycles via diverse transformation [4], [5], [6], [7], [8]. Nitrones also are known to behave as efficient radical traps, and have been used in the synthesis of nitroxyl species [9]. N-arylamides are a key structural fragment in agrochemicals and pharmaceutical substances such as Boscalid, and Fluxapyroxad [10]. Herein we report a new compound containing amides and nitrone scaffolds.

The single-crystal structure of the title compound was determined and is shown in the figure. The torsion angle of C13—C14—N2—O2 is −1.8(4)° which shows the planarity of the C=N moiety with respect to N-phenyl ring. The torsion angle of C2—C1—N1—C8 is 177.4(2)° also indicates the planarity of this moiety. In the crystal structure, there is one intramolecular N(1)—H⋯O(2) hydrogen bond, a well known motif [11].

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21602046

Funding statement: We gratefully acknowledge support by the National Natural Science Foundation of China (No.21602046) and the Doctor’s Scientific Research Foundation of Henan University of Chinese Medicine (No. BSJJ2016−12).

References

1. Agilent Technologies: CrysAlisPRO Software system, version 1.171.37.35, Agilent Technologies UK Ltd, Oxford, UK (2014).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Li, Y.; Xie, F.; Liu, Y.; Yang, X.; Li, X.: Regio- and diastereoselective access to fused isoxazolidines via Ru(II)-catalyzed C—H activation of nitrones and coupling with perfluoroalkylolefins. Org. Lett. 20 (2018) 437–440.10.1021/acs.orglett.7b03775Search in Google Scholar PubMed

5. Pi, C.; Cui, X.; Liu, X.; Guo, M.; Zhang, H.; Wu, Y.: Synthesis of ferrocene derivatives with planar chirality via palladium-catalyzed enantioselective C—H bond activation. Org. Lett. 16 (2014) 5164–5167.10.1021/ol502509fSearch in Google Scholar PubMed

6. Tufariello, J. J.: Alkaloids from nitrones. Acc. Chem. Res. 12 (1979) 396–403.10.1021/ar50143a003Search in Google Scholar

7. Jensen, K. B.; Hazell, R. G.: Jorgensen, K. A.: Copper(II)-bisoxazoline catalyzed asymmetric 1,3-dipolar cycloaddition reactions of nitrones with electron-rich alkenes. J. Org. Chem. 64 (1999) 2353–2360.10.1021/jo982081bSearch in Google Scholar

8. Cacciarini, M.; Cordero, F. M.; Faggi, C.; Goti, A.: Cycloaddition reactions of C,N-diphenylnitrone to methylene-γ-butyrolactones. Molecules 5 (2000) 637–647.10.3390/50400637Search in Google Scholar

9. Supranovich, V. I.; Levin, V. V.; Struchkova, M. I.; Dilman, A. D.: Photocatalytic reductive fluoroalkylation of nitrones. Org. Lett. 20 (2018) 840–843.10.1021/acs.orglett.7b03987Search in Google Scholar PubMed

10. Ricci, A.: Amino group chemistry, from synthesis to the life science. Wiley-VCH: Weinheim (2008).10.1002/9783527621262Search in Google Scholar

11. Pi, C.; Cui, X.; Wu, Y.: Iridium-catalyzed direct C—H sulfamidation of aryl nitrones with sulfonyl azides at room remperature. J. Org. Chem. 80 (2015) 7333–7339.10.1021/acs.joc.5b01377Search in Google Scholar PubMed

Received: 2019-01-03
Accepted: 2019-02-09
Published Online: 2019-03-15
Published in Print: 2019-06-26

© 2019 Xia Mi et al., published by De Gruyter, Berlin/Boston
