Crystal structure of Diiodo-(N′-((quinolin-8-yl)methylene)isonicotinohydrazide κ3N,N′,O)cadium(II) – dimethylformamide (1/1), C19H19N5O2CdI2

  • Zhi-Hong Xu and Wei-Na Wu EMAIL logo
Published/Copyright: February 13, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 2

Abstract

C19H19N5O2CdI2, monoclinic, P21/c (no. 14), a = 12.32(1) Å, b = 8.952(7) Å, c = 21.533(16) Å, β = 92.892(13)°, V = 2372(3) Å3, Z = 4, Rgt(F) = 0.0373, wRref(F2) = 0.0771, T = 296(2) K.

CCDC no.:: 1494292

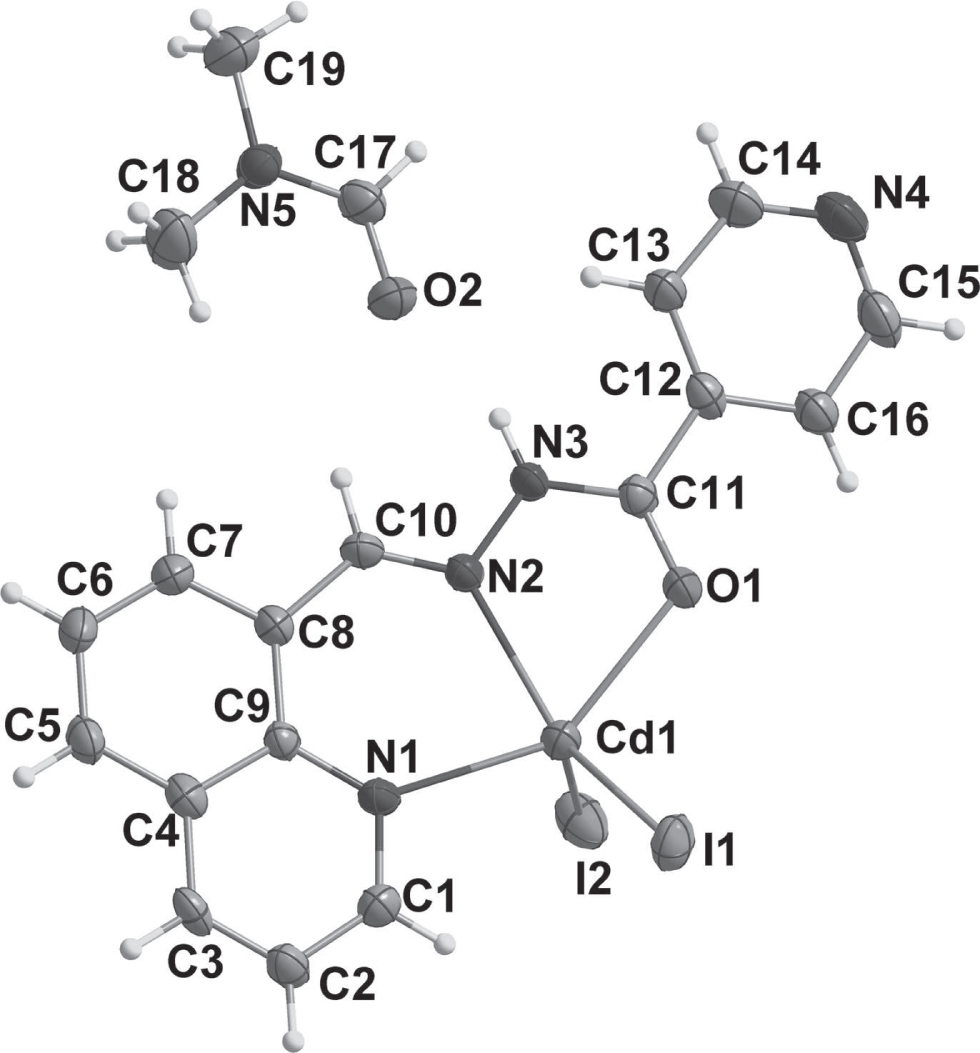

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.18 × 0.14 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.55 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:11617, 4165, 0.040
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2834
N(param)refined:262
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd10.21086(3)0.30564(5)0.135909(19)0.04897(14)
I10.10370(4)0.38492(6)0.239346(19)0.06907(16)
I20.34963(4)0.06365(5)0.14236(2)0.07583(17)
O10.3553(3)0.4857(5)0.14293(18)0.0630(12)
O20.3222(4)0.6481(5)−0.0781(2)0.0749(14)
N10.0536(4)0.2166(5)0.0760(2)0.0453(12)
N20.2276(4)0.4310(5)0.0413(2)0.0435(11)
N30.3194(4)0.5248(5)0.0404(2)0.0496(12)
N40.6562(5)0.8423(7)0.0936(3)0.086(2)
N50.3124(4)0.7162(6)−0.1802(2)0.0632(15)
C1−0.0045(5)0.1251(7)0.1109(3)0.0551(16)
H1A0.02260.10570.15120.066*
C2−0.1031(5)0.0563(7)0.0915(3)0.0562(17)
H2A−0.1398−0.00550.11810.067*
C3−0.1425(4)0.0831(6)0.0331(3)0.0515(16)
H3A0.33740.56620.00640.059*
H3B−0.20770.03990.01880.062*
C4−0.0841(4)0.1777(6)−0.0070(3)0.0458(14)
C5−0.1242(5)0.2024(7)−0.0688(3)0.0551(16)
H5A−0.18990.1603−0.08280.066*
C6−0.0660(6)0.2886(7)−0.1081(3)0.0629(18)
H6A−0.09060.3025−0.14920.076*
C70.0308(5)0.3553(7)−0.0854(3)0.0582(17)
H7A0.06880.4149−0.11220.070*
C80.0728(4)0.3367(6)−0.0249(3)0.0451(14)
C90.0148(4)0.2435(6)0.0161(2)0.0390(13)
C100.1737(5)0.4208(7)−0.0109(3)0.0507(16)
H10A0.20160.4728−0.04390.061*
C110.3780(4)0.5479(6)0.0937(3)0.0447(14)
C120.4756(4)0.6513(6)0.0911(3)0.0481(15)
C130.4983(5)0.7358(8)0.0402(3)0.067(2)
H13A0.45380.73140.00410.081*
C140.5902(6)0.8294(9)0.0439(4)0.088(2)
H14A0.60530.88560.00900.106*
C150.6325(6)0.7616(9)0.1419(4)0.080(2)
H15A0.67770.77040.17770.097*
C160.5440(5)0.6628(7)0.1438(3)0.0605(18)
H16A0.53190.60720.17930.073*
C170.3564(5)0.7178(7)−0.1227(3)0.0593(17)
H17A0.41810.7763−0.11530.071*
C180.2156(6)0.6316(10)−0.1952(4)0.106(3)
H18A0.19380.5799−0.15890.159*
H18B0.22970.5605−0.22720.159*
H18C0.15860.6980−0.20970.159*
C190.3576(7)0.8036(10)−0.2297(4)0.108(3)
H19A0.42170.8546−0.21380.162*
H19B0.30490.8755−0.24490.162*
H19C0.37590.7384−0.26300.162*

Source of material

The title complex was synthesized by reaction of N′-((quinolin-8-yl)methylene)isonicotinohydrazide (5 mmol) [6] with equimolar of CdI2 dissolved in a methanol/DMF (5 mL, v:v = 1:1) solution. Crystals suitable for X-ray diffraction analysis were obtained by evaporating the reaction solutions at room temperature.

Experimental details

The hydrogen atoms were placed at calculated positions and refined as riding atoms with isotropic displacement parameters.

Discussion

Biological activities of transition metal complexes derived from Schiff base ligands are one of the most exhaustively studied topic in coordination chemistry [3]. Semicarbazone/ thiosemicarbazone derivatives of 8-formylquinoline and their metal complexes have been widely investigated [4, 5] . By contrast, their structurally analogous hydrazones and their metal complexes have been paid much less attention [6]. Therefore, the title complex was synthesized and characterized by X-ray diffraction.

In the title crystal structure, the Cd(II) ion is surrounded by two iodido ligands and one [NO2] donor set of the hydrazone ligand, giving a tetragonal pyramid as the basic coordination figure, with the geometric index τ being 0.260 [6]. The carbonyl bond distance of C11—O1 is 1.242(6) Å, indicating the hydrazone ligand is in a neutral form. In the solid state, intermolecular N—H⋯O hydrogen bonds between the complex and adjacent DMF molecules are present.

References

Bruker. SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA (2007).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr.A64 (2008). 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Dong, W.-K.; Li, X.-L.; Wang, L.; Zhang, Y.; Ding, Y.-J.; A new application of Salamo-type bisoximes: As a relay–sensor for Zn2+/Cu2+ and its novel complexes for successive sensing of H+/OH−. Sens. Actuators B 229 (2016) 370–378.10.1016/j.snb.2016.01.139Search in Google Scholar

Revenko, M. D.; Bourosh, P. N.; Stratulat, E. F.; Corja, I. D.; Gdaniec, M.; Simonov, Yu. A.; Tuna, F.: Copper(II) coordination compounds with 8-quinolinaldehyde semicarbazone: Synthesis and structure. Russ. J. Inorg.Chem. 54 (2009) 530–538.10.1134/S003602360904007XSearch in Google Scholar

Bourosh, P. N.; Revenko, M. D.; Stratulat, E. F.; Wicher, B.; Gdaniec, M.; Korzha, I. D.: Synthesis and structure of new copper(II) coordination compounds with 8-quinoline aldehyde semicarbazones and thiosemicarbazones. Russ. J. Inorg. Chem. 59 (2014) 545–557.10.1134/S0036023614060059Search in Google Scholar

Chang, H.-Q.; Yuan, Z.-Z.; Lai, X.-Q.; Wu, W.-N.; Wang, Y.: Cu(II) and Zn(II) Complexes with an acylhydrazone ligand bearing quinoline unit: crystal structures and fluorescence property. Chin. Inorg. Chem. Commun. 32 (2016) 2058–2062.Search in Google Scholar

Received: 2017-10-11
Accepted: 2018-1-30
Published Online: 2018-2-13
Published in Print: 2018-3-28
