Crystal structure of dichlorido[1,1′-bis(diphenylphosphanyl)ferrocene-κ2P,P′]zinc(II), C34H28FeCl2P2Zn

  • Yang Liguo EMAIL logo , Wang Xin , Liu Qingyun , Liu Nana and Dai Yuqiang
Published/Copyright: February 9, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 2

Abstract

C34H28FeCl2P2Zn, triclinic, P1̅ (no. 2), a = 9.6794(11) Å, b = 9.7989(10) Å, c = 18.2141(19) Å, α = 95.8740(10)°, β = 99.9350(10)°, γ = 115.596(2)°, V = 1503.9(3) Å3, Z = 2, Rgt(F) = 0.0362, wRref(F2) = 0.0964, T = 298 K.

CCDC no.:: 1817204

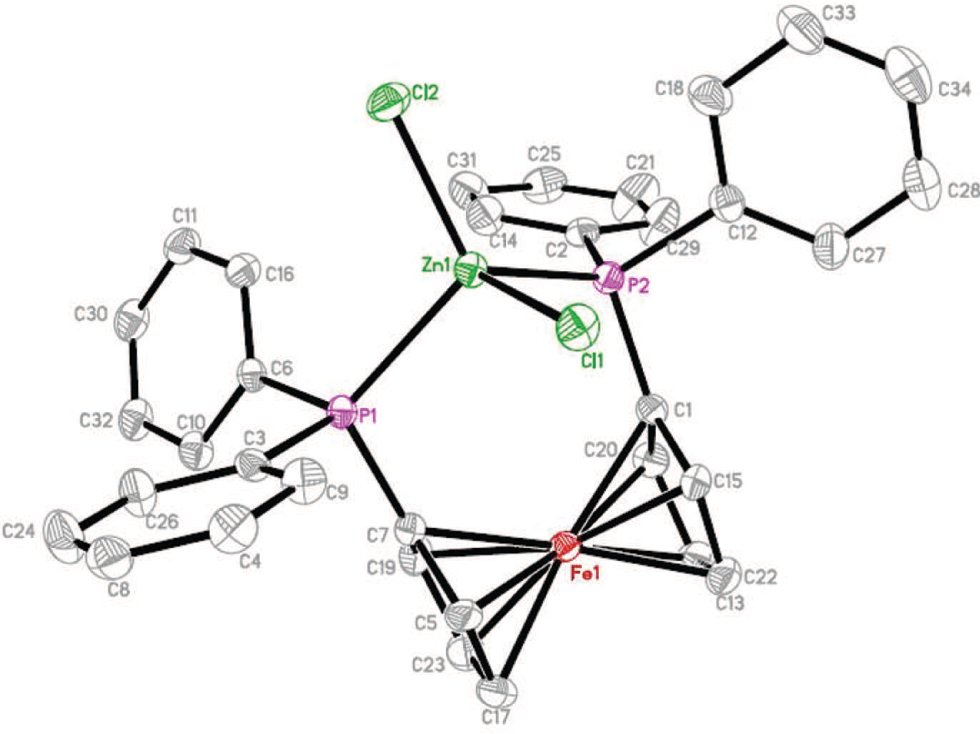

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.50 × 0.46 × 0.21 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.59 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω-scans
θmax, completeness:25°, >98%
N(hkl)measured, N(hkl)unique, Rint:7846, 5214, 0.024
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3878
N(param)refined:361
Programs:Bruker programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.84907(4)0.58543(5)0.74651(2)0.02807(13)
P10.77899(10)0.32364(10)0.68975(5)0.0254(2)
P21.13058(10)0.71277(10)0.79838(5)0.0278(2)
Fe11.15413(5)0.47942(6)0.64939(3)0.02907(15)
Cl10.83926(11)0.71825(11)0.65338(5)0.0403(2)
Cl20.71055(12)0.59425(11)0.83123(6)0.0446(3)
C11.2303(4)0.6776(4)0.73006(19)0.0285(8)
C21.3417(4)0.6173(4)0.7396(2)0.0357(9)
H21.37400.58550.78280.043*
C31.3938(4)0.6146(5)0.6724(2)0.0440(10)
H31.46770.58180.66370.053*
C41.3150(4)0.6700(4)0.6202(2)0.0418(10)
H41.32820.68020.57130.050*
C51.2129(4)0.7073(4)0.6550(2)0.0355(9)
H51.14590.74470.63270.043*
C60.9257(4)0.3138(4)0.6424(2)0.0295(8)
C70.9454(4)0.3506(4)0.5701(2)0.0367(9)
H70.88980.39050.54010.044*
C81.0643(5)0.3161(5)0.5518(2)0.0483(11)
H81.09960.32820.50740.058*
C91.1199(5)0.2608(5)0.6118(3)0.0482(11)
H91.19840.22960.61400.058*
C101.0381(4)0.2601(4)0.6683(2)0.0396(9)
H101.05390.23010.71450.048*
C110.5946(4)0.2352(4)0.61539(19)0.0279(8)
C120.5664(4)0.3273(4)0.5679(2)0.0380(9)
H120.63980.43040.57490.046*
C130.4292(4)0.2663(5)0.5102(2)0.0438(10)
H130.41180.32850.47830.053*
C140.3201(4)0.1157(5)0.5000(2)0.0434(10)
H140.22860.07500.46120.052*
C150.3458(5)0.0249(5)0.5472(2)0.0525(12)
H150.2704−0.07740.54090.063*
C160.4831(4)0.0836(4)0.6044(2)0.0425(10)
H160.50000.02010.63550.051*
C170.7581(4)0.1911(4)0.75466(19)0.0268(8)
C180.7492(4)0.2336(4)0.8278(2)0.0335(9)
H180.75050.32790.84260.040*
C190.7384(5)0.1362(4)0.8793(2)0.0414(10)
H190.73510.16630.92880.050*
C200.7327(4)−0.0049(5)0.8567(2)0.0432(10)
H200.7263−0.06970.89130.052*
C210.7364(4)−0.0507(4)0.7837(2)0.0412(10)
H210.7295−0.14750.76850.049*
C220.7504(4)0.0471(4)0.7324(2)0.0355(9)
H220.75480.01660.68320.043*
C231.1973(4)0.9205(4)0.8162(2)0.0324(8)
C241.3144(5)1.0235(5)0.7881(2)0.0477(11)
H241.36820.98860.75980.057*
C251.3533(5)1.1784(5)0.8014(3)0.0560(12)
H251.43361.24750.78260.067*
C261.2734(5)1.2301(5)0.8424(3)0.0579(13)
H261.29831.33420.85060.069*
C271.1573(5)1.1294(5)0.8714(3)0.0614(13)
H271.10501.16560.90010.074*
C281.1174(5)0.9742(5)0.8580(2)0.0497(11)
H281.03700.90560.87690.060*
C291.3781(5)0.7684(6)0.9208(2)0.0581(13)
H291.43720.85580.90300.070*
C301.4468(5)0.7313(6)0.9833(2)0.0666(15)
H301.55230.79501.00760.080*
C311.3627(5)0.6026(6)1.0099(2)0.0526(12)
H311.41150.57711.05100.063*
C321.2064(6)0.5114(5)0.9758(2)0.0534(12)
H321.14760.42510.99450.064*
C331.1355(5)0.5482(5)0.9131(2)0.0455(10)
H331.02900.48610.89000.055*
C341.2209(4)0.6751(4)0.88487(19)0.0300(8)

Source of material

The reaction was carried out under an atomsphere of dry dinitrogen. Dichloromethane and n-hexane were dried with appropriate drying agents and distilled prior to use. The title compound was synthesized according to the literature [4]. [ZnCl2(dppf)] was prepared by mixing ZnCl2 (1 mmol) and dppf (1 mmol) in 10 mL dichloromethane under N2. The mixture was refluxed for 4 h, then the residue was filtered off and the solution was concentrated to 5 mL. Crystals were obtained by slow evaporation of a hexane solution.

Experimental details

All H atoms were placed on geometrically idealized positions (C–H = 0.93–0.97 Å) and treated as riding on their parent atoms, with Uiso(H) = 1.2Ueq(C) [1], [2], [3].

Discussion

The metalloligand 1,1′-bis(diphenylphosphanyl)ferrocene(dppf) occupies a special place in organometallic and catalysis research. Reasons for this are manifold: the presence of the two strong P donors, a redox-active ferrocene backbone, and an unusual bite angle of the two P donors [5], [6], [7]. The ligand dppf provides an ideal starting point for the synthesis of heterodinculear complexes, because of the ability of the P donors to bind to a variety of metals [8]. Several efforts have been made to prepare and study metal complexes of dppf not only because of its versatile bonding modes, but also for the chemical reactivities.

In the crystal structure of the title compound, the zinc(II) atom displays a distorted tetrahedral coordination geometry provided by two chlorido ligands and the dppf ligand (cf. the figure). The average Zn-P bond distance of 2.4113(10) Å is similar to those observed in related complexes [9]. The Zn—Cl bond lengths (mean value 2.2423(10) Å) are not unexpceptional.

Acknowledgements

This work was supported by Henan science and technology project (Nos. 172102210161, 172102210160, 172102310166) and the Research Fund of Anyang Institute of Technology (Nos. YJJ2016014).

References

SMART and SAINT for Windows NT Software Reference Manuals, Version 5.0. Bruker Analytical X-Ray Systems, Madison, WI, USA (1997).Search in Google Scholar

Sheldrick, G. M.: SADABS, A Software for Empirical Absorption Correction. University of Göttingen, Göttingen, Germany (1997).Search in Google Scholar

SHELXL Reference Manual, version 5.1. Bruker Analytical X-Ray Systems, Madison, WI, USA (1997).Search in Google Scholar

Zhu, C. C.; Yang, L. G.; Li, D. C.: [1,1′-Bis(diphenylphosphanyl)ferrocene-κ2P,P′]dichloridocadmium(II) dichloromethane disolvate. Acta Crystallogr. E66 (2010) m1586.10.1107/S1600536810046635Search in Google Scholar

Schweinfurth, D.; Büttner, N.; Hohloch, S.; Deibel, N.; Klein, J.; Sarkar, B.: Heterobimetallic Cu-dppf(dppf = 1,1′-bis(diphenylphosphino)ferrocene)complexes with “click” derived ligands: a combined structural, electrochemical, spectroelectrochemical, and theorectical study. Organometallics 32 (2013) 5834–5842.10.1021/om400429fSearch in Google Scholar

Begum, N.; Das, U. K.; Hassan, M.; Hogarth, G.; Kabir, S. E.; Nordlander, E.; Rahman, M. A.; Tocher, D. A.: Chelate and bridge diphosphine isomerization: triosmium and triruthenium clusters containing 1,1′-bis(diphenylphosphino)ferroocene(dppf). Organometallics 26 (2007) 6462–6472.10.1021/om700759zSearch in Google Scholar

Štěpnička, P.; Císarová, I.; Schulz, J.: Coordinaion and catalytic proterties of a semihomologous dppf congener, 1-(diphenylphosphino)-1′-[(diphenylphosphino)methyl]ferrocene. Organometallics 30 (2011) 4393–4403.10.1021/om2004805Search in Google Scholar

Butler, I. R.; Cullen, W. R.; Kim, T. J.; Rettig, S. J.; Trotter, J.: 1,1′-Bis(alkylarylphosphino) ferrocenes: synthesis, metal complex formation, and crystal structure of three metal complexes of Fe(η5-C2H4PPh2)2. Organometallics 4 (1985) 972–980.10.1021/om00125a003Search in Google Scholar

Díez, J.; Gamasa, M. P.; Gimeno, J.; Lanfranchi, M.; Tripicchio, A.: Copper(I) complexes containing 1,1′-bis(diphenylphosphino)ferrocene(dppf) as a chelate ligand. X-ray crystal structures of [Cu2(μ-Cl)2(κ2-P,P-dppf)2] and [Cu(CNtBu)2(κ2-P,P-dppf)][BF4]. J. Organomet. Chem. 637 (2001) 677–682.10.1016/S0022-328X(01)00963-9Search in Google Scholar

Received: 2017-9-21
Accepted: 2018-1-16
Published Online: 2018-2-9
Published in Print: 2018-3-28
