Crystal structure of dichlorido-bis(N-phenyl-2-(quinolin-8-yloxy)acetamide-κ2N,O) – acetone (2/1), C35.5H31N4O4.5Cl2Cu

  • Liang Chen and Wei-Na Wu EMAIL logo
Published/Copyright: February 9, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 2

Abstract

C35.5H31N4O4.5Cl2Cu, monoclinic, P21/c (no. 14), a = 14.8239(3) Å, b = 16.2169(2) Å, c = 15.6515(3) Å, β = 109.889(1)°, V = 3538.16(11) Å3, Z = 4, Rgt(F) = 0.0499, wRref(F2) = 0.1577, T = 296(2) K.

CCDC no.:: 1818050

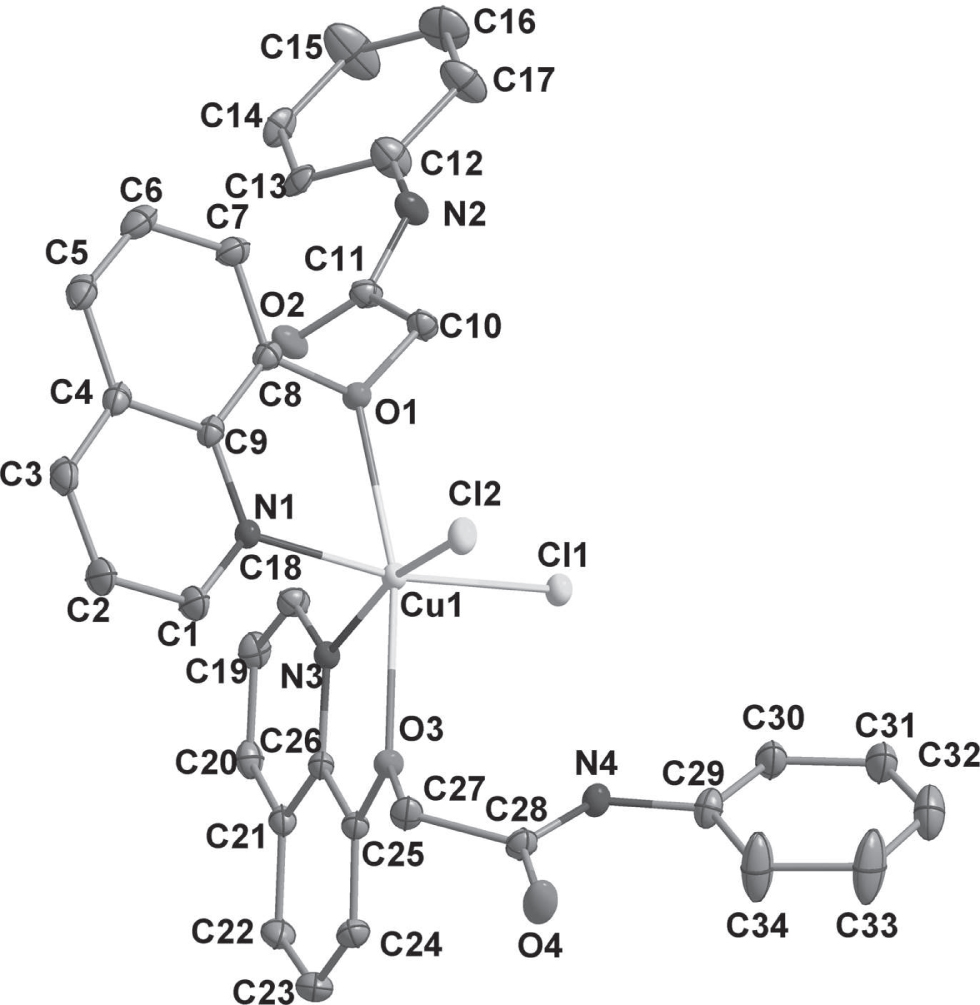

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Green block
Size:0.20 × 0.16 × 0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.81 mm−1
Diffractometer, scan mode:Bruker SAINT, φ and ω-scans
θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:33725, 8761, 0.053
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5076
N(param)refined:473
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.40306(2)0.48936(2)0.76574(2)0.04791(14)
Cl10.35000(6)0.40030(4)0.85050(5)0.0583(2)
Cl20.34912(7)0.60267(5)0.81912(6)0.0683(2)
O10.56855(15)0.49165(12)0.86627(14)0.0574(5)
O20.70179(18)0.37310(17)0.87689(16)0.0839(8)
O30.25566(15)0.48294(12)0.63831(14)0.0561(5)
O40.02723(19)0.5655(2)0.6188(2)0.1063(10)
N10.47628(18)0.56683(15)0.71062(17)0.0562(6)
N20.7509(2)0.37025(18)1.03045(19)0.0746(8)
H2Aa0.73750.39271.07450.090*
H2Bb0.73530.38691.07570.090*
N30.41638(17)0.39525(14)0.68547(16)0.0491(6)
N40.1223(2)0.47925(17)0.72320(19)0.0636(7)
H40.17680.45450.73880.076*
C10.4298(3)0.6030(2)0.6333(3)0.0796(11)
H10.36790.58540.60090.096*
C20.4692(3)0.6672(3)0.5970(3)0.0901(12)
H20.43370.69170.54210.108*
C30.5584(3)0.6925(2)0.6426(3)0.0820(11)
H30.58510.73510.61940.098*
C40.6120(2)0.6552(2)0.7249(2)0.0667(9)
C50.7064(3)0.6788(2)0.7758(3)0.0827(11)
H50.73680.72030.75480.099*
C60.7526(3)0.6403(3)0.8557(3)0.0876(12)
H60.81480.65670.88890.105*
C70.7104(2)0.5765(2)0.8907(3)0.0725(10)
H70.74390.55150.94590.087*
C80.6186(2)0.55238(19)0.8413(2)0.0565(7)
C90.5678(2)0.59097(18)0.7579(2)0.0551(7)
C100.6124(2)0.4506(2)0.9515(2)0.0610(8)
H10A0.56440.41850.96620.073*
H10B0.63800.49130.99910.073*
C110.6932(2)0.3938(2)0.9476(2)0.0608(8)
C12a0.8278(10)0.3165(9)1.0579(10)0.093(10)
C13a0.8695(12)0.2867(12)0.9967(9)0.061(5)
H13a0.84510.30230.93600.073*
C14a0.9475(13)0.2335(11)1.0264(12)0.066(5)
H14a0.97530.21350.98540.080*
C15a0.9838(13)0.2100(12)1.1171(13)0.161(13)
H15a1.03600.17441.13690.194*
C16a0.942(2)0.2398(18)1.1783(9)0.136(9)
H16a0.96650.22411.23900.163*
C17a0.8642(19)0.2930(16)1.1487(9)0.107(8)
H17a0.83630.31301.18960.128*
C12Ab0.8342(5)0.3212(4)1.0515(6)0.062(4)
C13Ab0.8535(7)0.2665(7)0.9915(5)0.059(3)
H13Ab0.81020.26100.93260.071*
C14Ab0.9372(7)0.2201(7)1.0194(7)0.093(5)
H14Ab0.95010.18350.97930.112*
C15Ab1.0018(6)0.2283(6)1.1074(7)0.107(4)
H15Ab1.05790.19721.12600.128*
C16Ab0.9826(7)0.2830(9)1.1674(7)0.111(5)
H16Ab1.02580.28851.22620.133*
C17Ab0.8988(7)0.3295(8)1.1394(7)0.093(3)
H17Ab0.88590.36611.17960.112*
C180.4966(2)0.3527(2)0.7069(2)0.0618(8)
H180.54820.37020.75660.074*
C190.5090(3)0.2832(2)0.6600(2)0.0685(9)
H190.56720.25510.67840.082*
C200.4347(3)0.2572(2)0.5867(2)0.0676(9)
H200.44160.21070.55460.081*
C210.3474(2)0.30074(19)0.5595(2)0.0583(8)
C220.2677(3)0.2781(2)0.4837(2)0.0757(10)
H220.27140.23330.44800.091*
C230.1851(3)0.3225(3)0.4635(3)0.0878(12)
H230.13210.30670.41420.105*
C240.1776(2)0.3904(2)0.5139(2)0.0694(9)
H240.12010.41920.49870.083*
C250.2533(2)0.41484(19)0.5849(2)0.0533(7)
C260.3407(2)0.37029(17)0.61094(18)0.0481(6)
C270.1788(2)0.5415(2)0.6098(2)0.0646(9)
H27A0.14990.53930.54410.078*
H27B0.20490.59640.62600.078*
C280.1020(2)0.5272(2)0.6508(2)0.0631(8)
C290.0661(2)0.4635(2)0.7782(3)0.0722(9)
C300.0987(3)0.4098(3)0.8476(3)0.0944(13)
H300.15670.38300.85700.113*
C310.0481(4)0.3935(4)0.9049(3)0.1155(17)
H310.07160.35530.95150.139*
C32−0.0351(5)0.4326(4)0.8938(5)0.134(2)
H32−0.06650.42490.93540.161*
C33−0.0725(6)0.4828(5)0.8221(7)0.186(4)
H33−0.13230.50670.81250.224*
C34−0.0238(3)0.5001(4)0.7616(5)0.163(3)
H34−0.05020.53480.71200.196*
C35c0.3354(11)0.5227(8)0.3873(12)0.193(6)
H35Bc0.33620.50870.32800.290*
H35Ac0.31490.47590.41340.290*
H35Cc0.39870.53870.42540.290*
C36c0.2694(6)0.5909(5)0.3800(6)0.105(3)
C37c0.2383(8)0.6584(7)0.3140(7)0.140(4)
H37Ac0.26330.70960.34320.210*
H37Bc0.16950.66070.29100.210*
H37Cc0.26180.64890.26470.210*
O5c0.2586(6)0.5890(5)0.4491(6)0.162(3)

  1. Occupancies: a = 0.36(3), b = 0.64(3), c = 0.5

Source of material

N-phenyl-2-(quinolin-8-yloxy)acetamide [1] (0.280 g, 1 mmol) was dissolved in acetone (10 mL), then an acetone solution (10 mL) of copper(II) chloride dihydrate (0.179 g, 1 mmol) was added at room temperature. After stirring for 2 h, the mixture was filtered and set aside to crystallize at room temperature for several days, giving green block crystals.

Experimental details

The hydrogen atoms were placed at calculated positions and refined as riding atoms with isotropic displacement parameters.

Discussion

Structures and luminescent properties of the complexes with amide type ligands bearing quinoline ring have been investigated in our previous work [3], [4], [5], [6]. As part of our ongoing work, the title complex was synthesized and characterized.

In the asymmetric unit there is one complex and a half of a acetone molecule. The six-coordinated Cu atom is in a distorted octahedral geometry with the donor centers of two O atoms and two N atom from two organic and two chlorido ligands. In the crystal, a pair of intermolecular N—H⋯Cl hydrogen bonds between two complexes create a centrosymmetric dimer.

References

Bruker, SMART and SAINT. Bruker AXS Inc., Madison, WI, USA (2007).Search in Google Scholar

Sheldrick, G. M.: Crystal refinement with SHELX. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

Wu, W.-N.; Yuan, W.-B.; Tang, N.; Yang, R.-D.; Yan, L.; Xu, Z.-H.: Synthesis, characterizations and luminescent properties of three novel aryl amide type ligands and their lanthanide complexes. Spectrochim. Acta A65 (2006) 912–918.10.1016/j.saa.2006.01.031Search in Google Scholar PubMed

Wu, W.-N.; Tang, N.; Yan, L.: Syntheses, characterization and fluorescent properties of six novel lanthanide complexes with N,N-diphenyl-2-(quinolin-8-yloxy)acetamide. J. Fluoresc. 18 (2008) 101–107.10.1007/s10895-007-0244-7Search in Google Scholar PubMed

Cai, H.-X.; Wu, W.-N.; Wang, Y.: Synthesis and crystal structures of two copper(II) complexes containing amide type ligands. Chin. J. Inorg. Chem. 18 (2013) 845–849.Search in Google Scholar

Lin, L.; Li, X.-H.; Zhang, B.; Zhang, Z.-Y.; Wu, W.-N.; Wang, Y.: Syntheses, crystal structures and fluorescence properties of Cu(II)/Zn(II)/Ag(I) complexes with an amide type ligand. Chin. J. Inorg. Chem. 32 (2016) 1653–1658.Search in Google Scholar

Received: 2017-11-4
Accepted: 2018-1-19
Published Online: 2018-2-9
Published in Print: 2018-3-28
