Metrica – An application for collecting and navigating to geodetic control network points. Part II: Practical verification

1 Introduction

Land survey results largely depend on the control network’s accuracy and measurement technique. Although most of the work is referred to global navigation satellite systems (GNSS) permanent stations, the ground control points are still in use (Lewińska et al. 2021; Chwedczuk et al. 2022). Especially, for the height measurements, when accuracy is a crucial aspect (Lewińska and Gałaś 2021). A geodetic control network, both horizontal and vertical, is “the wire-frame or the skeleton on which continuous and consistent mapping,” Geographic Information Systems, land surveys, and other geodetic activities are based (Rabah et al. 2016; Apollo and Andreychouk 2020). The traditional ground points of the control network are established “as permanent physical monuments placed in the ground and precisely marked, located, and documented” (Rabah et al. 2016). It might also be useful in other aspects like cadastre, tourism, or geology for gathering data regarding points (Ilyushina et al. 2018; Sodango et al. 2021). Their location depends on many factors, such as legal requirements (MAiD 2012), reliability, geometrical strength, and cost of establishment into a field (Bielecka et al. 2014). In Poland, the control network is divided into accuracy classes: the first and second belong to the state, and the third class belongs to local authorities (counties). Research shows that the third class points may lose 50% of the initial number within approximately 15 years after their establishment (Wolski and Granek 2020). Mostly because of marker destruction, but other factors are also available, e.g., its subsidence might change the actual coordinates over the geodetic network tolerance. The situation is better in the case of the vertical network. Its points are located mainly on buildings, but even those on the ground are more durable and sturdy than the horizontal ones (Borowski et al. 2017), so in the approximately same period they will lose about 23% of points (Graszka et al. 2016). The documentation of the geodetic control network has to follow such changes, i.e., the point record in the geodetic database has to be corrected if necessary. Especially, among the common (“daily”) surveys, there are works when a whole county database may be needed, e.g., conversion of geodetic data from local (or unactual) vertical and horizontal frames into national ones (Świętoń 2013; Borowski and Banasik 2020; Banasik and Borowski 2022), developing a local geoid/quasi-geoid model (Banasik et al. 2020), control measurements of geodetic network (Kuhar et al. 2021; Čekada et al. 2022; Dardanelli and Maltese 2022), or planning a new control network.

Our study follows such needs. The proposed Metrica application is a tool for gathering data about the changes in geodetic control networks, both vertical and horizontal ones. The work was divided into two parts. The first one presented the idea of the application, motivation, assumptions, and issues related to collecting data. The second one presents the results of the field test – a verification of the geodetic control network in the Krakow area (Figure 1).

Figure 1

The selected area of control network points field test in Małopolskie Province.

We have compared four different types of the areas – city centre (CC), city centre outskirts (CCO), towns (T), and rural areas (RA), depending on their population density. The control points selected for the analysis, located in the strict CC, are within the limits of the CC and CCO point location zones, which have been determined by circles with a given diameter (Figure 2):

1. CC – 0–3 km (marked in red)

2. CCO – 3–5 km (marked in yellow)

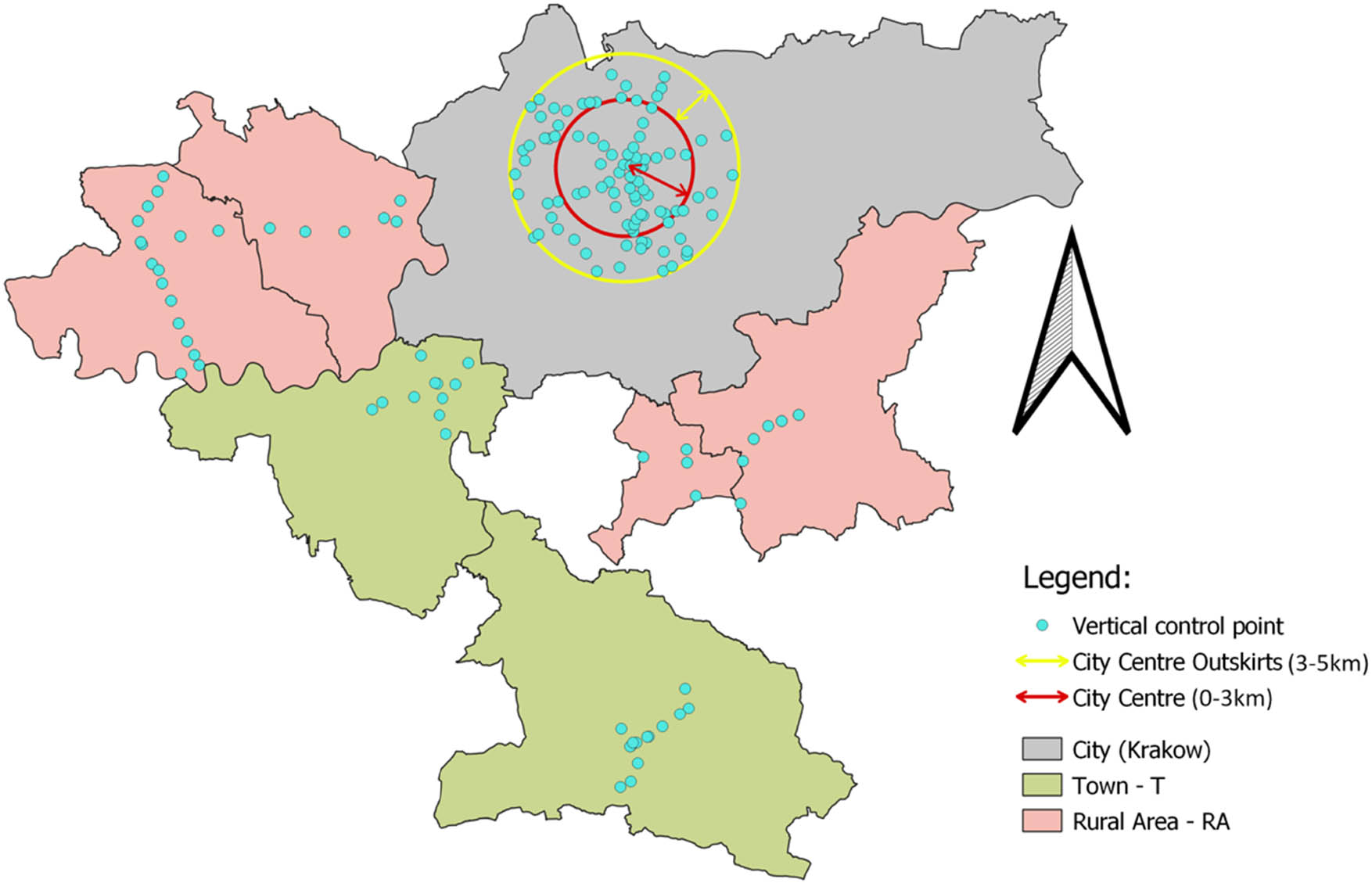

Figure 2

Presentation of selected control points in selected types of locations.

where starting point is in the centre of the Main Square.

2 Materials and methods

Having defined the research areas and selected the control points for direct analysis, the control network was verified in the field. This was a particularly important stage of the procedure, necessary for its correct analysis. The field inspection included the analysis of information about each point according to the nine previously (in the first part) defined criteria (Table 1):

1. Existence of the control point in the Head Office of Geodesy and Cartography (HOGC) database

2. Accessibility of the point for inspection

3. Occurrence of the point in the field

4. Existence of topographic description of the point

5. Consistency of the point location with the graphic part of the topographic description

6. Consistency of the B and L coordinates with the actual location of the point in the field

7. Possibility of performing surveys on the point

8. The point has been built-up

9. The point has been destroyed

These criteria were analysed for each of the points in an appropriate order, resulting from the planned procedure (Figure 7, Part I). The result of the conducted field inspection is the collected information presented in fragments in exemplary.

A total of 153 out of 799 points retrieved from HOGC were analysed. They were located in separate areas according to the adopted criteria. The summary of the number of analysed points is contained in Table 2, and in the form of a column chart as percentage values in Figure 3.

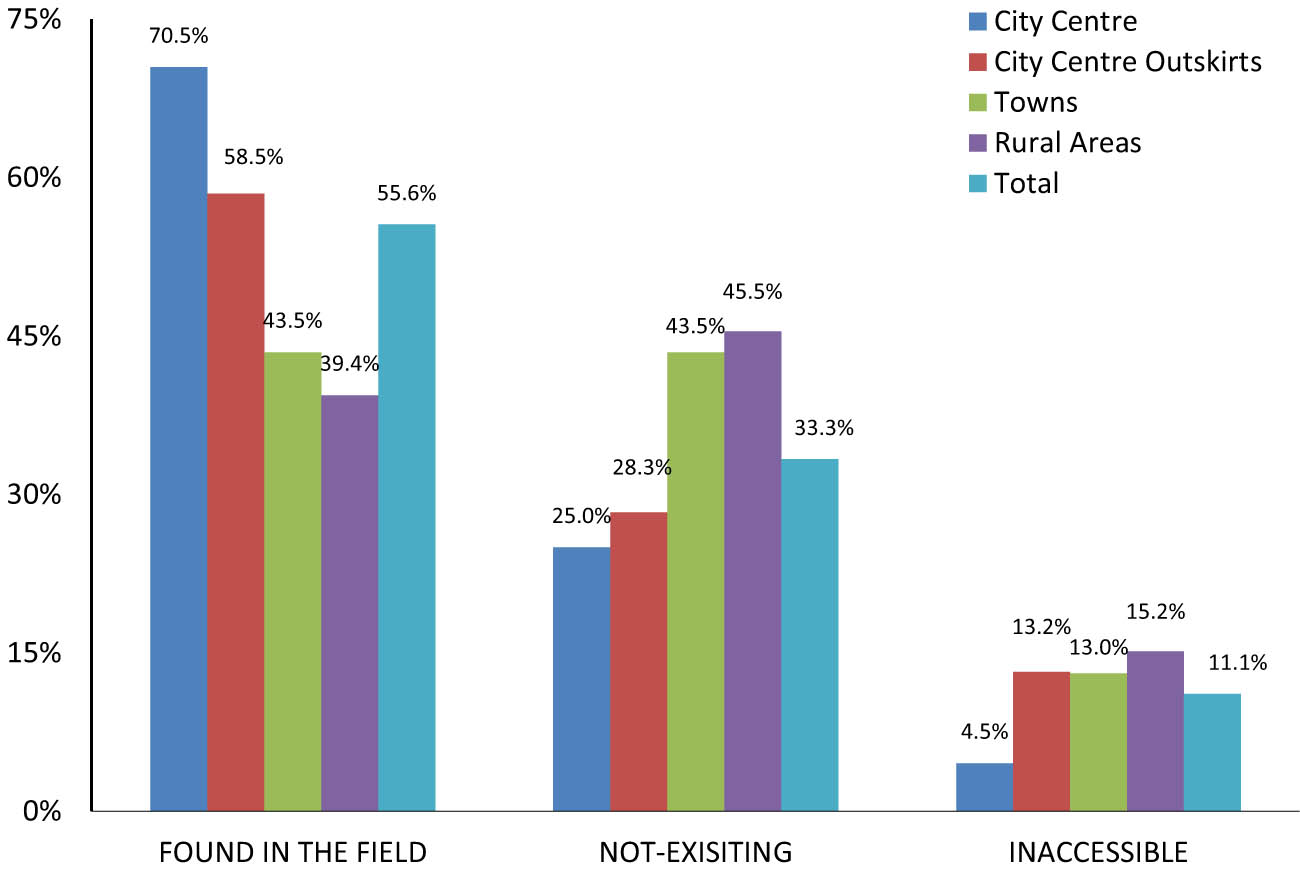

Figure 3

Comparative results of control point occurrence in various areas (%). Authors’ original contribution.

When summarizing the obtained results regarding the occurrence of points in the field in individual point location zones the following are the conclusions:

1. existing points were found in the CC zone,

2. non-existent points were in the T zone,

3. inaccessible (hard-to-reach) points were located in the RA zone.

Comparing the area of the city zone divided into the CC and the CCO, a large discrepancy in the number of inaccessible points should be noted. In the case of the CCO, this number reaches 13.2% and is much higher than the number of points inaccessible for analysis in the CC zone, where it is approximately 4.5%. This is because in the CC, most of the points are located on the main streets on the front walls of tenement houses, which make them accessible. Moving towards the CCO zone, an increasing number of points are located on buildings of single-family houses, which are often fenced. The same tendency can be noticed in other point location zones, such as T and RA, where most of the properties belong to private owners. Fences significantly limit access to control points, which in the case of vertical control networks must frequently be placed on buildings, i.e., on private land. These statistics would look different for the horizontal control network, the location of which is usually chosen outside the private area to increase its accessibility in the field.

Attention should be paid to the disproportions that occurred in the T zone. Considering the entire database for this area, an even distribution between the found and non-existent points is noticeable (Figure 3). There were five non-existent points in the T zone database (one was destroyed, four were not found), which were also marked in the geoportal as “destroyed points.” They were all located at the main roads. It can be assumed that this condition is related to road modernization, during which points can be easily damaged or destroyed. However, there are also points that were not found during the field inspection, and according to the geoportal, they are still in good condition. Such points from the entire T zone database are contained in Table 3.

It is also worth mentioning that in addition to the point analysis conducted by the authors, there was also a parallel process of control geodetic network review conducted at the request of Central Center for Geodetic and Cartographic Documentation (HOGC, GUGiK 2019). The results of this review are now accessible in the HOGC database.

Despite the fact that the analysis covered Towns, which are equally intensively developing, significant differences can be noticed between them in the maintenance of the control points. In Myślenice, 57.1% of the points were found, which was the majority of accessible points in this area. However, in Skawina, the statistics revealed the opposite situation, where 55.6% of the points were non-existent. This resulted from the unfavourable location of the control points in the area, which made them inaccessible. The last group is the RA point location zone, where most of the points are located on single-family houses. The effect is that there is the great number of inaccessible points compared to other types of areas. The analysis demonstrated that only 33.3% of the points found could be used for surveys.

The next stage of the analysis concerned only those points that were found in the field. The diagram presented in Figure 7 (Part I) illustrates the analysis of the remaining features of the points concerning:

1. their fitness to perform surveys,

2. their damage,

3. consistency of their location with the presentation in the graphic part of topographic descriptions,

4. consistency of their location with the location indicated by the B, L coordinates.

Considering the condition of the points found for the entire test database consisting of 153 points, it could be noticed that the location of all of them was consistent with the graphic part of topographic descriptions (Figure 4). It was found that the surveys were not possible at 11 points, ten of which were built-up as a result of renovation works performed, and one was destroyed. Such a small number of destroyed points is because they are made of durable material and, as far as possible, protected by the owners of private facilities.

Figure 4

Analysis of the condition of points for the test database consisting of 153 points.

The results for individual areas are presented as charts in Figure 5.

Figure 5

Analysis of the condition of points in individual areas of the CC zone.

The conclusion of the conducted analysis of the database of points of the basic second-order vertical control network is that the majority of points that are in good condition are located in the CC zone. Nearly 50% of the control points that existed in the HOGC database were not found in the RA or in the T zones. Out of 85 of all found points, ten were built-up and one was destroyed, i.e., it was not possible to perform surveys on these points. Most commonly, it is building owners’ fault, who unknowingly built-up benchmarks, preventing their proper use. Figure 6 shows an example of a section of the map of the analysed matrix with the presentation in yellow colour of the matrix existing in the field and suitable for measurement. The red colour shows points identified by the authors during the inventory as not suitable for measurement for various reasons.

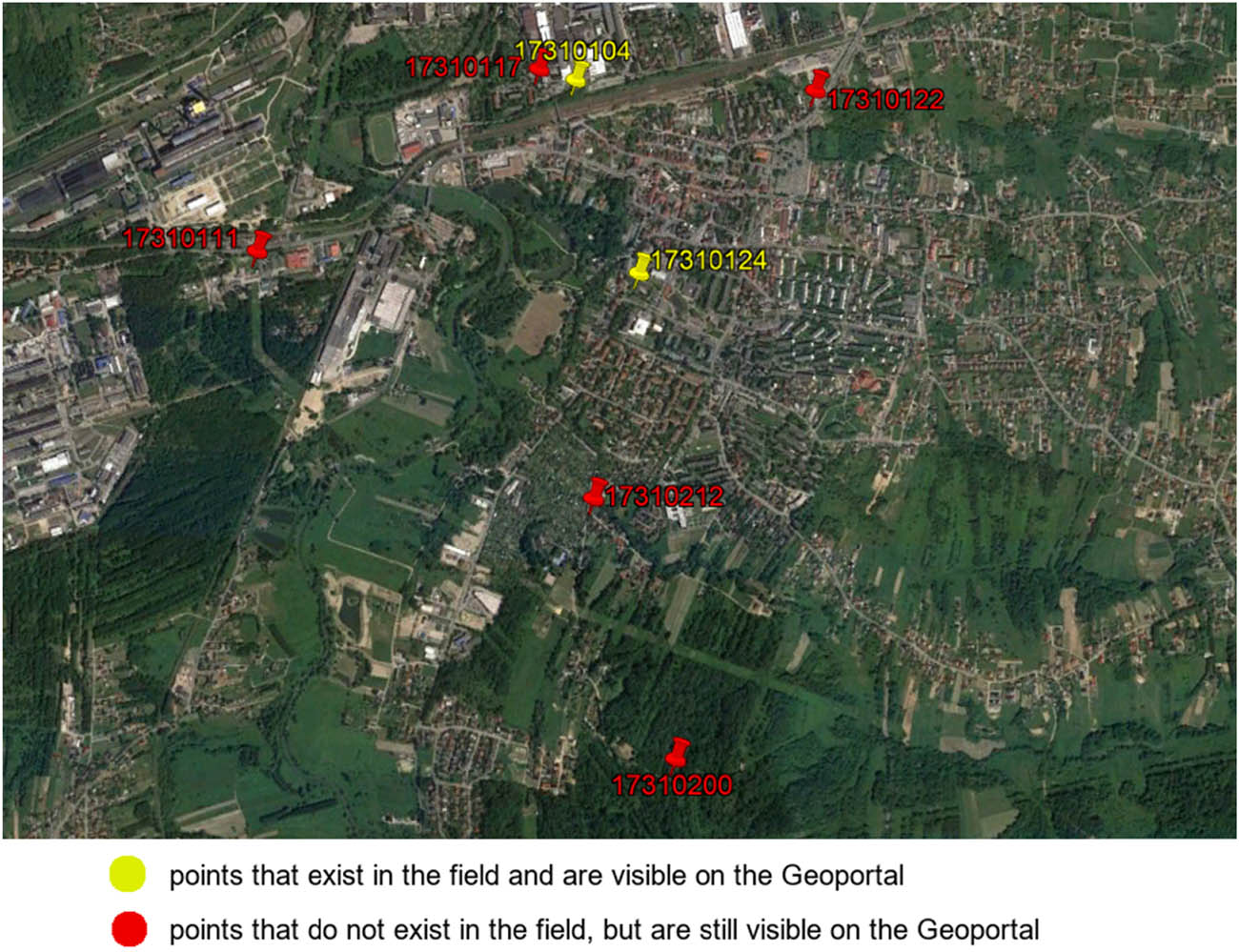

Figure 6

Presentation of points non-existent in the field but existing in geoportal.

When analysing the reference database, it should be noted that a large part of the points, as much as 36%, have imprecise B and L coordinates, which cause discrepancy between the position of the points displayed in Google Earth and the actual status in the field. The possible reasons for the existence of incorrect point coordinates are described in Banasik et al. (2012). This fact is summarized in the bar charts in Figure 7, which indicate a necessity to propose a tool to improve the current state.

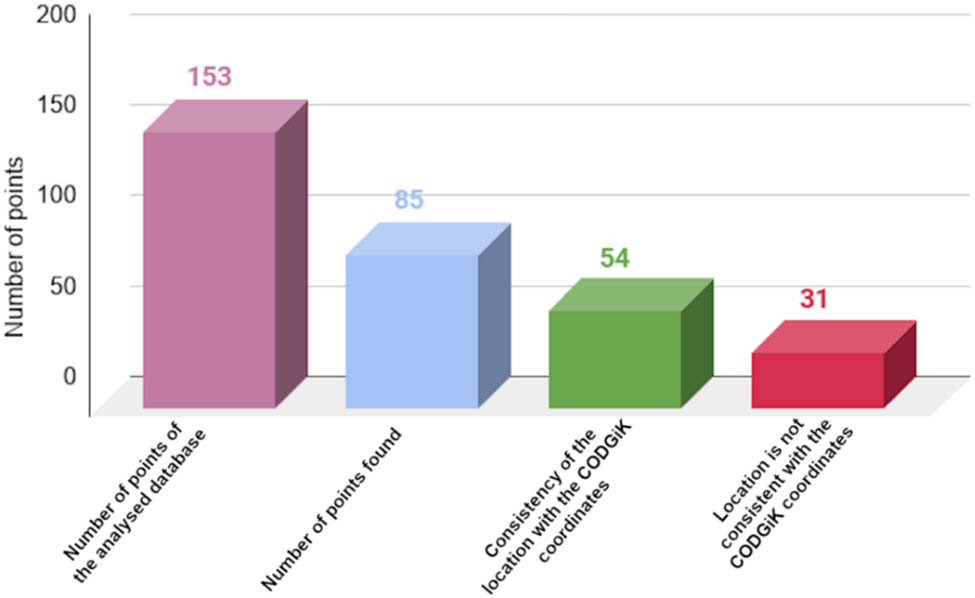

Figure 7

Location consistency with Google Earth for test database.

The greatest number of identified discrepancies occurs for the CC point location zone. This may be due to the dense development and high buildings, hindering the accuracy of the surveys (Figure 8).

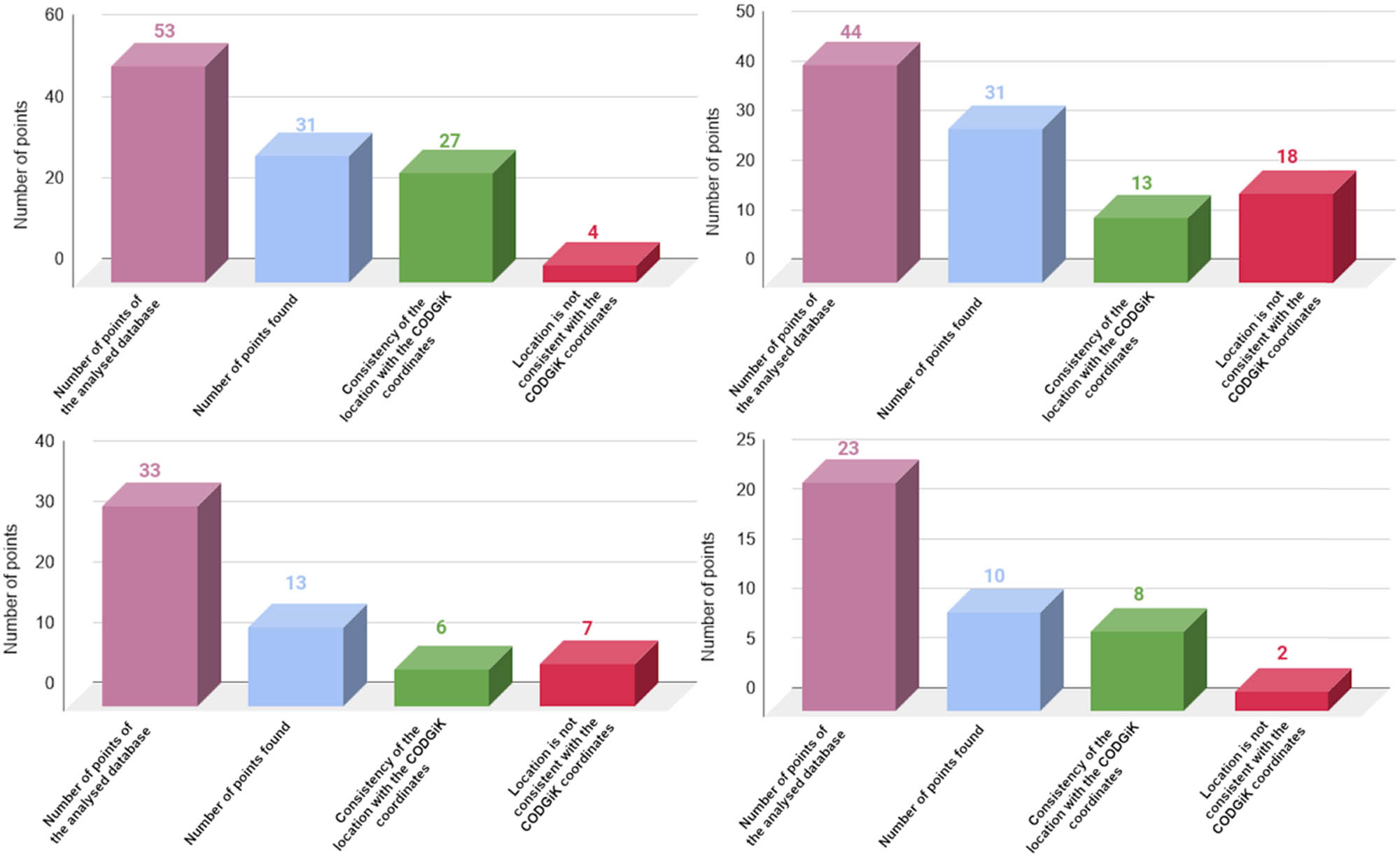

Figure 8

Consistency of point location in the field with presentation in Google Earth.

For the CCO and T zones, i.e., less built-up areas, the location of most of the points corresponds to the data contained in Google Earth. However, for the CC and RA zones, this discrepancy exceeds 50%. The factors identified in the presented analysis, resulting in the inability to use control points correctly, confirm the necessity to introduce tools that enable their updating on an ongoing basis. The status of the test point database demonstrates the constant dynamics of changes that are not recorded in real time.

The regular transfer of information about the occurring changes by direct users of the control network seems to be the best form of maintaining a high-quality database. Thus, the solution would be a mobile application on a mobile device, such as a mobile phone, accessible directly in the field. An exemplary data update using the developed Metrica application is presented in Figure 9.

Figure 9

Data update using the developed Metrica application.

3 Examples of identified irregularities in the control network

This part of the research article presents selected examples relating to the determined criteria of the control network analysis. For specific situations 1–9 that were encountered, the appropriate A–G procedures may be applied to update data using the mobile application. The aim of the A–G procedures is to collect consistent information about the control network and then its correct transfer among surveyors, which will result in the update of the control network on an ongoing basis, together with the presentation of the current status in real time. The selected examples relate to the most common criteria in the analysed control network database, where data update is required.

3.1 No access to visual inspection of the point – criterion 2

The analysis of the point database was possible under the basic conditions: the point was accessible for inspection – criterion 2 and the point existed in the field – criterion 3. The given example demonstrates a point located on an unused building in a fenced area (Figure 10). Verification of information about the point and the possibility of its surveying are hindered because entering the area in the absence of the owner is not allowed.

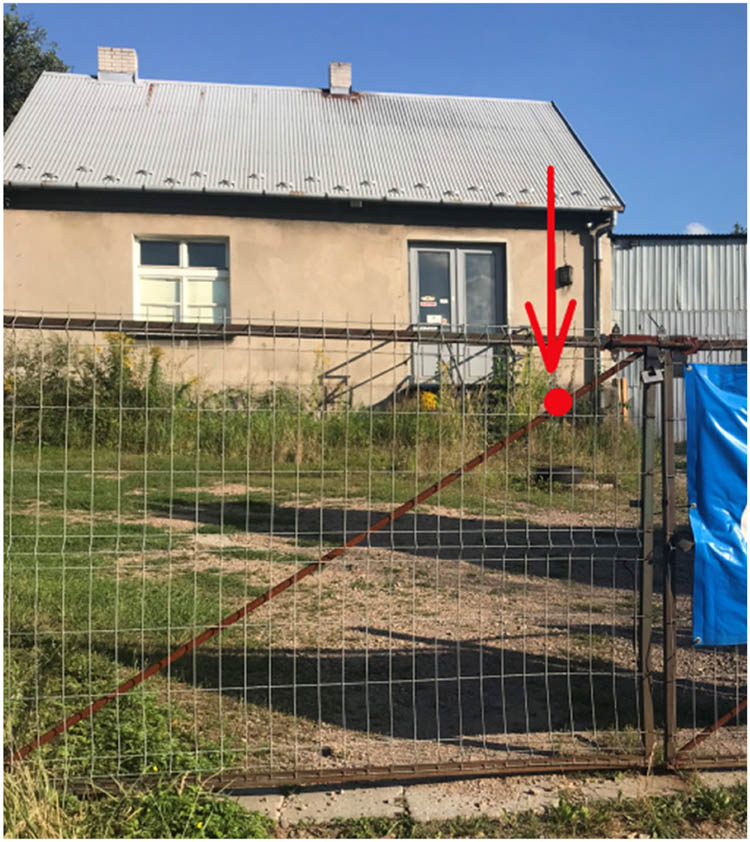

Figure 10

Photograph of building with inaccessible point.

Providing comments on hard-to-reach points makes it possible to plan surveys in the field more precisely, which greatly affects the economy of work – procedure A in the diagram (Figure 7, Part I).

3.2 Comparison of the point location: provided by HOGC with the actual status in the field – criterion 6

When verifying the information on the vertical control points, the source material included the topographic descriptions of points – criterion 4, as well as the B, L coordinates retrieved from HOGC – criterion 6 (Figure 11). These coordinates are necessary to determine the location of points in the field. The Google Earth application was used to present the location of the points. The function that can be used by a surveyor in the control network analysis is based on the location of geodetic points. They are added by importing data from a file or by manually entering the coordinates.

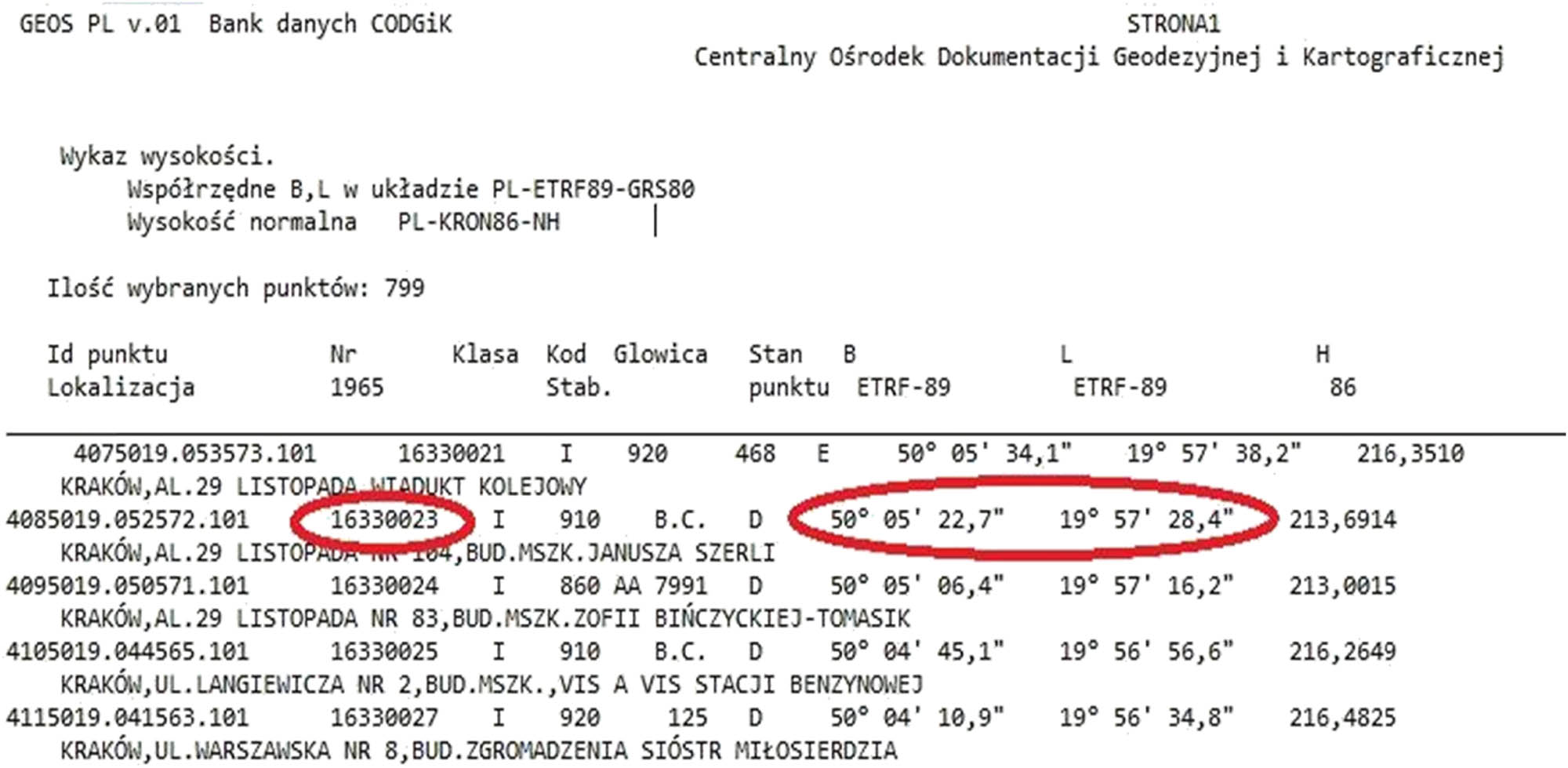

Figure 11

Presentation of data relating to B and L coordinates (GUGiK 2022).

When comparing the position of the points displayed in Google Earth with the actual status in the field, significant discrepancies in the location of 31 points out of 153 were noticed. The figures in Table 4 illustrate several situations of location discrepancies. It is important to note that this issue occurs in each of the selected point location zones. The presentation of the actual location of the point is marked in red, while its incorrect indication based on the B, L coordinates retrieved from HOGC is marked in yellow. The encountered discrepancies reach up to 100 m.

Table 4

Point location discrepancies: indication using B and L coordinates and actual point location in the field

Point location zone/discrepancy	Photograph:
	incorrect point indication
	correct point indication
CC/large distance – 100 m
T/large distance 80 m, obstacle – dense development

This type of error is very severe. There are many points of the vertical control network that present the actual location of the point for which there are no topographic descriptions. Only the address is given, which may frequently be insufficient to find a benchmark location. Therefore, it is especially important to enter the location coordinates correctly and at a proper level of accuracy. The vertical benchmark is only used for height measurements, so it is sufficient that the horizontal coordinates are determined with an accuracy of single meter. Therefore, the observation stored by mobile phone should meet the requirements, within the root mean square in the range of 0.2–4.0 m (Skorupa 2019). The obtained accuracy cannot be called “geodetic,” but in our opinion is good enough to find benchmark location. Such situation was presented in the example for criterion 6 (Table 5). According to procedure F (Figure 7, Part I), the coordinates were captured from mobile phone GNSS positioning and stored in the point documentation.

Table 5

Comparison of point coordinates retrieved from HOGC with surveys using mobile devices of point 16330023

Coordinate source	B	L
HOGC	50° 05′ 22.7″	19° 57′ 28.4″
Survey of navigational coordinates	50° 05′ 21.0″	19° 57′ 28.0″
∆	1.7″/52.5 m	0.4″/7.9 m

The captured values of the B and L coordinates after the survey should be entered using the mobile application for updating the information of geodetic network points as appropriate for the correct location of the control point.

3.3 Possibility to perform surveys on a point against information that the survey marker is destroyed – criterion 7

By analysing the control network in accordance with criterion 7, it was found that four points had incorrect information on the topographic description, informing about their destruction. The condition of the points was verified in the field, and an exemplary topographic description is presented in the photo (Figure 12). The survey marker is in good condition, it is still possible to measure it, it is located in the place indicated by the graphic part of the topographic description.

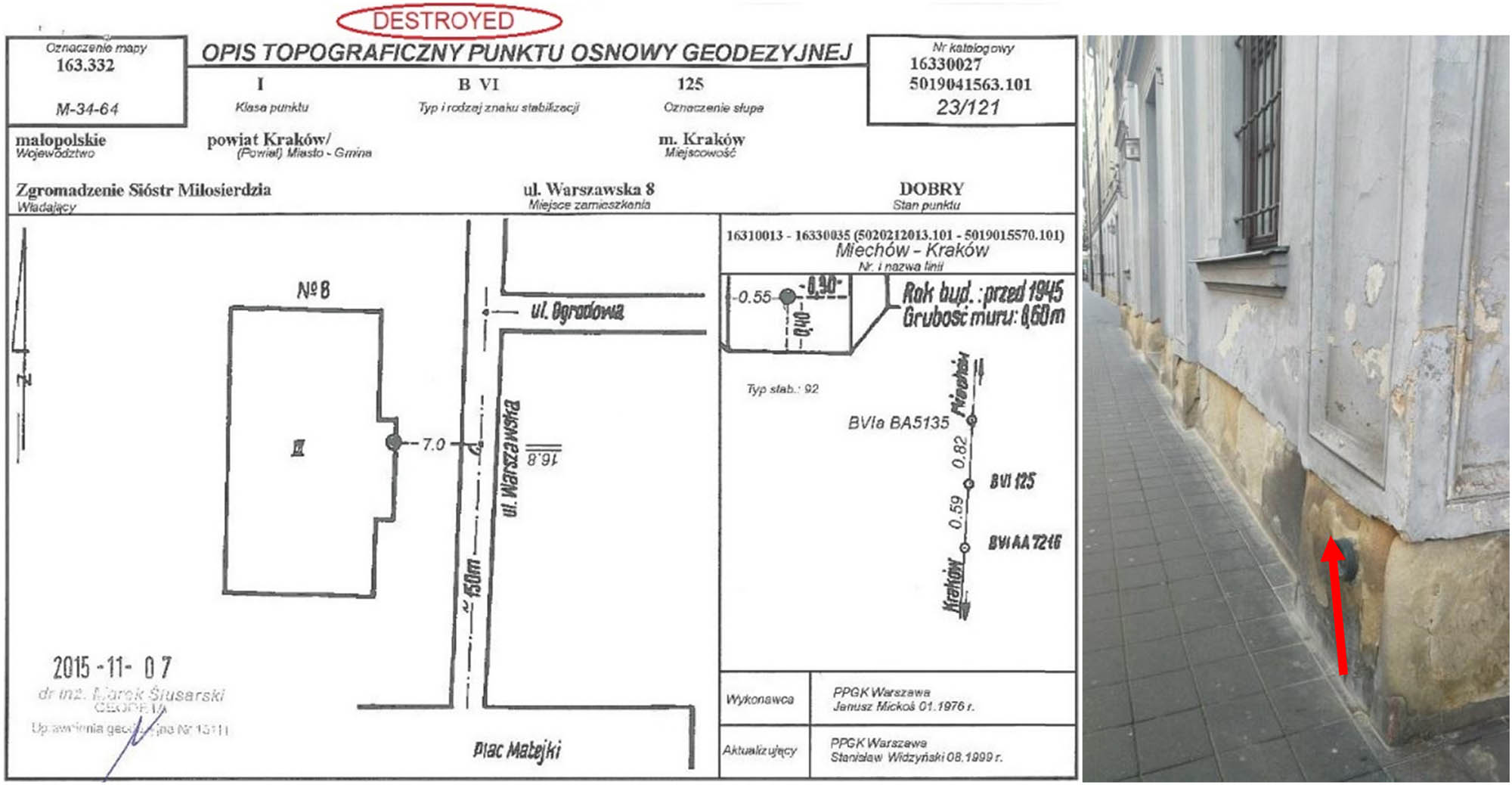

Figure 12

Topographic description and photo of the theoretically destroyed point (GUGiK 2022).

In such a situation as presented in the example for criterion 7, erroneous information must be updated. It should be done by adding a photo of the point and a new topographic description, measuring new B, L coordinates and providing information about the possibility of performing surveys on the point – procedure D in the diagram (Figure 7, Part I).

3.4 Built-up point – criterion 8

Currently, we often deal with survey markers in theoretically very good technical conditions that, after being built-up with insulation, become useless for levelling surveys. The reason lies in the ignorance of the owners who, wanting to protect them, are not aware of how surveyors use these points during surveys (Figure 13). Similar situations were encountered ten times during the control network analysis.

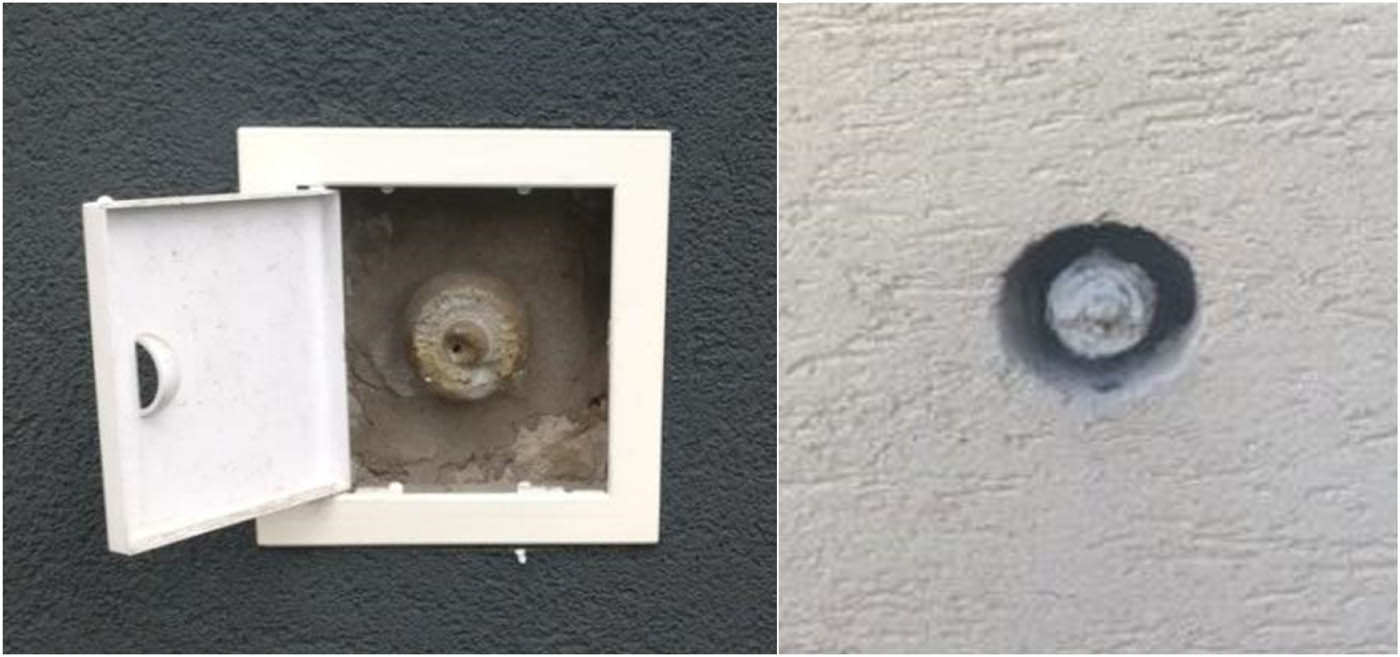

Figure 13

Points built-up in incorrect manner.

In the cases presented in the example for criterion 8, a surveyor using the application should post a photo and assign the point status as “not fit for surveys.” He or she may also provide information about the inability to perform surveys on the point, stating a specific reason for such a situation in the comments. In the application, the proposed scheme of conduct is point E from the scheme (Figure 7, Part I).

3.5 Lack of information about point destruction – criterion 9

Few destroyed points were identified during the field verification, which still function as useful for surveys. In the example illustrated in the photograph (Figure 14), it can be seen that the survey marker has been destroyed. It is therefore not possible to perform a survey on this point.

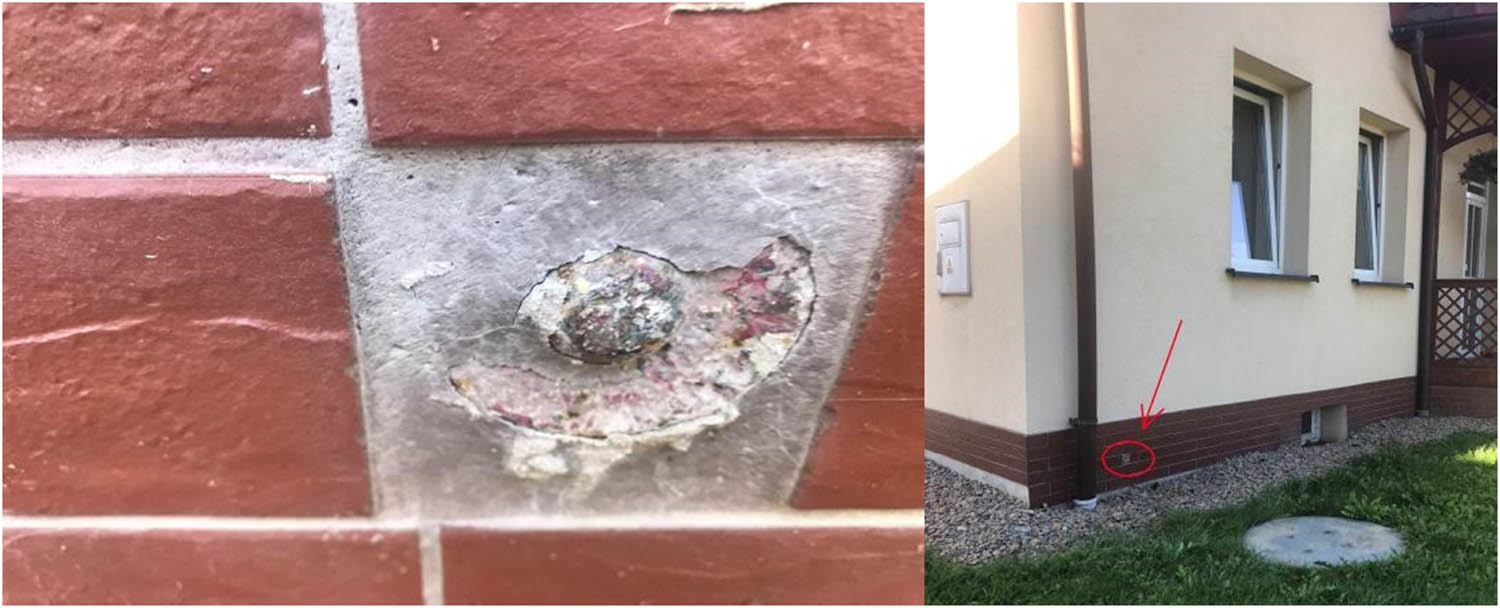

Figure 14

Photographs of the destroyed point – T point location zone.

In the case presented for criterion 9, the surveyor using the application should post a photo showing the actual point, give it the status of the point “not fit for surveys/destroyed” and include this information in the topographic description. In the comments to the point, it is possible to provide detailed information on the current situation. In the application, the proposed scheme of conduct is point E from the scheme (Figure 7, Part I).

4 Conclusions

Maintaining up-to-date information about the points of the basic vertical control network is an arduous task due to the extensive range of locations of these points and the lack of control over some changes taking place, e.g., on private properties. Therefore, in the designed Metrica application, it was decided to solve this problem by allowing surveyors to introduce changes to the information about the point. The database used to design the application was verified by the authors during a field inspection. From the analysis of the collected data, conclusions were drawn about the condition of the vertical control points in the selected area. Only 55.6% of the points were identified in the field, and most of them were found in the CC point location zone. This was due to their location in accessible places as well as the fact that these points were used more frequently and needed to be kept in good condition. When analysing the database, it was noticed that some data were updated over the year in the geoportal application, but these were individual cases, despite the 2019 review at the request of HOGC. Control network surveys were conducted and the location of incorrectly indicated points is now correctly presented on the map. However, this update process does not take place in real time, hence the need to use a tool for the update of the control network on an ongoing basis. The information contained in the topographic descriptions, which sometimes incorrectly suggested that the point was destroyed, was also considered. Large part of the analysed points (around 36%) have imprecise coordinates resulting in a discrepancy between the position of the points displayed in Google Earth and the actual state in the field. The geodetic coordinates of the points are in ETRF89 and Google Maps works in WGS84. ETRF89 is nothing more than an implementation of the international terrestrial reference frame layout for the 1989 epoch, i.e., for this epoch the layout is compatible with WGS84. The differences in coordinates do not arise from the different systems, but from three other aspects: first, the accuracy of the measurement (code receivers, accuracy of a few metres), second, since 1989, these systems, as dynamic, have been shifted, but this is at most a few tens of centimetres, several times less than the accuracy of the measurement. The last aspect is the numerical accuracy of the displayed and coordinate data, which can cause such errors. The final result of the work is the preparation of the Metrica mobile application, which has been implemented to update the control network.
