Conceptual Approach in Multi-Objective Optimization of Packed Bed Membrane Reactor for Ethylene Epoxidation Using Real-coded Non-Dominating Sorting Genetic Algorithm NSGA-II

Matthew J. Palys; Stanislav Y. Ivanov; Ajay K. Ray

doi:10.1515/ijcre-2016-0041

Article

Conceptual Approach in Multi-Objective Optimization of Packed Bed Membrane Reactor for Ethylene Epoxidation Using Real-coded Non-Dominating Sorting Genetic Algorithm NSGA-II

Matthew J. Palys , Stanislav Y. Ivanov and Ajay K. Ray

Published/Copyright: June 14, 2016

Published by

Become an author with De Gruyter Brill

Submit Manuscript Author Information

From the journal International Journal of Chemical Reactor Engineering Volume 15 Issue 1

Abstract

An isothermal plug flow reactor model with extended Fick diffusion model for transport through the porous membrane is utilized for simulation of ethylene oxide formation in a packed bed membrane reactor (PBMR). The model was verified and validated using published experimental data from an existing lab-scale unit. Sensitivity analysis was performed to determine robustness of the model. A conceptual approach on operation and design stage multi-objective optimization study is discussed. Real-coded NSGA-II is used and effect of its parameters on optimization of reactor performance is also studied. The results of three two-objective operation-stage (with 4 decision variables) and one two-objective design-stage (with 6 decision variables) optimization case studies are presented. Good convergence to a Pareto optimal solution is achieved for all cases. Significant improvement over current experimental operation is observed in terms of increase in conversion of ethylene, selectivity to ethylene oxide and ethylene oxide product flow rate.

Keywords: ethylene epoxidation; multi-objective optimization; membrane reactor; NSGA-II

Nomenclature

Fi: molar frow rate of species i, mmol/min
Ii: ith objective function
LR: membrane length, m
Nt,i: molar flux of species i through membrane, mol/(m2s)
Npop: size of population in NSGA-II
Ngen: number of generation in NSGA-II
PBMR: packed bed membrane reactor
PBMR-E: вЂ“ packed bed membrane reactor with ethylene fed into tube side
P: total pressure, Pa
pcross: probability of crossover
pmut: probability of mutation
Pi: partial pressure of species i, bar
Qfeed: volumetric feed rate into reactor, std.cm3/min
Rg: universal gas constant, J/(molв€™K)
ri: rate of reaction i, mol/(kgв€™s)
rw: inner radius of shell, m
SC2H4O: selectivity to etylene oxide, %
T: temperature, K
Qfeed: volumetric feed rate into reactor, std.cm3/min
XC2H4: conversion of ethylene, %
YC2H4O: yield of ethylene oxide, %
yi: molar fraction of species i
z: axial coordinate, m
Greek letters
α: distribution index for simulated mutation operation
σ: distribution index for the simulated crossover operation

References

1. Al-Juaied, M., Lafarga, D., Varma, A., 2001. Ethylene epoxidation in a catalytic packed-bed membrane reactor: Experiments and model. Chemical Engineering Science 56, 395–402.10.1016/S0009-2509(00)00235-9Search in Google Scholar

2. Armor, J.N., 1998. Applications of catalytic inorganic membrane reactors to refinery products. Journal of Membrane Science 147, 217–233.10.1016/S0376-7388(98)00124-0Search in Google Scholar

3. Balachandran, U., Dusek, J.T., Mieville, R.L., Poeppel, R.B., Kleesch, M.S., Pei, S., Kobylinski, T.P., Udovich, C.A., Bose, A.C., 1995. Dense ceramic membranes for partial oxidation of methane to syngas. Applied Catalysis A: General 133, 19–29.10.1016/0926-860X(95)00159-XSearch in Google Scholar

4. Baratti, R., Gavriilidis, A., Morbidelli, M., Varma, A., 1994. Optimization of a nonisothermal nonadiabatic fixed-bed reactor using dirac-type silver catalysts for ethylene epoxidation. Chemical Engineering Science 49, 1925–1936.10.1016/0009-2509(94)80077-4Search in Google Scholar

5. Bouwmeester, H.J.M., 2003. Dense ceramic membranes for methane conversion. Catalysis Today 82, 141–150.10.1016/S0920-5861(03)00222-0Search in Google Scholar

6. Cheng, S.-H., Chen, H.-J., Chang, H., Chang, C.-K., Chen, Y.-M., 2008. Multi-objective optimization for two catalytic membrane reactors – methanol synthesis and hydrogen production. Chemical Engineering Science 63, 1428–1437.10.1016/j.ces.2007.12.005Search in Google Scholar

7. Coello Coello, C, Lamont, G.B, van Veldhuizen, D.A., 2007. Evolutionary Algorithms for Solving Multi-Objective Problems, Boston, MA: Springer Science+Business Media, LLC.Search in Google Scholar

8. Deb, K., 2001. Multi-Objective Optimization Using Evolutionary Algorithms, 1st ed, John Wiley & Sons, Chichester, New York.Search in Google Scholar

9. Deb, K., Pratap, A., Agarwal, S., Meyarivan, T., 2002. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Transactions on Evolutionary Computation 6, 182–197.10.1109/4235.996017Search in Google Scholar

10. Dittmeyer, R., Hllein, V., Daub, K., 2001. Membrane reactors for hydrogenation and dehydrogenation processes based on supported palladium. Journal of Molecular Catalysis A: Chemical 173, 135–184.10.1016/S1381-1169(01)00149-2Search in Google Scholar

11. Elnashaie, S.S.E.H., Elshishini, S.S., 1993. Modelling, simulation, and optimization of industrial fixed bed catalytic reactors; Gordon and Breach Science: Chemin de la Sallaz, Switzerland, Vol. 7.Search in Google Scholar

12. Intel, 2011. Intel Ordinary Differential Equations Solver Library. https://software.intel.com/en-us/articles/intel-ordinary-differential-equations-solver-library, [Online; accessed 1 June–2014).Search in Google Scholar

13. Lafarga, D., Varma, A., 2000. Ethylene epoxidation in a catalytic packed-bed membrane reactor: Effects of reactor configuration and 1,2-dichloroethane addition. Chemical Engineering Science 55, 749–758.10.1016/S0009-2509(99)00368-1Search in Google Scholar

14. Lutkebohle, I., 2011. BWorld Robot Control Software. http://www.iitk.ac.in/kangal/codes.shtml, [Online; accessed 25-January-2013).Search in Google Scholar

15. Marler, R., Arora, J., 2004. Survey of multi-objective optimization methods for engineering. Structural and Multidisciplinary Optimization 26, 369–395.10.1007/s00158-003-0368-6Search in Google Scholar

16. Nandasana, A., Ray, A., Gupta, S., 2003. Dynamic model of an industrial steam reformer and its use for multiobjective optimization. Industrial & Engineering Chemistry Research 42, 4028–4042.10.1021/ie0209576Search in Google Scholar

17. Oh, P., Rangaiah, G., Ray, A., 2002. Simulation and multiobjective optimization of an in dustrial hydrogen plant based on refinery off-gas. Industrial & Engineering Chemistry Research 41, 2248–2261.10.1021/ie010277nSearch in Google Scholar

18. Ozbek, M.O., van Santen, R.A., 2013. The mechanism of ethylene epoxidation catalysis. Catalysis Letters 143, 131–141.10.1007/s10562-012-0957-3Search in Google Scholar

19. Pena, M.A., Carr, D.M., Yeung, K.L., Varma, A., 1998. Ethylene epoxidation in a catalytic packed-bed membrane reactor. Chemical Engineering Science 53, 3821–3834.10.1016/S0009-2509(98)00189-4Search in Google Scholar

20. Peureux, J., Torres, M., Mozzanega, H., Giroir-Fendler, A., Dalmon, J.-A., 1995. Nitrobenzene liquid-phase hydrogenation in a membrane reactor. Catalysis Today 25, 409–415.10.1016/0920-5861(95)00128-3Search in Google Scholar

21. Quddus, M.R., Zhang, Y., Ray, A.K., 2010. Multiobjective optimization of a porous ceramic membrane reactor for oxidative coupling of methane. Industrial & Engineering Chemistry Research 49, 6469–6481.10.1021/ie900971pSearch in Google Scholar

22. Rajesh, J., Gupta, S., Rangaiah, G., Ray, A., 2000. Multiobjective optimization of steam reformer performance using genetic algorithm. Industrial & Engineering Chemistry Research 39, 706–717.10.1021/ie9905409Search in Google Scholar

23. Sanz, R., Calles, J.A., Alique, D., Furones, L., 2014. H2 production via water gas shift in a composite Pd membrane reactor prepared by the pore-plating method. International Journal of Hydrogen Energy 39, 4739–4748.10.1016/j.ijhydene.2013.12.145Search in Google Scholar

24. Saracco, G., Neomagus, H.W.J.P., Versteeg, G.F., van Swaaij, W.P.M., 1999. High-temperature membrane reactors: Potential and problems. Chemical Engineering Science 54, 1997–2017.10.1016/S0009-2509(99)00009-3Search in Google Scholar

25. Tosti, S., Basile, A., Chiappetta, G., Rizzello, C., Violante, V., 2003. PdAG membrane reactors for water gas shift reaction. Chemical Engineering Journal 93, 23–30.10.1016/S1385-8947(02)00113-4Search in Google Scholar

26. Tsai, C., Dixon, A., Moser, W., Ma, Y., 1997. Dense perovskite membrane reactors for partial oxidation of methane to syngas. AICHE Journal 43, 2741–2750.10.1002/aic.690431320Search in Google Scholar

27. Uemiya, S., Sato, N., Ando, H., Kikuchi, E., 1991. The water gas shift reaction assisted by a palladium membrane reactor. Industrial & Engineering Chemistry Research 30, 585–589.10.1021/ie00051a022Search in Google Scholar

28. Yuen, C.C., Aatmeeyata, Gupta, S.K., Ray, A.K., 2000. Multi-objective optimization of membrane separation modules using genetic algorithm. Journal of Membrane Science 176, 177–196.10.1016/S0376-7388(00)00440-3Search in Google Scholar

29. Zahedi, G., Lohi, A., Mahdi, K.A., 2011. Hybrid modeling of ethylene to ethylene oxide heterogeneous reactor. Fuel Processing Technology 92, 1725–1732.10.1016/j.fuproc.2011.04.022Search in Google Scholar

30. Zaman, J., Chakma, A., 1994. Inorganic membrane reactors. Journal of Membrane Science 92, 1–28.10.1016/0376-7388(94)80010-3Search in Google Scholar

31. Zhou, Y., Ye, H., Schomcker, R., 2007. Selective hydrogenation of 1,5-cyclo-octadiene over Porous pd/-Al2O3 active membrane. Chinese Journal of Catalysis 28, 715–719.10.1016/S1872-2067(07)60061-8Search in Google Scholar

32. Zhou, X., Yuan, W., 2005. Optimization of the fixed-bed reactor for ethylene epoxidation. Chemical Engineering and Processing 44, 1098–1107.10.1016/j.cep.2005.03.008Search in Google Scholar

Appendix A

Mathematical model of PBMR

The mathematical model assumes plug flow in shell side. The flow through the membrane is equally divided along its length and transport of ethylene through membrane is convective only. Pressure drop in the tube or shell side is neglected. Molar species balance in the shell side:

dFs,C2H4dz=2πrsNt,C2H4+π(rw2−rs2)ρbed(−r1−r2)

dOs,O2dz=2πrsNt,O2+π(rw2−rs2)ρbed(−1/2r1−3r2)

dFs,N2dz=2πrsNt,N2

dFs,C2H4Odz=2πrsNt,C2H4O+π(rw2−rs2)ρbedr1

dFs,CO2dz=2πrsNt,CO2+π(rw2−rs2)ρbed(2r2)

dFs,H2Odz=2πrsNt,H2O+π(rw2−rs2)ρbed(2r2)

with Nt,i=Ft,i2πrtL

where r1 and r2 are reaction rates for eqs (1) and (2), respectively (Figure 1) given by:

r1=1.33⋅105exp(−60700RgT)PEPO0.58(1+6.50PE)2

r2=1.80⋅106exp(−73200RgT)PEPO0.30(1+4.33PE)2

XC2H4+XO2+XN2+XC2H4O+XCO2+XH2O=1.0

Appendix B

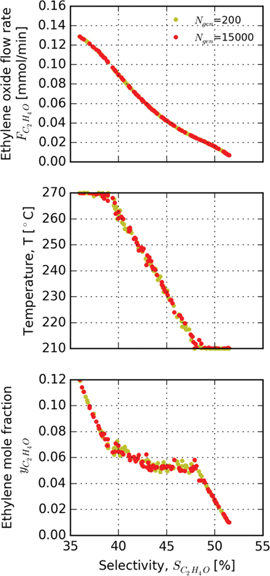

$Figure 11: Effect of Number of Generations Ngen${N_{gen}}$ on NSGA-II convergence.$

Figure 11:

Effect of Number of Generations Ngen on NSGA-II convergence.

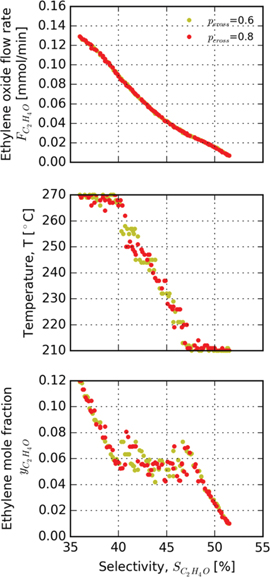

$Figure 12: Effect of Crossover Probability pcross${p_{cross}}$ on NSGA-II convergence.$

Figure 12:

Effect of Crossover Probability pcross on NSGA-II convergence.

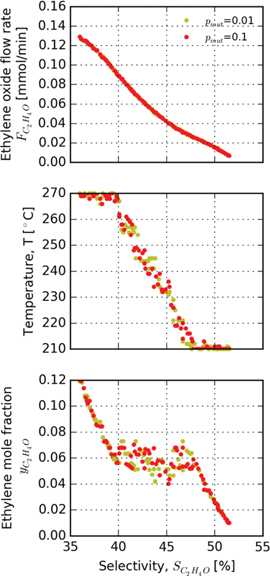

$Figure 13: Effect of Mutation Probability pmut${p_{mut}}$ on NSGA-II convergence.$

Figure 13:

Effect of Mutation Probability pmut on NSGA-II convergence.
