The effect of fluorine on reaction-rim growth dynamics in the ternary CaO-MgO-SiO₂ system

Starting materials

Reaction rims were grown between grains and cylindrical plates of quartz and wollastonite crystals and periclase matrix with the addition of 0–10 wt% fluorine using three different setups (Fig. 1). As starting materials, we used pure synthetic MgF² and MgO powders that were mixed thoroughly to produce a matrix with the desired fluorine fractions, natural quartz, and natural wollastonite stemming from Cziklewa near Orawitza (Banat, Romania) that was supplied by the Natural History Museum Vienna.

Figure 1

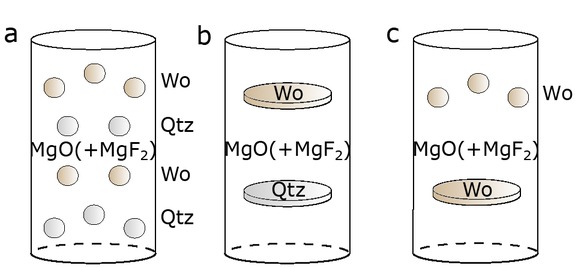

Schematic figure of the Pt-capsule assemblies used in this study. (a) Assembly containing four alternating layers of quartz and wollastonite grains embedded in a MgO+MgF₂ powder matrix. (b) Assembly consisting of quartz and wollastonite cylinders embedded in a MgO+MgF₂ powder matrix. (c) Wollastonite fragments embedded in a MgO+MgF₂ powder matrix.

Capsule assembly

For assembly “a”, clear quartz and wollastonite single crystals were crushed and individually handpicked in a grain size fraction of 500–1000 μm, rinsed with acetone and water, and dried at 120 °C for an hour. The starting material was placed in a platinum capsule (inner diameter 2.8 mm, outer diameter 3.0 mm, length 1 cm) in alternating quartz and wollastonite layers surrounded by the powdered matrix (Fig. 1a). For assembly “b”, cylindrical plates (2 mm in diameter and 500 to 1000 μm thick) were drilled from the quartz crystals parallel to the c-axis and polished on both sides to create flat contact surfaces with the matrix (Fig. 1b). Unoriented wollastonite cylinders were prepared in a similar way for both assembly “b” and “c”. Assembly “c” contained a combination of crushed wollastonite crystals and polished wollastonite cylinders embedded in the powdered matrix (Fig. 1c). After loading, all capsules were dried in a conventional oven at 400 °C for 30 min and welded shut subsequently with a plasma welder to minimize adsorbed surface water. A detailed overview of the experimental conditions and bulk fluorine concentrations is given in Table 1, and the composition of quartz and wollastonite starting material is shown in Table 2.

Piston-cylinder experiments

All experiments were carried out using a conventional end-load piston-cylinder apparatus. The Pt-capsule was surrounded by MgO powder, and a talc-pyrex assembly served as a pressure medium. Run conditions for all experiments were 1000 °C and 1.5 GPa (Fig. 2). An S-type thermo-couple was used to monitor the temperature. The target temperature was reached with a heating ramp of 30 K/min. All experiments were quenched after 20 min by cutting the power. After the run, the platinum capsule was retrieved and embedded in epoxy. Setup “a” capsules were polished until grains with a diameter between 500–1000 μm were exposed to the surface. Setup “b” and “c” capsules were polished perpendicular to the flat surface of the cylindrical plates until the center of the respective cylinders was reached. Polished samples were cleaned with ethanol and coated with a conductive carbon film prior to SEM and microprobe analysis.

Figure 2

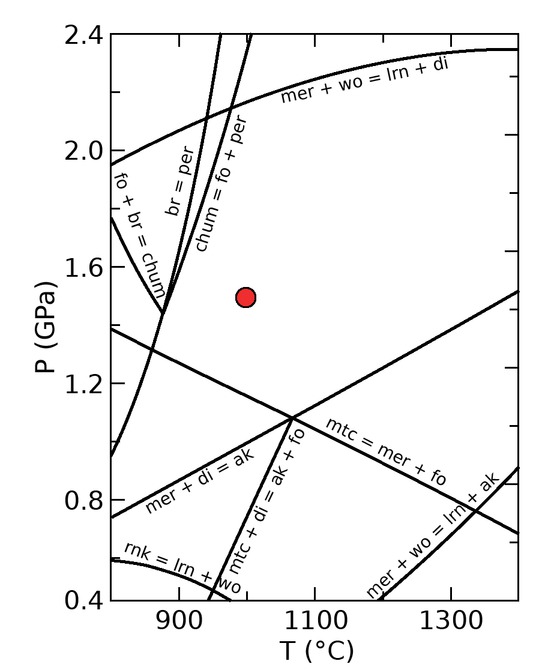

Pseudo-section showing the stability field of phases within the CMS ternary system at water-saturated conditions, which was created using Perple_X and the TC-DS620 version of the Holland and Powell database (Holland and Powell 2011). The red dot marks the experimental conditions of this study at 1000 °C and 1.5 GPa.

Analytical techniques

SEM and EMPA analyses. BSE images were obtained with a JEOL JSM-6010LV scanning electron microscope. The rim thicknesses were determined by averaging 10 equally spaced measurements over a total distance of at least 100 μm at places where the respective rim was thinnest (Table 1). A JEOL JXA8100 electron probe equipped with five wavelength-dispersive spectrometers was used to determine phase compositions. Mineral phases in the reaction rims were analyzed at 15 kV and 10 nA; starting materials were analyzed at 15 kV and 50 nA. Well-known standards were used for EMPA calibration. Compositions are given in Table 2 and represent the average of at least five individual analyses per phase.

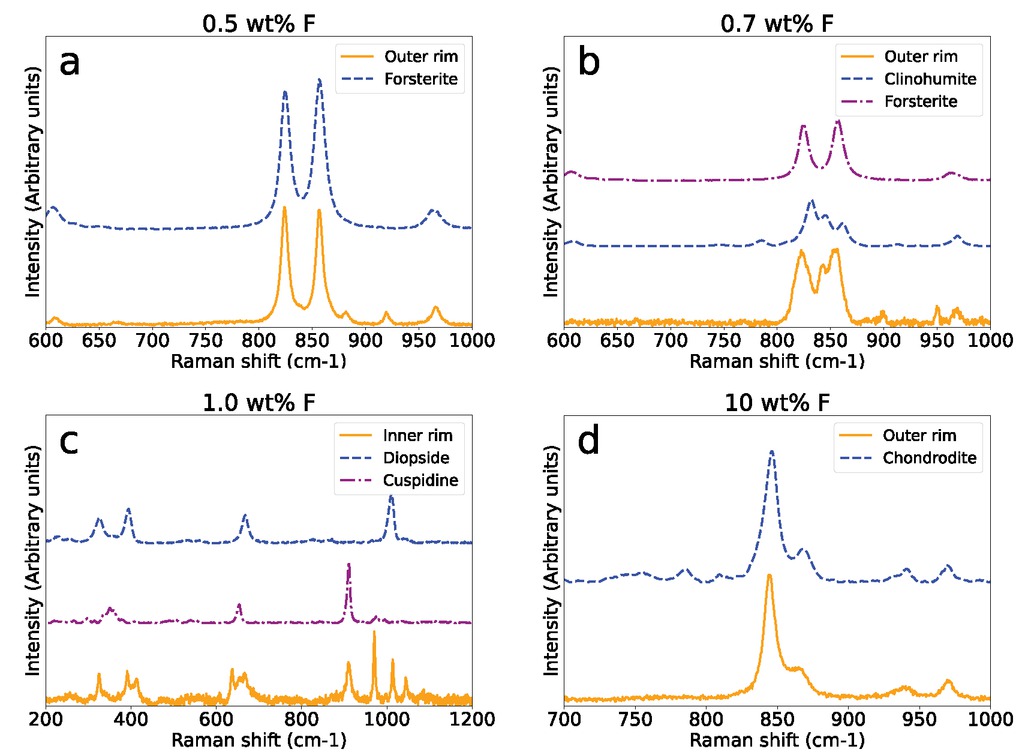

Raman spectroscopy. Raman spectroscopic analyses were performed at ambient conditions using a HORIBA JOBIN-YVON LabRam-HR800 spectrometer with a focal length of 800 mm to identify the phases in the palisade microstructure at the wollastonite interface (Figs. 3e–3h) and to distinguish HGMs in the outer layer of the reaction rim. All Raman spectra were obtained by averaging two spectra acquired for a counting time of 40 s. The analyzed areas were excited using a green Nd-YAG laser with an excitation wavelength of 532.18 nm. Scattered light was dispersed by an optical grating with 1800 grooves/mm, resulting in a spectral resolution of 1.83 cm⁻¹, and collected with a cooled Andor CCD collector. An Olympus 50× objective, a confocal pinhole of 1000 μm and a slit of 100 μm was used to maximize the intensity at a lateral resolution of ~5 μm². Before the analyses, the spectral position of the Raman mode of a Si standard wafer was measured against the position of the Rayleigh line, resulting in the expected Raman shift of 520.7 cm⁻¹. Spectra were obtained in multi-window acquisition mode provided by the LABSPEC (ver. 5.93.20) software package in the frequency range of 200–1200 cm⁻¹. Background subtraction and the determination of band position were performed with the same software.

Figure 3

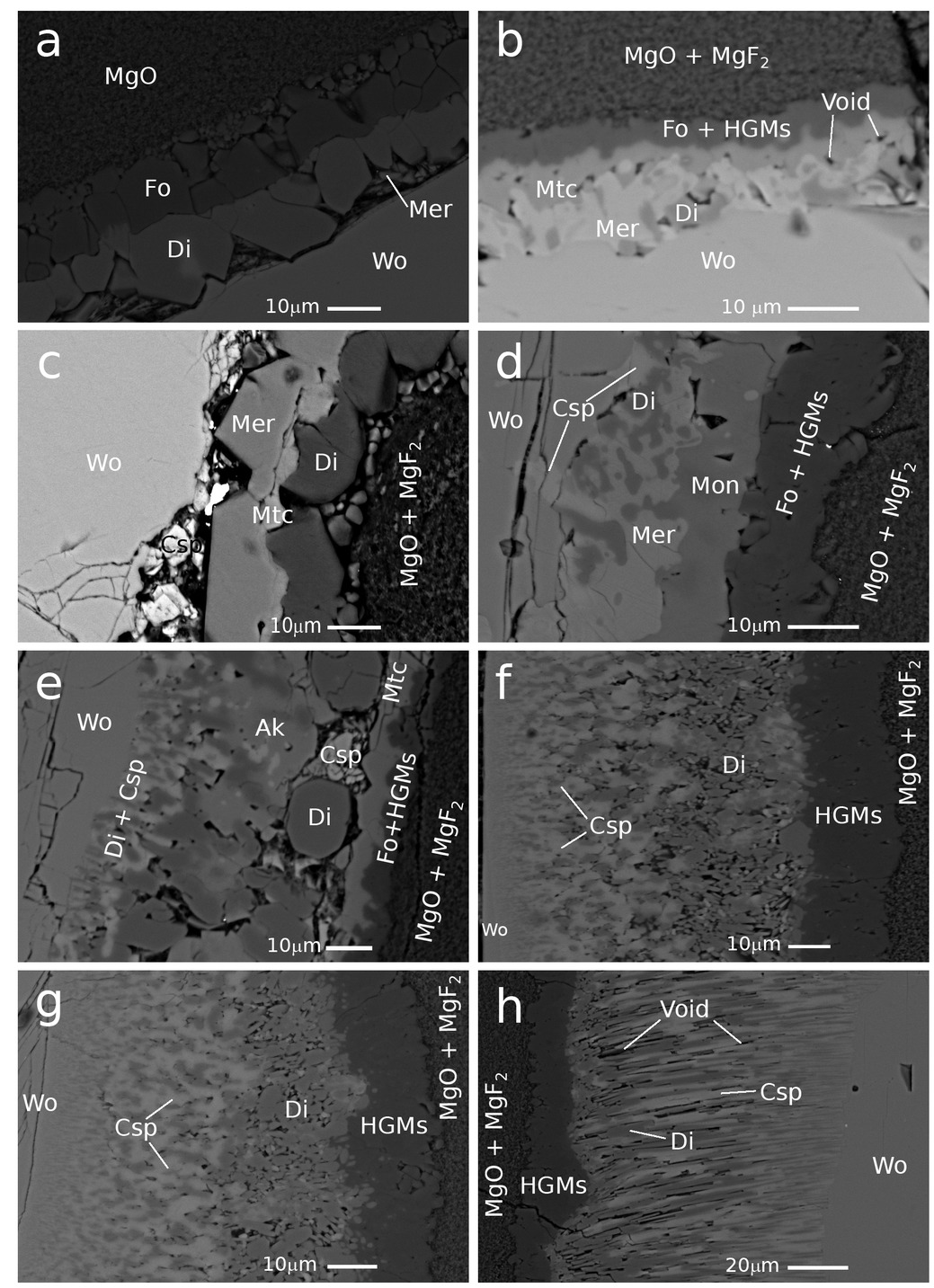

Scanning electron microscope (SEM) images, backscatter electron (BSE) image of reaction rims grown between wollastonite and MgO (+MgF₂) matrix ordered by increasing bulk fluorine content with (a) 0, (b) 0.1, (c) 0.5, (d) 0.7, (e) 1.0, (f) 3.0, (g) 5.0, and (h) 10 wt% F. All experiments were performed at identical P-T-t conditions of 1000 °C and 1.5 GPa for 20 min. Rim thicknesses were always determined at the thinnest position to minimize the sectioning effect caused by a potential inclination between the grain and the matrix (Table 1). Images a and f were chosen as exemplarily visualizations of the internal rim texture and do not represent the minimum rim thickness of this specific experiment. Wo = wollastonite, Csp = cuspidine, Di = diopside, Ak = åkermanite, Mer = merwinite, Mtc = monticellite, Fo = forsterite, HGMs = humite group minerals.

Phase configurations

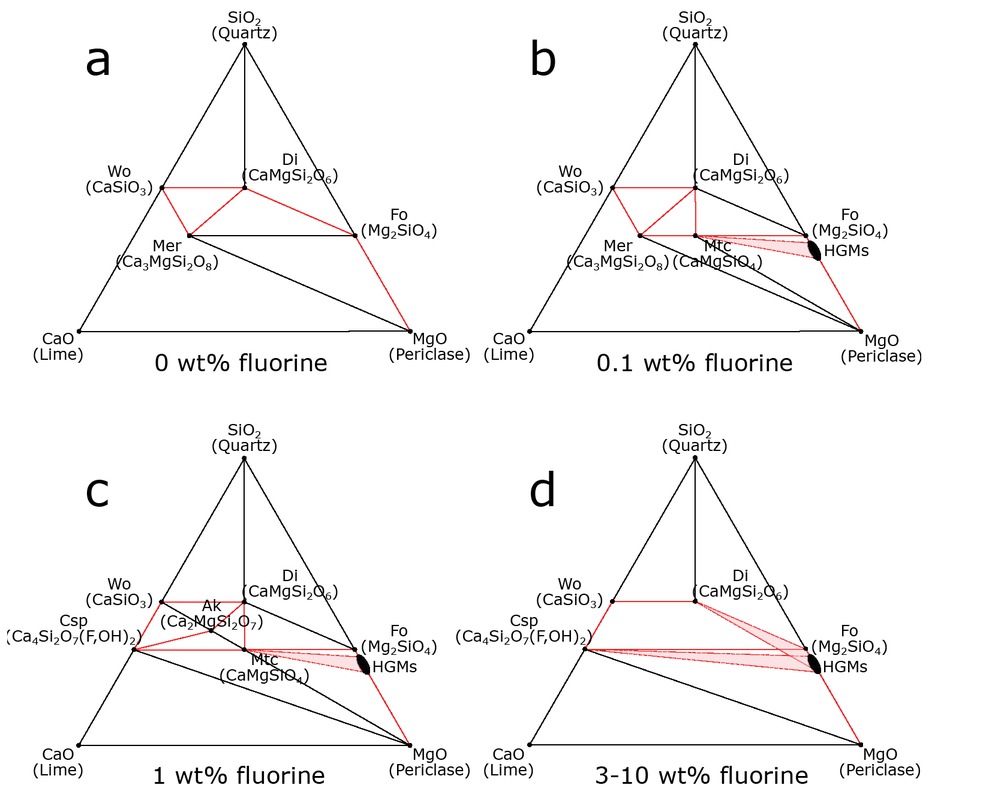

In the fluorine-free system, reaction-rims between periclase and wollastonite develop the phase sequence Per | Fo | Di | Mer | Wo with merwinite being present as isolated lenses between the diopside layer and the wollastonite starting material. This phase sequence is in agreement with the stable phase configuration in the CMS system at 1000 °C, 1.5 GPa and water-saturated conditions (Holland and Powell 2011; Figs. 2, 3a, and 5a). As soon as 0.1 wt% F is introduced into the CMS system, we observe a change in the layer sequence with the appearance of monticellite and HGMs (Figs. 3b and 5b). Presence of HGMs may be explained by the fact that the stability field of F-clinohumite extends to higher temperatures compared to its OH-counterpart (Stalder and Ulmer 2001; Grützner et al. 2017; Woodland et al. 2018), which may imply that the Gibbs free energy of F-clinohumite is lower compared to OH-clinohumite at identical P-T conditions. However, this explanation does not hold for the presence of monticellite, which is a nominally water and fluorine-free mineral, indicating that the absolute Gibbs free energy of monticellite should remain largely unaffected by the introduction of fluorine into the system. Nevertheless, the addition of fluorine to the system may affect the Gibbs free energy difference of monticellite relative to the fluorine-bearing phases. This may result in stabilization and, consequently, the appearance of monticellite in the layer sequence.

Samples with 0.5 wt% bulk fluorine content mark the first appearance of cuspidine (Figs. 3c and 5c) while HGMs are absent (Fig. 6a). Similar to the appearance of HGMs in the experiment with 0.1 wt% F, the absolute Gibbs free energy of F-cuspidine is likely to be lowered with increasing fluorine content resulting in the appearance of this phase. Subsequently, the disappearance of HGMs between 0.1 and 0.5 wt% F may be caused by a change in relative Gibbs free energies of the potential fluorine bearing phases. Another explanation is that cuspidine as a major fluorine sink leaves insufficient fluorine for HGMs to be formed. Both explanations would be in line with the reappearance of HGMs at 0.7 wt% F (Figs. 3d, 5d, and 6b).

A further increase in the fluorine content leads to the disappearance of merwinite at 1 wt% F, followed by monticellite and åkermanite at ≥3 wt% F (Figs. 3e–3h and 5e–5f). Simultaneously, the amount of fluorine incorporated in cuspidine increases from 4.74(35) wt% F to 9.29(57) wt% F with increasing bulk fluorine concentration (0.5 to 10 wt% F, Table 2). Again, it seems plausible that the Gibbs free energies of the (F,OH)-bearing phases decrease with increasing fluorine content, whereas the absolute Gibbs free energies of nominally anhydrous minerals such as merwinite, åkermanite, and monticellite, remain largely unaffected by the addition of fluorine. Consequently, the decrease in the absolute Gibbs free energy of cuspidine and HGMs can only affect the relative Gibb’s Free energies of merwinite, åkermanite, and monticellite with respect to cuspidine and HGMs. This provides an explanation for the stepwise disappearance of merwinite at 1 wt% F and åkermanite and monticellite at 3 wt% F.

Microstructural changes

Nucleation of phases that plot on the tielines, which directly connect the starting materials wollastonite and periclase (monticellite and åkermanite; Fig. 5c), may be explained by the mobility solely of MgO or the combined mobility of CaO and SiO₂. In this study, a reaction rim consisting of monomineralic layers with the sequence Wo | Mer | Di | Fo | Per develops in the fluorine-free system (Fig. 3a). Phases in this sequence deviate from the tieline that directly connects the starting materials periclase and wollastonite, which implies that additional component mobility must take place.

Several studies investigating rim growth dynamics in the binary MgO-SiO₂ and ternary MgO-CaO-SiO₂ system showed that it is the mobility of MgO that controls overall rim growth, while SiO₂ remains largely immobile at low-water contents (Milke et al. 2009; Gardés et al. 2012; Joachim et al. 2012, 2019). Experiments in this study were performed using dried starting materials, so that we may safely assume that at least in the fluorine-free system the mobility of MgO controls overall rim growth. Deviation from the direct tieline connection between periclase and wollastonite requires additional mobility of at least one component. Consequently, with SiO₂ being most likely immobile, mobility of CaO is required to explain the phase sequence in the fluorine-free system. The mobility of CaO alone cannot contribute to overall rim growth as this would require additional mobility of SiO₂ (Fig. 5a) but can explain the observed phase sequence. The reaction of wollastonite to merwinite at the Wo | Mer interface in experiments with 0 and 0.1 wt% F can be written as:

where “m” denotes a mobile component. The first appearance of cuspidine together with merwinite in the experiment with 0.5 wt% F requires additional fluorine mobility over the reaction rim, leading to the reaction:

In the sample that contains a bulk fluorine content of 0.7 wt% (Fig. 3d), a bimineralic cuspidine + diopside layer develops at the rim-wollastonite interface. At bulk fluorine concentrations of 1–3 wt%, this layer exhibits a palisade microstructure of alternating diopside and cuspidine lamellae that are oriented perpendicular to the reaction front (Figs. 3e–3h). The reaction of wollastonite to cuspidine + diopside requires the mobility of MgO and MgF₂, while the other components must remain relatively immobile. Otherwise, monomineralic layers of cuspidine and diopside would be formed instead of lamellae (Abart et al. 2012; Joachim et al. 2012). This is another argument supporting the assumption that MgO is the mobile component and thus controls overall rim growth; CaO and SiO₂ remain largely immobile relative to MgO because combined mobility of CaO + SiO₂ would result in a microstructure exhibiting monomineralic layers. The palisade growth of cuspidine and diopside at the rim-wollastonite interface can therefore be explained according to:

with additional CaO mobility required at the rim/reactant interface. This demonstrates that overall rim growth in the fluorine-rich systems of this study can be explained by long-range diffusion of only MgO and MgF₂ across the reaction rim.

In experiments with ≥3 wt% F, BSE images show a segregation of the diopside-cuspidine palisades toward the rim center, where diopside tends to be more pronounced closer to the HGMs layer and cuspidine is more pronounced at the wollastonite | rim interface (Figs. 3f–3h). Although it has been demonstrated that overall rim growth can be explained by MgO and MgF₂ mobility alone, segregation of diopside and cuspidine parallel to the reaction front requires additional CaO mobility. A similar observation was made by Joachim et al. (2012), who showed that the formation of a segregated multilayer type microstructure of merwinite and diopside can be explained by increasing diffusivity of either CaO or SiO₂, or both, relative to MgO. We adopt this model to explain the cuspidine-diopside segregation observed in this study. Cuspidine is consumed in the outer part of the rim closer to the HGMs layer to form additional diopside according to:

The released calcium and fluorine components may migrate toward the inner part of the rim, where the complementary reaction explains the formation of cuspidine at the rim-wollastonite interface:

Note that F^– may be partially substituted by OH^– that was introduced into the sample as adsorbed surface water (e.g., Joachim et al. 2012).

Growth kinetics and mass transport

Several experimental studies showed that the presence of water has a major effect on rim growth rates (Yund 1997; Milke et al. 2001, 2013; Joachim et al. 2011, 2019; Gardés et al. 2012;). This implies that a potential influence of any variations in water abundance on the results of this study must be excluded before we can discuss the effect of any other parameter on rim growth kinetics and mass transport.

A major constraint is the use of a matrix in powder form, which introduces, even if it is pre-dried, a significant amount of adsorbed water to the sample (Joachim et al. 2012). These findings are supported by Joachim et al. (2017), who demonstrate that the amount of adsorbed water introduced to a dry setup varies between 0.03 and 0.18 wt% H₂O, depending on the hygroscopicity of the starting materials. The water adsorbed on the powder matrix alone is likely sufficient to reach the water-saturated grain boundary regime (Milke et al. 2013). Moreover, the growth rate of the forsterite layer in the fluorine-free system is 10^−13.45(10) m²/s, which is in agreement with reported forsterite growth rates in the binary MgO-SiO₂ system that shows an average of 10^−13.98(16) m²/s at a water content ranging from 0.11 to 0.5 wt% H₂O (Gardés et al. 2012). The largest uncertainty in the determination of reaction rates is introduced through the estimation of the rim thicknesses. At very dry conditions (i.e., in regime 1), we would expect rim growth rates that are orders of magnitude slower (Gardés et al. 2012). Even when acknowledging that we compare rim growth experiments in different chemical systems here, this provides another argument that the grain boundaries of all experiments performed in this study were water saturated (regime 3, Gardés et al. 2012).

However, it seems that once grain boundaries are water saturated, significantly higher amounts of water of approximately 0.5 wt% H₂O are required to further affect overall component mobilities and thereby rim growth rates (regime 4, Gardés et al. 2012). We may safely assume that the amount of adsorbed surface water introduced into the samples of this study was below this threshold, which allows us to ascribe the difference in overall rim thickness solely to the effect of fluorine. This also implies that the effect of fluorine on component mobilities in a water-undersaturated regime cannot be evaluated in the framework of this study.

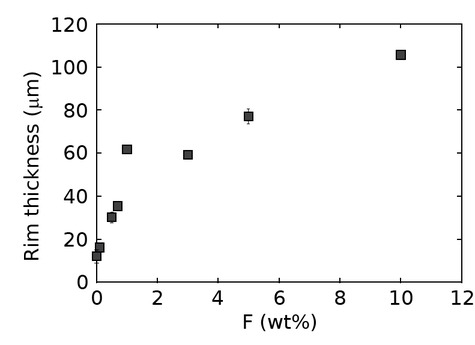

Results in this study show a positive correlation between overall rim thickness and fluorine content at otherwise identical P-T-t-X conditions (Fig. 4), which indicates that the bulk-rock fluorine abundance directly affects component mobilities and thus rim growth rates. This also suggests that all fluorine-bearing experiments can be assigned to transport regime 4 (Gardés et al. 2012). Additionally, the presence of micrometer-sized voids at the interfaces of adjacent phases (Figs. 3b–3h) in all fluorine-bearing experiments are potential signs of fluid transport through a network of interconnected pores, which is anticipated for regime 4 kinetics. However, the absence of 3D imaging of the pore system limits our ability to definitively prove this hypothesis.

It is important to note that even the addition of 0.1 wt% F immediately affects the overall rim growth rate. In contrast, Gardés et al. (2012), who investigated enstatite rim growth between forsterite and quartz, showed that the addition of water does not affect overall rim growth rates in regime 3, which extends to a bulk water content of 0.5 wt% H₂O. One possible explanation for these contrasting observations is that the presence of fluorine already affects the grain boundary properties and thus overall component mobilities at a lower bulk fluid content compared to water. Lee et al. (1991) showed that the presence of a chlorine-bearing fluid decreases the wetting angle in low-porosity silica aggregates, which in turn increases the degree of fluid connectivity. If we assume that this is also valid for fluorine, this implies that the wettability of a fluorine-bearing fluid might be responsible for decreasing the wetting angle, which in turn lowers the fluid threshold necessary to create an interconnected fluid network compared to that of a pure water system. Another explanation might be that the grain and phase boundary properties of the monomineralic enstatite rims and the multilayered rim sequences observed in this study are not comparable. Both arguments illustrate that either the volatile content or the bulk chemical composition or both may affect the physicochemical characteristics of grain and phase boundaries. Therefore, it seems that the classification of intergranular mass transport in a simplified water-bearing system is not viable in a more complex fluorine-bearing system. To gain more insight into this problem, there is a need for rim-growth experiments with the addition of small, defined amounts of other volatile components.

The relative increase of the overall rim growth rate with increasing fluorine bulk concentration is strongest at low-fluorine concentrations (≤1 wt%) and decreases as the fluorine content reaches higher values (≥3 wt%, Fig. 4). Several explanations exist for this observation: (1) At high-bulk concentrations, fluorine is partially incorporated in fluorine-bearing phases such as cuspidine and HGM’s, which decreases the relative fluorine availability at the grain boundaries. (2) Rims at 1 wt% bulk F show a lamellar type microstructure (Fig. 3e), while rims at 10 wt% F show a mosaic microstructure (Fig. 3h). This change in microstructure leads to a reduction in the grain boundary density normal to the reaction interface and may, as a consequence, lead to lower overall rim growth rates as suggested in previous studies (Joachim et al. 2011; Gardés et al. 2011). (3) The increase in bulk fluorine content is accompanied by a change in the rim layer sequence (Fig. 3; see details above), which may affect grain and phase boundary properties, and subsequently, the potential effectivity of transport pathway for components through the reaction rim.
