Air Oxidation Behavior of Two Ti-Base Alloys Synthesized by HIP

Corrosion kinetics

The kinetic curves for the oxidation of Ti-5Al-2.5Sn and Ti-6Al-4V for 24 h in air at 650–850°C are shown separately in Figures 2(a) and 3(a) as linear plot and in Figures 2(b) and 3(b) as parabolic plots, respectively.

Figure 2:

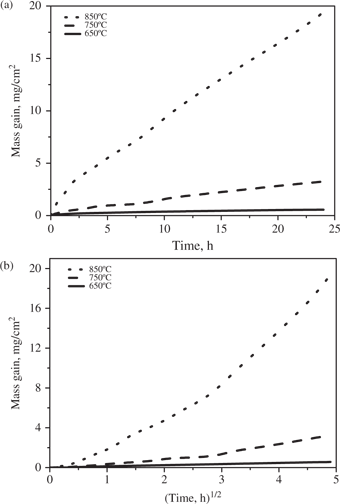

Kinetic curves for the oxidation of Ti-5Al-2.5Sn in air at 650, 750 and 850°C for 24 h: (a) linear plots; (b) parabolic plots.

Figure 3:

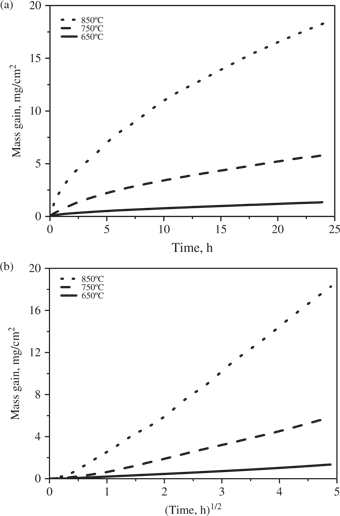

Kinetic curves for the oxidation of Ti-6Al-4V in air at 650, 750 and 850°C for 24 h: (a) linear plots; (b) parabolic plots.

After an initial period of slow rate of mass gain for the first 0.1 h, denoted as an incubation period, the corrosion kinetics of Ti-5Al-2.5Sn at 650°C followed the parabolic rate law with a parabolic rate constant (k_p) equal to 3.52 × 10⁻¹² g² cm⁻⁴ s⁻¹. Conversely, the kinetic curves at 750°C were more complex because, after an initial incubation period, they followed two parabolic stages connected by a period lasting from 2.5 h to 10 h during which the mass gain first decreased and then increased, indicating the spallation and cracking of the scales. The k_p for the first parabolic stage, lasting from 0.1 h to 2.5 h, was equal to 4.83 × 10⁻¹¹ g² cm⁻⁴ s⁻¹, while the k_p for the second parabolic stage, lasting from 10 h to 24 h, was equal to 2.50 × 10⁻¹⁰ g² cm⁻⁴ s⁻¹. At 850°C, the oxidation of Ti-5Al-2.5Sn initially (from the start to 1.5 h) obeyed approximately the parabolic rate law with a k_p equal to 1.595 × 10⁻⁸ g² cm⁻⁴ s⁻¹, and then followed the linear law with a rate constant k_c equal to 5.94 × 10⁻⁷ g cm⁻² s⁻¹ up to the end of the test.

The oxidation of Ti-6Al-4V, at all temperatures followed the parabolic rate law after an initial incubation period of variable durations and of small rates of mass gain. At 650°C, the parabolic period lasted from 0.5 h to 24 h with a k_p equal to 2.82 × 10⁻¹¹ g² cm⁻⁴ s⁻¹. The oxidation kinetics at 750°C followed the parabolic law from 2.3 h up to 24 h with a k_p equal to 4.86 × 10⁻¹⁰ g² cm⁻⁴ s⁻¹ after a transition period presenting an increase of the instantaneous slope of the parabolic plot. At 850°C, the parabolic period lasted from 2 h to 24 h with a k_p value equal to 4.47 × 10⁻⁹ g² cm⁻⁴ s⁻¹.

For both alloys, the mass gains during the oxidation after a fixed time increased with temperature, especially in going from 750°C to 850°C.

Morphology and structure of the scales

The scale formed on Ti-5Al-2.5Sn oxidized at 650°C for 24 h (Figure 4) was compact and contained mainly TiO₂ with some Al in solution, as shown by the EDX results. At 750°C (Figure 5), the scale was mainly composed of a porous TiO₂ layer with a thickness of around 20 μm which was overgrown by a thin layer of about 3 μm composed of a mixture of Al and Ti oxides. In addition, a small part of the inner layer close to the interface with the outer layer was rich in Sn. According to the EDX results the scale formed at 850°C (Figure 6) was divided into two layers. The outer zone was composed of a mixture of oxides of Al and Ti. In addition, the Al₂O₃ particles were agglomerated into large regions with a ribbon-like shape and were perpendicular to the alloy surface and surrounded with voids. The inner layer was made of pure TiO₂ and was more compact than the outer region. In addition, Sn particles were distributed within the inner sub-layer of TiO₂ and were aggregated into a thin layer of the base alloy close to the interface with the scale.

The scale formed on Ti-6Al-4V after 24 h at 650°C (Figure 7) was mainly composed of TiO₂ and Al₂O₃ according to the XRD result. The darker regions of the scale close to the scale/gas interface were rich in Al₂O₃. Moreover, close to the alloy the scale was porous and peeled off from the matrix. At 750°C (Figure 8), the scale morphology was similar to that formed at 650°C but thicker and more porous. The sandwiched sub-layers of Al₂O₃ were parallel to the scale/alloy interface and spalled off from the TiO₂ sub-layers. This phenomenon was more evident at 850°C (Figure 9).

Figure 4:

Micrograph (SEM/BEI) of a cross section of Ti-5Al-2.5Sn oxidized in air at 650°C for 24 h.

Figure 5:

Micrograph (SEM/BEI) of a cross section of Ti-5Al-2.5Sn oxidized in air at 750°C for 24 h.

Figure 6:

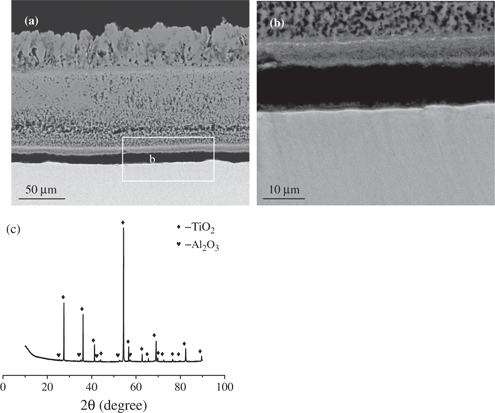

Micrograph (SEM/BEI) of a cross section and XRD spectrum of Ti-5Al-2.5Sn oxidized in air at 850°C for 24 h: (a) general view, (b) enlarged view of the selected area of (a), (c) XRD spectrum.

Figure 7:

Micrograph (SEM/BEI) of a cross section of Ti-6Al-4V oxidized in air at 650°C for 24 h.

Figure 8:

Micrograph (SEM/BEI) of a cross section of Ti-6Al-4V oxidized in air at 750°C for 24 h.

Figure 9:

Micrograph (SEM/BEI) of a cross section of Ti-6Al-4V oxidized in air at 850°C for 24 h.

Mechanism of formation of the scales

Rutile is a n-type semiconductor caused by an oxygen deficit and the activation energy for the diffusion of oxygen within this oxide is much lower than that of titanium. Thus, at relatively low temperatures the growth of TiO₂ in the oxidation of pure Ti is mainly due to the inward diffusion of oxygen. However, above 1,000°C both Ti and O contribute to the growth of the oxide by diffusing in opposite directions.

The growth mechanism of the scales formed on the Ti-Al alloys has been rather extensively investigated [9, 10, 18, 22, 23]. Du et al. [5] proposed that the oxides of Ti and Al nucleate at active sites on the alloy surface and grow simultaneously. However, later Al₂O₃ is wrapped up by TiO₂. Conversely, Maximovitch et al. [9] claimed that the oxidation of Al occurs only when the Al content exceeds 12.5 wt%. TiO₂ forms at both the scale/alloy and the scale/gas interface due to the inward diffusion of oxygen and the outward diffusion of Ti through the TiO₂ layer with a large density of defects. Al also can diffuse outward to the outer region of the scale to form Al₂O₃ due to a displacement reaction with TiO₂.

Typical scales formed on dilute Ti-Al alloys contain two layers [7, 24]. The external layer with large columnar crystals and huge voids is formed by an outward diffusion of cations and is composed of a mixture of TiO₂ and Al₂O₃ where Al₂O₃ is mainly distributed in the inner region. This structure is partly attributed to the fact that the solubility of Al₂O₃ in TiO₂ decreases with an increase of the oxygen pressure [22]. The inner thick layer with fine grains and numerous small voids is mainly composed of TiO₂. Beyond that, other structures involving the presence of alternate layers of rutile and alumina have also been observed [5, 11, 14].

The reactivity of the various metals involved in the composition of the present alloys with oxygen increases in the order of Sn, V, Ti and Al. Therefore, when Ti-Al alloys with additions of V or Sn are oxidized in air, Al and Ti react with O to form the corresponding oxides. Conversely, Sn is stable as such in the scale and agglomerates into large metal particles. V is oxidized into VO₂ and then into V₂O₅ [25]. However, V₂O₅ in the scale close to the scale/gas interface is exposed to volatilization due to its low melting point (670–690°C).

The protective scale formed on Ti-5Al-2.5Sn at 650°C is mainly promoted by the outward diffusion of Al and Ti. As the oxidation temperature raises to 750°C, the rate of the inward diffusion of oxygen increases more rapidly than that of the outward diffusion of Ti and Al and becomes the dominating factor for the growth of the scale, resulting in the exclusive growth of the TiO₂ at the scale/alloy interface. However, by oxidation at 850°C all the elements are able to diffuse quickly: the outward diffusion of Ti and Al results in the growth of the outer layer of Ti and Al oxides, while the inward diffusion of oxygen results in the growth of the inner TiO₂ layer. In addition, this TiO₂ layer is divided into two sub-layers, the outer region being more porous than the inner zone. It is proposed that the porous structure results from a transformation of an initially compact layer due to the recrystallization of TiO₂. During the recrystallization of the new formed TiO₂ layer, most of Sn is segregated back into the base alloy, while the remaining fraction is kept in the scale.

However, by oxidation at 650 and 750°C there is no enrichment of Sn in the substrate, probably because at lower temperatures the scales are thinner and the content of Sn segregated from the scale into the alloy is not sufficient to form a thin layer of Sn.

The growth mechanism of the scales formed on Ti-6Al-4V has already been investigated [11]. A thin TiO₂ scale formed on the alloy due to its high growth rate at the gas/alloy interface during an initial stage. Later on, Al diffuses outward to form Al₂O₃ at the gas/TiO₂ interface, while oxygen diffuses inward and reacts with Ti at the scale/alloy interface. This double-layered oxide scale grows up to a critical thickness and then cracks partly from the base alloy due to the accumulation of growth stresses at the alloy/scale interface. This detachment prevents the outward diffusion of Al and Ti, while oxygen is still able to diffuse inward. As the oxygen pressure increases, the above oxidation process is repeated and forms the double-layered scales. This mechanism is demonstrated by the enrichment of the Al oxide in the upper side of the sub-layers.

The structure of the scales formed on Ti-5Al-2.5Sn differs from that of the scales formed on Ti-6Al-4V, especially at 850°C, due to the different nature of the alloying elements of the two alloys. Some researchers believe that the addition of V is detrimental for the oxidation resistance [26] by reducing the activity of Al in Ti-6Al-4V and suppressing the formation of Al₂O₃. In addition, the oxidation states of V in the inner layer of the scale are +5 and +4 [25]. It is assumed that V⁴⁺ ions dissolved into TiO₂ scale take the interstitial positions and consequently decrease the concentration of interstitial Ti⁴⁺ ions. According to Wagner–Hauffe theory [27], the presence of V⁵⁺ is expected to reduce the concentration of interstitial Ti⁴⁺ ions. Therefore, the outward diffusion rate of Ti⁴⁺ decreases and the thickness ratio between the outward- and inward- growing sections of the scale decreases. Al₂O₃ forms at the outer region of the layer. When the initial double-layered scale reaches a critical thickness, it spalls off from the base alloy. However, the addition of Sn has no clear effect on the mass gains in the oxidation of Ti-based alloys [26]: for Ti-5Al-2.5Sn, according to the scale morphology, Sn dissolves slightly in TiO₂. Most of the Sn precipitates at the interface between the scale and the alloy. Therefore, Sn has only small effects on the diffusing processes in the scale. The morphology of the scale formed on Ti-5Al-2.5Sn is similar to that of typical scales formed on dilute Ti-Al alloys (with Al content varying from 3.65–10 wt%) [10].

Differences between conventional and HIP alloys

The parabolic rate constants for the air oxidation of a conventional Ti-6Al-4V [11] at 650°C, 750°C and 850°C are of the same order of magnitude as those of the HIP alloy. The scales formed on the conventional alloy are similar to those grown on the HIP alloys. An Arrhenius plot of the parabolic rate constant for the oxidation of HIP Ti-6Al-4V, shown in Figure 10, yields an activation energy, E_a, equal to 217 kJ/mol: this value is lower than that of the conventional alloy (267 kJ/mol) [11], but close to that found for the air oxidation of pure titanium (214 kJ/mol) [10]. Thus, the oxidation resistance of Ti-6Al-4V made by HIP in air is weaker than that of the cast alloy. This difference may be caused by the larger density of grain boundaries in the HIP alloy than that in the cast alloys. Grain boundaries provide rapid diffusion channels and may play an important role in the diffusion of all species which controls the rate of growth of the scale and generates lower values of E_a.

Figure 10:

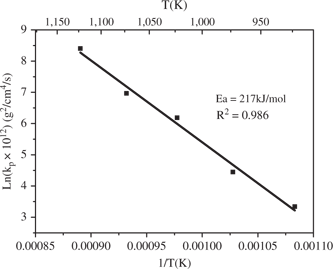

Arrhenius plot for the air oxidation of Ti-6Al-4V made by HIP process.

The activation energy for the air oxidation of Ti-5Al-2.5Sn calculated from the present data, about 255 kJ/mol, cannot be compared with that for the corresponding conventional alloy, never reported so far. It may only be observed that this E_a value is rather close to that of the conventional Ti-6Al-4V alloy and significantly larger than that of HIP Ti-6Al-4V.
