[DMImd-DMP]: A highly efficient and reusable catalyst for the synthesis of 4H-benzo[b]pyran derivatives

  • Mohamed Abdenour Redouane , Naima Khiri-Meribout EMAIL logo , Saida Benzerka and Abdelmadjid Debache
Published/Copyright: December 31, 2019
Download Article (PDF)
Heterocyclic Communications
From the journal Heterocyclic Communications Volume 25 Issue 1

Abstract

A series of substituted 4H-pyrans derivatives were synthesized by a one-pot, multi-component reaction of aromatic aldehydes, malononitrile, and pyrazolone derivatives or active methylene carbonyl compounds such as dimedone, in the presence of 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP] as a catalyst in aqueous ethanol. Recyclability of the catalyst, high yields, simple product isolation and high atom economy are the noteworthy aspects of this protocol.

Keywords: multicomponent reaction; one-pot synthesis; pyrano[2,3-c]pyrazoles; tetrahydrobenzo[b]pyrans; ionic liquids; [DMImd-DMP]

Introduction

Multicomponent reactions (MCRs) are one of the most important reactions in organic and medicinal chemistry because they are widely used for synthesis of diverse and complex organic molecules [1, 2, 3]. They are known to be selective, have effective atom economic, and are generally time saving and easy to perform. As such, MCRs have attracted much attention from both academia and the pharmaceutical industry [4,5].

4H-pyran derivatives represent an important class of oxygen-containing heterocycles. They are often employed as cosmetics, pigments [6], and potential biodegradable agrochemicals [7] and exhibit a wide range of biological activities [8, 9, 10, 11, 12, 13, 14, 15, 16, 17]. Moreover, they possess important medicinal properties such as antimicrobial, antibacterial, anticancer, anti-tubercular, anti-coagulant, anti-allergic, antibiotic, hypolipidemic, and immunomodulating activities [18, 19, 20, 21, 22, 23, 24, 25]. In addition, they can be used as cognitive enhancers, for the treatment of neurodegenerative diseases like Alzheimer’s disease, amyotrophic lateral sclerosis, Huntington’s disease, Parkinson’s disease, AIDS associated dementia and Down’s syndrome, as well as for the treatment of schizophrenia and myoclonus [26].

Realizing the importance of 4H‐pyran derivatives, various synthetic approaches have been developed with the aim of obtaining more biologically potent heterocyclic systems using different catalysts such as magnesium oxide [27], silica‐bonded 1,4‐diazabicyclo[2.2.2]octane [28], silica nanoparticles [29], electro‐generated base [30], baker’s yeast [31], and amino‐functionalized ionic liquid [32]. Other synthetic methods have included the use of microwaves [33], ultrasonic radiation [34], and utilizing additives like hexadecyltrimethylammonium bromide [35], triethylbenzylammonium chloride [36], other alkylammonium salts [37], 4‐dodecylbenzenesulfonic acid [38], morpholine triflate [39], Trichloroacetic acid [40], imidazole [41], lemon juice [42], DABCO [43], (S)‐proline [44], triphenylphosphine [45], PEG-400 [46], β-cyclodextrin [47], [MNP-PIm-SO3H]Cl [48], uncapped SnO2 quantum dots (QDs) [49], Fe3-xTixO4@SO3H magnetic nanoparticles [50], nano-structured diphosphate (Na2CaP2O7) [51], γ-alumina [52], silica coated magnetic NiFe2O4 nanoparticles supported H3PW12O40 (NFSPWA) [53] and cerium ammonium nitrate (CAN) [54].

However, these methods were shown to have limitations and proved ineffective, such as low yields and difficult work-up procedures. Bandgar and coworkers [55] reported the synthesis of tetrahydrobenzo[b]pyrans in good yield without the use of a catalyst, although prolonged reaction times were required.

In recent years, ionic liquids (ILs) have become a powerful alternative to conventional molecular organic solvents due to their favourable properties, such as undetectable vapor pressure, and the ability to dissolve many organic and inorganic substances [56]. Furthermore, the ILs are readily recycled and tunable to specifics chemical tasks [57]. Imidazolium-based ILs have proved their catalytic activity and have attracted considerable attention from the scientific community, due to the ease of preparation from readily available and inexpensive starting materials [57j-k].

In this paper, we would like to report an efficient process for the synthesis of 4H-pyran derivatives by employing 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP] as an efficient and recyclable catalyst. We examined a wide variety of benzaldehydes with various substituents to establish the catalytic importance of this catalyst for this reaction (Scheme 1).

Scheme 1 Synthesis of 4H-pyran derivatives in the presence of 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP].
Scheme 1

Synthesis of 4H-pyran derivatives in the presence of 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP].

Results and discussion

The first step in the execution of this process was the synthesis of [DMImd-DMP]. The catalyst was prepared from the quaternization of N-methylimidazole with trimethylphosphate as shown in Scheme 2. The catalyst structure was investigated by NMR spectroscopy. The pure N,N-methylimidazolium dimethylphosphate shows characteristic peaks at 3.85 ppm and 4.12 ppm corresponding to (2 × OCH3) and (2 × N-CH3) groups, respectively. These results prove that the methyl, provided from trimethylphosphate, was successfully added to N-methylimidazole to give 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP].

In order to find the best reaction conditions for the synthesis of 4H-pyran derivatives, our introductory explorations focused on the study of the efficacy of this catalyst.

To establish the feasibility of the strategy and optimize the reaction conditions, the condensation of benzaldehyde (1a) (1 mmol) with malononitrile (2) (1 mmol)

Scheme 2 Synthesis of 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP].
Scheme 2

Synthesis of 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP].

and 5,5-dimethylcyclohexane-1,3-dione (3a) (1 mmol) in the presence of 10 mol% of [DMImd-DMP] was selected as a reaction model to produce 4H-benzo[b]pyran (4a) (Scheme 3). Also, benzaldehyde (1a) (1 mmol) with malononitrile (2) (1 mmol) and 3-methyl-1-phenyl-2-pyrazolin-5-one (3b) (1 mmol) in the presence of 10 mol% of [DMImd-DMP] as a second reaction model for the synthesis of pyrano[2,3-c]pyrazole derivatives (5) and (6), respectively (Scheme 4).

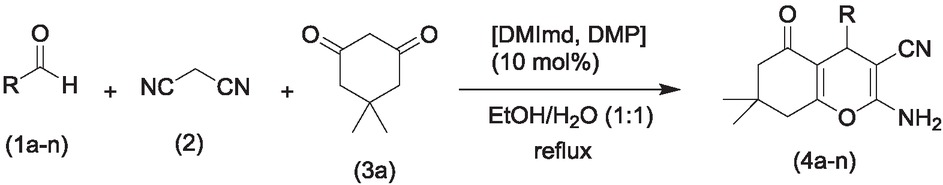

Scheme 3 One-pot three-component reaction of dimedone (3a), different aldehydes (1a-n), and malononitrile (2) catalyzed by [DMImd-DMP].
Scheme 3

One-pot three-component reaction of dimedone (3a), different aldehydes (1a-n), and malononitrile (2) catalyzed by [DMImd-DMP].

Scheme 4 One-pot three-component reaction different aldehydes (1), malononitrile (2) and 3-methyl-1-phenyl-2-pyrazolin-5-one (3b)/5-methyl-2,4-dihydro-3H-pyrazol-3-one (3c) catalyzed by [DMImd-DMP].
Scheme 4

One-pot three-component reaction different aldehydes (1), malononitrile (2) and 3-methyl-1-phenyl-2-pyrazolin-5-one (3b)/5-methyl-2,4-dihydro-3H-pyrazol-3-one (3c) catalyzed by [DMImd-DMP].

The choice of a solvent is a crucial factor for MCRs. So, firstly we looked into the appropriate solvent for this reaction, especially in terms of starting materials solubility. We then tested the reaction in different solvents such as H2O, EtOH, CH3CN, THF, and DMF in the presence of 10 mol% of [DMImd-DMP] as a catalyst. Furthermore, the reaction was carried out under solvent-free conditions (Table 1, Entry 1). However, aqueous ethanol (1:1) turned to be the best solvent for this reaction. The obtained results are given in Table 1. We obtained the best results at reflux (Table 1, Entry 7); hence all the reactions were performed at reflux in solvent.

Table 1

[DMImd-DMP]-catalyzed reaction of benzaldehyde, malononitrile, and 5,5-dimethylcyclohexane-1,3-dione in different solventsa

EntrySolventCatalyst (mol%)Time (h)Yield (%)b
1Solvent Free101.578
2CH3CN103.559
3H2O10268
4EtOH102.576
5THF103.589
6DMF1024Trace
7Aqueous EtOH (1:1)101.591
8Aqueous EtOH (1:1)c101.547
9Aqueous EtOH (1:1)d101.577

  1. a Reaction conditions: benzaldehyde (1 mmol), malononitrile (1 mmol), 5,5-dimethylcyclohexane-1,3-dione (1 mmol), [DMImd-DMP] (22 mg), and solvent (5 mL).

    b Isolated yields.

    c Room temperature.

    d 50 °C.

The temperature played an important role, there was a formation of trace amounts of product formed which longer reaction times. As the temperature increased, from room temperature to reflux in solvent, the yields were found to increase while the reaction time decreased (Table 1, entries 8 and 9). Higher yields and shorter reaction times to synthesis 4H-benzopyrans model reaction were obtained when the reaction was carried out in aqueous ethanol (1:1) at reflux (Table 1, entry 7).

Apart from the solvent, the efficiency of MCRs is mainly affected by the amount of catalyst. Next, to obtain the best conditions we carried out the above condensation, under the optimized conditions, with various amounts of catalyst increasing from 5 to 30 mol% (Table 2). After reviewing the results, it was found that an amount of 10 mol% was sufficient to provide a best yield. However, the use of 5 mol % of [DMImd-DMP] or increasing it to more than 10%, (Tables 2, entries 1-5) has no positive effect even on yield and reaction time. Thus, the optimal conditions for the preparation of 4H-benzo-[b] pyrans catalyzed by [DMImd-DMP] are: reflux in aqueous ethanol (1:1) and 10 mol% of catalyst. The same process was followed to optimize the best conditions for the pyranopyrazole 5 model reaction. As shown in Table 3, when the reaction was carried in the presence of 10 mol% of catalyst, in various solvents, desired product (5a) is obtained with yields ranging between 23 and 84 %, in which the shortest reaction time was 80 min (Table 3, entries 1-7). However, the reaction in aqueous ethanol (1:1) at reflux gave a better result with a yield of 88 % in presence of 5 mol% of our catalyst within 45 min (Table 3, entry 8).

Table 2

Optimization of amount of catalyst for synthesis of 4H-benzopyrane.a

EntryCatalyst (mol%)Time (h)Yield (%)b
151.575
2101.591
3151.584
4201.574
5301.559

  1. a Reaction conditions: benzaldehyde (1 mmol), malononitrile (1 mmol), dimedone (1 mmol) and catalyst [DMImd-DMP] in 5 mL solvent H2O/EtOH (1:1) at reflux.

    b Isolated yield.

Table 3

Optimization of reaction conditions for the synthesis of pyranopyrazole.a

EntrySolventCatalyst (mol%)Time (h or min)Yield (%)b
1Solvent Free103 h68
2CH3CN1024 h71
3H2O1024 hTrace
4EtOH103 h36
5THF103 h69
6DMF105 h23
7Aqueous EtOH (1:1)1080 min84
8Aqueous EtOH (1:1)545 min88
9Aqueous EtOH (1:1)1590 min77
10Aqueous EtOH (1:1)202 h73
11Aqueous EtOH (1:1)302 h65
12Aqueous EtOH (1:1)-3 h16
13Aqueous EtOH (1:1)c545 min58
14Aqueous EtOH (1:1)d545 min71

  1. a Reaction conditions: benzaldehyde (1 mmol), malononitrile (1 mmol), pyrazolone derivative (1 mmol), catalyst [DMImd-DMP] in 5 mL solvent at reflux.

    b Isolated yield.

    c room temperature.

    d 50 °C.

To probe the efficiency and the scope of our method, a broad range of structurally diverse aldehydes (1) were condensed with 5,5-dimethylcyclohexane-1,3-dione (3a)/3-methyl-1-phenyl-2-pyrazolin-5-one (3b)/5-methyl-2,4-dihydro-3H-pyrazol-3-one (3c) and malononitrile (2) to furnish the corresponding 4H-pyran derivatives in high yields and in relatively short reaction times (Scheme 1). The corresponding results are given in Table 4. For all the entries, aqueous ethanol (1:1) was used as solvent and the reaction was conducted at reflux. In all cases, the conversion was completed within 20-120 min with good to excellent yields of desired products, without forming any by-products. We found that the reaction proceeded efficiently employing either electron-releasing or electron-withdrawing substituents on the aldehyde’s aryl ring. Moreover, heteroaromatic aldehydes such as thiophene-2-carbaldehyde and indole-3-carbaldehyde, were applied successfully in the reaction to provide the corresponding 4H-pyran derivatives without by-products (Table 4, entries 12, 20 and 21).

Table 4

Synthesis of 4H-pyran derivatives in the presence of [DMImd-DMP] under Optimized conditions.a

EntryRSubstrateProductTime (min)Yield b (%)Melting point (°C)
FoundReported
1C6H54a9092235-237(234-236) [58]
24-Me-C6H44b4585230-232(219-221) [58]
34-Et-C6H44c9086231-233(230-232) [59]
44-OH-C6H44d6086198–200204-205 [60]
54-Me2N-C6H44e5089218-221223-225 [60]
64-Cl-C6H44f7587218-220210-212 [60]
74-NO2-C6H44g3091184-186178-180 [60]
83-NO2-C6H44h3093209-212208-209 [60]
92-NO2-C6H44i4589228-230228–229 [60]
104-Ac-C6H44j3091232-234-
114-CHO-C6H4c4k9093>260264-267 [61]
122-Thienyl4l12080228-230226-228 [58]
133-OH-4-OMe-C6H34m3083235-237238-240 [60]
14C6H55a5086164-166168-170 [62]
154-Et-C6H45b6081184-186182-184 [45]
164-OH-C6H45c8078216-218205-207 [62]
174-NO2-C6H45d12092216-218196-198 [62]
183-NO2-C6H45e9091206-208190-192 [62]
194-Ac-C6H45f9084242-244-
202-thienyl5g12070>260168-169 [63]
213-indolyl5h4578254-256-
224-Me-C6H46a9080209-211198-200 [65]
234-Me2N-C6H46b6083201-203218-220 [66]
244-Cl-C6H46c6075223-224243 [66]
254-NO2-C6H46d6093249249-250 [66]
264-CHO-C6H46e2087214-216-
274-CHO-C6H4c6f6083235-237238-240 [64]

  1. a Reaction conditions: Aldehyde (1 mmol), malononitrile (1 mmol), C–H activated ketones (1 mmol), catalyst [DMImd-DMP] in 5 mL solvent at reflux.

    b Isolated yield.

    c Aldehyde (1 mmol), malononitrile (2 mmol), 5-methyl-2,4-dihydro-3H-pyrazol-3-one/dimedone (2 mmol) and catalyst [DMImd-DMP] in 5 mL solvent at reflux.

In view of green chemistry, reuse of the catalyst is highly preferable. The reusability of the catalyst was studied on the synthesis of compounds 4a and 4h. After separating the products, the IL catalyst was easily recovered and recycled by removing the filtrate. Products 4a and 4h were obtained with excellent yields in consecutive 1 to 7 runs, respectively, which indicated that the catalyst could be reused for at least 6 runs without losing its activity (Figure 1).

Figure 1 Reusability of the catalyst [DMImd-DMP] in the synthesis of compounds 4a and 4h.
Figure 1

Reusability of the catalyst [DMImd-DMP] in the synthesis of compounds 4a and 4h.

The role of [DMImd-DMP] in the synthesis of 4H-pyrans (4-6) can be explained by the strict sequence of the reactions shown in Scheme 5. Based on this mechanism, [DMImd-DMP] is an effective catalyst for the formation of olefin (7), which is readily prepared in-situ from the Knoevenagel condensation of aldehyde (1) with highly active CH-acidic malononitrile (2). Carbonyl compound (3), in the presence of [DMImd-DMP], subsequently converts to its corresponding enolate form (8), and adds to the unsaturated nitrile (7) by Michael reaction to produce intermediate (9), and enolate oxygen nucleophilically attacks nitrile group (Thorpe-Ziegler type reaction).

Scheme 5 Probable mechanism for the formation of 4H-pyrans derivatives using [DMImd-DMP] as a catalyst.
Scheme 5

Probable mechanism for the formation of 4H-pyrans derivatives using [DMImd-DMP] as a catalyst.

Finally, after the tautomeric proton shift, 2-amino-4H-pyran is formed.

The reaction of terephthalaldehyde with equimolar amounts of malononitrile, hydrazine and ethyl acetoacetate under optimized conditions selectively produced mono-pyran (6e) in 87 % yield within 20 min, (Scheme 6). However, the reaction of terephthalaldehyde with two equivalents of malononitrile, hydrazine and ethyl acetoacetate led to 83 % of bis-pyran (6f) after 60 min (Scheme 6).

Scheme 6 Selective synthesis of mono- and bis-pyran: (a): terephthalaldehyde (1 mmol), malononitrile (2 mmol), hydrazine (2 mmol) and ethyl acetoacetate (2 mmol), (b): terephthalaldehyde (1 mmol), malononitrile (1 mmol), hydrazine (1 mmol) and ethyl acetoacetate (1 mmol).
Scheme 6

Selective synthesis of mono- and bis-pyran: (a): terephthalaldehyde (1 mmol), malononitrile (2 mmol), hydrazine (2 mmol) and ethyl acetoacetate (2 mmol), (b): terephthalaldehyde (1 mmol), malononitrile (1 mmol), hydrazine (1 mmol) and ethyl acetoacetate (1 mmol).

The formation of mono-dihydropyrano[b]pyrazole intermediate (6e), was isolated during the reaction of terephthalaldehyde with malononitrile (2 equiv.) and 5-methyl-2,4-dihydro-3H-pyrazol-3-one (2 equiv.), this can be explained by the chemoselectivity of the catalyst which involves the formation of monoaldehyde intermediate (6e) by promoting the formation of the key intermediate 9via Michael addition (Scheme 5). However, a second Knoevenagel condensation lead to bis-dihydropyrano[b]pyrazole intermediate (6f) as reported with other catalysts[64][67] (Scheme 7). With the above results, we can suggest that the [DMImd-DMP] facilitates the Michael reaction instead of Knoevenagel condensation.

Scheme 7 Selective synthesis of bis-dihydropyrano[b]pyrazole, (a): terephthalaldehyde (1 mmol), malononitrile (2 mmol), hydrazine (2 mmol) and ethyl acetoacetate (2 mmol).
Scheme 7

Selective synthesis of bis-dihydropyrano[b]pyrazole, (a): terephthalaldehyde (1 mmol), malononitrile (2 mmol), hydrazine (2 mmol) and ethyl acetoacetate (2 mmol).

Conclusion

In conclusion, we report the catalytic application of ionic liquid 1,3-dimethyl imidazolium dimethyl phosphate [DMImd-DMP] for the efficient one-pot, multi-component synthesis of tetrahydrobenzo[b]pyrans and dihydropyrano[2,3-c]pyrazole derivatives in aqueous ethanol media. A library of 4H-pyrans was obtained in good to excellent yields using inexpensive and commercially available compounds. Also, the advantages of this method are the operational simplicity, mild reaction conditions, use of inexpensive starting materials, reusability of the catalyst, facile work-up and purification, and finally a non-toxic solvent was used. Thus, this reaction is an environmentally-friendly process.

Acknowledgement

This research was supported by the MESRES (Ministère de l’Enseignement Supérieur et de la Recherche Scientifique). We thank Pr. M. Lecouvey (Faculté de Chimie of the Université Paris 13) for mass spectroscopy. We would also like to thank Pr. R. Boulcina (Université Batna 2, Algeria) and A. Khiri (Polytechnique Montréal, Canada) for constant encouragement and useful suggestions.

Experimental

General

Melting points (uncorrected) were measured using a Kofler bench and are uncorrected. IR spectra were recorded from KBr disk on a Shimadzu FT-IR-8201 PC spectrometer. The 1H and 13C NMR spectra were obtained with a Brüker 250 MHz spectrometer, Brüker 300 MHz spectrometer and Brüker 400 MHz spectrometer in DMSO-d6 (or CDCl3). The progress of the reactions was monitored by thin layer chromatography (TLC) analyses using (Merck 60 F254 silica gel).

Procedure for the synthesis of 1,3-dimethyl imidazolium dimethylphosphate [DMImd-DMP]

Trimethylphosphate (16.7 mL, 20 mmol) was added dropwise to a 100 mL flask containing N-methyl imidazole (1.64 g, 20 mmol) at room temperature. No temperature increase was observed on initial addition. However, when the temperature was slowly increased to 140 °C. Addition was continued at 140 °C until all the material had been added to the flask, and the reaction mixture was subsequently stirred for another hour. The product was moved to a rotary evaporator to yield viscous yellow oil.[68] 1H NMR (250 MHz, CDCl3): 3.85 (d, 6H, J = 11.0 Hz, 2×CH3-O-P); 4.12 (s, 6H, 2×N-CH3); 7.20 (s, 2H, 2× CH); 10.71(s, 1H, N=CH-N). 13C NMR (63 MHz, CDCl3): 36.0; 52.2; 123.1; 139.7. 31P NMR (162 MHz, CDCl3): 2.26 (P=O).

General Procedure for the synthesis of fused-pyranes

A mixture of aldehyde 1 (1.0 mmol), malononitrile 2 (1.0 mmol), C-H activated carbonyl compound 3 (1 mmol), and [DMIm-DMP] 10 mol % (or 5 mol %) was stirred and heated in 4 mL of aqueous ethanol (1:1 v/v) for the appropriate time indicated in tables 4 (reaction was monitored by TLC). After the completion of the reaction, the resulted mixture was cooled to room temperature; 10 mL of cold water were added, stirred for 5 min then filtered and washed with cold water to remove the catalyst ([DMIm-DMP] is soluble in water and the product precipitated with high purity). The target benzopyrans and pyranopyrazoles were obtained in isolated yields of 80-93% and 70-96% respectively. Finally, crude products were recrystallized from EtOH to give the pure products for experimental analysis.

Spectral data of fused-pyranes derivatives

2-amino-7,7-dimethyl-5-oxo-4-phenyl-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4a): IR (KBr): 3394, 2966, 2198, 1670, 1369 cm-1. 1H NMR (400 MHz, DMSO-d6): 0.94 (s, 3H); 1.02 (s, 3H); 2.09 (d, 1H , J= 16.1 Hz); 2.24 (d, 1H, J= 16.1 Hz); 2.55 (s, 2H); 4.15 (s, 1H); 6.97 (s, 2H); 7.07-7.17 (m, 3H); 7.27 (t, 1H, J= 7.5 Hz). 13C NMR (100 MHz, DMSO-d6) : 26.8; 28.4; 31.8; 35.5; 49.9; 58.4; 112.7; 119.7; 127.1; 128.3; 144.7; 158.4; 162.5; 195.6.

2-amino-7,7-dimethyl-5-oxo-4-(p-tolylphenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4b): IR (KBr): 3375; 3178; 2187; 1678; 1639; 1365; 1141; 1029 cm-1. 1H NMR (250 MHz, DMSO-d6): 0,96 (s, 3H); 1.05 (s, 3H); 1.96 (d, 1H, J= 14.8 Hz); 2.04-2.12 (m, 4H); 2,51 (s, 2H); 4.14 (s, 1H); 6.95 (s, 2H, -NH2); 7.04-7.10 (m, 4H). 13C NMR (62.9 MHz, CDCl3): 20.7; 26.9; 28.5; 31.8; 35.2; 50.1; 58.5; 112.9; 119.8; 127.1; 128.9; 135.7; 141.9; 158.5; 162.3; 195.7.

2-amino-7,7-dimethyl-5-oxo-4-(4-ethylphenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4c): IR (KBr): 3313; 2962; 2187; 1604; 1369; 1149 cm-1. 1H NMR (300 MHz, DMSO-d6): 0.96 (s, 3H); 1.03 (s, 3H); 1.15 (t, 3H, J= 7.6 Hz); 2.10 (d, 1H, J= 16.1 Hz); 2.25 (d, 1H, J= 16.1 Hz); 2.52 (s, 2H); 2.55 (q, 2H, J= 7.6 Hz, masked by methylene signal); 4.13 (s, 1H); 6.93 (s, 2H); 7.04 (d, 2H, J= 8.2 Hz); 7.12 (d, 2H, J= 8.2 Hz). 13C NMR (75 MHz, DMSO-d6): 15.9; 27.3; 28.2; 28.8; 32.3; 35.6; 50.5; 59.0; 113.3; 120.3; 127.5; 128.2; 142.4; 142.5; 158.9; 162.9; 196.2.

2-amino-7,7-dimethyl-5-oxo-4-(4-hydroxyphenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4d): IR (KBr): 3332, 2962, 2194, 1647, 1369 cm-1. 1H NMR (250 MHz, DMSO-d6): 0.92 (s, 3H); 1.01 (s, 3H); 2.06 (d, 1H, J= 16.1 Hz); 2.22 (d, 1H, J= 16.1 Hz); 2.46 (s, 2H); 4.05 (s, 1H); 6.65 (d, 2H, J= 6.2 Hz); 6.88-6.95 (m, 4H); 9.25 (s, 1H, -OH). 13C NMR (62.9 MHz, DMSO-d6): 26.7; 28.3; 31.8; 35.4; 49.8; 57.1; 111.7; 119.3; 121.6; 121.7; 129.9; 134.1; 147.0; 147.7; 158.6; 163.1; 195.7.

2-amino-7,7-dimethyl-5-oxo-4-(4-dimethylaminophenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4e): IR (KBr): 3382; 2893; 2187; 1650; 1612; 1519; 1365; 1033 cm-1. 1H NMR (300 MHz, DMSO-d6): 0.95 (s, 3H); 1.04 (s, 3H); 2.08 (d, 1H, J= 16.1 Hz); 2.24 (d, 1H, J= 16.1 Hz); 2.53 (s, 2H); 2.85 (s, 6H); 4.05 (s, 1H); 6.64 (d, 2H, J= 8.7 Hz); 6.86 (s, 2H); 6.95 (d, 2H, J= 8.8 Hz). 13C NMR (75 MHz, DMSO-d6): 27.2; 28.9; 32.2; 35.1; 50.6; 59.5; 112.8; 113.8; 120.4; 128.2; 133.0; 149.7; 158.8; 162.3; 196.1.

2-amino-7,7-dimethyl-5-oxo-4-(4-chlorophenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4f): IR (KBr): 3402; 3298; 2184; 1612; 1407; 1056 cm-1. 1H NMR (300 MHz, DMSO-d6): 0.94 (s, 3H); 1.03 (s, 3H); 2.10 (d, 1H, J= 16.1 Hz); 2.25 (d, 1H, J= 16.1 Hz); 2.51 (s, 2H); 4.19 (s, 1H); 7.03 (s, 2H); 7.17 (d, 2H, J= 8.4 Hz); 7.34 (d, 2H, J= 8.4 Hz). 13C NMR (75 MHz, DMSO-d6): 27.3; 28.8; 32.2; 35.5; 40.4; 50.5; 58.4; 112.7; 119.9; 128.8; 129.6; 131.6; 144.2; 158.9; 163.2; 196.2.

2-amino-7,7-dimethyl-5-oxo-4-(4-nitrophenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4g): IR (KBr): 3402; 3174; 2163; 1523; 1674; 1631; 1461-1407 (NO2); 1354 (C-N); 1022 cm-1. 1H NMR (250 MHz, CDCl3,): 0.93 (s, 3H); 1.01 (s, 3H); 2.08 (d, 1H, J= 16.0 Hz); 2.17 (d, 1H, J= 16.0 Hz); 2.48 (s, 2H); 4.34 (s, 1H); 7.16 (s, 2H); 7.42 (d, J= 8.8 Hz, 2H); 8.14 (d, J= 8.8 Hz, 2H). 13C NMR (62.9 MHz, CDCl3): 18.5; 26.9; 28.2; 31.8; 35.6; 49.8; 56.0; 56.9; 111.7; 119.3; 123.6; 128.6; 139.1; 146.2; 152.2; 158.5; 163.1; 195.7.

2-amino-7,7-dimethyl-5-oxo-4-(3-nitrophenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4h): IR (KBr): 3433; 2958; 2191; 1596; 1249 cm-1. 1H NMR (250 MHz, CDCl3): 0.93 (s, 3H); 1.01 (s, 3H); 2.10 (d, 1H, J= 16.1 Hz); 2.24 (d, 1H, J= 16.3 Hz); 2.53 (s, 2H); 4.39 (s, 1H); 7.16 (s, 2H); 7.53-7.64 (m, 2H); 8.01-8.08 (m, 2H). 13C NMR (62.9 MHz, CDCl3): 26.7; 28.3; 31.8; 35.3: 49.8; 57.1; 111.7; 119.3; 121.6; 121.7; 130.0; 134.1; 147.0; 147.7; 158.6; 163.1; 195.7.

2-amino-7,7-dimethyl-5-oxo-4-(2-nitrophenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4i): IR (KBr): 3467; 2954; 2194; 1674; 1523; 1361; 1149 cm-1. 1H NMR (DMSO-d6, 400 MHz): 0.81 (s, 3H); 0.94 (s, 3H); 1.94 (d, 1H, J= 16.1 Hz); 2.13 (d, 1H, J= 16.1 Hz); 2.44 (s, 2H); 4.87 (s, 1H); 7.11 (s, 2H); 7.29 (dd, 1H, J= 7.8-1.0 Hz); 7.37 (t, 1H, J= 7.2 Hz); 7.56-7.63 (m, 1H); 7.75 (dd, 1H, J= 8.1-0.9 Hz). 13C NMR (DMSO-d6, 100 MHz): 26.7; 28.2; 29.9; 31.8; 49.5; 56.3; 112.4; 119.3; 123.7; 127.8; 130.2; 133.3; 138.9; 148.9; 159.1; 162.7; 195.8.

2-amino-7,7-dimethyl-5-oxo-4-(4-acetylphenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4j): IR (KBr): 3382 (N-H); 3201 (-NH2); 2191 (C≡N); 1651(C=O); 1600 (C=N); 1365 (C=C); 1415 (C-N); 1037 cm-1 (C-O-C) cm-1.1H NMR (400 MHz, DMSO-d6): 0.96 (s, 3H); 1.05 (s, 3H); 2.10 (d, 1H, J= 16.2 Hz); 2.26 (d, 1H, J= 16.4 Hz); 2.55 (s, 3H); 4.27 (s, 1H); 7.11 (s, 2H); 7.29 (d, 2H, J= 8.4 Hz); 7.89 (d, 2H, J= 8.6 Hz) . 13C NMR (100 MHz, DMSO-d6): 27.2; 27.3; 28.8; 32.3; 36.1; 50.4; 58.0; 112.6; 120.0; 128.0; 129.0; 135.9; 150.4; 159.0; 163.3; 196.1; 197.9. HRMS (ESI) m/z calcd for C20H21N2O3 [M+H]+ 337.1547, found 337.1549.

4,4’-(1,4-phenylene)bis(2-amino-7,7-dimethyl-5-oxo-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile) (4k): IR (KBr): 3452 (NH2); 2962 (C-H); 2195 (C≡N); 1666 (C=O); 1604 (C=N); 1365 (C=C)Ar cm-1. 1H NMR (400 MHz, DMSO-d6): 0,95 (s, 3H); 0,99 (s, 3H); 1.04 (s, 6H); 2.28-2.10 (m, 4H); 2.56-2.47 (m, 4H); 4.15 (s, 2H); 6.96 (s, 4H, 2×NH2); 7.06 (s, 4H, HAr). 13C NMR (100 MHz, DMSO-d6): 27.2; 28.2; 31.8; 34.9; 49.9; 58.3; 112.7; 112.8; 119.7; 126.9; 142.8; 158.5; 162.7; 195.8.

2-amino-7,7-dimethyl-5-oxo-4-(2-thienyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4l): IR (KBr): 3379; 3201; 2194; 1666; 1600; 1365; 1141; 1033 cm-1. 1H NMR (250 MHz, DMSO-d6): 1.00 (s, 3H); 1.07 (s, 3H), 2.15 (d, 1H, J= 16.2 Hz); 2.26 (d, 1H, J= 16.2 Hz); 2.39 (d, 1H, J= 17 Hz); 2.49 (d, 1H, J= 17 Hz); 4.56 (s, 1H); 6.85 (d, 2H J= 2.8 Hz); 6.90 (s, 2H, -NH2); 7.16 (t, 1H, J= 2.9 Hz). 13C NMR (63 MHz, DMSO-d6): 26.4; 28.4; 30.0; 31.4; 49.7; 57.9; 112.7; 119.2; 123.5; 126.2; 148.7; 158.5; 161.8; 195.0.

2-amino-7,7-dimethyl-5-oxo-4-(3-hydroxy-4-methoxyphenyl)-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile (4m): IR (KBr): 3310, 3254, 2890, 2192, 1670, 1596 cm-1. 1H NMR (300 MHz, DMSO-d6): 0.96 (s, 3H); 1.03 (s, 3H); 2.09 (d, 1H, J= 16.1 Hz); 2.25 (d, 1H, J= 16.1 Hz); 2.50 (s, 2H); 3.71 (s, 3H); 4.01 (s, 1H); 6.51 (dd, 1H, J= 8.1 Hz, J= 2.2 Hz); 6.56 (d, 1H, J= 2.2 Hz); 6.80 (d, 1H, J= 8.1 Hz); 6.90 (s, 2H); 8.89 (s, 1H). 13C NMR (75 MHz, DMSO-d6): 27.2; 28.9; 32.2; 35.3; 50.5; 56.1; 59.2; 112.5; 113.6; 115.0; 118.3; 120.3; 137.9; 146.7; 146.8; 158.9; 162.5; 196.2.

6-amino-3-methyl-1,4-diphenyl-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5a): IR (KBr): 3337 (N-H); 2194 (C≡N); 1589 (C=N); 1261(C-N); 1658 (C=C); 1446 (C=C) Ar; 1126 cm-1 (C-O-C) cm-1. 1H NMR (250 MHz, DMSO-d6): 1.79 (s, 3H); 4.60 (s, 1H); 6.75-7.47 (m, 10H) 7.74-7.79 (m, 2H). 13C NMR (63 MHz, DMSO-d6): 12.6; 37.0; 58.4; 98.3; 119.9; 120.4; 125.8; 126.9; 127.6; 128.3; 128.5; 129.0; 137.5; 143.8; 143.3; 145.3; 159.3.

6-amino-3-methyl-1-phenyl-4-(4-ethylphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5b): IR (KBr): 3440; 3337; 2881; 2353; 2199; 1593; 1411; 1167 cm-1. 1H NMR (300 MHz, DMSO-d6): 1.18 (t, 3H, J= 7.6 Hz); 1.29 (s, 3H); 2.60 (q, 2H, J= 7.6 Hz); 4.64 (s, 1H); 7.11-7.24 (m, 6H); 7.32 (t, 1H, J= 7.4 Hz); 7.49 (t, 2H, J= 7.5 Hz); 7.78 (d, 2H, J= 7.6 Hz). 13C NMR (75 MHz, DMSO-d6): 12.7; 15.5; 27.8; 36.4; 58.4; 98.8; 120.2; 126.2; 127.7; 127.9; 129.4; 137.6; 141.0; 142.4; 145.4; 159.4.

6-amino-3-methyl-1-phenyl-4-(4-hydroxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5c): IR (KBr): 3413; 3205; 2179; 1654; 1589; 1396; 1026 cm-1. 1H NMR (300 MHz, DMSO-d6): 1.79 (s, 3H); 4.56 (s, 1H); 6.72 (d, 2H, J= 8.5 Hz); 7.04 (d, 2H, J= 8.5 Hz); 7.10 (s, 2H); 7.31 (t, 1H, J= 7.4 Hz); 7.49 (t, 2H, J= 7.9 Hz); 7.78 (d, 2H, J= 7.7 Hz); 9.33 (s, 1H). 13C NMR (75 MHz, DMSO-d6): 13.0; 36.5; 59.3; 99.5; 115.7; 120.4; 126.6; 129,2; 129.8; 134.4; 138.1; 144.3; 145.8; 156.7; 159.7.

6-amino-3-methyl-1-phenyl-4-(4-nitrophenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5d): IR (KBr): 3433 (N-H); 2225 (C≡N); 1600 (C=N); 1319(C-N); 1739 (C=C); 1500 (C=C)Ar; 1396-1450 (NO2); 1161 cm-1 (C-O-C) cm-1. 1H NMR (250 MHz, DMSO-d6): 1.81 (s, 3H); 4.93 (s, 1H); 7.31-7.39 (m, 3H); 7.51 (t, 2H, J= 7.6 Hz); 7.59 (d, 2H, J= 8.8 Hz), 7.80 (d, 2H, J= 7.6 Hz); 8.24 (d, 2H, J= 8.8 Hz). 13C NMR (63 MHz, DMSO-d6): 12.5; 36.4; 56.9; 97.6; 119.7; 120.1; 123.9; 126.3; 129.2; 129,3; 137.4; 144.0; 145.1; 146.1; 151.2; 159.7.

6-amino-3-methyl-1-phenyl-4-(3-nitrophenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5e): IR (KBr): 3298 (N-H); 2191 (C≡N); 1589 (C=N); 1257(C-N); 1651 (C=C); 1446 (C=C)Ar; 1118 cm-1 (C-O-C); 1346-1446 (NO2) cm-1. 1H NMR (250 MHz, DMSO-d6): 1.88 (s, 3H); 4.96 (s, 1H); 7.28-7.56 (m, 5H); 7.63-7.81 (m, 4H); 8.08-8.15 (m, 2H). 13C NMR (63 MHz, DMSO-d6): 12.8; 36.4; 57.3; 97.9; 120.1; 120.4; 122.4; 122.6; 126.6; 129,3; 129.6; 130.6; 134.9; 137.6; 144.2; 145.5; 146.1; 148.2; 160.0.

6-amino-3-methyl-1-phenyl-4-(4-acetylphenyl)-1, 4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5f): IR (KBr): 3413; 3205; 2179; 1654; 1589; 1396; 1026 cm-1. 1H NMR (400 MHz, DMSO-d6): 1.79 (s, 3H); 2.58 (s, 3H); 4.81 (s, 1H); 7.26-7.37 (m, 3H); 7.42 (d, 2H, J= 8.3 Hz); 7.50 (t, 2H, J= 7.5 Hz); 7.79 (d, 2H, J= 8.5 Hz); 7.96 (d, 2H, J= 8.3 Hz). 13C NMR (100 MHz, DMSO-d6): 13.0; 36.4; 59.2; 99.4; 115.6; 120.4; 120.6; 121.0; 126.5; 129,2; 129.7; 134.4; 137.9; 144.2; 145.9; 156.7; 159.7. HRMS (ESI) m/z calcd for C22H19N4O2 [M+H]+ 371.1503, found 371.1503.

6-amino-3-methyl-1-phenyl-4-(2-thienyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5g): IR (KBr): 3403; 3168; 2878; 2305; 1609; 1319(C-N); 1161 cm-1. 1H NMR (300 MHz, DMSO-d6): 2.32 (s, 3H); 5.13 (s, 1H); 6.76 (sL, 1H); 6.91 (t, 1H, J= 3.4 Hz); 7.24 (d, 1H, J= 7.4 Hz); 7.29 (d, 1H, J= 5.2 Hz), 7.45 (t, 2H, J= 7.9 Hz), 7.71 (d, 2H, J= 7.7 Hz). 13C NMR (75 MHz, DMSO-d6): 12.0 29.9; 62.5; 100.4; 119.6; 121.1; 124.5; 124.6; 126.1; 127,2; 129.4; 142.6; 143.8; 146.3; 148.0; 159.7.

6-amino-4-(1H-indol-3-yl)-3-methyl-1-phenyl-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5h): IR (KBr): 3448 (NH); 2156 (C≡N); 1651(C=N); 1600(C=C); 1492 (C-N); 3247(-NH2) cm-1. 1H NMR (250 MHz, DMSO-d6): 2.20 (s, 3H); 7.08-7.12 (m, 1H); 7.22-7.28 (m, 2H); 7.36 (t, 2H, J= 8.3 Hz); 7.49 (d, 1H, J= 3.3 Hz); 7.90 (d, 2H, J= 9.4 Hz); 7.99 (d, 2H, J= 8.7 Hz); 9.75 (s, 1H). 13C NMR (63 MHz, DMSO-d6): 11.9; 37.8; 49.9; 111.1; 111.6; 116.7; 117.2; 117.4; 118.4; 120.9; 122.1; 122.7; 126.9; 127.4; 135.2; 135.3; 137.2; 137.8; 149.2; 154.91; 161.8.

6-amino-3-methyl-4-(p-tolylphenyl)-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (6a): IR (KBr): 3479; 3201; 2153; 1651; 1600; 1303; 1033 cm-1. 1H NMR (250 MHz, DMSO-d6): 1.78 (s, 3H,); 2.27 (s, 3H); 4.54 (s, 1H); 6.84 (s, 2H); 7.04 (d, 2H, J=7.9 Hz); 7.11 (d, 2H, J=7.7 Hz); 12.08 (s, 1H). 13C NMR (63 MHz, DMSO-d6): 9.8; 20.7; 35.8; 57.3; 97.7; 120.8; 127.4; 129.0; 135.5; 135.7; 141.5; 154.8; 160.8.

6-amino-3-methyl-4-(4-dimethylaminophenyl)-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (6b): IR (KBr): 3382; 2908; 2187; 1600; 1357; 1168 cm-1. 1H NMR (250 MHz, DMSO-d6): 1.79 (s, 3H); 2.87 (s, 6H); 4.32 (s, 1H); 6.18 (s, 2H); 6.59 (d, 2H, J= 8.6 Hz); 6.96 (d, 2H, J= 8,6 Hz); 11.70 (s, 1H). 13C NMR (63 MHz, DMSO-d6): 9.7; 35.4; 58.7; 97.8; 112.0; 120.8; 127.8; 131.5; 135.4; 149.0; 154.8; 160.3.

6-amino-3-methyl-4-(4-chlorophenyl)-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (6c): IR (KBr): 3402; 3298; 2183; 1407; 1612; 1408; 1056; 810 cm-1. 1H NMR (250 MHz, DMSO-d6): 1.77 (s, 3H); 4.52 (s, 1H); 6.57 (s, 2H); 7.12 (d, 2H, J=8,4 Hz); 7.22 (d, 2H, J=8,4 Hz); 11.93 (s, 1H). 13C NMR (63 MHz, DMSO-d6): 9.8; 35.9; 57.5; 96.9; 120.6; 128.2; 128.7; 129.0; 129.6; 131.7; 135.8; 142.7; 154.7; 160.5; 160.8.

6-amino-3-methyl-4-(4-nitrophenyl)-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (6d): IR (KBr): 3475; 3224; 2194; 1600; 1350; 1168 cm-1. 1H NMR (250 MHz, DMSO-d6): 1.80 (s, 3H); 4.74 (s, 1H); 6.80 (s, 2H); 7.42 (d, 2H, J= 8.0 Hz); 8.14 (d, 2H, J=6.7 Hz); 12.10 (s, 1H). 13C NMR (63 MHz, DMSO-d6): 9.7; 36.2; 56.0; 96.3 120.4; 123.6; 128.6; 135.7; 146.3; 151.8; 161.1.

6-amino-3-methyl-4-(4-formyl)-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (6e): IR (KBr): 3479; 3201; 2153; 1651; 1600; 1303; 1033 cm-1. 1H NMR (250 MHz, DMSO-d6): 1.76 (s, 3H); 4.58 (s, 1H); 6.39 (s, 2H); 7.24 (d, 2H, J= 8.2 Hz); 7.84 (d, 2H, J= 8.2 Hz); 11.95 (s, 1H). 13C NMR (63 MHz, DMSO-d6): 9.9; 36.5; 57.3; 96.6; 120.6; 127.7; 128.4; 135.5; 136.0; 149.2; 154.8; 161.0; 197.3.

4,4’-(1,4-phenylene)bis(6-amino-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile) (6f): IR (KBr): 3228; 3124; 2191; 1639; 1600; 1404; 1053 cm-1. 1H NMR (400 MHz, DMSO-d6): 1.74 (s, 6H); 4.57 (s, 2H); 6.85 (s, 4H); 7.11 (sL, 4H); 12.08 (s, 2H). 13C NMR (100 MHz, DMSO-d6): 9.6; 35.8; 57.0; 120.6; 120.7; 127.5; 135.5; 142.6; 154.6; 160.7.

  1. Conflict of interest: Authors state no conflict of interest.

References

[1] Dömling, A.; Ugi, I. Multicomponent reactions with isocyanides. Angew. Chem. Int. Ed. 2000, 39, 3168-3210.10.1002/1521-3773(20000915)39:18<3168::AID-ANIE3168>3.0.CO;2-USearch in Google Scholar

[2] Ugi, I. Recent progress in the chemistry of multicomponent reactions. Pure Appl. Chem. 2001, 73, 187-192.10.1351/pac200173010187Search in Google Scholar

[3] Sunderhaus, J. D.; Martin, S. F. Applications of multicomponent reactions to the synthesis of diverse heterocyclic scaffolds. Chem. Eur. J. 2009, 15, 1300-1308.10.1002/chem.200802140Search in Google Scholar

[4] Armstrong, R. W.; Combs, A. P.; Tempest, P. A.; Brown, S. D.; Keating, T. A. Multiple-Component Condensation Strategies for Combinatorial Library Synthesis. Acc. Chem. Res. 1996, 29, 123-131.10.1021/ar9502083Search in Google Scholar

[5] Toure, B. B.; Hall, D. G. Natural product synthesis using multicomponent reaction strategies. Chem. Rev. 2009, 109, 4439-4486.10.1021/cr800296pSearch in Google Scholar

[6] G. P. Ellis, in “Chromenes, chromanones, and chromones,” The Chemistry of Heterocyclic Compounds Chromenes, (Eds., A. Weissberger and E. C. Taylor), John Wiley, New York, NY, USA, 1977, 2, 11-139.10.1002/9780470187012Search in Google Scholar

[7] Hafez, E. A.; Elnagdi, M. H.; Elagemey, A. G. A.; El-Taweel, F. M. A. A. Nitriles in Heterocyclic Synthesis: Novel Synthesis of Benzo[c]coumarin and of Benzo[c]pyrano[3,2-c]quinoline Derivatives. Heterocycles, 1987, 26, 903-907.10.1002/chin.198738206Search in Google Scholar

[8] Khafagy, M. M.; El-Wahab, A. H. F. A.; Eid, F. A.; El-Agrody, A. M. Synthesis of halogen derivatives of benzo[h]chromene and benzo[a]anthracene with promising antimicrobial activities. Farmaco, 2002, 57, 715-722.10.1016/S0014-827X(02)01263-6Search in Google Scholar

[9] Smith, W. P.; Sollis, L. S.; Howes, D. P.; Cherry, C. P.; Starkey, D. I.; Cobley, N. K.; Weston, H.; Scicinski, J.; Merritt, A.; Whittington, A.; Wyatt, P.; Taylor, N.; Green, D.; Bethell, R.; Madar, S.; Fenton, R. J.; Morley, P. J.; Pateman, T.; Beresford, A. Dihydropyrancarboxamides Related to Zanamivir: A New Series of Inhibitors of Influenza Virus Sialidases. 1. Discovery, Synthesis, Biological Activity, and Structure−Activity Relationships of 4-Guanidino- and 4-Amino-4H-pyran-6-carboxamides. J. Med. Chem., 1998, 41, 787-797.10.1021/jm970374bSearch in Google Scholar

[10] Martinez, A. G.; Marco, L. J. Friedländer reaction on 2-amino-3-cyano-4H-pyrans: Synthesis of derivatives of 4H-pyran [2, 3-b] quinoline, new tacrine analogues. Bioorg. Med. Chem. Lett. 1997, 7, 3165–3170.10.1016/S0960-894X(97)10165-2Search in Google Scholar

[11] Hiramoto, K.; Nasuhara, A.; Michiloshi, K.; Kato, T.; Kikugawa, K. DNA strand-breaking activity and mutagenicity of 2,3-dihydro-3,5-dihydroxy-6-methyl-4H-pyran-4-one (DDMP), a Maillard reaction product of glucose and glycine. Mutat. Res. 1997, 395, 47-56.10.1016/S1383-5718(97)00141-1Search in Google Scholar

[12] Bianchi, G.; Tava, A. Synthesis of (2R-(+)-2,3-Dihydro-2,6-dimethyl-4H-pyran-4-one, a Homologue of Pheromones of a Species in the Hepialidae Family. Agric. Biol. Chem. 1987, 51, 2001-2002.10.1080/00021369.1987.10868286Search in Google Scholar

[13] Mohr, S. J.; Chirigos, M. A.; Fuhrman, F. S.; Pryor, J. W. Pyran Copolymer as an Effective Adjuvant to Chemotherapy against a Murine Leukemia and Solid Tumor. Cancer Res. 1975, 35, 3750-3754.Search in Google Scholar

[14] Eiden, F.; Denk, F. Synthese und ZNS-Wirkung von Pyranderivaten: 6,8-Dioxabicyclo[3,2,1]octane. Archiv der Pharmazie (Weinheim), 1991, 324, 353-354.10.1002/ardp.19913240606Search in Google Scholar

[15] Green, G. R.; Evans, J. M.; Vong, A. K. in Comprehensive Heterocyclic Chemistry II, (Eds., Katritzky, A.R.; Rees, C.W.; Scriven E.F.V.), Pergamon Press, Oxford, 1995, 5, 469.Search in Google Scholar

[16] Pore, D. M.; Undale, K. A.; Dongare, B. B.; Desai, U. V. Potassium Phosphate Catalyzed a Rapid Three-Component Synthesis of Tetrahydrobenzo[b]pyran at Ambient Temperature. Catal. Lett. 2009, 132, 104-108.10.1007/s10562-009-0074-0Search in Google Scholar

[17] Yu, L. Q.; Liu, F.; You, Q. D. One-Pot Synthesis of Tetrahydrobenzo[b]pyran Derivatives Catalyzed by Amines in Aqueous Media. Org. Prep. Proced. Int. 2009, 41, 77-82.10.1080/00304940802711275Search in Google Scholar

[18] Abdelrazeka, F. M.; Metz, P.; Farragb, E. K. Synthesis and Molluscicidal Activity of 5-oxo-5,6,7,8-Tetrahydro-4H-Chromene Derivatives. Archiv der Pharmazie: Pharmaceutical and Medicinal Chemistry, 2004, 337, 482-485.10.1002/ardp.200400881Search in Google Scholar

[19] El-Rahmana, N. M. A.; El-Kateba, A. A.; Mady, M. F. Simplified approach to the uncatalyzed Knoevenagel condensation and Michael addition reactions in water using microwave irradiation. Synth. Commun. 2007, 37, 3961-3970.10.1002/chin.200817131Search in Google Scholar

[20] Darbarwar, M.; Sundarmurthy, V. Synthesis of Coumarins with 3:4-Fused Ring Systems and their Physiological Activity. Synthesis 1982, 337-340.10.1055/s-1982-29806Search in Google Scholar

[21] Bonsignore, L.; Loy, G.; Secci, D.; Calignano, A. Synthesis and pharmacological activity of 2-oxo-(2H) 1-benzopyran-3-carboxamide derivatives. Eur. J. Med. Chem. 1993, 28, 517-520.10.1016/0223-5234(93)90020-FSearch in Google Scholar

[22] O’Callaghan, C. N.; McMurry, T. B. H. Synthetic reactions of methyl 2-(2-amino-3-methoxy-carbonyl-4H-1-benzopyran-4-yl)-2-cyanoethanoate. J. Chem. Res. 1995, 214-215.Search in Google Scholar

[23] Kamdar, N. R.; Haveliwala, D. D.; Mistry, P. T.; Patel, S. K. Design, synthesis and in vitro evaluation of antitubercular and antimicrobial activity of some novel pyranopyrimidines. Eur. J. Med. Chem. 2010, 45, 5056-5063.10.1016/j.ejmech.2010.08.014Search in Google Scholar PubMed

[24] Kemnitzer, W.; Kasibhatla, S.; Jiang, S.; Zhang, H.; Zhao, J.; Jia, S.; Xu, L.; Crogan- Grundy, C.; Denis, R.; Barriault, N.; Vaillancourt, L.; Charron, S.; Dodd, J.; Attardo, G.; Labrecque, D.; Lamothe, S.; Gourdeau, H.; Tseng, B.; Drewea, J.; Caia, S.X. Discovery of 4-aryl-4H-chromenes as a new series of apoptosis inducers using a cell- and caspase-based high-throughput screening assay. 2. Structure-activity relationships of the 7- and 5-, 6-, 8-positions. Bioorg. Med. Chem. Lett. 2005, 15, 4745-4751.10.1016/j.bmcl.2005.07.066Search in Google Scholar PubMed

[25] Andreani, L. L.; Lapi, E. On some new esters of coumarin-3-carboxylic acid with balsamic and bronchodilator action. Boll. Chim. Farm. 1960, 99, 583-586.Search in Google Scholar

[26] Konkoy, C. S.; Fick, D. B.; Cai, S. X.; Lan, N. C.; Keana, J. F. W. PCT Int. Appl. WO 0075123, 2000, Chem. Abstr. 2001, 134, 29313a).Search in Google Scholar

[27] Ye, Z. J.; Xu, R. B.; Shao, X. S.; Xu, X. Y.; Li, Z. One-pot synthesis of polyfunctionalized 4H-pyran derivatives bearing fluorochloro pyridyl moiety. Tetrahedron Lett. 2010, 51, 4991-4994.10.1016/j.tetlet.2010.07.065Search in Google Scholar

[28] Hasaninejad, A.; Shekouhy, M.; Golzar, N.; Zare, A.; Doroodmand, M. M. Silica bonded n-propyl-4-aza-1-azoniabicyclo[2.2.2]octane chloride (SB-DABCO): A highly efficient, reusable and new heterogeneous catalyst for the synthesis of 4H-benzo[b]pyran derivatives. Appl. Catal. A 2011, 402, 11-22.10.1016/j.apcata.2011.04.012Search in Google Scholar

[29] Safaei-Ghomi, J.; Teymuri, R.; Shahbazi-Alavi, H.; Ziarati, A. SnCl2/nano SiO2 A green and reusable heterogeneous catalyst for the synthesis of polyfunctionalized 4H-pyrans. Chin. Chem. Lett. 2013, 24, 921-925.10.1016/j.cclet.2013.06.021Search in Google Scholar

[30] Fotouhi, L.; Heravi, M. M.; Fatehi, A.; Bakhtiari, K. Electrogenerated base-promoted synthesis of tetrahydrobenzo b pyran derivatives. Tetrahedron Lett. 2007, 48, 5379-5381.10.1016/j.tetlet.2007.06.035Search in Google Scholar

[31] Pratap, U. R.; Jawale, D. V.; Netankar, P. D.; Mane, R. A. Baker’s yeast catalyzed one-pot three-component synthesis of polyfunctionalized 4H-pyrans. Tetrahedron Lett. 2011, 52: 5817-5819.10.1016/j.tetlet.2011.08.135Search in Google Scholar

[32] Sallami, M.; Caignaert,V.; Hamdad, M.; Belarbi, A.; Sari- Mohamed, I.; Bahmani, A.; Bettahar, N. Synthesis and characterization of the new pyrochlore Bi1.5Sb1.5-xNbxMnO7 solid solution. C. R. Chim. 2011, 14, 887-890.10.1016/j.crci.2011.05.010Search in Google Scholar

[33] Devi, I.; Bhuyan, P. J. Sodium bromide catalysed one-pot synthesis of tetrahydrobenzo b pyrans via a three-component cyclocondensation under microwave irradiation and solvent. Tetrahedron Lett. 2004, 45, 8625-8627.10.1016/j.tetlet.2004.09.158Search in Google Scholar

[34] Tu, S. J.; Jiang, H.; Zhuang, Q. Y.; Miao, C. B.; Shi, D. Q.; Wang, X. S.; Gao, Y. One-pot synthesis of 2-amino-3-cyano-4-aryl-7,7-dimethyl-5-oxo-5,6,7,8-tetrahydro-4H-benzob-pyran under ultrasonic irradiation without catalyst. Chin. J. Org. Chem. 2003, 23, 488-490.Search in Google Scholar

[35] Jin, T. S.; Wang, A. Q.; Wang, X.; Zhang, J. S.; Li, T. S. A clean one-pot synthesis of tetrahydrobenzob pyran derivatives catalyzed by hexadecyltrimethyl ammonium bromide in aqueous media. Synlett 2004, 871-873.10.1055/s-2004-820025Search in Google Scholar

[36] Shi, D. Q.; Zhang, S.; Zhuang, Q. Y.; Tu, S. J.; Hu, H. W. Clean synthesis of 2-amino-3-cyano-4-aryl-7,7-dimethyl-5-oxo-4H-5,6,7,8-tetrahydrobenzo[b]pyran in water. Chin. J. Org. Chem. 2003, 23: 877-879.Search in Google Scholar

[37] Shi, D. Q.; Mou, J.; Zhuang, Q. Y.; Wang, X. S. One-pot synthesis of 2-amino-4-aryl-5-oxo-5, 6, 7, 8-tetrahydro-4H-1-benzopyran-3-carbonitriles in aqueous media. J. Chem. Res. 2004, 821-823.10.3184/0308234043431294Search in Google Scholar

[38] Jin, T. S.; Wang, A. Q.; Zhang, J. S.; Zhang, F. S.; Li, T. S. One-pot synthesis of 2-amino-3-cyano-4-aryl-7,7-dimethyl-5-oxo-4H-5,6,7,8-tetrahydrobenzo[b]pyran in aqueous medium. Chin. J. Org. Chem. 2004, 24, 1598-1600.Search in Google Scholar

[39] Zhou, C. F.; Li, J. J.; Su, W. K. Morpholine triflate promoted one-pot, four-component synthesis of dihydropyrano [2, 3-c] pyrazoles. Chin. Chem. Lett. 2016, 27, 1686-1690.10.1016/j.cclet.2016.05.010Search in Google Scholar

[40] Karimi-Jaberi, Z.; ReyazoShams, M. M.; Trichloroacetic acid as a solid heterogeneous catalyst for the rapid synthesis of dihydropyrano[2,3- c]pyrazoles under solvent-free conditions. Heterocycl. Commun. 2011, 17, 177-179.10.1515/HC.2011.046Search in Google Scholar

[41] Siddekha, A.; Nizam, A.; Pasha, M. A. An efficient and simple approach for the synthesis of pyranopyrazoles using imidazole (catalytic) in aqueous medium, and the vibrational spectroscopic studies on 6-amino-4-(4-methoxyphenyl)-5-cyano-3-methyl-1-phenyl-1,4- dihydropyrano[2,3-c]pyrazole using density functional theory. Spectrochim. Acta A: Mol. Biomol. Spectrosc. 2011, 81, 431-440.10.1016/j.saa.2011.06.033Search in Google Scholar PubMed

[42] Vekariya, R. H.; Patel, K. D.; Patel, H. D. Fruit juice of Citrus limon as a biodegradable and reusable catalyst for facile, eco-friendly and green synthesis of 3,4-disubstituted isoxazol-5(4H-ones and dihydropyrano[2,3-c]-pyrazole derivatives. Res. Chem. Intermediat. 2016, 42, 7559-7579.10.1007/s11164-016-2553-4Search in Google Scholar

[43] Waghmare, A. S.; Pandit, S. S. DABCO catalyzed rapid one-pot synthesis of 1, 4-dihydropyrano [2,3-c] pyrazole derivatives in aqueous media. J. Saudi Chem. Soc. 2015, 21. 286-290.10.1016/j.jscs.2015.06.010Search in Google Scholar

[44] Balalaie, S.; Bararjanian, M.; Amani, A. M.; Movassagh, B. S-Proline as a neutral and efficient catalyst for the one-pot synthesis of tetrahydrobenzo [b] pyran derivatives in aqueous media. Synlett 2006, 263-266.10.1055/s-2006-926227Search in Google Scholar

[45] Amine-Khodja, I.; Fisli, A.; Lebhour, O.; Boulcina, R.; Boumoud, B.; Debache, A. Four-component synthesis of pyrano [2, 3-c] pyrazoles catalyzed by triphenylphosphine in aqueous medium. Lett. Org. Chem. 2016, 13, 85-91.10.2174/1570178613666151203213214Search in Google Scholar

[46] Survase, D.; Bandgar, B.; Helavi, V. Polyethylene glycol-promoted synthesis of pyrimido[1,2-a]benzimidazole and pyrano[2,3-c]pyrazole derivatives in water. Synth. Commun. 2017, 47, 680-687.10.1080/00397911.2017.1278774Search in Google Scholar

[47] Tayade, Y. A.; Padvi, S. A.; Wagh, Y. B.; Dalal, D. S. β-Cyclodextrin as a supramolecular catalyst for the synthesis of dihydropyrano [2, 3-c] pyrazole and spiro [indoline-3, 4′-pyrano [2, 3-c] pyrazole] in aqueous medium. Tetrahedron Lett. 2015, 56. 2441-2447.10.1016/j.tetlet.2015.03.084Search in Google Scholar

[48] Zolfigol, M. A.; Ayazi-Nasrabadi, R.; Baghery, S.; Khakyzadeh, V.; Azizian, S. Applications of a novel nano magnetic catalyst in the synthesis of 1,8-dioxo-octahydroxanthene and dihydropyrano[2,3-c]pyrazole derivatives. J. Mol. Catal. A-Chem. 2016, 418, 54-67.10.1016/j.molcata.2016.03.027Search in Google Scholar

[49] Paul, S.; Pradhan, K.; Ghosh, S.; De, S. K.; Das, A. R. Uncapped SnO2 quantum dot catalyzed cascade assembling of four components: A rapid and green approach to the pyrano[2,3-c] pyrazole and spiro-2-oxindole derivatives. Tetrahedron 2014, 70, 6088-6099.10.1016/j.tet.2014.02.077Search in Google Scholar

[50] Azarifar, D.; Abbasi, Y. Sulfonic acid–functionalized magnetic Fe3-xTixO4 nanoparticles: New recyclable heterogeneous catalyst for one-pot synthesis of tetrahydrobenzob]pyrans and dihydropyrano[2,3-c]pyrazole derivatives. Synth. Commun. 2016, 46, 745-758.10.1080/00397911.2016.1171360Search in Google Scholar

[51] Maleki, B.; Nasiri, N.; Tayebee, R.; Khojastehnezhad, A.; Akhlaghi, H. A. Green synthesis of tetrahydrobenzo[b]pyrans, pyrano[2,3-c]pyrazoles and spiro[indoline-3,4′-pyrano[2,3-c] pyrazoles catalyzed by nano-structured diphosphate in water. RSC Adv. 2016, 6, 79128-79134.10.1039/C6RA15800ESearch in Google Scholar

[52] Mecadon, H.; Rohman, M. R.; Rajbangshi, M.; Myrboh, B. c-Alumina as a recyclable catalyst for the four-component synthesis of 6-amino-4-alkyl/aryl-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles in aqueous medium. Tetrahedron Lett. 2011, 52, 2523-2525.10.1016/j.tetlet.2011.03.036Search in Google Scholar

[53] Maleki, B.; Eshghi, H.; Barghamadi, M.; Nasiri, N.; Khojastehnezhad, A.; Ashrafi, S. S.; Pourshiani, O. Silica-coated magnetic NiFe2O4 nanoparticlessupported H3PW12O40; synthesis, preparation, and application as an efficient, magnetic, green catalyst for one-pot synthesis of tetrahydrobenzobpyran and pyrano[2,3-c]pyrazole derivatives. Res. Chem. Intermediat. 2016, 42, 3071-3093.10.1007/s11164-015-2198-8Search in Google Scholar

[54] Ablajan, K.; Liju, W.; Kelimu, Y.; Jun, F. Cerium ammonium nitrate (CAN)-catalyzed four-component one-pot synthesis of multi-substituted pyrano[2,3- c]pyrazoles under ultrasound irradiation. Mol. Divers. 2013, 17, 693-700.10.1007/s11030-013-9465-7Search in Google Scholar PubMed

[55] Bandgar, S. B.; Bandgar, B. P.; Korbad, B. L.; Totre, J. V.; Patil, S. Uncatalyzed reactions in aqueous media: three-component, one-pot, clean Synthesis of tetrahydrobenzo b pyran derivatives. Aust. J. Chem. 2007, 60, 305-307.10.1071/CH06461Search in Google Scholar

[56] Wasserscheid, P.; Welton, T. Ionic liquids in synthesis (Eds.: Wiley-VCH), Weinheim, 2007, 2.10.1002/9783527621194Search in Google Scholar

[57] (a) Jain, N.; Kumar, A.; Chauhan, S.; Chauhan, S. M. S. Metalloporphyrin and heteropoly acid catalyzed oxidation of CNOH bonds in an ionic liquid: biomimetic models of nitric oxide synthase. Tetrahedron 2005, 61, 1015-1060. (b) Song, C.E. Enantioselective chemo-and bio-catalysis in ionic liquids. Chem. Commun. 2004, 1033-1043. (c) Binnemans, K. Lanthanides and actinides in ionic liquids. Chem. Rev. 2007, 107, 2592-2614. (d) Wasserscheid, P.; Keim, W. Ionic liquids-new “solutions” for transition metal catalysis. Angew. Chem. Int. Ed. 2000, 39, 3773-3789. (e) Earle, M. J.; Seddon, K. R. Ionic liquids. Green solvents for the future. Pure Appl. Chem. 2000, 72, 1391-1398. (f) Dupont, J.; de Souza, R. F.; Suarez, P. A. Z. Ionic liquid (molten salt) phase organometallic catalysis. Chem. Rev. 2002, 102, 3667-3692. (g) Welton, T. Room-temperature ionic liquids. Solvents for synthesis and catalysis. Chem. Rev. 1999, 99, 2071-2084. (h) Wasserscheid, P.; Welton, T. Ionic liquids in synthesis (Eds.: Wiley-VCH), Weinheim, 2002. (i) Zhao, H. Malhotra, S. V. Applications of ionic liquids in organic synthesis. Aldrichim. Acta 2002, 35, 75-83. (j) Hormozinezhad, Z.; Gorjizadeh, M.; Taheri, N.; Sayyahi, S. [Fe3O4@SiO2@(C3H6)2-(Imidazolium)2-Butyl] [MnCl42-] as a novel nanomagnetic catalyst for the one-pot synthesis of tetrahydrobenzobpyran derivatives. Bull. Chem. Soc. Ethiop., 2018, 32 (2), 309-321. (k) Sharifi, Z.; Daneshvar, N.; Langarudi, M.S.N.; Shirini, F. Comparison of the efficiency of two imidazole‑based dicationic ionic liquids as the catalysts in the synthesis of pyran derivatives and Knoevenagel condensations. Res. Chem. Intermed., 2019, 45 (10), 4941-4958.10.1016/j.tetlet.2005.02.088Search in Google Scholar

[58] Dekamin, M.G.; Eslami, M.; Maleki, A. Potassium phthalimide-N-oxyl: a novel, efficient, and simple organocatalyst for the one-pot three-component synthesis of various 2-amino-4H-chromene derivatives in water. Tetrahedron 2013, 69, 1074.10.1016/j.tet.2012.11.068Search in Google Scholar

[59] Boureghda, C.; Amine-Khodja, I.; Carboni, B.; Boulcina, R.; Kermiche, O.; Debache, A. A Facile One-Pot and Green Multi-Component Synthesis of 2-Amino-4Hpyrans Promoted by Pyridinium p-Toluenesulfonate in Aqueous Medium. Lett. Org. Chem. 2016, 13, 7.10.2174/1570178613666160822164749Search in Google Scholar

[60] Wang, Y. –L.; Li, Z.; Luoa, J.; Liu, Z. –L. J. One-pot Synthesis of Tetrahydrobenzo b pyrans Catalyzed by PEG-1000 Bridged Primary Amine Functionalized Dicationic Ionic Liquid in Water. Chin. Chem. Soc. 2013, 60, 1431-1436.10.1002/jccs.201300285Search in Google Scholar

[61] Pourhasan-Kisomi, R.; Shirini, F.; Golshekan, M. Introduction of organic/inorganic Fe3O4@MCM-41@Zr-piperazine magnetite nanocatalyst for the promotion of the synthesis of tetrahydro- 4H-chromene and pyrano[2,3-d]pyrimidinone derivatives. Appl. Organometal. Chem. 2018, 4371.10.1002/aoc.4371Search in Google Scholar

[62] Iravani, N.; Keshavarz, M.; Kish, H. -A. S.; Parandvar, R. Tin sulfide nanoparticles supported on activated carbon as an efficient and reusable Lewis acid catalyst for three-component one-pot synthesis of 4H-pyrano[2,3-c]pyrazole derivatives. Chinese. J. Catal. 2015 36, 626–633.10.1016/S1872-2067(14)60284-9Search in Google Scholar

[63] Hasaninejad, A.; Shekouhy, M.; Golzar, N.; Zare, A.; Doroodmand, M. M. Silica bonded n-propyl-4-aza-1-azonia-bicyclo[2.2.2]octane chloride (SB-DABCO): A highly efficient, reusable and new heterogeneous catalyst for the synthesis of 4H-benzo[b]pyran derivatives. Appl. Catal., A 2011, 402, 11– 22.10.1016/j.apcata.2011.04.012Search in Google Scholar

[64] Ablajan, K.; Wang, L. -J.; Maimaiti, Z. CeCl3-promoted one-pot synthesis of multisubstituted bispyrano[2,3-c] pyrazole derivatives. Monatsh. Chem. 2014, 145, 491–496.10.1007/s00706-013-1104-6Search in Google Scholar

[65] Moosavi-Zare, A. R.; Zolfigol, M. A.; Salehi-Moratabb, R.; Noroozizadeh, E. Catalytic application of 1-(carboxymethyl) pyridinium iodide on the synthesis of pyranopyrazole derivatives. J. Mol. Catal. A: Chem. 2016, 415, 144–150.10.1016/j.molcata.2016.02.003Search in Google Scholar

[66] Moosavi-Zare, A. R.; Goudarziafshar, H.; Saki, K. Synthesis of pyranopyrazoles using nano-Fe-[phenylsalicylaldiminemethyl-pyranopyrazole]Cl2 as a new Schiff base complex and catalyst. Appl. Organometal. Chem. 2018, 32, 3968.Search in Google Scholar

[67] Khan, T.; Siddiqui, Z. N.; Perchloric acid modified-cellulose: a versatile, novel and biodegradable heterogeneous solid acid catalyst for single-pot synthesis of novel bis-pyran annulated heterocyclic scaffolds under solvent-free conditions. New J. Chem. 2014, 38, 4847-4858.10.1039/C4NJ00529ESearch in Google Scholar

[68] Bradaric, C. J.; Downard, A.; Kennedy, C.; Robertson A. J.; Zhou Y. Industrial preparation of phosphonium ionic liquids. Green Chem. 2003, 5, 143-152.10.1021/bk-2003-0856.ch004Search in Google Scholar

Received: 2019-04-28
Accepted: 2019-09-15
Published Online: 2019-12-31

© 2019 Redouane et al., published by De Gruyter

This work is licensed under the Creative Commons Attribution 4.0 Public License.

Articles in the same Issue

  1. Research Article
  2. Magnesium porphyrazine with peripheral methyl (3,5-dibromophenylmethyl)amino groups – synthesis and optical properties
  3. Synthesis and fungicidal activity of novel imidazo[4, 5-b]pyridine derivatives
  4. Synthesis of indazolo[5,4-b][1,6]naphthyridine and indazolo[6,7-b][1,6]naphthyridine derivatives
  5. Zinc Chloride Catalyzed Amino Claisen Rearrangement of 1-N-Allylindolines: An Expedient Protocol for the Synthesis of Functionalized 7-Allylindolines
  6. Synthesis and Biological Evaluation of (E)-N’-Benzylidene-7-methyl-2-propyl-1H-benzo[d] imidazole-5-carbohydrazides as Antioxidant, Anti-inflammatory and Analgesic agents
  7. Efficient synthesis, reactions and spectral characterization of pyrazolo[4’,3’:4,5]thieno[3,2-d] pyrimidines and related heterocycles
  8. Asymmetric Mannich Reaction: Synthesis of Novel Chiral 5-(substituted aryl)-1,3,4-Thiadiazole Derivatives with Anti-Plant-Virus Potency
  9. Synthesis and antitubercular activity of new N-[5-(4-chlorophenyl)-1,3,4-oxadiazol-2-yl]-(nitroheteroaryl)carboxamides
  10. Remarkable electronic effect on the total stereoselectivity of the cycloaddition reaction of arylnitrile oxides with pyrrol-2-one derivatives
  11. Preliminary Communications
  12. Crystal structure and molecular docking studies of new pyrazole-4-carboxamides
  13. Research Article
  14. Synthesis of polycyclic phosphonates via an intramolecular Diels-Alder reaction of 2-benzoylbenzalaldehyde and alkenyl phosphites
  15. Asymmetric total synthesis of filamentous fungi related resorcylic acid lactones 7-epi-zeaenol and zeaenol
  16. The first in situ synthesis of 1,3-dioxan-5-one derivatives and their direct use in Claisen-Schmidt reactions
  17. Synthesis and fungicidal activities of perfluoropropan-2-yl-based novel quinoline derivatives
  18. Combined XRD-paramagnetic 13C NMR spectroscopy of 1,2,3-triazoles for revealing copper traces in a Huisgen click-chemistry cycloaddition. A model case
  19. Cytotoxic and antimicrobial activities of some novel heterocycles employing 6-(1,3-diphenyl-1H-pyrazol-4-yl)-4-oxo-2-thioxo-1,2,3,4-tetrahydropyrimidine-5-carbonitrile
  20. Substrate-controlled Diastereoselective Michael Addition of Alkylidene Malonates by Grignard Reagents
  21. Synthesis of 1,2,3 triazole-linked benzimidazole through a copper-catalyzed click reaction
  22. Synthesis and spectral characteristics of N-(1-([1,2,4]triazolo[3,4-b][1,3,4]thiadiazol-6-ylamino)-2,2,2-trichloroethyl)carboxamides
  23. Facile One-pot Protocol of Derivatization Nitropyridines: Access to 3-Acetamidopyridin-2-yl 4-methylbenzenesulfonate Derivatives
  24. Naphthalene substituted benzo[c]coumarins: Synthesis, characterization and evaluation of antibacterial activity and cytotoxicity
  25. A Green Synthesis and Antibacterial Activity of N-Arylsulfonylhydrazone Compounds
  26. Preliminary Communications
  27. Facile Synthesis of Spiro[cyclohexane-1,3’-indoline]-2,2’-diones
  28. Research Article
  29. Synthesis and AChE inhibitory activity of N-glycosyl benzofuran derivatives
  30. [DMImd-DMP]: A highly efficient and reusable catalyst for the synthesis of 4H-benzo[b]pyran derivatives
https://doi.org/10.1515/hc-2019-0025
Keywords for this article
multicomponent reaction; one-pot synthesis; pyrano[2,3-c]pyrazoles; tetrahydrobenzo[b]pyrans; ionic liquids; [DMImd-DMP]
Creative Commons
BY 4.0

Articles in the same Issue

  1. Research Article
  2. Magnesium porphyrazine with peripheral methyl (3,5-dibromophenylmethyl)amino groups – synthesis and optical properties
  3. Synthesis and fungicidal activity of novel imidazo[4, 5-b]pyridine derivatives
  4. Synthesis of indazolo[5,4-b][1,6]naphthyridine and indazolo[6,7-b][1,6]naphthyridine derivatives
  5. Zinc Chloride Catalyzed Amino Claisen Rearrangement of 1-N-Allylindolines: An Expedient Protocol for the Synthesis of Functionalized 7-Allylindolines
  6. Synthesis and Biological Evaluation of (E)-N’-Benzylidene-7-methyl-2-propyl-1H-benzo[d] imidazole-5-carbohydrazides as Antioxidant, Anti-inflammatory and Analgesic agents
  7. Efficient synthesis, reactions and spectral characterization of pyrazolo[4’,3’:4,5]thieno[3,2-d] pyrimidines and related heterocycles
  8. Asymmetric Mannich Reaction: Synthesis of Novel Chiral 5-(substituted aryl)-1,3,4-Thiadiazole Derivatives with Anti-Plant-Virus Potency
  9. Synthesis and antitubercular activity of new N-[5-(4-chlorophenyl)-1,3,4-oxadiazol-2-yl]-(nitroheteroaryl)carboxamides
  10. Remarkable electronic effect on the total stereoselectivity of the cycloaddition reaction of arylnitrile oxides with pyrrol-2-one derivatives
  11. Preliminary Communications
  12. Crystal structure and molecular docking studies of new pyrazole-4-carboxamides
  13. Research Article
  14. Synthesis of polycyclic phosphonates via an intramolecular Diels-Alder reaction of 2-benzoylbenzalaldehyde and alkenyl phosphites
  15. Asymmetric total synthesis of filamentous fungi related resorcylic acid lactones 7-epi-zeaenol and zeaenol
  16. The first in situ synthesis of 1,3-dioxan-5-one derivatives and their direct use in Claisen-Schmidt reactions
  17. Synthesis and fungicidal activities of perfluoropropan-2-yl-based novel quinoline derivatives
  18. Combined XRD-paramagnetic 13C NMR spectroscopy of 1,2,3-triazoles for revealing copper traces in a Huisgen click-chemistry cycloaddition. A model case
  19. Cytotoxic and antimicrobial activities of some novel heterocycles employing 6-(1,3-diphenyl-1H-pyrazol-4-yl)-4-oxo-2-thioxo-1,2,3,4-tetrahydropyrimidine-5-carbonitrile
  20. Substrate-controlled Diastereoselective Michael Addition of Alkylidene Malonates by Grignard Reagents
  21. Synthesis of 1,2,3 triazole-linked benzimidazole through a copper-catalyzed click reaction
  22. Synthesis and spectral characteristics of N-(1-([1,2,4]triazolo[3,4-b][1,3,4]thiadiazol-6-ylamino)-2,2,2-trichloroethyl)carboxamides
  23. Facile One-pot Protocol of Derivatization Nitropyridines: Access to 3-Acetamidopyridin-2-yl 4-methylbenzenesulfonate Derivatives
  24. Naphthalene substituted benzo[c]coumarins: Synthesis, characterization and evaluation of antibacterial activity and cytotoxicity
  25. A Green Synthesis and Antibacterial Activity of N-Arylsulfonylhydrazone Compounds
  26. Preliminary Communications
  27. Facile Synthesis of Spiro[cyclohexane-1,3’-indoline]-2,2’-diones
  28. Research Article
  29. Synthesis and AChE inhibitory activity of N-glycosyl benzofuran derivatives
  30. [DMImd-DMP]: A highly efficient and reusable catalyst for the synthesis of 4H-benzo[b]pyran derivatives
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 14.9.2025 from https://www.degruyterbrill.com/document/doi/10.1515/hc-2019-0025/html
Scroll to top button
