Excitation functions of the 197Au(p,pxn) and 197Au(p,xn) reactions

  • Haladhara Naik , Guinyun Kim EMAIL logo , Changhui Lee , Sung-Chul Yang , Wooyoung Jang , Hien Thi Nguyen and Kwangsoo Kim
Published/Copyright: June 5, 2023
Download Article (PDF)
Radiochimica Acta
From the journal Radiochimica Acta Volume 111 Issue 9

Abstract

The cross-sections for the 197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reactions within the proton energy range of 49.8–65.5 MeV were measured at the high-intensity proton linac facility (KOMAC) in Korea using the stacked-foil activation and off-line γ-ray spectrometric technique The proton beam intensity was determined based on the natCu(p,x)62Zn monitor reaction with the recommended cross-section accessed from the IAEA database library. The data gathered in the present work are compared with the available data from the literature, which agreed well with each other. In this study, the 197Au(p,p5n)193Au reaction cross-section was measured for the first time. The data from the present work and existing literature were compared with the TALYS-1.9-based data taken from the TENDL-2019 library, which generally agreed well.

Keywords: 197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reactions; off-line γ-ray spectrometry; proton energy range from 49.8 to 66.8 MeV; stacked-foil activation; TENDL-2019 library

1 Introduction

Gold is a mono-isotopic metal that has various medical applications in its inactive and active forms. Inactive gold in the form of salt is used as an effective medicine for treating and controlling some types of rheumatoid arthritis and related diseases [1]. It also helps relieve joint pain and stiffness, reduce swelling and bone damage, and reduce the risk of joint deformity and disability. The photon-, neutron-, and proton-induced reactions of 197Au were used as monitors for flux determination. The 197Au(n,γ)198Au reaction with low-energy neutrons and 197Au(γ,xn)196-193Au and 197Au(n, 2n)196-193Au reactions with medium-to high-energy photons and neutrons are the monitoring reactions. Similarly, the 197Au(p,pxn)196-193Au reactions were recommended as monitoring reactions within a wide range of proton energies, which are specified in the IAEA database library [2]. The radioactive isotopes produced from the 197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reactions have various medical uses. The radionuclide 195gAu has a long half-life of 186.01 days [3, 4]; therefore, it is used for heart rate and blood pressure studies in rabbits, greyhounds, and pigs, as well as for diagnostic cardiac imaging (angiography of the heart) after intravenous injection [5, 6]. On the other hand, 197mHg has a shorter half-life of 23.8 h, which causes its higher specific activity and is thus used in therapeutic and diagnostic applications. The radionuclide 197mHg in the form of chlormerodrin (C4H9ClHgO) is used for renal diagnosis in kidney imaging [7]. Therapeutic applications of 197mHg are conceivable because of their suitable emission spectra comprising a multitude of X-rays, conversions, and auger electrons, as well as a few gamma emissions [2, 3].

The EXFOR [8, 9] compilation shows that the cross-sections for the 197Au(p,pxn)196-194Au reactions are available in the existing literature [10], [11], [12], [13], [14], [15], but those for the 197Au(p,p4n)193Au reaction are not available. For the 197Au(p,xn)197-193Hg reactions, the cross-sections are also available in the literature [12], [13], [14], [15], [16], [17], [18], [19], [20], [21], [22], [23], [24]. However, the formation cross-sections for reaction products from different references are mainly below 50 MeV, which differ significantly from one reference to the other. At higher proton energy, the formation cross sections are primarily based on three references [11, 12, 16]. For a few reactions, the data are based on the work of Ditroi et al. [12], where some data have different trends than usual one. As an example, the 197Au(p,xn)195gHg reaction cross sections do not follow the usual trend above the proton energy of 47 MeV. This means, above the proton energy of 47 MeV, no other literature data are available to cross-check each other. Thus, in this study, the 197Au(p,pxn) 196-193Au and 197Au(p,xn) 197,195,193Hg reaction cross-sections within the proton energy range of 49.8–65.5 MeV were measured at the high-intensity proton linac facility (KOMAC) in Korea using off-line γ-ray spectrometric technique.

2 Experimental details

The present experiment was carried out using a 69-MeV proton beam from a 100-MeV proton linac in KOMAC, Gyeongju, Korea. The stacked-foil activation technique was used in the TR103 target room of the KOMAC facility [25, 26]. The stack contained 10 sets of Pb–Au foils with one Cu foil at the beginning and one in the middle of the stack. High-purity (>99.9 %) 197Au, natPb, and natCu metal foils with a dimension of 1 × 1 cm and thickness of 100 μm were used as the targets in the stack. The natPb foils were used as beam energy degraders, and the natCu(p, x)62Zn reaction from the natCu foils was used to determine the proton beam intensity. A total of 22 samples of 197Au, natPb, and natCu metal foils were prepared as stacks, which were placed in an aluminum sample holder for irradiation with a proton beam. The sample holder was fixed behind a collimator with a 0.9-cm diameter hole. The Al collimator was positioned at a distance of 1.7 m from the beam window (2.1 g/cm3) with a thickness of 0.5 mm, which consisted of Al and Be foils. A schematic diagram of the experimental setup is provided in Ref. [27].

The stacked foils were irradiated for 30 min with a proton energy of 69 MeV after beam alignment using a GAFChromic HD-V2 film. The proton linac was operated at a repetition rate of 2 Hz, pulse width of 100 μs, and average beam current of approximately 100 nA. The beam intensity remained stable and constant during the irradiation. The irradiated samples were waited for 30 h, allowing the short-lived products to decay to avoid unnecessary dose problems. The irradiated Au and Cu foils were mounted on a Perspex plate simultaneously and used for measuring the γ-ray activities. The γ-ray activities of the reaction products were measured using a p-type coaxial HPGe detector coupled with a PC-based 4096 channel analyzer. The relative detection efficiency and energy resolution of the HPGe detector were 20 % and 1.8 keV, respectively, full-width at half maximum at the photo-peak of the 1332.5 keV γ-line of 60Co. The energy and efficiency of the detector system were calibrated using a standard 152Eu source. To avoid the pileup effect, γ-ray counting of the irradiated samples was performed by placing the sample at an appropriate distance from the detector to minimize the dead time to <5 %. The measurements were repeated several times with increasing counting times to obtain sufficient counting statistics for each γ-ray of the reaction products based on their half-lives. The Gamma Vision 5.1 program [28] was used to analyze the γ-ray spectra.

3 Data analysis

In this study, the cross-sections for the 197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reactions have been measured. The proton beam energies for the individual foils were calculated from the SRIM code [29]. The nuclear spectroscopic data such as the half-lives, decay-modes, γ-ray energies and their intensities of the reaction products 196,195,194,193Au and 197,195,193Hg, as well as for the monitor reaction products 65,62Zn, were taken from Refs. [3, 4] and are listed in Table 1. The net detected photo-peak counts (N i ) for the γ-lines of the above-mentioned reaction products were obtained from their respective gross counts of the photo-peaks in the γ-ray spectra by subtracting the Compton background.

Table 1:

Nuclear spectroscopic data [3, 4] of 193-196Au and 193-197Hg from the 197Au(p,pxn) and 197Au(p,xn) reactions as well as the reaction Q–value and threshold energies [30]. The photo-peak activities of γ-ray energy marked with bold letters were used for calculation.

Nuclide spin (Jπ) Half-life Decay mode (%) γ-ray energy Eγ (keV) γ-ray intensity Iγ (%) Reaction Q-value (MeV) Threshold (MeV)
62Zn (0+) 9.186 h ε+ β+ (100) 548.35 15.3 63Cu(p,2n) −13.266 13.478
596.56 26.0 65Cu(p,4n) −31.092 31.575
65Zn (5/2−) 243.93 d ε+ β+ (100) 1115.54 50.04 65Cu(p,n) −2.134 2.167
193mAu (11/2−) 3.9 ± 0.3 s IT(99.97) 257.97 67.147 197Au(p,p4n) −21.829 21.940
ε+ β+ (0.03)
193gAu (3/2+) 17.65 ± 0.15 h ε+ β+ (100) 173.52 2.8 197Au(p,p4n) −21.539 21.649
186.7 6.5
268.22 3.8
194m1Au (11−) 420 ± 8 ms IT(100) 128.58 27.0 197Au(p,p3n) −15.136 15.213
170.78 27.3
194m2Au (5+) 600 ± 10 ms IT(100) 45.32 5.0 197Au(p,p3n) −14.767 14.843
194gAu (1−) 38.02 ± 0.10 h ε+ β+ (100) 293.55 10.9 197Au(p,p3n) −14.660 14.735
328.74 62.8
195mAu (11/2−) 30.5 ± 0.2 s IT(100) 261.75 68.7 197Au(p,p2n) −6.551 6.584
195gAu (3/2+) 186.01 ± 0.06 d ε+ β+ (100) 65.12 27.8 197Au(p,p2n) −6.232 6.264
66.83 47.2
75.37 10.9
98.86 11.21
196m1Au (5+) 8.1 ± 0.2 s IT(100) 84.66 0.3 197Au(p,pn) −5.932 5.963
196m2Au (12−) 9.6 ± 0.1 h IT (100) 147.81 43.5 197Au(p,pn) −6.443 6.476
188.27 30.0
196gAu(2−) 6.1669

±0.0006 d		 ε+ β+ (93.0)

β− (7.0)		 333.03 22.9 197Au(p,pn) −5.848 5.878
355.73 87.0
426.1 6.6
193mHg (13/2+) 11.8 ± 0.2 h IT (7.2)

ε+ β+ (92.8))		 257.99 49.0 197Au(p,5n) −33.287 33.457
407.63 32.0
193gHg (3/2+) 3.80 ± 0.15 h ε+ β+ (100) 381.6 16.0 197Au(p,5n) −33.146 33.315
861.11 12.4
195mHg (13/2+) 41.6 ± 0.8 h IT (54.2)

ε+ β+ (45.8)		 261.75 31.0 197Au(p,3n) −17.242 17.331
560.27 7.1
195gHg (½−) 10.53 ± 0.03 h ε+ β+ (100) 779.8 7.0 197Au(p,3n) −17.066 17.154
197mHg (13/2+) 23.8 ± 0.1 h IT (91.4)

ε+ β+ (8.6)		 70.82 15.9 197Au(p,n) −1.681 1.690
133.98 33.5
279.01 6.0
197gHg (½−) 64.14 ± 0.05 h ε+ β+ (100) 77.35 18.7 197Au(p,n) −1.382 1.389
191.44 0.632

Natural copper foils undergo natCu(p, x)62,65Zn reactions. The natCu(p, x)62Zn reaction from natCu foils was used to determine the proton beam intensity. The photo-peak counts (N i ) for the 596.56-keV γ-line of 62Zn were integrated in Eq. (1) to estimate the proton flux (ϕ).

(1) ϕ = N i ( C L / L T ) λ n   σ i   I γ   ε γ   ( 1 − e − λ   T i r r )   e − λ   T C   ( 1 − e − λ   L T ) ,

where n is the number of target atoms, and σ i is the natCu(p, x)62Zn reaction cross-section. I γ is the intensity of the analyzed γ-ray, ε γ is the detection efficiency of the γ-ray, and λ is the decay constant (=ln2/T1/2) for the isotope of interest with half-life T1/2. Tirr, T C , CL, and LT are the irradiation, waiting, clock, and counting times, respectively.

The value of σ i for the natCu(p, x)62Zn reaction was obtained from Ref. [2] and used in Eq. (1) to estimate the proton flux. The Cu foils in the beginning and middle of the stack had average proton energies of 66.78 ± 0.29 MeV and 58.31 ± 0.33 MeV, respectively. Moreover, the first and last Au-metal foils in the stack had average proton energies of 65.47 ± 0.47 MeV and 49.80 ± 0.60 MeV, respectively. During the calculations, the proton flux was assumed to be constant for all Au foils within the proton energy range of present work. For average proton energies of 66.8 MeV and 58.3 MeV of the Cu-foils, the respective recommended natCu(p,x)62Zn monitor reaction cross-sections are 7.4 ± 0.4 mb and 9.7 ± 0.5 mb [2], which are used in the flux calculation. The proton flux was assumed to be constant for all foils, which was confirmed by the proton flux in both the Cu foils. The flux of (4.889 ± 0.099) × 1011 protons cm−2 s−1 was estimated as an average value based on multiple measurements of the detected photo-peak counts of 596.56-keV γ-line of 62Zn in both the Cu foils.

The value of ϕ estimated using Eq. (1) was used in Eq. (2), and the 197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reaction cross-sections were obtained from the detected photo-peak counts (N i ) of the γ-lines of the reaction products of interest, as listed in Table 1.

(2) σ i = N i   ( C L / L T )   λ n   ϕ   I γ   ε γ   ( 1 − e − λ   T i r r )   e − λ   T C ( 1 − e − λ   L T ) .
Eq. (2) is a rearrangement of Eq. (1); thus, all the terms have the same meaning.

4 Results and discussion

In this study, the cumulative formation cross-sections of 196(m1+g)Au, 195Au, and 193Au and independent formation cross-sections of 196m2Au, 195Au, and 194Au from the 197Au(p,pxn) reactions were measured and reported in Table 2. Similarly, the independent formation cross-sections of 197mHg, 195mHg, 195gHg, and 193mHg in the 197Au(p,xn) reactions were measured and reported in Table 2. The uncertainties in the measured values were based on the statistical uncertainty of repeated measurements. The overall uncertainty is the quadratic sum of statistical and systematic errors. The random error in the observed activity is primarily due to counting statistics and is estimated to be 3–9%. This can be determined by accumulating data over an optimum period that depends on the half-life of the nuclide of interest. The systematic errors occur owing to uncertainties in the irradiation time (∼0.1 %), proton flux (∼5.2 %), detection efficiency (∼3 %), half-life of the reaction products and γ-ray intensities (∼2 %). Thus, the total systematic error is approximately 6.3 %. The overall uncertainty is between 7 and 11 % from the combination of a statistical error of 3–9% and systematic error of approximately 6.3 %.

Table 2:

Cross-sections for the production of 193-196Au and 193-197Hg measured in the 197Au(p,pxn) and 197Au(p,xn) reactions within the proton energies of 49.8–65.5 MeV.

Proton energy (MeV) Production cross-section (mb) of 193-196Au and 193-197Hg in the 197Au(p,x) reactions
196m2Au Ind# 196(m1+g)Au Cum$ 195Au Cum$ 195Au Ind# 194Au Ind# 193Au Cum$ 197mHg Ind# 195mHg Ind# 196gHg Ind# 193mHg Ind#
49.80 ± 0.60 8.52 ± 0.69 155.7 ± 8.4 306.2 ± 33.3 170.6 ± 33.3 121.1 ± 8.3 677.8 ± 40.6 4.43 ± 0.59 76.78 ± 5.04 52.85 ± 7.28 353.2 ± 17.9
51.62 ± 0.57 8.33 ± 0.60 155.1 ± 10.9 283.3 ± 16.7 150.8 ± 16.7 126.8 ± 6.8 707.2 ± 26.3 4.46 ± 0.39 78.65 ± 8.41 53.90 ± 6.78 309.0 ± 23.2
53.42 ± 0.57 8.90 ± 0.49 158.8 ± 10.8 293.1 ± 38.8 167.3 ± 38.8 130.9 ± 5.8 608.6 ± 12.5 4.10 ± 0.42 75.59 ± 5.14 50.30 ± 4.80 288.7 ± 20.7
55.18 ± 0.54 8.82 ± 0.52 155.4 ± 11.4 309.2 ± 34.0 187.5 ± 34.0 128.7 ± 6.7 543.3 ± 25.5 4.25 ± 0.33 73.37 ± 4.17 48.31 ± 6.12 251.4 ± 16.2
56.85

±0.52		 8.62 ± 0.49 154.8 ± 7.8 292.0 ± 33.6 177.3 ± 33.6 135.0 ± 8.4 450.3 ± 19.5 4.33 ± 0.38 69.42 ± 5.37 45.25 ± 3.62 207.7 ± 21.5
59.16 ± 0.52 8.43 ± 0.74 156.1 ± 6.7 273.5 ± 25.9 163.4 ± 25.9 137.2 ± 8.3 433.2 ± 39.2 4.15 ± 0.36 67.08 ± 4.61 42.98 ± 3.45 175.0 ± 10.2
60.77 ± 0.50 8.49 ± 0.42 154.4 ± 8.6 295.0 ± 38.8 186.9 ± 38.8 133.8 ± 7.1 436.6 ± 30.7 3.98 ± 0.1 66.62 ± 4.76 41.49 ± 4.63 158.8 ± 6.6
62.34 ± 0.50 8.26 ± 0.49 151.2 ± 9.1 279.9 ± 12.9 176.5 ± 12.9 138.1 ± 9.7 426.5 ± 20.4 3.87 ± 0.73 64.58 ± 5.27 38.82 ± 3.48 154.1 ± 5.9
63.92 ± 0.50 8.05 ± 0.35 150.7 ± 8.5 303.8 ± 25.3 201.0 ± 25.3 138.4 ± 9.4 405.7 ± 16.5 3.91 ± 0.45 64.29 ± 4.61 38.47 ± 5.01 142.6 ± 7.0
65.47 ± 0.47 7.89 ± 0.43 152.1 ± 7.0 281.3 ± 25.6 179.2 ± 25.6 135.9 ± 8.8 343.1 ± 16.1 3.67 ± 0.55 64.09 ± 5.07 38.04 ± 3.14 130.9 ± 6.8

  1. #Direct (Ind.) indicates subtraction of the 195m,gHg decay contribution for the production cross-section of 195,193m,gCo in the 197Au(p,x)195,193Au reaction. $Cumulative (Cum.) indicates inclusion of 195,193m,gHg decay contribution besides the production of 195,193m,gCo in the 197Au(p,x)195,193Au reaction.

The formation cross-sections of the aforementioned products in the 197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reactions measured in this study, along with those reported in the literature, are plotted as a function of proton energy in Figures 1–10. For comparison, the calculated cross-section values based on the TALYS 1.9 code [31, 32] available in the TENDl-2019 library [30] for the respective reactions are also plotted in Figures 1–10.

Figure 1: Independent production cross-sections of 196m2Au in the 197Au(p,pn) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 1:

Independent production cross-sections of 196m2Au in the 197Au(p,pn) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

Figure 2: Cumulative production cross-sections of 196(m1+g)Au in the 197Au(p,pn) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 2:

Cumulative production cross-sections of 196(m1+g)Au in the 197Au(p,pn) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

Figure 3: Cumulative production cross-sections of 195Au in the 197Au(p,p2n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 3:

Cumulative production cross-sections of 195Au in the 197Au(p,p2n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

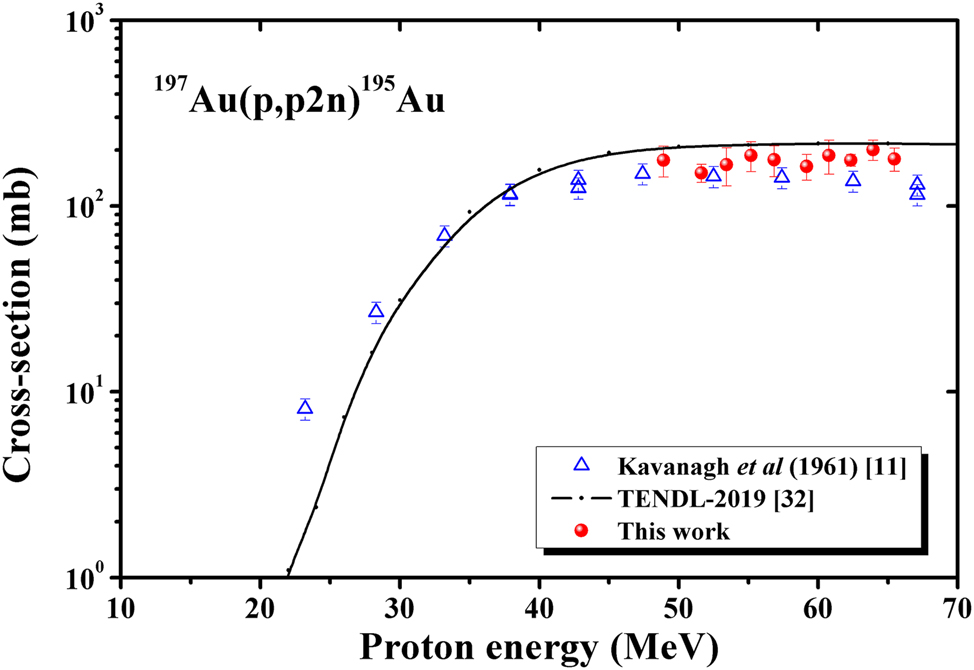

Figure 4: Independent production cross-sections of 195Au in the 197Au(p,p2n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 4:

Independent production cross-sections of 195Au in the 197Au(p,p2n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

Figure 5: Independent production cross-sections of 194Au in the 197Au(p,p3n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 5:

Independent production cross-sections of 194Au in the 197Au(p,p3n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

Figure 6: Cumulative production cross-sections of 193Au in the 197Au(p,p4n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 6:

Cumulative production cross-sections of 193Au in the 197Au(p,p4n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

Figure 7: Independent production cross-sections of 197mHg in the 197Au(p,n) reaction and comparison with the literature data and the data from TENDL-2019 library.
Figure 7:

Independent production cross-sections of 197mHg in the 197Au(p,n) reaction and comparison with the literature data and the data from TENDL-2019 library.

Figure 8: Independent production cross-sections of 195mHg in the 197Au(p,3n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 8:

Independent production cross-sections of 195mHg in the 197Au(p,3n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

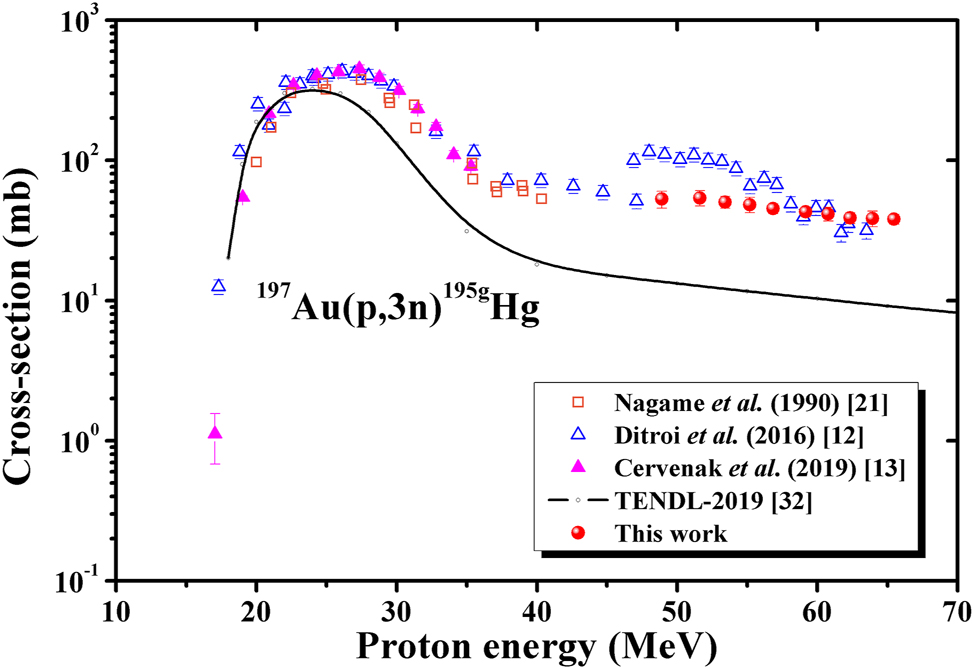

Figure 9: Independent production cross-sections of 195gHg in the 197Au(p,3n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 9:

Independent production cross-sections of 195gHg in the 197Au(p,3n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

Figure 10: Independent production cross-sections of 193mHg in the 197Au(p,5n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].
Figure 10:

Independent production cross-sections of 193mHg in the 197Au(p,5n) reaction and comparison with the literature data and the data from TENDL-2019 library [30].

4.1 197Au(p,pn)196m2Au and 197Au(p,pn)196(m1+g)Au reaction cross-sections

As reported in Table 1, radionuclide 196Au has two isomeric states and one ground state. The first isomeric state, 196m1Au, has a half-life of 8.1 s and decays to the g-state with an internal transition branching fraction of 100 %. The second isomeric state, 196m2Au, has a half-life of 9.6 h and also decays to the g-state with an internal transition branching fraction of 100 %. Thus, in this study, it is possible to measure the independent formation of 196m2Au and cumulative formation cross-section of 196(m1+g)Au. The 197Au(p,pn)196m2Au and 197Au(p,pn)196(m1+g)Au reaction cross-sections at different proton energies were measured using the detected photo-peak counts of the intense γ-lines 147.81 keV of 196m2Au and 355.73 keV of 196gAu, respectively. Note that the cumulative formation cross-section of 196(m1+g)Au is based on 196m2Au and not on stable 196Hg. The 197Au(p,pn)196m2Au and 197Au(p,pn)196(m1+g)Au reaction cross-sections measured in this study, related data reported in the literature [12], [13], [14], [15], and calculated values taken from the TENDL-2019 library [30] are plotted in Figures 1 and 2. From Figure 1, it can be observed that the independent formation cross-sections of 196m2Au in the 197Au(p,pn) reaction measured in this study over the proton energy range of 49.8–65.5 MeV agree with the data reported by Ditroi et al. [12]. However, the data obtained in the present study and those reported in the literature [12, 13], above the proton energy of 17 MeV, are valued lower than those reported in the TENDL-2019 library [30]. Moreover, the data reported by Ditroi et al. [12] within the proton energy range of 10–14 MeV and those reported by Szelecsenyi et al. [15] within 13.5–18.3 MeV have values significantly higher than those reported in the TENDL-2019 library [30]. For the 197Au(p,pn)196(m1+g)Au reaction, from Figure 2, it can be observed that the cumulative measured formation cross-section of present work agree with the data reported by Ditroi et al. [12] and Szelecsenyi et al. [14]. The data measured in this study and those reported in the literature [12, 15] above the proton energy level of 35 MeV agree with the values reported in the TENDL-2019 library [30]. Below a proton energy level of 35 MeV, the data reported by Ditroi et al. [12], Cervenak et al. [13], and Szelecsenyi et al. [14] were valued higher than the values reported in the TENDL-2019 library [30].

4.2 197Au(p,p2n)195Au reaction cross-section

As shown in Table 1, radionuclide 195Au has one isomeric state with a half-life of 3.5 s, which decays to the g-state with an internal transition branching fraction of 100 %. The g-state has a half-life of 186.1 d; thus, it is possible to measure the cumulative production cross-section of the 197Au(p,p2n)195Au reaction. Note that the cumulative formation cross-section of 195gAu is obtained with respect to 195mAu as well as 195mHg and 195mHg. The cumulative production cross-sections of 197Au(p,p2n)195Au reaction were obtained from the detected photo-peak counts of low intensity with higher detector efficiency for 98.86-keV γ-line of 195gAu. The cumulative 197Au(p,p2n)195Au reaction cross-sections measured in this study, those reported in the literature [12], and calculated values reported in the TENDL-2019 library [30] are plotted as a function of proton energy in Figure 3, all of which agree with each other. The independent cross-sections of the 197Au(p,3n)195mHg and 197Au(p,3n)195gHg reactions measured in this study were subtracted from the cumulative cross-section of the 197Au(p,p2n)195Au reaction, and thus, independent cross-sections were obtained. The independent cross-sections of the 197Au(p,p2n)195Au reaction at different proton energies were reported by Kavanagh et al. [11] and were found to closely agree with the data presented in this study. The independent cross-section of the 197Au(p,p2n)195Au reaction reported in this study and existing literature [12], along with the values stated in the TENDL-2019 library [30], are plotted in Figure 4. From Figure 4, it can be observed that the values reported in this study and existing literature [12] above a proton energy of 40 MeV are slightly lower; whereas, those reported for a proton energy less than 35 MeV are slightly higher than the values reported in the TENDL-2019 library [30].

4.3 197Au(p,p3n)194Au and 197Au(p,p4n)193Au reaction cross-sections

As listed in Table 1, the radionuclide 194Au has two isomeric states and one ground state. The isomeric states m1 and m2 have half-lives of 420 ms and 600 ms, respectively, whereas the g-state has a half-life of 38.02 h. Both the isomeric states decay to the g-state via internal transitions with a branching fraction of 100 % for each. Thus, the 197Au(p,p3n)194Au reaction cross-section can be considered independent because 194Hg is a stable nucleus. The 197Au(p,p3n)194Au reaction cross-sections within a proton energy range of 49.8–65.5 MeV were measured from the detected photo-peak counts of the low intensity 293.55 keV and high intensity 328.74-keV γ-lines; the average values are reported in Table 2. The data reported in this study and existing literature [12], [13], [14], along with the values calculated based on the data reported in the TENDL-2019 library [30], are plotted as a function of proton energy in Figure 5. From Figure 5, it can be observed that the data reported in this study and existing literature [12], [13], [14] within a proton energy range of 45–65.5 MeV agree well; however, below a proton energy level of 45 MeV the measured values are lower than those reported in the TENDL-2019 library [30]. Moreover, the values reported in the literature [12], [13], [14] below a proton energy level of 40 MeV are higher than those reported in the TENDL-2019 library.

193Au has one isomeric state (Table 1) with a half-life of 3.9 s, whereas the half-life of the g-state is 17.65 h. The m-state decays via an internal transition, with a branching fraction of 99.97 %. Besides this, 193gAu is fed by both the precursors 193mHg and 193gHg, which have the half-lives of 11.8 and 3.8 h, respectively. The precursors were produced from the 197Au(p, 3n)195mHg and 197Au(p, 3n)195gHg reactions, respectively. Thus, the 197Au(p,p3n)193Au reaction cross-section is the cumulative one, which was obtained from the detected photo-peaks counts of low intensity 137.52-keV, 186.7-keV, and 268.22-keV γ-lines. In Table 2, the average values based on the three γ-lines were given. The cumulative cross-sections of 197Au(p,p3n)193Au reaction were measured for the first time and are compared, in Figure 6, with the values reported in the TENDL-2019 library [30]. From Figure 6, it can be observed that the values reported in this study are higher, and, particularly above 59 MeV, they are significantly higher than the values reported in the TENDL-2019 library. However, the trend of the data reported in this work as a function of proton energy was somewhat similar to that of the values reported in the TENDL-2019 library.

4.4 197Au(p,n)197mHg reaction cross-section

From Table 1, it is evident that the radionuclide 197Hg has one isomeric state with a half-life of 23.8 h, whereas the ground state has a half-life of 64.1 h. The m-state decays to the g-state with an internal transition branching fraction of 91.4 % and electron capture of 8.6 %. The radionuclide 197mHg has an intense γ−line of 133.98 keV, whereas 197gHg has no intense γ-line. Thus, only the 197Au(p,n)197mHg reaction cross-sections have been measured using the detected photo-peak counts of the 133.98-keV γ-line. The data measured in this study, those reported in the literature [12], [13], [14], [15], [16], [17], [18], and those calculated based on the TENDL-2019 library [30] are plotted in Figure 7 as a function of proton energy. From Figure 7, it can be observed that the data reported in this study within a proton energy range of 49.8–65.5 MeV agree with the data reported by Szelecsenyi et al. [14]. The data reported in this study and existing literature [12], [13], [14], [15], [16], [17], [18] above a proton energy level of 14 MeV are valued lower than the values reported in the TENDL-2019 library [30]. However, the data below a proton energy level of 14 MeV reported in the literature [12], [13], [14], [15], [16], [17], [18] agree with the values reported in the TENDL-2019 library [30].

4.5 197 Au(p,3n)195mHg and 197Au(p,3n)195gHg reaction cross-sections

Table 1 reports that the radionuclide 195Hg has one isomeric state with a half-life of 41.6 h, whereas the ground state has a half-life of 10.53 h. The m-state decays to the g-state by an internal transition with a branching fraction of 54.2 % and electron capture of 45.8 %. The radionuclide 195mHg has an intense γ-line of 261.75 keV as well as a low intense γ-line of 560.27 keV. Thus, the 197Au(p,3n)195mHg reaction cross-sections were obtained from the detected photo-peak counts of both the γ-lines, and the average values are reported in Table 2. The radionuclide 195gHg has only one low intensity γ-line of 779.8 keV. Despite this, the 197Au(p,3n)195gHg reaction cross-sections were obtained from the detected photo-peak counts of the weak intensity γ-line and are reported in Table 2. The data reported in this study and existing literature [12–14, 21] as well as the values based on the data reported in the TENDL-2019 library [30] for the 197Au(p,3n)195mHg and 197Au(p,3n)195gHg reactions are plotted in Figures 8 and 9. From Figure 8, it can be seen that the 197Au(p, 3n)195mHg reaction cross-sections from the present work and most of the literature data [12–14, 21] agree with the reported values of TENDL-2019 library [30]. However, the values reported by Nagame et al. [21] within a proton energy range of 35–51 MeV were slightly lower than the values reported in the TENDL-2019 library [30]. On the other hand, it can be seen from Figure 9 that for the 197Au(p, 3n)195gHg reaction, the values reported in this study and existing literature [12, 13, 21] above a proton energy level of 23 MeV are higher than the values reported in the TENDL-2019 library [30]. Below a proton energy level of 23 MeV, the data reported in the literature [12, 13] are in agreement with those from the TENDL-2019 library. However, the data reported by Ditroi et al. [12] within a proton energy range of 47–57 MeV are unusually higher than the present data and the values reported in the TENDL-2019 library [30].

4.6 197Au(p,5n)193mHg reaction cross-section

Table 1 reports that the radionuclide 193Hg has one isomeric state with a half-life of 11.8 h, whereas the ground state has a half-life of 3.8 h. The m-state decays to the g-state via an internal transition with a branching fraction of 7.2 % and electron capture of 92.8 %. The radionuclide 193mHg has intense γ-lines of 257.99 and 407.63 keV. Similarly, the radionuclide 193mHg has intense γ-lines of 381.6 and 861.11 keV. Since the waiting time for the first counting is more than 30 h, it was not possible to obtain the 197Au(p,3n)193gHg reaction cross-sections. Therefore, only the 197Au(p, 3n)193mHg reaction cross-sections were obtained from the detected photo-peak counts of the above-mentioned γ-lines, and the average values are reported in Table 2. The data reported in this study and existing literature [12, 14], along with the calculated values reported in the TENDL-2019 library [30], are plotted in Figure 10. As shown in Figure 10, the 197Au(p, 3n)193mHg reaction cross-sections reported in this study and existing literature [12, 14] above a proton energy level of 50 MeV are higher than the corresponding values reported in the TENDL-2019 library. Below a proton energy level of 50 MeV, the data reported in the literature [12, 14] closely agree with the values reported in the TENDL-2019 library.

In addition, from Figures 1–10 it can be observed that the cross-section values increase sharply from their threshold values to a particular proton energy. Thereafter, they decrease or remain nearly constant owing to the opening of other reaction channels, underlining the role of excitation energy.

5 Conclusions

The cross-sections of the 197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reactions within the proton energy range of 49.8–65.5 MeV have been measured using the stacked-foil activation and off-line γ-ray spectrometric techniques. To the best of our knowledge, the 197Au(p,p5n)193Au reaction cross-section was measured for the first time. The data collected during this study are compared with the data from existing literature; which agree for most of the reactions where data are available. The data collected in this study and existing literature were compared with the calculated values obtained from the TENDL-2019 library and found to be in agreement in some of the cases. In other cases, they were slightly higher or lower than the values reported in the TENDL-2019 library. However, the trends of data measured in this study and the existing literature are similar to those obtained from the TENDL-2019 library. All cross-sections first increased sharply from their threshold to a particular proton energy. Thereafter, they decrease or remain nearly constant owing to the opening of other reaction channels, underlining the role of excitation energy.

Corresponding author: Guinyun Kim, Department of Physics, Kyungpook National University, Daegu 41566, Korea, E-mail:

Funding source: Partly supported by the National Research Foundation of Korea through the grant provided by the Ministry of Science and ICT

Award Identifier / Grant number: NRF-2017R1D1A1B03030484

Award Identifier / Grant number: NRF-2018R1A6A1A06024970

Award Identifier / Grant number: NRF-2019H1D3A2A01102637

Acknowledgements

The authors are thankful to the staff of proton linac at Korea Multi-purpose Accelerator Complex of Korea Atomic Research Institute, Gyeongju, Korea, for providing the proton beam to carry out the experiments.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This research was partly supported by the National Research Foundation of Korea through the grant provided by the Ministry of Science and ICT (NRF-2017R1D1A1B03030484, NRF-2018R1A6A1A06024970, and NRF-2019H1D3A2A01102637).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Pricker, S. P. Medical uses of gold compounds: past, present and future. Gold Bull. 1996, 29, 53–60; https://doi.org/10.1007/bf03215464.Search in Google Scholar

2. Hermanne, A., Ignatyuk, A., Capote, R., Carlson, B., Engle, J., Kellett, M., Kibédi, T., Kim, G., Kondev, F., Hussain, M., Lebeda, O., Luca, A., Nagai, Y., Naik, H., Nichols, A., Nortier, F., Suryanarayana, S., Takács, S., Tárkányi, F., Verpelli, M. Charge particle reference cross section, Beam monitor reactions. Nucl. Data Sheets 2017, 148, 338–382; https://doi.org/10.1016/j.nds.2018.02.009.Search in Google Scholar

3. NuDat, 3.0. Search and plot nuclear structure and decay data interactively learn more. National Nuclear Data Center, Brookhaven National Laboratory. https://www.nndc.bnl.gov/nudat3/.Search in Google Scholar

4. Chu, S. Y. F., Ekstrom, L. P., Firestone, R. B. The Lund/LBNL, Nuclear Data Search, Version 2.0, 1999. WWW Table of Radioactive Isotopes. http://nucleardata.nuclear.lu.se/toi/.Search in Google Scholar

5. Bett, R., Dymond, D. S., Flatman, W., Stone, D. L., Cuninghame, J. G., Sims, H. E., Willis, H. H., Elliott, A. T. Development and use of the Hg195m-Au195m generator for first pass radionuclide angiography of the heart, J. Labelled Comp. Radiopharm, 1982, 19, 1444–1446.Search in Google Scholar

6. Bett, R., Cuninghame, J. G., Dymond, D. S., Flatman, W., Stone, D. L., Sims, H. E., Willis, H. H., Elliott, A. T. J. Label. Compd. Radiopharm. 1982, 19, 1444.Search in Google Scholar

7. Chisholm, G. D., Aye, M. M. Kidney scanning: the clinical use of 197Hg chlormerodrin and 99mTc iron complex. Proc. Roy. Soc. Med. 1967, 60, 869; https://doi.org/10.1177/003591576706000917.Search in Google Scholar

8. Experimental Nuclear Reaction Data (EXFOR) Database Version of 2023-05-15. Zerkin, V.V., Pritychenko. B. The experimental nuclear reaction data (EXFOR): extended computer database and web retrieval system, Nucl. Instru. Meth. A 2018, 888, 31. http://www-nds.iaea.org/exfor.10.1016/j.nima.2018.01.045Search in Google Scholar

9. Otuka, N., Dupont, E., Semkova, V., Pritychenko, B., Blokhin, A. I., Aikawa, M., Babykina, S., Bossant, M., Chen, G., Dunaeva, S., Forrest, R. A., Fukahori, T., Furutachi, N., Ganesan, S., Ge, ., Gritzay, O. O., Herman, M., Lalremruata, B., Lee, Y. O., Makinaga, A., Matsumoto, K., Mikhaylyukova, M., Pikulina, G., Pronyaev, V. G., Saxena, A., Schwerer, O., Simakov, S. P., Soppera, N., Suzuki, R., Tao, X., Taova, S., Varlamov, V. V., Wang, J., Yang, S. C., Zerkin, V., Zhuang, Y., Yang, S., Zhuang, Y. Towards a more complete and accurate experimental nuclear reaction data library (EXFOR): international collaboration between nuclear reaction data centres (NRDC). Nucl. Data Sheets 2014, 120, 272; https://doi.org/10.1016/j.nds.2014.07.065.Search in Google Scholar

10. Yule, H. P., Turkevich, A. Radiochemical studies of the (p,pn) reaction in complex nuclei in the 80-450-MeV range. Phys. Rev. 1960, 118, 1591; https://doi.org/10.1103/physrev.118.1591.Search in Google Scholar

11. Kavanagh, T. M., Bell, R. E. Cross sections of (p,pxn) reactions in 197Au. Can. J. Phys. 1961, 39, 1172; https://doi.org/10.1139/p61-132.Search in Google Scholar

12. Ditroi, F., Tarkanyi, F., Takacs, S., Hermanne, A. Activation cross sections of proton induced nuclear reactions on gold up to 65 MeV. App. Radiat. Isot. 2016, 113, 96; https://doi.org/10.1016/j.apradiso.2016.04.020.Search in Google Scholar PubMed

13. Cervenak, J., Lebeda, O. Measurement of cross-sections of proton-induced nuclear reactions on 197Au focused on the production of the theranostic pair 197m,gHg. Nucl. Instru. Meth. B 2019, 458, 118; https://doi.org/10.1016/j.nimb.2019.08.006.Search in Google Scholar

14. Szelecsenyi, F., Steyn, G. F., Kovacs, Z., Van Der Walt, T. N. Application of Au + p nuclear reactions for proton beam monitoring up to 70 MeV. Proc. Int. Conf. Nucl. Data Sci. Technol. 2007, 2, 1259; https://doi.org/10.1051/ndata:07379.10.1051/ndata:07379Search in Google Scholar

15. Szelecsenyi, F., Takacs, S., Fenyvesi, A., Szucs, Z., Tarkanyi, F., Heselius, S.-J., Bergman, J., Boothe, E. Study of the 197Au(p,pn)M1,M2,G196Au and 197Au(P,n)197MHg reactions and their application for proton beam monitoring in radioisotope production. Proc. Int. Conf. Nucl. Data Sci. Technol. 1997, 2, 1483.Search in Google Scholar

16. Satheesh, B., Musthafa, M. M., Singh, B. P., Prasad, R. Study of isomeric cross-section ratio and pre-equilibrium fraction in proton and alpha particle induced nuclear reactions on 197Au. Int. J. Mod. Phys. E 2012, 21, 1250059; https://doi.org/10.1142/s0218301312500590.Search in Google Scholar

17. Elmaghraby, E. K., Hassan, K. F., Omara, H., Saleh, Z. A. Production of the mercury-197 through proton induced reaction on gold. Appl. Radiat. Isot. 2010, 68, 1694; https://doi.org/10.1016/j.apradiso.2010.04.009.Search in Google Scholar PubMed

18. Hansen, L. F., Jopson, R. C., Mark, H., Swift, C. D. 181Ta(p,n)181W and 197Au(p,n)197Hg excitation functions between 4 and 13 MeV. Nucl. Phys. 1962, 30, 389.10.1016/0029-5582(62)90062-7Search in Google Scholar

19. Gritsyna, V. T., Klyucharev, A. P., Remaev, V. V., Reshetova, L. N. Ratio of the cross sections for the production of the isomer and ground states of nuclei in the (p,n) reaction at the energies from the threshold to 20 MeV. J. Eng. Tech. 1963, 17, 1186.Search in Google Scholar

20. Vandenbosch, R., Huizenga, J. R. Isomeric cross-section ratios for reactions producing the isomeric pair 197,197mHg. Phys. Rev. 1960, 120, 1313; https://doi.org/10.1103/physrev.120.1313.Search in Google Scholar

21. Nagame, Y., Sueki, K., Baba, S., Nakahara, H. Isomeric yield ratios in proto, 3He-and alpha-particle-induced reactions on 197Au. Phys. Rev. C 1990, 41, 889; https://doi.org/10.1103/physrevc.41.889.Search in Google Scholar PubMed

22. Thomas, R. G., Bartolini, W. Neutron production in Ag, Ta, Au, Pt, and Pb by the interaction of 7.5-14-MeV protons. Phys. Rev. 1967, 159, 1022; https://doi.org/10.1103/physrev.159.1022.Search in Google Scholar

23. Michel, R., Bodemann, R., Busemann, H., Daunke, R., Gloris, M., Lange, H.-J., Klug, B., Krins, A., Leya, I., Luepke, M., Neumann, S., Reinhardt, H., Schnatz-Buettgen, M., Herpers, U., Schiekel, Th., Sudbrock, F., Holmqvist, B., Conde, H., Malmborg, P., Suter, M., Dittrich-Hannen, B., Kubik, P. –W., Sinal, H. –A., Filges, D. Cross sections for the production of residual nuclides by low- and medium-energy protons from the target elements C, N, O, Mg, Al, Si, Ca, Ti, V, Mn, Fe, Co, Ni, Cu, Sr, Y, Zr, Nb, Ba and Au. Nucl. Instrum. Meth. B 1997, 129, 153; https://doi.org/10.1016/s0168-583x(97)00213-9.Search in Google Scholar

24. Poffe, N., Albouy, G., Gusakow, M., Sarrouy, J. L. Excitation functions of reactions (p,xn) on gold between 40 and 155 MeV. J. de Physique. 1961, 22, 639; https://doi.org/10.1051/jphysrad:019610022010063900.10.1051/jphysrad:019610022010063900Search in Google Scholar

25. Cho, Y. S., Kwon, H. J., Kim, D. I., Kim, H. S., Ryu, J. Y., Park, B. S., Seol, K. T., Song, Y. G., Yun, S. P., Jang, J. H. The KOMAC accelerator facility. In Proceedings of the 4th International Particle Accelerator Conference (IPAC2013), Shanghai, (China), May 12–17, 2013. JACoW: Geneva, Switzerland.Search in Google Scholar

26. Kim, K. R. Status of and prospects for proton beam utilization at the KOMAC. J. Korean Phys. Soc. 2015, 66, 491; https://doi.org/10.3938/jkps.66.491.Search in Google Scholar

27. Yang, S.-C., Song, T.-Y., Lee, Y.-O., Kim, G. Production cross sections of proton-induced reactions on yttrium. Nucl. Instrum. Meth. B 2017, 398, 1; https://doi.org/10.1016/j.nimb.2017.03.021.Search in Google Scholar

28. AMETEK Inc. Gamma Vision, Gamma-ray Spectrum Analysis and MCA Emulation for MS Windows, Software User’s Manual, Version 32, V5.10, AMETEK Inc.: USA, 2000.Search in Google Scholar

29. Ziegler, J. F., Zeiler, M. D., Biersack, J. P. The stopping and range of ions in matter, SRIM-2008.04. http://www.srim.org/.Search in Google Scholar

30. Koning, A. J., Rochman, D., Sublet, J., Dzysiuk, N., Fleming, M., van der Marck, S. TENDL: complete nuclear data library for innovative nuclear science and technology. Nucl. Data Sheets 2019, 155, 1; https://doi.org/10.1016/j.nds.2019.01.002.Search in Google Scholar

31. Koning, A. J., Hilaire, S., Goriely, S. TALYS-1.96, A Nuclear Reaction Program, 2015. http://www.talys.eu/download-talys/.Search in Google Scholar

32. Koning, A. J., Rochman, D. Modern nuclear dat evaluation with the TALYS code system. Nucl. Data Sheets 2012, 113, 2841; https://doi.org/10.1016/j.nds.2012.11.002.Search in Google Scholar
Received: 2023-04-06
Accepted: 2023-05-23
Published Online: 2023-06-05
Published in Print: 2023-09-26

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

  1. Frontmatter
  2. Original Papers
  3. Excitation functions of the 197Au(p,pxn) and 197Au(p,xn) reactions
  4. Measurement of spectrum-averaged cross sections of the (n,p) and (n,n′) reactions on strontium by fast neutrons of a TRIGA reactor: comparison with integrated data from excitation functions of various data libraries
  5. Extraction of uranium and rare earths from mineralized ferruginous sandstone, southwestern Sinai
  6. Cesium ion removal from low-level radioactive wastewater utilizing synthesized cobalt hexacyanoferrate-sand composite
  7. Separation of 71,72As from alpha-particle induced reaction on gallium oxide target using naturally occurring alkaloid caffeine
  8. Quality characteristics of white button mushrooms (Agaricus bisporus) affected by gamma irradiation and volatile oils during storage
  9. A closer inspection of the structural, mechanical, optical and radiation shielding properties of GeO2-doped magnesium-telluroborate glasses
https://doi.org/10.1515/ract-2023-0158
Keywords for this article
197Au(p,pxn)196-193Au and 197Au(p,xn)197,195,193Hg reactions; off-line γ-ray spectrometry; proton energy range from 49.8 to 66.8 MeV; stacked-foil activation; TENDL-2019 library
Creative Commons
BY 4.0

Articles in the same Issue

  1. Frontmatter
  2. Original Papers
  3. Excitation functions of the 197Au(p,pxn) and 197Au(p,xn) reactions
  4. Measurement of spectrum-averaged cross sections of the (n,p) and (n,n′) reactions on strontium by fast neutrons of a TRIGA reactor: comparison with integrated data from excitation functions of various data libraries
  5. Extraction of uranium and rare earths from mineralized ferruginous sandstone, southwestern Sinai
  6. Cesium ion removal from low-level radioactive wastewater utilizing synthesized cobalt hexacyanoferrate-sand composite
  7. Separation of 71,72As from alpha-particle induced reaction on gallium oxide target using naturally occurring alkaloid caffeine
  8. Quality characteristics of white button mushrooms (Agaricus bisporus) affected by gamma irradiation and volatile oils during storage
  9. A closer inspection of the structural, mechanical, optical and radiation shielding properties of GeO2-doped magnesium-telluroborate glasses
Sign up now to receive a 20% welcome discount
Institutional Access
How does access work?
Have an idea on how to improve our website?
Please write us.
© 2025 De Gruyter Brill
Downloaded on 26.9.2025 from https://www.degruyterbrill.com/document/doi/10.1515/ract-2023-0158/html
Scroll to top button
