Crystal structure of 2-amino-7-methyl-4-(3,4-difluoro-phenyl)-5-oxo-4H,5H-pyrano[4,3-b]pyran-3-carbonitrile, C16H10F2N2O3

  • Dongjing Zheng EMAIL logo , Yige Yang and Jing Li
Published/Copyright: August 22, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 4

Abstract

C16H10F2N2O3, monoclinic, P21/c (no. 14), a = 9.4647(7) Å, b = 11.8726(7) Å, c = 12.5732(8) Å, β = 92.262(4)°, V = 1411.76(16) Å3, Z = 4, Rgt(F) = 0.0459, wRref(F2) = 0.1285, T = 293 K.

CCDC no.:: 1497741

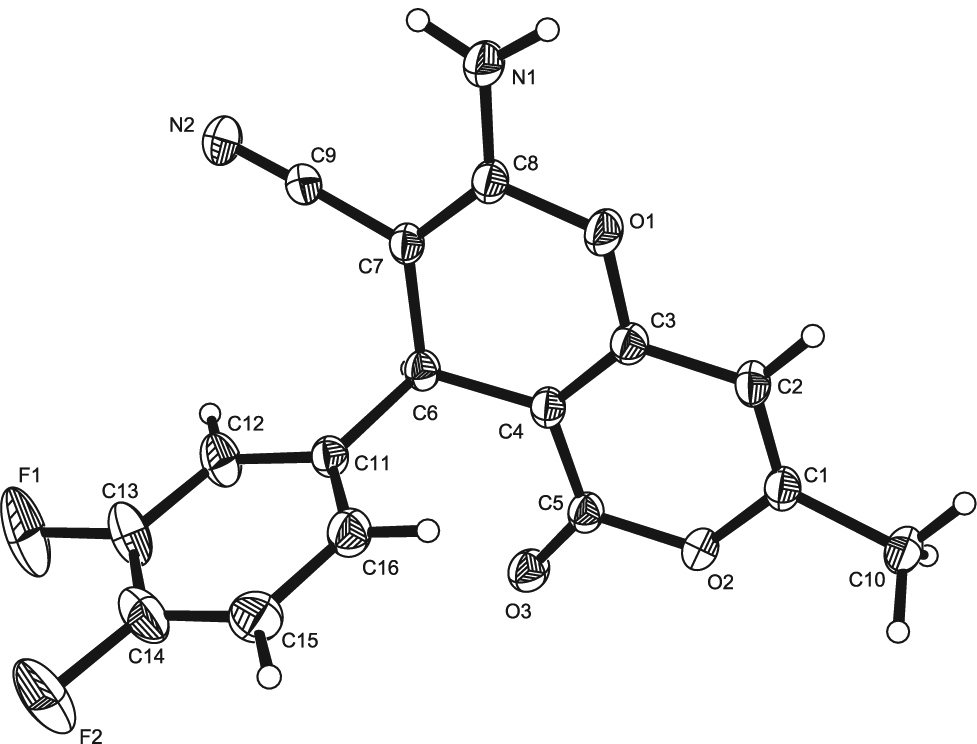

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless blocks Size 0.20 × 0.18 × 0.17 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.2 cm−1
Diffractometer, scan mode:Bruker P4, ω
2θmax, completeness:50°, >98%
N(hkl)measured, N(hkl)unique, Rint:8227, 2452, 0.012
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2251
N(param)refined:208
Programs:SHELX [6], Bruker programs [7]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.22244(17)0.00642(15)0.55569(13)0.0375(4)
C20.32215(18)0.08493(15)0.54663(13)0.0391(4)
H2A0.35290.12740.60520.047*
C30.38022(17)0.10216(14)0.44535(12)0.0347(4)
C40.33914(17)0.04145(14)0.35849(12)0.0330(4)
C50.23653(17)−0.04615(14)0.37082(12)0.0348(4)
C60.39481(16)0.06182(14)0.24986(12)0.0325(4)
H6A0.4317−0.00980.22390.039*
C70.51783(17)0.14392(14)0.26144(12)0.0340(4)
C80.55089(17)0.20203(14)0.35169(12)0.0353(4)
C90.60416(17)0.15720(15)0.17294(13)0.0371(4)
C100.1437(2)−0.02112(18)0.65199(14)0.0476(5)
H10A0.17600.02630.70980.071*
H10B0.1596−0.09860.67080.071*
H10C0.0445−0.00890.63770.071*
C110.28125(17)0.10314(14)0.16882(12)0.0341(4)
C120.3005(2)0.08279(17)0.06166(14)0.0487(5)
H12A0.37850.04210.04060.058*
C130.2038(3)0.1230(2)−0.01291(15)0.0619(6)
C140.0854(2)0.18031(19)0.01723(18)0.0610(6)
C150.0643(2)0.20137(19)0.12219(18)0.0565(5)
H15A−0.01530.24040.14270.068*
C160.16383(19)0.16343(16)0.19746(14)0.0438(4)
H16A0.15140.17890.26900.053*
O10.47953(13)0.18546(11)0.44358(9)0.0437(3)
O20.18092(12)−0.05863(10)0.47041(9)0.0404(3)
O30.19199(13)−0.10951(11)0.30186(10)0.0450(3)
N10.65170(17)0.27926(13)0.36867(11)0.0464(4)
H1A0.70590.29770.31820.056*
H1B0.66250.31060.43010.056*
N20.67250(18)0.16320(16)0.10007(12)0.0537(4)
F10.2254(2)0.10824(16)−0.11733(10)0.1076(7)
F2−0.00792(18)0.21701(17)−0.05935(13)0.1013(6)

Source of material

The title compound was synthesized according to a reported procedure [6]. A mixture of 4-hydroxy-6-methylpyran-2-one (10 mmol), 3,4-difluorobenzaldehyde (10 mmol), malononitrile (10 mmol) and 4-(dimethylamino)pyridine (DMAP) (1 mmol) in ethanol (100 mL) was refluxed for 2–3 h and then cooled to room temperature. After filtering the precipitates, they were sequentially washed with icy water and ethanol and then dried under a vacuum.

Experimental details

H atoms bonded to C and N were positioned geometrically and refined using a riding model, with C—H = 0.93 Å and N—H = 0.86 Å with Uiso(H) = 1.2 times Ueq(C) or Ueq(N).

Discussion

Pyrans have a variety of pharmacological and biological activities including antitumor, analgesic and ulcerogenic, anti-inflammatory, anticoagulant, phototriggering, and fungicidal properties, moreover, they can be used as anticoagulants in the production of pesticides [1, 2]. In particular, the antitumor activity of pyran compounds has received considerable attention because of their cytotoxic activity against numerous types of cancers, including malignant melanoma, leukemia, renal cell carcinoma, prostate and breast cancer cell progression [3, 4, 5].

In the crystal structure of the title compound, the 4H-pyran ring is nearly planar and the adjacent ring with the keto group adopts an almost planar conformation. The 4H-pyran ring plane is almost perpendicular to the plane of the difluorophyenyl moiety. All bond lengths and angles are in the expected ranges.

References

1. Gordon, R. J.; Lowy, F. D.: Pathogenesis of methicillin-resistant Staphylococcus aureus Infection. Clin. Infect. Dis. 46 (2008) S350–S359.10.1086/533591Search in Google Scholar

2. Khan, A. T.; Lal, M.; Ali, S.; Khan, M. M.: One-pot threecomponent reaction for the synthesis of pyran annulated heterocyclic compounds using DMAP as a catalyst. Tetrahedron Lett. 52 (2011) 5327–5332.10.1016/j.tetlet.2011.08.019Search in Google Scholar

3. Eshghi, H.; Zohuri, G. H.; Sandaroos, R.; Damavandi, S.: Synthesis of novel benzo[f]chromene compounds catalyzed by ionic liquid. Heterocycl. Commun. 18 (2012) 67–70.10.1515/hc-2011-0060Search in Google Scholar

4. Bonsignore, L.; Loy, G.; Secci, D.; Calignano, A.: Synthesis and pharmacological activity of 2-oxo-(2H)1-benzopyran-3-carboxamide derivatives. Eur. J. Med. Chem. 28 (1993) 517–520.10.1016/0223-5234(93)90020-FSearch in Google Scholar

5. Gacche, R. N.; Jadhav, S. G.: Antioxidant activities and cytotoxicity of selected coumarin derivatives: preliminary results of a structure–activity relationship study using computational tools. J. Exp. Clin. Med. 4 (2012) 165–169.10.1016/j.jecm.2012.04.007Search in Google Scholar

6. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

7. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA, 2009.Search in Google Scholar

Received: 2016-5-13
Accepted: 2016-8-4
Published Online: 2016-8-22
Published in Print: 2016-12-1

©2016 Dongjing Zheng et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
