Crystal structure of poly-[diaqua-bis(μ2-2-((1H-1,2,4-triazol-5-yl)thio)acetato-κ2N:O) cadmium(II)], C8H8CdN6O6S2

  • Min-Dong Chen , Xing Zhang , Bo Xiao EMAIL logo and Feng-Hua Chen
Published/Copyright: August 18, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 4

Abstract

C8H8CdN6O6S2, monoclinic, P21/c (no. 14), a = 7.4175(11) Å, b = 13.786(2) Å, c = 7.4934(11) Å, β = 93.835(2)°, V = 3972.0(12) Å3, Z = 2, Rgt(F) = 0.0193, wRref(F2) = 0.0581, T = 296(2) K.

CCDC no.:: 1495693

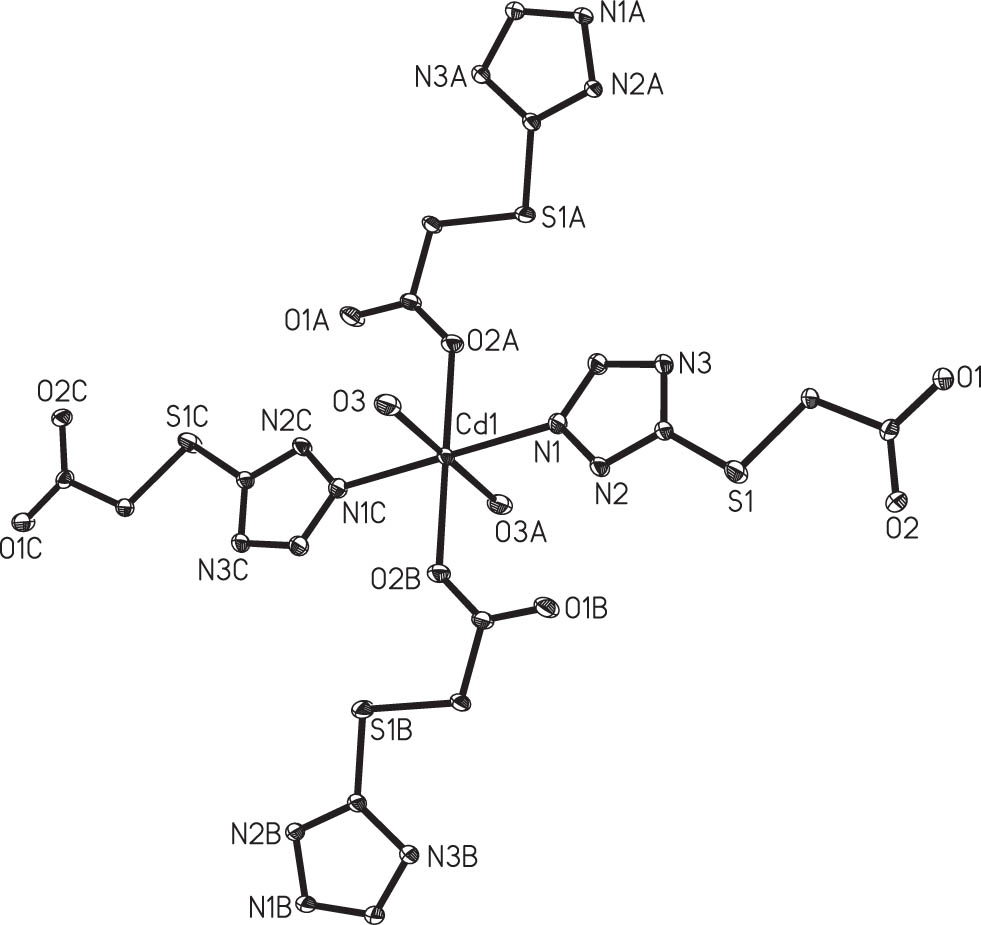

A part of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block Size 0.34 × 0.30 × 0.29 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:17.4 cm−1
Diffractometer, scan mode:Bruker SMART, φ and ω
2θmax, completeness:56.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:4288, 1400, 0.010
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1318
N(param)refined:106
Programs:Bruker programs [6], SHELX [7]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd10.50001.00000.00000.02355(11)
S11.07241(9)0.77499(4)0.42157(10)0.03988(19)
O11.5664(2)0.76232(12)0.6291(3)0.0420(5)
O21.3671(2)0.65227(12)0.5196(2)0.0328(4)
O30.3894(2)1.04688(14)0.2646(3)0.0399(4)
H1W0.39381.10430.30620.060*
H2W0.28451.02880.28970.060*
N10.7707(3)0.96176(14)0.1586(3)0.0275(4)
N20.8104(3)0.87367(14)0.2334(3)0.0283(4)
H2D0.73960.82420.22980.034*
N31.0493(2)0.96387(15)0.2953(3)0.0261(4)
C10.9769(3)0.87636(15)0.3133(3)0.0230(4)
C20.9173(4)1.01295(17)0.1997(4)0.0285(5)
H20.92931.07740.16600.034*
C31.2958(3)0.82117(16)0.4866(3)0.0283(5)
C41.4191(3)0.73721(16)0.5498(3)0.0246(5)

Source of material

A mixture of [(1,2,4-triazol-3-yl)thio]acetic acid (86.7 mg, 0.30 mmol), Cd(NO3)2·4H2O (46.0 mg, 0.15 mmol) and NaOH (120 mg, 0.30 mmol) was dissolved in 10 mL H2O. Then the solution was heated in a 25 mL Teflon-lined autoclave under autogenous pressure at 398 K for 3 days. After cooling to room temperature, colorless crystals formed (yield 43% based on Zn). Elemental analysis (C8H8CdN6O6S2): H 1.75, C 20.86, N 18.24, O 20.84%; found: H 1.84, C 20.81, N 18.19, O 20.91%.

Experimental details

The C-bound hydrogen atoms were included in calculated positions and treated as riding atoms: d(C—H) = 0.93–0.96 Å with Uiso(H) = 1.2 or 1.5 Ueq(C).

Discussion

The keen interest in the design and synthesis of coordination polymers (CPs) stems not only from their potential applications in gas storage, catalysis, drug delivery, nonlinear optics, and molecular sensing, but also because of impressive structural topologies [1, 2]. The construction of coordination architectures depends on the combination of several factors, such as the coordination geometry of metal ions, the nature of organic ligands, the use of noncovalent interactions (hydrogen bonding, halogen bonding, π–π interactions, or their combination in different ways) and sometimes the reagent ratio [3, 4]. So, understanding how these considerations affect metal coordination and influence crystal packing is at the forefront of controlling coordination frameworks. It has been documented that the geometries of organic ligands play crucial roles in determining the resulted architectures [5]. With the aim to understand the interesting chemistry of carboxylate ligand, we studied its assembly reaction of [(1,2,4-triazol-3-yl)thio]acetic acid (H2tzta) with Cd(II) ions under hydrothermal condition.

Structure solution revealed that the asymmetric unit of title structure contain one half of a Cd(II), one deprotonated carboxylato ligand and one water ligand to construct a 2-D coordination polymer. Each Cd(II) ion, located on a crystallographic inversion center, is six-coordinated by two carboxylate oxygens (D(Cd–O) = 2.2891(19) Å) and two thiazole nitrogen atoms (D(Cd–N) = 2.3243(19) Å) and two coordinated water molecules, forming a distorted octahedral geometry (cf. the figure). The bond angles of O—Cd—N are in the range of 83.21(6)°–96.79(6)°. In addition, there is a complex network of intermolecular hydrogen bonds. These interactions result in a three dimensional architecture.

Acknowledgements:

This work was supported by the Natural Science Foundation of Jiangsu Province of China (No. BK20131429) and the open project of Jiangsu Engineering Technology Research Center of Environmental Cleaning Materials (No. KFK1506).

References

1. Horike, S.; Shimonura, S.; Kitagawa, S.: Soft porous crystals. Nat. Chem. 1 (2009) 695–704.10.1038/nchem.444Search in Google Scholar PubMed

2. Jiang, H. L.; Xu, Q.: Metal-organic frameworks as platforms for hydrogen generation from chemical hydrides. Chem. Commun. 47 (2011) 3351–3370.10.1039/c0cc05419dSearch in Google Scholar PubMed

3. Li, X. P.; Zhang, J. Y.; Pan, M.; Zheng, S. R.; Liu, Y.; Su, C. Y.: Zero to three dimensional increase of silver(I) coordination assemblies controlled by deprotonation of 1,3,5-tri(2-benzimidazolyl)benzene and aggregation of multinuclear building units. Inorg. Chem. 46 (2007) 4617–4625.10.1021/ic070309kSearch in Google Scholar PubMed

4. Sava, D. F.; Kravtsov, V. Ch.; Eckert, J.; Eubank, J. F.; Nouar, F.; Eddaoudi, M.: Exceptional stability and high hydrogen uptake in hydrogen-bonded metal-organic cubes possessing ACO and AST zeolite-like topologies. J. Am. Chem. Soc. 131 (2009) 10394–10396.10.1021/ja903287vSearch in Google Scholar PubMed

5. Dai, F. N.; He, H. Y.; Gao, D. L.; Ye, F.; Qiu, X. L.; Sun, D. F.: Construction of copper metal–organic systems based on paddlewheel SBU through altering the substituent positions of new flexible carboxylate ligands. CrystEngComm 11 (2009) 2516–2522.10.1039/b904671bSearch in Google Scholar

6. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA, 2009.Search in Google Scholar

7. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2016-3-29
Accepted: 2016-7-25
Published Online: 2016-8-18
Published in Print: 2016-12-1

©2016 Min-Dong Chen et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
