Oxygen diffusion pathways in mutated forms of a LOV photoreceptor from Methylobacterium radiotolerans: A molecular dynamics study

Abbreviations

BL

blue light

BsYtvA-LOV

Bacillus subtilis YtvA LOV domain

ET

energy transfer

FAD

flavin adenine dinucleotide

FMN

flavin mononucleotide

FP

fluorescent protein

HB

hydrogen bonds

LOV

light, oxygen voltage

miniSOG

mini Singlet Oxygen Generator

MD

molecular dynamics

PDB

protein data bank

PR

position restrained

RMSD

root mean square deviation

RMSF

root mean square fluctuation

ROS

reactive oxygen species

SO

singlet oxygen

SOPP

singlet oxygen photosensitising protein

Introduction

Light, oxygen, voltage (LOV) proteins are UVA/blue-light (BL) photoreceptors that bind riboflavin derivatives as chromophores, primarily flavin mononucleotide (FMN) or, in fungal proteins, flavin adenine dinucleotide (FAD) [1]. Flavin is embedded within a globular and compact α/β fold of ca. 110 amino acids, named LOV domain [2], in most proteins fused to a variety of effector and regulatory modules [3]. In the dark adapted state (referred to as LOV₄₅₀ from the approximate absorption maximum in the visible range), the chromophore is noncovalently bound within the LOV domain and exhibits a typical green fluorescence [4]; BL illumination triggers a photocycle with the formation of a photoproduct (LOV₃₉₀) via the 2–4 μs decay of the flavin triplet excited state [5]. In LOV₃₉₀, FMN (or FAD) is covalently bound at position C4a to a nearby cysteine residue; FMN-N5 becomes protonated and fluorescence is lost, while the biological activity is activated (Figure 1) [1]. In the dark, LOV₃₉₀ thermally returns to the LOV₄₅₀ state with recovery lifetime (τ _R) ranging from a few seconds to days [6].

Figure 1

Left, simplified photocycle of a wt LOV protein. The dark-adapted state LOV₄₅₀ is fluorescent with ca. 20% quantum efficiency. After BL illumination, the photoproduct LOV₃₉₀ is formed with ca. 30–50% efficiency via the 2–4 ms decay of the FMN triplet state, fluorescence is lost and biological functions is activated, a feature also exploited in light control of cell functions (optogenetics). Right, when the reactive Cys is modified (here the example of serine) the photoproduct is not formed, fluorescence efficiency is higher (30–50%) and the triplet lifetime becomes longer: these features are suitable for fluorescence microscopy and photodynamic activity with generation of ROS [1].

The large number of LOV proteins - wide spread in the three superkingdoms - their modular architecture, and the increasing understanding of their activation and signal transduction mechanisms are offering many chances to engineer LOV-based actuators for optogenetics [7,8,9]. Engineered LOV domains are also exploited as fluorescent reporters, collectively named flavin-binding fluorescent proteins (FbFPs), which, differently from prototypical FPs of the green fluorescent protein type, are small, minimally perturbative, and oxygen independent [4]. A further and more recent application is their exploitation as genetically encoded photosensitisers for singlet oxygen (SO) and other reactive oxygen species (ROS) such as the superoxide anion and the hydroxyl radical [10]. The triplet state of free or LOV-bound FMN has, in fact, an energy content of ca. 200 kJ/mol [11], a perfect configuration to perform efficient energy transfer (ET) to O₂ (a triplet state) via the Dexter mechanism yielding the strong oxidant SO [¹O₂ (a¹Δ_g)] that lies at 94 kJ/mol [12]. Photosensitised formation of SO is exploited for a variety of biophysical and medical applications, e.g. photodynamic therapy of cancer and microbe inactivation, cell ablation, induction of cell stress responses in optogenetics, and oxidative tagging in electron microscopy [7,13]. Nevertheless, the Dexter ET process is diffusion limited, and its efficiency depends crucially on the triplet lifetime τ _T of the photosensitiser, i.e. in wild-type (wt) LOV domains, the reactive cysteine nearby FMN quenches the triplet state of the chromophore forming the photoproduct on the short microsecond time scale, thus impeding formation of SO. In LOV domains where this cysteine has been exchanged with serine or alanine, τ _T becomes accordingly longer, in the tens of microseconds range [5,14]. The first LOV domain engineered for the purpose of generating SO was a so-called mini singlet oxygen generator (miniSOG), where six mutations were introduced into the native protein [15], τ _T was 31 μs in aqueous, aerated solution [16], but the quantum yield of formation for SO (Φ_Δ) remained very modest (ca. 0.03) [17]; for comparison, free FMN has Φ_Δ = 0.51 in aqueous solution [18]. The enhanced miniSOG variants developed later, baptised singlet oxygen photosensitising proteins (SOPPs), notably have shown that tryptophan 81 and glutamine 103 (miniSOG numbering) represent major quenchers of the FMN triplet state, together with poorly identified tyrosine residues: beyond the additional (with respect to miniSOG) Q103V mutation, the best performing variant, SOPP3, bears the W81L change ensuring τ _T = 135 μs and Φ_Δ = 0.61 (aerated D₂O buffer) [19]. Interestingly, W81, localised at an edge-to-edge distance of ca. 11 Å, is conserved in about 75% of sequenced LOV domains at this position and in the absence of the reactive cysteine represents the major quencher of the FMN triplet state by electron transfer forming a transient radical pair [20,21]. Residual problems, also in the enhanced SOPP variants of miniSOG, are the instability and the bleaching of the chromophore both in vitro and in vivo under prolonged illumination [22,23]. Recently, the Mr4511 LOV protein from the plant symbiont Methylobacterium radiotolerans was characterised and shown to be a promising photosensitiser for SO with Φ_Δ ca. 0.2 upon the single mutation of the reactive Cys71 into Gly or Ser [24]. Mr4511 (164 aa) is built of a standalone LOV domain with short N- and C-terminal flanking regions [25]. The position corresponding to W81 of miniSOG is occupied by Q112, and this undoubtedly confers an unusually long τ _T to the C71S and C71G variants (240 and 340 μs, respectively) as demonstrated by inserting a Trp residue at position 112, which shortens τ _T by one order of magnitude, concomitantly reducing Φ_Δ to ca. 0.01 [24]. In addition, Mr4511 has unusual stability towards denaturation with urea, a promising feature for applications in vivo [24]. The prominent role of Trp residues and, with less efficiency, tyrosines in quenching the FMN triplet state in Mr4511 has been highlighted in a recent work: Trp or Tyr residues in the proximity of the chromophore (naturally occurring or artificially inserted) shorten τ _T, whereas Phe residues are inert [26]. The results with different Mr4511-C71S variants also show that τ _T and Φ_Δ are positively correlated.

In order to understand at the molecular level the propensity of Mr4511 to be engineered as a photosensitiser for SO and suggest further improvements, in this work, we have built a stable dimeric 3D model for the Mr4511 structure, which till now was never been resolved. After creating its C71S variant in silico, we have investigated the presence of transient and persistent oxygen channels using molecular dynamics (MD) simulations and analysed the diffusion of molecular oxygen inside the protein. Mutations that might favour SO generation were then designed based on their position with respect to the FMN and the oxygen channels, taking into account the ability of certain amino acids to quench the FMN triplet state and SO. Such mutations were inserted in the C71S variant and simulated in the presence of oxygen to compare its diffusibility and persistence in the binding pocket, leading to a double variant that, enhancing oxygen diffusion to the FMN-binding site, promise to be a stronger and efficient photosensitiser for SO.

Methods

Results

Model of Mr4511 LOV domain

The stability of the dimeric model of the Mr4511 LOV domain was assessed by three 300 ns long MD simulation replicas, performed under standard conditions (T = 300 K and P = 1 bar, Table S1). By means of RMSD plots and matrices, a structural convergence was verified (Figures S1 and S2), which allowed us to build a mean structure that could be the starting point for subsequent simulations (Section 2). Root mean square fluctuation (RMSF) plots show as well peaks of flexibility in the predicted regions.

The typical structure of LOV domains consists of a core formed by five β-strands and four helices, named Aβ–Bβ–Cα–Dα–Eα–Fα–Gβ–Hβ–Iβ [3] (Figure 2). The regions flanking this core at the N- and C-terminals exhibit variable α-helical structures, named A′α and Jα, respectively. The pocket hosting the FMN chromophore is lined by two core helices, one of which is a 3₁₀-helix. Instead of two arginine residues protruding from these two helices as in the other LOV photoreceptors, the structural model of Mr4511 shows three arginines (Arg72, Arg88, and Arg92) that keep in place the ligand through salt bridges formed with its phosphate group (Figure 3a). The network of H bonds, interacting with the polar part of the isoalloxazine ring of FMN and involving a conserved triad made by two asparagine residues (Asn103 and Asn113) and the so-called “flipping” glutamine (Gln134) [35,38], is also present and contributes to the stability and functionality of the ligand (Figure 3b). This last residue, although not fully conserved in the LOV series, participates in signal transmission by reorienting its lateral chain after the formation of the photoproduct [39]. We note that it was recently shown that even when this residue is naturally absent or artificially mutated, LOV domains undergo light-induced conformational changes and remain partially functional, possibly due to the transient ingress of water molecules in the photoproduct, as suggested by MD simulation results [40].

Figure 2

Mr4511 dimeric model, coloured by secondary structure. The four leucine residues forming the leucine zipper at the long C-terminal helices are highlighted in stick and coloured by atom type. The secondary structure elements are labelled.

Figure 3

Key structural features of LOV domain in Mr4511. (a) The three arginine residues interacting with FMN phosphate group. (b) The residues triad establishing an H-bond network with FMN. (c) and (d) The two conserved salt bridges lining the doorways to the binding pocket.

Interestingly, as mentioned in Section 2, in the C-terminal helix a leucine pattern was observed involving a high number of leucine residues (four residues: 143, 150, 154, and 161). The presence of this pattern – the so-called ZIP domain – supported the hypothesis of a dimeric model for Mr4511 in which the long terminal helix is extended to allow the formation of a leucine zipper (Figure 2).

In the MD trajectories, two conserved salt bridges, namely, Lys106–Glu65 and Arg105–Asp136, are observed to play an important role in the permeability to water (and – as we will discuss below – to oxygen molecules) of the binding pocket (Figure 3c and d). Such salt bridges line what were already recognised as doorways for water in a previous study on the YtvA LOV domain from Bacillus subtilis (BsYtvA-LOV) [35]. Differently from BsYtvA-LOV, however, where the binding cavity was rather impermeable to water molecules and where their penetration strongly perturbed the conserved FMN–Gln–Asn–Asn H-bond network, in Mr4511, water can more easily enter and exit from the binding pocket, and the perturbation of hydrogen bonds (HB) is reversible. The Arg105–Asp136 salt bridge has a pivotal role for water ingress (and oxygen – as we will see below) being a gate for one of the main cavities from which originates one of the most persistent tunnels connecting the solvent with the binding pocket. Regarding the Lys106–Glu65 salt bridge, a particular behaviour is detected. In BsYtvA-LOV, the basic residue Lys97 – analogous to Mr4511 Lys106 – was involved in an alternative salt bridge with two acidic residues, both on the opposite Cα helix, maintaining in this way a limited entrance to the binding cavity. On the contrary, in Mr4511 it is the acidic residue Glu65 that switches between Lys106 and Arg69, in the same Cα helix of Glu65 (Figure 3c). Finally, the presence of a very stable water molecule forming a bridge between the NH backbone atom of Cys71 (the cysteine forming the photoproduct in the wt protein) and the O2′ atom of the ribityl chain of FMN is notable. A water molecule in this position is conserved in all the crystal structures of LOV domains [41], supporting the reliability of our structural model.

Analysis of cavities and tunnels and simulations of dioxygen diffusion

Mr4511-C71S variant

To prevent the formation of the photoproduct and allow ET from the FMN triplet state to dioxygen, generating SO, the reactive Cys71 was mutated in silico in a serine residue. This variant has been previously experimentally investigated [24]. The structure was checked for stability by means of MD simulation replica 200 ns long. Again, RMSD plots and matrices assessed the reaching of convergence with no modifications in the structure with respect to the wild-type protein, and RMSF plots reported very low oscillations in the expected flexible regions (loops and termini) (Figure S3).

The Mr4511-C71S structure was first investigated for the presence of cavities. Three cavities were found from which O₂ could diffuse in the vicinity of FMN, thus minimising quenching of the triplet state by amino acid sidechains (in particular, His, Met, Trp, and Tyr [20,26,42]) and enhancing local oxygen concentration. The first cavity is lined by the Arg105–Asp136 salt bridge and the residues involved in the H-bond network; the second lies at one side of FMN, behind Eα and Fα helices; and the third lies at the other side of FMN, near the methylic substituents of alloxazine.

Starting from these cavities, the formation of tunnels suitable for oxygen diffusion into the binding pocket was explored along the MD trajectories, and the similar ones (i.e. below a threshold of 3.5 Å as a maximum centre-to-centre distance, see Section 2) were clustered. Representative tunnels of the more persistent clusters were further analysed. Three tunnels were identified, one for each cavity, which connect the outer surface of the protein to the FMN-binding pocket, leading in the vicinity of the cofactor (Figure 4). It is noticeable that tunnels form dynamically within the protein, changing their radius with the thermal motions of the sidechains of the residues. Subsequently, the ability of oxygen to diffuse inside the binding pocket was investigated by means of MD simulations performed after the insertion of 50 O₂ molecules in the box of water surrounding the protein. In the trajectories, multiple events of ingress of oxygen molecules in the binding cavity were observed, all passing through the three identified tunnels. In addition, the permanence of oxygen inside the binding cavity is very long, reaching more than 58 ns (Table 1), and concerns, in particular, the neighbourhood of the FMN cofactor.

Figure 4

More persistent tunnels leading to the three binding cavities and connecting outside to the FMN cofactor in the C71S variant.

Table 1

Presence and persistence of O₂ molecules in the binding pocket

Variant	Presence of O2 in the binding pocketa (% of frames)	Highest persistence timeb (ns)	Number of different molecules enteringc
C71S	35	58.3	18
C71S-Y61T	40	31.4	39
C71S-Y61S	58	72.2	22

^aThe Binding pocket is calculated considering a neighbourhood of 8 Å around atom O4 of FMN. Values are averaged on the two MD replicas.

^bThe highest persistence time between the two replicas is reported.

^cEach number corresponds to the replica with the persistence time reported in the previous column.

This is especially true for the molecules diffusing through the tunnel created thanks to the breaking of the Arg105–Asp136 salt bridge and penetrating into the first cavity mentioned above, lined by the residues of the H-bond network. Looking at the volume maps of the occupancy of oxygen inside the binding pocket (Figure 5), this region has the highest values. It is worth noting that the highest mobility of oxygen in the whole binding pocket leads to lower values of occupancy in a limited region with respect to water. Water is, in fact, less movable because of its ability to form interactions due to its polarity. It is just for its different polarity that the high presence of O₂ near the HB network does not perturb it as water does. In fact, in the analogous volume maps calculated for water (Figure 5), the highest occupancy is again in the HB network region, where, on the contrary, water perturbs the site and is trapped by H-bond interactions both with the sidechain of the conserved triad and with FMN itself.

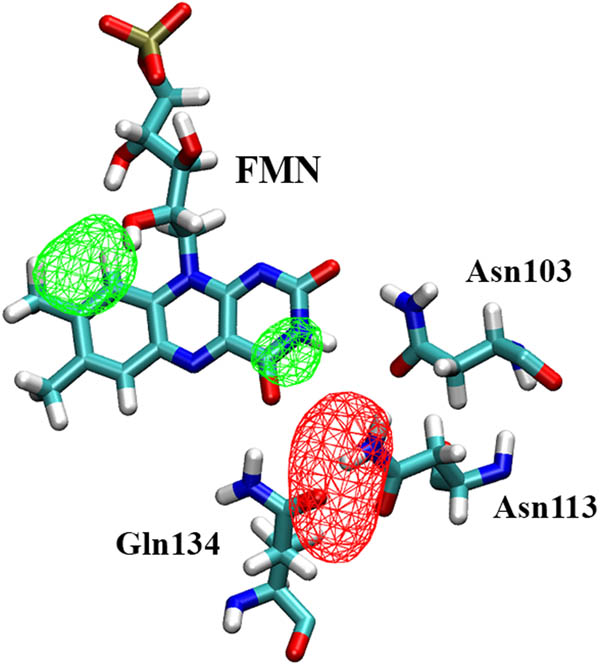

Figure 5

Occupancy volume maps of oxygen (red, isosurface value 5%) and water (green, isosurface value 25%) in the binding pocket of C71S variant (replica C71S_r1 is shown as an example). The volume maps were averaged on the whole trajectory after skipping the first 5 ns. A neighbourhood of 8 Å around atom O4 of FMN cofactor includes the whole binding pocket. The FMN and the HB networking triad are shown as a reference.

Interestingly, it is worth noting the presence of the conserved water molecule near residue 71, as observed for the wt protein, in this case forming a bridge between the hydroxyl group of mutated Ser71 in place of cysteine, and the O2′ atom of the ribityl chain of FMN.

Mr4511-C71S-Y61T and Mr4511-C71S-Y61S variants

In the MD simulations previously described, it was observed that oxygen molecules explored the surface region around the Glu65–Ly106 salt bridge without being capable of penetrating inside due to the presence of the bulky sidechain of Tyr61. Therefore, to design a protein variant even more efficient in the production of SO favouring oxygen entrance, two mutants of Tyr61 were proposed: a threonine, which with lower steric hindrance still maintains both polarity and hydrophobicity; and a serine, to further reduce the size but preserve polarity features. The choice of mutating a tyrosine is supported by the fact that this kind of residue is efficient to quench the triplet state of FMN [43]. Both C71S-Y61T and C71S-Y61S variants’ stability was confirmed again by MD simulations (Figure S4), and their cavity and tunnels were explored. As expected, in both variants, a further cavity was detected between the mutated residue and the isoalloxazine rings of FMN, and new tunnels from this cavity to the outside were formed during the trajectories (Figure 6). MD simulations in the presence of oxygen showed in both variants high diffusion of O₂ through these new tunnels, as well as through the other ones previously detected, increasing the percentage of frames in which oxygen is present in the FMN-binding pocket, higher for C71S-Y61S than for C71S-Y61T (Table 1). Comparing, among the three variants, the number of different O₂ molecules entering in the binding cavity with the highest persistence time of the same molecule in it (Table 1), it seems that for C71S-Y61T, more distinct oxygen molecules enter but less persistently; vice versa, for the C71S-Y61S variant, the highest persistence time of a single molecule corresponds to a lower number of distinct oxygen molecules able to enter in the pocket. It seems that the channel in C71S-Y61T could be more permeable, with the O₂ molecules entering and exiting more easily than in the C71S-Y61S variant, which, on the contrary, tends to keep oxygen inside. The methyl group of mutated residue Thr61 is, in fact, surrounded by a hydrophobic cluster that maintains the sidechain in an orientation that keeps the channel open most of the time. The occupancy volume maps confirm this behaviour, showing that oxygen tends to be spread around the binding pocket in the threonine variant, and assembled around the HB network in the serine one, which for both cases agrees with the higher presence in space and time of oxygen in the binding site with respect to the C71S variant (Figure 7).

Figure 6

New tunnel connecting outside to the FMN cofactor in the C71S-Y61T (a) and C71S-Y61S (b) variant.

Figure 7

Occupancy volume maps of oxygen (red, isosurface value 5%) and water (green, isosurface value 25%) in the binding pocket of C71S-Y61T (a) and of C71S-Y61S (b) variants (replica C71S-Y61T_oxy_r1 and C71S-Y61S_oxy_r1 are shown as an example). The volume maps were averaged on the whole trajectory after skipping the first 5 ns. A neighbourhood of 8 Å around atom O4 of FMN cofactor includes the whole binding pocket. The FMN and the HB networking triad are shown as a reference.

Interestingly, water is not able to pass through the new tunnels to diffuse inside the binding pocket because it remains trapped in water bridges formed among residues Glu65, Ly106, and Arg69 of the broken salt bridge. Therefore, the cavity and tunnels created by the mutations have proved to be effective in oxygen selection with respect to water, preventing the filling of the binding cavity by water molecules and the consequent perturbation of the key interactions. Also in these double variants, the conserved water molecule bridging the hydroxyl group of mutated Ser71 and the O2′ atom of the ribityl chain of FMN is still present.

The volume map of water occupancy in the Mr4511-C71S-Y61T variant (Figure 7a) shows higher presence of water in the region of the H-bond network with respect to the C71S-Y61S variant due to the lower stability of the Arg105–Asp136 salt bridge (Figure 7b).

Conclusion

A structural model for Mr4511 was built and, in the folded sequence, all the structural features of a LOV domain were detected. The dimeric structure was supported by the presence of a leucine zipper to which another leucine must be added from the terminal residues of the Iβ strand. This hydrophobic interfacial sidechain packing could contribute to the high stability of this protein that was revealed under denaturing conditions as well [24,25]. More locally, the presence of a third arginine residue blocking the FMN in the binding site by interaction with its phosphate group likely assures the stability of the cofactor and the maintenance of its function also under denaturing conditions. The robustness of the Mr4511 structure can also be seen as resilience to perturbations: the permeability of the binding site to water, which is particularly high also with respect to other studied LOV domains such as BsYtvA [35], frequently leads to a perturbation of the critical H-bond network, that is able to recover its stability when water detaches.

As expected, the same features are present in the three investigated variants, with some other remarkable advantages for photosensitisation. The Mr4511-C71S variant, together with the presence of glutamine instead of tryptophan in a place near FMN, has led to a long τ _T of several hundreds of microseconds [24]. The permeability of the binding pocket to dioxygen, allowed through channels, and its persistence inside the cavity ensure the quite high Φ_Δ experimentally observed [24]. After that, we designed new mutations to improve these already advantageous conditions enhancing SO production. The designed mutations share the dual effect of removing a quenching tyrosine and creating the space for new oxygen channels. To reach these purposes, the chosen residue was Tyr61, which was mutated in silico into threonine and serine, keeping as far as possible its physico-chemical features. The identified mutation permits the formation of a new channel that allows the oxygen entrance in a selective manner. Its doorway is, in fact, lined by a particular salt bridge that, switching between two different cations, traps water preventing its entrance. The two new channels seem to have different characteristics, permitting a more rapid exchange of oxygen in the C71S-Y61T variant and keeping the O₂ molecules inside the binding pocket in the C71S-Y61S variant. However, the two designed variants enhance O₂ diffusion to the binding cavity, allowing the access of a higher number of dioxygen molecules with a higher permanence, so enhancing the probability that the Dexter-type ET occurs. Overall, they promise to be good candidates as efficient, LOV-based genetically encoded photosensitisers for SO. Complementary approaches to this timely topic include the minimisation of internal quenching by aromatic amino acids [19,26] and the introduction of mutations that enhance binding preference towards riboflavin, leading to a better yield of SO production [44]. The increasing amount of experimental data, together with MD simulations as presented here, and molecular characterisation of novel LOV domains are thus building up a palette of genetically encoded photosensitisers with improved robustness and efficiency for in vivo applications.
