Synthesis and characterization of some new fluoroquinolone-barbiturate hybrid systems

Kamal Sweidan; Mustafa M. El-Abadelah; Salim F. Haddad; Wolfgang Voelter

doi:10.1515/znb-2015-0037

Article Publicly Available

Synthesis and characterization of some new fluoroquinolone-barbiturate hybrid systems

Kamal Sweidan , Mustafa M. El-Abadelah , Salim F. Haddad and Wolfgang Voelter

Published/Copyright: June 1, 2015

Published by

Become an author with De Gruyter Brill

Author Information Explore this Subject

From the journal Zeitschrift für Naturforschung B Volume 70 Issue 7

Abstract

New hybrid molecules containing fluoroquinolone-barbiturate moieties were synthesized via simple routes, followed by characterization using various spectroscopic approaches. The THF solvent molecule was incorporated into compounds 2 and 3 through its oxygen atom based on its nucleophilicity. Facile displacement of the chloride ion in 4-oxoquinoline-3-carbonyl chloride by the nucleophilic methylene carbon of 1,3-dialkylbarbiturate/thiobarbiturate afforded the respective hybrids 5 and 6.

Keywords: fluoroquinolones; heterocyclics; NMR/MS data; thiobarbituric acids; X-ray structure determination

1 Introduction

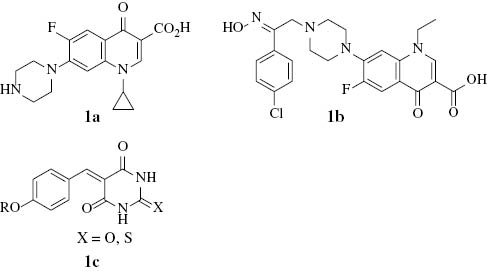

Fluoroquinolones, exemplified by ciprofloxacin (1a), play an important role as anti-infective agents and are widely prescribed for various infections, such as, e.g., respiratory and gastrointestinal infections [1]. During the past four decades, several fluoroquinolone derivatives have been synthesized, characterized and examined for their antibacterial and anticancer activities [2–5]; for example, 1-ethyl-6-fluoro-7-{4-[2-(4-chlorophenyl)-2-hydroxyimineothyl]-1-piperazinyl}-4-oxo-1,4-dihydro-3-quinoline carboxylic acid (1b) showed a significant activity against renal cancer cell lines [6].

On the other hand, barbituric acid and its N,N-dialkyl derivatives play an important role in medicinal and pharmaceutical chemistry [7, 8]. For example, 5-benzylidene-barbiturates and thiobarbiturates (1c) show antibacterial activity [9].

Recently, we described the synthesis and evaluation of the antibacterial activity of model fluoroquinolone-barbiturates [10]. In continuation of our further search for new fluoroquinolone-barbiturate derivatives, we report herein the preparation and characterization of new products of the respective nucleus.

2 Results and discussion

Compound 2 was prepared upon reacting 1 with excess thionyl chloride in dry THF under reflux. Evaporation of excess liquids, followed by the addition of dry triethylamine and 1,3-diethyl-2-thiobarbituric acid onto 2, produced the respective product 3 (Scheme 1).

Scheme 1:

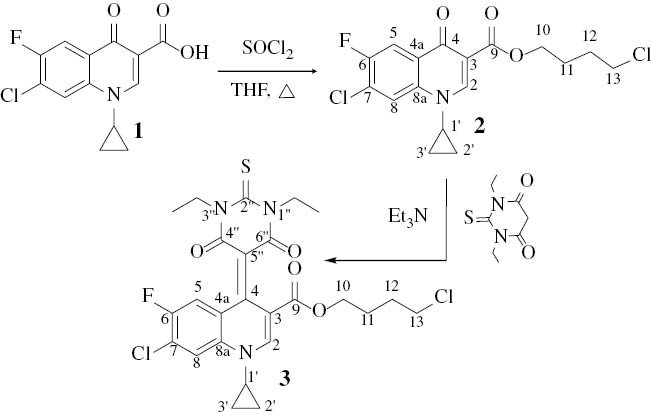

Syntheses of compounds 2 and 3.

The structures of compounds 2 and 3 were characterized by NMR [¹H, and distortionless enhancement by polarization transfer (DEPT)-¹³C], MS and X-ray diffraction analysis. The molecular structure of 2 is shown in Fig. 1. The crystal data and numbers pertinent to data collection and structure refinement of 3 have been reported previously [11], while those for 2 are given herein (Table 1 and Experimental section). There is a short π–π contact between the two inversion-related pyridinic rings with a centroid–centroid distance of 3.562 Å. Related structure determinations have been reported [12, 13].

Figure 1:

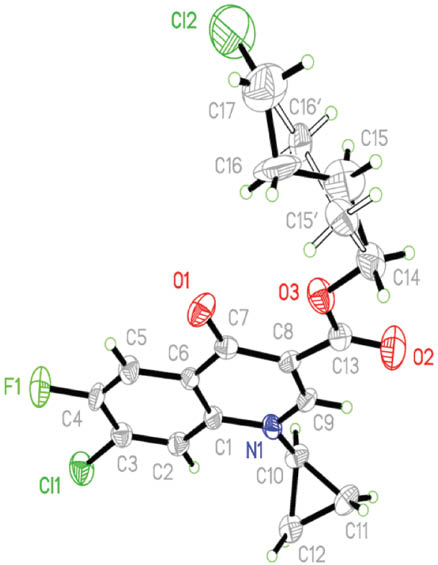

Molecular structure of 2 in the crystal. Both alternatives of the disordered atoms C15 and C16 are shown.

Table 1

Crystal structure data for 2.

Empirical formula	C₁₇H₁₆Cl₂FNO₃
Formula weight M_r	372.21
Temperature, K	293
Crystal size, mm³	0.29 × 0.03 × 0.03
Crystal system	Monoclinic
Space group	P 2₁/n
a, Å	15.172(4)
b, Å	7.166(2)
c, Å	15.640(6)
β, deg	102.04(3)°
V, Å³	1663.0(9)
Z	4
D_calcd., g cm^–3	1.487
μ(MoK_α), mm^–1	0.416
F(000), e	768
θ-range data collection, deg	3.14–25.02
hkl range	–17→18, ±8, –15 → 18
Refl. collected/unique/R_int	6503/2945/0.11
Refl. with I > 2σ(I)	905
Refinement method	Full-matrix least squares on F²
Data/restraints/parameters	2945/0/236
Final R 1/wR 2 (I > 2 σ(I))	0.0748/0.0885
Final R 1/wR 2 (all data)	0.2566/0.1416
Goodness-of-fit on F²	0.918
Largest difference peak/hole, e Å^–3	0.31/–0.25

To investigate this result, the reaction of 1 with thionyl chloride in dry THF was conducted using the previously mentioned procedure, and the result was consistent with that obtained for compound 2. It is clear that tetrahydrofuran reacted with the acid chloride 4, once formed in situ, as based on the hard–hard interactions. The oxygen atom of tetrahydrofuran is considered a hard nucleophile and the carbon of the acyl chloride as a hard electrophile; the proposed S_N2 mechanism is given (Scheme 2).

Scheme 2:

Proposed mechanism for the formation of compound 2.

A Knoevenagel condensation reaction occurred in the formation of 3, whereby a carbon–carbon double bond was formed between the quinoline and thiobarbiturate moieties. This condensation reaction seems to be more favorable than the Michael addition reaction of thiobarbiturate at the β-carbon which permits for extra resonance structures through the lone pair of the quinoline nitrogen atom and subsequently decreasing the electrophilic character of the β-carbon.

The reaction of 1 with excess thionyl chloride in dry toluene was conducted under reflux to afford, as expected, the corresponding acid chloride 4 which was characterized by IR spectroscopy; the progress of the reaction was monitored by TLC. Separately, solutions of barbituric acid and 1,3-dimethylbarbituric acid were added into the solution of 4 in the presence of triethylamine to give the target products 5 and 6, respectively (Scheme 3). The progress of these reactions was monitored by TLC.

Scheme 3:

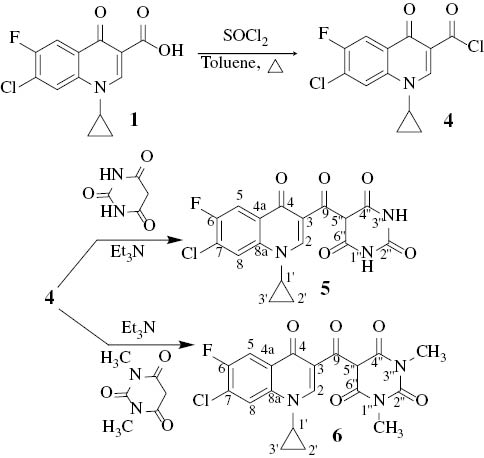

Syntheses of the fluoroquinolene-barbiturate hybrids 5 and 6.

From DEPT-¹³C NMR analysis, it is clear that C5 of the barbiturate moiety in 5 and 6 carries one hydrogen atom; both compounds adopted the keto form rather than the enol tautomer [14]. The prepared compounds 3, 5 and 6 will be evaluated as antibacterial agents in due course.

3 Experimental section

All experiments were performed in purified solvents. 7-Chloro-1-cyclopropyl-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carboxylic acid (1) was purchased from Sigma Aldrich (St. Louis, MO, USA) and 4-chlorobutyl 7-chloro-1-cyclopropyl-4-(1,3-diethyl-4,6-dioxo-2-sulfanylidene-1,3-diazinan-5-ylidene)-6-fluoro-1,4-dihydroquinoline-3-carboxylate (3) was prepared according to the published procedure [11]. The spectral data of 3 are given in the experimental part.

3.1 4-Chlorobutyl 7-chloro-1-cyclopropyl-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carboxylate (2)

A mixture of 1 (1.5 g, 5.3 mmol) and SOCl₂ (4 mL, 54 mmol) in 25 mL of dry THF was stirred under reflux for 8 h. After cooling to room temperature, THF and excess SOCl₂ were evaporated under reduced pressure. The solid residue was purified by column chromatography using MeOH–CHCl₃ (10:90) as eluent to afford the title compound as colorless crystals. Yield 1.5 g (95 %); m.p. 167–169 °C. – IR (film): v = 3084, 2988, 2927, 2856, 1727, 1615, 1541, 1455 cm^–1. – ¹H NMR (400 MHz, CDCl₃, 25 °C, TMS): δ = 1.17 (m, 2H) and 1.38 (m, 2H), (2′-H/3′-H), 1.94–2.01 (m, 4H, 11-H + 12-H), 3.49 (m, 1H, 1′-H), 3.65 (t, J = 8 Hz, 2H, 13-H), 4.37 (t, J = 8 Hz, 2H, 10-H), 8.01 (s, 1H, 8-H), 8.15 (d, ³J_H–F = 10 Hz, 1H, 5-H), 8.56 (s, 1H, 2-H). – ¹³C NMR (100 MHz, CDCl₃): δ = 8.3 (C-2′/C-3′), 26.1 (C-11), 29.3 (C-12), 34.8 (C-1′), 44.7 (C-13), 64.2 (C-10), 110.6 (C-3), 113.8 (d, ²J_C–F = 20 Hz, C-5), 119.0 (C-8), 127.0 (d, ²J_C–F = 17.5 Hz, C-7), 128.7 (d, ³J_C–F = 5 Hz, C-4a), 137.2 (C-8a), 148.9 (C-2), 156.6 (d, ¹J_C–F = 260 Hz, C-6), 165.3 (C-9), 172.7 (C-4). – HRMS (ESI): m/z = 372.05879 (calcd. 372.05695 for C₁₇H₁₇Cl₂FNO₃, [M+H]⁺). – C₁₇H₁₆Cl₂FNO₃ (372.2): calcd. C 54.86, H 4.33, N 3.76; found C 54.79, H 4.42, N 3.62.

3.2 4-Chlorobutyl 7-chloro-1-cyclopropyl-4-(1,3-diethyl-4,6-dioxo-2-thioxo-tetrahydropyrimidin-5(6H)-ylidene)-6-fluoro-1,4-dihydroquinoline-3-carboxylate (3) [11]

M.p. 230–232 °C. – IR (film): v = 3081, 2988, 2926, 2859, 1709, 1671, 1625, 1540, 1456, 1281 cm^–1. – ¹H NMR (400 MHz, CDCl₃, 25 °C, TMS): δ = 1.16 (m, 2H) and 1.38 (m, 2H), (2′-H/3′-H), 1.41 (t, J = 8 Hz, 6H, CH₃), 1.94–2.03 (m, 4H, 11-H + 12-H), 3.49 (m, 1H, 1′-H), 3.67 (t, J = 8 Hz, 2H, 13-H), 4.38 (t, J = 8 Hz, 2H, 10-H), 4.62 (q, J = 7 Hz, 4H, CH₂-Me), 8.00 (s, 1H, 8-H), 8.15 (d, ³J_H–F = 10 Hz, 1H, 5-H), 8.59 (s, 1H, 2-H). – ¹³C NMR (100 MHz, CDCl₃): δ = 8.9 (C-2′/C-3′), 12.7 (CH₃), 25.7 (C-11), 29.6 (C-12), 38.4 (C-1′), 44.2 (C-13), 45.8 (N-CH₂), 65.5 (C-10), 108.2 (C-5″), 110.1 (C-3), 118.0 (d, ²J_C–F = 20 Hz, C-5), 119.4 (C-8), 125.9 (d, ²J_C–F = 20 Hz, C-7), 129.1 (d, ³J_C–F = 5 Hz, C-4a), 136.4 (C-8a), 145.4 (C-2), 151.2 (C-4), 156.5 (d, ¹J_C–F = 260 Hz, C-6), 160.3 (C-4″/C-6″), 164.7 (C-9), 177.9 (C=S). – HRMS (ESI): m/z = 554.10578 (calcd. 554.10834 for C₂₅H₂₇Cl₂FN₃O₄S, [M+H]⁺). –C₂₅H₂₆Cl₂FN₃O₄S (554.5): calcd. C 54.15, H 4.73, N 7.58; found C 53.91, H 4.82, N 7.41.

3.3 7-Chloro-1-cyclopropyl-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carbonyl chloride (4)

A mixture of 1 (1.5 g, 5.3 mmol) and thionyl chloride (SOCl₂) (4 mL, 54 mmol) in 20 mL of dry toluene was stirred under reflux for 8 h. After cooling to room temperature, toluene and excess SOCl₂ were evaporated under reduced pressure. The solid residue was suspended in dry hexane and the suspension was evaporated to dryness to afford the solid residue which was used without further purification. Yield 1.5 g (95 %). – IR (KBr): v = 3071, 2982, 1726, 1705, 1460, 1361 cm^–1. – ¹H NMR (400 MHz, CDCl₃, 25 °C, TMS): δ = 1.17 (m, 2H) and 1.37 (m, 2H), (2′-H/3′-H), 3.51 (m, 1H, 1′-H), 8.00 (s, 1H, 8-H), 8.17 (d, ³J_H–F = 10 Hz, 1H, H-5), 8.53 (s, 1H, 2-H).

3.4 5-(7-Chloro-1-cyclopropyl-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carbonyl)pyrimidine-2,4,6(1H,3H,5H)-trione (5)

A mixture of 4 (0.6 g, 2 mmol), barbituric acid (0.28 g, 2 mmol) and 0.9 mL of Et₃N in 25 mL of dry CH₂Cl₂ was stirred at room temperature for 8 h and then warmed (40–45 °C) for 6 h. After cooling to room temperature, the precipitated solid product was collected by suction filtration, washed with CH₂Cl₂ and dried in vacuo to afford the title product as red precipitate. Yield 0.61 g (78 %); m.p. 212–213 °C. – IR (film): v = 3425, 3114, 2929, 2998, 1707, 1624, 1505, 1455 cm^–1. – ¹H NMR (400 MHz, [D₆]DMSO, 25 °C, TMS): δ = 1.16 (m, 2H) and 1.38 (m, 2H), (2′-H/3′-H), 3.49 (m, 1H, 1′-H), 4.45 (s, 1H, 5″-H), 8.02 (s, 1H, 8-H), 8.17 (d, ³J_H–F = 10 Hz, 1H, H-5), 8.56 (s, 1H, 2-H), 9.45 (s, 2H, NH). – ¹³C NMR (100 MHz, [D₆]DMSO): δ = 8.2 (C-2′/C-3′), 35.7 (C-1′), 59.7 (C-5″), 109.7 (C-3), 113.7 (d, ²J_C–F = 20 Hz, C-5), 118.8 (C-8), 127.9 (d, ²J_C–F = 20 Hz, C-7), 128.1 (d, ³J_C–F = 5 Hz, C-4a), 137.2 (C-8a), 148.9 (C-2), 152.1 (C-2″), 155.6 (d, ¹J_C–F = 260 Hz, C-6), 162.5 (C-4″/C-6″), 172.4 (C-4), 194.3 (C-9). – HRMS (ESI): m/z = 390.02995 (calcd. 390.02930 for C₁₇H₁₀ClFN₃O₅, [M–H]^–). – C₁₇H₁₁ClFN₃O₅ (391.7): calcd. C 52.12, H 2.83, N 10.73; found C 51.89, H 3.19, N 10.61.

3.5 5-(7-Chloro-1-cyclopropyl-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carbonyl)-1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione (6)

A mixture of 4 (0.6 g, 2 mmol), 1,3-dimethylbarbituric acid (0.31 g, 2 mmol) and 0.9 mL of Et₃N in 25 mL of dry CH₂Cl₂ was stirred at room temperature for 8 h and then warmed (40–45 °C) for 6 h. After cooling to room temperature, the precipitated solid product was collected by suction filtration, washed with CH₂Cl₂ and dried in vacuo to afford the title product as red precipitate. Yield 0.58 g (69 %); m.p. 188–190 °C. – IR (film): v = 3125, 3010, 2978, 1719, 1642, 1505, 1451 cm^–1. – ¹H NMR (400 MHz, [D₆]DMSO, 25 °C, TMS): δ = 1.17 (m, 2H) and 1.31 (m, 2H), (2′-H/3′-H), 3.12 (s, 6H, 2CH₃), 3.44 (m, 1H, 1′-H), 4.51 (s, 1H, 5″-H), 8.08 (s, 1H, 8-H), 8.15 (d, ³J_H–F = 10 Hz, 1H, 5-H), 8.49 (s, 1H, 2-H), 9.38 (s, 2H, NH). – ¹³C NMR (100 MHz, [D₆]DMSO): δ = 8.3 (C-2′/C-3′), 29.5 (CH₃), 35.7 (C-1′), 60.1 (C-5″), 108.6 (C-3), 113.3 (d, ²J_C–F = 20 Hz, C-5), 118.8 (C-8), 128.0 (d, ²J_C–F = 20 Hz, C-7), 128.4 (d, ³J_C–F = 5 Hz, C-4a), 137.0 (C-8a), 149.2 (C-2), 151.7 (C-2″), 155.6 (d, ¹J_C–F = 260 Hz, C-6), 161.3 (C-4″/C-6″), 172.3 (C-4), 192.8 (C-9). – HRMS (ESI): m/z = 420.07241 (calcd. 420.07625 for C₁₉H₁₆ClFN₃O₅, [M+H]⁺). – C₁₉H₁₅ClFN₃O₅ (419.8): calcd. C 54.36, H 3.60, N 10.01; found C 54.02, H 3.89, N 9.81.

3.6 X-Ray structure determination of 2

A suitable colorless tiny crystal of 2 with approximate dimensions 0.29 × 0.03 × 0.03 mm³ was epoxy-mounted on a glass fiber and the diffraction data were collected at room temperature employing enhanced MoK_α radiation, λ = 0.71073 Å, and a Calibur/Oxford diffractometer equipped with an Eos CCD detector [15]. Three ω-scan runs, 228 frames, were collected after optimization with an exposure time of 19.92 s, 1° frame width, and a detector distance of 45 mm. An absorption correction obtained by applying multi-scan was done with minimum and maximum transmission factors of 0.8892 and 0.9878, respectively. The tiny crystal size resulted in a data set with a large number of weak reflections. Data sets were measured of several crystals. The best results are the basis for the published structure determination. The CH₂CH₂CH₂Cl ether-linked branch in 2 exhibited large displacement parameters, and C15 and C16 therein are best refined as a split-atom model over two positions with occupancy factors of 0.607 and 0.393, respectively. The cell parameters were refined using all observed reflections, the data were reduced using Olex2 [16], and the structure was solved and refined with the Shelxtl program package [17]. Table 1 summarizes the crystal data and data collection and structure refinement parameters.

CCDC 1042243 (2) contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre viawww.ccdc.cam.ac.uk/data_request/cif.
