Influence of tire cord layers and arrangement direction on mechanical properties and vibration isolation of chloroprene rubber composite materials reinforced with polyester tire cord

2.1 Materials

CR (Bayprene 216) was obtained from Lanxess (Germany). Carbon black (N330) was produced by China Synthetic Rubber Co. Ltd. (Taiwan). Zinc oxide (ZnO) and Magnesium oxide (MgO) were obtain from Yung Chyang Chemical Industries Co. Ltd. (Taiwan). Stearic acid was purchased by KENT Trading Co. Ltd. (Taiwan). Ethylene thiourea, antioxidant D, auxiliary agent (PVI), accelerant agent (DM), dispersing agent and peptizer were obtained from San Wu rubber manufacture Co. Ltd. (Taiwan). Resorcinol formaldehyde latex (RFL)-dipped polyester tire cord [1000/2 denier and twist of 481 (Filament)] provided by San Wu rubber manufacturer Co. Ltd. (Taiwan). As for the basic recipe, the contents of the CR compound are shown in Table 1.

2.2 Characterization

The pull-out strength was measured using a universal tensile tester (Yang-Yi QC-506, Taiwan) with a tension velocity of 25 mm min^-1 according to ASTM D4776 specifications. The peel strength of specimens with thermal treatment at 90°C for 1–6 days before testing were measured using a universal tensile tester (Yang-Yi QC-506, Taiwan) with a tension velocity of 25 mm min^-1 according to ASTM D1876 specifications. The compression set of specimens with a diameter of 29±0.5 mm and a thickness of 12±0.5 mm under a deformation range of 25% at -20°C, 0°C, 20°C, 45°C, and 70°C for 22 h were determined using a universal tensile tester (Yang-Yi QC-506, Taiwan), in accordance with ASTM D395 specifications. Tensile strength and tear strength were measured using a universal tensile tester (Yang-Yi QC-506, Taiwan) with a tension velocity of 500 mm min^-1 according to ASTM D412C and ASTM D642 specifications. (The specimens were sampled in the 0°, 45°, and 90° directions.) Storage modulus and damping factor of the resulting tire cord-reinforced CR composites were measured using a dynamic mechanical analyzer (DMA, TA Q800). A tension mode testing was applied during the DMA scans, and the scanning range was from -70°C to 50°C at a heating rate of 3°C/min and frequency of 1 Hz under nitrogen atmosphere. The transmissibility ratio (Tr) was measured using a vibration test system (LDS V824LS, UK) with a specimen size of 50 mm×49 mm×33 mm under a load of 1 kg and frequency of 5–1000 Hz. The definition of the Tr is presented below [12].

In the equations above, f₀ is the natural frequency, K is stiffness, W is the load, ω₀ is the natural angle frequency, ω is the vibration angular frequency, c and c₀ are the viscosity factors (damping factors), and g is the gravitational acceleration.

3.1 Effects of aging and vulcanizing on adhesion between CR and tire cord

Adhesion between CR and polyester tire cord is crucial in ensuring the overall performance. The rubber-tire cord interfacial adhesion is influenced by the chemical composition of the interfacial layer and processing conditions.

Figures 1 and 2 respectively show the pull-out strength of polyester tire cord-reinforced CR composites at various vulcanization temperatures and vulcanization durations. The experimental results indicate that the optimal molding condition of for bonding tire cord with CR is 170°C for 30 min, which enables tire cord-reinforced CR composites to exhibit maximum pull-out strength. In addition, the pull-out strength of the CR composites increased with the increasing vulcanization duration until 30 min, after which the strength decreased when the duration is beyond 30 min (Figure 2). Such decrease can be attributed to thermal history accumulation, which causes damage to the bond between the RFL adhesive and the fibers or that between the RFL adhesive and the rubber under high temperature.

Figure 1:

Pull-out curve of tire cord-reinforced CR with various vulcanization temperatures for 30 min.

Figure 2:

Pull-out curve of tire cord-reinforced CR at 170°C for various vulcanization durations.

Figure 3 shows the peel strength of polyester tire cord-reinforced CR composites at 90°C for various aging times. As can be seen, the peel strength of polyester tire cord-reinforced CR composites increased with aging time. A possible reason is the increased cross-linking density of rubber after thermal aging [13, 14].

Figure 3:

Peel strength between CR and polyester tire cord at 90°C for various aging durations.

3.2 Compression set

Figure 4 shows the compression set of CR composites reinforced with different numbers of polyester tire cord layers at different temperatures. As can be seen, the compression deformation ratio for the RF-4 specimen is the largest (24.3%), followed by those for RF-3 (24.0%), RF-2 (23.8%), RF-1 (23.0%), and RF-0 (21.4%). The unreinforced specimen (RF-0) exhibited full rubber elasticity; hence, the rubber remained highly elastic and did not easily deform upon release of compressive stress. As the number of tire cord layers increased, plastic deformation of CR composites occurred due to compressive stress. After the compressive stress is released, deformation occurred in the absence of effective resilience [15].

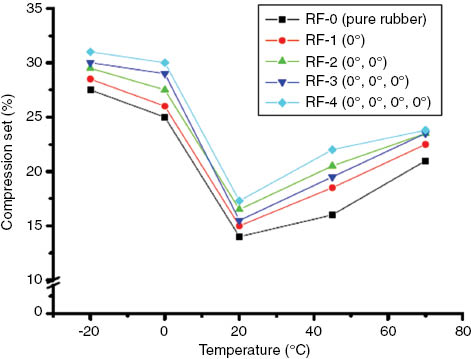

Figure 4:

Compression set of CR reinforced with different numbers of polyester tire cord layers at varied temperatures.

The results also show that the compression set is the largest for all specimens at high temperature. This can be attributed to the fact that when rubber is exposed to high temperatures, its molecular chains are softened, thus increasing deformation rates. When the specimens are at approximately 20°C, the compression set value is at its lowest. The reason may be that tire cord-reinforced CR composites possess optimal rubber elasticity at 20°C; thus, a compression set cannot be easily produced. At temperatures below 0°C, the molecular chains of tire cord-reinforced CR composites froze, and compressive stress increased the compression set value of the material.

3.3 Mechanical properties

Figure 5 shows the tensile strengths in the 0°, 45°, and 90° directions of CR composites reinforced with different numbers of polyester tire cord layers. The results show that when the angle between the tensile direction of the specimens and the tire cord reinforcement direction is 0° (vertical), the tensile strength of the specimens increased as the number of tire cord layers increased. This is because the tire cord is the main object under stress.

Figure 5:

Tensile strength of CR reinforced with different numbers of polyester tire cord layers at the 0°, 45°, and 90° directions.

Figure 6A–D show the tensile strengths at various angles of CR composites with different numbers of tire cord layers and arrangement directions. As can be seen, when the tensile direction of the specimens and the alignment direction of the tire cord formed 45° and 90° angles, a tire-cord reinforcement effect could not be produced. This is because rubber is the main part under stress. Figures 6C–D show that when the tensile direction is parallel to the alignment direction of the tire cord, the specimens show excellent tensile strength, which increased with increasing number of tire cord layers.

Figure 6:

(A)–(D): Tensile strength at various angles of CR composites with different numbers of tire-cord layers and arrangement directions.

Meanwhile, Figure 7 shows the tear strengths in the 0°, 45°, and 90° directions of CR composites reinforced with different numbers of polyester tire cord layers. The results are similar to those shown in Figure 5. Figure 8A–D show the tear strengths at various angles of CR composites with different numbers of tire cord layers and arrangement directions. As can be seen in Figure 8A, when the tensile direction is at 0°, the tear-strength value of RF-1 (0°) is optimal. The reason is that the alignment direction of the tire cord is parallel to the tensile direction. Figure 8B shows that when the tensile directions are at 45° and 90°, the tear strength of RF-2-1 (0°, 90°) is greater than that of RF-2 (0°, 0°). This is because for the RF-2-1 specimen, the alignment direction of the tire cord and the tensile direction crossed at 45° and 90° angles; therefore, tearing behavior like crack growth could not easily occur.

Figure 7:

Tear strength of CR reinforced with different numbers of polyester tire cord layers at the 0°, 45°, and 90° directions.

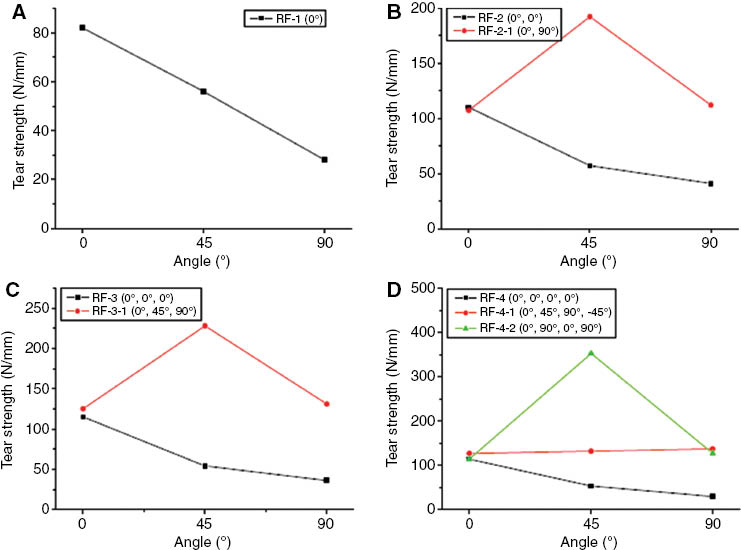

Figure 8:

(A)–(D): Tear strength at various angles of CR composites with different numbers of tire cord layers and arrangement directions.

3.4 Dynamic mechanical analysis

Figure 9 shows the storage modulus and tan delta vs. temperature plots for CR composites reinforced with and without tire cord. As can be seen, at approximately -70°C, the storage modulus of the RF-1 specimen (2660 Mpa) is greater than that of the RF-0 specimen (1870 Mpa). Conversely, the tan delta value exhibited a decreasing trend. These results are in accordance with the findings of Ashida et al [16].

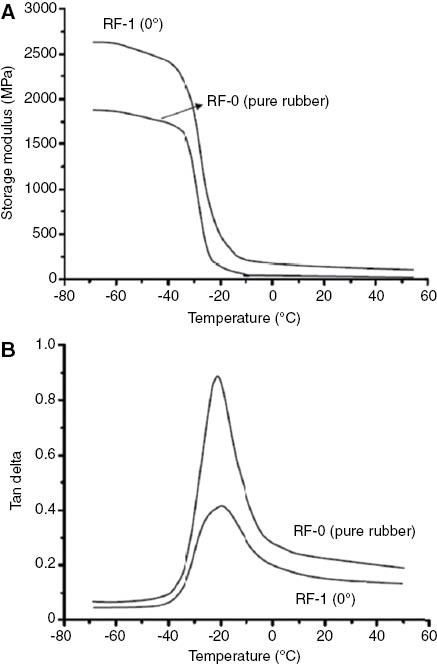

Figure 9:

(A) Storage modulus and (B) tan delta vs. temperature plots for CR reinforced with and without tire cord.

3.5 Vibration isolation properties

Figure 10 shows the dependence on frequency of the transmissibility ratio of CR composites with different numbers of tire cord layers. The related experimental data are summarized in Table 2. In the resonance region, the transmission ratio of RF-0 is the highest, followed by those of RF-1, RF-2, RF-3, and RF-4. The results suggest that using a great number of tire cord layers can significantly improve the vibration suppression effectiveness of the materials in the resonance region. In addition, the results indicate that when the number of tire cord layers increases, the resonance frequency of the material shifts toward higher frequencies. This can be attributed to the fact that the natural frequency of tire cord and the natural frequency of rubber influenced each other mutually when the tire cord content increased. Consequently, the natural frequency of CR composites shifted.

Figure 10:

Dependence of transmissibility ratio of CR composites with different number of tire cord layers on frequency.
