An isothermal, non-enzymatic, and dual-amplified fluorescent sensor for highly sensitive DNA detection

2.1 Chemicals and materials

1× PBS buffer (pH = 7.4) was purchased from Gibco Life Technologies (New York, United States, https://www.thermofisher.com), while MgCl₂ was ordered from Sigma-Aldrich Co. (China, www.sigmaaldrich.com). The MBs, hairpin probes (HP1 and HP2), target DNA (T), DNAzyme, and mismatched targets (M1, M3, and M8) were synthesized by Takara Bio Inc. (Dalian, China; www.bio-stationhk.net). The MBs were labeled with a fluorophore dye, fluorescein amidite (FAM), and a fluorescence quencher (dabcyl) at the 5′ and 3′ ends, respectively. They were purified with high-performance liquid chromatography, while the other oligos were purified with polyacrylamide gel electrophoresis (PAGE). Part of the sequences of HP1 is complementary to the target DNA while the remaining part is complementary to HP2. All the probes used are illustrated in detail in Table 2. The target DNA and mismatched targets are 23 nt in length. Oligos M1, M3, and M8 contain one, three, and eight mismatched base pairs, respectively, as indicated by the underlined letters in Table 2. All samples were prepared using ultra-pure water (resistivity ≥18.2 MΩ·cm) obtained from a Milli-Q water purification system, and the other reagents were of analytical grade and used without further purification or modification. Each sample was of 200 μL and Mg²⁺ was kept at 10 mM for all the experiments. All the experiments were conducted at 24°C.

Table 2

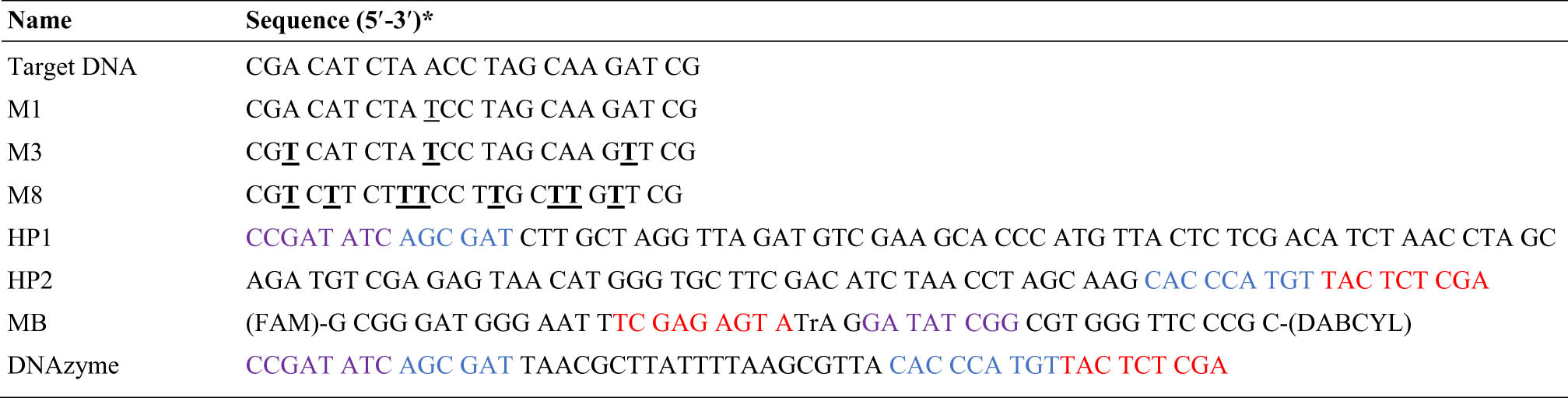

Oligonucleotides used in the experiments

*The underlined bases are the mismatched sequences.

**The purple color in HP1, DNAzyme, and MB indicates a complementary sequence, while the red color in HP2, MB, and DNAzyme also shows a complementary sequence. The blue color in HP1 and HP2 indicates the DNAzyme sequence after hybridization with MB, and the same applies to the DNAzyme strand.

The PAGE experiments were performed using an electrophoresis analyzer and images were obtained on a Bio-Rad ChemiDoc XRS system, while the fluorescence measurements were performed using a FlexStation 3 Multi-Mode Microplate Reader.

2.2 Detection procedure

The lyophilized DNA was dissolved in ultra-pure water to obtain a stock solution of 100 µM and stored at −20°C. Before the experiments, the stock solution concentration was further reduced to 5 µM using a PBS buffer to serve as working solutions. Thereafter, the solution consisting of HP1, HP2, and MB was annealed separately at 95°C in a water bath for 5 min and then allowed to cool down to room temperature for at least 2 h. For detection experiments, various concentrations of target DNA were mixed with HP1 and HP2 (150 nM each), and subsequently, MB (50 nM) was introduced into the reaction buffer containing 1× PBS buffer (pH = 7.4) and 10 mM Mg²⁺. The mixture was placed in a Microplate Reader and kinetically scanned to obtain fluorescence intensities. The detection performance was further validated, including the serum sample analysis whose outcomes are presented under Section 3.

2.3 Native gel electrophoresis

The annealed samples of HP1, HP2, and MB along with the target DNA were of 1 µM for gel electrophoresis. Around 10 µL of different combinations of the reaction mixtures were incubated at 24°C for at least 3 h before being loaded into lanes of 3% agarose gel. The gel was allowed to run at 100 V for 40 min under room temperature in a standard TAE buffer purchased from Thermo-Fisher (https://www.thermofisher.com/order/catalog/product/B49), and thereafter photographed using a Bio-Rad digital imaging system after being stained in a SYBR Gold solution for 20 min.

2.4 Fluorescence measurements

The fluorescence data were obtained by using a FlexStation 3 Multi-Mode Microplate Reader with the temperature fixed at 24°C. According to the fluorescence emission properties of FAM-labeled on MB, the excitation and emission wavelengths were set at 490 and 520 nm, respectively. Flat bottom, TC-treated, 96-well plate (black) obtained from Genetimes ExCell International Holdings Limited (Hong Kong) was used to contain the reaction solution. The maximum fluorescence intensity after 1 h was used for detection analysis.

3.1 Working mechanism

The CHA–DNAzyme-mediated dual-mode amplification sensing scheme is illustrated in Figure 1. The sensing system comprises two structurally designed hairpin probes (HP1 and HP2) and an MB. The two hairpin probes are intentionally designed to incorporate two separate subunits of spatially split Mg²⁺-dependent DNAzyme fragments, which are presented in an inactive state, except otherwise triggered and assembled as a functionally integrated DNAzyme. The MB is a chimeric DNA probe that contains an rA and serves as a DNAzyme substrate. The 5′ and 3′ ends are labeled with a fluorophore (FAM) and quencher (dabcyl), which is termed as a fluorescence resonance energy transfer (FRET) pair. The close proximity of the FRET pair leads to a greatly suppressed background signal, while the separation of the FRET pair results in evident signal recovery. The stem-loop domain of HP1 is complementary with the toehold-stem domain of HP2, but the stable hairpin structure of HP1 and HP2 prevents them from hybridizing with each other and thus preserves the hairpins in a double-stranded hybrid state. Similarly, part of the loop domain sequence of the MB is complementary to a section of the toehold of HP1 and the caged bases in the stem fragment of HP2. Interestingly, in the absence of the target DNA, HP1, HP2, and MB could coexist in the solution assuming highly stable hairpin conformations according to the hairpin design principles [48]. Upon introduction of the target DNA into the solution, the target-triggered CHA reaction is initiated (Cycle 1 in Figure 1), and facilitates the binding of HP2 to HP1 while the target DNA is continuously recycled. Thereafter, the exposed toeholds of HP1 and HP2 form a DNAzyme configuration, and the remaining parts are available to bind with the loop domain of the MB (Cycle 2 in Figure 1). In the presence of Mg²⁺ ions, the MB is cyclically cleaved at the rA phosphodiester bond to separate the FAM and dabcyl at the MB strands, generating a strong fluorescence signal. After the cleavage, the HP1–HP2 complex is continuously recycled and becomes available to bind with another MB to continue the reaction cycle. Therefore, the dual cycling reaction process remarkably amplifies the fluorescence intensity and thereby enhances detection sensitivity.

Figure 1

Schematic of the CHA–DNAzyme-assisted dual-mode amplification system for fluorescent detection of target DNA.

3.2 Feasibility testing

In order to validate the feasibility of the sensing system, different samples were first analyzed by comparing the fluorescence signals of various combinations. Figure 2a illustrates the fluorescence emission intensities of various sensing systems without the target DNA (MB; MB + HP1; MB + HP2; MB + HP1 + HP2; MB + HP1 + Mg²⁺; MB + HP2 + Mg²⁺; MB + HP1 + HP2 + Mg²⁺), the proposed sensing system (MB + HP1 + HP2 + T + Mg²⁺); the proposed sensing system without Mg²⁺ (MB + HP1 + HP2 + T), the traditional DNAzyme system (MB + Mg²⁺ + DNAzyme), and the DNAzyme system without Mg²⁺ (MB + DNAzyme). The samples containing (MB + HP1)/(MB + HP2)/(MB + HP1 + HP2) reported similar response signals as that of the background signal from the sample with only MB involved. However, the signal was further reduced when Mg²⁺ was added into the relevant samples, including samples consisting of (MB + HP1 + Mg²⁺), (MB + HP2 + Mg²⁺), and (MB + HP1 + HP2 + Mg²⁺). This is because the DNA duplexes were further strengthened due to the introduced salt, preventing the undesired occurrence of non-specific hybridization events between hairpin probes [48]. In the event of the proposed sensing system, a significant signal gain was achieved, indicating that the CHA–DNAzyme system was successfully triggered. To further verify the detection scheme, a DNAzyme strand possessing the same DNA sequences as those of HP1 and HP2 was designed and challenged with the MB (MB + Mg²⁺ + DNAzyme). The signal gain was comparable to the proposed sensing system. It is worth noting that the signal ratio of the proposed system with/without Mg²⁺ is similar to the signal ratio of the DNAzyme system with/without Mg²⁺, which strongly agrees with the design concept (Figure 2a).

Figure 2

Validation of the detection system. (a) Fluorescence intensities of the sensing system under different conditions. The error bars represent the standard error of three independent measurements. (b) PAGE image of the sensing system. Lane 1: HP1; Lane 2: HP2; Lane 3: MB; Lane 4: HP1 + HP2; Lane 5: MB + HP1; Lane 6: MB + HP2; Lane 7: MB + HP1 + HP2; Lane 8: HP1 + T; Lane 9: HP2 + T; Lane 10: HP1 + HP2 + T; Lane 11: MB + HP1 + HP2 + T. The concentrations of target DNA (T), HP1, HP2, and MB were 1 µM.

To further validate the formation of CHA and DNAzyme hybrid complexes, PAGE analysis was carried out, whose results are detailed in Figure 2b. The mixture samples were in the following sequence: Lane 1: HP1; Lane 2: HP2; Lane 3: MB; Lane 4: HP1 + HP2; Lane 5: MB + HP1; Lane 6: MB + HP2; Lane 7: MB + HP1 + HP2; Lane 8: HP1 + T; Lane 9: HP2 + T; Lane 10: HP1 + HP2 + T; and Lane 11: MB + HP1 + HP2 + T. Lanes 1–3 depict only single species (HP1, HP2, and MB) without self-hybridization, and Lanes 4–7 show a stable coexistence of the mixture of two different species (HP1 + HP2, MB + HP1, and MB + HP2) since there are no visual bands present. In Lane 8, although the introduced target DNA binds with HP1 and forms a 1:1 complex, a visible band could not be observed and the mixture of the target DNA with HP2 in Lane 9 could not yield any band due to the mismatch between the two species. Lane 10 is a CHA-mediated assay, which is in line with the literature [19], and Lane 11 presents the proposed CHA–DNAzyme-assisted dual-mode amplification scheme with a clear gel band. Compared to Lane 10, the lower band in Lane 11 gradually faded away (red box in Figure 2b) under the influence of the MB, showing faster electrophoretic mobility. This clearly verified the feasibility of the proposed sensing scheme.

3.3 Experimental condition optimization

The experimental results are affected by many conditions, and in order to obtain the best analytical performance, the effect of reaction time, HP1, and HP2 was studied in detail, whereas other parameters such as Mg²⁺ and MB were fixed based on the previous work of Qi et al. [37] and Iwe et al. [1], respectively.

While studying and changing the parameters of interest, HP1 and HP2 were optimized using the intact DNAzyme strand (sequence in Table 2). Figure 2a clearly shows that the signal ratio of the proposed system with/without Mg²⁺ is similar to the signal ratio of the DNAzyme system with/without Mg²⁺, thereby enabling the choice of selecting the DNAzyme strand to further the HP1 and HP2 optimizations. Figure 3a shows the concentration effect of the DNAzyme strand. The fluorescence signal became stable when the DNAzyme concentration reached about 150 nM, which was chosen as the optimized concentration and used to denote the optimum concentration of HP1 and HP2 for the rest of the experiments. The reaction time was monitored in real-time starting from 0 to about 240 min, as presented in Figure 3b. The fluorescence signal began to level off after about 200 min.

Figure 3

Condition optimization. (a) Normalized signal at various DNAzyme concentrations. The error bars represent the standard error of three independent measurements. (b) Time variation of fluorescence intensity.

3.4 Sensitivity investigation

The sensitivity of the sensing system was evaluated under real-time conditions. Figure 4a shows the fluorescence increment in response to different target DNA concentrations within the range of 0–100 nM. In Figure 4a, it is observed that as the target DNA concentrations gradually increased, the corresponding fluorescence intensity also increased. The detection limit was experimentally found to be about 0.5 pM. Figure 4b illustrates the results at 100 min for target DNA concentration from 0 to 100 nM with the inset showing the calibration plot from 0 to 10 pM. The linear fit in the inset gives rise to the theoretical detection limit: 2 pM, which is calculated from three times the standard deviation of blank fluorescence signal divided by the slope of the regression equation. The sensitivity results have shown significant improvements when compared to the previously reported DNAzyme schemes (reviewed in ref. [36]) due to the coupling effect of CHA. Many enzyme-free [2,14–16] and enzyme-assisted [13,43,44] systems could not also measure up with the performance of the proposed sensing scheme. Table 1 presents a broader comparison of our solution to other past sensing methods.

Figure 4

Sensitivity analysis. (a) Fluorescence intensity under various target concentrations. (b) Fluorescence responses after 100 min for different target DNA concentrations. The inset shows a linear relationship at a low concentration regime from 0 to 10 pM. The error bars represent the standard error of three independent measurements.

3.5 Specificity examination

Besides the detection sensitivity, specificity is another important factor to evaluate the performance of a sensing system. To assess the selectivity of the proposed method, experiments were conducted by using 1, 3, and 8 base-mismatched DNA species designated as M1, M3, and M8, respectively. The response signals at 520 nm emission wavelength were discriminated toward a perfectly matched DNA target (Figure 5). The signal comparison clearly shows that the sensing scheme has a high selectivity against mismatched targets and has the potential to be applied in early-stage disease diagnosis and screening.

Figure 5

Selectivity examination of the DNAzyme–CHA-based system against different DNA mismatched species. The error bars represent the standard error of three independent measurements.

3.6 Serum sample analysis

To test the practical application of the proposed detection method, further detection was carried out in fetal bovine serum (FBS), which served as a complex biological environment. The FBS was kept at 5% due to the inherent fluctuation of fluorescence signals at increasing concentrations, and the exposure time was kept the same as those with the buffer, to maintain similar experimental conditions. Repetitive and independent measurements were performed with 1, 5, and 10 pM targets, respectively, with a recovery rate ranging from 94.6% to 119.6% as presented in Table 3. The results from the FBS indicated that the proposed sensing strategy is capable of analyzing complex biomatrices.
