Crystal structure of (Z)-6-methoxy-2-(2,2,2-trifluoro-1-hydroxyethylidene)-2,3-dihydro-1H-inden-1-one, C12H6F6O3

  • DongYe Xing , YanJun Hou EMAIL logo , WenYi Chu and ZhiZhong Sun
Published/Copyright: November 3, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 1

Abstract

C12H6F6O3, monoclinic, P21/c (no. 14), a = 9.433(1) Å, b = 15.567(2) Å, c = 7.682(1) Å, β = 102.83(1)°, V =1099.95(3) Å3, Z = 4, Rgt(F) = 0.0433, wRref(F2) = 0.1264, T = 293 K.

CCDC no.:: 1443565

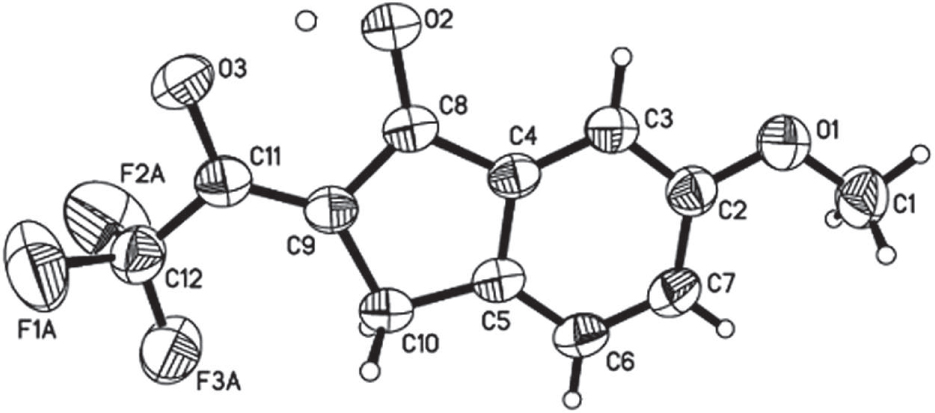

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless blocks
Size:0.36 × 0.36 × 0.32 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.4 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
2θmax, completeness:56.8°, >99%
N(hkl)measured, N(hkl)unique, Rint:9317, 2746, 0.020
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2218
N(param)refined:194
Programs:SHELX [3], Bruker programs [7, 8]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.1693(2)0.41034(13)0.9411(3)0.0669(5)
H1A0.09650.43220.84350.100*
H1B0.15500.43441.05100.100*
H1C0.16180.34890.94530.100*
C20.35259(16)0.40597(10)0.76770(19)0.0461(3)
C30.49268(15)0.42892(9)0.75802(19)0.0441(3)
H30.55180.46040.84890.053*
C40.54196(14)0.40363(8)0.60921(17)0.0389(3)
C50.45637(15)0.35642(8)0.46937(18)0.0411(3)
C60.31607(16)0.33473(10)0.4811(2)0.0496(4)
H60.25660.30380.38970.060*
C70.26481(16)0.35920(10)0.6292(2)0.0507(4)
H70.17080.34440.63670.061*
C80.68181(14)0.42003(8)0.56435(18)0.0407(3)
C90.68290(14)0.37981(8)0.39622(17)0.0397(3)
C100.53657(15)0.33791(9)0.32407(18)0.0439(3)
H10A0.48770.36350.21160.053*
H10B0.54660.27660.30770.053*
C110.80797(16)0.38173(9)0.3348(2)0.0463(3)
C120.82823(18)0.33243(12)0.1727(2)0.0583(4)
F1Aa0.8735(4)0.3860(2)0.0571(5)0.0928(10)
F2Aa0.9230(5)0.2734(3)0.2084(7)0.1201(19)
F3Aa0.7086(4)0.3005(3)0.0776(6)0.0933(14)
F1Bb0.9352(7)0.3528(6)0.1105(10)0.122(3)
F2Bb0.8580(10)0.2493(5)0.2308(12)0.123(3)
F3Bb0.7113(8)0.3232(6)0.0532(10)0.103(3)
O10.30946(13)0.43341(9)0.91686(16)0.0628(3)
O20.78655(11)0.46182(8)0.65983(14)0.0549(3)
O30.92443(12)0.42328(8)0.41377(17)0.0634(3)
H2-30.865(2)0.4601(16)0.588(3)0.095*

aOccupancy: 0.64; bOccupancy: 0.36.

Source of material

The title compound was synthesised following a literature method [1, 2]. In a typical reaction, to a solution of 6-methoxy-2,3-dihydro-1H-inden-1-one (2.5 g, 11.57 mmol) in 60 mL dry tetrahydrofuran, ethyl 2,2,2-trifluoroacetate (2.46 g, 17.31 mmol) was added, and the mixture was allowed to stir for 45 min. Then NaH (0.555 g, 13.88 mmol) was added, and the mixture was allowed to stir for 48 h at room temperature under a N2 atmosphere. The resulting mixture was poured into 100 mL water and acidified to pH 2–3 using 2 N hydrochloric acid. Then the mixture was extracted with dichloromethane (3 × 10 mL) and the combined organic extracts were dried with anhydrous Na2SO4. The solvent was removed by rotary evaporation and the yellow residue was dried under vacuum. The blocked-shaped crystals of the title compound were obtained in about 5 days by recrystallization from hexane.

Experimental details

All H atoms on C atoms were placed in idealized positions [C—H = 0.97 (methylene) and 0.93 Å(aromatic)] and included in the refinement in the riding-model approximation, with Uiso(H) = 1.2Ueq(methylene and aromatic C). The title structure was solved by direct methods and refined by full-matrix least-squares on F2 using the SHELXTL program package [3]. The trifluoromethyl group shows disorder which is for clarity not shown in the figure.

Discussion

β-Diketonate ligands have been widely used to construct different lanthanide complexes for luminescence properties or precursors of metalorganic chemical vapor deposition for single and multi-component oxide thin films [4], [5], [6]. Herein, we report the crystal structure of the β-diketone, (Z)-6-methoxy-2-(2,2,2-trifluoro-1-hydroxyethylidene)-2,3-dihydro-1H-inden-1-one. The structural analysis reveals that almost all carbon atoms in the molecule are coplanar. The bond lengths and bond angles are all in normal ranges. The crystal structure features an intramolecular O—H⋯O hydrogen bond (cf. the figure; O2⋯O3) The hydrogen atom of the formal hydroxy group is more or less centered between the oxygen atoms. The resolution of the routine diffraction data does not allow the refinement of a probable double minimum potential. According to the O⋯O distances of 2.595(2) Å this hydrogen bond is strong.

Acknowledgements

We are grateful for financial support by the Education Department of Hei longjiang Province of China (No. 12521413).

References

1 L, J. Y.; Li, H. F.; Yan, P. F.; Chen, P.; Hou, G. F.; Li, G. M.: Synthesis, crystal structure, and luminescent properties of 2-(2,2,2-trifluoroethyl)-1-indone lanthanide complexes. Inorg. Chem. 51 (2012) 5050–5057.10.1021/ic202473bSearch in Google Scholar

2 Shi, J.; Hou, Y. J.; Chu, W. Y.; Shi, X. H.; Gu, H. Q.; Wang, B. L.; Sun Z. Z.: Crystal structure and highly luminescent properties studies of bis-β-diketonate lanthanide complexes. Inorg. Chem. 52 (2013) 5013–5022.10.1021/ic302726zSearch in Google Scholar

3 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

4 Melby, L. R.; Rose, N. J.; Abramson, E.; Caris, J. C.: Synthesis and fluorescence of some trivalent lanthanide complexes. J. Am. Chem. Soc. 86 (1964) 5117–5125.10.1021/ja01077a015Search in Google Scholar

5 Bauer, H.; Blanc, J.; Ross, D. L.: Octacoordinate chelates of lanthanides. two series of compounds. J. Am. Chem. Soc. 86 (1964) 5125–5131.10.1021/ja01077a016Search in Google Scholar

6 Song, H. Z.; Jiang, Y. Z.; Xia, C. R.; Mengb, G. Y.; Peng, D. K.: Synthesis and characterization of volatile metal β-diketonate chelates of M(DPM)n (M = Ce, Gd, Y, Zr, n = 3,4) used as precursors for MOCVD , J. Cryst. Growth 3–4 (2003) 423–430.10.1016/S0022-0248(02)02413-2Search in Google Scholar

7 Bruker: APEX2 and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA, (2004).Search in Google Scholar

8 Sheldrick, G. M.: SADABS. University of Göttingen, Germany, (1996).Search in Google Scholar
