Multilingual Speaker Identification by Combining Evidence from LPR and Multitaper MFCC

1 Introduction

Speaker recognition is defined as a task of recognizing speakers from their voice [3]. In speaker identification, the system identifies the most likely speaker of the test speech signal. In speaker verification task, a user’s speech is used to classify him as being either who he claimed to be or an impostor [10]. Depending on the mode of operation, speaker identification can be classified as text-dependent identification or text-independent identification. Text-dependent identification requires the speaker to produce speech for the same text, both during training and testing, whereas text-independent identification does not rely on a specific text being spoken [20]. Speaker identification can be performed in the monolingual mode (common language during training and testing), crosslingual mode (different language for training and testing), and multilingual mode (speaker-specific models are trained in one language and tested with multiple languages) [2].

Most state-of-the-art speaker identification systems work within a single-language environment (English/European language) using sufficient data. People have the ability to learn more than one language [6]. Many countries, including India, are multilingual. In India, more than 50 languages are officially recognized. A person in a multilingual country usually speaks more than one language. For instance, criminals often switch over to another language, especially after committing a crime [2]. Therefore, training a person’s voice in one language and recognizing him in a different language (multilingual environment) is an issue in many countries. In addition, data sparseness is becoming a crucial research concern in automatic speaker recognition system. In a noncooperative scenario such as forensic investigation, speech data may last for only a few seconds and the task is to identify the speaker. Such an application should be able to validate the speaker using limited amount of speech data.

Speaker characteristics in the speech signal can be attributed to the vocal tract dimension, excitation characteristics, and the learning habits of the speakers [13]. The mel-frequency cepstral coefficient (MFCC) and linear prediction cepstral coefficient (LPCC) features can accurately characterize the vocal tract configuration of a speaker and can achieve good performance [16]. In [13, 19], it was shown that the linear prediction residual (LPR) and linear prediction residual phase (LPRP) signals contain speaker-specific information that is complementary to the MFCC features. Attempts have been made to exploit the usefulness of features extracted from excitation and vocal tract characteristics for speaker recognition [13, 19, 22]. In this direction, Murty and Yegnanarayana [13] combined the evidence from LPRP and MFCC for improving the speaker recognition performance. The speaker verification experiments on the NIST 2003 database showed that the proposed combined system yields a better equal error rate than the individual systems.

In [16], the phase information is combined with the MFCC for speaker identification and verification tasks. The modified phase information extraction method that normalizes the change variation in the phase according to the frame position of the input speech was proposed. The experimental results showed that the combination of the MFCC and the phase information was efficient for noisy speech signal. The conventional MFCC realization based on windowed (hamming) discrete Fourier transform (DFT) may not yield good performance due to the high variance of the spectrum estimation [11, 12, 17]. The window function in speech processing smooths the spectral estimate of a frame of speech data by multiplying the data frame with the window. However, windowing by a single window has the disadvantage of producing leakage effects [21]. Kinnunen et al. [11] promoted the use of multitaper MFCC features for speaker verification. Experimental results on the NIST 2002 database indicated that multitapers outperform the conventional single-window technique (MFCC). In our previous work, we attempted to identify the speaker in the multilingual context with the constraint of limited data (15 s) using sine-weighted cepstrum estimator MFCC (SWCE-MFCC) (K=6) as feature [14]. It was observed in the study that the use of the multitaper MFCC approach gives a better identification performance in all the speaker identification experiments compared with the conventional MFCC technique.

The impact of mismatch in training and testing languages on a speaker verification system using English, Hindi, and Arunachali languages was carried out in [4]. The speaker verification system was developed using 38-dimensional features and the Gaussian mixture model–universal background model (GMM–UBM) approach. A training data of 120 s and different testing data of 15, 30, and 45 s were used. Recognition performance was observed to be greatly dependent on the training and testing languages. Further, it was observed that if the system is trained with more than one language, the relative recognition performance of the system degrades compared with that of the single-language scenarios (monolingual).

The features extracted from the multitaper MFCC, LPR, and LPRP are modeled using GMM–UBM individually. The individual scores are combined to obtain the speaker identification performance. The rest of the paper is organized as follows: the database used for the study is described in Section 2. Section 3 presents the speaker identification studies. Monolingual, crosslingual, and multilingual experimental results are discussed in Section 4. Conclusions are given in Section 5.

2 Database for the Study

Speaker identification experiments are carried out on the subset of the IITG multivariability speaker recognition (IITG-MV) database, which is collected in a setup having five different sensors, two different environments, two different languages, and two different styles [8]. The recording was done in the office (controlled environment) and in hostel rooms, laboratory, corridors, etc. (uncontrolled environments). The speech signal was sampled at 16 kHz and stored with 16-bit resolution. The recording was done in Indian English and favorite language of the speaker, which may be one of the Indian languages such as Hindi, Kannada, Tamil, Oriya, Assami, Malayalam, and so on [18]. For the present work, we randomly selected 30 (17 male and 13 female) speakers in the IITG-MV database (headphone speech data).

3 Speaker Identification Studies

3.3 Feature Extraction Using Multitaper MFCC

Let F=[f(0) f(1) … f(N–1)]^T denote one frame of speech (N samples) signal. The windowed DFT spectrum estimate is given by [11, 12]

where W=[w(0) w(1) … w(N–1)]^T is the time-domain window (Hamming) function. The basic idea in multitapering is to pass the analysis frame through several window functions and then approximate the weighted mean of individual subspectra to obtain the final resultant spectrum [12]. The multitaper spectrum estimation is given by [11]

where K represents the number of multitapers used, W_j=[w_j(0) w_j(1) … w_j(N–1)]^T is the multitaper weights, and j=1,2, …, K are used with corresponding weights λ(j). The sine tapers are defined as [1]

The weight used in the SWCE method is given by [1]

In this work, the SWCE multitaper is used with K=6 windows. A mel-warping is then performed using 22 triangular band-pass filters followed by a discrete cosine transform. Figure 1 shows the block diagram representation of the multitaper MFCC method. A 13-dimensional (excluding 0^th coefficient) MFCC feature vector is finally obtained. Figure 2 shows the Hamming and SWCE multitaper representation in the frequency domain.

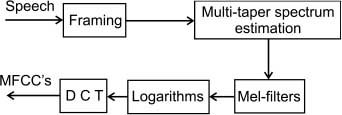

Figure 1.

Block Diagram of Multitaper MFCC Technique.

Figure 2.

Frequency Domain for a Hamming Window and SWCE Multitaper Window.

4 Experimental Results

In this section, monolingual, crosslingual, and multilingual speaker identification results are presented. In all our experiments, the speaker set (30 speakers) and amount of speech data (15 s) are kept constant to make a relative comparison of the performance of speaker identification using different techniques. (Note: X/Y indicates training with language “X” and testing with language “Y”; “Multilanguage” includes Kannada, Telugu, Tamil, Assami, Bengali, Malayalam, and Oriya.)

5 Conclusions

The main objective of the work was to increase the performance of the multilingual speaker identification system in limited data condition by combining the evidence from LPR, LPRP, and multitaper MFCC features. It was demonstrated by conducting speaker identification experiments on 30 randomly selected speakers from the IITG-MV database. The results showed that the information captured by the multitaper MFCC in combination with LPR/LPRP provides good speaker identification performance.
