A selective fluorescence probe based on benzothiazole for the detection of Cr³⁺

Introduction

Design and synthesis of fluorescent chemosensors capable of selective recognition of metal ions is an active field of research in supramolecular chemistry [1], [2], [3], [4]. Among the metal ions, Cr³⁺ ion performs a crucial role in a wide range of biochemical processes, which is essential for good health in moderate intake; however, it is toxic at high concentration [5], [6]. Several biological functions depend directly or indirectly on the proper concentration and oxidation states of chromium to maintain the homoeostatic mechanism. Deficiency or overdose of chromium can lead to serious diseases, including Alzheimer’s, Huntington’s and Parkinson’s disease [7], [8]. Ion recognition, particularly of toxic heavy metal ions is of intense interest as it has implications in the fields of environment, medicine and biology [9], [10]. Chemosensors for on-site selective and sensitive detection of such metal ions in aqueous phase is always endeavored. With the aid of suitable molecular probes, metal ions have been sensed in organic media, mixed organic solvents and aqueous-organic media [11], [12], [13], [14], [15], [16]. There are reports in the literature for specific sensing of Cr³⁺ in aqueous solution using spectrophotometer, spectrofluorimeter and confocal microscope [17], [18], [19], [20], [21], [22], [23]. The potent toxicity of Cr³⁺ drives the need of simple, convenient and naked-eye visualization method for the detection in aqueous solution.

Recently, benzothiazole and Schiff base derivatives have become research hotspot in recognition of various analytes [24], [25], [26], [27], [28], [29]. Here, we report a novel colorimetric chemosensor L based on a benzothiazole-functionalized Schiff-base derivative for the quantification of Cr³⁺ in aqueous solution. Ligand L specifically binds to Cr³⁺ in the presence of other competing cations with a substantial color change in HEPES buffer. This chemosensor provides a convenient and practical way to detect both Cr³⁺ in the environment.

Results and discussion

Compound 2 was synthesized by condensation of 2-formylbenzothiazole (1) and thiosemicarbazide in the refluxing acetic acid for 8 h. The unique ligand L was then obtained by condensation of 2 and 2-bromoacetophenone (Scheme 1). The molecular structure of 2 and L were confirmed by NMR, mass spectra and elemental analysis (see Figures S1, S2, S5–S8 in the online supplement).

Scheme 1

Host-guest recognition experiments in aqueous DMSO, HEPES buffered solution, pH 7.2, were carried out. The coordination of L with Cr³⁺ was first investigated using UV-vis absorption spectroscopy. As shown in Figure 1, the addition of Cr³⁺ (10 μm) to L (5 μm) results in the spectral shift of the absorption peak from 378 nm to 589 nm along with color changes from yellow to green. Meanwhile, only slight absorption changes are induced by adding Cu²⁺. In an analogous way, no significant adsorption and color changes occur in the presence of other metal ions including Fe³⁺, Ag⁺, Hg²⁺, Co²⁺, Ni²⁺, Cd²⁺, Pb²⁺, Ba²⁺, Mg²⁺, Al³⁺, Ca²⁺ and Zn²⁺. This result indicates that L can serve as a ‘naked-eye’ Cr³⁺ indicator in aqueous media.

Figure 1

The absorption spectra of L (5 μm) in DMSO/H₂O solution (3:7, v/v; HEPES buffered, pH 7.2) upon addition of 2.0 equiv. of various metal ions.

Investigated metal ions are Cr³⁺, Fe³⁺, Ag⁺, Cu²⁺, Hg²⁺, Co²⁺, Ni²⁺, Cd²⁺, Pb²⁺, Ba²⁺, Mg²⁺, Al³⁺, Ca²⁺ and Zn²⁺. Inset shows colors of L solution in the absence and presence of Cr³⁺ ion.

Additional studies of the Cr³⁺ – L complexation in HEPES buffer is shown in Figure 2. The initial absorption maximum of L at 378 nm decreases upon gradual addition of Cr³⁺ ion with the concomitant appearance of a new absorption band at 426 nm. This new band also gradually decreases upon further addition of Cr³⁺ ion and a new peak at 589 nm gradually increases, implicating the formation of L-Cr³⁺ ensembles.

Figure 2

UV-vis absorption spectra of L (5 μm) in the presence of Cr³⁺ (0–15 μm) in DMSO/H₂O (3:7, v/v; HEPES buffered, pH 7.2).

The fluorescence spectra (λ_ex=358 nm) of L in the absence and presence of various metal cations are shown in Figure 3. The sensor L shows a negligible fluorescence emission around 500 nm in the absence and presence of Fe³⁺, Ag⁺, Cu²⁺, Hg²⁺, Co²⁺, Ni²⁺, Cd²⁺, Pb²⁺, Ba²⁺, Mg²⁺, Al³⁺, Ca²⁺ and Zn²⁺. By contrast, the addition of Cr³⁺ creates a remarkable fluorescence enhancement at 536 nm. These results demonstrate that probe L shows an excellent selectivity toward Cr³⁺.

Figure 3

Fluorescence spectra of L (10 μm, λ_ex=358 nm) in the presence of different metal ions: Cr³⁺, Fe³⁺, Ag⁺, Cu²⁺, Hg²⁺, Co²⁺, Ni²⁺, Cd²⁺, Pb²⁺, Ba²⁺, Mg²⁺, Al³⁺, Ca²⁺ and Zn²⁺ (20 μm).

Fluorescence titration experiments were also performed. As shown in Figure 4, upon incremental addition of Cr³⁺ (0–2.0 equiv.) to L solution, the fluorescence emission gradually increases and reaches the saturation state with 1.0 equiv. of Cr³⁺. The nonlinear fit of the data reveals that the binding of L to Cr³⁺ is most probably of 1:1 stoichiometry. This binding mode is also supported by the data of Job’s plots evaluated from the fluorescence spectra of L and Cr³⁺ with a total concentration of 20 μm (Figure S9). According to the linear Benesi-Hildebrand expression, the measured fluorescence intensity [1/(F−F₀)] at 515 nm changes as a function of 1/[Cr³⁺] in a linear relationship (R²=0.9962). The association constant of L with Cr³⁺ in HEPES buffer was calculated to be 5.73×10⁴m⁻¹ (Figure S10). The detection limit for Cr³⁺ was estimated to be 2.1×10⁻⁸m based on a 3σ/slope analysis under these experimental conditions (Figure S11). Furthermore, the fast fluorescence responses of L towards Cr³⁺ was also confirmed by the addition of Cr³⁺ (20 μm) to the solution of L (10 μm) in HEPES buffer. As shown in Figure S12, upon the addition of Cr³⁺, a significant fluorescence response is observed within 5 min, indicating that the probe L could be used for the real-time detection of Cr³⁺.

Figure 4

Fluorescence spectra of L (10 μm, pH 7.2) in buffered aqueous phase upon addition of increasing concentrations of Cr³⁺ (0–20 μm, λ_ex=358 nm).

For the biological application of L, the sensing should operate in the physiological range of pH. As shown in Figure 5, the fluorescence intensity of L is stable in the pH range of 5–11. This result indicates that the probe L can be used as a chemosensor for Cr³⁺ detection under physiological conditions.

Figure 5

The effect of pH (5.0–11.0) on the fluorescence intensity of L (10 μm) with 2.0 equiv. Cr³⁺ in DMSO/H₂O solution (3:7, v/v; HEPES buffered, pH 7.2).

To check further the practical applicability of receptor L as a selective receptor, we carried out competition experiments (Figure 6). For the competition tests, receptor L was treated with 2 equiv. of Cr³⁺ and 2 equiv. of other metal ions such as Fe³⁺, Ag⁺, Cu²⁺, Hg²⁺, Co²⁺, Ni²⁺, Cd²⁺, Pb²⁺, Ba²⁺, Mg²⁺, Al³⁺, Ca²⁺ and Zn²⁺. No interference was observed for the detection of Cr³⁺ by L in aqueous solution under these conditions. These results indicate that L could be an excellent chromogenic sensor for Cr³⁺ over competing relevant metal ions in aqueous solution.

Figure 6

Relative fluorescence intensity of L (10 μm) in the presence of various cations in DMSO/H₂O solution (3:7, v/v; HEPES buffered, pH 7.2, λ_ex=358 nm).

The green bars represent the emission changes of L in the presence of cations of interest (all are 20 μm). The red bars represent the changes of the emission that occurs upon the subsequent addition of 20 μm of Cr³⁺ to the solution.

The reversibility of the recognition process of L was analyzed by adding a bonding agent, Na₂EDTA. As shown in Figure 7, the addition of Na₂EDTA to a mixture of L and Cr³⁺ results in the decrease of the fluorescence intensity, which indicates the regeneration of the free sensor L. It means that the receptor L could be used as a selective fluorescent sensor for detection and recognition of Cr³⁺ in such fields of environmental analysis.

Figure 7

Fluorescence responses of L (10 μm) after the sequential addition of Cr³⁺ and EDTA.

To verify the potential application of the fluorescent sensor L, the Cr³⁺ determination in tap and bottled water samples was conducted using the fluorescence spectroscopy. The results were calculated by linear equation and are listed in Table 1. All measurements were repeated three times. As can be seen, the recovery of Cr³⁺ in all determined water samples ranges from 96.7 to 104.8% and the relative standard deviation (RSD) is under 1.83%. These data demonstrate that the present probe can be used for the practical detection of Cr³⁺ in aqueous samples in the presence of potentially competing metal ion species.

The recognition mechanism of the sensor L with Cr³⁺ was investigated by using mass and infrared spectra. The mass spectrum obtained in the presence of sodium ion shows a molecular-ion peak [L+Na⁺]⁺ at m/z 359.03931. When Cr³⁺ ion is added into the solution of L, the resultant peak at m/z 458.95294 is assignable to [L+Cr³⁺+2Cl⁻]⁺ species (Figure S3). We studied the IR spectra of free ligand L and the complex L-Cr³⁺ again and the results are shown in Figure S4. Upon addition of Cr³⁺ to L, the IR spectrum of L undergoes changes with the vibrational frequency of CH=N undergoing a red shift from 1636 cm⁻¹ to 1653 cm⁻¹. This result suggests that the nitrogen atom of CH=N may participate in binding with Cr³⁺. The IR frequency of N-H undergoes a blue shift from 3182 cm⁻¹ to 3169 cm⁻¹, which can be attributed to the change of chemical environment near the N-H moiety. In addition, the slight change of aromatic frequency can be attributed to the coordination of the nitrogen of thiazole with Cr³⁺. Therefore, the observed differences in the IR spectra of L in the absence and presence of Cr³⁺, coupled with ESI-MS analysis and Job’s plot analysis, are consistent with the proposed chelation as shown in Scheme 2. The L-Cr³⁺ interactions may involve the imine nitrogen and the nitrogen of the thiazole group to forms a 1:1 complex (Scheme 2).

Scheme 2

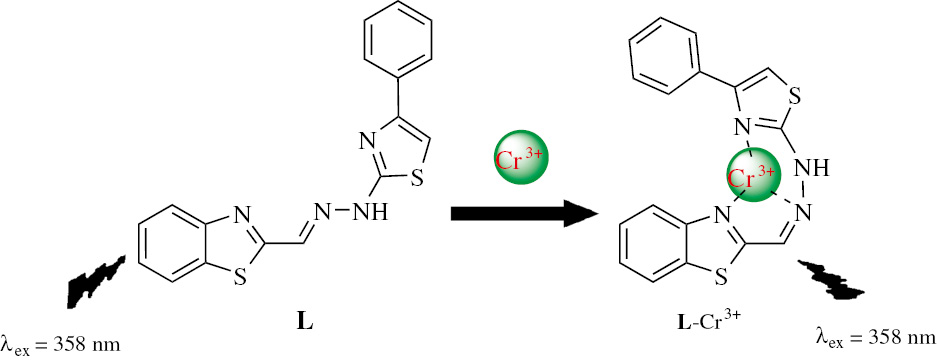

Proposed mechanism for Cr³⁺ chelation by L.

To better understand the nature of the coordination of Cr³⁺ with L, energy-optimized structures of L and its corresponding complexes with Cr3⁺ were obtained using density functional theory (DFT) calculations at the B3LYP/6-31G(d) level using Lanl2dz basis set for simple receptor L and L-Cr³⁺ complex. The spatial distributions and orbital energies of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of L and the corresponding metal complexes were also calculated. As shown in Figure 8, the HOMO is distributed on the whole molecule in L, whereas LUMO is distributed on the benzothiazole ring in L. Meanwhile, the π electrons of HOMO of L-Cr³⁺ is mainly distributed on the chromium and the benzothiazole. The LUMO is distributed on the chromium and the corresponding coordination site in L-Cr³⁺. The energy gaps between the HOMO and LUMO in the L and L-Cr³⁺ were calculated to be 3.50210 eV and 2.34834 eV, respectively, indicating that the binding of Cr³⁺ to L decreases the HOMO-LUMO energy gap of the complex and stabilizes the system. Thus, these results are consistent with a favorable complexation according to the proposed coordination.

Figure 8

Energy diagram of HOMO and LUMO orbital L and L-Cr³⁺ complex.

Conclusion

A new benzothiazole-based fluorescent chemosensor L for Cr³⁺ detection in mixed aqueous medium (DMSO/H₂O solution, 3:7, HEPES buffered, pH=7.2) was developed. The experimental results clearly indicate that compound L is a highly sensitive and selective chemosensor for Cr³⁺. The receptor selectivity and sensitivity are not affected in the presence of other metal ions. According to Job’s plot, a 1:1 stoichiometry complex between L and Cr³⁺ is formed. This excellent selectivity suggests a potential application of the chemosensor in the biological monitoring and tracking of Cr³⁺. A B3LYP/6-31G (d,p) basis set was employed for optimization of L and L-Cr³⁺ complex.

Experimental

2-Formylbenzothiazole [30] was prepared as reported previously. All chemicals were commercially available, and the organic solvents were dried over appropriate drying agents and distilled prior to use. Double-distilled water was used. Salts of metal ions Ca²⁺, Mg²⁺, Ni²⁺, Co²⁺, Zn²⁺, Cu²⁺, Hg²⁺, Pb²⁺, Fe³⁺, Ba²⁺, Ag⁺, Al³⁺, Cr³⁺ and Cd²⁺ were used to evaluate the probe selectivity. ¹H NMR spectra (500 MHz) and ¹³C NMR spectra (125 MHz) were recorded on a Bruker AV 500 spectrometer using DMSO-d₆ as solvent. ESI mass spectra were recorded on a Bruker Solarix 70 high-resolution instrument. Elemental analyses were performed on a Perkin-Elmer 240 analyzer. The UV-vis and fluorescence experiments were performed on a Lambda-900 spectrometer and a Perkin-Elmer LS-55 fluorescence spectrophotometer, respectively.
