Synthesis of biotinylated bivalent zanamivir analogs as probes for influenza viruses

Introduction

Influenza virus, a highly transmissible respiratory pathogen, infects several millions of people annually. Influenza-related deaths ranked 8th among the leading causes of death in the United States in 2014 according to the Centers for Disease Control and Prevention, Atlanta, GA, USA [1], [2]. While seasonal influenza can and is damaging, emerging strains can cause widespread and significant economic harm with entire school systems forced to shut down during a pandemic [3]. Vaccines are highly recommended for the most vulnerable, however, the effectiveness of vaccines in any given season varies widely; in most years it is ≤50% effective [4]. Moreover, it is logistically not possible to vaccinate all vulnerable populations. Antivirals that include tamiflu and relenza represent an alternate countermeasure to counter the harmful effects of the virus, but they must be provided to patients 24–48 h before onset of infection for optimal efficacy [5]. A third and important countermeasure is precise and rapid diagnostics to detect the virus because early detection can be used to quarantine patients to arrest the spread of a rapidly evolving and transmissible strain.

Diagnostics for influenza virus include traditional plaque assays [6], rRT-PCR [7] and antibody based assays [8], [9]. There are advantages and disadvantages to all these assays; cell culture methods require trained personnel and a laboratory equipment, rRT-PCR methods such as the recently approved alere™ influenza tests are expensive and antibody based tests are not preferred as they are not very sensitive [9], [10], [11]. We recently reported an alternative diagnostic method where the surface glycoproteins are targeted [12], [13], [14], [15]. Briefly, influenza virus has two surface glycoproteins, hemagglutinin (HA) and neuraminidase (NA) that play an important role in the viral lifecycle. HA binds to a nine-carbon glycan, N-acetylneuraminic acid or sialic acid, present on the termini of glycolipids and glycoproteins of the epithelial cells of the respiratory tract [16], [17]. This is followed by cell entry and infection of the host cell. After utilizing the host cell machinery for virus propagation, the progeny escapes the host cell to infect neighboring cells and tissues. Interestingly, sialic acid present on the infected host cell prevents the viral progeny from escaping. Mucins containing sialic acid also inhibit the virus from propagating [18]. The enzyme NA cleaves sialic acid on the infected host cell and mucins freeing viral progeny to infect other cells. We choose to target these glycoproteins for three reasons: First, they are vital proteins of the virus requiring sialic acids. Second, there are approximately 300–400 copies of HA and 50–100 copies of NA on a single viral particle. HA exists as a trimer and NA as a tetramer, and a substantial number of copies on a single virion provides an adequate number of protein targets for synthetic or natural sialic acids to capture [19], [20]. Third, this receptor based approach is unique in comparison to antibody based diagnostics. All strains of influenza virus are expected to bind to sialic acid analogs and each strain would yield a ‘fingerprint’ pattern of recognition that can be used to detect the virus [14], [15]. In previous studies, we developed microarrays comprised on synthetic sialic acid analogs that could bind to HA and/or NA. After exposure of the focused microarray to different virus strains, a fluorescently labeled antibody was used as the readout [14], [15] (Figure 1A). These studies were important to establish proof of principle that sialic acid analogs could be used to detect influenza viruses; however, a limitation of the studies was that antibody based reporters are required. Following a report by Wong and coworkers [21], we now report the synthesis, characterization and initial binding studies of ‘universal’ glycan based reporter molecules that could bind to all virus strains. Since the capture and reporter molecules are made of glycans, antibodies are not required (Figure 1B).

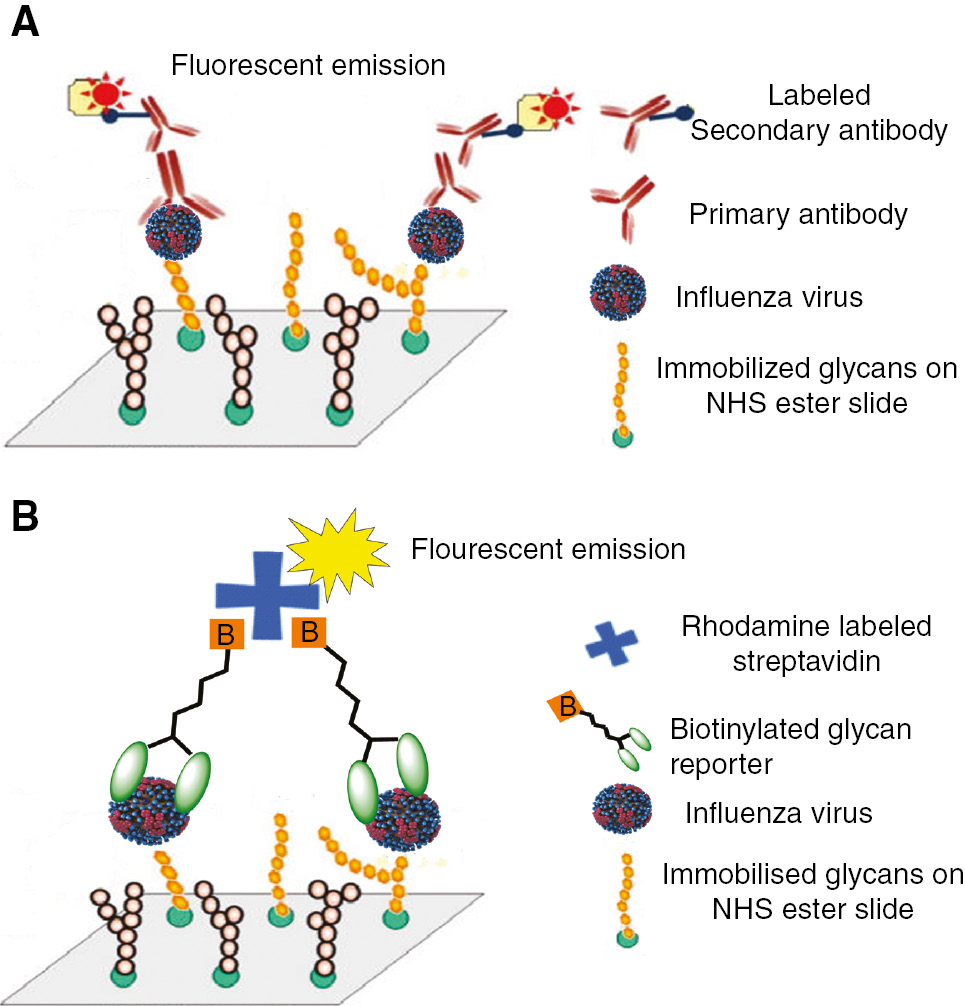

Figure 1

(A) Cartoon representation of the sandwich assay using glycans as capture and labeled antibody as reporters. (B) Cartoon representation of the sandwich assay using glycans as capture and biotinylated glycan-labeled streptavidin as reporters.

Results and discussion

The design and synthesis of the universal reporter is shown in Scheme 1 and it follows our previous publications [15]. We choose to use zanamivir analogs as the glycan headgroups as the binding affinity of zanamivir to NA is in the nanomolar range. The active site of influenza NA is also highly conserved and, furthermore, resistance to zanamivir is not as high as to oseltamivir. In fact, very few cases of zanamivir resistance has been reported [22]. We also choose to develop a dimeric scaffold as dimers improve the avidity effect [23]. We designed the molecule in which two zanamivir analogs fit into two active sites of a NA tetramer or two adjacent NA tetramers [24]. We attached biotin at the opposite end of the scaffold because biotin can bind to fluorescently labeled avidin yielding the desired reporter. The final construct is expected to possess eight zanamivir analogs as one avidin binds to four biotin molecules. The azido compound 1 and the scaffold 2 were synthesized as described previously. 1,3 Dipolar cycloaddition [25] reaction under standard conditions was performed to yield the biotinylated bivalent compound 3 in 60% yield. Deprotection of the tert-butoxycarbonyl and methyl ester groups resulted in the desired reporter molecule AD-R. This compound was purified using size exclusion Biogel P2 columns to yield a foamy solid. All intermediates and the final compound were characterized using NMR and MS.

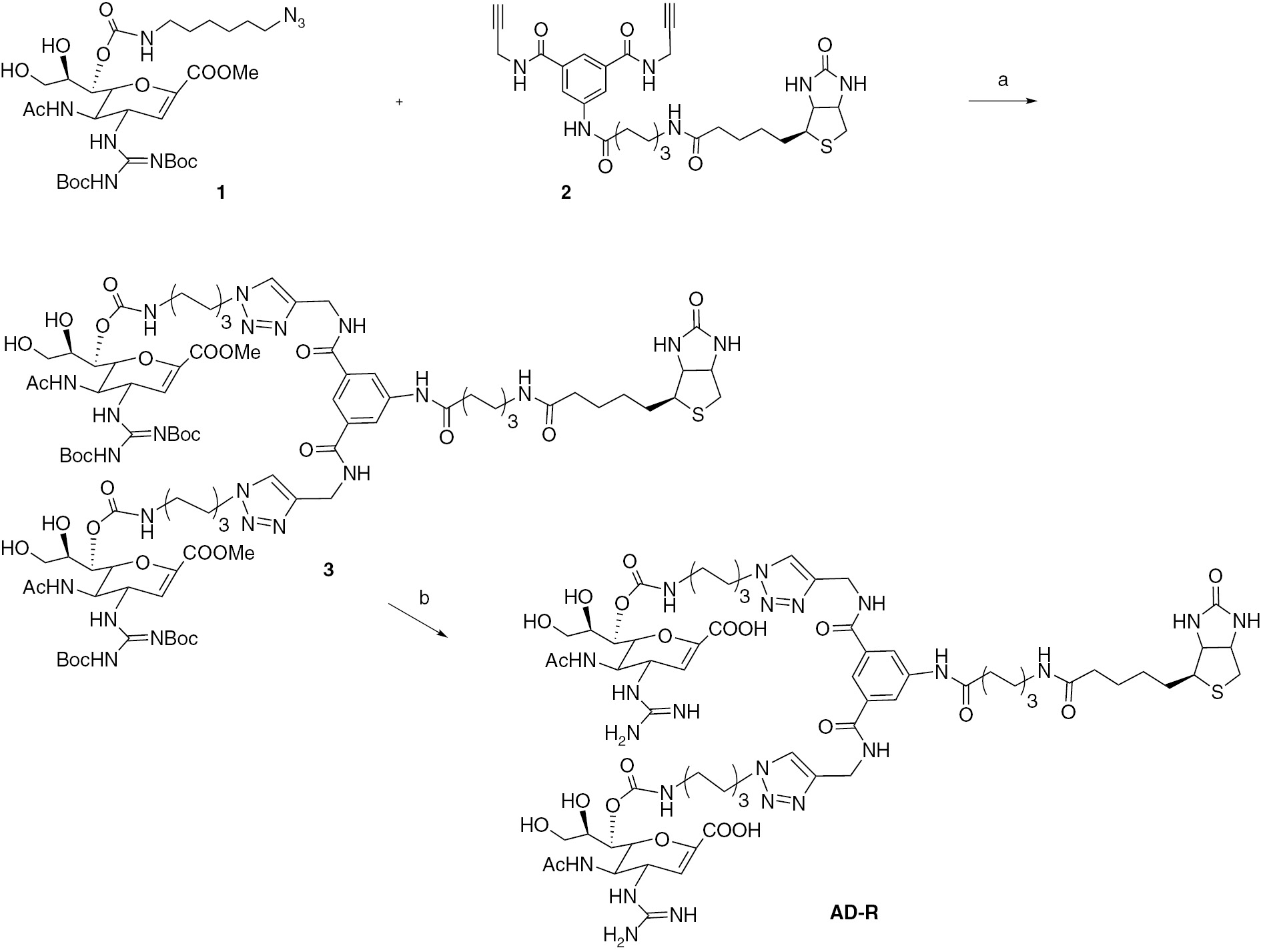

Scheme 1

Reagents and conditions: (a) tert-BuOH:H₂0 (7:3), CuSO₄, sodium L-ascorbate, rt, 36 h, yield 60%; (b) 50mm NaOH, rt, 2 h, then TFA:DC (1:1), rt 1 h, yield 80% (over two steps).

Next, we used the biotinylated compound as a reporter in microarray studies. We printed four bivalent compounds on glass slides for these exploratory studies [14], [15] (Figure 2). These compounds have been shown in our previous studies to capture different strains of influenza viruses [15]. After incubating with Influenza A H1N1, A/Brisbane/59/2007 virus at rt for 1 h, the slides were washed extensively, and exposed to AD-R. This step was followed by extensive washing and addition of labeled streptavidin. While we choose a two-step procedure of adding the biotinylated compound followed by the labeled streptavidin, an alternate method of premixing one equivalent of the avidin with four equivalents of the biotinylated compound could also be used with the caveat that the latter method requires purification of the avidin-biotin complex. The slides were scanned using a Genepix400B scanner at 557 nm. It was gratifying to observe that all four printed compounds capture the virus when the labeled streptavidin-AD-R conjugate is used as the reporter; non-specific binding to PEG is negligible (Figure 3). The increase in relative fluorescence units (RFU) from background is not as high in comparison with antibody based reporters [15], presumably because capture and reporter ligands that primarily bind to NA are used. The number of NAs on a single virion is not as high as the number of HAs [19], [20]. Secondly, NAs have been shown to be present in clusters or scattered on the virus surface [19], [20] which may limit the number of available sites for the reporter to bind when the virus is captured by the glycans on the glass slides. This may lead to a lower RFU value. We plan to develop the use of ligands that capture HA, which should give a higher RFU value. It was also determined that the limit of detection of this virus is 10⁴ PFU (plaque forming units).

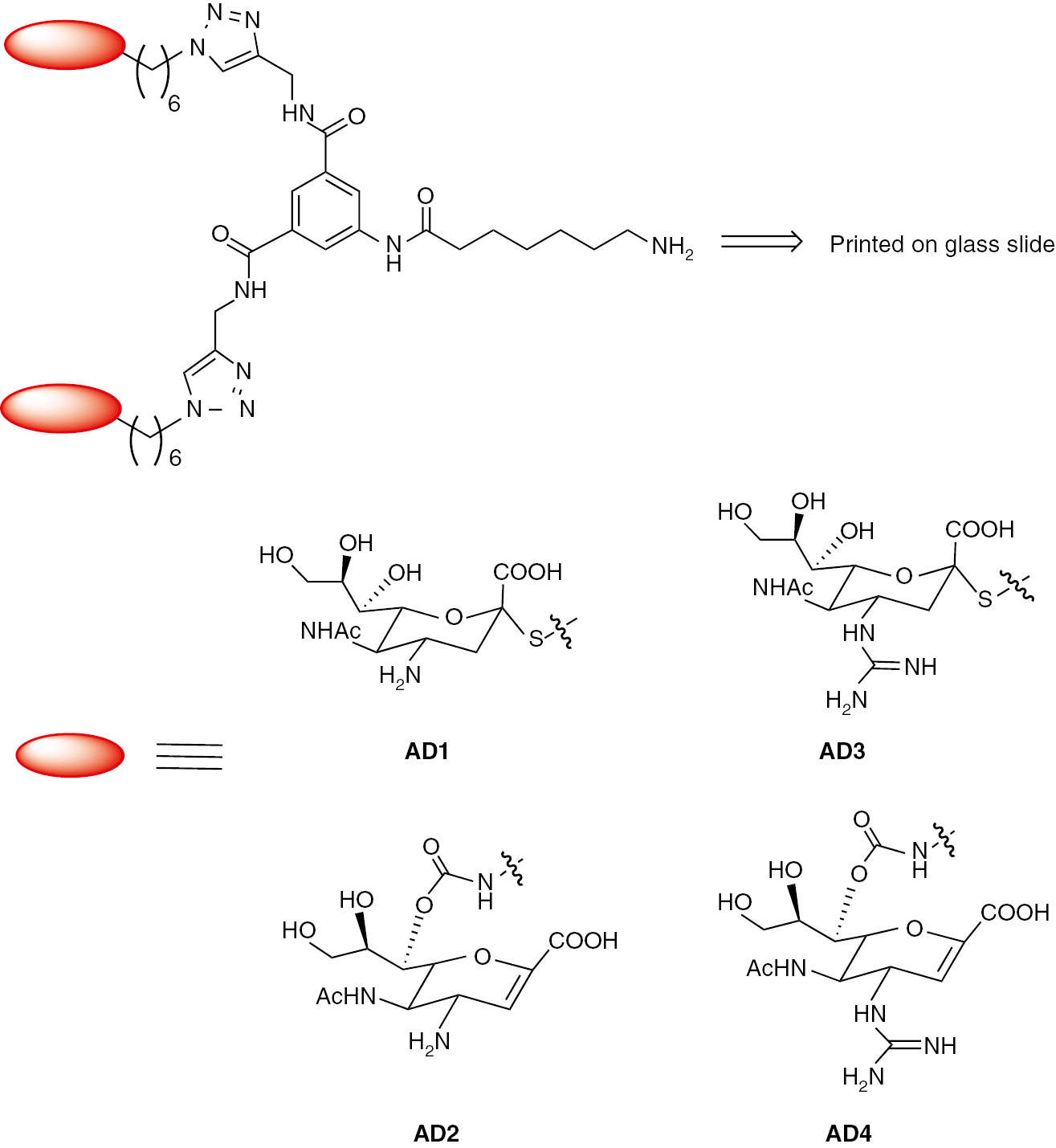

Figure 2

Structures of the four glycans immobilized on glass slides for capturing influenza virus.

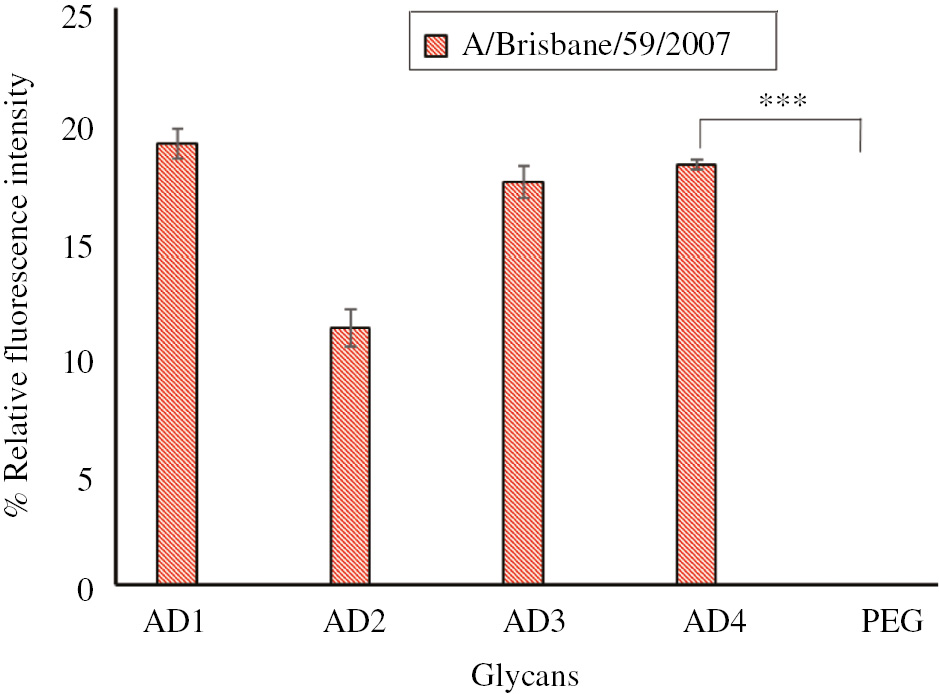

Figure 3

Influenza virus binding studies.

Fluorescence detection of H1N1 (A/Brisbane/59/2007) influenza A virus using synthetic glycans as capture and biotinylated glycan-label streptavidin as reporter. Glycans and PEG (negative control) were printed at 200 μm. Virus concentration was 10⁵ PFU. Fluorescence intensity was measured by the Genepix400B scanner using tetramethylrhodamine (TRITC) labeled streptavidin and scanned at 557 nm. All experiments were performed in triplicate (*p<0.05, **p<0.01, ***p<0.001, ns>0.05).

Conclusions

A biotinylated bivalent zanamivir analog for the specific capture of influenza viruses was synthesized. This molecule was used as a reporter in the microarray studies and it was demonstrated that this compound could also be used as a reporter in a sandwich assay with an influenza A H1N1 virus strain. The biotinylated molecule could be used as a probe to capture influenza viruses as the biotin can readily be attached to streptavidin coated magnetic beads [26], nanoparticles [27] or surfaces [23].

Experimental

All reactions were performed under argon atmosphere with dried solvents. All chemical reagents were of analytical grade and used as supplied. Tetramethylrhodamine (TRITC) labeled streptavidin was purchased from Thermo Scientific as a lyophilized powder. Compounds AD1-4 were synthesized as described previously [15]. The acidic ion exchange resin used was Amberlite^® IR 120 (H⁺) resin. Analytical thin layer chromatography (TLC) was performed on silica gel 230–400 mesh (Sicicycle). Plates were visualized under UV light, and/or by staining with CeH₈Mo₃N₂O₁₂ followed by heating. Column chromatography was performed on silica gel (230–400 mesh). ¹H NMR (400 MHz) and ¹³C NMR (100 MHz) spectra were recorded on a Bruker 400 spectrometer. Electrospray ionization mass spectra were recorded on a Micromass Q\T 2 (Waters) and data were analyzed with MassLynx^® 4.0 (Waters) software. Yields refer to spectroscopically and chromatographically pure compounds that were dried under reduced pressure (10⁻² mbar).
