Student explorations of calcium alginate bead formation by varying pH and concentration of acidic beverage juices

Background

Alginate is an attractive model system to explore in a teaching lab due its tunable properties that are desired in various industries ranging from food, medicine, and construction. As a hydrogel, alginate can absorb a large amount of water molecules. Alginate can be woven into a fiber for wound dressings (Aderibigbe & Buyana, 2018). Formation of alginate gel beads through spherification have been incorporated into imitation food and encapsulation of biomolecules (Jeong, Kim, Lee, Cho, & Kim, 2020). Thin film and coatings derived from alginate are used in food packaging to improve shelf life (Parreidt, Müller, & Schmid, 2018). Alginate capsules containing sunflower oil were utilized for self-healing properties to rejuvenate asphalt (Al-Mansoori, Norambuena-Contreras, Micaelo, & Garcia, 2018).

The life cycle of calcium alginate beads meets many of the criteria described in the Sustainable Polymer Framework from the National Science Foundation (NSF) Center for Sustainable Polymers (Wissinger et al., 2020) and summarized in Figure 1. The reagents used in this experiment are or can be potentially obtained from natural feedstocks. The process to synthesize calcium alginate can be completed at room temperature. The reagents are non-toxic and inexpensive and food-grade quality of the materials can be purchased online enabling the chemistry to be safely conducted at home in the kitchen. For end-of-use the alginate beads are biodegradable. The aforementioned features make studying alginate very accessible for lower and upper secondary age groups. While there are several demos found online showcasing the basics of synthesizing calcium alginate, the teaching experiments described here are translated into curricula that meet learning standards set for upper secondary age students.

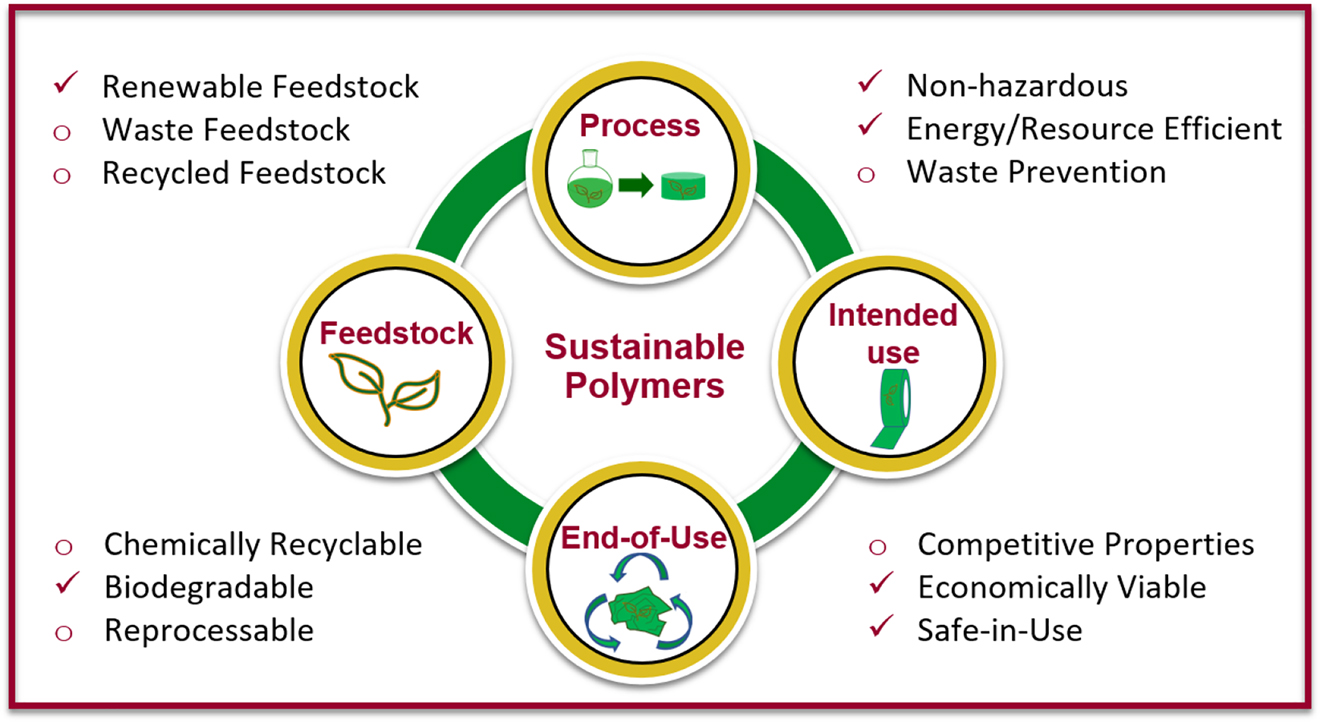

Figure 1:

The criteria addressed by the alginate experiment curriculum that align with the sustainable polymer framework (adapted from Wissinger et al. 2020).

The structure of alginate is comprised of two uronic acid blocks, a β-D-mannuronate (M) and α-L-guluronate (G) residue linked through a 1,4-glycosidic bond. The alcohol functionality at the C6 position is fully oxidized to a carboxylic acid. The polymer has three different arrangements that provide a unique structure: A flat ribbonlike block of repeating MM residues, an egg-box block of repeating GG residues, and a helical shaped region of alternating MG residues (Lee & Mooney, 2012; Zhang, Cheng, & Ao, 2021). The conformational shape of the GG block allows for the carboxylate anions to strongly coordinate to multivalent cations connecting two separate polymer chains. Alginate beads can be synthesized by reacting its sodium salt form with calcium lactate via a double displacement reaction (Scheme 1). The crosslinking coordination of the divalent cation to the carboxylate groups is the key focus of this teaching lab.

Scheme 1:

Synthesis of calcium alginate with calcium coordinated to the α-L-guluronate (G) residues.

Classroom experiments involving alginate have been successfully incorporated for lower, upper and freshman/sophomore age groups. These past experiments demonstrate the versatile properties of alginate polymers as they are prepared in a variety of different forms:

1. Pods (Corcoran & Wissinger, 2020; Corcoran et al., 2022)

2. Worms (Waldman et al., 1998)

3. Spaghetti (Erdal, Hakkarainen, & Blomqvist, 2019)

4. Chitosan alginate discs (Ward & Wyllie, 2019)

5. Slime (Boyd, 2021)

One notable parameter that was not studied in these teaching experiments was the investigation of pH on bead formation. This phenomenon presents as a great opportunity to use in a classroom teaching experiment. Alginate polymers are known for being pH responsive and the direct impact of pH effects on bead shape and the calcium interactions has been well studied (Chuang et al., 2017; Liang et al., 2004; Zheng et al., 2017). Students are exploring this effect using citric acid, which is derived from natural resources and friendly to use.

This new addition of calcium alginate bead investigation is designed for upper secondary students to explore the effect of pH on calcium alginate bead formation using varying concentrations of citric acid (Scheme 2). Similar to calcium lactate and sodium alginate, food grade citric acid is readily available for purchase and can also be safely used in the experiment. When citric acid reacts with sodium alginate, the carboxylate groups on the polymer can be protonated depending on the pH. The pKa values of the carboxyl groups on the mannuronate and guluronate blocks are 3.38 for and 3.65 respectively (Francis et al., 2013). Recall that the G-blocks of alginate are the site of coordinations with divalent cations. When pH is above the pKa of the carboxylic acid there will be a higher concentration of its deprotonated form. When pH is below the pKa, the carboxylic acid will be primarily in its protonated state. Lowering the pH of the alginate below the pKa of the guluronate residue has a major impact on bead shape. At a lower pH, calcium alginate beads form a more oblate, less spherical shape (Chuang et al., 2017). The protonation of the carboxylate anions on the G residues disrupts the coordination with the calcium cations reducing the available sites for crosslinking. This weakens the crosslinking network lowering the resistance to deformation under the bead’s own weight (Figure 2). A second effect that contributes to the oblateness of the bead shape is caused by the reduction of interfacial tension at a lower pH (Yoo & Mitragotri, 2010).

Scheme 2:

Acid-base reaction between sodium alginate and citric acid.

Figure 2:

Left: calcium alginate formed at pH 3.45. Right: calcium alginate formed at pH 7.2.

The learning objectives of this teaching experiment for upper secondary age students involve discussing the need for finding alternatives to traditional plastics and introduction to green chemistry and sustainability. This teaching experiment invokes and brings awareness to the plastics problem at a level suitable for its audience. The topics of polymer structure, chemical bonding, solutions and solubility, and acid-base chemistry are incorporated into the experiment. In the first part of this multi-day experiment, students are required to consider how pH relates to protonation and how this can affect the structure of an ionizable polymer. Students will mix solutions of varying concentrations and directly observe that more solute in a solution results in a higher concentration. Furthermore, the relationship between concentration and pH is observed when an acidic solution diluted with water results in a higher pH. In the second part, students undertake an exploratory investigation taking the knowledge obtained from the previous studies and predict which juice beverage can form beads. Since this experiment uses food safe materials, students explore juices which can be tied to pH as they naturally contain organic acids. Students are asked to determine whether juices could substitute for water and create new environmentally-friendly ways to deliver thirst quenching beverages without the use of plastic bottles.

Materials and design (see Supplementary Material for details regarding procedures and setup)

This chemistry experiment explores the effect of pH on calcium alginate beads and their practical application to hold liquids such as juices or condiments. This two-part experiment can take place in two 50 min class sessions. Part I examines the effect of pH on calcium alginate beads filled with water. This knowledge is then applied to predict and test the viability of beads filled with juice.

To synthesize calcium alginate beads, a solution of sodium alginate and the contents of the bead is dropped or placed into calcium lactate solution and allowed to react for 15 min or more. Two methods are given to prepare the beads. The first utilizes a standard plastic pipette that is cut to create a larger opening for delivery of the sodium alginate solutions. The second uses a teaspoon that is gently placed liquid side up just below the surface of the calcium lactate for 5–10 s to allow initiation of the outer shell membrane formation. The teaspoon is then gently inverted to empty the contents into the calcium lactate solution. Food coloring is used to improve visibility of beads when recovered from the lactate baths.

Part I – pH control with citric acid

Students work in groups of five and begin by preparing five sodium alginate + citric acid solutions in water. The pH of each solution is measured and recorded. Each solution, ranging in pH between ∼6 and ∼3 are added to a beaker containing 0.06% w/v calcium lactate via a cut pipette or teaspoon. The beads sit in solution for at least 15 min while the calcium alginate outer membrane forms. After 15 min, observations of the beads in solution are made. After removal from solution, the texture, shape, and firmness of the beads are analyzed at each pH and reported in a table.

Part II – Investigation of juice-beverage beads

Part II of the experiment encourages students to begin thinking about the practical applications of sodium alginate beads and to share and compile data. From Part I, a relationship between pH and bead formation is drawn. Students consider the tartness of various juices such as cranberry, apple, and lemon juice and correlate with the order of pH and bead formation and shape. Pairs are assigned one type of juice and work with two sodium alginate solutions, a non-diluted juice solution and a diluted juice solution. Again, the pH of each solution is determined and the same protocol as that used for water is followed to prepare calcium alginate juice filled beads. Students examine the beads and share data with other groups to collect data on each type of juice.

Potential extension – contact angle analysis

Instructors can choose to include an optional extension that involves measuring the contact angle of the calcium alginate beads. ImageJ software, which can be downloaded online for free through the National Institutes of Health (https://imagej.nih.gov/ij/download.html), allows quantification of contact angle through the Contact Angle Plug-in (https://imagej.nih.gov/ij/plugins/contact-angle.html). Photographs of the calcium alginate beads can be used to determine contact angles using a reported literature procedure (Buahom, 2018) and as described in the Supplementary material.

Part I – pH control with citric acid

Figure 3 illustrates the beads formed from the dropper and spoon methods giving different sized beads. The spoon method gives beads of approximately 2.5–3.5 cm in diameter whereas the dropper affords beads with diameters of approximately 0.5–0.6 cm. Each method has varying degrees of technique involved. The dropper method provides better control in delivery resulting in more precise and consistent shapes. The spoon method is less consistent with size and shape, however the larger appearance of the beads makes it easier to identify significant changes in bead shape when changing the pH. Turkey basters and boba straws were also shown to effectively transfer the alginate solutions into the calcium lactate baths.

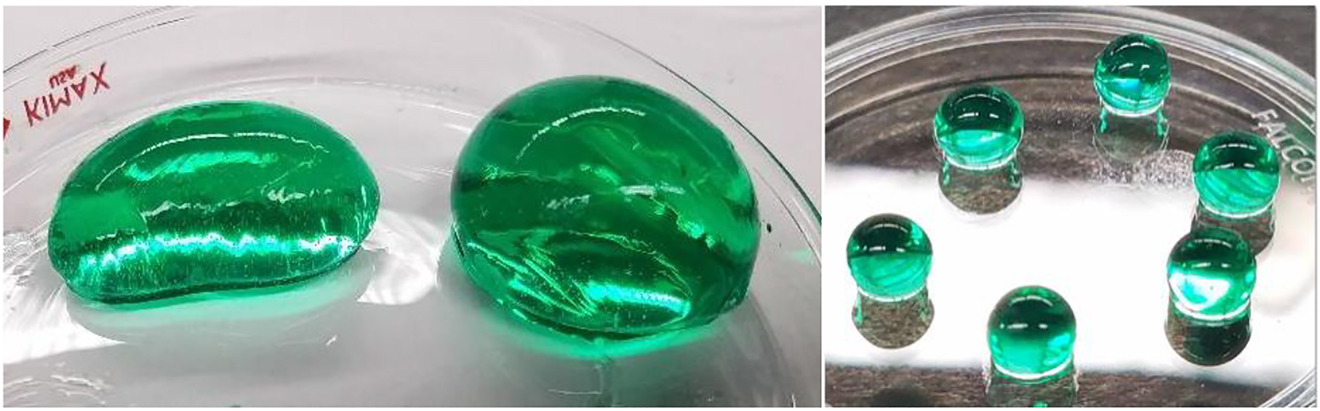

Figure 3:

Left image: beads formed with spoon. Right image: beads formed with pipette.

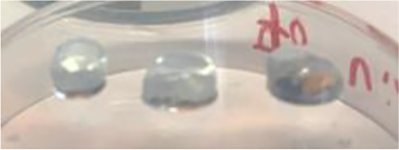

Representative student data expected for Part I are shown in Tables 1 and 2 (see Supplementary material for more information). Beads with no citric acid and the highest pH are the firmest and roundest. As pH is lowered, the beads start losing their structural integrity, becoming less spheroid in shape and are easily broken when gently squeezed. The oblateness of the alginate beads is more apparent as the pH nears and eventually becomes lower than the pKa of the carboxyl groups (3.38) of the G block. Using food coloring dye is essential to help observe the results of the experiment.

Table 1:

Example of data and observations using the pipette dropping method.

Sodium alginate + citric acid % w/v	pH	Photo	Observations
0.00	6.00		Round, firm, smooth, retains shape
0.40	3.77		Round and smooth, squishy, does not fully retain shape
0.80	3.45		Spread out, oblate, squishy
1.20	3.25		Very oblate, does not retain shape
1.60	3.13		Flat, squishy, not a bead

Table 2:

Example of data and observations using the teaspoon method.

Sodium alginate + citric acid % w/v	pH	Photo	Observations
0.00	6.00		Round, firm, smooth, retains shape
0.40	3.77		Round and smooth, squishy, does not fully retain shape
0.80	3.45		Spread out, oblate, squishy
1.20	3.25		Very oblate, does not retain shape
1.60	3.13		Flat, squishy, not a bead

Part II – Investigation of juice-beverage beads

Table 3 illustrates the data and observations expected for juices. When analyzing the non-diluted alginate-juice solutions, students will notice that alginate-apple juice readily forms a bead with a pH above four ensuring that the carboxyl groups on the G-block remain deprotonated. Cranberry juice and lemon juice are relatively more acidic compared to apple juice. Particularly for lemon juice, no bead is formed at all. Dilution of lemon and cranberry juices raises the pH high enough to allow for successful formation of alginate-juice beads.

Table 3:

Example of data and observations for alginate-juice experiment using teaspoon method.

Sodium alginate + juice solution	pH	Observations (in solution)	Photo	Observations (out of solution)
Apple juice: non-diluted	4.17	Formed beads		Round, but very squishy bead
Apple juice: diluted	4.94	Formed beads		Round, firm bead
Cranberry juice: non-diluted	3.55	Dispersed, very clumpy, stayed at the top of solution		Clumpy, flat, not a bead
Cranberry juice: diluted	4.41	Drops stayed together, formed beads		Round, squishy bead
Lemon juice: non-diluted	3.15	Drops dispersed immediately		No beads formed
Lemon juice: diluted	3.83	Drops spread out, but did not disperse completely		Oblate, very squishy bead

Extension – contact angle analysis

Contact angle analysis can provide further information on the effects of pH on bead shape. Usage of contact angle is commonly applied for water droplets where their relative wettability, how the material spreads over a solid surface, is determined. Droplets that possess low wettability have contact angles in between 180° and 90°, have hydrophobic surfaces where there is less affinity to maintain contact with the surface. Materials with high wettability, have a strong affinity for the solid and spreads out and contact angles less than 90°. Table 4 and Figure 4 represent an example of contact angles study on the beverage-alginate beads. The dilutions of alginate-cranberry juice show a decreasing trend in contact angle as pH lowered. This aligns with the oblateness of the beads as they become less spheroid in shape.

Figure 4:

Left image: photo taken from ImageJ software with contact angle plug-in. Yellow lines were added to aid in visualization of location of contact angle. Angle θ, calculated from ImageJ is used to determine contact angle. Right image: photos of beads used to determine contact angle.

Implementation

Due to the ongoing Covid-19 Pandemic, classroom implementation of the full experiment was delayed due to the challenges with handling social distancing guidelines and the change from in-person to online virtual classes. The general experiment involving the synthesis of calcium alginate was successfully conducted virtually in fall 2020 with a group of upper secondary age students. A virtual lecture was provided discussing the plastics problem, basic polymer structure, reaction chemistry, and overview of the experimental procedure. Premade kits containing all the essential reagents were provided to students beforehand. In place of glassware, students used containers they had available in the kitchen of their homes. We plan to implement this teaching experiment in the upcoming academic year assuming classes are in-person or provide inexpensive pH probes for at-home learning.
