A new ex vivo model for optimizing distribution of therapeutic aerosols: the (inverted) bovine urinary bladder

Introduction

Pressurized IntraPeritoneal Aerosol Chemotherapy (PIPAC) has received much attention in recent years due to its superior pharmacological properties, which offers potential clinical advantages [1]. In particular, locoregional administration of a therapeutic substance as an aerosol under pressure allows higher tissue penetration, optimal exposition of the surface of the target organ to the drug, dose reduction and low systemic exposure. Therapeutic pressurized aerosols have many potential applications in cancer, in particular for treating diseases of the peritoneal [2] and pleural cavities, but also within hollow organs such as the esophagus [3] or the urinary bladder.

A particular problem is to optimize the physico-chemical characteristics of therapeutic aerosol in order to optimize drug delivery into the target tissues. For example, Khosrawipour et al. has demonstrated recently that the homogeneity of the therapeutic aerosol applied during PIPAC is not perfect [4]. However, the experimental model used by these authors (tissue fragments placed into a plastic container box) was suboptimal because the plastic surfaces are not absorbing any substances so that the aerosols droplets are falling down rapidly to the floor of the container, due to gravity.

The present paper presents an innovative model for optimizing homogeneity of drug delivery using therapeutic pressurized aerosols. This model consists of the fresh bovine urinary bladder ex vivo. This model can be used for evaluating the target effect of therapeutic aerosol both onto the mucosa or, by inverting the organ, onto the serosa. The (inverted) bovine urinary bladder is a novel ex-vivo model in which physico-chemical characteristics of a therapeutic aerosol can be optimized easily.

Materials and methods

Results

The bovine inverted urinary bladder was well suited for optimizing therapeutic aerosols ex vivo. A 4 cm incision was performed into the bladder neck of the explanted organs. A pursuing suture was placed along the edges of the incision. Then a balloon trocar (Kii^®, Applied Medical Systems) was inserted through the incision and the ligature knotted, ensuring full tightness (Figure 1A). CO₂ was then insufflated through the trocar, and the therapeutic capnoperitoneum was installed using the nebulizer, applying a macromolecule as staining substance (toluidine blue). Tightness of the organ was easy to achieve. The inverted urinary bladders had a volume (2–3 L) somewhat smaller than the human abdominal cavity (3–5 L).

Figure 1:

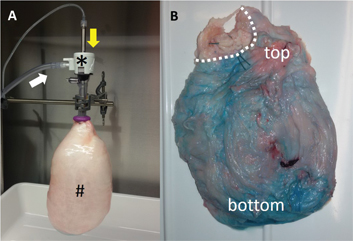

The (inverted) bovine urinary bladder model insufflated with CO₂ at a pressure of 15 mmHg at room temperature. Panel (A) shows the experimental setup with (#) the inverted urinary bladder (mucosa outside, serosa inside), (*) the balloon trocar (Kii^®, Applied Medical), (white arrow) the CO₂-insufflation line and (yellow arrow) the nebulizer (Capnopen^®, Capnomed). Panel (B) shows a homogeneous repartition of the staining substance (toluidine blue) onto the serosa after aerosolization into the inverted organ. Dotted line: bladder neck.

As an embodiment, the organ was inverted through the bladder neck incision, which then allowed exposition of the serosa on the inner surface of the model. This is possible because the anatomy of the bovine urinary bladder differs from the human one: the bovine urinary bladder is protruding into the abdominal cavity and is almost completely covered by peritoneum. In this case, a simple surgical dissection of the paravesical fatty tissue was needed prior inversion of the organ. First qualitative analysis of the homogeneity of repartition of the therapeutic aerosol was performed, showing a relatively homogeneous blue staining (Figure 1B). Specifically, it was observed that the aerosol droplets did not drop down completely to the bottom of the organ, but were absorbed into the tissue on the whole surface exposed, including the upper segment of the organ. The only remaining unstained surface was the upper part of the bladder neck (dotted line), an area located above the tight pursuing suture. The organs were clean (no significant bacteriological contamination) and manipulation was simple and hygienic. Costs were minimal (around 5€/organ). All organs provided by the slaughterhouse could be used.

As a further embodiment, a brush electrode could be placed (IonWand^®, Alesi Surgical) to induce electrostatic precipitation of the therapeutic aerosol within the experimental system.

In contrast, manipulation of inverted bovine stomachs was cumbersome. It was difficult to dissect reproducible fragments, due to the complex anatomy of the multilobulated stomach in the cow. Extensive running sutures (up to 160 cm) were needed to obtain a closed space. Geometry of the sutured organ was pyramidal (photodocumentation on file), oval volumes could not be easily generated. Complete tightness was difficult to achieve. The final volume of the organ was difficult to predetermine. The organs were contaminated with bacteria, rapid tissue necrosis and degradation was observed. Therefore, the inverted stomach model was rapidly abandoned.

From the occupational health safety perspective, manipulation of toxic therapeutic aerosols containing platin-based chemotherapeutic agents in this ex vivo model was demonstrated to be safe. Environmental air analysis in the laboratory revealed no traces of cisplatin.

Discussion

We propose to use the bovine urinary bladder as an ex vivo model for evaluating homogeneity of distribution of a therapeutic substance using pressurized aerosols. An interesting property of the ex vivo bovine urinary bladder model is that it allows evaluation of the target effect of the therapeutic substance onto the mucosa or alternatively onto the serosa. For this last purpose, the organ can be simply inverted through a small bladder neck incision in order to expose the serosa on the inner surface of the organ.

Potentially, the inverted bladder model might allow evaluation of (1) the target effect on serosa (pharmacological and biological effects) (2) the homogeneity of aerosol distribution (3) the effect various therapeutic substances and (4) optimization of the physico-chemical parameters of the operating environment.

The present e-vivo (inverted) urinary bladder model has several advantages over existing models, as summarized in Table 1. In vivo experiments on the living animal are probably the best model for optimizing therapeutic aerosols [5, 6], as compared to ex vivo experiments [4] or experiments using cadavers [7]. Although the use of live animals continues to be necessary to protect human animal health, it is desirable to replace such procedures by other methods not entailing the use of live animals [8]. Evaluation of the homogeneity of repartition of therapeutic aerosols in the live animals might also have an unexpected limitation: drug absorption through the serosa or the mucosa might depend not only on the quality of the aerosol, but also on the organ examined [9]. For example, small bowel serosa – which permits bacterial translocation [10] – might be much more permeable to macromolecules than the gastric serosa. Thus, evaluation of the influence of technical factors on homogeneity of aerosol distribution in vivo might be biased by organ-specific factors [7]. Moreover, performing animal experiments requires extensive administrative work for obtaining regulatory approval. Finally, animal experiments are expensive.

A further advantage of the e-vivo (inverted) urinary bladder model over the ex vivo model described previously by our group [11] is the superior absorption properties of the exposed serosal or mucosal surfaces in CO₂. Within a plastic container, these droplets will sediment earlier than within an organ, since the absorption of the aerosol into the plastic walls will be indeed close to zero and the aerosol droplets will bead rapidly along the (colder) walls down to the floor of the experimental system, due to gravity [7].

The availability of an adequate model is important for pharmaceutical development in order to empower Quality by Design (QbD) approaches [12]. Pharmaceutical QdB is defined as a systematic approach to development that begins with predefined objectives and emphasizes product and process understanding based on sound science and quality risk management [7]. For example, in pulmonary aerosol medicine, the aerodynamic size of the aerosol inspired largely determines the distribution of this aerosol into an inhalable fraction (below 100 μm aerodynamic size), a thoracic fraction (around 11 μm) and a respirable fraction (around 4 μm) [13]. In pulmonary medicine, this classification of aerosol particle or droplets is typically achieved by using a cascade impactor (a device that classifies particles present in a sample of air or gas into known size ranges).

The (inverted) urinary bladder model is intended to be used for pharmacodynamics studies. For example, it allows easy testing of tissue uptake of various therapeutic substances over time. It also allows taking into consideration the physic-chemical characteristics of the operating environment, e. g. by examining the influence of pressure, temperature or electrostatic charges on tissue uptake. The model also allows to compare homogeneity of drug distribution between different nebulizers or aerosolizing devices.

The framework conditions during PIPAC are indeed much simpler than during respiratory application since the aerosol can be distributed directly to the target tissue without having to proceed through the trachea-bronchial tree and since no collaboration of the patient is needed for inspiring the therapeutic aerosol. However, quality of a therapeutic aerosol distributed with PIPAC cannot fully be guaranteed by only testing the finished solution. PIPAC is a complex multicomponent system, including a nebulizer, a high-pressure injector driving the nebulizer, a formulated therapeutic substance and a solution. This multicomponent system operates within a gaseous environment which physico-chemical characteristics (pressure, temperature, relative humidity, etc.) influence the behavior of the therapeutic aerosol. The performance of PIPAC in delivering an adequate dose to the target location requires a thorough understanding of the above-mentioned variables.

In conclusion, the (inverted) bovine urinary bladder ex vivo model is a versatile tool for optimizing drug delivery with PIPAC and provides experimental conditions close to the clinical situation. It allows evaluating the effect of various substances both on the mucosa and on the serosa. It is better suited for drug distribution studies than a plastic box. It is simple and cost-effective. This model will save a large number of experiments in the large animal. For Quality-by-Design experiments needed to optimize therapeutic aerosols administered as PIPAC, this model might find an acceptance comparable to the Anderson’s impactor in pulmonary medicine.
