A new conductometric biosensor based on horseradish peroxidase immobilized on chitosan and chitosan/gold nanoparticle films

2.1 Materials

Chitosan (deacetylated grade 85%) was obtained from Polymar (Fortaleza, Ceará, Brazil). Horseradish peroxidase type VI-A (HRP) was purchased from Sigma (Saint Louis, MO, USA). Chloroauric acid (HAuCl₄), hydrogen peroxide and other chemicals were of analytical grade and used without further purification.

2.2 Synthesis of gold nanoparticles

Synthesis of AuNPs was performed according to previous reports [17]. Chitosan solution (6.92 mg/ml) was prepared by dispersion of chitosan powder in 1% acetic acid at constant agitation for 30 min. Subsequently, the solution was filtered using a vacuum and a filter paper with 14 μm diameter pores. For AuNPs synthesis, 10 ml of the chitosan solution prepared previously was mixed with 4 ml of HAuCl₄ (11 mm). Synthesis of AuNPs was carried out in a water bath at 90°C for 3 h.

2.3 Films construction

Films were prepared by casting method and using filmogenic solutions. Chitosan/AuNPs film was prepared by mixing 5 ml of chitosan solution (20 mg/ml) previously dissolved in acetic acid (1%), with 5 ml of a colloid containing AuNPs at 11 mm. Chitosan films without AuNPs were prepared using 10 ml of chitosan solution (20 mg/ml) [17]. To each 10 ml of filmogenic solution, 0.10 mg of HRP was added and mixed for 15 min at room temperature in a dark room. All solutions obtained were dried at room temperature for 24 h in a SOLAB oven (Piracicaba, São Paulo, Brazil) [17]. Thickness determination was performed at least 10 times in each film; at least three films for each formulation were measured. The thickness was reported as average and standard error, and it was similar for all films (2.2±0.1 μm).

2.4 Enzyme activity of hydrogen peroxide immobilized in films: guaiacol test

Chitosan, chitosan/AuNPs, chitosan/HRP, and chitosan/AuNPs/HRP films were immersed in a solution of hydrogen peroxide (3% v/v); immediately, 3 ml of guaiacol (0.5% v/v) was added. The color change in the solutions was monitored visually for 5 min. All solutions were prepared using a buffer solution (0.1 m and pH=6.8) as solvent [18].

2.5 Film morphology

Surface analyses of chitosan and chitosan/AuNPs films were reported previously [17]. The surface analysis of chitosan/HRP and chitosan/AuNPs/HRP films was performed by means of a field emission scanning electron microscope (Jeol ISM 7500F, Akishima, Tokyo, Japan).

2.6 Electrical characterization of films

Electrical measurements of chitosan, chitosan/AuNPs, chitosan/HRP and chitosan/AuNPs/HRP films of 5 mm diameter were carried out using a Keithley 8009 Resistivity Test Fixture (Cleveland, OH, USA) coupled to a Keithley 2612A System SourceMeter (Cleveland, OH, USA) and using concentric electrodes (Figure 1A). Electrical measurements were carried out at room temperature. The films were stabilized by applying 0 V for 1 min, followed by the application of a controlled voltage cycle consisting of a forward voltage sweep from 0 to 6 V and reverse voltage sweep from 6 to 0 V. For each formulation, the films were studied at least three times.

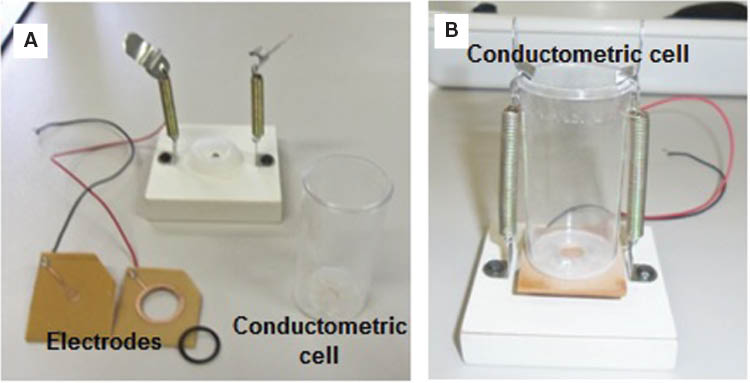

Figure 1

Illustration of the electrodes (A) and conductometric cell (B) used for the electrical analyses (photo taken by an author).

2.7 Electrical characterization of films: response to different concentrations of hydrogen peroxide

Electrical response of chitosan, chitosan/AuNPs, chitosan/HRP, and chitosan/AuNPs/HRP films of 5 mm diameter was assessed in the same equipment (as in section 2.6) and using a conductometric cell coupled to the electrodes (Figure 1B). Initially, films were stabilized by applying 0 V for 1 min; 5 ml of buffer solution (0.1 m and pH=6.8) was added immediately, followed by hydrogen peroxide (3% v/v) in several volumes to the buffer solution to achieve concentrations of hydrogen peroxide between 0 and 35 mm. The solution was stirred by 2 min, and then a voltage ramp between 0 to 6 V was applied. For each formulation, the films were studied at least three times.

3.1 Enzyme activity of hydrogen peroxide immobilized in films: guaiacol test

Chitosan and chitosan/AuNPs films were negative to the guaiacol test (no color change). In contrast, films with HRP were positive to the same test. The solution changed from no-color to dark yellow for chitosan/HRP film and light yellow for chitosan/AuNPs/HRP film. These results indicate that the HRP has enzymatic activity in the films [18]. Differences between color change of the chitosan/HRP and chitosan/AuNPs/HRP films indicate that the AuNPs in films could alter the enzymatic activity of horseradish peroxidase.

3.2 Film morphology

Figure 2A, B shows the morphology of chitosan/HRP and chitosan/AuNPs/HRP films. Films with AuNPs exhibited a granular structure, which was different to the morphology observed for films without AuNPs; this result agrees with those reported previously for chitosan and chitosan/AuNPs films [17]. At the surface of chitosan/HRP and chitosan/AuNPs/HRP, the HRP immobilized in the films was observed, and it showed a globular morphology revealing immobilization (Figure 2C). This image was similar to that observed by Yardimci et al. [2] for an amperometric biosensor based on HRP.

Figure 2

Scanning electron microscopy: chitosan/HRP (A, C) and chitosan/AuNPs/HRP (B) films.

3.3 Electrical characterization of films

According to what was reported previously, the electrical conductivity can be modulated by the AuNP concentration; hence, the AuNPs increase the conductivity and bistability in chitosan films due to the capture of electrons in the AuNPs and its subsequent electron transfers between AuNPs [17]. A similar behavior was observed when the HRP was incorporated in films (Figure 3). This electrical behavior could be due the fact that horseradish peroxidase has as active center iron ions (Fe³⁺). Iron ions could improve the trapping process, and the electrical transport could be more efficient due to the accumulation of charge in the quantum wells created by Fe³⁺ in HRP [17]. Hence, chitosan/HRP and chitosan/AuNPs/HRP acted as charge transport matrices that transferred the electrons from iron ions in HRP to others iron ions or to the electrodes [19].

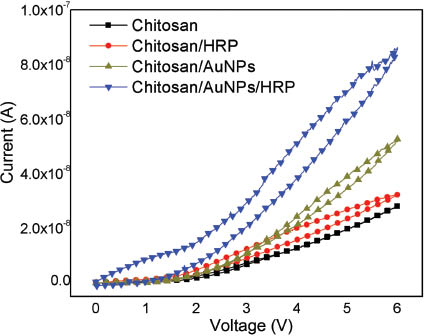

Figure 3

Current-voltage curves for the chitosan, chitosan/AuNPs, chitosan/HRP, and chitosan/AuNPs/HRP films.

3.4 Electrical characterization of films: response to different concentrations of hydrogen peroxide

The current in chitosan and chitosan/AuNPs films was not influenced by H₂ O₂ concentration (Figure 4), i.e., H₂ O₂ was not reduced by the contact with the polymer matrix or AuNPs. Current-voltage curves for chitosan/HRP and chitosan/AuNPs/HRP films to successive additions of H₂ O₂ are shown in Figure 5. These films show a rapid and sensitive response to the addition of H₂ O₂. Upon addition of an aliquot of H₂ O₂ to the conductometric cell, the reduction current increases uniformly until a stable value was reached. In comparison with films without HRP (Figure 4), the current in chitosan/HRP and chitosan/AuNPs/HRP films increased with H₂ O₂ addition; it was attributed to the reduction of hydrogen peroxide into oxygen and water by HRP. The present results reveal that the electron transfer between HRP and chitosan or chitosan/AuNPs films can be easily performed; hence, chitosan/HRP and chitosan/AuNPs/HRP films could be used as biosensors for H₂ O₂ detection.

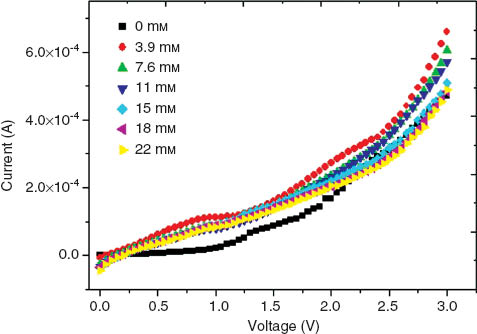

Figure 4

Current-voltage curves for the chitosan film to different H₂ O₂ concentrations.

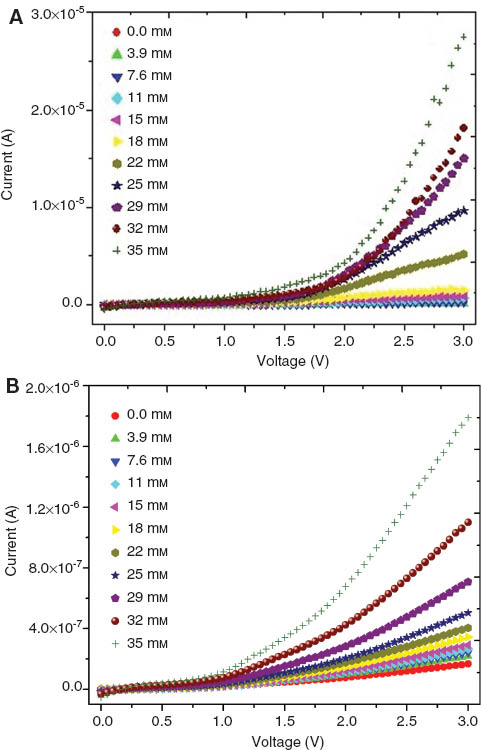

Figure 5

Current-voltage curves for the chitosan/HRP (A) and chitosan/AuNPs/HRP (B) films to different H₂ O₂ concentrations.

In amperometric systems, the catalytic mechanism of HRP (with oxidation state of Fe³⁺) for reducing hydrogen peroxide is based on the oxidation of HRP to two-equivalent oxidized forms (Eqs. 1–3), called compound I (with oxidation state of Fe⁴⁺=O) and compound II (with oxidation state of Fe⁵⁺). In this process, the electrons (e^-) and protons (H⁺) ensure the regeneration of the compound II to HRP [12, 20]. The electron transfer in these reactions is the current that is quantified in an amperometric system [12].

(1)HRP(Fe3+)+H2O2→Compound I(Fe4+=O)+H2O (1)

(2)Compound I(Fe4+=O)+e−+H+→Compound II(Fe5+) (2)

(3)Compound  II(Fe5+)+e−+H+→HRP(Fe3+)+H2O (3)

In conductometric systems, the catalytic process does not have proton transfer; therefore, HRP can only oxide to compound I. Compound I is very unstable and can act as a transitory state where electrons move in the films, similar to that reported for AuNPs [17]. Chitosan/HRP film had a higher electrical response than the chitosan/AuNPs/HRP film probably due to the differences between oxidation states of AuNPs and the active site of HRP.

The current response and the concentration of H₂ O₂ have a polynomial relationship within the concentration range between 0 and 35 mm; the values of these parameters were calculated by nonlinear regression (R²≥0.95) and are reported in Table 1. To 1 V and for a H₂ O₂ concentration range between 0 and 15 mm, the biosensors have a linear response, such as I=3E–5C–5E–5 and I=3E–6C–8E–8, for chitosan/HRP and chitosan/AuNPs/HRP, respectively. Both fits have an R²=0.94. Linear relationships between current-concentration are very important to develop biosensors with linear calibration [10, 16].
