Beyond the classic extinction network: a wider, comparative view

Introduction

Animals rapidly learn to predict which stimuli are followed by reward or punishment, or, in more general terms, by an expected unconditioned stimulus (US). Conversely, this learned association can change when the US is omitted after stimulus presentation. This latter process is known as extinction learning and constitutes one of the most fundamental learning mechanisms (Rescorla and Wagner, 1972). Decades of research show that extinction of a conditioned response due to withholding of the US does not merely involve forgetting the original association but entails new learning. The principles of extinction learning were demonstrated to be largely similar in animals that reach from humans (Icenhour et al., 2015) to insects (Felsenberg et al., 2018). If a learning “law” occurs in so diverse species with similar or even identical mechanisms, we should expect overlapping neural processes of extinction learning across the animal kingdom. But is this indeed the case? This question is at the core of the first part of this article in which we study extinction circuits in pigeons. Because birds have a more-than-300-million-year-old separate evolutionary history from mammals, we can test, if, at least among amniotes, the neural fundaments of extinction learning are invariant.

We then move on to the extinction-relevant pathways in mammals. Using fear extinction paradigms in rodents, three key neural structures were identified to be at the core of this system: the amygdala, prefrontal cortex, and hippocampus (Orsini and Maren, 2012). In the second part of our article, we aim to add the cerebellum as an overlooked, but, in our opinion, important structure to the established extinction circuitry. As we will show, the cerebellum plays an important role in the processing of prediction errors in sensory and reward-related domains and thus controls core elements of associative learning.

The avian neural circuit for extinction learning

To identify the neural circuit for extinction learning in an appetitive paradigm, we trained pigeons in a within-subject renewal design to peck on two conditioned stimuli (CSs) in two different contexts (sign tracking). Immediately before an extinction session, animals received intracranial injections of saline or drug. In different studies, we used either AP5 to inhibit local N-methyl-d-aspartate (NMDA) receptors or tetrodotoxin (TTX) to block Na+ channels. This intervention was followed by extinction training in the opposite context. Subsequently, pigeons were tested for retrieval of extinction memory in both contexts.

As depicted in Figure 1, visual information about conditional cues ascends via visual pathways to the visual associative nidopallium frontolaterale (NFL). TTX injections into NFL slow down extinction learning and reduce retrieval of context-specific extinction information. Notably, this effect is not due to perceptual impairment during learning (Gao et al., 2019a). Multiple projections fan out of NFL, and one of them leads to the hippocampus. Here, TTX injections caused no deficits in extinction learning but affected the consolidation of extinction memory. Importantly, we obtained no strong evidence for a hippocampus-mediated context dependency of extinction memory (Lengersdorf et al., 2014), in contrast to findings in rodents (Maren and Hobin, 2007) NFL also projects to the nidopallium caudolaterale (NCL) – the avian functional equivalent to the prefrontal cortex. Transiently inactivating the NCL with TTX did not affect extinction learning but impaired consolidation of extinction memory (Lengersdorf et al., 2014). In addition, multiple studies indicate a role of the avian NCL in the integration of context information into extinction memory (Lissek and Güntürkün, 2005; Starosta et al., 2017). NFL also projects to the medial striatum, the NCL, the avian amygdala, and the arcopallium. This last structure is the avian analog to the pre/motor cortex. Inhibiting NMDA receptors in the medial striatum or the amygdala impairs extinction learning, while the same procedure impairs consolidation of extinction memory in the arcopallium (Gao et al., 2018, 2019b; Lengersdorf et al., 2015).

Figure 1:

Schematic depiction of the avian extinction network. This circuit encompasses the visual-associative NFL, amygdala, prefrontal-like NCL, hippocampus, medial striatum (StM), and (pre)motor arcopallium. The dashed line indicates an indirect anatomical projection, and the solid lines symbolize direct fiber connections between the corresponding neural structures. NFL, nidopallium frontolaterale; NCL, nidopallium caudolaterale.

Taken together, the visual-associative NFL, prefrontal-like NCL, amygdala, and medial striatum (StM) are involved in extinction learning. Our pharmacological treatment in these areas possibly impaired the updating of reward prediction errors and thus caused the deficit in extinction learning. A further cluster of structures (hippocampus, NCL, pre/motor arcopallium) is required for consolidation of extinction memory. Finally, NFL and NCL play important roles in the context modulation of extinction learning.

By and large, this pattern strongly resembles the systems architecture of extinction learning in mammals (Milad and Quirk, 2012). This would speak in favor of an ancient functional forebrain architecture that goes back more than 300 million years. There is, however, one glaring difference: While a key function of the mammalian hippocampus is the processing of context-dependent extinction information, we found not much evidence for this in pigeons. It is conceivable that the lack of direct connectivity between the avian “prefrontal” NCL and hippocampus is the key difference that drives this functional dissimilarity. This functional characterization of our current understanding of the extinction circuit in pigeons will pave the way for deeper functional analyses of these areas during extinction learning. This is shown for the NCL in the next part.

Single neurons in the avian forebrain dynamically encode acquired and extinguished associations

To elucidate the neuronal underpinnings of extinction learning, we recorded from single neurons in the prefrontal-like NCL during learning. An ideal paradigm to investigate extinction learning allows the observation of single-neuron activity during not only the extinction of conditioned responding but also the preceding acquisition and the subsequent reappearance of responding (spontaneous recovery or reacquisition). To this end, we designed a task that encompasses these three stages of learning in a single behavioral session (Starosta et al., 2014). Single-neuron activity was recorded while animals acquired an instrumental response to a novel visual stimulus for reward, which was subsequently extinguished (reward omission: extinction) and then reestablished (reward for responding was reintroduced: reacquisition). In our task, pigeons were confronted with one of several visual stimuli on one response key and had to learn which of the two adjacent choice keys was associated with that stimulus (Figure 2A). Two stimuli were familiar to the animals from earlier sessions, while two others were new such that the correct response had to be learned. After reaching learning criterion, the response to one of the new stimuli was no longer reinforced (extinction). Once the performance for this stimulus dropped below 65%, the response was reinforced again (reacquisition). Figure 2B shows behavioral results from an example session. Figure 2C–F summarizes the behavioral results of five animals performing this task repeatedly. It illustrates that acquisition, extinction, and reacquisition phases are associated with an increase, decrease, and second increase in performance, respectively. As expected, extinction leads to a decrease of pecks onto the visual stimulus (Figure 2D) and an increase in reaction times which was reversed during reacquisition (Figure 2E). Finally, the number of trials to criterion performance is higher in acquisition than in reacquisition, in line with the hypothesis that extinction is a new learning process and not mere forgetting (Figure 2F).

Figure 2:

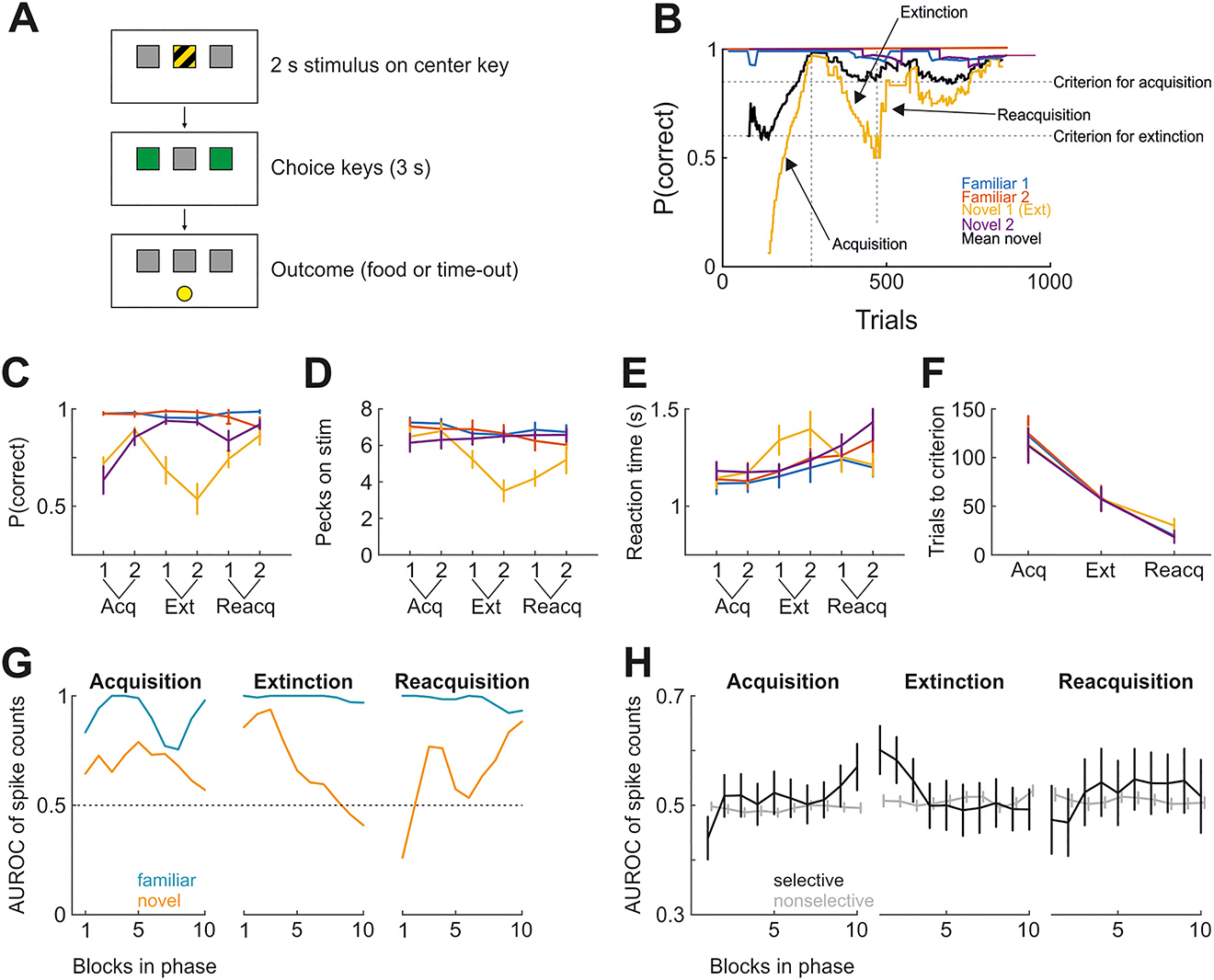

Investigating single-neuron activity during three stages of learning. (A) Schematic of the behavioral paradigm. (B) Performance (moving average of 120 trials) in an example session. Novel stimulus 1 was designated as to-be-extinguished stimulus. Vertical dotted lines signify transitions between learning phases (acquisition, extinction, reacquisition), and horizontal lines denote performance criteria for phase transitions (successful acquisition for the novel stimuli and successful extinction for novel stimulus 2). (C) As in B, but averaged for first and second halves over all sessions from all birds. (D) As in C, but showing the number of pecks emitted onto the visual discriminative stimulus within 2 s. Emitted pecks decreased exclusively for the extinguished stimulus during extinction. (E) As in C, but showing reaction times from stimulus offset to choice. Reaction times increased during extinction only for the extinguished stimulus. (F) The number of trials until the learning phase was considered complete. (G) Neurometric curve for a single NCL neuron during task performance, shown as discriminability (AUROC) of familiar and novel stimuli. During extinction, the neuron becomes less selective for the novel stimuli. During reacquisition, the neuron again starts discriminating. Discrimination for the familiar stimuli is high throughout. (H) As in G, but showing the average AUROC of all recorded neurons for the novel stimulus pair only. All recorded neurons were separated based on the degree to which they discriminated the familiar stimuli (Hedges’ g between spike count distributions >/< 0.6 in the first 60 trials of each session). Data points in C through F represent the mean across all birds (n = 5). Error bars denote standard error of the mean. AUROC, area under the receiver operating characteristic curve; NCL, nidopallium caudolaterale.

On a neuronal level, we reasoned that learning affects neuronal responses such that activity should change across the three learning stages (Veit et al., 2015). This was indeed the case: Figure 2G shows neurometric curves from an NCL neuron whose activity profile changed in the course of learning. Specifically, the neuron discriminated the two familiar stimuli (blue curves) almost perfectly across the entire session (area under the receiver operating characteristic curve, AUROC: 1, perfect discriminability; 0.5, no discriminability). In contrast, discriminability for the two novel stimuli changed dramatically over the course of the session: during acquisition, discriminability was relatively constant but moderate; in extinction, discriminability decreased from nearly optimal to chance levels; during reacquisition, neural discriminability again increased.

This pattern was also seen in the population of NCL neurons. Figure 2H depicts in black neural discriminability for the two novel stimuli across the three stages of learning, separately averaged across selective NCL neurons (n = 32 [acquisition phase], 29 [extinction phase], 14 [reacquisition phase]) or not selective (n = 187, 166, 127). Familiar stimuli are shown in gray. Notably, only those neurons that were selective for the familiar stimuli (black curves) showed learning-related modulation. Thus, many NCL neurons reflected the strength of conditioned responding across learning stages. Taken together, our novel paradigm highlights diverse reorganization patterns of neuronal activity in single NCL units during learning. While a subpopulation of neurons faithfully tracks the “ups and downs” of associative strength, others seem to code further aspects of the task that could explain the saving of associative memory across extinction learning. These aspects will be uncovered by a deeper analysis of the activity patterns of these neurons. But only integrating these insights into the framework of the overall functional extinction circuits as outlined in the beginning will allow a deeper understanding of the neuronal dynamics during extinction. This is exemplified in the next part of our article that demonstrates that the cerebellum, a hitherto neglected part of the extinction network, is in fact an important component of this system.

The cerebellum as a frequently ignored component of the extinction network

Comparatively little is known about the contribution of the cerebellum to extinction of learned fear responses (Apps and Strata, 2015). Cerebellar contribution to extinction has been studied in most detail in eyeblink conditioning (Hu et al., 2015, for reviews). As yet, most studies focused on the intrinsic cerebellar mechanisms involved in extinction but neglected additional cerebello-cerebral interactions. In the rodent literature, there is some evidence that learning-related changes of Purkinje cell activities in the cerebellar cortex are reversed during extinction. Recording studies show that Purkinje cells learn to reduce their activity (“pause”) in response to the CS during acquisition of conditioned eyeblink responses. This pause is reversed during extinction and returns during reacquisition (Jirenhed et al., 2007). The inhibitory feedback connection between the cerebellar nuclei and the inferior olive seems to play a critical role in extinction (Bengtsson et al., 2007; Medina et al., 2002). The results of our functional magnetic resonance imaging (fMRI) studies in humans agree with the hypothesis that at least parts of the initial learning memory in the cerebellar cortex are erased during extinction (Medina et al., 2002).

We established a setup that allows ultra-high-field 7T fMRI of the cerebellum during eyeblink conditioning in humans (Thürling et al., 2015). We found that activations in the cerebellar cortex related to the acquisition of conditioned eyeblink responses were reversed during extinction (Thürling et al., 2015). Findings were largely confirmed in a subsequent 7T fMRI study using the same setup in a different group of participants (Ernst et al., 2017). We were unable to show saving-related cerebellar activation (Ernst et al., 2017). These findings, however, do not exclude the possibility that parts of the initial memory trace remain in the cerebellum during extinction. The cerebellar nuclei, but also extracerebellar regions, may be potential substrates of saving effects (Medina et al., 2001). But also extracerebellar regions may play a role (Kalmbach and Mauk, 2012). These regions may be under the inhibitory control of the known cerebral fear extinction network (Hu et al., 2015, for review), but this has been studied in detail neither in humans nor in animals.

Bidirectional learning within the cerebellar cortex implies that cortical areas involved in acquisition and extinction of learned associations at least partially overlap. Our findings in patients with cerebellar lesions agree with this assumption. We tested acquisition and extinction of conditioned eyeblink responses (Ernst et al., 2016) and acquisition and extinction of cognitive associations (Steiner et al., 2020) in patients with cerebellar disease. Patients who had preserved acquisition – a prerequisite to study extinction effects – showed extinction not different from controls.

Extinction, however, is known to be more context-dependent than acquisition and to involve a more extended cortical network, including the prefrontal cortex and the hippocampus (Milad and Quirk, 2012). Likewise, cerebellar areas involved in extinction may be more extended than cerebellar areas involved in acquisition. Initial findings in cerebellar patients support this assumption (Steiner et al., 2019). We studied patients with focal cerebellar disease and preserved acquisition of conditioned eyeblink responses. Extinction was not different from controls. Renewal effects, however, appeared to be impeded in patients with lesions of the more posterolateral cerebellar hemisphere which has connections with the prefrontal cortex and hippocampus (Bostan et al., 2013; Watson et al., 2019). Furthermore, we found activation of the posterolateral cerebellar hemisphere related to context change during extinction learning of cognitive associations in healthy participants in a 3T fMRI study (Chang et al., 2015). Our findings suggest that the cerebellum contributes to context-related effects of extinction. Our attempts, however, to use cerebellar transcranial direct current stimulation (tDCS) to modulate extinction and context-related extinction effects of conditioned eyeblink responses in healthy participants were largely unsuccessful (Beyer et al., 2017; Lipp et al., 2019). Lack of robustness and reproducibility of cerebellar tDCS effects are increasingly recognized (Mamlins et al., 2019) and call for further methodological refinement before more firm conclusions can be drawn in the application to patient-oriented studies.

Our most recent 7T fMRI studies show that findings related to extinction of conditioned eyeblink responses equally apply to extinction of learned fear. In healthy human participants, cerebellar cortical activations related to the acquisition of learned fear responses were reversed during extinction (Ernst et al., 2019). Furthermore, we observed activation of the posterolateral cerebellar hemisphere related to the renewal of previously extinguished conditioned fear responses in the acquisition context (Timmann, 2019). In fear conditioning paradigms, the CS–US interstimulus intervals (ISIs) typically last several seconds. Therefore, event-related designs allowed us to separate cerebellar fMRI signals related to the visual CS from signals related to the subsequent US (an aversive electric shock). We found that cerebellar activation was most pronounced in unpaired CS+ trials, that is, in trials where the US was expected but did not occur (Figure 3; Ernst et al., 2019). This activation disappeared during extinction when US omission became expected. Findings agree with the assumption that prediction error drives extinction learning (Rescorla and Wagner, 1972). Among others, reward signals may play a role. The unexpected omission of the US is rewarding, and recent studies suggest that reward signals play a role in extinction (Kalisch et al., 2019). Furthermore, the role of the cerebellum has been shown to go beyond the processing of sensory prediction errors and to include the processing of reward predictions errors (Wagner et al., 2017). The exact nature of the observed error signal in the cerebellum needs to be elucidated in future studies.

Figure 3:

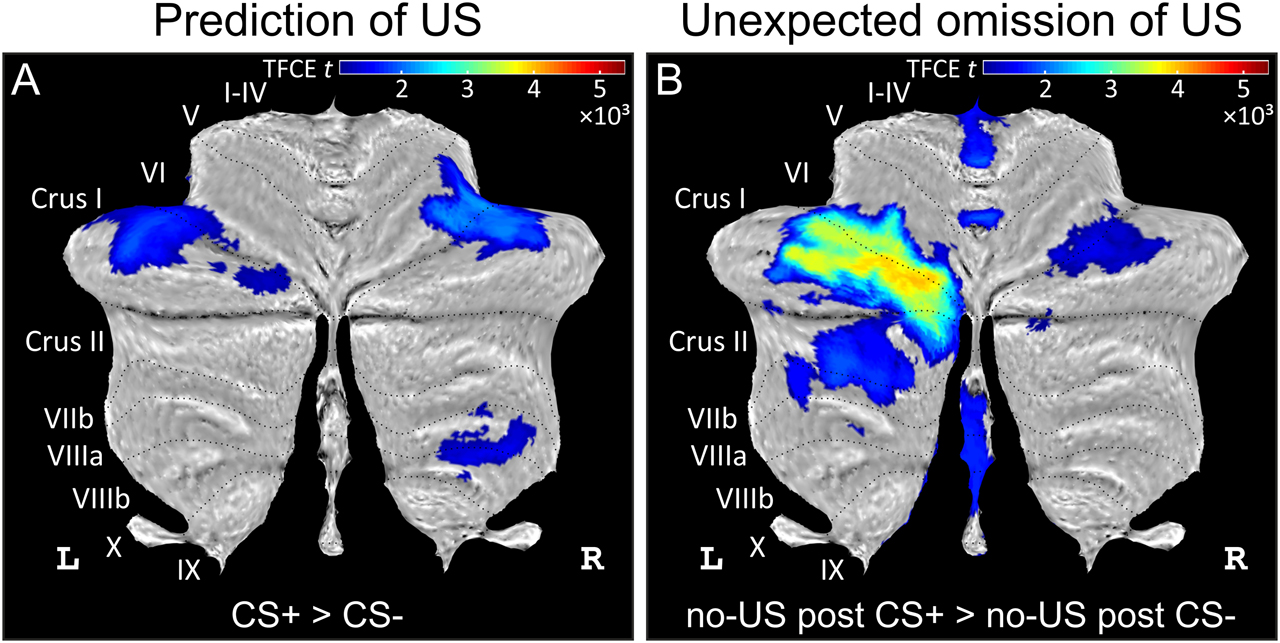

Differential cerebellar activations during fear acquisition. (A) Cerebellar activations related to the prediction of the US (contrast CS+ > CS−) are shown as cerebellar flatmap (Diedrichsen and Zotow, 2015). (B) Cerebellar activations related to the unexpected of the omission of the US (contrast no-US after CS+ > no-US after CS−). Cerebellar activation is abolished during extinction. All contrasts calculated using TFCE and familywise error correction (p < 0.05). CS, conditioned stimulus; L, left; R, right; TFCE, threshold-free cluster enhancement; US, unconditioned stimulus. Adapted from Figure 3 in the study by Ernst et al. (2019).

In sum, our findings provide evidence that the cerebellum is part of the brain network subserving extinction. The cerebellum likely contributes to different aspects of extinction, and different cerebellar areas appear to be involved.
