Abstract

Ferromagnetic semiconductor chromium sulfide (Cr2S3), as a member of transition metal chalcogenide (TMC), exhibits the narrow bandgap value of 0.45 eV theoretically and has been applied in photoelectric field. However, the application in ultrafast fiber laser of Cr2S3 has not been investigation at present. In this work, the Cr2S3-based SA was successfully prepared by depositing nanosheets onto tapered fiber. The conventional soliton (CS) operation, three pulse bound-state (BS) soliton operation, and noise-like pulse (NLP) operation around 1531 nm are observed from 80 mW to 147 mW in an EDFL. The experimental results demonstrated that Cr2S3 as a promising 2D material has tremendous potential in designing ultrafast photonics device.

Keywords: bound-state soliton; chromium sulfide; conventional soliton; noise-like pulse; saturable absorber

1 Introduction

Ultrafast fiber laser with a pulse width of picosecond or femtosecond range has aroused more focus from researchers in the field of optical communication, biomedical, material processing, and so on [1–4]. Due to advantage of simple structure and economy, passive mode-locked technique is a common way to soon realize mode-locked pulse in ultrafast fiber lasers [5–7]. In addition, the key element for implementing this technique in passively mode-locked fiber lasers is the stable and reliable saturable absorber (SA), and the category of SA could be divided into artificial SAs and real SAs. The conventional artificial SAs are vulnerable to environment, which output power is relatively low and difficult to self-start, such as nonlinear polarization rotation (NPR), nonlinear polarization evolution (NPE), and nonlinear amplifying loop mirror (NALM). However, with the wide application of polarization-maintaining (PM) fiber and the introduction of phase bias technique, the resistance to interference from external environment and self-starting ability with high output power were enhanced in fiber laser [8–11]. In addition, the real SAs are also quickly spread across the world and considered as high-efficient methods to obtain mode-locked or Q-switched operation. In recent years, numerous SA materials with extraordinary nonlinear absorption characteristics experienced rapid evolution from semiconductor materials to nanomaterials [12–24]. Especially the emergence of two-dimensional (2D) nanomaterials, particularly graphene possesses properties of wide absorption range, low saturation intensity, ultra-fast recovery time, high nonlinear optical absorption coefficient, and so on, attracted much attention to investigating 2D nanomaterials [25–31]. However, the nature with zero bandgap and low optical absorption quotiety limited its development. At present, there are many other 2D nanomaterials have been demonstrated its outstanding performance in succession including topological insulators (TIs) [32–34], ferromagnetic insulators (FIs) [35, 36], transition metal chalcogenides (TMCs) [37–45], black phosphorus (BP) [46–49], MXenes [50–53], single element two-dimensional materials (Xenes) [54–56], and so on.

Recently, 2D ferromagnetic materials have attracted more attention from increasingly. Cr2X2Te6 (X = Ge, Si) as a kind of distinguished FIs was prepared into SA and saturable absorption properties were investigated in an erbium-doped fiber laser (EDFL) [35, 36]. Generation of ultrashort pulse has demonstrated that Cr2X2Te6 with ferromagnetic property possessed outstanding saturable absorption capacity and potential application in a fiber laser. Hence, the investigation of new ferromagnetic materials has a grand significance in development of ultrafast photonics. Ferromagnetic semiconductor chromium sulfide (Cr2S3) exhibits theoretically narrow bandgap of 0.45 eV, which may be considered as a prospective 2D nonlayered material in the application of optoelectronic devices [57]. In the meanwhile, Cr2S3 as a member of TMCs, which has been attracted tremendous attention from researchers all over the world for its distinguished nonlinear optical performance [58–60]. In 2019, He et al. firstly used vdW epitaxy techniques and chemical vapor deposition (CVD) method to obtain a unit-cell-thick stable Cr2S3 semiconductor [61]. Until 2020, Zhang et al. synthesized Cr2S3 which controllable thickness was unit-cell thickness of 1.85 nm by CVD with low cost and simple; further demonstrated that the bandgap value of Cr2S3 was only ∼0.15 eV; the synthesized Cr2S3 exhibited excellent air stability and high-performance of photodetector application under wavelengths of 520, 808, and 1550 nm [62]. And some studies have shown that the conductive behavior of Cr2S3 will change as nanosheet thickness increasing from p-type to ambipolar and then to n-type [63]. Compared with other 2D materials, the research progress indicates that Cr2S3 due to its unique optoelectronic properties has great potential for designing excellent optoelectronic devices. However, the performance of Cr2S3 has not been demonstrated in nonlinear optics and ultrafast laser applications at present.

Cr2S3 was chosen for designing the SA in order to demonstrate application in EDFL. In this work, the SA was successfully fabricated by depositing Cr2S3 powder onto a piece of tapered fiber and the nonlinear transmission characteristic is investigated at 1.5 μm. The conventional soliton (CS) operation, three pulses bound-state soliton (BS) operation and noise-like pulse (NLP) operation were obtained in an EDFL. CS operation was located at 1530.8 nm, which spectral full width of half maximum (FWHM) is ∼4 nm, the pulse duration was calculated at about 4.60 ps by measuring autocorrelation trace and fitting curve. BS operation with the spectral center wavelength of 1530.7 nm exhibited two different modulated periods of 1.07 and 3.20 nm which corresponds to pulse intervals of 2.1 ps and 7.4 ps, respectively; NLP mode-locked operation was also achieved with increasing pump power. Experimental results adequate proved that Cr2S3 with distinguished saturable absorption capacity shows tremendous potential for designing high-performance ultrafast photonics devices.

2 Preparation and characterization of SA based on Cr2S3

Due to Cr2S3 powder and water could produce the chemical reaction, and the liquid-phase exfoliation (LPE) method cannot be employed to prepare nanosheets in this experiment. Therefore, the SA was fabricated tentatively by a special method and the preparation process is as followed: Firstly, the Cr2S3 powder is ground in an agate grinder bowl for more than 4 h. Then, the Cr2S3 powder with grinding carefully was sprinkled on tapered area of a piece of tapered fiber, which the tapered fiber was fixed on a glass plate. Finally, the tapered fiber was placed at 24 °C for 48 h, which aimed that Cr2S3 nanosheets were preferably deposited onto tapered area. The SA was fabricated successfully through above prepared process.

The scanning electron microscope (SEM) image of Cr2S3 powder is shown in Figure 1(a) with resolution of 2 μm and the inset of Figure 1(a) is the image of 1 μm, which the surface morphology with an obvious layered structure of Cr2S3 powder is observed. The energy dispersion X-ray spectroscopy (EDS) is depicted in Figure 1(b), the typical peak of Cr and S could be clearly observed and the atom ratio of Cr and S is estimated at 38:62, corresponding to the chemical formula of Cr2S3. The SEM-EDS mapping images under resolution of 20 μm are shown in Figure 1(c) and (d), which shows that elements of Cr and S are uniform distribution. The X-ray diffraction (XRD) spectrum of Cr2S3 powder is shown in Figure 1(e) within 5° to 90°, distinct diffraction peaks are located at (003), (110), (113), (116), and (300), which could be matched well with the standard rhombohedral Cr2S3 pattern (PDF #10-0340). For the further detailed characterization of the layered structure characteristics of prepared Cr2S3 nanosheets, the atomic force microscope (AFM) and transmission electron microscope (TEM) are provided. As shown in Figure 1(f), the prepared nanosheets have uniform thickness and relatively flat surfaces. In addition, the nanosheet exhibits a thickness of 1.5 nm according to Figure 1(g). The high-resolution TEM image of resolutions 2 nm exhibits the lattice spacing of ∼0.2 nm as shown in Figure 1(h), which indicates that the prepared nanosheets have high crystallinity. The inset of Figure 1(h) is TEM image with resolution 20 nm, where shows the nanosheet has obvious crystal lattice structure.

Figure 1: The characterization of Cr2S3 material. (a) SEM image of Cr2S3 power at resolution of 2 μm and inset of (a) SEM image at resolution of 1 μm. (b) EDS spectrum. (c) And (d) SEM-EDS mapping images. (e) XRD spectrum of Cr2S3 powder. (f) AFM image of prepared nanosheets. (g) The corresponding thickness characteristics. (h) HRTEM image with obvious crystal lattice. Inset is TEM images of 20 nm resolution.
Figure 1:

The characterization of Cr2S3 material. (a) SEM image of Cr2S3 power at resolution of 2 μm and inset of (a) SEM image at resolution of 1 μm. (b) EDS spectrum. (c) And (d) SEM-EDS mapping images. (e) XRD spectrum of Cr2S3 powder. (f) AFM image of prepared nanosheets. (g) The corresponding thickness characteristics. (h) HRTEM image with obvious crystal lattice. Inset is TEM images of 20 nm resolution.

The nonlinear transmission characteristic based on Cr2S3 SA is investigated as shown in Figure 2, which employed a power-dependent transmission technique by a homemade femtosecond mode-locked fiber laser based on NPR technique (the central wavelength is 1562.28 nm, the fundamental frequency is 23.74 MHz, the pulse width is 464.47 fs) and the test setup is depicted in the inset of Figure 2. The data are fitted by the formula to obtain the fitting curve:

(1) T ( I ) = 1 − Δ T ⋅ exp ( − I / I sat ) − T ns

where T(I) is the transmission rate, T ns is nonsaturable loss, ΔT is modulation depth, I is input pulse energy, and I sat is saturation energy, input pulse energy. Finally, the saturation intensity, modulation depth, and nonsaturable loss of the SA are calculated as 10.24 mW/cm2, 6.36%, and 65.01%, respectively.

Figure 2: Nonlinear absorption curve of the Cr2S3-PVA film. (Inset) experimental setup of testing nonlinear optical property.
Figure 2:

Nonlinear absorption curve of the Cr2S3-PVA film. (Inset) experimental setup of testing nonlinear optical property.

3 Experimental setup

The experimental setup is shown in Figure 3, pump source is a 980 nm laser diode (LD) and the pump light is delivered into ring cavity by a 980/1550 nm wavelength division multiplexer (WDM); the gain fiber selects 40 cm er-doped fiber (Er 80-4/125), which the dispersion parameter is −25 ps/nm/km; a polarization independent isolator (PI-ISO) is used to ensure unidirectional deliver of the laser in ring cavity. Two polarization controllers (PC1, PC2) are used to adjust the polarization state. SA based on Cr2S3 is placed between PC2 and output coupler (OC); The OC has coupling ratio of 90:10, which 10% output laser is used to detect. A piece of 10 m single-mode fiber (SMF) with the dispersion parameter of 17 ps/nm/km is employed for dispersion management. The total length of cavity is 13.94 m, the net dispersion in cavity of fiber laser is calculated at about −0.281 ps2. In addition, the output laser is detected by the digital oscilloscope (Wavesurfer 3054z), optical spectrum analyzer (Yokogawa AQ6370B), radio-frequency spectrum (Rohde&Schwarz FPC1000), and optical power meter.

Figure 3: The experimental setup based on Cr2S3-SA EDFL.
Figure 3:

The experimental setup based on Cr2S3-SA EDFL.

4 Result and discussion

4.1 Conventional soliton operation in anomalous region

In the experiment, when the pump power is higher than 80 mW, the stable mode-locked operation is observed by adjusting carefully the PCs. The mode-locked operation is maintained steadily from 80 mW to 147 mW of pump power, which the maximum output power reaches to 0.92 mW. At pump power from 80 to 90 mW, the CS mode-locked pulse is observed. Figure 4 shows the output characteristics of Cr2S3-based CS mode-locked operation. The emission optical spectrum is provided in Figure 4(a), Kelly sidebands are Symmetrically distributed on both sides of the emission optical spectrum, which the central wavelength is 1530.8 nm and the full width of half maximum (FWHM) is ∼4 nm. The top of CS spectrum has a slight continuous wave (CW) component, which is attributed to the birefringence effect of fiber and the nonlinear optical effect of SA. The pulse trains of the mode-locked operation are depicted in Figure 4(b), the pulse-to-pulse time is 68.10 ns corresponding to the fundamental frequency of 14.74 MHz, which matches accurately with the cavity length of 13.94 m. As shown in Figure 4(c), the autocorrelation trace of the mode-locked pulse is depicted, assuming a sech2 temporal profile calculation for CS operation, hence the real pulse duration is about 4.60 ps. According to the mentioned FWHM of emission optical spectrum with 4 nm, the time-bandwidth product (TBP) is about 2.36, which is larger than the theoretical transform limit value (0.315). The large TBP value indicates that the soliton pulse is a large frequency chirped due to the dispersion of cavity and fiber nonlinear effect. The RF spectrum is provided in Figure 4(d), the central frequency located at 14.74 MHz with a bandwidth of 20 MHz and the resolution of 100 Hz. The signal-to-noise ratio (SNR) is about 65 dB, which indicates that the mode-locked operation processes high stability. The RF spectrum within 300 MHz bandwidth is also depicted in the insert of Figure 4(d), which further reveals the mode-locked pulses have excellent stability.

Figure 4: The output characteristics of Cr2S3-based SA conventional soliton mode-locked operation. (a) Emission optical spectrum. (b) Pulse train. (c) Measured and fitted autocorrelation trace. (d) RF spectrum is located at 14.74 MHz. (Inset of d) RF spectrum recorded within 300 MHz bandwidth.
Figure 4:

The output characteristics of Cr2S3-based SA conventional soliton mode-locked operation. (a) Emission optical spectrum. (b) Pulse train. (c) Measured and fitted autocorrelation trace. (d) RF spectrum is located at 14.74 MHz. (Inset of d) RF spectrum recorded within 300 MHz bandwidth.

4.2 The bound-state soliton mode-locked operation

When the pump power is higher than 90 mW, the mode-locked pulse starts to split slightly. Hence, the transition from CS mode-locked soliton to three-pulse bound-state soliton mode-locked is observed by regulating carefully the PCs, and the output characteristics at the pump power of 130 mW are depicted in Figure 5. The uniformly distributed bound-state soliton pulse sequence is provided in Figure 5(a) and the time interval of pulse is 67.82 ns. As shown in Figure 5(b), the optical spectrum of bound-state soliton located at central wavelength 1531.70 nm shows that the optical spectrum is symmetrical. There are two kinds of different pulse modulated periods with 1.07 nm and 3.20 nm in the optical spectrum of bound-state soliton, corresponding that the adjacent pulse has the different time separation and non-uniform distribution of peak position in Figure 5(c) and (d). Figure 5(c) shows that the autocorrelation trace of bound-state soliton mode-locked operation, there are five peaks with an intensity ratio of 1:1:2:1:1, which indicates that bound-state three soliton pulse has the same intensity and stable interval time of pulse-to-pulse. The separation time of main pulse to sub-pulse is 2.1 ps and 7.4 ps, respectively, corresponding to the spectral modulation period of 3.20 nm and 1.70 nm which only have a slight deviation compared with theoretical value. According to the Fourier transform, the spectral modulation Δλ and the sub-pulse time interval ΔT satisfies the following relationship [64, 65]:

(2) Δ T = λ 0 2 ( C ⋅ Δ λ 0 )

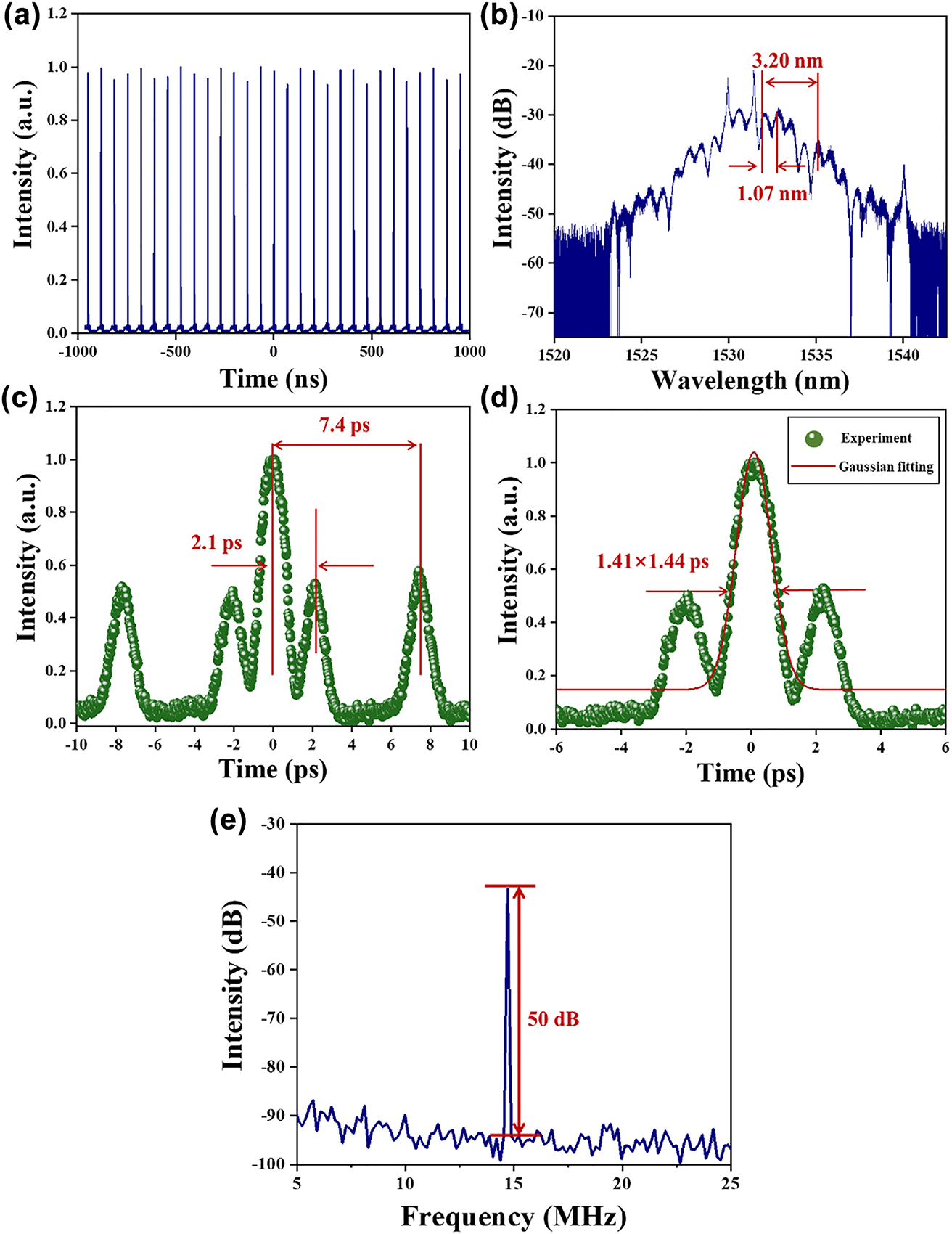

Figure 5: The output characteristics of Cr2S3-based SA bound-state soliton operation: (a) Pulse train. (b) Emission optical spectrum. (c) Autocorrelation trace of bound-state soliton. (d) The main-pulse fitting curve of bound-state soliton. (e) RF spectrum is located at 14.74 MHz.
Figure 5:

The output characteristics of Cr2S3-based SA bound-state soliton operation: (a) Pulse train. (b) Emission optical spectrum. (c) Autocorrelation trace of bound-state soliton. (d) The main-pulse fitting curve of bound-state soliton. (e) RF spectrum is located at 14.74 MHz.

In this formula, λ 0 is the central wavelength of optical spectrum, and C represents the speed of the light. Therefore, the modulation period of the spectrum with 3.20 nm and 1.70 nm corresponds to the time interval of 2.4 ps and 7.3 ps by formula, which is basically coincident with the observational result in Figure 5(c). The zoomed autocorrelation trace is shown in Figure 5(d), the real main-pulse duration is calculated at about 1.44 ps by Gaussian fitting. Figure 5(e) depicts the RF spectrum at BS mode-locked operation; the SNR reaches to 50 dB, which indicates the BS mode-locked operation works in a stable state.

4.3 Noise-like pulse operation

When the pump power is more than 130 mW, the pulse splitting occurs again and BS soliton operation turns unstable. By adjusting the paddle of PCs and continuously increasing the pump power to 140 mW, the NLP mode-locked operation is observed, and stable mode-locked could be maintained from pump power of 130 mW–147 mW. Figure 6 presents the output characteristics of NLP under the pump power of 140 mW. Figure 6(a) shows the uniformly distributed oscilloscope pulse sequence of NLP operation, which the time interval is 67.83 ns and fundamental frequency is 14.74 MHz. The typical NLP operation of autocorrelation trace is depicted in Figure 6(b), which shows a spike ridding on the top of wide pedestal. The FWHM of pedestal is calculated at about 47.44 ps by sech2 fitting. As shown in Figure 6(c), the autocorrelation trace of pulse spike is presented and the FWHM of pulse trace is 1.76 ps by sech2 fitting. The emission optical spectrum of NLP also records in Figure 6(d), corresponding to the central wavelength of 1530.70 nm and the measured spectral FWHM of 2.80 nm. Those features are the typical characteristics of NLPs, which indicates that the soliton state is NLPs operation. As shown in Figure 6(e), the SNR of 58 dB indicates the NLP state is stable. Furthermore, the relationship of pump power and output power in different mode-locked operations is shown in Figure 7, in which tendency is an almost linear increasing from 80 to 147 mW.

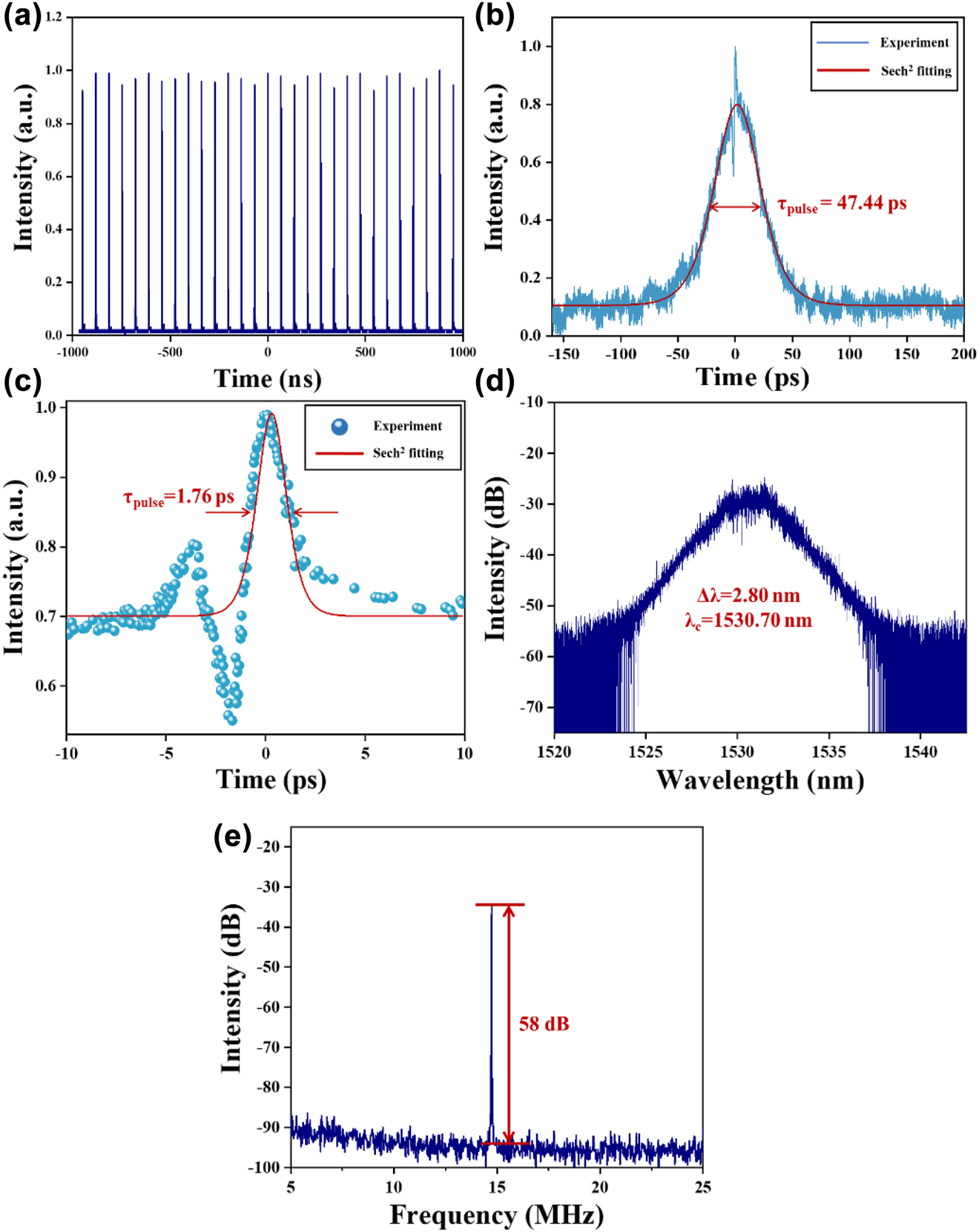

Figure 6: The output characteristics of the NLP operation based on Cr2S3-SA: (a) Pulse train. (b) Measured and fitting of autocorrelation trace of pulse. (c) Measured and fitting of autocorrelation trace of pulse spike. (d) The emission optical spectrum. (e) RF spectrum is located at 14.74 MHz.
Figure 6:

The output characteristics of the NLP operation based on Cr2S3-SA: (a) Pulse train. (b) Measured and fitting of autocorrelation trace of pulse. (c) Measured and fitting of autocorrelation trace of pulse spike. (d) The emission optical spectrum. (e) RF spectrum is located at 14.74 MHz.

Figure 7: The relationship between pump power and output power at different mode-locked states.
Figure 7:

The relationship between pump power and output power at different mode-locked states.

5 Conclusions

In this experiment, the Cr2S3-SA is fabricated successfully by a novel method of depositing directly Cr2S3 powder onto a piece of tapered fiber. The saturable absorption performance is also investigated in an EDFL. When the pump power reaches to 80 mW, the stable CS mode-locked operation is observed by tuning polarization state. However, the CS soliton is limited by soliton area theory, when the pump power continues to be increased to 90 mW, the soliton is split into multi-soliton. And then, the split soliton is incorporated into a bound-state operation with fixed separation time by the direct soliton-to-soliton interaction [66]. When the pump power is increased to 130 mW, numerous ultrashort pulses randomly evolve into noise-like pulses, which is the combined effect of soliton collapse and positive feedback of cavity in the anomalous dispersion region [67]. The CS operation with a pulse width of 4.60 ps and spectral FWHM of 4 nm, three pulse BS operation, and NLP operation are successively obtained at central wavelengths of 1530.8 nm, 1531.70 nm, and 1530.7 nm, respectively. Their SNR of mode-locked pulse reaches to 65, 50, and 58 dB, indicating that mode-locked operation is stable. Our experimental result firstly demonstrates that the Cr2S3-SA possesses excellent saturable absorption properties, as well as is a promising optical modulator in ultrafast laser.

Corresponding authors: Shenggui Fu and Huanian Zhang, School of Physics and Optoelectronic Engineering, Shandong University of Technology, Zibo 255049, China; and School of Physics and Electronics, Shandong Normal University, Jinan 250358, China, E-mail: (S. Fu), (H. Zhang). (H. Zhang)

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 11904213

Funding source: Natural Science Foundation of Shandong Province

Award Identifier / Grant number: ZR2020MA087

Award Identifier / Grant number: ZR2020QA066

  1. Author contributions: The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

  2. Research funding: National Natural Science Foundation of China (no. 11904213); Natural Science Foundation of Shandong Province (no. ZR2020QA066, ZR2020MA087).

  3. Conflict of interest statement: The authors declare no competing financial interest.

References

[1] Y. Kodama and K. Nozaki, “Soliton interaction in optical fibers,” Opt. Lett., vol. 12, pp. 1038–1040, 1987. https://doi.org/10.1364/ol.12.001038.Suche in Google Scholar PubMed

[2] U. Keller, “Recent developments in compact ultrafast lasers,” Nature, vol. 424, pp. 831–838, 2003. https://doi.org/10.1038/nature01938.Suche in Google Scholar PubMed

[3] P. Grelu and N. Akhmediev, “Dissipative solitons for mode-locked lasers,” Nat. Photonics, vol. 6, pp. 84–92, 2012. https://doi.org/10.1038/nphoton.2011.345.Suche in Google Scholar

[4] C. Ma, A. Khanolkar, and A. Chong, “High-performance tunable, self-similar fiber laser,” Opt. Lett., vol. 44, pp. 1234–1236, 2019. https://doi.org/10.1364/ol.44.001234.Suche in Google Scholar

[5] T. Jiang, K. Yin, C. Wang, et al.., “Ultrafast fiber lasers mode-locked by two-dimensional materials: review and prospect,” Photonics Res., vol. 8, pp. 78–90, 2020. https://doi.org/10.1364/prj.8.000078.Suche in Google Scholar

[6] H. N. Zhang, S. Sun, X. X. Shang, et al.., “Ultrafast photonics applications of emerging 2D-Xenes beyond graphene,” Nanophotonics, vol. 11, pp. 1261–1284, 2022. https://doi.org/10.1515/nanoph-2022-0045.Suche in Google Scholar

[7] R. I. Woodward and E. J. R. Kelleher, “2D saturable absorbers for fibre lasers,” Appl. Sci., vol. 5, pp. 1440–1456, 2015. https://doi.org/10.3390/app5041440.Suche in Google Scholar

[8] W. Hänsel, H. Hoogland, M. Giunta, et al.., “All polarization-maintaining fiber laser architecture for robust femtosecond pulse generation,” Exploring The World With the Laser, Cham, Springer, 2018, pp. 331–340.10.1007/978-3-319-64346-5_18Suche in Google Scholar

[9] G. Y. Liu, S. M. Ou, Q. M. Zhang, M. S. Zhang, X. P. Li, and Q. L. Bao, “All-polarization-maintaining linear fiber laser mode-locked by nonlinear polarization evolution with phase bias,” Opt. Fiber Technol., vol. 142, p. 107160, 2021. https://doi.org/10.1016/j.optlastec.2021.107160.Suche in Google Scholar

[10] A. F. J. Runge, C. Aguergaray, R. Provo, M. Erkintaloa, and N. G. R. Brodericka, “All-normal dispersion fiber lasers mode-locked with a nonlinear amplifying loop mirror,” Opt. Fiber Technol., vol. 20, pp. 657–665, 2014. https://doi.org/10.1016/j.yofte.2014.07.010.Suche in Google Scholar

[11] D. Y. Tang and L. M. Zhao, “Generation of 47 fs pulses directly from an erbium-doped fiber laser,” Opt. Lett., vol. 32, pp. 41–43, 2007. https://doi.org/10.1364/ol.32.000041.Suche in Google Scholar PubMed

[12] O. Okhotnikov, A. Grudinin, and M. Pessa, “Ultra-fast fibre laser systems based on SESAM technology: new horizons and applications,” New J. Phys., vol. 6, p. 177, 2004. https://doi.org/10.1088/1367-2630/6/1/177.Suche in Google Scholar

[13] B. Guo, X. Y. Guo, L. G. Tang, W. L. Yang, Q. M. Chen, and Z. Y. Ren, “Ultra-long-period grating-based multi-wavelength ultrafast fiber laser,” Chin. Opt. Lett., vol. 19, p. 071405, 2021. https://doi.org/10.3788/col202119.071405.Suche in Google Scholar

[14] L. A. Gomes, L. Orsila, T. Jouhti, and O. G. Okhotnikov, “Picosecond SESAM-based ytterbium mode-locked fiber lasers,” IEEE J. Sel. Top. Quantum, vol. 10, pp. 129–136, 2004. https://doi.org/10.1109/jstqe.2003.822918.Suche in Google Scholar

[15] X. H. Li, J. J. Peng, R. S. Liu, et al.., “Fe3O4 nanoparticle-enabled mode-locking in an erbium-doped fiber laser,” Front. Optoelectron., vol. 13, pp. 149–155, 2020. https://doi.org/10.1007/s12200-020-1057-4.Suche in Google Scholar PubMed PubMed Central

[16] X. X. Liu, X. H. Li, Y. L. Tang, and S. Y. Zhang, “PbS nanoparticles saturable absorber for ultrafast pulse generation in 2 µm fiber laser,” Opt. Lett., vol. 45, pp. 161–164, 2020. https://doi.org/10.1364/ol.45.000161.Suche in Google Scholar

[17] C. Y. Ma, C. Wang, B. Gao, J. Adams, G. Wu, and H. Zhang, “Recent progress in ultrafast lasers based on 2D materials as a saturable absorber,” Appl. Phys. Rev., vol. 6, p. 041304, 2019. https://doi.org/10.1063/1.5099188.Suche in Google Scholar

[18] F. Wang, H. B. Chen, D. F. Lan, et al.., “Highly efficient and robust broadband nano-VO2 (M) saturable absorber for nonlinear optics and ultrafast photonics,” Adv. Opt. Mater., vol. 9, p. 2100795, 2021. https://doi.org/10.1002/adom.202100795.Suche in Google Scholar

[19] F. Wang, F. Zhang, G. R. Wang, et al.., “Passively mode-locked operations induced by semiconducting polymer nanoparticles and a side-polished fiber,” ACS Appl. Mater. Interfaces, vol. 12, pp. 57461–57467, 2020. https://doi.org/10.1021/acsami.0c18569.Suche in Google Scholar PubMed

[20] L. Yun, H. Zhang, H. Cui, et al.., “Lead sulfide quantum dots mode locked, wavelength-tunable soliton fiber laser,” IEEE Photonics Technol. Lett., vol. 33, pp. 119–122, 2020. https://doi.org/10.1109/lpt.2020.3045484.Suche in Google Scholar

[21] P. F. Li, Y. Chen, T. S. Yang, et al.., “Two-dimensional CH3NH3PbI3 perovskite nanosheets for ultrafast pulsed fiber lasers,” ACS Appl. Mater. Interfaces, vol. 9, pp. 12759–12765, 2017. https://doi.org/10.1021/acsami.7b01709.Suche in Google Scholar PubMed

[22] W. J. Liu, M. L. Liu, X. M. Liu, M. Lei, and Z. Y. Wei, “SnSSe as a saturable absorber for an ultrafast laser with superior stability,” Opt. Lett., vol. 45, pp. 419–422, 2020. https://doi.org/10.1364/ol.380183.Suche in Google Scholar

[23] W. J. Liu, T. Shi, M. L. Liu, et al.., “Nonlinear optical property and application of yttrium oxide in erbium-doped fiber lasers,” Opt. Express, vol. 29, pp. 29402–29411, 2021. https://doi.org/10.1364/oe.433932.Suche in Google Scholar

[24] X. M. Liu, M. L. Liu, Y. R. Wang, et al.., “Mode-locked all-fiber laser with high stability based on cobalt oxyfluoride,” Chin. Opt. Lett., vol. 19, p. 081902, 2021. https://doi.org/10.3788/col202119.081902.Suche in Google Scholar

[25] Y. K. Kwon, S. Berber, and D. Tománek, “Thermal contraction of carbon fullerenes and nanotubes,” Phys. Rev. Lett., vol. 92, p. 015901, 2004. https://doi.org/10.1103/physrevlett.92.015901.Suche in Google Scholar

[26] H. T. Li, X. D. He, Z. H. Kang, et al.., “Water-soluble fluorescent carbon quantum dots and photocatalyst design,” Angew. Chem., Int. Ed., vol. 49, pp. 4430–4434, 2010. https://doi.org/10.1002/anie.200906154.Suche in Google Scholar PubMed

[27] J. S. Lauret, C. Voisin, G. Cassabois, L. Capes, et al.., “Ultrafast carrier dynamics in single-wall carbon nanotubes,” Phys. Rev. Lett., vol. 90, p. 057404, 2003. https://doi.org/10.1103/physrevlett.90.057404.Suche in Google Scholar PubMed

[28] Z. Cheng, S. Wu, Q. H. Yang, and P. Wang, “Square pulse generation from all-normal-dispersion graphene oxide mode-locked Yb-doped fiber laser,” in The European Conference on Lasers and Electro-Optics, Optica Publishing Group, Paper CJ_P_24, 2013.10.1109/CLEOE-IQEC.2013.6801375Suche in Google Scholar

[29] Q. L. Bao, H. Zhang, Y. Wang, et al.., “Atomic-layer graphene as a saturable absorber for ultrafast pulsed lasers,” Adv. Funct. Mater., vol. 19, pp. 3077–3083, 2009. https://doi.org/10.1002/adfm.200901007.Suche in Google Scholar

[30] J. Liu, S. D. Wu, Q. H. Yang, and P. Wang, “Stable nanosecond pulse generation from a graphene-based passively Q-switched Yb-doped fiber laser,” Opt. Lett., vol. 36, pp. 4008–4010, 2011. https://doi.org/10.1364/ol.36.004008.Suche in Google Scholar

[31] P. R. Wallace, “The band theory of graphite,” Phys. Rev., vol. 71, p. 622, 1947. https://doi.org/10.1103/physrev.71.622.Suche in Google Scholar

[32] C. J. Zhao, Y. H. Zou, Y. Chen, et al.., “Wavelength-tunable picosecond soliton fiber laser with topological insulator: Bi2Se3 as a mode locker,” Opt. Express, vol. 2, pp. 27888–27895, 2012. https://doi.org/10.1364/oe.20.027888.Suche in Google Scholar

[33] Y. H. Lin, S. F. Lin, Y. C. Chi, et al.., “Using n-and p-type Bi2Te3 topological insulator nanoparticles to enable controlled femtosecond mode-locking of fiber lasers,” ACS Photonics, vol. 2, pp. 481–490, 2015. https://doi.org/10.1021/acsphotonics.5b00031.Suche in Google Scholar

[34] S. Mondal, R. Ganguly, and K. Mondal, “Topological insulators: an in-depth review of their use in modelocked fiber lasers,” Ann. Phys., vol. 533, p. 2000564, 2021. https://doi.org/10.1002/andp.202000564.Suche in Google Scholar

[35] N. N. Xu, S. Sun, X. X. Shang, H. N. Zhang, and D. W. Li, “Harmonic and fundamental-frequency mode-locked operations in an Er-doped fiber laser using a Cr2Si2Te6-based saturable absorber,” Opt. Mater. Express, vol. 12, pp. 166–173, 2022. https://doi.org/10.1364/ome.446815.Suche in Google Scholar

[36] L. Zhao, X. X. Shang, N. N. Xu, et al.., “Nonlinear optical properties of ferromagnetic insulator Cr2Ge2Te6 and its application for passively Q-switched Er-doped fiber laser,” Photonics Nanostruct., vol. 50, p. 101028, 2022. https://doi.org/10.1016/j.photonics.2022.101028.Suche in Google Scholar

[37] N. N. Xu, H. F. Wang, H. N. Zhang et al.., “Palladium diselenide as a direct absorption saturable absorber for ultrafast mode-locked operations: from all anomalous dispersion to all normal dispersion,” Nanophotonics, vol. 9, pp. 4295–4306, 2020. https://doi.org/10.1515/nanoph-2020-0267.Suche in Google Scholar

[38] H. N. Zhang, P. F. Ma, M. X. Zhu, W. F. Zhang, G. M. Wang, and S. G. Fu, “Palladium selenide as a broadband saturable absorber for ultra-fast photonics,” Nanophotonics, vol. 9, pp. 2557–2567, 2020. https://doi.org/10.1515/nanoph-2020-0116.Suche in Google Scholar

[39] L. Li, L. H. Pang, Y. Wang, and W. J. Liu, “WxNb(1−x)Se2 nanosheets for ultrafast photonics,” Nanoscale, vol. 13, pp. 2511–2518, 2021. https://doi.org/10.1039/d0nr08580d.Suche in Google Scholar PubMed

[40] D. Mao, Y. D. Wang, C. J. Ma, et al.., “WS2 mode-locked ultrafast fiber laser,” Sci. Rep., vol. 5, pp. 1–7, 2015. https://doi.org/10.1038/srep07965.Suche in Google Scholar PubMed PubMed Central

[41] X. H. Li, Y. Zhang, Y. Zhao, X. Y. Shi, T. C. Feng, and K. Zhang, “High-performance vanadium diselenide nanosheets for the realization of compact pulsed fiber lasers,” Ann. Phys., vol. 533, p. 2100230, 2021. https://doi.org/10.1002/andp.202100230.Suche in Google Scholar

[42] L. Li, L. H. Pang, R. F. Wang, et al.., “Ternary transition metal dichalcogenides for high power vector dissipative soliton ultrafast fiber laser,” Laser Photonics Rev., vol. 16, p. 2100255, 2022. https://doi.org/10.1002/lpor.202100255.Suche in Google Scholar

[43] X. X. Shang, N. N. Xu, and H. N Zhang, “Nonlinear photoresponse of high damage threshold titanium disulfide nanocrystals for Q-switched pulse generation,” Opt. Laser Technol., vol. 151, p. 107988, 2022. https://doi.org/10.1016/j.optlastec.2022.107988.Suche in Google Scholar

[44] L. H. Pang, Z. L. Sun, Q. Y. Zhao, et al.., “Ultrafast photonics of ternary RexNb(1–x)S2 in fiber lasers,” ACS Appl. Mater. Interfaces, vol. 13, pp. 28721–28728, 2021. https://doi.org/10.1021/acsami.1c07001.Suche in Google Scholar PubMed

[45] D. Mao, B. B. Du, D. X. Yang, et al.., “Nonlinear saturable absorption of liquid-exfoliated molybdenum/tungsten ditelluride nanosheets,” Small, vol. 12, pp. 1489–1497, 2016. https://doi.org/10.1002/smll.201503348.Suche in Google Scholar PubMed

[46] Z. C. Luo, M. Liu, Z. N. Guo, et al.., “Microfiber-based few-layer black phosphorus saturable absorber for ultra-fast fiber laser,” Opt. Express, vol. 23, pp. 20030–20039, 2015. https://doi.org/10.1364/oe.23.020030.Suche in Google Scholar

[47] J. Sotor, G. Sobon, M. Kowalczyk, W. Macherzynski, P. Paletko, and K. M. Abramski, “Ultrafast thulium-doped fiber laser mode locked with black phosphorus,” Opt. Lett., vol. 40, pp. 3885–3888, 2015. https://doi.org/10.1364/ol.40.003885.Suche in Google Scholar

[48] Y. J. Xu, Z. Shi, X. Y. Shi, K. Zhang, and H. Zhang, “Recent progress in black phosphorus and black-phosphorus-analogue materials: properties, synthesis and applications,” Nanoscale, vol. 11, pp. 14491–14527, 2019. https://doi.org/10.1039/c9nr04348a.Suche in Google Scholar PubMed

[49] Y. Chen, S. Chen, J. Liu, Y. X. Gao, and W. J. Zhang, “Sub-300 femtosecond soliton tunable fiber laser with all-anomalous dispersion passively mode locked by black phosphorus,” Opt. Express, vol. 24, pp. 13316–13324, 2016. https://doi.org/10.1364/oe.24.013316.Suche in Google Scholar PubMed

[50] J. Yi, L. Du, J. Li, et al.., “Unleashing the potential of Ti2CTx MXene as a pulse modulator for mid-infrared fiber lasers,” 2D Mater., vol. 6, p. 045038, 2019. https://doi.org/10.1088/2053-1583/ab39bc.Suche in Google Scholar

[51] L. F. Gao, C. Y. Ma, S. R. Wei, A. V. Kuklin, H. Zhang, and H. Ågren, “Applications of few-layer Nb2C MXene: narrow-band photodetectors and femtosecond mode-locked fiber lasers,” ACS Nano, vol. 15, pp. 954–965, 2021. https://doi.org/10.1021/acsnano.0c07608.Suche in Google Scholar PubMed

[52] C. Y. Ma, W. C. Huang, Y. Z. Wang, et al.., “MXene saturable absorber enabled hybrid mode-locking technology: a new routine of advancing femtosecond fiber lasers performance,” Nanophotonics, vol. 9, pp. 2451–2458, 2020. https://doi.org/10.1515/nanoph-2019-0527.Suche in Google Scholar

[53] X. X. Yan, M. Jiang, E. K. Li, et al.., “Tunable high-order harmonic and dual-wavelength mode-locking in Er-doped fiber laser based on Ti3C2Tx-Mxene,” Appl. Phys. Express, vol. 14, p. 012009, 2021. https://doi.org/10.35848/1882-0786/abd5cc.Suche in Google Scholar

[54] N. N. Xu, P. F. Ma, S. G. Fu, et al.., “Tellurene-based saturable absorber to demonstrate large-energy dissipative soliton and noise-like pulse generations,” Nanophotonics, vol. 9, pp. 2783–2795, 2020. https://doi.org/10.1515/nanoph-2019-0545.Suche in Google Scholar

[55] Y. F. Song, Z. M. Liang, X. T. Jiang, et al.., “Few-layer antimonene decorated microfiber: ultra-short pulse generation and all-optical thresholding with enhanced long term stability,” 2D Mater., vol. 4, p. 045010, 2017. https://doi.org/10.1088/2053-1583/aa87c1.Suche in Google Scholar

[56] Q. B. Wang, J. L. Kang, P. Wang, et al.., “Broadband saturable absorption in germanene for mode-locked Yb, Er, and Tm fiber lasers,” Nanophotonics, vol. 11, pp. 3127–3137, 2022. https://doi.org/10.1515/nanoph-2022-0161.Suche in Google Scholar

[57] Y. Sharma and P. Srivastava, “Electronic structure and magnetic properties of rhombohedral Cr2S3,” AIP Conf. Proc., Am. Inst. Phys., vol. 1347, pp. 123–127, 2011. https://doi.org/10.1063/1.3601801.Suche in Google Scholar

[58] L. L. Chen, L. Du, J. Li, L. L. Yang, Q. Yi, and C. J. Zhao, “Dissipative soliton generation from Yb-doped fiber laser modulated by mechanically exfoliated NbSe2,” Front. Phys., vol. 8, p. 320, 2020. https://doi.org/10.3389/fphy.2020.00320.Suche in Google Scholar

[59] J. B. Hu, L. L. Yang, L. L. Chen, et al.., “Nanosecond mid-infrared pulse generation modulated by platinum ditelluride nanosheets,” Laser Phys. Lett., vol. 19, p. 075107, 2022. https://doi.org/10.1088/1612-202x/ac73fb.Suche in Google Scholar

[60] L. L. Chen, J. Huang, N. Li, et al.., “Broadband nonlinear optical modulator enabled by VO2/V2O5 core–shell heterostructures,” Nanophotonics, vol. 11, pp. 2931–2938, 2022. https://doi.org/10.1515/nanoph-2022-0142.Suche in Google Scholar

[61] J. W. Chu, Y. Zhang, Y. Wen, et al.., “Sub-millimeter-scale growth of one-unit-cell-thick ferrimagnetic Cr2S3 nanosheets,” Nano Lett., vol. 19, pp. 2154–2161, 2019. https://doi.org/10.1021/acs.nanolett.9b00386.Suche in Google Scholar PubMed

[62] L. Xie, J. Wang, J. Li, et al.., “An atomically thin air-stable narrow-gap semiconductor Cr2S3 for broadband photodetection with high responsivity,” Adv. Electron. Mater., vol. 7, p. 2000962, 2021. https://doi.org/10.1021/jacs.8b08648.Suche in Google Scholar PubMed PubMed Central

[63] F. F. Cui, X. X. Zhao, J. J. Xu, et al.., “Controlled growth and thickness-dependent conduction-type transition of 2D ferrimagnetic Cr2S3 semiconductors,” Adv. Mater., vol. 32, p. 1905896, 2020. https://doi.org/10.1002/adma.201905896.Suche in Google Scholar PubMed

[64] T. C. Feng, X. H. Li, P. L. Guo, Y. Zhang, J. S. Liu, and H. Zhang, “MXene: two dimensional inorganic compounds, for generation of bound state soliton pulses in nonlinear optical system,” Nanophotonics, vol. 9, pp. 2505–2513, 2020. https://doi.org/10.1515/nanoph-2020-0011.Suche in Google Scholar

[65] H. Liang, X. M. Zhao, B. H. Liu, et al.., “Real-time dynamics of soliton collision in a bound-state soliton fiber laser,” Nanophotonics, vol. 9, pp. 1921–1929, 2020. https://doi.org/10.1515/nanoph-2019-0422.Suche in Google Scholar

[66] D. Y. Tang, L. M. Zhao, and B. Zhao, “Multipulse bound solitons with fixed pulse separations formed by direct soliton interaction,” Appl. Phys. B, vol. 80, pp. 239–242, 2005. https://doi.org/10.1007/s00340-004-1685-1.Suche in Google Scholar

[67] D. Y. Tang, L. M. Zhao, and B. Zhao, “Soliton collapse and bunched noise-like pulse generation in a passively mode-locked fiber ring laser,” Opt. Express, vol. 13, pp. 2289–2294, 2005. https://doi.org/10.1364/opex.13.002289.Suche in Google Scholar PubMed
