The Superplastic Deformation Behavior and Phase Evolution of Ti-6Al-4V Alloy at Constant Tensile Velocity

Superplasticity of specimens with various parameters

Figure 3 presents the maximum tensile force and the elongation of the specimens at various experimental temperatures. The maximum tensile force decreases as the temperature changes from 850 ℃ to 950 ℃ (Figure 3(a)). The maximum tensile force is about 0.5585 KN at 850 ℃ and the minimum value of 0.17 KN is attained at 950 ℃. It is reported that higher temperature leads to greater thermal activation, which can decrease the critical shear stress, enhance atom free energy, and improve the ability of grain boundary sliding and diffusion creep [15]. In addition, softening effect caused by dynamic-recover and re-crystallization becomes greater as the temperature increases [16]. Thus, the decrease of tensile force occurs as the temperature increases. It is noted that the elongations of all specimens at various temperature exceed 600 % (shown in Figure 3(b)). From 850 ℃ to 900 ℃, increasing temperature leads to higher elongation, and the highest elongation of 1220.5 % is observed at 900 ℃. When the temperature exceeds 900 ℃, the elongation of specimen decreases with the temperature rising. When the deformed temperature is 950 ℃，the elongation decreases to about 700 %.

Figure 3:

Temperature effect on the (a) maximum force and (b) elongation.

Figure 4 shows the maximum tensile forces and the elongations of the specimens at various tensile velocities. It can be seen that the maximum tensile force increases as the tensile velocity increases in all experimental ranges (0.3 mm/min to 6 mm/min). With the increase of tensile velocity, the number of dislocation in Ti–6Al–4V titanium alloy increases rapidly and leads to the pile-up of dislocations. Strain hardening generated by dislocation movement and diffusion creep lead to the increase of the tensile force [15]. Thus the maximum tensile force increases with the tensile velocity. Note that the elongation of the specimen increases rapidly when the tensile velocity changes from 0.3 mm/min to 0.6 mm/min, and then decreases as the tensile velocity rises continuously. When the tensile velocity is 0.3 mm/min (low), the elongation is small (about 760 %). The effect of dynamic crystallization softening is comparably not obvious due to low strain energy during superplastic deformation [8]. Moreover, the grain size grows dramatically at very low deformation velocity (0.3 mm/min) owing to too long time maintaining at tensile temperature, which reduce the elongation. Thus the maximum elongation is attained at 0.6 mm/min tensile velocity. When the tensile velocity continually increases, the elongation decreases due to strain hardening. Specifically, when tensile velocity is 3 mm/min, the elongation of 542 % is attained. This indicates that the tensile velocity plays an important role in the superplastic deformation process of TC4 alloy.

Figure 4:

The tensile velocity effect on the (a) maximum force and (b) elongation.

Microstructures of the superplastic deformation

Figure 5 shows the microstructures of the specimens in the temperature range of 850–950 ℃ at the tensile velocity of 0.6 mm/min. The equiaxed shape α and β phase grains are observed on the superplastic deformation specimens, which is the typical microstructural characteristics of superplastic deformation [17]. Since the basic material possesses very few equiaxed α grains, dynamic globularization of Ti-6Al-4V which influences the primary α grain size and grain size distribution occurs through boundary splitting and thermal grooving [17,18]. Thus the equiaxed shape α and β phase grains are attained during the dynamic globularization process. In addition, α and β phase grain sizes increase gradually with the temperature rising. It is considered that the grain growth occurs due to not only the static grain growth but also the deformation enhanced grain growth [20]. On the other hand, the volume fraction (Vol%) of α phase decreases significantly, conversely lots of β phase grains emerge and grow into larger grains (Figure 5(a)–(d)) due to the fact that α phase changes to β phase at the temperature above phase transformation point. Higher temperature provides more energy for phase boundary migration, accelerates β phase to swallow small grains around, so β phase increases with the temperature rising. Figure 6 gives the data of α and β phase grain sizes and β phase volume fraction at various temperatures. It can be seen that at 850 ℃, α and β phase grains are ~4.5 µm and ~2.5 µm respectively (small). And β phase volume fraction is about 5.26 %, which is small but a little larger than that of basic material (1.6 Vol%). Note that the diffusivity of β phase is about two orders of magnitude higher than that of a phase [21], thus β phase grows faster than α phase. As the temperature changes from 850 ℃ to 900 ℃, both α and β phase grains grow but β phase grain grows faster, i. e., β phase volume fraction increases gradually. The best elongation is attained under the condition of ~7.0 μm α phase and ~4.0 μm β phase and the β phase volume fraction is about 31 %. When the temperature reaches 950 ℃, more coarsening phase grains (~9.1 μm α phase and ~9.7 μm β phase) are attained (Figure 6) and β phase volume fraction is about 57 %, the elongation is reduced to 700 %.

Figure 5:

The microstructures of the specimens in the temperature range of 850–950 ℃ (a) 850 ℃, (b) 880 ℃, (c) 900 ℃, (d) 950 ℃.

Figure 6:

The phase grain sizes and β phase volume fraction of specimens at various temperatures.

In summary, when the temperature changes from 850 ℃ to 950 ℃, the microstructure of the specimens is changed in two aspects. One is that α and β phase grains grow with the temperature, and the other is that β phase volume fraction increases with the temperature. The growth of α and β phase grains is the main possible reason of decrease of the maximum tensile force during superplastic deformation. Since β phase (Body Centered Cubic, b.c.c.) owns lower flow force at higher temperature due to its abundant slip system than α phase (Hexagonal Close-Packed, h.c.p.) [21], thus the increase of β phase fraction is of benefit to the decrease of the maximum tensile force. For elongation, β phase fraction has obvious effect on its superplasticity from the experimental data (Figures 3 and 6). The elongation of the specimen increases with the increase of β phase fraction at first stage (from 850 ℃ to 900 ℃), which shows β phase fraction increase improves the superplasticity of TC4 alloy. Note that the α/β and β/β boundaries increase and α/α boundary decreases with the β phase fraction increase, thus the superplastic deforming ability increases owing to the contribution of α/β boundary sliding [10]. When the volume β phase fraction reaches about 31 % (900 ℃), the superplasticity of Ti-6Al-4V reaches the highest value (Figure 3(b)). However, the increase of β volume fraction can also induce microstructural changes associated with static and dynamic grain over-growth at high temperature, which leads to the deterioration of superplasticity. When the temperature is 950 ℃, 57 Vol% β phase is attained. However, too higher β phase volume fraction leads to decrease of the elongation shown in Figure 3(b).

Figure 7 shows the microstructures of specimens with various tensile velocities at 900 ℃. When the tensile velocity is high (3.0 mm/min and 1.2 mm/min), the phase grains are relatively finer but even bigger than original phase grains, as shown in Figure 7(a) and (b). When the tensile velocity is low (0.3–0.6 mm/min), the phase grains become coarser obviously due to grain growth as mentioned above (Figure 7(c) and (d)). Figure 8 gives α and β phase grain sizes of the specimens with the various tensile velocities. It can be seen that α and β phase grains decrease with the increase of the tensile velocity. Note that the amount of deformation is one of important conditions for the occurrence of recrystallization [22]. The larger velocity of deformation, the larger the driving force of recrystallization and less time for grains to grow. Thus, stress concentration cannot be released timely and strain energy is large enough for sufficient dynamic re-crystallization at higher velocity, and the phase grain is comparable finer.

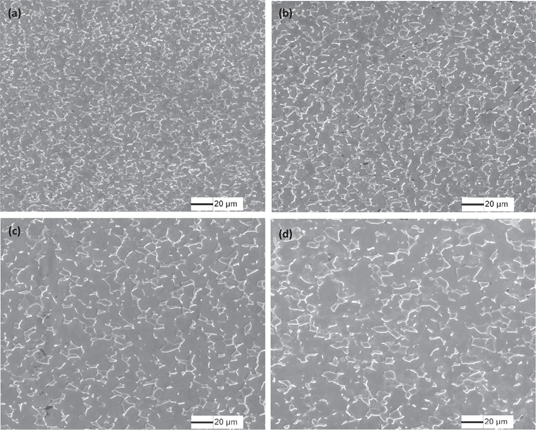

Figure 7:

Ti-6Al-4V microstructures near fracture surface after hot tensile deformation (a) 3.0 mm/min, (b) 1.2 mm/min, (c) 0.6 mm/min, (d) 0.3 mm/min.

Figure 8:

The phase grain sizes of specimen at various deformed velocities.

To investigate the superplastic deformation mechanisms and its accommodation, the microstructures of deformation specimens are observed by TEM, shown in Figure 9. Planar arrays of dislocations are discovered on α phase and α/α phase boundary in the microstructure of specimen at 850 ℃ and 0.6 mm/min (Figure 9(a)), indicating that grain boundary sliding (GBS) at the α/α phase boundary and the grain matrix deformation in α phase grain happen during superplastic deformation. However, note that there is only about 5.26 Vol% β phase at the condition of 850 ℃ and 0.6 mm/min (shown in Figure 6), lots of a/a phase boundaries and less a/β phase boundaries exist in the microstructures. The harder α phase acts as a skeleton which undergoes virtually the entire applied load and dominates the deformation behavior [10]. At 900 ℃ and 0.6 mm/min condition, glide steps at α/α and α/β phase boundaries can be observed, shown in Figure 9(b). Note that dislocations inside α phase grain are also visible. It also can be seen that the α/α grain boundaries maintain clear and straight lines after deformation, but α/β boundary is curved and indistinct, indicating that phase boundary sliding occurs predominantly at α/β boundary, and α/β boundary makes more contribution than α/α phase boundary does due to the fact that the sliding resistance increases on the order of α/β<α/α≈β/β [10]. Note that the volume fraction of β phase is about 31 % under the condition of 900 ℃ and 0.6 mm/min deformation condition, and the α phase skeleton can be broken by softer β phase as low as 26 Vol% [10], and β phase is the dominant factor in the superplastic deformation now [23,24].

Figure 9:

Transmission electron micrographs of superplastic deformed specimen (a) 850 ℃ (b) 900 ℃.

Microstructures of various positions of superplastic deformation specimen

The microstructures at various positions of superplastic deformation Ti–6Al–4V under the optimum tensile parameter (900 ℃, 0.6 mm/min) have been studied. How the specimens are cut from the deformation specimen is shown in Figure 10. In the gauge section, the tensile strain continuously increases from gripping head region (Figure 10(d part)) to the fracture tip region (Figure 10 (d part)).

Figure 10:

Various cutting points in the specimen.

The longitudinal section microstructures of various positions are shown in Figure 11. Grain growth comparing with that of basic material (Figure 1) is observed at the gripping head (Figure 11(a)). It is mentioned that the gripping head section is usually considered only statically annealed without any effect of deformation during the superplastic deformation test. Therefore the initial dynamic globularization process can be attributed exclusively to thermally activated process but not to any deformation process. From Figure 11(b) to (d), it can be seen that the phase grains grow up obviously as the tensile strain increases. It is noted that not only thermally activated processes but also the deformation strain process exist at the deformation regions (from Figure 10(b part) to Figure 10(d part)). Deformation strain accelerates grain growth (dynamic coarsening) has been proved to be one of the important microstructure characteristics during superplastic deformation [19, 25]. Furthermore, the deformation strain increases from near gripping region Figure 10(b part)) to the fracture tip region (Figure 10(d part)). Thus the phase grain grows faster from the gripping head region to the fracture tip region, which proved by the fact that the phase grain sizes increase at the same direction. In addition, it can be seen that β phase volume fraction increases from near gripping region (Figure 10(b part)) to the fracture tip region (Figure 10(d part)), as shown in Figure 11. This phenomenon indicates that dynamic grain growth and dynamic phase transformation accelerate the phase transformation from α phase to β phase [25].

Figure 11:

Microstructures at various positions of tensile specimen (a) a part (b) b part (c) c part (d) d part.
