Carotenoid analysis of sweetpotato Ipomoea batatas and functional identification of its lycopene β- and ε-cyclase genes

  • Muhammad Zubair Khan , Miho Takemura , Takashi Maoka , Motoyasu Otani and Norihiko Misawa EMAIL logo
Published/Copyright: August 26, 2016
Become an author with De Gruyter Brill

Abstract

Sweetpotato Ipomoea batatas is known as a hexaploid species. Here, we analyzed carotenoids contained in the leaves and tubers of sweetpotato cultivars ‘White Star’ (WS) and W71. These cultivars were found to contain several carotenoids unique to sweetpotato tubers such as β-carotene-5,6,5′,8′-diepoxide and β-carotene-5,8-epoxide. Next, we isolated two kinds of carotene cyclase genes that encode lycopene β- and ε-cyclases from the WS and W71 leaves, by RT-PCR and subsequent RACE. Two and three lycopene β-cyclase gene sequences were, respectively, isolated from WS, named IbLCYb1, 2, and from W71, IbLCYb3, 4, 5. Meanwhile, only a single lycopene ε-cyclase gene sequence, designated IbLCYe, was isolated from both WS and W71. These genes were separately introduced into a lycopene-synthesizing Escherichia coli transformed with the Pantoea ananatis crtE, crtB and crtI genes, followed by HPLC analysis. β-Carotene was detected in E. coli cells that carried IbLCYb1-4, indicating that the IbLCYb1-4 genes encode lycopene β-cyclase. Meanwhile, the introduction of IbLCYe into the lycopene-synthesizing E. coli led to efficient production of δ-carotene with a monocyclic ε-ring, providing evidence that the IbLCYe gene codes for lycopene ε-(mono)cyclase. Expression of the β- and ε-cyclase genes was analyzed as well.

1 Introduction

Sweetpotato [Ipomoea batatas (L.) Lam], also described as sweet potato, which belongs to the family Convolvulaceae, occupies the seventh position among the food crops of the world [1]. It can be used as food supply to combat malnutrition in the developing nations, since the tuberous roots (tubers) are enriched with starch and dietary fiber, along with carotenoids, anthocyanin, ascorbic acid, potassium, calcium, iron, and other bioactive ingredients [2], [3], [4], [5]. Sweetpotato also possesses a potential for bioenergy production as it can adapt to growth on marginal lands [6]. For people of South-east Asia and Africa, this crop is the main source of β-carotene [7]. Sweetpotato is a hexaploid species (2n=6x=90) that has a basic chromosome number of 15, and genetic studies on this species are exhausting, since it is difficult to generate seeds and to evaluate the effects of polyploidy on the genome [8], [9]. Its tubers exhibit various colors such as white, yellow, orange, and purple among different cultivars, and all species include β-carotene as well as other carotenoids, while orange-fleshed lines were shown to contain β-carotene as the predominant carotenoid [2], [4], [5], [10], [11]. The tubers of the Japanese cultivar “Benimasari” were found to accumulate unique carotenoids such as β-carotene-5,8,5′,8′-diepoxide (40.5% of the total carotenoids), β-carotene-5,8-epoxide (6.5%) and ipomoeaxanthin A (3.2%), in addition to β-carotene (10.5%) [12].

Although sweetpotato is highly important as a valuable source of carotenoids including β-carotene, very little research has been done on molecular biological aspects of its carotenoid biosynthesis [6], [7], [9]. ‘White Star’ (WS) and W71, producing white- and orange-fleshed tubers, respectively, are important sweetpotato cultivars, since they are amenable to Agrobacterium-mediated transformation ([13], [14] and our unpublished results). Chemical analysis of the carotenoids of these two cultivars has not been performed so far. The present study elucidates carotenoid biosynthesis in sweetpotato cultivars WS and W71 through chemical analysis of their carotenoids as well as functional and expression analyses of their carotene cyclase genes.

2 Experimental

2.1 Plant materials and growth

We used two cultivars of sweetpotato [I. batatas (L.) Lam], WS and W71, which generate white- and orange-fleshed tuberous roots (tubers), respectively. Both cultivars were bred in the USA [14], [15]. The vines (ca. 25 cm in length) of each cultivar were planted into Wagner pots (159 mm in diameter and 190 mm in height) containing culture soil [Engeibaido 1 (Nihon Hiryo, Tokyo, Japan)] in a greenhouse. After 5 months of growth, tubers were harvested from each cultivar.

2.2 Extraction of total RNA from sweetpotato leaves and cDNA synthesis

Leaf samples from the two cultivars were ground in liquid nitrogen. Total RNA was isolated from 100 mg of leaf powder from each cultivar, as described [14]. Total RNA extracts were then treated with DNase I to remove any contaminating genomic or foreign DNA. Using 1 μg of total RNA, first strand cDNAs were synthesized with an oligo-dT primer in a reaction catalyzed by reverse transcriptase (RT), ReverTra Ace (Toyobo, Osaka, Japan). Incubations were first at 42 °C for 20 min, swiftly shifted to 99 °C for 5 min, and at the end cooled down at 4 °C (and stored at –30 °C until the next use).

2.3 Isolation of full length cDNAs for carotene cyclase genes and phylogenetic analysis

3′and 5′-RACE were carried out by SMARTer™ RACE cDNA Amplification Kit (Clontech, Mountain View, CA, USA) according to the supplier’s instructions. We designed primers for RACE-PCR based on the partial sequences of an I. batatas lycopene β-cyclase gene (IbLCYb; accession no. GQ283003) and an I. batatas lycopene ε-cyclase gene (IbLCYe; accession no. HQ828090) in the Genbank database. As the first PCR primers for 3′-RACE of IbLCYb and IbLCYe, IbLCYbF1 (5′-GCGTATGGCATTCTGGCAGAAGTGG-3′) and IbLCYeF1 (5′-CGAAGTCCTGGTATGGGTGATATGC-3′) were used, respectively. For the nested PCR amplification in 3′-RACE, respective nested gene-specific primers for IbLCYbF2 (5′-CATGGATTGGCGAGACTCTCACC-3′) and IbLCYeF2 (5′-CAAGCTTGGGAAACGCTTTGGCC-3′) were used. Similarly, for the amplification of the IbLCYb and IbLCYe 5′-ends, IbLCYbR1 (5′-AAGCCAGTTGCATCGAGAACCACAG-3′) and IbLCYeR1 (5′-TGAATACCCTGTAGCGGGATGAACC-3′) were used in the first PCR, respectively. For 5′-RACE, IbLCYbR2 (5′-CATGGATTGGCGAGACTCTCACC-3′) and IbLCYeR2 (5′-CAAGCTTGGGAAACGCTTTGGCC-3′) were used as the nested PCR primers. Each RACE product was subcloned into the pGEM T-easy vector (Promega, Madison, WI, USA), followed by DNA sequencing. Full length cDNA sequences of IbLCYb and IbLCYe were obtained through the above PCRs. The full length cDNAs of the IbLCYb and IbLCYe genes were isolated by PCR amplification with a pair of primers: IbLCYbF3 (5′-CGTCGACATGGATACTCTGCTAAA-3′) and IbLCYbR3 (5′-GGCGGCCGCTTAATCTATATCCTGTAAC-3′), and IbLCYeF3 (5′-CGGATCCATGGAGTGCATCGGAGCTC-3′) and IbLCYeR3 (5′-CGTCGACTTACAGAGTGAGATAAGT-3′), respectively.

DNA sequences were analyzed using DNASIS DNA analysis software (Hitachi Solutions, Tokyo, Japan). Homology search was performed by BLAST (http://blast.ncbi.nlm.nih.gov/Blast.cgi). Amino acid sequences were aligned by CLUSTAL W (http://www.clustal.org/), and a neighbor-joining tree was constructed with a 500 bootstrap replication support using MEGA7 software. Transit peptides of the gene products were predicted by ChloroP (http://www.cbs.dtu.dk/services/ChloroP/).

2.4 Functional analysis of isolated carotene cyclase genes

The coding regions of the IbLCYb and IbLCYe genes were amplified by PCR and cloned into the pETDuet vector (Merck Millipore, Darmstadt, Germany), yielding plasmids pETD-IbLCYb and pETD-IbLCYe, respectively. For complementary expression of the two IbLCYb and IbLCYe genes, they were cloned simultaneously into pETDuet and named pETD-IbLCYb/IbLCYe. Each plasmid was introduced into a lycopene-producing Escherichia coli [BL21 (DE3)], which carried the plasmid pACCRT-EIB for the expression of the crtE, crtB, and crtI genes from the bacterium Pantoea ananatis [16]. Each transformed E. coli was grown in 2YT medium (1.6% tryptone, 1% yeast extract, 0.5% NaCl) with 100 mg/L of ampicillin and 30 mg/L of chloramphenicol at 37 °C. When an optical density of 0.8–1.0 had been reached, 0.05 mM of IPTG was added, and cultivation continued at 21 °C for 2 days.

Extraction of carotenoids from recombinant E. coli was carried out by the method described [17]. Recombinant E. coli cultures were centrifuged and cell pellets were extracted with methanol (MeOH) using a mixer for 5 min. Tris-HCl (50 mM, pH 7.5) (containing 1 M NaCl) was added and mixed. Chloroform was then added to the mixture and the emulsion centrifuged for 5 min. The chloroform phase was collected and dried by centrifugal evaporation. Dried residues were re-suspended in ethyl acetate and applied to HPLC in a Waters Alliance 2695–2996 (PDA) system (Milford, CT, USA). HPLC was performed according to the method described [18] using a TSKgel ODS-80Ts column (4.6×150 mm, 5 μm; Tosoh, Tokyo, Japan) at a flow rate of 1.0 mL/min at 25 °C with solvent A (water-MeOH, 5:95, v/v) for 5 min, followed by a linear gradient from solvent A to solvent B (tetrahydrofuran: MeOH, 3:7, v/v) for 5 min, and solvent B alone for 8 min. Individual carotenoids were identified by comparing retention times and absorption spectra with those of the authentic standards [19]. To separate α- and β-carotene, an isocratic method was applied. HPLC was performed on a Nova-pak HR 6 μ C18 column (3.9×300 mm; Waters) at a flow rate of 1.0 mL/min at 25 °C with the solvent [acetonitrile (AcCN)-MeOH-2-propanol, 90: 6:4, v/v/v] for 80 min.

2.5 Carotenoid analysis

Extraction of carotenoids from the leaves and tubers of the two sweetpotato cultivars and subsequent chromatographic and spectroscopic analyses were carried out as follows: Total carotenoids were extracted from leaves and tubers with acetone at room temperature. The extract was concentrated to a small volume in vacuo and partitioned with n-hexane-diethyl ether (1:1, v/v) and water. The organic layer was evaporated to dryness and submitted to LC/MS analysis. The total carotenoid contents were calculated employing an extinction coefficient of Ecm1%=2400 at λ max. The ether-hexane solution was evaporated. In the case of leaf carotenoid analysis, chlorophylls were removed by treatment with 5% (w/v) KOH/MeOH. The residue was subjected to analysis in a LC/photodiode-array detection (PDA)/MS system. The LC/PDA/MS analysis of carotenoids was carried out using a Waters Xevo G2S QTof mass spectrometer equipped with an Acquity UPLC system. UV-Visible (UV-VIS) absorption spectra were recorded from 200 to 600 nm by PDA. The electro-spray ionization (ESI) time-of-flight (TOF) MS spectra were acquired by scanning from m/z 100 to 1500 with a capillary voltage of 3.2 kV, cone voltage of 40 eV, and source temperature of 120 °C. Nitrogen was used as a nebulizing gas at a flow rate of 30 L/h. An Acquity 1.7 μm BEH UPLC C18 column (Waters) was used as a stationary phase with the mobile phase of: AcCN-water (85:15, v/v)→AcCN-MeOH (65:35), with a column temperature of 40 °C, at the flow rate of 0.4 mL/min.

2.6 Expression analysis of cloned carotene cyclase genes

Expression analysis of the two genes was performed by real-time PCR. Total RNA was extracted from sweetpotato leaves and tubers using an RNeasy Plant mini kit (Qiagen, Hilden, Germany), and treated with DNase I. One microgram each of total RNA was reverse-transcribed with oligo-dT primer using PrimeScript RT Master Mix (Takara, Shiga, Japan). Amplification in real-time PCR was performed using SYBR Premix DimerEraser (Takara), and data analysis was carried out using the ABI 7300 Real Time PCR System (Life Technologies). The primers used in real-time PCR are shown in Table 1. The expression levels of the various genes were normalized by the actin gene IbACT7 as reference gene for the internal control.

Table 1:

Primers used in real-time PCR.

IbLCYbRTF15′-AGCGTTGTGTTATCCCAATGG-3′
IbLCYbRTR15′-TACCGCCAATTCCAACAACTC-3′
IbLCYeRTF15′-TCATTCCATGCAGGCTAGTTACTG-3′
IbLCYeRTR15′-CCCAACCTCATACTGCAACAATT-3′
IbACT7F15′-CCAAGAGCAGTGTTTCCCAGTAT-3′
IbACT7R15′-TCTGTCCCATCCCAACCATAA-3′

2.7 Accession number of cloned carotene cyclase genes

The nucleotide sequences of the sweetpotato carotene cyclase genes cloned in this work were submitted to DDBJ under accession numbers LC164788 (IbLCYb1), LC164789 (IbLCYb2), LC164790 (IbLCYb3), LC164791 (IbLCYb4), LC164792 (IbLCYb5), and LC164793 (IbLCYe).

3 Results and discussion

3.1 Carotenoids in sweetpotato cultivars WS and W71

We selected two sweetpotato (I. batatas) cultivars, WS and W71, as representative genotypes, exhibiting white and orange tuberous roots (tubers), respectively, since they have also been used in Agrobacterium tumefaciens-mediated transformation ([13], [14], and our unpublished results). Carotenoid pigments were extracted from the two cultivars and subjected to HPLC-PDA-HRMS analysis. Figure 1 shows HPLC chromatograms of carotenoids extracted from the leaves (A) and tubers (B) of cultivar WS. Table 2 contains the spectroscopic data of the individual carotenoids appearing in Figure 1. Table 3 shows the carotenoid composition in the leaves and tubers of sweetpotato cultivars WS and W71, which was calculated based on the HPLC chromatograms (Figure 1 for WS, and data not shown for W71). Carotenoid composition in the leaves of both sweetpotato cultivars was substantially the same as that of other higher plant leaves mediating photosynthesis, i.e. their carotenoids contain approximately 45–50% lutein and approximately 30% β-carotene as the two predominant carotenoids, along with neoxanthin and violaxanthin, and often with small amounts of β-cryptoxanthin, antheraxanthin, zeaxanthin and α-carotene [20]. Meanwhile, the tubers of cultivars WS and W71 were found to contain unique carotenoids that were composed of β-carotene-5,8-epoxide (9.4% and 4.6% of the total carotenoids, respectively), β-carotene-5,6,5′,8′-diepoxide (35.7% and 9.2%), and β-carotene-5,8,5′,8′-diepoxide (25.1% and 13.8%). Moreover, the WS and W71 tubers were found to contain ipomoeaxanthin A (4.5%) and β-cryptoxanthin-5′,6′-epoxide (2.2%), respectively. Their chemical structures are shown in Figure 2. Such rare carotenoids had previously been identified as unique constituents of the tubers of the Japanese sweetpotato cultivar “Benimasari” [12]. It is likely that sweetpotato tubers generally contain rare carotenoids that include a 5,6-epoxy-β-ring and/or a 5,8-epoxy-β-ring in their structures, since WS and W71 (bred in USA) should be genetically distant from the Japanese cultivar “Benimasari”.

Figure 1: HPLC chromatograms of carotenoids extracted from the leaves (A) and tubers (B) of sweetpotato (Ipomoeoa batatas) cultivar WS.An Acquity 1.7 μm BEH UPLC C18 column (Waters) was used, as described in Section 2.5 of the Experimental section. Identification of peaks: 1′, neochrome; 1, neoxanthin; 2, violaxanthin (including auroxanthin); 3, antheraxanthin; 4, zeaxanthin; 5, lutein; 6, ipomoeaxanthin A; 7, 9-cis-lutein, 7′, 13-cis-lutein; 8, β-cryptoxanthin; 9, β-carotene-5,6,5′,8′-diepoxide (stereoisomers); 10, β-carotene-5,8,5′,8′-diepoxide (stereoisomers); 11, β-carotene-5,8-epoxide (stereoisomers); 12, α-carotene; 13, β-carotene. Neochrome (peak 1′) and auroxanthin (some in peak 2) are considered to be formed from neoxanthin and violaxanthin, respectively, during the extraction process. Peaks 9, 10 and 11 are individually composed of several peaks, which are thought to contain stereoisomers, and sometimes geometrical isomers generated during the extraction process.
Figure 1:

HPLC chromatograms of carotenoids extracted from the leaves (A) and tubers (B) of sweetpotato (Ipomoeoa batatas) cultivar WS.

An Acquity 1.7 μm BEH UPLC C18 column (Waters) was used, as described in Section 2.5 of the Experimental section. Identification of peaks: 1′, neochrome; 1, neoxanthin; 2, violaxanthin (including auroxanthin); 3, antheraxanthin; 4, zeaxanthin; 5, lutein; 6, ipomoeaxanthin A; 7, 9-cis-lutein, 7′, 13-cis-lutein; 8, β-cryptoxanthin; 9, β-carotene-5,6,5′,8′-diepoxide (stereoisomers); 10, β-carotene-5,8,5′,8′-diepoxide (stereoisomers); 11, β-carotene-5,8-epoxide (stereoisomers); 12, α-carotene; 13, β-carotene. Neochrome (peak 1′) and auroxanthin (some in peak 2) are considered to be formed from neoxanthin and violaxanthin, respectively, during the extraction process. Peaks 9, 10 and 11 are individually composed of several peaks, which are thought to contain stereoisomers, and sometimes geometrical isomers generated during the extraction process.

Table 2:

Spectroscopic data of the individual carotenoids in Figure 1.

NumberaCarotenoidUV-VIS nmESI TOF MS m/z
1′Neochrome405, 428, 450601.4232 (M+, C40H57O4)
1Neoxanthin414, 439, 469601.4232 (M+, C40H57O4)
2Violaxanthin414, 439, 469601.4232 (M+, C40H57O4)
2Auroxanthin376, 399, 423601.4232 (M+, C40H57O4)
3Antheraxanthin425, 446, 473568.4299 (M+ C40H56O2), 551.4246 (M+-H2O)
4Zeaxanthin(425), 451, 477568.4299 (M+ C40H56O2)
5Lutein425, 446, 473568.4299 (M+ C40H56O2), 551.4246 (M+-H2O)
6Ipomoeaxanthin A425, 446, 473586.4410 (M+ C40H58O3)
79-cis-Lutein422, 441, 468568.4299 (M+ C40H56O2), 551.4246 (M+-H2O)
7′13-cis-Lutein420, 439, 465568.4299 (M+ C40H56O2), 551.4246 (M+-H2O)
8β-Cryptoxanthin(425), 451, 477552.4327 (M+ C40H56O)
9β-Carotene-5,6, 5′,8′-diepoxide405, 426, 451569.4348 (MH+ C40H57O2)
10β-Carotene-5,8, 5′,8′-diepoxide379, 399, 424569.4348 (MH+ C40H57O2)
11β-Carotene-5,8-epoxide400, 426, 451552.4327 (M+ C40H56O)
12α-Carotene425, 446, 473536.4383 (M+ C40H56)
13β-Carotene(425), 451, 477536.4383 (M+ C40H56)
β-Cryptoxanthin-5′,6′-epoxideb425, 446, 473568.4299 (M+ C40H56O2)

aNumbers correspond to those used in Figure 1. bβ-Cryptoxanthin-5′,6′-epoxide was detected only in cultivar W71.

Table 3:

Carotenoid content and composition in sweetpotato cultivars WS and W71.

WS leafW71 leaf‘White Star’ tuberW71 tuber
Total carotenoid (μg/g FW)341700.54.0
Carotenoid composition%%%%
 β-Carotene30.731.17.359.3
 α-Carotene0.6ndnd
 β-Cryptoxanthin2.43.2
 Zeaxanthin0.7trace
 Lutein43.246.813.72.0
cis-Lutein3.33.3
 Antheraxanthin1.8
 Violaxanthin (+ Auroxanthin)12.33.50.9
 Neoxanthin (+ Neochrome)3.66.41.5
 β-Carotene-5,8-epoxidendnd9.44.6
 β-Carotene-5,6,5′,8′-diepoxidendnd35.79.2
 β-Carotene-5,8,5′,8′-diepoxidendnd25.113.8
 β-Cryptoxanthin-5′,6′-epoxidendndnd2.2
 Ipomoeaxanthin Andnd4.5nd
 Others1.48.91.95.7

nd, not detected.

Figure 2: Proposed carotenoid biosynthetic pathway in the tubers of sweetpotato cultivars WS and W71.Ipomoeaxanthin A and β-cryptoxanthin-5′,6′-epoxide were found only in the tubers of WS and W71, respectively. It was considered that β-carotene-5,8-epoxide was non-enzymatically produced from β-carotene-5,6-epoxide, which was not observed in either WS or W71. Carotenoids containing the 5,6-epoxy-β-ring are stereospecific compounds, while those containing the 5,8-epoxy-β-ring occur as stereoisomers (C-8). Carotene cyclases elucidated in this work are boxed. GGPP, geranylgeranyl diphosphate.
Figure 2:

Proposed carotenoid biosynthetic pathway in the tubers of sweetpotato cultivars WS and W71.

Ipomoeaxanthin A and β-cryptoxanthin-5′,6′-epoxide were found only in the tubers of WS and W71, respectively. It was considered that β-carotene-5,8-epoxide was non-enzymatically produced from β-carotene-5,6-epoxide, which was not observed in either WS or W71. Carotenoids containing the 5,6-epoxy-β-ring are stereospecific compounds, while those containing the 5,8-epoxy-β-ring occur as stereoisomers (C-8). Carotene cyclases elucidated in this work are boxed. GGPP, geranylgeranyl diphosphate.

The carotenoid biosynthetic pathway in sweetpotato tubers, proposed on the basis of the above results is shown in Figure 2. The tubers of the three cultivars WS, W71 and “Benimasari” thus contain sweetpotato-specific carotenoids with the 5,6-epoxy-β-ring, rather than the epoxy carotenoids common to higher plant leaves, i.e. violaxanthin and antheraxanthin, with the 3-hydroxy-5,6-epoxy-β-ring. Therefore, sweetpotato tubers are likely to contain a novel enzyme that converts carotenoids possessing a β-ring, such as β-carotene and β-cryptoxanthin, into metabolites with a 5,6-epoxy-β-ring, such as β-carotene-5,6-epoxide and β-cryptoxanthin-5′,6′-epoxide. Such a β-ring-epoxidation enzyme can be anticipated to have considerable homology to the ZEP (zeaxanthin epoxidase) enzyme, encoded by a ZEP paralog. A candidate gene has been cloned in our laboratory, awaiting functional analysis. Ipomoeaxanthin A is considered to be produced from β-carotene-5,6-epoxide by an unknown oxidizing enzyme. Meanwhile, carotenoids with an 5,8-epoxy-β-ring can arise non-enzymatically from precursors having an 5,6-epoxy-β-ring through an epoxy-furan transposition reaction.

3.2 Isolation of carotene cyclase genes from sweetpotato cultivar WS and W71 and phylogenetic analysis

Two and three lycopene β-cyclase gene (IbLCYb) sequences were, respectively isolated from WS, named IbLCYb1 and IbLCYb2, and from W71, designated IbLCYb3, IbLCYb4 and IbLCYb5. IbLCYb3 and IbLCYb4 were found to encode the same deduced amino acid sequences. In the case of the lycopene ε-cyclase gene (IbLCYe), a single sequence, designated IbLCYe, was isolated from both WS and W71. Another putative lycopene ε-cyclase gene had previously been isolated from sweetpotato cultivar Nongdafu 14 [21] (albeit without functional identification of the gene product as ε-cyclase), which encoded a protein with a N-terminal region totally different from that of our IbLCYe, but the mature proteins were 97.9% identical.

Figure 3 shows the phylogenetic analysis of the deduced proteins encoded by the isolated sweetpotato carotene cyclase genes, compared to other known carotene cyclases of higher plants. IbLCYb(1–5) and IbLCYe (in dotted boxes) individually formed single clades that were positioned close to the corresponding proteins from potato (Solanum tuberosum) and tomato (Solanum lycopersicum), which, like sweetpotato, belong to the order Solanales.

Figure 3: Phylogenetic tree of various lycopene β-cyclases (LCYb) and lycopene ε-cyclases (LCYe) including the newly isolated sweetpotato carotene cyclases.The carotene cyclases elucidated in this paper are surrounded by dotted box. GenBank accession numbers of the aligned cyclases include: Arabidopsis LCYb (AtLCYb), U50739; carrot LCYb (DcLCYb), DQ192190; wheat LCYb (TaLCYb), JN622196.1; rice LCYb (OsLCYb), XP_015627235; tomato LCYb (SlLCYb1), EF650013;potato LCYb (StLCYb), XP_006364433; liverwort LCYb (MpLCYb),AB794089; Chlamydomonas LCYb (CrLCYb), AY860818; Arabidopsis LCYe (AtLCYe), U50738.1 carrot LCYe (DcLCYe), DQ192192.1; wheat LCYe (TaLCYe), EU649787; rice LCYe (OsLCYe), XP_015622198; tomato LCYe (SlLCYe), Y14387; potato LCYe (StLCYe), XP_006353544.1; liverwort LCYe (MpLCYe), AB794090; Chlamydomonas LCYe (CrLCYe), AY606130. The sweetpotato lycopene ε-cyclase reported by Ling et al. [21], is not shown in this figure, because its accession number was not available.
Figure 3:

Phylogenetic tree of various lycopene β-cyclases (LCYb) and lycopene ε-cyclases (LCYe) including the newly isolated sweetpotato carotene cyclases.

The carotene cyclases elucidated in this paper are surrounded by dotted box. GenBank accession numbers of the aligned cyclases include: Arabidopsis LCYb (AtLCYb), U50739; carrot LCYb (DcLCYb), DQ192190; wheat LCYb (TaLCYb), JN622196.1; rice LCYb (OsLCYb), XP_015627235; tomato LCYb (SlLCYb1), EF650013;potato LCYb (StLCYb), XP_006364433; liverwort LCYb (MpLCYb),AB794089; Chlamydomonas LCYb (CrLCYb), AY860818; Arabidopsis LCYe (AtLCYe), U50738.1 carrot LCYe (DcLCYe), DQ192192.1; wheat LCYe (TaLCYe), EU649787; rice LCYe (OsLCYe), XP_015622198; tomato LCYe (SlLCYe), Y14387; potato LCYe (StLCYe), XP_006353544.1; liverwort LCYe (MpLCYe), AB794090; Chlamydomonas LCYe (CrLCYe), AY606130. The sweetpotato lycopene ε-cyclase reported by Ling et al. [21], is not shown in this figure, because its accession number was not available.

3.3 Functional analysis of the carotene cyclase genes identified in the sweetpotato cultivars WS and W71

When plasmids, pETD-IbLCYb1, pETD-IbLCYb2, and pETD-IbLCYb4, were separately introduced into the lycopene-producing E. coli cells, β-carotene was detected in all the extracts (Figure 4A–C). The enzymatic activity of IbLCYb4 (IbLCYb3) in the E. coli cells was weak compared with that of IbLCYb1 and IbLCYb2. In contrast, pETD-IbLCYb5 did not direct conversion of lycopene (Figure 4D). These results indicate that IbLCYb1, IbLCYb2, IbLCYb3, and IbLCYb4 possess lycopene β-cyclase activity, while IbLCYb5 is not functional. Therefore, only the IbLCYb1-IbLCYb4 genes encode functional lycopene β-cyclase (Figure 2).

Figure 4: HPLC analysis of carotenoids formed in the lycopene-producing E. coli strain that had been transformed with the sweetpotato IbLCYb or IbLCYe genes.A TSKgel ODS-80Ts column (4.6×150 mm, 5 μm) was used, as described in Section 2.4 of the Experimental section. (A–E) HPLC chromatograms of carotenoid extracts from E. coli that harbored pACCRT-EIB plus the respective sweetpotato gene: (A) pETD-IbLCYb1; (B) pETD-IbLCYb2; (C) pETD-IbLCYb4; (D) pETD-IbLCYb5; (E) pETD-IbLCYe. (F) Absorption spectra of individual peaks: 1, β-carotene; 2, lycopene; 3, δ-carotene.
Figure 4:

HPLC analysis of carotenoids formed in the lycopene-producing E. coli strain that had been transformed with the sweetpotato IbLCYb or IbLCYe genes.

A TSKgel ODS-80Ts column (4.6×150 mm, 5 μm) was used, as described in Section 2.4 of the Experimental section. (A–E) HPLC chromatograms of carotenoid extracts from E. coli that harbored pACCRT-EIB plus the respective sweetpotato gene: (A) pETD-IbLCYb1; (B) pETD-IbLCYb2; (C) pETD-IbLCYb4; (D) pETD-IbLCYb5; (E) pETD-IbLCYe. (F) Absorption spectra of individual peaks: 1, β-carotene; 2, lycopene; 3, δ-carotene.

The introduction of plasmid pETD-IbLCYe led to efficient production of δ-carotene (Figure 4E), indicating that IbLCYe catalyzes the formation of δ-carotene by adding one monocyclic ε-ring to lycopene. Thus, this gene was shown to encode a lycopene ε-(mono)cyclase. MpLCYe derived from the liverwort Marchantia polymorpha was able to convert lycopene into ε-carotene with dicyclic ε-rings by way of δ-carotene [19], while IbLCYe appears to be strictly an ε-monocyclase (Figure 2).

The combined co-expression of IbLCYb1 or IbLCYb2 and IbLCYe (plasmid pETD-IbLCYb1/IbLCYe or pETD-IbLCYb2/IbLCYe) in the lycopene-producing E. coli resulted in α-carotene formation, along with a considerable amount of β-carotene (Figure 5), whereas co-expression of IbLCYb4 and IbLCYe (plasmid pETD-IbLCYb4/IbLCYe) did not lead to such an activity and only β-carotene was detected. It was therefore demonstrated that IbLCYb1 and IbLCYb2 can synthesize α-carotene in the presence of IbLCYe.

Figure 5: HPLC analysis of carotenoides formed in the lycopene-producing E. coli strain that had been transformed with both the sweetpotato IbLCYb and IbLCYe genes. A Nova-pak HR 6 μ C18 column (3.9×300 mm; Waters) was used, as described in Section 2.4 of the Experimental section.(A–C) HPLC chromatograms of carotenoid extracts from E. coli that harbored pACCRT-EIB plus the respective sweetpotato genes: (A) pETD-IbLCYb1/IbLCYe; (B) pETD-IbLCYb2/IbLCYe; (C) pETDuet-IbLCYb4/IbLCYe; (D) Absorption spectra of individual peaks: 4, α-carotene; 1, β-carotene (see Figure 4F).
Figure 5:

HPLC analysis of carotenoides formed in the lycopene-producing E. coli strain that had been transformed with both the sweetpotato IbLCYb and IbLCYe genes. A Nova-pak HR 6 μ C18 column (3.9×300 mm; Waters) was used, as described in Section 2.4 of the Experimental section.

(A–C) HPLC chromatograms of carotenoid extracts from E. coli that harbored pACCRT-EIB plus the respective sweetpotato genes: (A) pETD-IbLCYb1/IbLCYe; (B) pETD-IbLCYb2/IbLCYe; (C) pETDuet-IbLCYb4/IbLCYe; (D) Absorption spectra of individual peaks: 4, α-carotene; 1, β-carotene (see Figure 4F).

3.4 Expression analysis of the carotene cyclase genes isolated from sweetpotato cultivars WS and W71

Expression analysis of the carotene cyclase genes was performed in the leaves and tubers of the two sweetpotato cultivars (Figure 6). Both the IbLCYb and IbLCYe genes were highly expressed in the leaves of both cultivars, while in the tubers IbLCYb transcript levels were much higher than those of IbLCYe, providing an explanation why β-carotene and β-carotene-derived carotenoids occur abundantly in the tubers.

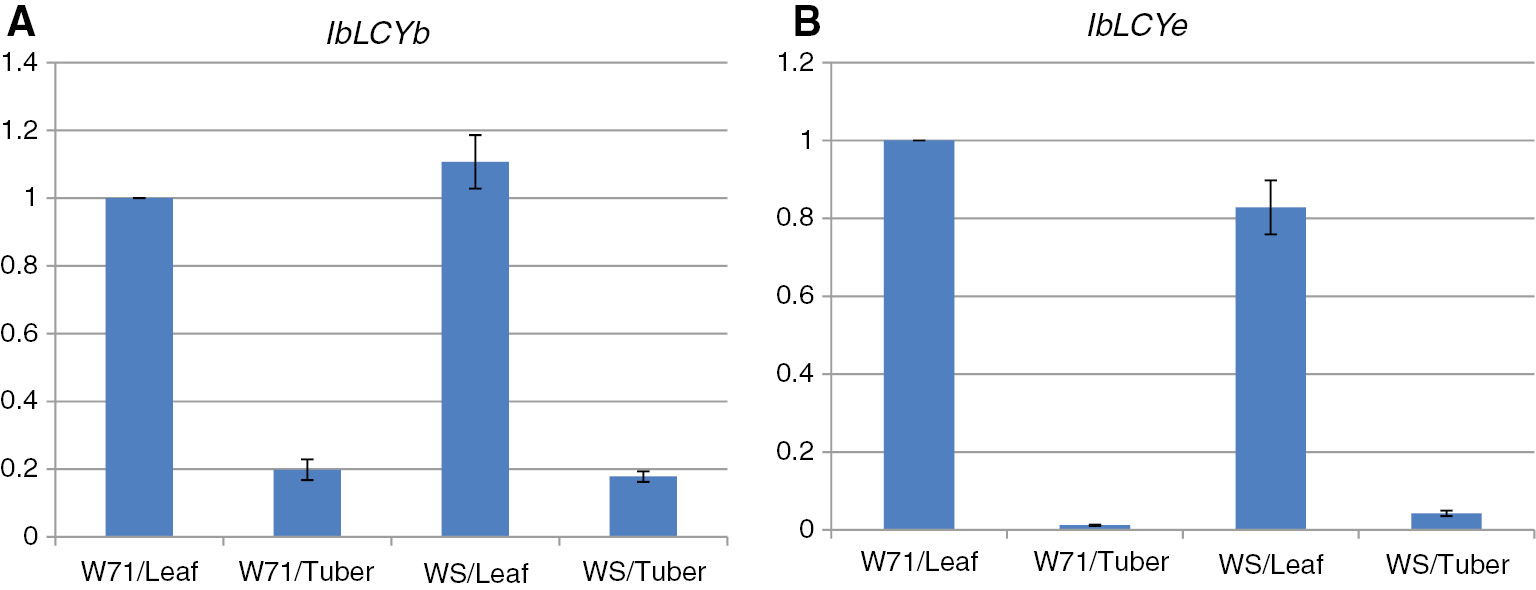

Figure 6: Transcript levels of the IbLCYb gene (A) and the IbLCYe gene (B) in the leaves and tubers of sweetpotato cultivars W71 and WS.
Figure 6:

Transcript levels of the IbLCYb gene (A) and the IbLCYe gene (B) in the leaves and tubers of sweetpotato cultivars W71 and WS.

4 Conclusion

Chemical analysis of the carotenoids of the sweetpotato cultivars WS and W71 revealed that the tuberous roots (tubers) contain rare carotenoids unique to sweetpotato, which contain a 5,6-epoxy-β-ring and/or a 5,8-epoxy-β-ring in their structures. Lycopene β- and ε-cyclase gene sequences, designated IbLCYb1-4 and IbLCYe, were isolated from both cultivars, and the encoded proteins were functionally identified.


Dedication: This work is dedicated to the memory of Professor Peter BÖger. He kindly provided the opportunity for NM to work in his laboratory on the generation of bleaching herbicide-resistant plants, and encouraged NM to work on carotenoid biosynthesis.
