Advanced characterizations of nanoparticles for drug delivery: investigating their properties through the techniques used in their evaluations

2.1.1 DLS technique

DLS is said to be a hydrodynamic technique as it directly measures hydrodynamic quantitative values of rotational and translational diffusion coefficients, which correspond to the shapes and sizes of particles via theoretical relations [10]. The measurement of particle size is based on the random changes in the intensity of their light scattering from a suspension or solution. Colloidal particles in the sample are under Brownian motion within the dispersing solvent, resulting in bombardment among one another or the surrounding solvent molecules. This gives fluctuating response with respect to the light intensity as the particles change their positions continuously. The Brownian motions of the particles in the solvent behave in an uncontrolled manner that is defined by a translational diffusion coefficient (D). This coefficient again depends on the size of the particles; the smaller the particles, the faster their motions. High temperature also increases the Brownian motion. Thus, DLS analyses velocity distribution of the particle movement caused by their Brownian motion in the form of dynamic fluctuations of light scattering intensity. The signals are computed electronically by an autocorrelation function [17]. The sizes of the particles are then calculated or described by Stokes-Einstein equations, where the spherical particles’ translational self-diffusion coefficient is related to their particle radius, R [18]. The radius of nonspherical particles is called hydrodynamic radius, R, and it is measured by the following equation:

where T is the absolute temperature, ή is the viscosity of the suspending medium, K_B is Boltzmann’s constant, and D is the translational diffusion coefficient.

A simple flow diagram of a DLS instrumental setup is shown in Figure 1. The instrument contains a laser providing monochromatic light source to a cuvette containing sample through a polarizer. The scattered light falls to the detector, a photomultiplier, or a photon counting device, through a second polarizer. Digital signal processor collects the signal, and the resulting image is projected onto a screen in the form of a speckle pattern.

Figure 1:

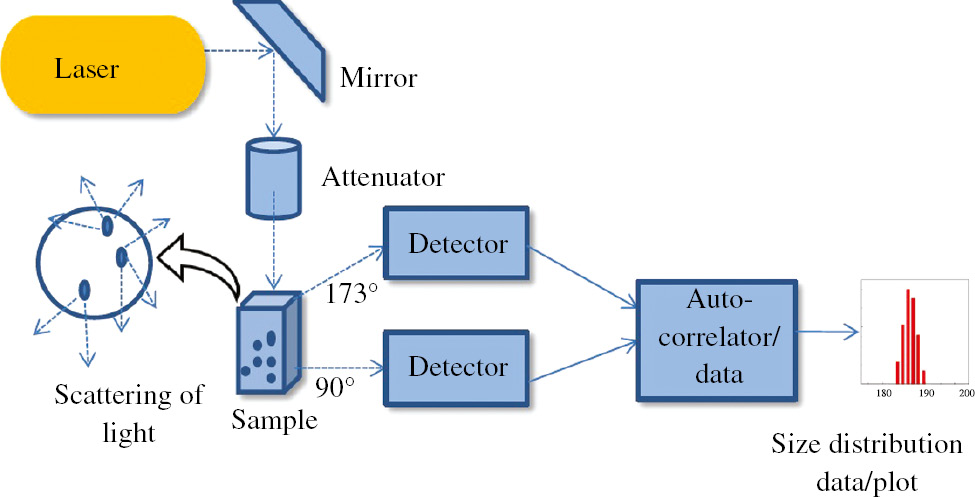

Representative flow diagram of a DLS instrument.

2.1.2 Polydispersity index (PDI)

The population of NPs in a formulation is always polydispersed in nature, and the results by DLS are reported in the form of homogeneity and heterogeneity of the particle size distribution. PDI obtained from DLS is a dimensionless quantity that measures the broadness of the size distribution calculated from a cumulant analysis. A small value of PDI (<0.1) represents a homogeneous population of the particles, whereas a value of >0.3 is regarded as a higher heterogeneous population [19]. Different approaches are followed to get the desired size of NPs, as size affects the efficacy of a nanoparticular drug delivery system.

In case of multimodal particle size distribution, the DLS technique cannot classify the particles with a wide variation in their sizes. As an example, when a mixture contains particles of 40 and 120 nm, signals of the smaller particles are lost because of the intensity of the larger particles [20]. In DLS measurement, the data obtained for the measurement of the particle size can also vary depending on the way of sample preparation The dispersion of NPs is conducted generally by a vortex mixing or a probe/bath sonicator. An optimum range of energy must be used to disperse the NPs so that they do not get ruptured. The energy should not be too low to disperse the NPs properly [21]. However, the NPs tend to agglomerate over the time because of the enhanced interaction of NPs with high surface energy created during the process of sonication. The ionic strength of NPs is the reason behind this agglomeration [22]. Particle size measurement also varies with pH, if the pH is higher than the isoelectric point of the particles, the electrostatic repulsive force will mask the van der Waals force, and particles will be well dispersed [22]. An opposite pattern is observed when the pH is very close to the isoelectric point. NP size and size distribution influence the drug loading, the stability, and the drug release of an NP formulation [23]. These properties also determine the biological fate, in vivo drug distribution, toxicity, and drug targeting [24]. In cell uptake studies, because of nanosize and mobility in the systemic circulation, NPs have shown higher drug uptake as compared with the microsize particles. NPs can cross the blood-brain barrier (BBB) after the opening of endothelium tight junctions, this provides a targeted and sustained release of the therapeutic agents for treating diseases such as brain tumors, as reviewed by Tajes et al. [25]. Surfactant-coated NPs have also been proven to cross the BBB [26]. Flexible NPs such as liposomes, transfersomes, ethosomes, etc., have been found with a large value of PDI as compared with the solid NPs of lipid, gold, and silver. This might be possible because of the formation of micelles at the time of preparation [27]. Particle size has a direct correlation with its surface area, which again influences the drug release rate. Small particle size leads to increase the surface area of the formulation, and drug release rate will be high as most of the drug particle will be located at or near the surface of the formulation. In case of larger particles, as the drug is surrounded by the large core, they encapsulate more drug and are good for sustained and extended release of the drug [28].

2.1.3 Charge on NPs (zeta potential)

The zeta potential of NPs in a dispersed medium give an idea about their electropotential status in that liquid environment [29]. It evaluates the electrophoretic mobility of suspended particles in a colloid. This technique works by using a laser that is passed through the sample in the medium to measure the velocity of the particles in an applied electric field. The electric charge at the double layer boundary is known as the zeta potential of the particles [30]. The movement of particles results from the Brownian motion and repulsion/attraction forces of the particles under the influences of applied electric field [21]. If the repulsive force is stronger than the attractive force, then formulation becomes more stable. The zeta-potential in range of greater than +25 mV or less than −25 mV gives more degree of stability to the nanoparticular formulation, as this range will allow particles to stay in dispersed form for longer periods, and van der Waals interparticle attraction force will not be able to agglomerate the particles for a longer time [30]. In association with zeta potential, NP size may play an important role in its stability, provided the size range is not under the submicron range. Gravity, in case of larger particles (over micron range), becomes important when there is a significant variation in density between continuous and dispersed phases and the particle aggregation or sedimentation occurs depending on the prevalence of gravitational force over Brownian force [31].

The zeta potential is reduced by the high degree of valency ions and ionic strength as they will squeeze the electric double layer. Many authors reported that the pH level and the concentration of the hydrogen ions in the medium greatly influence the charges in the medium. If the power of hydrogen ions is less (acidic medium), particles will acquire more positive charge and vice versa [32]. In recent times, long circulating NPs were introduced to sustain and drug release in the body. The concept behind this is to coat the particles with bilayer of different charges; hence, it can circulate in the blood stream for longer time. Agrawal et al. [33] applied this concept in insulin liposomes, where different layers of negative and positive charge were used to coat the particles that resulted longer circulation time in the bloodstream. The zeta potential also depends on the concentration of NPs as reported by Kerker [34].

2.1.4 Single-particle inductively coupled plasma-mass spectrometry (ICP-MS)

Single-particle inductively coupled plasma-mass spectrometry (ICP-MS) is an advanced technique used for elemental determination of inorganic NPs at very low concentrations (parts per trillion) [35], [36]. NP sample is introduced into a spray chamber by a nebulizer and ionized by inductively heating a gas with an electromagnetic coil, which contains ions and electron to make the gas conductive. The ion cloud is then passed to quadrupole and analyzed by its selective mass to charge ratio (m/z) [37]. The size of the NP is obtained from the peak height of the MS chromatogram, whereas the frequency of the transient signals (number of peaks per minute) gives particle concentration in the sample. However, the accuracy of the results depends on the correct selection of a dwell time. Every recorded pulse represents a single NP, so the integration should be long enough to collect the entire signal from one NP. It only allows the detection of a single element at a time [38]. However, with strong resolution power, this technique can result in the detection of NPs up to 10 nm. Single-particle ICP-MS covers a wide range of applications such as sizing and size distribution of NPs with different biomaterial composition, studies on stability of NPs, dissolution and migration of NPs from solid matrixes, and quantitation and detection of NPs at environmentally relevant concentration. Recently, many authors have reported the use of ICP-MS for inorganic NP characterization [39], [40], [41]. Single-particle ICP-MS is further coupled with modern analytical instrument for better detection and quantification of the elements such as hydrodynamic chromatography and field flow fraction for better selectively and quantification [39], [42]. Walczak et al. [43] reported the coupling of single-particle ICP-MS with DLS and SEM to study the fate of sliver NPs during intestinal digestion.

2.1.5 Tunable resistive pulse sensing technology

Tunable resistive pulse sensing (TRPS) is one of the most outstanding technologies for NPs characterization. It is used for accurate measurement of particle size in the range of 40 nm to 10 μm, size distribution, and concentration of a given NP sample [44], [45]. The technique is quite rapid and convenient with a high degree of accuracy and repeatability. TRPS does not need any laser such as the DLS technique; rather, it is an impedance-based system that measures the opposition to the flow of an alternating current in a circuit due to the resistance of the particles crossing a pore filled with electrolyte. As a particle crosses the pore with a fixed voltage, it briefly increases electrical resistance, creating a resistive pulse, which is precisely proportional to the particle volume [45]. Instrumental operation can control the velocity at which the particle crosses the pore, and accordingly, the depth (magnitude) of the resistive pulse obtained gives the particle volume, whereas the duration (pulse width) is a function of the particle length and its velocity. Thus, before analysis of any test sample, the instrument should be calibrated with particles of accurate size. The concentration of the test sample is obtained simultaneously as the rate of flow of the particles is proportional to the concentration. Another additional advantage of this TRPS technique is its ability to measure electrophoretic mobility or individual particle’s surface charge by analyzing the durations of the resistive pulses under varying driving forces and by comparing the same with the calibrated particles [46]. This electrophorectic mobility can be further converted into zeta potential by the integrated software of the instrument.

Pal et al. [47] reported higher resolution and sensitivity of TRPS than the DLS technique in the characterization of engineered nanomaterial dispersions in cell culture media containing serum. Many authors successfully used this advanced technique of late to characterize various types of NP formulations [48], [49], [50].

2.3.1 Scanning electron microscopy (SEM)

SEM is one of the major discoveries in the field of microscopic analysis used for solid microstructured composition and bulk materials. With a resolution up to 100,000× and working voltage from 10 to 40 kV, it can detect particles up to 10–20 nm size. It combines high-resolution imaging power with a deep depth of sample view and uses both electrostatic and electromagnetic lenses to give a desired image of the NP [59]. SEM uses a 2- to 3-nm spot of electron that scan the surface of the specimen to generate secondary electrons, which are then detected by a sensor to produce an image with an impression of the three-dimensional (3-D) structure of the particle. SEM consists of an electron gun, lens system, collector visual, recording cathode ray tube, and other electronics as its basic elements [60]. The electric gun of SEM uses thermionic emitters, which use electrical current to heat up a filament made of tungsten or lanthanum hexaboride (LaB6). When the filament is heated up, electrons escape from the material itself and initially generate a low-quality image. Samples can be prepared by different techniques depending on the properties and characteristics of the NPs to be measured. Sample preparation in electron microscopy always had been a critical process, but with the time and advancement, researchers have created various methods that are much simpler as compared with past approaches such as sputter coating process [61]. Materials with nonconductive properties require a coating with an electrically conductive material such as platinum, gold, palladium, silver, and chromium as it enables or improves the imaging quality of the poorly conducting samples. Coating creates a conductive layer of metal on the processed sample that prevents it from damaging by heat but improves the secondary electron signal needed for morphological analysis of the particles [62]. Then the samples are dried using air drying process or by critical point drier technique, which uses carbon dioxide under control pressure. Then the samples are subjected to sputter coating in a vacuum chamber. Sputter is a plasma chamber with low discharge capabilities that are used to spare a thin sheet of metal on the samples [63]. The dried samples are placed on the anode bench, and the chamber is saturated with an inert gas, usually argon. A metal coating source is connected to the cathode and argon gas molecules are attracted toward the cathode. Ionized argon strikes the coating source, and the source becomes loose, such as metal grains, which are attracted toward the anode bench where the sample is placed, and gives an omnidirectional coating. The coating thickness has a range of 2 to 20 nm [64]. Some authors also showed the viewing of semibiological metallic samples such as silver NPs with SEM to show their morphology (Figure 2) [65], [66]. Lipids vesicles have also achieved a great attention in the world of NPs, and many researchers have demonstrated the morphological structure of nanolipid vesicles by using SEM [33], [67]. However, it is always a difficult task to visualize wet and damp samples (such as biological tissue and emulsions) as it requires a long drying process. They also need long preparation time in fixation and removing the water or liquid from the samples. In addition, the destructive nature of the entire process does not suit to those kinds of samples [68].

Figure 2:

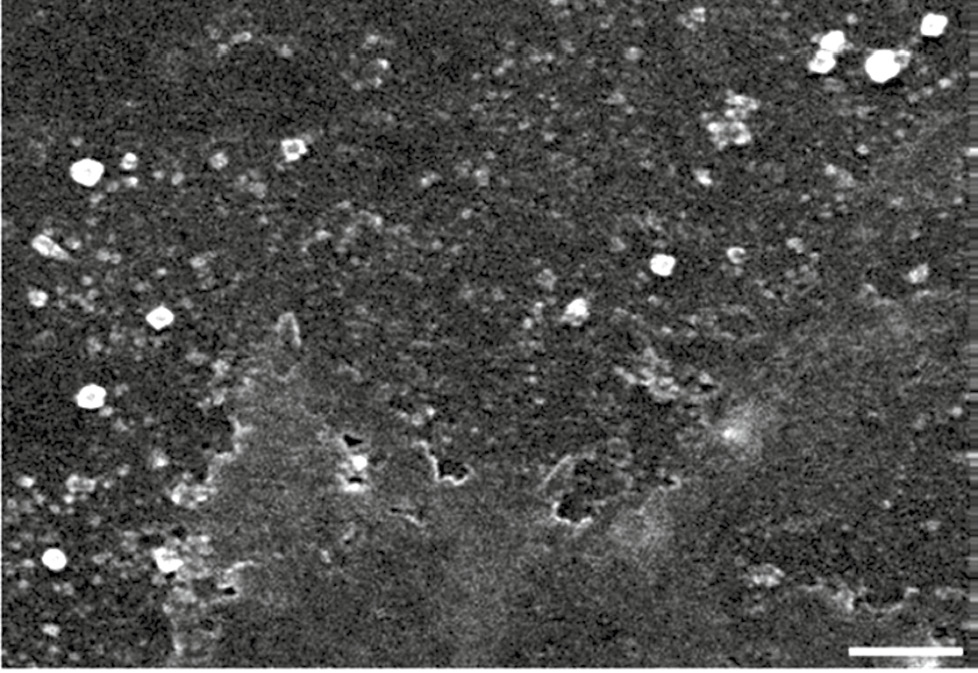

Scanning electron micrograph of aggregated and protein-capped silver NPs with a size range of 20 to 60 nm. Scale bar denotes 200 nm. Reprinted from Laborda et al. [41].

2.3.2 Environmental scanning electron microscopy (ESEM)

ESEM is a very innovative, nondestructive, and useful morphological and topographic imagining technique. It can analyze both biological and material specimens in wet form as it maintains the true state of materials during analysis. In the field of biomaterials and tissue engineering research, ESEM has demonstrated promising results [69]. A diagram of an ESEM instrumental setup is shown in Figure 3. The detection system of ESEM imparts an edge over conventional SEM as it uses a gaseous secondary electron detector as a main mode of detection. The gaseous environment in the specimen’s chamber protects the sample form any negative charge [70]. The gas chamber (such as helium, carbon dioxide, nitrogen, water vapor and argon) allows the maintenance of saturated vapor and the production of a positive ion supply from ionized gas chamber to suppress negative ions formed on insulating sample. A water vapor gas is mostly preferred as an imaging gas [71].

Figure 3:

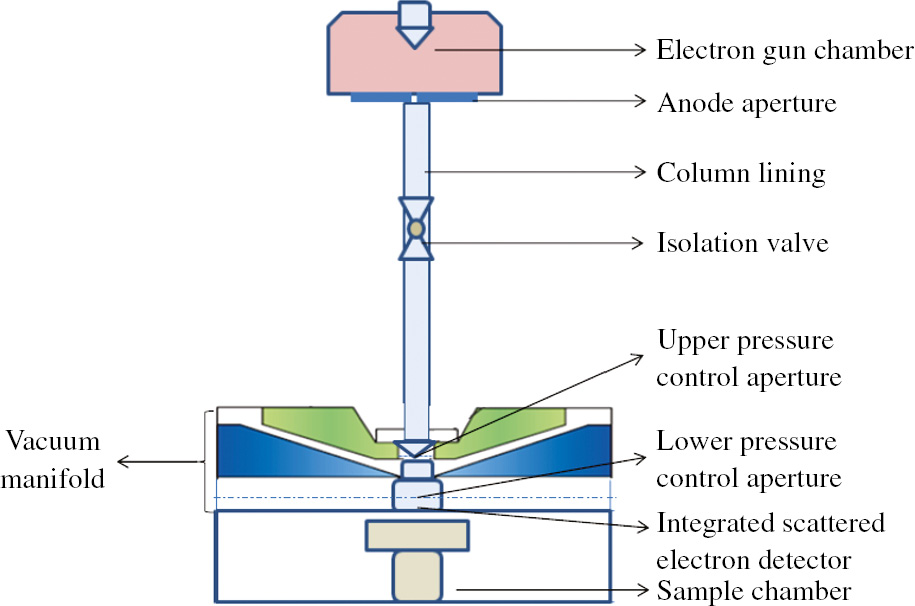

Instrumental setup of an environmental scanning electron microscope (ESEM).

Tissue engineering and biomaterials fields of research have evidenced a suitable application of ESEM as it can investigate both materials and cell surface in wet condition [72]. Stelmashenko et al. [73] reported the topographical images of water droplets on different substrate silicon, polystyrene, and glass substrate. The group showed the effect of backscattered electron with different substrate and difference in image quality. Another study on human monocyte-derived macrophages (MDMs) cell for their morphology and topographical analysis was conducted by Kirk et al. [74]. The study recorded a comparison between ESEM and SEM together with various morphological differences in cracking shrinkage and surface texture and its effect on the cells. ESEM was proved to be more practical for cell viewing study on 3T3-FIBROBLAST and human MDM for cell viability as reported by the group [74]. Imaging of many other biological samples, such as a dynamic process of stomatal pore opening and closure, was demonstrated [75]. Mohammed et al. [76] studied ibuprofen liposomes by ESEM to prove their stability over the time (Figure 4). Rossi et al. [77] studied water detection in carbon nanotubes (CNTs) by different instruments such as TEM, SEM, and ESEM, where they proved that ESEM is suitable for detecting water in CNTs.

Figure 4:

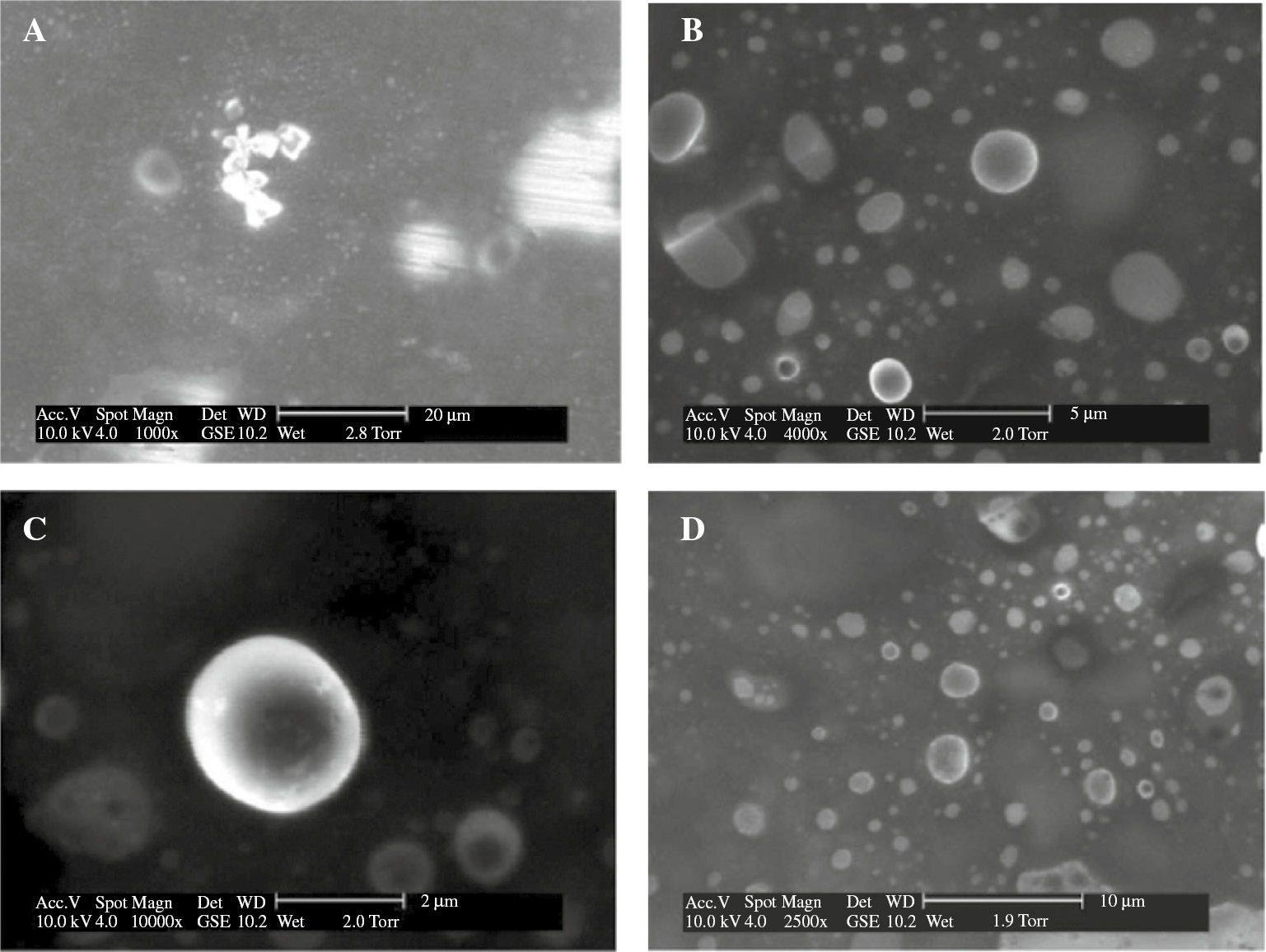

Environmental scanning electron micrographs of ibuprofen liposome made of phospholipid and cholesterol (4:1 molar ratio) dispersed in 0.01 M phosphate-buffered saline (pH 7.4). Stabled liposomal structured were observed when they were subjected to controlled dehydration at an operating pressure of 2.8 Torr (A), 2.0 Torr (B), 1.9 Torr (C), and even 1.9 Torr (D). Scale bars are denoted within the individual figure. Reprinted from Liao et al. [52].

2.3.3 Field emission scanning electron microscopy (FESEM)

A modern version of SEM has been developed in the name of FESEM with an accelerating voltage range of approximately 0.1 to 30 kV and a magnification of approximately 300,000×. Despite a similar instrumental setup, FESEM has been preferred over SEM because of its superior quality of image. An additional feature of a field emission gun (FEG) (cold cathode field emitter) makes the FESEM different from SEM. FEG does heat the filament (tungsten) by placing it in a large electrical potential gradient. The electric gun produces a high vacuum in the chamber, which makes this more superior as compared with the conventional tungsten filament, resulting in faster scanning rate than SEM [78]. In addition, the electron beams in FESEM are more confined and focused into a thin monochromatic beam using a metal aperture and magnetic lenses [79]. Many authors reported well-defined FESEM images for the physical characterization of biological and biomaterial samples. Rastogi et al. [80] studied the antibacterial effectiveness of Ag-Sio₂ NPs by testing it against general Escherichia coli and E. coli O157:H7 by measuring the growth through morphological viewing by FESEM. Yan et al. [81] reported the efficacy of FESEM for the evaluation of surface properties of docetaxel-loaded NPs that were prepared using oil-in-water emulsion and solvent evaporation system technique with polylactic-co-glycolic acid (PLGA) with or without the addition of poloxamer 188 (Figure 5). Zinc selenide (ZnSe) hollow nanospheres and mesoporous zinc-blende ZnSe NPs were studied for their morphology and surface by FESEM [82], [83]. Despite advanced image quality, the use of FESEM is limited as it is more expensive than SEM, and maintaining a vacuum environment is sometimes challenging and sometimes the scope of the study for biomaterial and biological samples is met by SEM only.

Figure 5:

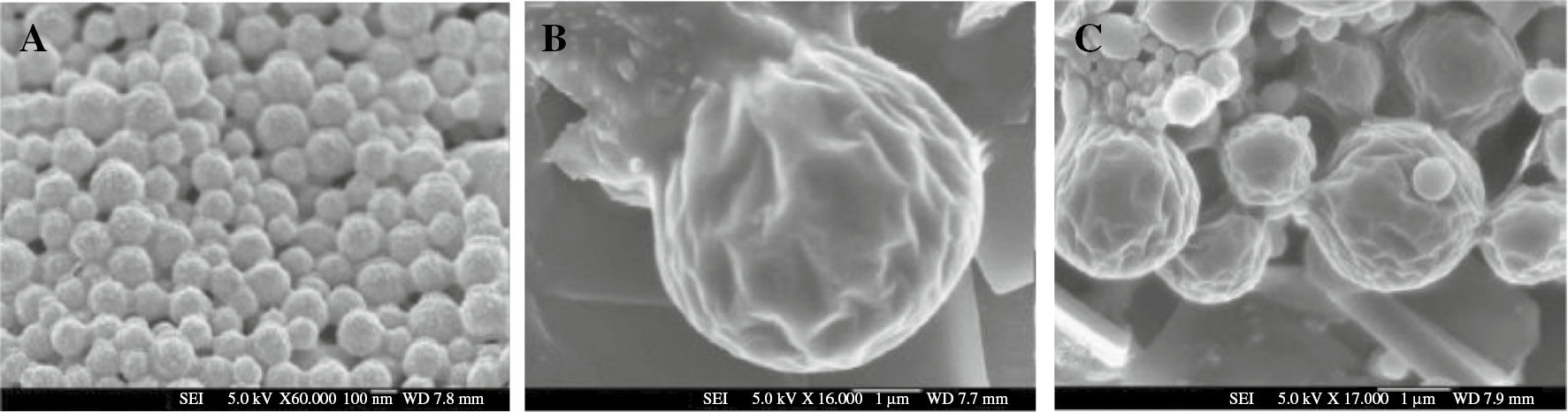

FESEM images of (A, B) docetaxel-loaded PLGA/poloxamer 188 NPs; (C) empty PLGA/poloxamer 188 NPs. Scale bar denotes 100 nm (A) and 1 μm (B and C). Reprinted from Haiss et al. [57].

2.3.4 Transmission electron microscopy (TEM)

The fundamental concept of TEM was originated in early 19th century; however, Knoll and Ruska [84] were the first researchers to use the term electron microscope. After 4 years, the first TEM was developed by Metropolitan Vickers EMI for its commercial use. With time, TEM was further modified by Heidenreich [85] in 1949 for material analysis. With a similar working principle such as SEM, TEM has an electric gun with thermoionic emission through tungsten or lanthanum hexaboride (LaB6). It projects the electron through a very thin slice of samples to produce a two-dimensional (2-D) image on a phosphorescent screen. Electrons transmitted through the sample are directly proportional to the brightness of the sample [86]. The conventional TEM uses a range of 60–100 keV for scanning, which makes the instrument more suitable for biological samples. However, in case of high-voltage electron microscope (HVEM) and high-resolution transmission electron microscope (HRTEM), around 200 keV–3 MeV are used for their operation [87]. The sample may be degraded by the strong interaction of electrons from the instrument together with the sample atoms by elastic and inelastic scattering. Thus, to avoid this condition and to get a very clear image with detailed information, the specimens must be very thin, typically in a range of 10–500 nm depending on the sample and resolution required. Elastic scattering, originating from the coulomb force, is responsible for the clarity in the TEM. The samples must be dry and capable of scattering electron in a vacuum to record the image, which give TEM a disadvantage as all the samples cannot be dried easily. Negative staining process is used in the majority of the sample preparation in TEM, be it biological samples such as viruses to bacteria, or biomaterials or NPs of lipid, gold, polymer, etc. [88]. The sample preparation for TEM can be done by directly putting the sample onto the grid or by spraying the sample onto the grid (usually copper) and then staining. The negative staining solutions (usually concentration of 1%–2%) used are phosphotungstic acid, uranyl acetate staining solution, or ammonium molybdate solution [89]. The purpose of negative staining is to get an opaque background, which makes the particles translucent and can be viewed easily. Sometimes, negative stains are prepared with small concentration of carbohydrate (glucose) to protect the samples that are sensitive to air drying [90]. With the introduction of scanning transmission electron microscopy (STEM), a change in image quality in the form of 3-D image was capable for the advanced characterization of NPs [91]. It can perform elemental analysis and microdiffraction at extremely small areas, which allows internal structures together with elemental mapping/distribution in the NPs [92], [93]. Electron energy loss spectroscopy [94], energy-dispersive X-ray analysis [95], and high-angle annular dark field imaging (also called Z-contrast imaging) [96] of STEM are exploited for this elemental analysis. These three modes of STEM result in high-resolution 2-D images with structural information together with the chemical composition of the specimen that are useful for the complete characterization of the NPs [97].

Many authors investigated the structural features of biomaterials and biological samples with TEM. Goldsbury et al. [98] reported the determination of amyloid structure and its assembly by STEM. Sadauskas et al. [99] studied elimination of gold NPs from mouse liver by TEM. Histochemically, gold NPs were viewed in the liver, using autometallographic staining, whereby the accumulation of NP inside the vesicular lysosome/endosome-like structures of the macrophages was viewed by TEM [100]. Liposomes, transfersomes, and ethosomes were also viewed by many authors using negative staining for the analysis of their sizes [67], [101]. With time and need of application, the introduction of cryotransmission electron microscopy was introduced to study the layer and the composition of the materials in NPs (Figure 6) [7]. A 3-D reconstruction of gold-embedded ethosomes with a size range of 10–20 nm generated by cryoelectron tomography revealed that the gold particle is localized inside the lipid bilayer [101].

Figure 6:

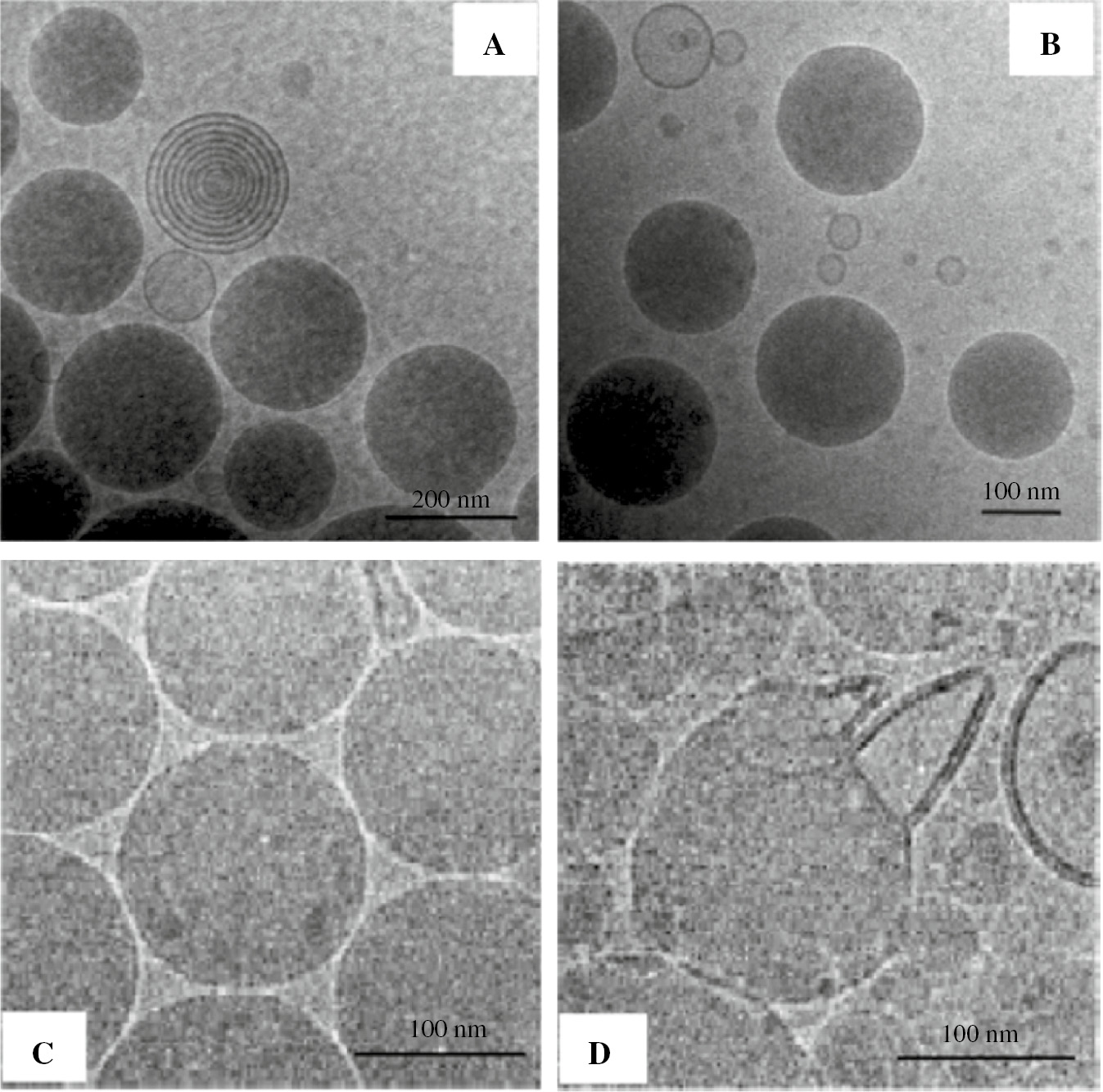

Images of colloidal fat emulsions obtained by cryo-TEM: (A) Lipofundin^® 20% N, (B) Lipofundin^® MCT 20%, (C and D) triglyceride emulsions stabilized with egg yolk lecithin alone (C) and with the admixture of stearylamine for surface modification (D). Reprinted from Kuntsche et al. [7].

2.3.5 Confocal laser scanning microscopy (CLSM)

Confocal microscopy principle was first explained by Minsky [102] in 1961. The design of confocal microscope is made to obtain an image of a slice of a specimen without interfering with the out-of-focus adjacent planes [102]. It gives a sharper image than conventional optical microscope. The property of optical sectioning or depth discrimination makes it different from conventional microscopy, as it allows focusing on a particular focal point. The image formation in a confocal optical system is composed of two lens systems: objective lens, which views onto the image plane, and collector lens. In the confocal system, the collector lens is used as an imaging lens rather than a collector lens, by using a point detector with a very small area (Figure 7) [103]. As a whole, the imaging and detection systems are on the same focal plane, that is why this setup is known as “confocal”. Confocal microscopy provides a modest increase in optical resolution in both lateral (focal plane, x-y axes) and axial (depth plane, z-axis) aspects. The advanced version of this microscope is ideal for further processing into a 3-D representation of the specimen using volume visualization techniques [104]. In the sample preparation, usually a fluorescence dye, such as coumarin 6, rhodamine 123, fluorescein 5-isothiocyanate (FITC), etc. is used to mark the formulations or biological samples to have a clear and differential view. Until now, CLSM has been a very useful technique for the characterization of biological and biomaterial specimens with high-resolution images. Its capacity to generate optical images at various depths of the skin layer in a noninvasive manner without any mechanical sectioning of the sample has established its significant technical advance [105].

Figure 7:

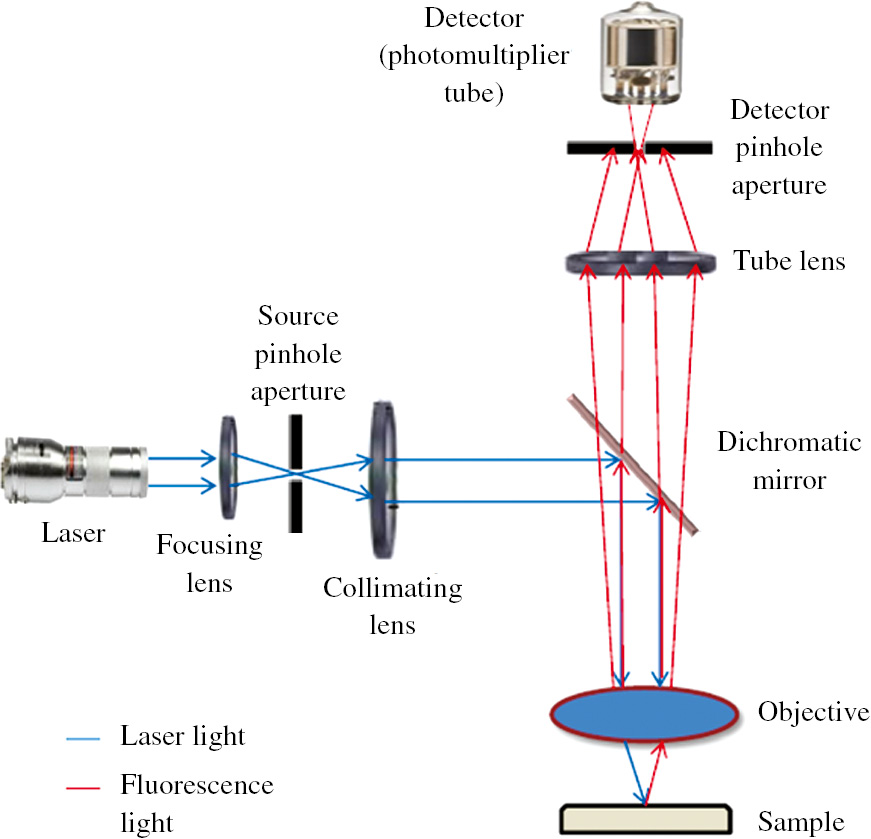

Schematic diagram of a confocal laser microscopy.

There are many reports of potential application of CLSM for nanoparticular drug delivery. Alvarez-Román et al. [106] have studied FITC-loaded polymeric NP penetration and distribution in the skin layer by CLSM (Figure 8). Verma et al. [107] used CLSM to study the deposition of carboxyfluorescein dye across various layers of human abdominal skin from a series of liposomes with particle size of 120–810 nm. The group concluded that the skin deposition of the liposomes was inversely proportional to their size. Ethosomes are the NPs made by phospholipid and with appropriate concentration of ethanol. Zhang et al. [108] investigated the ability of ethosomes to deliver 5-fluorouracil in human hypertrophic scar of the skin by CLSM. The drug delivery properties of liposomes and transfersomes vesicles in the animal and human skins were studied by CLSM [109], [110]. Portis et al. [111] used confocal microscopy to investigate the delivery of siRNA with polymeric NPs. There are numerous other studies conducted by CLSM for cell uptake, NP transdermal penetration pathway, and structural elucidation of the skin after the treatment by the formulation [112], [113].

Figure 8:

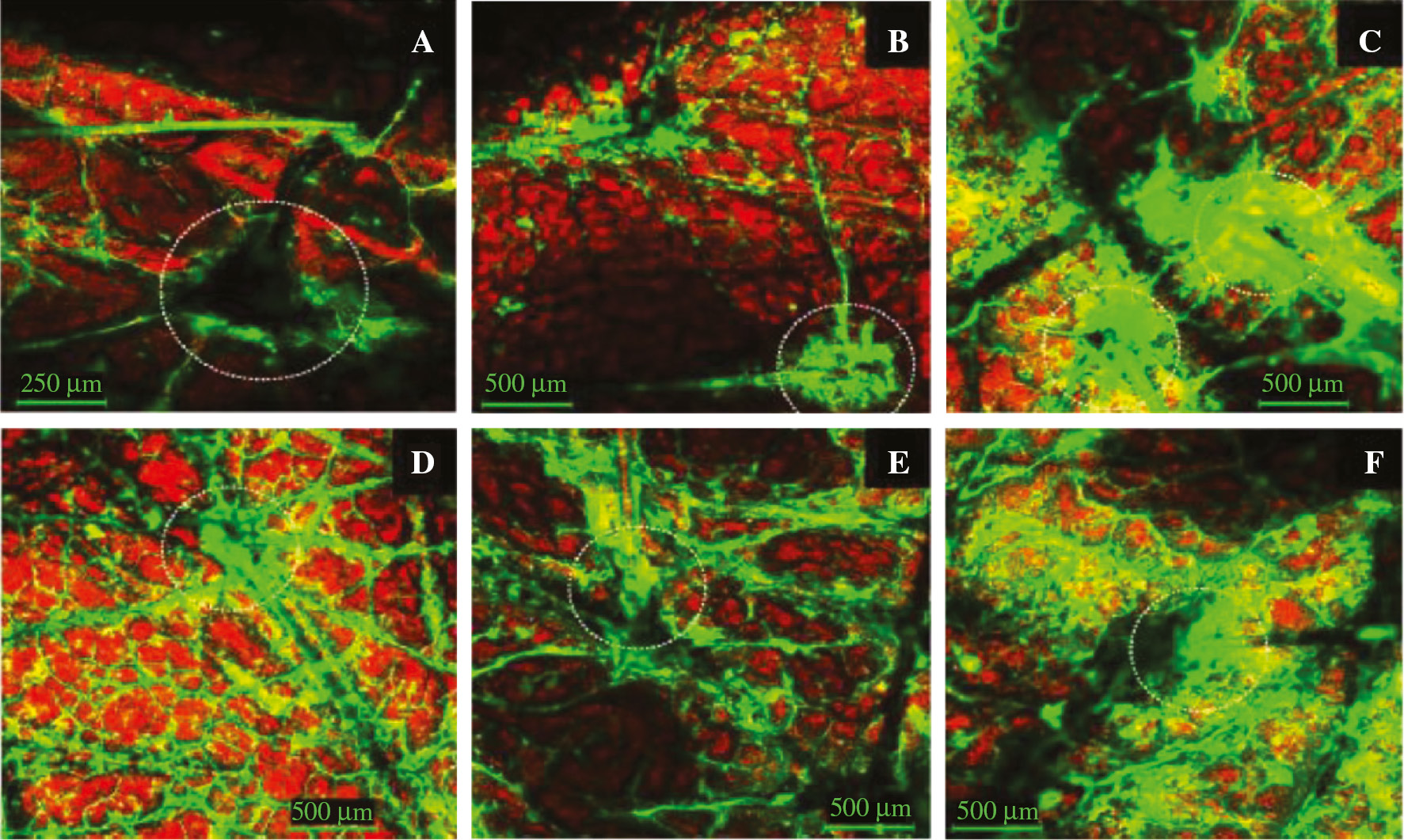

x-y images showing follicular localization of fluorescent NPs after application of F-NP (20 nm) for (A) 30 min, (B) 1 h, and (C) 2 h and of F-NP (200 nm) for (D) 30 min, (E) 1 h, and (F) 2 h. The white circles correspond to hair follicles. Note that, in panels A, B, and C, the levels of green fluorescence are concentrated in the follicular regions, and in panels D, E, and F, time-dependent NP accumulation in hair follicles is observed. Reprinted from Rossi et al. [77].

2.3.6 Atomic force microscopy (AFM)

Scanning probe microscopy was developed in 1982 by Binnig and Rohrer [114] in the form of scanning tunneling microscope (STM). Later, AFM was developed on the same principle of STM. AFM can be used for both conducting and nonconducting materials and to present a 3-D and topographical image of the specimen viewed by it [115]. The formation of image by AFM is based on the measurement of ultra small forces on the particles, as small as single atoms, of the sample. Scanning the surface of the specimen is conducted by a metal tip attached to a cantilever at constant tunneling current where the displacement of the tip is controlled by the voltage applied to the piezo drives. As the tip approaches to the surface, magnetic and electrostatic forces as well as interatomic forces between the surfaces of the sample kept on the substrate and the tip cause the cantilever to deflect according to the Hooks law. While maintaining the force constant between the tip and the substrate, the deflection of the cantilever in the form of a laser beam is recorded by a photodiode detector [115]. A topographic picture is then obtained for the sample based on the deflection of the cantilever according to the raised or lowered features of the surface of the sample [115]. The high resolution of the image is based on the strong tunnel current between the two tunnel electrodes, i.e. the tip and scanned surface. Figure 9 depicts a simple flow diagram of AFM apparatus.

Figure 9:

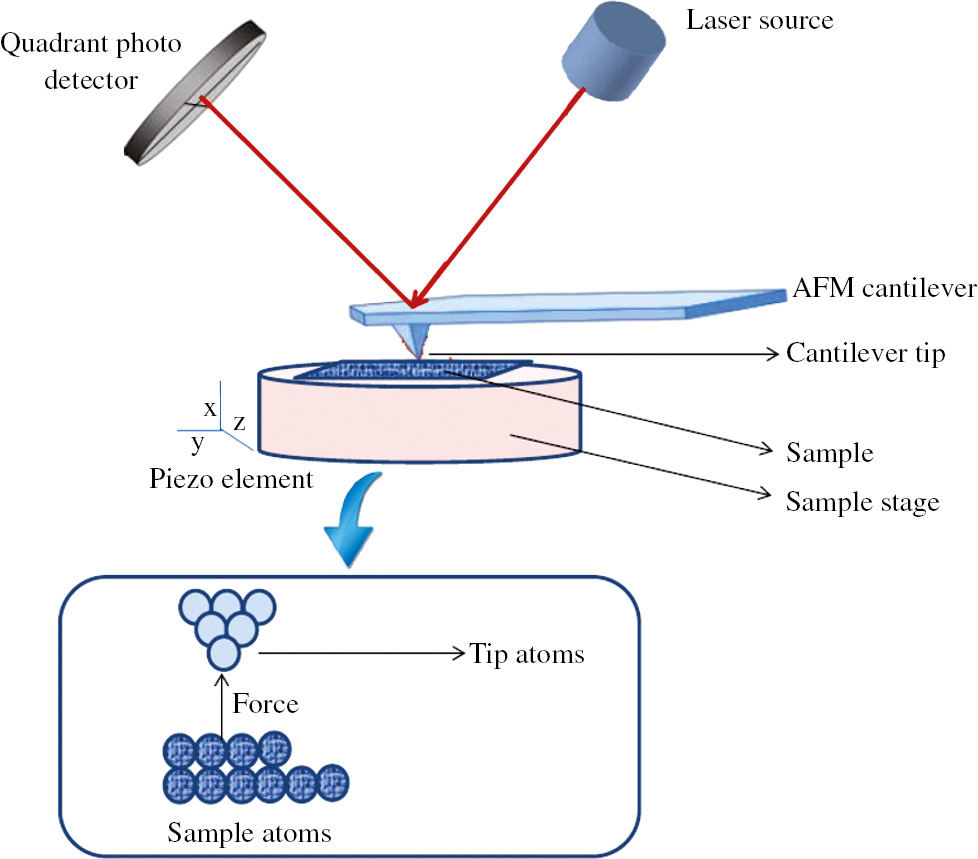

Representative assembly of an AFM apparatus.

With time, many other advanced techniques such as frictional force mapping, scanning voltage microscopy, surface force apparatus, photoconductive AFM, AFM-infrared spectroscopy, and AFM-Raman spectroscopy have come up [116], [117]. Extensive works such as physical stability, particle size, and compatibility of nanocomplexes with different compounds have been reported with this AFM study. Different kinds of substrates (e.g. mica, silicon wafer, gold, and platinum cover slides) and mode of operations depending on the nature of their particles have been reported in the literature [118], [119].

Theodoropoulos et al. [120] reported the use of the AFM to measure the shapes and sizes of different complexes of liposomes with carborane-free phosphatidylcholine (PC), carborane-free DMPC (1, 2-dimyristoyl-sn-glycero-3-phosphocholine), carborane-loaded PC, and carborane-loaded DMPC. Müller and Dufrene [121] reviewed the versatile application of AFM in nanobiotechnology, including detection of bioanalytes in picomolar range and use in medical diagnosis and environmental monitoring. Sitterberg et al. [118] investigated different liposomes polyplexes and other nanocomplexs with the AFM to evaluate their role in drug delivery, gene transfection, and stability. The visualization and the characterization of nucleic acids and its derivatives such as DNA, siRNA, ribozyme, and other biomolecules were extensively studied to reveal the structural changes of nanocomplexes [122], [123]. Wan et al. [124] successfully studied DNA release dynamics from a reducible polyplexes composed of nuclear localization signal (NLS⁶⁺) peptide by AFM (Figure 10).

Figure 10:

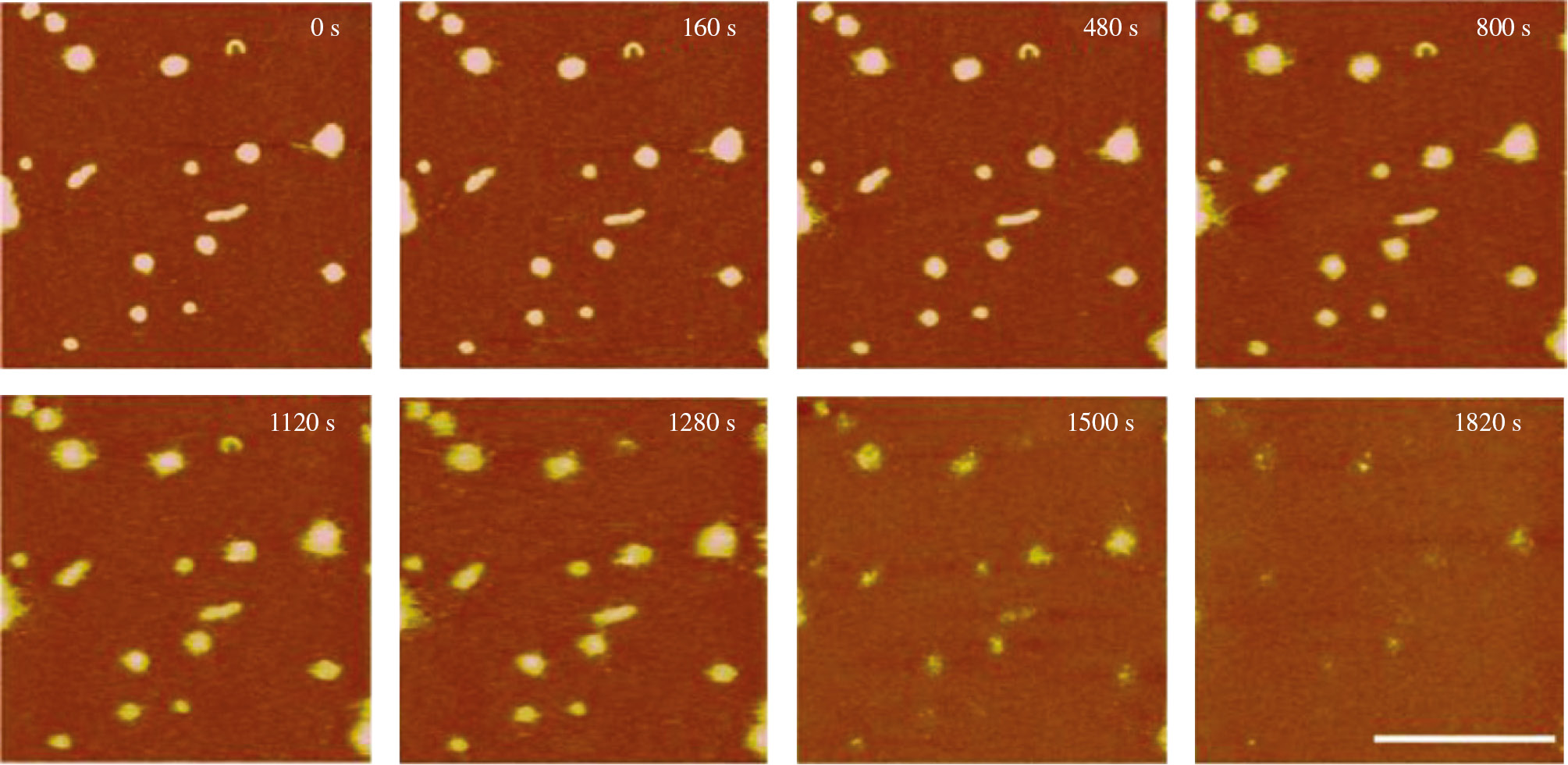

In situ AFM sequence of DNA release from nuclear localization signal peptide (NLS⁶⁺)/DNA polyplexes (N/P=4) in 20 mM dithiothreitol (DTT) and 0.4 M NaCl solution (no Mg2+ was added). Time zero corresponds to the addition of DTT. The z range is 10 nm. Scan size is 2.6×2.6 μm². Reprinted from Allen et al. [93].
