Abstract

Size- and shape-dependent unique properties of the metal halide perovskite nanocrystals make them promising building blocks for constructing various electronic and optoelectronic devices. These unique properties together with their easy colloidal synthesis render them efficient nanoscale functional components for multiple applications ranging from light emission devices to energy conversion and storage devices. Recently, two-dimensional (2D) metal halide perovskites in the form of nanosheets (NSs) or nanoplatelets (NPls) are being intensively studied due to their promising 2D geometry which is more compatible with the conventional electronic and optoelectronic device structures where film-like components are usually employed. In particular, 2D perovskites exhibit unique thickness-dependent properties due to the strong quantum confinement effect, while enabling the bandgap tuning in a wide spectral range. In this review the synthesis procedures of 2D perovskite nanostructures will be summarized, while the application-related properties together with the corresponding applications will be extensively discussed. In addition, perovskite nanocrystals/2D material heterostructures will be reviewed in detail. Finally, the wide application range of the 2D perovskite-based structures developed to date, including pure perovskites and their heterostructures, will be presented while the improved synergetic properties of the multifunctional materials will be discussed in a comprehensive way.

Keywords: 2D materials; energy conversion; energy storage; perovskite nanocrystals; photodetectors; sensing; synthesis routes

1 Introduction

Perovskites were first found in the Ural Mountains and named after Lev Perovski, who was the founder of the Russian Geographical Society. Perovskite materials family has similar crystal structure with CaTiO₃ mineral and chemical formula ABX₃. In their structure, the cation “A” occupies the corner positions of the unit cell and the cation “B” is located at the center of the cell, while the anion “X” is at the unit cell faces (Figure 1(a)) [1–3]. This family comprises oxides and metal halide perovskite compounds. Colloidal metal halide nanocrystals have gained intense attention from 2014 where the first synthesis of nanometer sized organolead halide CH₃NH₃PbBr₃ perovskites was reported [4], due to their unique optoelectronic properties/features such as defect tolerance (for bromide and iodine-based structures), their extremely high Photolumiscence Quantum Yields (PLQYs) and photoluminescence near to unity, their capability to emit in the whole visible wavelength range by tuning their halide ratio and their thickness [5–10].

Figure 1:

Schematic illustration of the crystal structure of the metal halide perovskites with chemical formula ABX₃ and the formation of the 2D platelets-like morphologies composed of one and six monolayers (a–c). PL spectra and band gap energy for the modification of the bulk structures, to weakly confined nanocubes to strongly confined 2D nanoplatelets/nanosheets (d and e). Adapted with permission from Ref. [1]. Copyright 2021, Wiley.

Two-dimensional (2D) metal halide perovskites in the form of nanosheets (NSs) or nanoplatelets (NPls) are being intensively studied due to their promising 2D geometry which is more compatible with the conventional electronic and optoelectronic device structures where film-like components are usually employed but also due to strong confinement effects by tuning the thickness of the structures (Figure 1) [1]. The 2D morphology is an ideal architecture from fundamental point of view to investigate quantum confinement effects but also to study the 2D-lateral growth and how these affect to the final properties of the final structures. In particular, 2D perovskites exhibit unique thickness-dependent properties due to the strong quantum confinement effect, while enabling the bandgap tuning in a wide spectral range (Figure 1) [1, 8, 11, 12]. Strong confinement effects were appeared when the size/thickness of the one dimension of the nanocrystals is below the Bohr diameter which is 7 nm for the cubic structure of the CsPbBr₃ for example. The strong 2D confinement of the carriers at such small vertical sizes is responsible for a narrow PL, strong excitonic absorption, and a blue shift of the optical band gap by more than 0.47 eV compared to that of bulk counterparts (case of CsPbBr₃) [12]. While the magnitude of the band gap is clearly dependent on the extent of 2D confinement, the excitonic dynamics in lead halide perovskites is virtually independent of it (it was essentially the same in both NPls and bulk samples) and is instead sensitive only to the presence of trap states [12].

Various synthesis methods have been introduced for the synthesis of 2D metal halide perovskite nanostructures such as wet chemistry approaches [1], vapor phase deposition [13], mechanical exfoliation [14] and solvent evaporation method [15]. But over the years, the ligand-assisted colloidal methods, the hot injection method and room-temperature reprecipitation, have been adopted and developed the most. In addition, 2D materials in the form of NPls and NSs can be formed by the exfoliation of bulker materials of the same chemical phase to thinner structures in colloidal solution using ligands as spacer [16] but also exfoliation can be taken place upon irradiation with a femtosecond (fs) laser or using an ultrasonication-tip device [17, 18]. Specifically, the synthesis protocols for the fabrication of the metal halide perovskites NPls and NSs can be classified into six categories: (i) ligand-assisted hot injection and precipitation [11, 12, 19], [20], [21], [22], [23], [24], [25], [26], [27], [28], (ii) spontaneous crystallization in nonpolar organic media [29], (iii) cation-mediated colloidal method [30], (iv) solvothermal method [31], (v) ligand- and laser-assisted exfoliation [16, 17] and (vi) external stimuli-triggered process [9, 18].

The unique morphologies which combined the excellent optoelectronic properties of the perovskite nanomaterials with large lateral dimensions make them ideal building blocks for optoelectronic devices such as photodetectors and LEDs. Rigid or flexible photodetectors with high on/off ratios and fast response times have been reported and also a thickness dependent photoresponse was also revealed [32, 33]. The external quantum efficiency (EQE) of the most sufficient green NPls-based LEDs has been enhanced drastically from 0.48% in 2016 to up to 23.6% in 2020 discovering at the same time the factors affecting the LEDs performance [1]. Identification of the dominant type of surface traps and passivation with appropriate ligands, charge injection and charge balance by improving the quality of the perovskite film and maximizing the light outcoupling efficiency were among these factors and how these were improved [1]. Moreover, NPls/NSs were led in a remarkable improvement of the power conversion efficiency (PCE) and stability of perovskite solar cells, when compared to the corresponding devices with typical films fabricated by conventional spin-coating methods [34]. Also, the 2D structures except of the enhanced photocatalytic activity due to their large proportion of low-coordinated metal atoms together with the short carrier diffusion distance revealed a higher stability upon irradiation time compared to the small nanocrystals of the same chemical phase [35]. In their application as photocatalysts for the reduction of the CO₂, it was found that the generation rate of the CO was thickness and stoichiometry dependent [36]. In addition, the strong conductivity together with the fast and reproducible the PL response of these structures in the presence of moisture or gas have been used for the fabrication of sensors with high responsiveness [37, 38].

Despite great progress in the synthesis protocols for metal halide perovskite 2D morphologies, it is still challenging to achieve monodisperse NPls with a single PL peak, while being stable in their colloidal solutions. Furthermore, the cleaning and purification processes after the synthesis is non-trivial, and the washing techniques used till now, many times affect the stability and the PL of the 2D nanocrystals [11]. This sensitivity of the NPls/NSs affects also the performance of the devices using these materials. Challenges still remain in further improve the device performance taking into account stability issues of the 2D materials. In this direction, metal halide perovskite nanocrystals/2D material heterostructures have been proposed that combine the properties of the perovskite nanomaterials with their unique properties of the 2D materials and the large lateral dimensions. The large number of different perovskite nanocrystals together with the plethora of 2D materials (graphene-based materials, hexagonal boron nitride or transition metal dichalcogenides) can result to heterostructures with designed functionalities [39]. Additionally, new physics and synergetic effects can emerge from the coupling between the two different materials and new or improved functionalities have been arisen due to the interfacial phenomena.

Metal halide perovskite of lead-based or lead-free different compositions such as CsPbX₃ [40–54], CsPbBr_3−x I_x [40, 55], [56], [57], Cs₄PbBr₆ [58], CH₃NH₃PbX₃ [57, 59], [60], [61], [62], Cs₂AgBiBr₆ [63] and morphologies have been conjugated on 2D materials such as sheets of graphene-based materials [40], [41], [42], [43, 48, 51, 58, 60], [61], [62], [63], transition metal dichalcogenides [52, 53, 55], [56], [57, 64], graphitic carbon nitride [44, 47, 59], hexagonal boron nitride [50], and black phosphorous [45, 46]. These heterostructures have been fabricated by: (i) spin coating or drop-casting of the as-synthesized perovskite nanocrystals on the film of the 2D materials with a well-defined contact [43, 53, 56], (ii) in situ growth of the nanocrystals on the 2D materials, when the later are presented through the nanocrystals’ synthesis [41, 42, 49, 50, 59, 62], (iii) simply mixing of the two materials and chemical or non-covalent interactions [44, 46, 47, 52, 64], (iv) irradiation with laser [58] and (v) solid state reactions [54].

Such heterostructures have effectively used as photocatalysts for CO₂ [41, 44, 47, 62, 65, 66] or for hydrogen splitting [57, 60, 63, 67, 68] due their increased number of catalytic sites together with the sufficient charge separation compared with the perovskite nanocrystals and 2D materials independently. Moreover, the synergetic effects in these heterostructures were the reason behind the enhanced sensing capability using these materials as sensing elements. The presence of the perovskite nanocrystals found that enhanced the reactivity of the 2D materials that usually performed a poor sensing performance. The 2D materials play mainly the role of the efficient charge conductor, ensuring that the charges generated upon the interaction between gas molecules and perovskite nanocrystals reach the device electrodes [69]. They used for the detection of toxic gases such as ammonia (NH₃) and nitrogen dioxide (NO₂) [61] or volatile organic compounds (VOCs) [69] without requiring high working temperature or UV irradiation to activate the sensing process. Furthermore, the superior optical features of the metal halide perovskite nanocrystals together with the carrier mobility of the 2D materials provide the ideal combination for using these materials in photodetectors [70]. Metal halide nano-islands grown on graphene film showed the extremely high responsivity 6.0 × 10⁵ A W⁻¹ and a photoconductive gain of ≈10⁹ electrons per photon because of effective photogating effect applied on graphene along with increased lifetime of trapped photocarriers in separate perovskite islands [70]. In addition, the humidity and thermal stability of the perovskite nanocrystals have been enhanced with their conjugation with the 2D materials displaying better performance and higher color purity compared to the single perovskite nanocrystals in LEDs [49, 50]. Finally, the instability originating from the thermal/moisture-induced perovskite nanocrystal agglomeration in nanocrystal films in the photovoltaics found that also greatly suppressed by the 2D crosslinking [71]. The films of the perovskite nanocrystals/2D materials heterostructures provides not only an effective channel for carrier transport, as witnessed by much improved conductivity but also significantly better stability against moisture, humidity, and high temperature stresses.

This review paper is organized in different sections, which will present the metal halide perovskite 2D NSs/NPls morphologies and the metal halide nanocrystals/2D materials heterostructures and their applications (Figure 2). Firstly, the synthesis protocols and the unique features/properties of organic–inorganic and all-inorganic metal halide NSs and NPls will be presented and discussed. The synthesis of the metal halide nanocrystals/2D materials heterostructures will describe as well and how the properties of the 2D materials were affected by the presence of the perovskite nanocrystals on them due to synergetic effects emerged from the coupling between the two different materials. Throughout the paper, focus will be given on the unique properties of the 2D perovskites and the synergistic effects of the perovskite nanocrystals/2D materials heterostructures, when possible, which endow new or improved functionalities and improved performance in applications. Each application of the two 2D single-phase or heterostructures materials will be analyzed. The application of these materials in photovoltaics and photocatalysis will be analyzed followed by the demonstration of application in photodetectors and LEDs. The use of these materials for gas and humidity sensors will finally be explained, before providing their future perspectives.

Figure 2:

Review content in one scheme. 2D metal halide perovskites, metal halide nanocrystals/2D material heterostructures, enhanced properties, and applications.

2 Synthesis of the 2D metal halide perovskites

2.1 Organic-inorganic metal halide perovskite NPls/NSs

In this Section, we will consider an overview of the available colloidal routes for the synthesis of organic–inorganic 2D perovskite nanocrystals (PNCs), while summarizing the key features and properties of the so-formed materials towards potential applications. In general, the key parameters for synthesis optimization and properties control of 2D PNCs are the reaction temperature, the precursors concentration, the ligands ratio, the acid–base features of ligands, and the chain length of the ligands [1, 10, 28, 72]. Over the years, two main colloidal synthesis methods have been adopted and developed the most, namely the hot injection (HI), and the ligand-assisted reprecipitation (LARP) [1, 72]. Notably, the former requires high temperatures and inert atmosphere, and thus, it is not convenient for large scale fabrication. Alternatively, the LARP approach offers a more cost-effective solution as it can provide high quality PNCs at room temperature under ambient air. In fact, the vast majority of organic–inorganic PNCs are synthesized by means of LARP (Table 1). Herein, we will present examples of HI synthesis first, followed by the evolution of the LARP routes over the years. Finally, a brief summary of the alternative synthesis strategies will be provided.

Table 1:

Summary of two-dimensional (2D) organic–inorganic perovskite nanocrystals (PNCs) synthesis routes. *NR stands for not reported.

Study-year	Composition	Key features	Photoluminescence (PL) range
Hot injection (HI) synthesis
Vybornyi et al. [23]	CH₃NH₃PbX₃	Nonpolar solvent, various shapes	460–750 nm
		of PNCs (nanocubes, nanowires,
		and NPls)
Protesescu et al. [24]	FA_0.1Cs_0.9PbI₃	PbX₂ + FA-oleate, FA-oleate + Pb-oleate,	690–780 nm
		NSs
Imran et al. [73]	APbX₃, A = MA⁺ and FA⁺,	Benzoyl halide precursor,	404–764 nm
	X = Cl⁻, Br⁻, I⁻	PNCs
Ligand-assisted reprecipitation (LARP)
Sichert et al. [8]	MAPbBr₃	Organic cation ratio, NPls	427–508 nm
Yuan et al. [74]	MAPbBr₃	Ligand length, precursors ration, NPls	403–530 nm
Weidman et al. [75]	MAPbBr₃	Cation, metal, halide ratio, NPls	398–437 nm
Cho et al. [76]	MAPbBr₃	Ligand-mediated thickness modulation, NPls	433–506 nm
Bhaumik et al. [77]	MAPbBr₃	Ligand-precursors ratio, NPls	440–490 nm
Kumar et al. [78]	MAPbBr₃	Ligands ratio, NPls	436–489 nm
Levchuk et al. [79]	MAPbBr₃	Ligand-assisted tailoring, NPls	450–730 nm
Ahmed et al. [25]	MAPbBr₃	Pyridine-temperature effect, NPls	445–508 nm
Weidman et al. [75]	MAPbI₃	Cation, metal, halide ratio, NPls	512–573 nm
Levchuk et al. [79]	MAPbI₃	Ligand-assisted tailoring, NPls	549–722 nm
Stoumpos et al. [80]	MAPbI₃	Precursors ration, NPls	527–652 nm
Blancon et al. [81]	MAPbI₃	Precursors ratio, NPls	516–677 nm
Dahlman et al. [82]	MAPbI₃	Ligands composition and ratio, NPls	510–650 nm
Hautzinger et al. [83]	MAPbI₃	NR	579 nm
Levchuk et al. [26]	FAPbBr₃	Ligands ratio, NPls	438–530 nm
Minh et al. [84]	FAPbBr₃	Ligands ratio, NPls	438–533 nm
Yu et al. [85]	FAPbBr₃	Ion-exchange mediated self-assembly, NPls	398–490 nm
Fang et al. [86]	FAPbBr₃	Ligands ratio, NPls	440–532 nm
Peng et al. [87]	FAPbBr₃	NR, NPLs	440 nm
Weidman et al. [75]	FAPbI₃	Cation, metal, halide ratio, NPls	512–575 nm
Levchuk et al. [26]	FAPbI₃	Ligands ratio, NPls	668–737 nm
Hautzinger et al. [83]	FAPbI₃	NR	582 nm
Alternative synthesis routes
Hintermayr et al. [9]	MAPbX₃ (X = Cl⁻, Br⁻, I⁻)	Two-step method, dry-grounding, sonication,	400–750 nm
		Polydisperse PNCs
Lignos et al. [27]	FAPb(Cl_1−xBr_x)₃	Microfluidic platform, NPls	440–520 nm

An HI synthesis method without the use of polar solvents for the development of organic–inorganic PNCs was introduced by Vybornyi et al. in 2016 [23]. Namely, the reaction between methylamine cation and PbX₂ salts was conducted in 1-octadecene, i.e. a nonpolar solvent, in the presence of oleylamine and oleic acid as coordinating ligands. The so-formed CH₃NH₃PbX₃ PNCs exhibited PL quantum efficiencies of 15–50% and good phase purity; however multiple types of shapes were obtained including nanocubes, nanowires, and NPls [23]. Another example of organic–inorganic PNCs synthesis by means of HI was reported by Protesescu et al. a year later [24]. In particular, the authors developed highly luminescent formamidinium-based FA_0.1Cs_0.9PbI₃ and FAPbI₃ PNCs, exhibiting stable red (680 nm) and near-IR (780 nm) emissions, respectively. For the development of phase pure perovskite NSs, the same outcome is achieved upon following two synthesis methods. In the first, a two-precursor approach was followed where lead halide was set to react with FA-oleate. The formation of FAPbI₃ NSs was successful at injection temperatures below 50 °C, with the size of the so-formed NSs ranging from 0.2 to 0.5 µm [24]. In the second, a three-precursor approach was adopted where a solution mixture of FA-oleate and Pb-oleate was formed upon reaction with FA-acetate. Figure 3(a) depicts the photoluminescence (PL) and absorbance spectra of the of the FAPbI₃ NSs, along with indicative transmission electron microscopy (TEM) images [24]. Imran et al. advanced further the HI route by means of employing benzoyl halides as the perovskite halide precursor [73]. The great advantage of this approach is the ability to feasibly regulate the composition of the final PNCs, on the contrary to HI routes where PbX₂ salts are employed as both lead and halide precursors. Both MAPbX₃ and FAPbX₃ PNCs with good size distribution control and phase purity were synthesized. Figure 3(b) shows a schematic animation of the HI colloidal synthesis, whereas Figure 3(c)–(e) depicts indicative TEM photos of the so-formed MAPbCl₃, MAPbBr₃, and MAPbI₃ PNCs [73]. Similar TEM profiles were captured for the FAPbX₃ compounds (not shown here). Moreover, Figure 3(f)–(h) presents the corresponding PL and optical absorbance spectra. Inspections of the latter figures reveals sharp PL features at 404 nm, 527 nm, and 730 nm, for the Cl, Br, and I PNCs, respectively, while the obtained quantum yields were determined equal to 5%, 92%, and 45% [73].

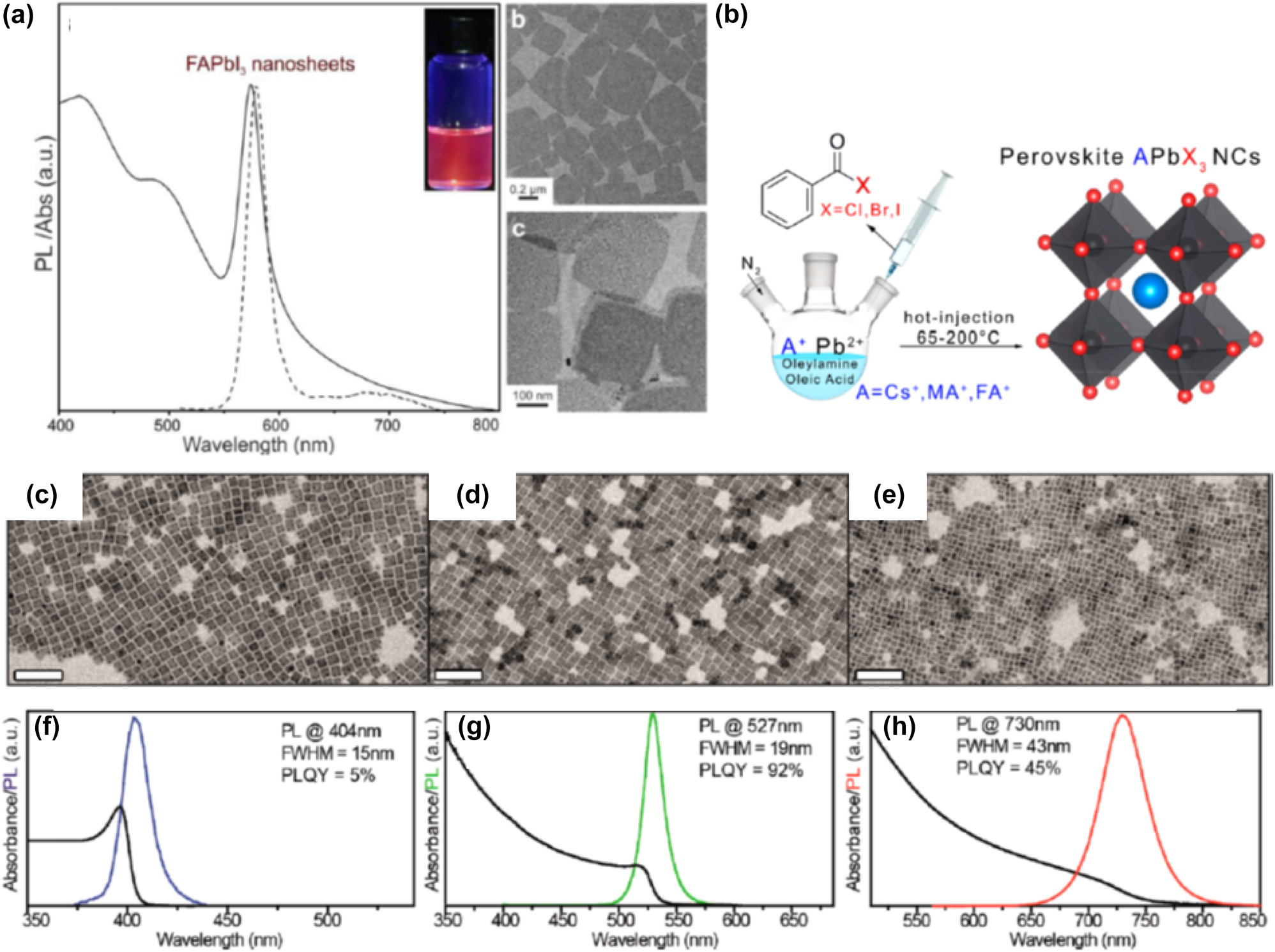

Figure 3:

Photoluminescence (PL) and absorbance spectra of the FAPbI₃ NSs, along with indicative transmission electron microscopy (TEM) images (a). ((a) has been reproduced from Ref. [24] with permission from American Chemical Society, copyright 2017). Schematic animation of the HI colloidal synthesis with benzoyl halides (b). Transmission electron microscopy (TEM) photos of the so-formed MAPbCl₃ (c), MAPbBr₃ (d), and MAPbI₃ PNCs (e). Absorbance and photoluminescence (PL) spectra of MAPbCl₃ (f), MAPbBr₃ (g), and MAPbI₃ PNCs (h). ((b)–(h) have been reproduced from Ref. [73] with permission from American Chemical Society, copyright 2018).

We move on now to present the progress of LARP method for the synthesis of organic-inorganic PNCs. In this widely used approach, the perovskite precursors are dissolved in a good polar solvent such as N,N-dimethylformamide (DFM) or dimethylsulfoxide (DMSO), and a poor nonpolar solvent such as toluene or hexane, is added in the presence of ligands to induce the formation of PNCs by means of supersaturation. Figure 4(a) depicts the method schematically [28]. Typically, for organic–inorganic perovskites this approach produces nanoplatelets (NPls), in which the thickness is controlled by varying the ratio between long-chain and short-chain alkylammonium ligands [1, 28]. Alternatively, in some LARP cases the addition of acetone (polar aprotic solvent) to a nonpolar solvent containing the precursors and ligands induces also the growth of NPls at room temperature.

Figure 4:

Schematic representation of the ligand-assisted reprecipitation (LARP) method (a). ((a) has been reproduced from Ref. [28] with permission from American Chemical Society, copyright 2019). Transformation of three-dimensional (3D) cubes into 2D nanostructures in the presence of pyridine (b). ((b) has been reproduced from Ref. [25] with permission from American Chemical Society, copyright 2017). Photograph of typical dispersion solutions of the so-formed FAPbX₃ PNCs under UV-light, along with the photoluminescence (PL) spectra that cover a wide range of the visible (c). On the right, energy bandgap variation versus thickness and typical transmission electron microscopy (TEM) photos of the PNCs. ((c) has been reproduced from Ref. [26] with permission from American Chemical Society, copyright 2017). Absorbance and PL of FAPb(Cl_1−xBr_x)₃ PNCs prepared by means of an automated microfluidic platform (d). ((d) has been reproduced from Ref. [27] with permission from American Chemical Society, copyright 2018).

Let us first consider various synthesis cases of MAPbBr₃-based PNCs over the years by means of LARP route. Sichert et al. in 2015 demonstrated the synthesis of MAPbBr₃ NPls by means of LARP [8]. Namely, by altering the ratio of the employed organic cations the thickness of the so-formed NPls was controlled. As a result, NPls with tunable emission ranging from blue to green were fabricated (Table 1). A year later, Yuan et al. synthesized MAPbBr₃ NPls with quasi-2D layered structures [74]. Different ligand lengths and precursors ratios were employed in order to plausibly alter the number of layers, and consequently, the optical properties of the NPls. PL emissions from deep-blue to intense green were achieved (Table 1) [74]. Similarly, upon varying the cation, metal, and halide composition, Weidman et al. demonstrated the feasible tuning of PL emission of MAPbBr₃ NPls within the 398–437 nm range (Table 1) [75], whereas for the same aim Cho et al. employed various ligand chain lengths and ratios [76], and Bhaumik et al. altered the ligand and precursor ratio (Table 1) [77]. In addition, Kumar et al. developed ultrathin MAPbBr₃ PNCs with efficient blue electroluminescence upon employing low-k organic hosts at various ratios [78]. Another set of MAPbX₃ NPls with X = Br⁻ or I⁻ were synthesized by Levchuk et al. [79]. The authors performed ligand-assisted tailoring for controlling the thickness and properties of the PNCs. In particular, the oleylamine and oleic acid ratio was varied. As a result, broadly tunable emission wavelengths in the 450–730 nm range were achieved, by means of the quantum size effect, i.e. without anion-halide mixing [79]. In another study, Ahmed et al. highlighted the role of pyridine and temperature during LARP synthesis of MAPbBr₃ NPls [25]. The authors found that the presence of pyridine causes the transformation of three-dimensional (3D) cubes into 2D nanostructures, as depicted schematically in Figure 4(b). The so-formed PNCs exhibit high photoluminescence quantum yields (PLQY) in the visible, rendering themselves suitable for optoelectronic applications.

Apart from MAPbBr₃, the synthesis of MAPbI₃ PNCs also has attracted significant attention over the recent years (Table 1) [75, 79], [80], [81], [82], [83]. Weidman et al. developed MAPbI₃ NPls by means of LARP, while tuning the PL properties in the 512–573 nm range upon altering the composition [75]. Similarly, Stoumpos et al. formed MAPbI₃ NPls with tunable emission in the 527–652 nm range [80], and Blancon et al. in the wider 516–677 nm range [81], upon changing the precursors ratio (Table 1). Hautzinger et al. focused on the A-cation cavities of the developed PNCs, namely attributing the observed band gap shifting to the variation of chemical pressure inside the cavity and the Pb-I framework [83].

Similar LARP approaches have been followed over the years when the longer chain formamidinium cation is employed for the development of FAPbX₃-based PNCs (Table 1) [26, 75, 83], [84], [85], [86], [87]. As was the case for methylammonium-based perovskites, the main tuning tools for the composition, morphology, and optical properties of the FAPbX₃ crystals rely on employing various types of ligands, as well as different ligands and precursors ratio. Indicatively, Levchuk et al. demonstrated the facile room temperature synthesis of a FAPbX₃ (with X = Cl⁻, Br⁻ and I⁻ or mixed) PNCs by means of LARP [26]. Figure 4(c) shows a photograph of typical dispersion solutions of the so-formed PNCs under UV-light, along with the PL spectra that cover a wide range of the visible, i.e. from 415 to 760 nm. Moreover, the authors showed a nice thickness tuning and a variation of the band gap with respect to the number of NPls layers stacked together (Figure 4(c)). Figure 4(c) depicts also a typical TEM photo of vertically stacked FAPbBr₃ NPls. Furthermore, it was proposed that upon appropriate surface modifications, the PNCs crystals exhibited great resistance over water, and thus, making them suitable candidates for optoelectronic and photonic applications, that demand extra stability. Finally, it is worth to note that, the LARP method can be adopted for the synthesis of lead-free organic-inorganic PNCs. As for instance, Weidman et al. reported on the synthesis of FASnI₃ PNCs with tunable emission within the 628–689 nm range (Table 1) [75].

In the final part of the Section, we will consider alternative synthesis approaches, summarized also in Table 1, i.e. other than typical HI and the common LARP procedure. Hintermayr et al. reported on a simple, versatile, and efficient two-step process for the synthesis of MAPbX₃ PNCs (with X = Cl⁻, Br⁻ and I⁻) [9]. Based on this method, methylammonium halide and lead halide powders are dry-grounded first, while the perovskite formation is monitored by the color change. After the grounding, the perovskite powder is dispersed in toluene with oleylamine and sonicated for 30 min. Following sonication, the mixture provides highly fluorescent PNCs of good crystalline quality; however the so-formed crystals are polydisperse in both size and shape. Lignos et al. prepared blue-emitting FAPb(Cl_1−xBr_x)₃ PNCs by means of an automated microfluidic platform [27]. The main principle of this method is the use of a droplet-based microfluidic reactor that permitted a thorough screening of the reaction parameters, and thus the elucidation of optimum Cl/Br ratios. After this optimization the mixtures were transferred to conventional reactor flask for upscaling. As depicted in Figure 4(d), PNCs with tunable emission between 440 and 515 nm were synthesized, while indicative TEM photos are also included. Finally, it should be noted that ultrafast laser processing fabrication techniques have been employed for the development of high-resolution luminescent 2D perovskite patterns. Such methods offer the advantage of avoiding solvents and chemical processes, while allowing the controlled growth of the perovskite components [88, 89].

2.2 All-inorganic metal halide perovskite NPls/NSs

The synthesis methods for the fabrication of all-inorganic metal halide perovskites NPls and NSs can be classified into six categories: (i) ligand-assisted hot injection and precipitation, (ii) spontaneous crystallization in nonpolar organic media, (iii) cation-mediated colloidal method, (iv) solvothermal method, (v) ligand- and laser-assisted exfoliation, and (vi) external stimuli-triggered process (Table 2). In the first method, perovskite NPls/NSs can be obtained by injected monovalent cation-oleic acid complex (Cs-oleate) in the reaction mixture, usually containing divalent metal salt, octadecene, oleic acid, and oleylamine at a specific reaction temperature [1]. Furthermore, 2D nanomaterials can be fabricated by a room temperature ligand-assisted reprecipitation (LARP) method. In this synthesis approach, CsX and PbX₂ that were selected as ion sources, were dissolved in a good solvent such as N,N-dimethylformamide (DMF), or dimethylsulfoxide (DMSO), together with the ligands. Then a small quantity of this solution was injected in a bad solvent such as toluene or hexane at room temperature producing immediately a highly supersaturated state and inducing then the rapid recrystallization of the nanocrystals [90]. In the spontaneous crystallization of the 2D nanocrystals, simple mixing of the precursor-ligand complexes in organic media at ambient atmosphere was carried out [29]. No polar solvent such as DMF or DMSO was needed to dissolve the precursors; instead, ligands act as coordinating solvents. In the hot injection method, the acid–base equilibrium of the system can disturbed by Sn⁴⁺ cations injected by SnX₄ salts facilitating the formation of 2D structures [30]. In solvothermal fabrication method, the reaction between Cs-oleate and PbX₂ precursors takes place in a Teflon-line autoclave at relatively low temperature [31]. 2D metal halide nanocrystals can be also by the exfoliation and then fusion of bulker materials through a ligand mediated process [16] or by irradiation with laser [17]. In the latter fabrication process, a tip-ultrasonication device or microwave tube was used for the exfoliation of bulk perovskites to thinner 2D morphologies or for the mixing of the precursors with the ligand in a nonpolar solvent [9, 18].

Table 2:

Synthesis strategies summary for the all-inorganic metal halide perovskite Nanoplatelets (NPls) and Nanosheets (NSs) in colloidal media.

Study	Chemical	2D	Synthesis method/	Precursors and Ligands	Thickness in nm	Lateral size (nm)	PLQY
	phase	morphology	temperature	Tunable parameters	or MLs
Lead based all inorganic metal halides
Ligand assisted hot injection and precipitation
Bekenstein et al. [11]	CsPbBr₃	NPls	Hot injection, 90–130 °C-open air	PbBr₂, Cs₂CO₃, CsBr, OA, and Olam Tuning parameter: temperature	3 nm	20-several hundred	84.4 ± 1.8% (NPls of 5 MLs) 44.7 ± 2.6% (NPls of 4 MLs) 10 ± 0.5% (NPls of 3 MLs)
Akkerman et al. [12]	CsPbBr₃	NPls	LARP, RT	PbBr₂, Cs₂CO₃, CsBr, OA, Olam, and HBr Tuning parameter: Amount of HBr	3–5 MLs (by tuning the acidity)	50	31% (NPLs of 4 MLs)
Sun et al. [92]	CsPbBr₃	NPls	LARP, RT	PbBr₂, Cs₂CO_3, OA, and octylamine Tuning parameter: Type of the ligands	5.2 nm (4 MLs)	100	–
Wang et al. [93]	CsPb₂Br₅	NPls	LARP, RT	PbBr₂, CsBr, OA, Olam, and hexylamine	3 nm	10–100	20–90%
Samsi et al. [21]	CsPbBr₃	NPls, NSs	LARP, RT	PbX₂, Cs₂CO₃, octanoic acid, and octylamine Tunable parameter: reaction time (NPls), ratio of shorter to longer ligands (NSs lateral size tuning)	5 nm	NPLs: 50–200 NSs: 300–1000	∼33% (NSs of the narrowest thickness distribution)
Lv et al. [110]	CsPbX₃ (X: Cl, Br, I)	NSs	Hot injection, 60–150 °C	PbBr₂, Cs₂CO₃, CsBr, OA, and Olam Tunable parameter: reaction time	3 nm (3 MLs)	100–1000	6–10%
Pan et al. [94]	CsPbX₃	NPls	Hot injection, 140–170 °C	PbBr₂, CsOAc, and combination of different ligands Tuning parameter: hydrocarbon chain composition of carboxylic acids and amines	1.8–4.5 nm	20–40	38% (thickness 2.6 nm) 51% (thickness 4.5 nm) 61% (thickness 3.5 nm) 46% (thickness 2.6 nm) 36% (thickness 1.8 nm)
Almeida et al. [19]	CsPbBr₃	NPls	Hot injection, 190 °C	PbBr₂, Cs₂CO₃, OA, and Olam Tuning parameter: concentration of the ligands, acidity	1.7 nm	20–1000	–
Sheng et al. [95]	CsPbX₃ (X: Cl, Br, I or their mixtures)	NPls	Hot injection, 60–150 °C	PbBr₂, Cs₂CO₃, CsBr, OA, Olam, MX′₂ or MX′₃ (M = Cu, Zn, Al, Pb etc.; X′ = Cl, Br or I) Tuning parameter: additional metal halide, reaction temperature, reaction time, and ligand ratio	1–5 nm (2–9 MLs)	10–120	–
Bohn et al. [102]	CsPbBr₃	NPls	LARP, RT	PbBr₂, Cs₂CO₃, OA, and Olam Tuning parameters: Cs/Pb ratio, amount of acetone	2–6 MLs	14	49% (2 MLs) 60% (6 MLs) 73% (6 MLs)
Wu et al. [22]	CsPbBr₃	NPls	LARP, RT	PbBr₂, CsBr, OA, and Olam	3 nm	12	96%
Zhao et al. [100]	CsPbBr₃	NPls	LARP, RT	PbBr₂, Cs₂CO₃ amino acids (Trp), OA, and Olam	4–12 MLs	20–50	38–75%
Bertolotti et al. [96]	CsPbBr₃	NPls	Hot injection, 115 °C	PbBr₂, Cs₂CO₃, OA, and Olam	3.5 nm (6 MLs)	12–14	75%
Chakrabarty et al. [20]	CsPbBr₃	NPls	Hot injection, 90 °C	PbBr₂, cesium cholate (CsCh), OA, Olam	8–9 MLs	12.4 ± 3.2	94%
Samsi et al. [97]	CsPbBr₃	NPls	Hot injection, 110 °C	PbBr₂, Cs₂CO₃, OA, and short hexylphosphonate ligand (C₆H₁₅O₃P)	2.4 ± 0.3 nm	6 ± 2 × 26 ± 5	40%
Zeng et al. [98]	CsPbBr₃	NPls	LARP, RT	PbBr₂, Cs₂CO₃, OA, and octylamine	2.1 nm (3 MLs)	–	97.4%
Zhang et al. [111]	CsPbBr₃	NSs	LARP, RT	PbBr₂, CsAc, octylamine, and octanoic acid	2.8–4.2 nm (5–7 MLs)	100	∼63%
Sun et al. [112]	Yb³⁺ doped CsPbCl₃	NSs	Hot injection method, 150 °C	Pb(OAc)₂, CsOAc, OA, Olam, and octylamine	6.4 nm	100–300	∼128%
Spontaneous crystallization in nonpolar organic media
Huang et al. [29]	CsPbBr₃, CsPbI₃	NPls	Spontaneous crystallization, RT	PbBr₂, Cs₂CO₃, CH₃COOCs, OA, and Olam	1.1 nm (CsPbBr₃) and 1.2 nm (CsPbI₃)	20	–
Cation mediated colloidal method
Ding et al. [30]	CsPbBr₃ and CsPbCl_xBr_3−x	NPls	Directly heating, 110 °C, open air	Tin salt (e.g., SnBr₂, SnBr₄, SnCl₂, SnCl₄, Sn(OAc)₂), PbBr₂, Cs₂CO₃, OA, Olam	2.7 nm (3 MLs)	20	29.3–80.2%
Bonato et al. [99]	CsPbX₃	NPls	Hot injection, 170 °C	Pb(acetate)₂.3H₂O, Cs₂CO₃, SnX₄, OA, and Olam	1–6 MLs	20	–
Solvothermal method
Chen et al. [103]	CsPbBr₃	NPls	Solvothermal, 140 °C	PbX₂, Cs₂CO₃, OA, and Olam Tuning parameter: reaction time	3 nm	100–200	28%
Zhai et al. [31]	CsPbBr₃	NPls	Solvothermal, 100 °C	Cs₂CO₃, PbX₂, OA, and Olam Tuning parameter: reaction time	4.2 nm	44–101	50%
Ligand- and laser-assisted exfoliation
Uddin et al. [16]	CsPbX₃ (X: Cl, Br, I or their mixtures)	NPls	Hot injection method, ligand mediated anion exchange, and RT	Cs₂CO₃, PbCl₂, TOP, and DDT-AlX₃	2 nm (4 MNLs) for CsPbCl₃ 5–9 nm (15 MNLs) for CsPbBr₃, 3 nm (5 MNLs) for CsPbI₃	10	50–65% (CsPbCl₃) 100% (CsPbBr₃) 81% (CsPbI₃)
Kostopoulou et al. [17]	CsPbBr₃	NPls and NSs	Laser irradiation of as synthesized nanocrystals with LARP, RT	PbBr₂, CsBr, OA, Olam, and bad solvent: Toluene	–	100–1500	–
External stimuli-triggered process
Tong et al. [18]	CsPbX₃	NPls	Ultrasonication, RT, and ambient conditions	PbX₂, Cs₂CO₃, OA, and Olam Tunable parameter: Cs₂CO₃/PbI₂ ratio	3–6 MLs	∼10–20	20–90%
Pan et al. [104]	CsPbX₃	NPls	Microwave, 80 °C, ambient conditions	(CsOAc), (PbX₂, X = Cl, Br, I, or their mixture), trioctylphosphine oxide (TOPO), OA, and Olam	3.3 nm	23.4	–
Lead-free all inorganic metal halides
Ligand assisted hot injection
Wang et al. [105]	Cs₂SnI₆	NPls	Hot injection method, 220 °C	SnI₄, Cs₂CO₃, OA, and Olam	8 nm	200–300	–
Wong et al. [106]	CsSnI₃	NPls	Hot injection method, 135 °C	Cs₂CO₃, octanoic acid, oleylamine, and octylamine	<4 nm	∼500 nm	–
Lian et al. [107]	Cs₃Bi₂Br₉	NPls	Hot injection method, 180 °C	Cs₂CO₃, OA, and Olam	∼9 nm	60–250 nm	–
Huang et al. [108]	Cs₂AgBiBr₆	NPls	Hot injection method, 150 °C	AgBr, BiBr₃, OA, Olam, octanoic acid, and octylamine	3–5 nm	∼200 nm	–
Room temperature injection and heating
Liu et al. [109]	Cs₂AgBiBr₆	NPls	Room temperature precursor injection followed by a solution heating up process	BiBr₃, AgNO₃, OA, and Olam Tuning parameter: ratio octylamine/oleylamine	3–4 MLs	180 ± 130 nm 630 ± 380 nm (8:2 octylamine/oleylamine)

RT: room temperature, LARP: Ligand-assisted reprecipitation, OA: oleic acid, Olam: oleylamine, NPls: Nanoplatelets, NS: nanosheets, Ml: monolayers.

All inorganic metal halide NPls. The first synthesis of 2D CsPbBr₃ NPls’ morphology reported in 2015 by Bekenstein et al., using the ligand-assisted hot injection method Figure 5(a) and (b) [11]. This synthesis was carried out by modifying the nanocubes’ synthesis protocol reported previously by Protesescu et al. which performed at 140–200 °C [91]. This study revealed that when the temperature was decreased at 90–130 °C the asymmetric growth and the formation of 2D CsPbBr₃ NPls was favored. Specifically, the precursor PbBr₂ was solubilized in octadecene (ODE) together with the capping ligands OA and Olam, and then the Cs-oleate was injected at elevated temperatures (90–130 °C) to form the NPls. The temperature at which the Cs-oleate was injected was crucial parameter for the morphology and size of the nanocrystals. Symmetrical nanocubes were formed for the reactions conducted at 150 °C, NPls of lower symmetry at 130° and very thin NPls with lateral size of 200–300 nm at 90 and 100 °C (Figure 5(a) and (b)). However, the problem with these too thin structures was to centrifuge and collect them. After the first centrifugation and redispersion, any additional cleaning step was non-trivial, as they dramatically affected their bright PL and degrade the NPls. Upon testing a variety of antisolvents that would destabilize the NPls dispersion, the ethyl acetate and methyl-ethyl-ketone with polarity indexes of 4.4 and 4.7, respectively, were sufficient to precipitate the NPls but also prevent their degradation. These NPls showed surprising PLQYs that reach the value of 84.4% despite that this 2D morphology would expected to be sensitive to surface defects and very low PLQY due to the inherently high surface to volume ratio. The PL emission was shifted from green (512 nm 2.5 eV) to deep purple (405 nm 3 eV) for the strongly quantum confined band edge emission (Figure 5(c)). Such PLQYs were observed only for semiconducting nanocrystals passivated from a second layer. Their emission spectra can be tuned to cover the entire visible spectrum by introducing an anion exchange process in which the Br⁻ anions are replaced with either Cl⁻ or I⁻ through which the NPls’ composition can be tuned (Figure 5(c)).

Figure 5:

First all-inorganic metal halide perovskite NPls synthesized at high temperature (hot-injection method, reaction temperature 90 and 130 °C) (a), (b) and at room temperature (LARP) ((d), (e), low and high concentration samples). Optical properties for NPls of different thicknesses and halide ratio (through anion exchange reactions) (c) and (f). Reprinted with permission from Ref. [11], copyright 2015, American Chemical Society (a)–(c). Reprinted with permission from Ref. [12], copyright 2016, American Chemical Society (d) and (f), https://pubs.acs.org/doi/10.1021/jacs.5b12124 that further permissions related to the material excerpted should be directed to the ACS (d and f).

Later, Akkerman et al., was synthesized CsPbBr₃ NPls by adding HBr during the reaction (Figure 5(d) and (e)). The reaction in this case was taken place at room temperature while the precursors and ligands were the same with the previous report [12]. In particular, the synthesis was starting from a mixture of Cs-oleate, Olam, OA, PbBr₂, and HBr that remained stable unless an additional component was added to it. Then, acetone was added to the precursor mixture. The role of the acetone was to destabilize the complexes of Cs ⁺ and Pb²⁺ ions with the various molecules in solution and therefore to trigger the nucleation of the particles. Other polar solvents, for example, protic solvents like isopropanol and ethanol, were also tested but they were not such effective as acetone in the control of the NPls’ shape. The stability of the NPls was affected by the number of layers: the 4 monolayered (ML) sample, emitting at 2.75 eV, was only stable for a day, whereas the 3 and 5 ML samples were stable for at least one month, with only the appearance of a secondary emission peak at 2.36 eV, as well as a sedimentation of a green/yellow precipitate, indicating the formation of larger non quantum-confined CsPbBr₃ aggregates. The optical bandgap was remarkably sensitive to the number of layers in this 3-5 ML regime, as shown in Figure 5(f), with a blue shift and strengthening of the excitonic transition for thinner sheets as a result of confinement effects. Their emission spectra can be tuned by changing the halide anion (Figure 5(f)).

Almost at the same time, CsPbX₃ NPls were reported by Sun et al. by a mixing of the precursors in a good solvent (DMF) and injected a small amount of this into a poor solvent (toluene) at room temperature (ligand-assisted reprecipitation-LARP) [92]. The color of the solution was changed indicating the formation of CsPbX₃ due to the co-precipitation of Cs⁺, Pb²⁺, and X⁻ in the presence of the organic acid and amine ligands. In the precursor solution, polar solvent DMF was acted as a good solvent to dissolve the inorganic salts and molecule ligands, while the nonpolar solvent toluene as a bad solvent to facilitate the reprecipitation process. The final morphology of the nanocrystals obtained by this precipitation-based approach was determined by the type of the organic acid and the type of the amine ligands (Figure 6(a)). Quantum dots, nanocubes, nanorods, and few-unit- cell-thick NPls have been obtained by different combination of organic ligands (Figure 6(a)). In particular, NPls were formed by mixing oleic acid and octylamine. These NPls had a typical edge length of 100 nm and a typical thickness of 5.2 nm corresponding to 4 monolayers of CsPbBr₃. Similar chemical approach has been reported also for the synthesis of Cs₄PbBr₆ NPls [93]. The anisotropic 2D growth of CsPb₂Br₅ chemical phase is facilitated by the intrinsic symmetry of its tetragonal crystal structure.

Figure 6:

Schematic illustrating the effect of the ligand type on the morphology of the final all-inorganic metal halide perovskite nanocrystals synthesized by LARP method at room temperature (a) and hot injection (b) method. Reprinted with permission from Ref. [92], copyright 2016, American Chemical Society (a). Reprinted with permission from Ref. [94], copyright 2016, American Chemical Society (b).

The effect of the ligand type and chain length on the size and shape of the all-inorganic perovskite NPls has been studied for the hot injection approaches by Pan et al. [94]. Different combination of carboxylic acids and organic amines with varying chain lengths were utilized (Figure 6(b)). Both ligands were bound on the surface but the ammonium ligands were seemed to be detached easier during the centrifugation cleaning processes. From reactions carried out at 170 °C using oleylamine and carboxylic acids with decreasing carbon chain lengths, nanocubes with increasing edge lengths were obtained, and from reactions carried out at 170 °C using oleic acid and amines with shorter carbon chain lengths, NPls were obtained except using oleylamine. Also, the thickness of the NPls is depended of the ligand chain-length, thinner NPls down to three-unit cells thickness were produced when shorter chain amines were introduced in the reaction.

Furthermore, Samsi et al. [21] confirmed what Bekenstein et al. reported earlier [11] that the 2D NPls formation can be facilitated when the Cs-oleate dissolved in OA instead of the octadecene that resulted in nanocubes [91]. In addition, according to this protocol, the NPls were obtained in a wider temperature range (50–150 °C) compared to the previous report in which the NPls were formed in the range of 90–130 °C. Moreover, by tuning the time of the reaction from a few seconds to a few minutes, NPls of lateral size from 50 to 200 nm can be obtained but when shorter ligands were introduced, nanosheets of up to 5 μm were taken with thickness in the strong quantum confinement effect. Octanoic acid (OctAc) and octylamine (OctAm) were added in addition to the OA and Olam. The use of both short ligands in conjunction was necessary and the optimum NSs were obtained for the temperature range of 145–155 °C and time of the reaction up to 5 min. The PLQY of these NSs found to be ∼33%.

Two years later, Almeida et al., reported the role of the concentration of the ligands and acidity in the hot injection approaches of the CsPbBr₃ nanocrystals at high temperature [19]. By changing acid-base ligand pair (Olam-OA), NPls with thickness down to a single monolayer can be acquired. Almost simultaneously, Sheng et al. studied the role of an additional halide in the final morphology of the CsPbBr₃ NPls [95]. Among multiple tuning factors such as component and ratio of the metal halides, temperature, reaction time, and ligands, the additional metal halide was seemed to be the essential one for the perovskite NPls formation. The evolution of morphology by tuning the ratio [CuCl₂]: [PbBr₂] using the CuCl₂ as additional halide is illustrated in Figure 7. Furthermore, the type of the additional halide was played a crucial role in the final NPls’ size. For example, CsPbCl_xBr_3−x NPLs obtained by addition of CuCl₂ have the average size of ≈2.9 × 30 × 30 nm; AlCl₃ leads to ≈ 4.6 × 12 × 12 nm; HAuCl₄ yields ≈ 3.5 × 40 × 40 nm; ZnCl₂ results ≈ 2.3 × 26 × 26 nm. NH₄Cl or NH₄Br as additive, the products were the perovskite nanocubes in majority, while Cu(NO₃)₂ or Cu-oleate no perovskite nanocrystals can be obtained. Finally, by increasing the ratio of the ligands [Olam]/[OA], larger NPls were obtained.

Figure 7:

In the quest to find the optimum conditions for stable NPls of high PLQYs, different parameters have been tuned. For example, Bertolotti et al. reported that the reduction of the reaction temperature (115 °C) and using two-fold higher concentrations of reagents compared to that for nanocubes in the hot injection methods, ultra-uniform NPls of six-monolayers-thickness have been formed [96] while by using a different Cs precursor such as cesium cholate the PLQYs of the NPls reached the value of 94% [20]. Furthermore, the addition of a short ligand instead of Olam such as the hexylphosphonate ligand was also a good alternative ligand for the formation of ultra-thin NPls down to the 2.4 nm thickness [97].

In a different study, the role of the aging of the oleate in LARP synthesis has been evaluated by Zeng et al. [98] In this approach, ultra-thin CsPbBr₃ NPls with PLQYs approaching the unity and high stability have been synthesized using a triple-source ligand assisted reprecipitation method (TSLARP) with an aged metal-oleate precursors (Figure 8(a)). Using fresh Pb-oleate precursor, hybrid CsPbBr₃@Cs₄PbBr₆ NPls with low PLQY (28%) were formed, while with aged one, CsPbBr₃ NPls with PLQYs of 97.4% were obtained. Cs-oleate, Pb-oleate, and OAmBr (octylamine, HBr, ethanol) precursor solutions were dropped into toluene solvent in sequence and then vigorously stirred for 5 min (Figure 8(a)), yielding NPls’ solution with blue emission under UV excitation. The aging treatment of Cs-oleate and Pb-oleate precursors was performed in sealed glass vials and stored in air for different times (from 0 month to 12 months). The PL and absorbance curves of the NPls obtained with the aged oleate under different times are illustrated in Figure 8(b) and the NPls with the highest PLQY are those with the aged oleate for 12 months (upper curve in Figure 8(b)). This different behavior found that could be originated from the transformation of the Pb-oleate in toluene from isolated molecules into clusters after the aging process (Figure 8(c)). The Pb oleate clusters were served as a template for the formation of the clustered [PbBr_x] octahedra intermediates, which thermodynamically favors the formation of the CsPbBr₃ NPls (Figure 8(c)).

Figure 8:

All-inorganic metal halide perovskite NPls synthesized with triple-source ligand assisted reprecipitation method (a). Absorption (purple) and PL spectra (blue) of the CsPbBr₃ NPls’ solutions synthesized using metal-oleate precursors with different aging times (b). Proposed mechanism of the NPls formation (c). Reprinted with permission from Ref. [98], copyright 2021, American Chemical Society.

A different approach than LARP but conducted also at room temperature has been reported by Huang et al. that did not require external stimuli such as heat, microwave irradiation, ultrasonication, mechanical force, or polar solvent, in which perovskite nanocrystals were easily obtained through spontaneous crystallization upon simple mixing of precursor-ligand complexes in organic media at ambient atmosphere. No polar solvent such as DMF or DMSO was needed to dissolve the precursors; instead, ligands act as coordinating solvents. This protocol could be transfer in large scale (×50 scale up) as the precursor stock solutions remain stable upon time [29].

Cation mediated approaches, also found that can result in the formation of the 2D nanostructures. In a typical synthesis of CsPbBr₃ NPls reported by Ding et al., a mixture of PbBr₂, SnBr₄, and Cs₂CO₃ was loaded in a three-neck flask containing ODE, OA and Olam and heated until 110 °C [30]. The presence of foreign Sn⁴⁺ ions in the precursors led to the formation of thin perovskite NPls with a thickness of around 3 unit-cells. Increasing the Sn⁴⁺ (or Sn²⁺ in the open-air case) amount led to an increased fraction of thin NPls in final solution. In the same direction, Bonato et al. added SnX₄ salts during the hot injection process and the results were similar to that of previous report [99]. The acid–base equilibrium of the system was disturbed by Sn⁴⁺ cations increasing OA/Olam molar ratio, which induces the formation of the NPls. The formation of tin–oleylamine complexes proved that was the cause of such disturbance. The NPls formation was facilitated by the addition of the Sn⁴⁺ cations but no signal assigned to those species was confirmed from the X-ray photoelectron spectroscopy (XPS) data. It is important to notice here that two previous reports also discussed the role of the additional halide in the formation of the NPls [19, 95].

Moreover, NPls found to be promoted by using hydrophobic acid (Trp, Cys, His, Leu, Phe, and Trp derivatives) [100] or by adding a controllable amount of water [101]. Different passivation strategies have been applied to increase the PLQY of the NPls [22, 102]. The addition of PbBr₂-ligand solution was found that can repair surface defects likely stemming from bromide and lead vacancies in a subensemble of weakly emissive nanoplatelets and the PLQY can be increased from 7 to 49% for NPls of 2 ML thickness and 42–73% for those of 6 ML [102]. Moreover, the addition of HBr providing additional Br⁻ was introduced to drive the ionic equilibrium and form intact Pb–Br octahedra [22]. With the second strategy NPls of 96% PLQY have been fabricated.

In addition to LARP and hot-injection methods to synthesize NPls, a pre-dissolution assisted solvothermal method has been introduced to fabricate CsPbBr₃ NPls of ∼28% PLQY. In particular, the PbX₂ precursor was dissolved in octadecene and dried OA and Olam was injected at 120 °C. After complete solubilization of the Pb-precursor, the temperature was decreased at room and a Cs-oleate stock solution was injected slowly. Then this solution was transferred in a Teflon-lined autoclave and let at 140 °C for different reaction times (Figure 9(a)–(e)) [103]. Almost simultaneously, a similar approach has been reported from Zhai et al. [31] but in this protocol the reaction temperature was lower (100 °C) while the tuning parameter was the same, the reaction time. In this case the NPls seemed to be more homogeneous with very sharp edges compared to the previous NPls synthesized with solvothermal method and the PLQYs reached the value of 50% (Figure 9(f)–(j)). The bandgap of the NPls was gradually decreased upon an increase in the reaction time in both reports (Figure 9(e) and (j)).

Figure 9:

NPls synthesized with solvothermal method at 140 (a)–(d) and 100 °C (f)–(i) with different reaction times. Optical absorption and emission spectra for the corresponding samples (e) and (j). (a)–(e) Reprinted with permission from Ref. [103], copyright 2018, The Royal Society of Chemistry. (f)–(j) Reprinted with permission from Ref. [31], copyright 2018, American Chemical Society.

Ligand mediated anion exchange route also used for the fabrication of the all-inorganic metal halide NPls [16]. Treatment of the pre-synthesized CsPbX₃ nanocrystals with dichlorodiphenyltrichloroethane (DDT) and AlX₃ was included in this process. The pre-synthesized nanocrystals were first exfoliated and then fused in larger NPls structures (Figure 10). The exfoliation, the removal of the ligands from the surface of the nanocrystals and the fusion were taken place almost simultaneous. The thickness of the fabricated NPls was 4–15 monolayers and the PLQYs of the them was 50–65% for the violet–blue emitting NPls, near unity for the green and 81% for the red emitting NPls. Exfoliation and then fusion were also occurred when nanocrystals were irradiated with a fs laser with 513 nm wavelength (Figure 10(d)–(f)) [17]. Specifically in this case except of the shape transformation, a dimensionality transformation was taken place. Cs₄PbBr₆ hexagonally-shaped nanocrystals were irradiated in a liquid environment. An exfoliation of the initial nanohexagons was taken place in the first 30 s of the irradiation, then these particles started to fragment into smaller cubic particles until 4 min, and finally, these small cubes were enlarged to nanoplatelet-type morphologies until 12 min through a side-by-side-oriented attachment and fusion process. Sheets of lateral sizes of around 1–1.5 μm could also be obtained for longer irradiation times. Partial anion exchange was occurred due to the chlorinated solvent very fast and completed in the case of the NPls.

Figure 10:

Exfoliation and fusion though a ligand-mediated anion exchange (a)–(c) and laser-triggered (d)–(f) process. (a)–(c) Reprinted with permission from Ref. [16], copyright 2020, American Chemical Society. (d)–(f) Reprinted with permission from Ref. [17], copyright 2022, MDPI.

In a different approach, Tong et al. presented a one pot polar-solvent-free synthesis of CsPbX₃ NPls using sonication to induce the formation of a cesium-oleate complex. Then this was reacted with the PbX₂ in the presence of OA and Olam [18]. This method gave well crystalline nanocubes slightly larger than those prepared with hot injection methods but lowering the cesium content, 2D nanoplatelets-like morphologies were obtained (Figure 11(a)–(f)). This is the first method that gave CsPbI₃ NPLs of the 75% PLQY. Furthermore, a microwave-assisted method has been utilized to form NPls (Figure 11(g)–(k)) [104]. In this process, all the reactants were mixed together in a microwave quartz tube in air, which was then put into a microwave reactor. No other pre-treatment was needed. The reaction system was then heated to 80 °C and kept at this temperature for 5 min.

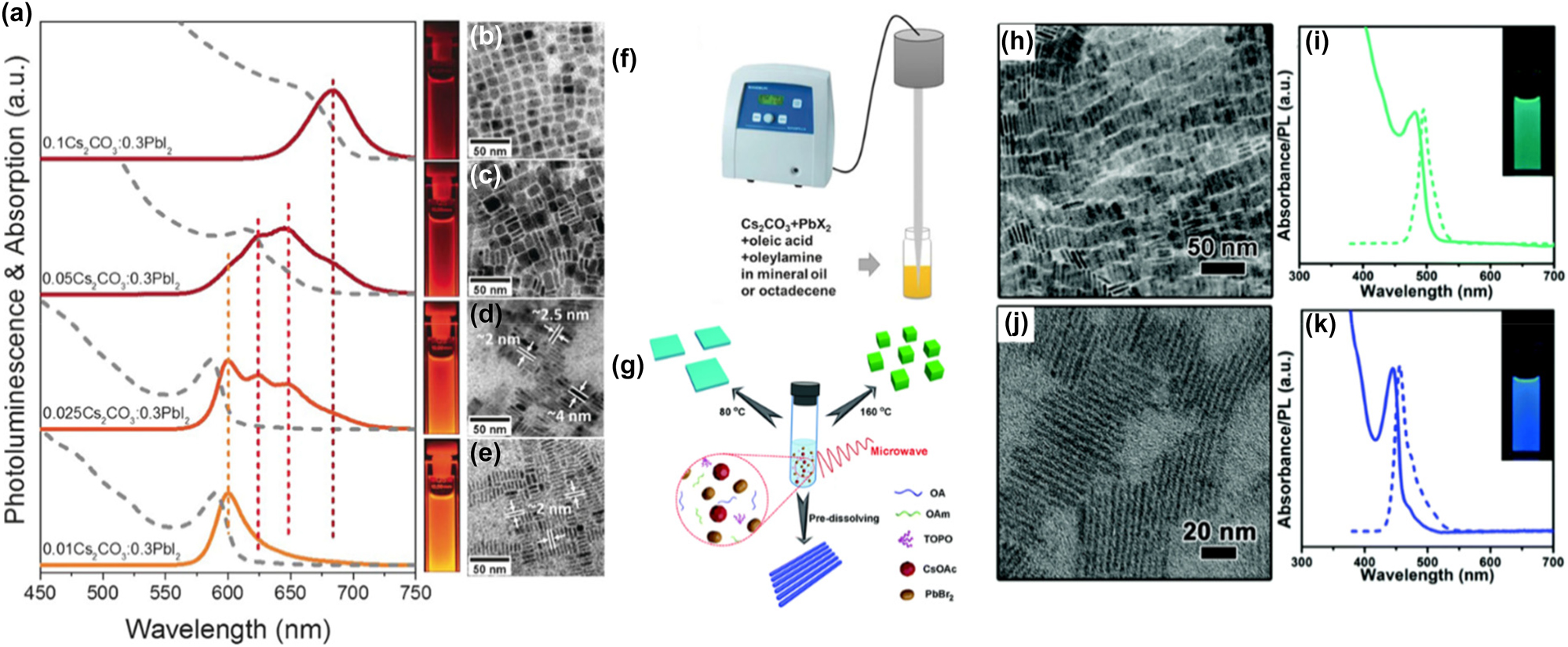

Figure 11:

All-inorganic metal halide NPls fabricated with external stimuli-triggered processes. NPLs synthesized using a sonication (a)–(f) and microwave reactor (g)–(k). (a)–(f) Reprinted with permission from Ref. [18], copyright 2016, Wiley. (g)–(k) Reprinted with permission from Ref. [104], copyright 2017, Royal Society of Chemistry.

Lead-free metal halide NPls. Utilizing the protocols developed for the lead-based metal halide perovskite NPls, lead-free perovskites of the same morphologies have been fabricated. Stable NPls of Cs₂SnI₆ have been synthesized with a hot injection method at 220 °C [105]. No toxic phosphines, such as tri-n-octylphosphine (TOP) and tributylphosphine (TBP), were used during this synthesis. Typically, cesium oleate reacted with tetravalent tin(IV) iodide in the presence of OA and Olam in octadecene (ODE) at 220 °C to generate crystalline Cs₂SnI₆ nanocrystals. The NPls were formed after 60 min at high temperature after the addition of the cesium oleate. In contrast, CsSnI₃ NPls were synthesized with thickness less than 4 nm utilizing TOP both as a reducing agent and as a solvent to dissolve SnI₂ while minimizing oxidation and then this solution was injected into a heated mixture of CsCO₃ with long- and short-chain amines (Olam and octylamine) and a short-chain organic acid (octanoic acid) [106]. The combination of long- and short-chain ligands to control particle morphology as well as the use of TOP with high Sn concentrations was the main key points for the synthesis of NPls. In addition, cesium bismuth bromide perovskite NPls have been synthesized with hot injection method at 180 °C and OA and Olam as ligands and Cs₂AgBiX₆ at 150 °C utilizing OA, Olam, octanoic acid, and octylamine [107, 108]. A different approach was used for the synthesis of Cs₂AgBiX₆ 2D NPls which involves a room temperature precursor injection followed by a solution heating up process [109]. The lateral size of the NPls was 180 ± 130 nm when only Olam was used as ligand and can be reach the size of 630 ± 380 nm by using octylamine with a ratio 8:2.

All inorganic metal halide NSs. The previous described NPls were tended to be assembled in stacked assemblies limiting their use in devices which require efficient lateral charge transport. In order to increase the charge transport, NSs with larger lateral sizes were fabricated. A generalized approach was published from Lv et al. to synthesize all-inorganic nanosheets of CsPbX₃ (X: Cl, Br, I) to overcome this issue and to use them in photodetectors (Figure 12(a)–(d)) [110]. 2D NSs were obtained with lateral size of 100 nm to micrometers by controlling the reaction conditions (Figure 12(e)–(i)). For the case of CsPbBr₃ NSs, the Cs-oleate in which the Cs-oleate complex was dissolved in OA was injected at the reaction mixture (PbBr₂, ODE, OA, Olam) at 60–150 °C and let for 30 min. Investigation of multiple aliquots obtained at different time intervals at 120 °C revealed that NPls were formed very fast (Figure 12(e)). At 30 s, NPls of 30 × 40 nm were formed, and then these were laterally grown by oriented attachment to NPls of 90 × 100 nm at 5 min and at NSs of 114 × 140 nm at 30 min. NSs of 460 nm were obtained by increased the temperature at 150 °C. These NSs were stable in their hexane-based dispersions for months stored in the glovebox and no other morphologies were observed in contrast to the previous reports. Furthermore, due to their lateral dimensions, these NSs tended to lie flat which respect to the substrate regardless of the concentration. Except the reaction time that controls the size of the NSs, the lateral size can be tunable by varying the ratio of shorter ligands over longer ligands (Figure 12(e)–(h)). The thickness was mainly unaffected by tuning the same parameter and stays practically constant at 3 nm in all the syntheses conducted at short-to-long ligands volumetric ratio below 0.67. By varying the ratio of two short ligands (octanoic acid, octylamine) over that of the longer ligands (OA and Olam), the lateral size of the NSs could be tuned from 300 nm up to 5 μm (with the higher ratio of short to long ligands to yield in larger NSs).

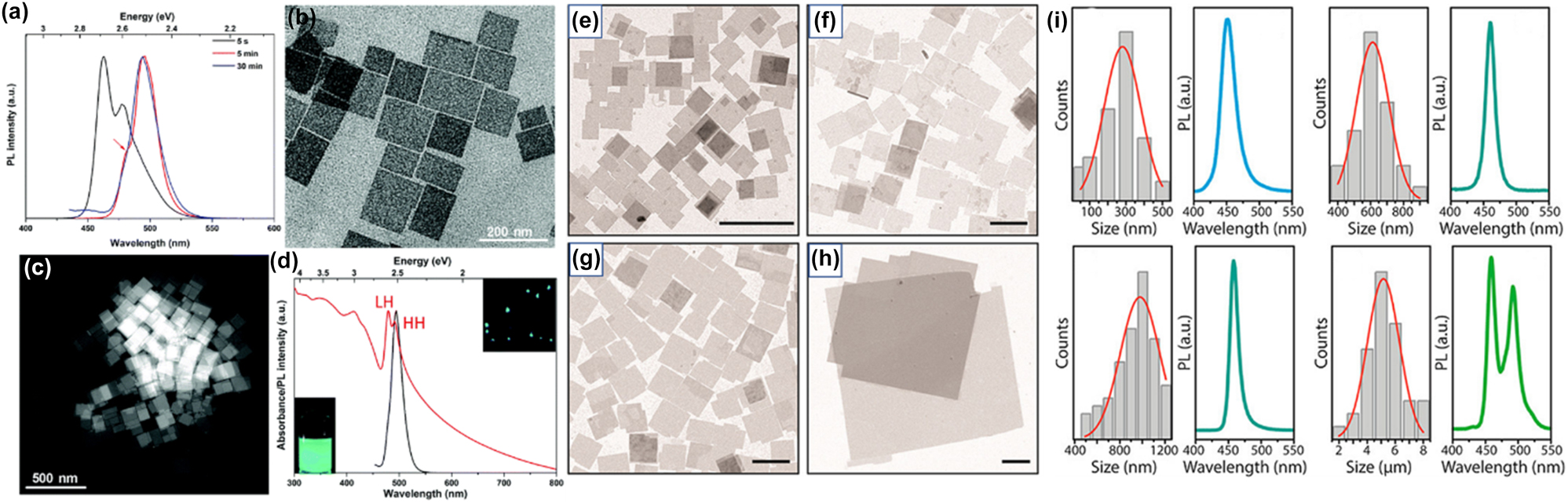

Figure 12:

Nanosheets’ size control by the reaction time (a)–(d) and the ratio of short to long ligands (e)–(i). (a)–(d) Reprinted with permission from Ref. [110], copyright 2016, Royal Society of Chemistry. (e)–(i) Reprinted with permission from Ref. [21], copyright 2016, American Chemical Society, https://pubs.acs.org/doi/10.1021/jacs.6b03166 and further permissions related to the material excerpted should be directed to the ACS.

Later, in 2019 Zhang et al. achieved to increase the PLQY of the 2D NSs morphologies caped with the same ligands with previous work and to use them in X-ray scintillators [111]. In this case, the Cs-precursor and PbBr₂ were prepared separately and the second solution, which is hot, was injected into the first solution swiftly under vigorous stirring at room temperature. In particular the Cs-precursor solution was prepared by dissolving CsAc in propanol followed by hexane and propanol. The PbBr₂ precursor solution was prepared by the dissolving the PbBr₂ into a mixture of propanol, octylamine, and octanoic acid at 90 °C. The thickness of these NSs was down to the 2.8–4.2 nm.

All-inorganic 2D NSs with PLQY to reach the value of 128%, which is the highest PLQL reported for perovskite NSs, have been reported very recently by doping the CsPbCl_xBr_3−x with rare earth ions [112]. The Yb³⁺ doped CsPbCl₃ NSs were synthesized by the injection of Cs-precursor into the mixed solution of OA and octadecene dissolved with lead acetate (Pb(OAc)₂) and ytterbium acetate (Yb(OAc)₃). Furthermore, short-chain, n-octylamine was utilized instead of octadecene to dissolve cesium acetate (CsOAc), which can avoid the low boiling point issues originated from the short chain amines. The same ligand type was also used to replace the Olam and facilitate the formation of the NSs instead of nanocubes while the metal acetates (instead of metal halides) were easier to dissolve in organic solvents. After different reaction experiments, the optimum temperature found for the growth of the NSs was 200–240 °C while the optimum Yb³⁺ doping concentration could be increased to 6.8 mol%.

3 Synthesis of metal halide perovskite nanocrystals/2D material heterostructures

The inherently soft crystals lattice allowing greater tolerance to lattice mismatch making the metal halide perovskites ideal candidates for heterostructure formation for electronics and optoelectronics applications [113]. 2D metal halide perovskite epitaxial heterostructures [113–115] and heterostructures with metal halide materials on 2D materials such as graphene, graphene oxide, reduced graphene oxide or transition metal dichalcogenides [43, 52, 53, 56], [57], [58, 62] have shown efficient electron transfer and synergetic functionalities. In this section, we will focus on the latter heterostructures and a summary of the reported to date metal halide perovskite nanocrystals/2D material heterostructures will be presented. These heterostructures consist of two different parts, one is the metal halide perovskite nanocrystals of various morphologies and chemical phases and the second is a 2D material. New physics and synergetic effects are emerging from the coupling between the two different materials and new or improved functionalities have been arisen due to the interfacial phenomena. Solution-processed fabrication methods will be described for the different combinations of perovskite nanocrystals and the 2D materials. Heterostructures included all-inorganic or organic inorganic metal halide perovskite nanocrystals with 2D materials such as graphene, graphene oxide, reduced graphene oxide or transition metal dichalcogenides will be summarized (Table 3). The fabrication methods of the metal halide perovskite nanocrystals/2D material heterostructures can be categorized in six types: (a) spin coating or deposition of metal halide nanocrystals on 2D material layers, (b) in-situ crystallization through colloidal chemistry methods (LARP and hot injection methods), (c) in situ coupling through mixing of the two materials, (d) in situ coupling through mixing of the two materials and photoreduction, (e) laser-induced conjugation in solution, and (f) solid state reaction.

Table 3:

Summary of the metal halide perovskite nanocrystals/2D material heterostructures.

Study	Metal halide perovskite	2D material	Fabrication method of the heterostructure	Improved property/target application
	Phase/morphology
Kwak et al. [40]	CsPbBr_3−x I_x	Graphene	Deposition of nanocrystals on the bilayer graphene flakes film.	Improved photosensitivity due to the rapid carrier transport of the graphene.
	Cubic-shaped nanocrystals			Photodetectors.
Xu et al. [41]	CsPbBr₃	Graphene oxide (GO)	Room temperature colloidal chemistry route (LARP). The GO is dispersed in the bad solvent for the precipitation of the perovskite nanocrystals.	Improved rate of electron consumption compared to that of net perovskite nanocrystals.
	Quite spherical nanocrystals			Photocatalytic CO₂ reduction to ethyl acetate.
Pu et al. [59]	CH₃NH₃PbBr₃	Protonated graphitic carbon nitride (p-g-C₃N₄)	Room temperature colloidal chemistry route (LARP). The p-g-C₃N₄ is dispersed in the precursor solution.	Significant charge separation.
	Quite spherical nanocrystals			Photocatalysis.
Tang et al. [42]	CsPbBr₃	Reduced graphene oxide (rGO)	Hot-injection method at 150 °C.	Enhanced strong photoresponse.
	Cubic nanocrystals			Photodetectors.
Wu et al. [60]	CH₃NH₃PbI₃	Reduced graphene oxide (rGO)	Photoreduction method including visible light irradiation at room temperature for several hours.	Superb H₂ evolution activity and very stable in MAPbI₃-saturated aqueous HI solution.
	Irregular-shaped nanocrystals			Visible-light photocatalysts active in aqueous solution.
Chen et al. [43]	CsPbI₃	Single-layer graphene	Deposition of nanocrystals on the graphene layer fabricated by chemical vapor deposition.	Increased light-harvesting properties.
	Cubic nanocrystals and nanowires			Next generation photodetectors and photovoltaic devices, including polarization sensitive photodetectors.
Guo et al. [44]	CsPbBr₃	Graphitic carbon nitride nanosheets, containing titanium-oxide species (TiO-CN)	Sonication and stirring of the perovskite nanocrystals and 2D material in hexane.	Increased number of catalytic sites and improved charge separation efficiency.
	Irregular-shaped nanocrystals			Photocatalytic CO₂ reduction.
Huang et al. [45]	CsPbBr₃	Black phosphorus (BP) nanosheets	In situ growth of nanocrystals on BP exfoliated sheets. Mixing at room temperature of the BP sheets with the precursor of the nanocrystal.	Robust month-long air-stability.
	Irregular-shaped nanocrystals			Next-generation optoelectronic devices.
Muduli et al. [46]	CsPbBr₃	Black phosphorus (BP) nanosheets	Mixing of the as synthesized perovskite nanocrystals with BP nanosheets followed by the bath sonication at room temperature.	Improved charge transfer between the two materials.
	Cubic nanocrystals			Optoelectronic devices.
Wu et al. [55]	CH₃NH₃PbBr₃ and CsPbI_3−xBr_x	MoS₂	Spin coated nanocrystals on the MoS₂ monolayer.	Improved photoresponsivity and specific detectivity.
	Cubic and spherical nanocrystals			Phototransistors.
Wu et al. [56]	CsPbI_3−xBr_x	MoS₂	Spin coated nanocrystals on the MoS₂ monolayer.	Photocurrent was enhanced by 15.3-fold.
	Cubic nanocrystals			Photodetectors.
Ou et al. [47]	CsPbBr₃	g-C₃N₄	Mixing of the as synthesized perovskite nanocrystals with porous g-C₃N₄	Improved photocatalytic behavior.
	Cubic nanocrystals			Photocatalytic reduction of CO₂ to CO under visible light irradiation
Casanova-Cháfe et al. [61]	CH₃NH₃PbBr₃	Graphene	Spin coated perovskite nanocrystals on drop casted graphene nanoplatelet layer.	Enhanced gas sensitivity.
	Quite spherical nanocrystals			Gas sensors.
Wang et al. [62]	CH₃NH₃PbBr₃	Graphene oxide (GO)	Room temperature colloidal chemistry route (LARP). The GO is dispersed in the bad solvent for the precipitation of the perovskite nanocrystals.	Considerable electron-hole separation efficiency and high selectivity of solar fuels.
	Quite cubic nanocrystals			Photoelectrochemical conversion CO₂ into solar fuels in non-aqueous media.
Zhang et al. [48]	a-CsPbI₃	rGO	Hot-injection method at 140–170 °C.	Improved stability and carrier transport quality.
	Cubic nanocrystals			Optically active material for optoelectronic devices.
Qiu et al. [49]	CsPbBr₃	h-BN NSs	Hot-injection method at 180 °C.	Superior thermal stability.
	Quite cubic nanocrystals			LEDs.
Li et al. [50]	CsPbBr₃	Hexagonal boron nitride nanosheet (h-BN)	Room temperature colloidal chemistry route (LARP). The h-BN nanosheets are dispersed in the bad solvent for the precipitation of the perovskite nanocrystals.	Enhanced humidity stability and thermal stability.
	Cubic nanocrystals			LEDs.
Wang et al. [63]	Cs₂AgBiBr₆	Reduced graphene oxide (rGO)	Photoreduction method including visible light irradiation at 5 °C for severe hours.	Enhanced photocatalytic activity.
	Irregular-shaped nanocrystals			Photocatalytic hydrogen generation.
Pu et al. [51]	CsPbBr₃	Reduced graphene oxide (rGO)	Hot injection method at 160 °C.	The local electric field around CsPbBr₃ QDs is increased by surface plasmon resonance on the surface of rGO nanosheet.
	Irregular-shaped nanocrystals			LEDs.
Hassan et al. [52]	CsPbBr₃	MoSe₂	The as-synthesized nanocrystals have been mixed with the 4-ATP-functionalized MoSe₂ NSs at 80 °C.	Faster charge diffusion across CsPbBr₃/MoSe₂ interfaces.
	Cubic nanocrystals			Potential applications in photovoltaic devices.
Wang et al. [57]	MAPbI₃	MoS₂	In situ coupling method through mixing.	More than two orders of magnitude higher activity.
	Irregular-shaped nanocrystals			Visible-light-driven photocatalytic H₂ evolution.
Kostopoulou et al. [58]	Cs₄PbBr₆	Graphene	Laser induced conjugation in solution.	The nanocrystals morphology does not be affected and the density of the nanocrystals can be tuned by the number of the irradiation pulses.
	Hexagonal nanocrystals
Peng et al. [53]	CsPbBr₃	2D non-layered Cadmium sulfide selenide	Spin coated perovskite nanocrystals on the top of the nanosheets layer.	Enhanced charge transport capability.
	Quite cubic nanocrystals			Photodetectors.
Lee et al. [64]	CsPbCl₃ and lanthanide ion doped CsPbCl₃	MoSe₂	Mixing of the nanocrystals and 2D materials.	The nanocrystals efficiently withdraw electrons from the nanosheets, and suppress the dark current of the MoSe₂ nanosheets.
	Cubic nanocrystals			Flexible near-infrared photodetectors with a high ON/OFF photocurrent ratio and detectivity.
Bian et al. [54]	CsPbBr₃	C₃N₄	Solid state reaction. Encapsulation of CsPbBr₃ nanocrystals in 2D C₃N₄ (core shell)	Significant improvement in CO₂ capture and charge separation.
	Spherical nanocrystals			Thermocatalysis.

3.1 Spin coating or deposition of metal halide nanocrystals on 2D material layers

This technique is widely used for the fabrication of the optoelectronic devices as it produces quite uniform nanocrystal films, and it is cost-effective and easily accessible to many laboratories. The metal halide nanocrystals which used for the deposition have been synthesized through LARP or hot injection methods and then after the purification steps were dispersed in an organic solvent. Then, the as-synthesized nanocrystals were spin coated or deposited on the layer of the 2D materials. This room temperature method was provided unique opportunities for the design and development of metal halide perovskite nanocrystals-2D heterostructures, exhibiting synergetic functionalities by combining nanocrystals of different morphologies and chemical phases with various 2D materials.

All-inorganic [40, 43, 53, 55, 56] or organic–inorganic [55] metal halide nanocrystals were used to spin coated on the 2D materials such as bilayers of mechanically exfoliated graphene [40], CVD grown single layer graphene [43], and spin-coated CdS_xSe_1−x NSs [53].

Chen et al. unveiled through a PL blinking analysis the efficient electron transfer in the CsPbI₃/single-layer graphene heterostructure due to the interfacial interaction [43]. This strong interfacial electron transfer interactions found that was unaffected by the morphology of the perovskite nanocrystals. Two different nanocrystal morphologies, nanocubes and nanowires have been included in this study. Furthermore, in the CsPbI_3−x Br_x/MoS₂ heterostructures reported by Wu et al. [56], a favorable energy band alignment facilitating interfacial photocarrier separation and efficient carrier injection into the MoS₂ which resulted to improved photocarrier generation efficacy and photogating effect. Very recently, efficient charge carrier transfer ability between the all-inorganic CsPbBr₃ perovskites and 2D cadmium sulfide selenide has been found by Peng et al. due to energy band alignment engineering [53]. The chemical phase of the perovskite nanocrystals seemed to be an important parameter to the final performance of the devices based on the heterostructures [55].

3.2 In-situ crystallization through colloidal chemistry methods (LARP and hot injection methods)

The metal halide perovskite nanocrystals can be directly grown on the 2D materials during the nanocrystal synthesis (Figure 13). In the LARP approach, the 2D materials have been dispersed in the bad solvent [41, 62] or in the precursor stock solution [59]. Quite spherical CsPbBr₃ [43] and MAPbBr₃ [64] nanocrystals around 10 nm in size have been grown on GO flakes (Figure 13(a) and (b)). In a similar manner, MAPbBr₃ nanocrystals were grown on protonated graphitic carbon nitride (p-g-C₃N₄) (Figure 13(c)) [59] and CsPbBr₃ on hexagonal boron nitride nanosheet (h-BN) [50] (Figure 13(d)) or CsPbBr₃ on black phosphorus [45].

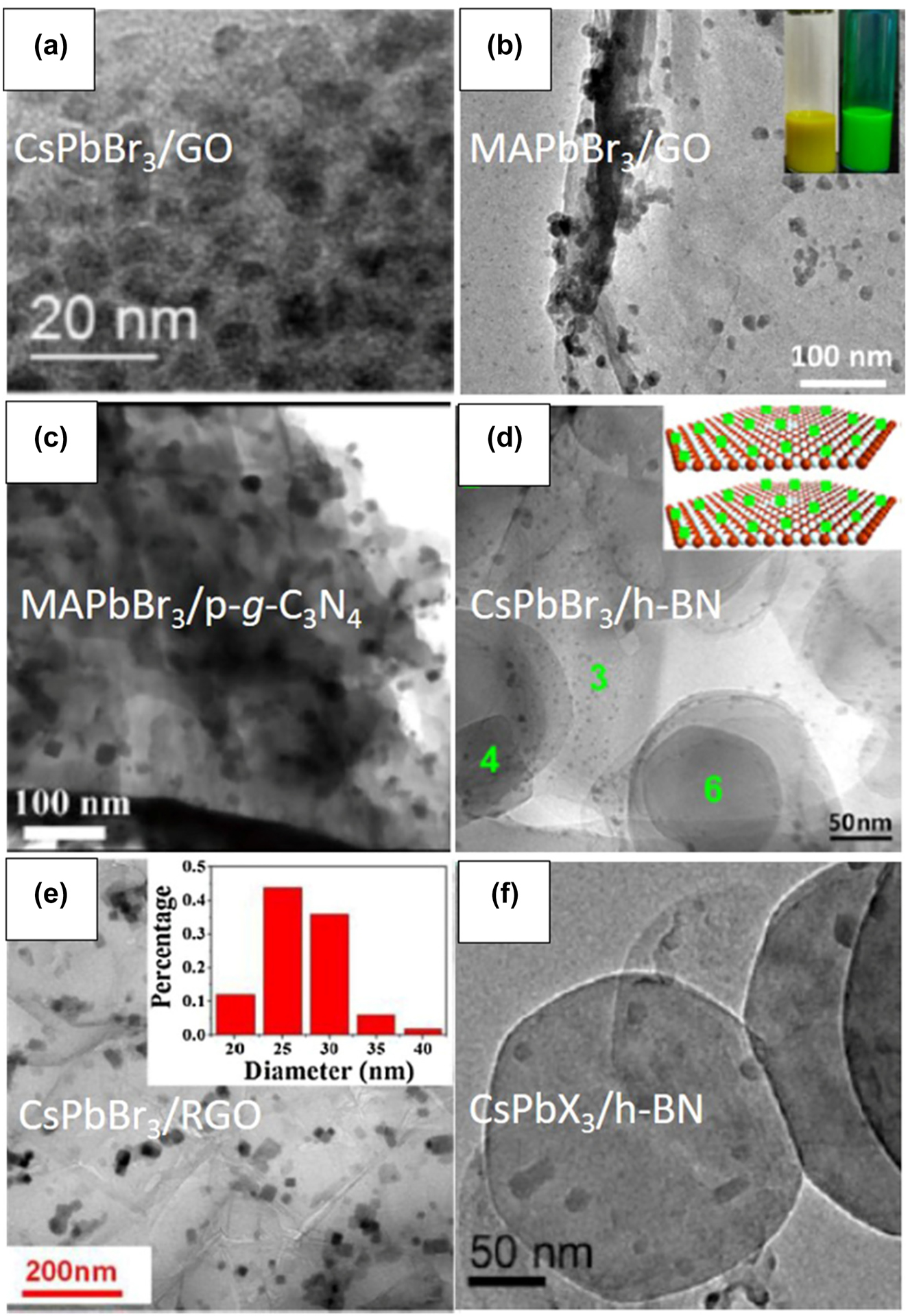

Figure 13:

Metal halide perovskite nanocrystals/2D materials heterostructures fabricated with LARP and hot injection colloidal methods. (a) Reprinted with permission from Ref. [41], copyright 2017, American Chemical Society. (b) Reprinted with permission from Ref. [62], copyright 2019, Elsevier. (c) Reprinted with permission from Ref. [59], copyright 2017, Royal Society of Chemistry. (d) Reprinted with permission from Ref. [50], copyright 2019, American Chemical Society. (e) Reprinted with permission from Ref. [42], copyright 2017, ScienceDirect. (f) Reprinted with permission from Ref. [49], copyright 2019, Royal Society of Chemistry.

In addition, the 2D materials can be dispersed in the reaction mixture with the Pb-precursor and ligands in the hot injection syntheses. Then, the Cs-precursor has been injected at high temperature and the metal halide perovskite nanocrystals started to grow on them (Figure 13(e)) [42]. Following this approach CsPbBr₃ nanocrystals have been grown on GO and rGO sheets [42, 51], a-CsPbI₃ on rGO [4] and CsPbBr₃ on hexagonal boron nitride nanosheets (Figure 13(f)) [49].

3.3 In situ coupling through mixing of the two materials

In this approach, the metal halide perovskite nanocrystals have been synthesized initially through colloidal methods and then dispersed in a proper solvent. The nanocrystals were mixed with the 2D materials that were dispersed also in the same solvent. The conjugation of the two materials was originated through chemical bonding or noncovalent interactions [39]. The challenge in this method is to select the suitable common solvent for both perovskite nanocrystals and 2D materials in order to mix them and fabricate the heterostructures.

Muduli et al. succeed to bind CsPbBr₃ nanocrystals on a few layered black phosphorous sheets through this room temperature method (Figure 14(a)) [46]. The CsPbBr₃ nanocrystals were synthesized through a hot injection method and the 2D materials through a probe sonication method independently. Then, the two solutions were mixed followed by re-sonication at room temperature and the heterostructures were obtained. The common solvent in this case was the toluene. The selection of the common solvent for this process was not so easy because the few-layered black phosphorous sheets have to be prepared in the N-Methyl-2-pyrrolidone (NMP) solvent, but the perovskite nanocrystals were degraded in the presence of this solvent. So, the 2D materials were prepared in NMP and then the NMP was exchanged with the toluene by severe centrifugation steps to make sure that no remaining NMP was left. A reduction in the CsPbBr₃ nanocrystals band gap was reflected as a blue shift of the PL peak, thereby confirming the process of charge transfer in the heterostructure. Moreover, the facile coupling of few-layer MoS₂ NSs with MAPbI₃ nanocrystals in MAPbI₃-saturated aqueous HI solution towards a MAPbI₃/MoS₂ heterostructures has been reported by Wang et al. [57] In addition, the binding can be facilitating through proper ligands. As an example, perovskite nanocrystals have been conjugated on the porous g-C₃N₄ NSs through the abundant amino sites (NH_x, x = 1, 2) existed on the edges of heptazine units (Figure 14(b)). The amino group can interact strongly with CsPbBr₃ nanocrystals [47]. Similarly, the CsPbBr₃ nanocrystals found closely anchored on 2D graphitic carbon nitride nanosheets, containing titanium-oxide species (TiO-CN), via the N–Br and O–Br bonding (Figure 14(c)) [44]. In the same direction, there are ligands which have selective affinity toward both the materials which are essential for making heterostructures with close contact [52]. For example, 4-aminothiophenol (4-ATP) was among the bifunctional ligands having both thiol (−SH) and amine (−NH₂) functionalities. Therefore, the thiol group could easily get adsorbed on the surface of the MoSe₂ NSs, whereas the protonated amine group could form an electrostatic bond with the surface bromide of CsPbBr₃ nanocrystals (Figure 14(d)) [52].

Figure 14:

Metal halide perovskite nanocrystals/2D materials heterostructures synthesized by mixing the nanocrystal solution with the 2D material solutions. (a) Reprinted with permission from Ref. [46], copyright 2018, Wiley. (b) Reprinted with permission from Ref. [47], copyright 2018, Wiley. (c) Reprinted with permission from Ref. [44], copyright 2019, Royal Society of Chemistry. (d) Reprinted with permission from Ref. [52], copyright 2020, American Chemical Society. (e) Reprinted with permission from Ref. [64], copyright 2022, Wiley.

Furthermore, all-inorganic metal halide perovskite nanocrystals were presented as nondestructive dispersants capable of dispersing TMD nanosheets in the liquid phase [64]. Specifically, diverse transition metal dichalcogenide NSs such as MoSe₂, MoS₂, and WS₂ were successfully dispersed in a nonpolar solvent with the aid of either CsPbCl₃ or CsPbBr₃ nanocrystals (Figure 14(e)). Thus, a few-layered TMD NSs decorated with the perovskite nanocrystals were formed with long-term stability.

3.4 In situ coupling through mixing of the two materials and photoreduction

Metal halide perovkskite nanocrystals/rGO heterostructures have been fabricated through a photoreduction method. With this method, MAPbI₃/rGO and Cs₂AgBiBr₆/rGO have been obtained by mixing the perovskite nanocrystals with GO and irradiated with visible light produced by Xe lamp with 420 nm cut-off filter [60, 63]. The whole process was kept by a cooling water system at 15 °C for the first system and 5 °C for the second and the irradiation duration was 10 h and 20 h, respectively.

3.5 Laser-induced conjugation in solution

A rapid photo-induced process has been reported from our group to conjugate metal-halide perovskite nanocrystals on graphene-based materials [58]. It is revealed studying the heterostructures under different number of laser pulses that a small number of pulses is sufficient to decorate the 2D flakes with metal-halide nanocrystals without affecting their primary morphology and also heterostructures with higher density of nanocrystals decorated on GO flakes have be obtained. At the same time, the density of anchored nanocrystals can be finely tuned by the number of irradiation pulses (Figure 15(a)–(g)).

Specifically, a high repetition rate fs laser system using a directly diode-pumped Yb:KGW (ytterbium doped potassium gadolinium tungstate) was employed for the irradiation of the mixed perovskite nanocrystals-GO solution. The common solvent found for the dispersion of the two materials was the dichlorobenzene. The laser wavelength, the repetition rate and the pulse duration used for the irradiation experiment were 513 nm, 60 kHz, and 170 fs, respectively. The laser fluence in all the experiments kept constant at the value of 0.5 mJ/cm² and only the number of the pulses was varied. The colloids obtained by this process were stable and no-precipitation was observed. The nanocrystal density was increased with the number of the pulses retaining their primary size and the perovskite nanocrystals were assembled first on the periphery of the GO flakes and then on the basal plane when the number of the pulses is increased to over 10³ pulses (Figure 15(h)).

The unique advantage of this technique is that it is rapid, performed at room temperature and provided unique opportunities for the design and development of perovskite-2D heterostructures; exhibiting synergetic functionality by combining nanocrystals of different morphologies and chemical phases with various 2D materials without the initial nanocrystals morphologies to be affected.

Figure 15:

3.6 Solid state reaction

Encapsulation of CsPbBr₃ nanocrystals in 2D C₃N₄ layer have been performed via a solid-state reaction by Bian et al. (Figure 16) [54]. The as-synthesized CsPbBr₃ nanocrystals were mixed thoroughly with urea in a ceramic crucible at 450 °C (optimum conditions) under N₂ atmosphere. The N₂ atmosphere is essential for the successful formation of the heterostructure. The same synthesis has showed very little polymerization of urea to carbon nitride.

Figure 16:

CsPbBr₃ nanocrystal encapsulated in 2D C₃N₄ layer fabricated through a solid-state reaction. Fabrication process (a) and TEM images (b). Reprinted with permission from Ref. [54], copyright 2022, Royal Society of Chemistry.

4 Applications

4.1 Low-dimensional perovskite light emitting diodes (LEDs)

4.1.1 Metal halide perovskite NSs

A couple of studies on the development of LED devices based on perovskite NSs will be consider first. Parveen et al. demonstrated a solvothermal process for the precise thickness tuning of 2D CH₃NH₃PbBr₃ NSs [116]. The authors discovered that upon heating at 100 °C, the self-assembled and randomly oriented nanorods allow the growth of multilayered perovskite NSs. Moreover, when further heating was applied (150 °C), large area 2D few layer CH₃NH₃PbBr₃ NSs were obtained. The thermal process is depicted schematically in Figure 17(a). Indeed, NSs with 14 down to 2 layers were formed. Figure 17(b) presents the change in optical bandgap and photoluminescence (PL) peak position against the number of layers [116]. The obtained change in the band gap with number of layers and thickness implied a strong quantum confinement effect in the constructed 2D multilayers. The authors exploited the so-formed CH₃NH₃PbBr₃ NSs for the fabrication of a photodetector with ultrafast response times of ms (Figure 17(c)). In addition, a white light converter based on compositionally tuned 2D CH₃NH₃PbBrI₂ NSs and a blue LED chip was developed (Table 4). Figure 17(d) depicts the optical characteristics of the device, while the inset shows a photo during operation [116]. On a rather different manner, Gao et al. adopted an alternative doping method for the fabrication of deep-blue LEDs based on all-inorganic perovskite NSs [117]. Namely, the authors employed a heteroatomic Cu²⁺ doping route along with Br⁻ ion exchange for the synthesis of deep-blue emitting CsPb(Br/Cl)₃ perovskites. The doping of the perovskite NSs is shown schematically in Figure 18(a). The embedded Cu²⁺ cations were found to decrease the intrinsic chlorine defects, resulting to the formation of 2D NSs of high crystalline quality. As a result, both the current density and the luminance of the developed 462 nm blue-LED enhanced significantly, when compared to the undoped device (Figure 18(b)) [117].

Figure 17:

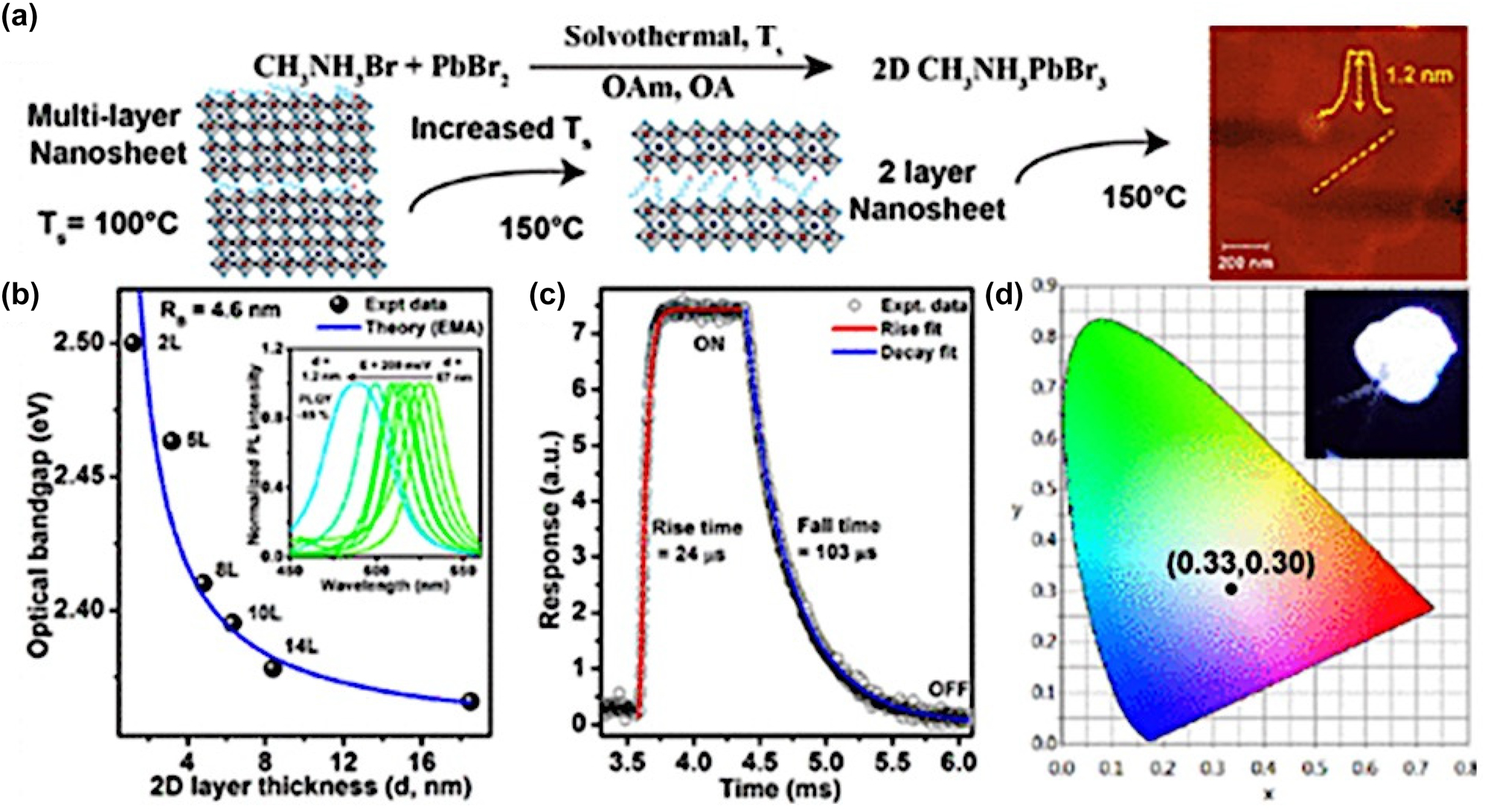

Schematic representation of the solvothermal process for the synthesis of 2D CH₃NH₃PbBr₃ NSs (a). CH₃NH₃PbBr₃ NSs optical band gap dependence on number of layers and thickness (b). CH₃NH₃PbBr₃ NSs photodetector characteristics (c). CH₃NH₃PbBr₃ NSs white light emitter in operation and chromaticity coordinates (d). (a)–(d) have been reproduced from Ref. [116] with permission from ACS American Chemical Society, copyright 2020.

Table 4:

Summary of low-dimensional perovskite nanosheets (NSs) and nanoplatelets (NPls) based configurations in light-emitting devices (LEDs). *NR stands for not reported.

Study-year	Synthesis protocol	LED device configuration	LED device characteristics	Key features/Remarks
			(EL peak, EQE, turn on voltage)
Nanosheets (NSs) based LEDs
Parveen et al. [116]	Solvothermal process	CH₃NH₃PbBrI₂ NSs/blue LED chip	470–570 nm, NR, NR	White light converter based on blue LED
Gao et al. [117]	Post-treatment ion exchange	CsPb(Br/Cl)₃ NS/blue LED chip	462 nm, NR, NR	Copper doping, deep-blue LED
Nanoplatelets (NPls) based LEDs
Ling et al. [118]	Solution-processed	Glass/ITO/PEDOT:PSS/MAPbBr₃/BCP/LiF/Al	529 nm, 0.48%, 3.8 V	First organic-inorganic perovskite NPls LED
Kumar et al. [78]	Solution-processed	Glass/ITO/PEDOT:PSS/HTL/EML/ETL/LiF/Al	456 nm, 0.23%, 3.5 V	First LED emission below 490 nm (pure blue)
Kumar et al. [78]	Solution-processed	Glass/ITO/PEDOT:PSS/HTL/EML/ETL/LiF/Al	530 nm, 2.31%, 3.5 V	Pure green LED, n = 7–10 monolayers
Si et al. [119]	Solution-processed	Glass/ITO/NiO/TFB/PVK/CsPbBr₃ TCQW/TPBi/Ca/Al	514 nm, 10.4%, 2.8 V	Pure green LED, n = 12–16 monolayers
Si et al. [119]	Solution-processed	Glass/ITO/NiO/TFB/PVK/CsPbBr₃ TCQW/TPBi/Ca/Al	683 nm, 7.3%, 3 V	Pure red LED, CsPbI₃ NPLs
Kumar et al. [120]	Solution-processed	Glass/ITO/PEDOT:PSS/Poly-TPD/2D FAPbBr₃ PMMA/3TPyMB/LiF/Al	530 nm, 3.04%, 2.75 V	Large area (3 cm²) flexible LED
Yang et al. [121]	Solution-processed	ITO glass/PEDOT:PSS/Poly-TPD/CsPbBr₃/TPBi/LiF/Al	480 nm, 0.1%, 3 V	Blue LED, large scale production
Bohn et al. [102]	Solution-processed	ITO/PEDOT:PSS/Poly-TPD/CsPbBr₃/TPBi/Ca/Ag	464 nm, 0.05%, 3.8 V	Blue LED, PbBr₂-ligands passivation
Wu et al. [22]	Solution-processed	ITO/PEDOT:PSS/Poly-TPD/CsPbBr₃ NPls/TPBi/LiF/Al	463 nm, 0.12%, 3.5 V	Blue LED, HBr passivation
Hoye et al. [122]	Solution-processed	Glass/ITO/PEDOT:PSS/poly-TPD/CsPbBr₃ NPls/TPBi/Ca/Ag	463 nm, 0.3%, 4 V	Blue LED, Poly-TPD band alignment
Hoye et al. [122]	Solution-processed	Glass/ITO/PEDOT:PSS/poly-TPD/CsPbBr₃ NPls/TPBi/Ca/Ag	489 nm, 0.55%, 4 V	Sky-blue LED, Poly-TPD band alignment
Fang et al. [86]	Solution-processed	ITO/PEDOT:PSS/PVK:TAPC/FAPbB₃ NPls/TPBi/Ca/Ag	532 nm, 3.53%, NR	Green LED, FA-based
Peng et al. [87]	Solution-processed	Glass/ITO/PEDOT:PSS/poly-TPD/FAPbBr₃ NPls/TmPyPB/LiF/Al	439 nm, 0.14%, 3.6 V	Deep-blue LED, TOPO treatment
Yin et al. [123]	Solution-processed	Glass/ITO/PEDOT:PSS/poly-TPD/CsPbBr₃ NPls/TPBi/LiF/Al	465 nm, 0.8%, 2.6 V	Blue LED, PEI treatment
Lin et al. [124]	Solution-processed	NR	NR, NR, NA	White LED, K-Br passivated, CsPbBr₃ green and CsPbBr_1.5I_1.5 red phosphor

Figure 18:

Schematic animation of the CsPb(Br/Cl)₃ perovskite NSs copper doping process (a). Current density and luminance versus voltage characteristics of the developed blue LED device based on copper-dopped and pristine CsPb(Br/Cl)₃ NSs (b). (a) and (b) have been reproduced from Ref. [117] with permission from Elsevier, copyright 2022.

4.1.2 Metal halide perovskite NPls

An overview of the more popular LEDs based on perovskite NPls. Notably, the main light emitting component of the fabricated devices consists of several perovskite NPls monolayers (with n > 7). Overall, the external quantum efficiency (EQE) of the most sufficient green NPls-based LEDs has been enhanced drastically from 0.48% back in 2016, up to 23.6% in 2020 (Table 4) [1]. Ling et al. reported on the first bright LEDs based on solution-processable MAPbBr₃ perovskite NPls [118]. The devices exhibited narrow band electroluminescence (EL) emission at 529 nm (Table 4), while the employed ligand-capped NPls showed enough stability to allow out-of-glove device fabrication. Figure 19(a) shows schematically the developed Glass/ITO/PEDOT:PSS/MAPbBr₃/BCP/LiF/Al device architecture, along with an indicative TEM image photo of the MAPbBr₃ NPls and the LED in operation [118]. In the same year, Kumar et al. exploited 2D CH₃NH₃PbBr₃ perovskites for the development of LEDs emitting in various wavelengths of the visible [78]. In particular, the EL wavelength can be tune upon altering the number of monolayers (n) of the synthesized 2D perovskites. Figure 19(b) presents indicative TEM photos of the 2D PNCs with n = 7–10 (left), and with n equal to as low as 3 (right). The induced differences in the optical properties of the 2D perovskites upon changing the layer stacking were striking. Figure 19(c) depicts the optical absorbance and PL spectra of the bulk single crystal and the colloidal solutions with various values of n, i.e. ranging from 1 to 10. As the number of layers is reduced the PL blue shifts drastically. Moreover, Figure 19(d) shows the characteristics of the fabricated LED devices as expressed in terms of normalized EL intensity, current density versus voltage, and luminescence versus voltage plots [78]. The reported EQE was 0.23% and 2.31% for the pure blue (n = 3) and pure green (n = 7–10) LEDs, respectively (Table 4). Nevertheless, the great highlight of this study was to achieve for the first-time room temperature EL below 490 nm, i.e. in the deep blue region.

Figure 19:

Schematic representation of the solution process for the synthesis of MAPbBr₃ NPls used in the first NPls-based LED device which is also shown schematically and in operation (a). (a) has been reproduced from Ref. [118] with permission from Wiley Online Library, copyright 2016). Indicative transmission electron microscopy (TEM) profiles of CH₃NH₃PbBr₃ crystals with layers n = 7–10 (left), and n = 3 (right) (b). Absorbance and photoluminescence (PL) spectra of CH₃NH₃PbBr₃ bulk single crystal and colloidal solution with various n (c). 2D CH₃NH₃PbBr₃ LEDs device characteristics as expressed by normalized electroluminescence (EL), current density versus voltage, and luminescence versus voltage plots (d). The inset in (d) slows a pure blue LED. (b)–(d) have been reproduced from Ref. [78] with permission from American Chemical Society, copyright 2016.

The following year, a great enhancement on the EQE of pure green LEDs based on monolayers of CsPbBr₃ NPls was reported by Si et al. [119] In particular, CsPbBr₃ NPls that are passivated by bulky phenylbutylammonium (PBA) cations have been fabricated, for the development of 2D layered PBA₂(CsPbBr₃)_n-1PbBr₄ perovskite films. Figure 20(a) depicts typical TEM images of the so-formed perovskite nanocrystals, whereas Figure 20(b) presents the structure schematic animation of the synthesized NPls. The thickness of the perovskite structure is of n = 12–16 monolayers. Notably, the formation of these thickness-controlled quantum-well (TCQW) structures resulted to crystalline films with smooth surface features and narrow emission line widths. Figure 20(c) presents the EL spectrum of the LED upon applying a bias voltage of 4 V, while the inset shows a photo of a device in operation [119]. An EQE up to 10.4% was achieved for the developed green LED. Moreover, on a similar basis, the authors synthesized CsPbI₃ NPls for the development of red-light emitting devices that exhibited EQEs up to 7.3% (Table 4) [119]. Kumar et al. exploited further the synthesis of 2D formamidinium lead bromide (FAPbBr₃) PNCs for the development of green LEDs, while the highlight of the study was the demonstration of an ultra-flexible large-area (3 cm²) LED device (Table 4) [120].

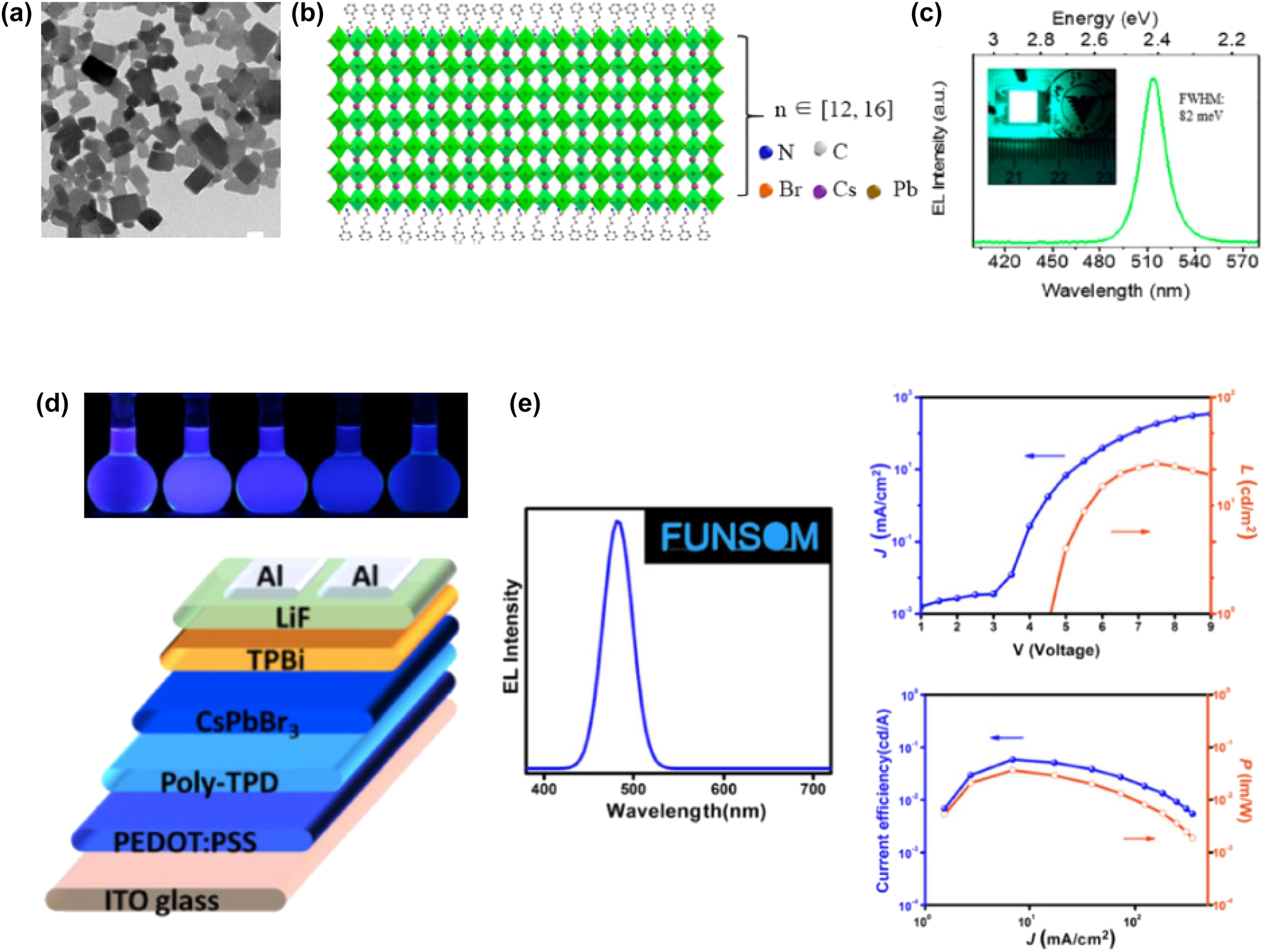

Figure 20:

Transmission electron microscopy (TEM) photo of the synthesized CsPbBr₃ NPls (a). Schematic animation of the layered CsPbBr₃ NPls structure (b). Electroluminescence (EL) spectrum at an applied bias voltage of 4 V (c). The inset shows the LED device in operation. Photos of the CsPbBr₃ NPls dispersions and schematic animation of the LED device architecture (d). LED features as expressed by luminescence emission spectrum, current density–voltage–luminescence (J–V–L plot), and current efficiency–current density–power efficiency (E–J–P plot) (e). (a)–(c) have been reproduced from Ref. [119] with permission from American Chemical Society, copyright 2017. (d) and (e) have been reproduced from Ref. [121] with permission from Elsevier, copyright 2018.

In 2018, Yang et al. developed a blue LED device based on ultrathin CsPbBr₃ NPls [121]. The NPls were synthesized through a simple large-scale one-pot approach that allowed plausible thickness control upon varying the duration of heating. Figure 20(d) depicts indicative photographs of the synthesized NPls dispersions and the architecture of the developed device, while the LED features are shown in Figure 20(e), i.e. luminescence emission, current density–voltage–luminescence (J–V–L plot), and current efficiency–current density–power efficiency (E–J–P plot). The reported EQE of the blue LED device was small (0.1%), however the study by Yang et al. paves a nice way towards large-scale production of the widely used ultrathin perovskite NPls in LED applications (Table 4). Similarly small EQEs were reported for other two cases of blue LED devices within the same year. In particular, Bohn et al. developed a blue LED based on CsPbBr₃ NPls passivated by PbBr₂-ligands [102], and Wu et al. showed the benefits of in-situ HBr passivation on CsPbBr₃ NPls-based LEDs [22]. The reported EQEs for the two blue LED devices were 0.05% and 0.12%, respectively.

A year later, another two studies focused on the development of blue LEDs. Hoye et al. demonstrated the fabrication of blue emitting devices based on CsPbBr₃ NPls, while employing poly(triarylamine) interlayers [122]. The incorporation of the polymer was found to reduce effectively the nonradiative losses within the PNCs, suggesting a promising strategy towards improving the EQE of blue light emitting devices. LEDs emitting at 464 nm (blue) and at 489 nm (sky-blue) were fabricated, upon following the device configuration depicted in Figure 21(a). Figure 21(b) shows the corresponding EL spectra along with photographs of the devices in operation [122]. The achieved EQEs of blue and sky-blue LEDs were 0.3% and 0.55%, respectively (Table 4). Following this, Fang et al. reported on the development of green LEDs based on FAPbBr₃ nanocrystals [86]. As in a previous occasion [120], the formamidinium perovskite was selected also by Fang et al. due to its better thermal stability and greener PL when compared to the more popular methylammonium component. Figure 21(c) presents the green LED architecture, along with the energy band diagram of the components and a cross-section SEM image of the device. The fabricated LED emitting at 532 nm exhibited an EQE of 3.53% (Table 4) [86]. Figure 21(d) shows an actual device in operation, whereas Figure 21(e) depicts the EL stability of a resin encapsulated FAPbBr₃-based LED over operational time. The corresponding stability test of the MAPbBr₃ device is included for comparison. Inspection of Figure 21(e) reveals the superiority of the former LED in terms of stability.

Figure 21:

CsPbBr₃ NPls blue LED device configuration (a). Electroluminescence (EL) spectra along with photos of blue and sky-blue LEDs in operation (b). FAPbBr₃ NPls green LED device configuration, energy band diagram, and scanning electron microscopy (SEM) cross-sectional image (c). FAPbBr₃ NPls green LED in operation (d). Electroluminescence (EL) stability of resin encapsulated FAPbBr₃ and MAPbBr₃ devices (e). (a) and (b) have been reproduced from Ref. [122] with permission from American Chemical Society, copyright 2019. (c)–(e) have been reproduced from Ref. [86] with permission from Springer, copyright 2019.

The following year, Peng et al. presented another deep-blue LED emitting at 439 nm [87]. The device was based on FAPbBr₃ NPls treated by trioctylphosphine oxide (TOPO) for enhancing stability and charge transport. Figure 22(a) presents the EL spectra of the LED, and the corresponding PL of the perovskite NPls. The inset shows the deep-blue LED in operation. Furthermore, Figure 22(b) depicts the energy gap schematic of the constructed device, whereas Figure 22(c) presents the chromaticity coordinates [87]. An EQE of 0.14% was obtained with a turn-on voltage of 3.6 V (Table 4). Yin et al. in 2021 reported on another blue LED emitting at 465 nm [123]. In this device CsPbBr₃ NPls were used, treated by polyethylenimine (PEI) in order to synthesize larger NPls without changing the thickness. The authors explain that this lateral size enhancement reduced the coalescence features of the NPls and decreased the density of their trap states. Consequently, higher PL quantum yields were obtained along with better color saturated blue emission. Figure 22(d) depicts the device configuration, while the corresponding energy diagram of the components is shown in Figure 22(e) [123]. Figure 35(f) shows the normalized intensity of the EL of the LED along with the PL of the perovskite NPls. The fabricated LED device exhibited an EQE of 0.8% with a turn-on voltage of 2.6 V (Table 4). Moreover, an inset in Figure 22(f) depicts a photo of the blue LED device in operation. Finally, in the same year, Lin et al. developed all-perovskite white light LEDs based on K-Br passivated CsPbBr₃ NPls, with CsPbBr₃ and CsPbBr_1.5I_1.5 components as green and red phosphor, respectively [124]. It is worth noting at this point, a different approach on enhancing the PL properties of 2D perovskites towards LEDs and other optoelectronic applications, by means of employing hyperbolic metamaterials. Indicatively, Tonkaev et al. predicted theoretically and demonstrated experimentally the enhancement of external quantum yield upon depositing quasi-2D perovskite films on hyperbolic metamaterial substrates consisting of gold and aluminum oxide layers [125]. Along similar lines, Guo et al. achieved hyperbolic dispersion arising from anisotropic dispersion in 2D perovskites [126].

Figure 22:

Electroluminescence (EL) and photoluminescence (PL) of the LED devices and the perovskite NPls (a). Energy diagram of the device structure (b). LED device chromaticity coordinates (c). ((a)–(c) have been reproduced from Ref. [87] with permission from American Chemical Society, copyright 2020). CsPbBr₃ NPls LED device configuration (d), and energy band diagram (e). Normalized EL and PL intensity of the LED device and the perovskite NPls (f). The insets show the developed blue LED devices in operation. ((d)–(f) have been reproduced from Ref. [123] with permission from American Chemical Society, copyright 2021).

4.1.3 Metal halide perovskite nanocrystals/2D materials

Finally, it is worth pointing out that 2D/3D perovskite heterostructures offer a nice platform for the development of LEDs with superior characteristics. As for instance, Heo et al. reported that the employment of a 2D/3D multidimensional interface induces carrier transmission, enhances the density of electrons and holes, and increases recombination [127]. Consequently, the EQE of the LED device is advanced. Similarly, Jiang et al. developed 2D/3D heterojunction perovskite LEDs with tunable ultrapure blue emissions [128]. Namely, by means of organic halide salt post treatment, a 2D capping layer is formed on the original 3D perovskite surface. The formation of the 2D layer assisted the passivation of defects and improved the exciton radiative recombination rate. These studies indicate that the employment of perovskite 2D/3D heterojunctions appears a promising tool towards efficient and stable LEDs.

Moreover, the design of advanced heterostructures consisting of PNCs and 2D non-perovskite materials has also been demonstrated towards the fabrication of efficient LEDs. Indicatively, Qiu et al. reported on the formation of CsPbX3 PNCs (with X = Cl, Br, I) on top of previously exfoliated 2D hexagonal boron nitride (h-BN) NSs, by means of one-pot in-situ growth synthesis [49]. The developed protocol allowed homogeneous distribution of the so-formed PNCs on the surface of the h-BN NSs, while resulting to significant improvement of the PNCs/h-BN heterostructures thermal stability. Namely, at 120 °C nearly 80% of the initial PL intensity was maintained. In addition, the PNCs/h-BN NSs exhibited improved environmental stability, upon storage in ambient atmosphere for several days without noticing severe degradation of the PL intensity. The authors demonstrated the construction of an LED device emitting warm white light, based on the employment of the synthesized blue, green, and red PNCs/h-BN powders [49]. Along similar lines, Li et al. employed successfully the 2D h-BN for improving the stability of CsPbBr₃ quantum dots (QDs) [50]. Such approaches open another window towards practically expanding the application of PNCs/2D heterostructures towards advanced, stable, and efficient LEDs.

4.2 Photodetectors

4.2.1 Metal halide perovskite NPls/NSs as photodetection element

Metal halide perovskite nanocrystals in the form of 2D architectures, NPls or NSs, combine the excellent optoelectronic properties of the perovskite nanomaterials with their unique 2D geometry and large lateral dimensions make them ideal building blocks for optoelectronic devices. Among these devices, photodetectors with high on/off ratios and fast response times have been design and fabricated using such geometries. The features of these devices are summarized in Table 5.

Table 5:

Summary of the photodetectors including metal halide perovskite nanoplatelets/nanosheets and perovskite/2D heterostructures as photodetection element and their optoelectronic features.

Study	Photodetection	Photodetector fabrication description	Type of the	Preparation method of	Responsivity	On/off	Rise/decay time	Test conditions
	material		photodetector	the perovskites		ratio
Nanoplatelets/nanosheets
Lv et al. [110]	CsPbBr₃ NSs	CsPbBr₃ NSs have been drop-casted between the electrodes on the Si/SiO₂ substrate.	Rigid	Hot injection method	^-	1 × 10²	17.8 ms/14.7 and 15.2 ms	Pulsed laser (450 nm, 1 Hz) at a fixed light intensity (13.0 mW/cm²) with a bias of 1 V
Liu et al. [129]	CH₃NH₃PbX₃ NSs	2D PbI₂ was used as the template, resulting in the growth of a non-van der Waals-type 2D perovskite CH₃NH₃PbX₃. A lithography-free technique with electrode materials with a patterned Si₃N₄ shadow mask was used.	Rigid	Combined solution process and vapor-phase conversion	22 AW⁻¹ (405 nm, 1 V) 12 AW⁻¹ (532 nm, 1 V)	–	Rise time: <20 ms Decay time: <40 ms	405 and 532 nm lasers, voltage bias of 1 V
Song et al. [135]	CsPbBr₃NSs	CsPbBr₃ NSs dispersion was used to assemble films by centrifugal casting on the patterned ITO/polyethylene terephthalate (PET) substrates.	Flexible	Hot injection method	0.64 mA W⁻¹	>10³	0.019 ms/0.024 ms	442 nm laser light, voltage bias of 1 V
Niu et al. [32]	CH₃NH₃PbI₃ NPls	Vapor phase deposition of 2D triangular or hexagonal CH₃NH₃PbI₃ perovskite nanoplatelets on SiO₂/Si substrates. For the fabrication of the electrodes, a copper grid was placed on top of as-grown flake as a shadow mask for resist-free metal evaporation.	Rigid	Vapor phase deposition	23.3 mA W ⁻¹	–	150 ms	633 nm laser light, voltage bias of 1 V
Qin et al. [132]	CH₃NH₃PbI₃ NPls	The CH₃NH₃PbI₃ NPls synthesized by a solution recrystallization strategy were transferred from the growth surface to the Si/SiO₂ through the probe mechanical transferring method. Then, Au electrodes were deposited by a shadow mask method.	Rigid	Solution recrystallization strategy	–	1210	–	Various light intensities from 13.0 to 73.7 mW cm⁻² at 2 V.
Li et al. [136]	CsPbBr₃ NSs/CNT	Drop-casting of the CsPbBr₃ NSs/CNT dispersion on the interdigitated electrodes.	Flexible	LARP (NSs). Mixing and sonication (CNTs + NSs)	31.1 A W⁻¹	–	16 μs/0.38 ms	442 nm laser light, 10 V voltage bias
Li et al. [143]	CH₃NH₃PbI₃ NSs	Combined solution process and vapor-phase conversion method to grow the CH₃NH₃PbI₃ NSs on the SiO₂ substrate.	Rigid	Solution crystallization process to make the PbI₂ nanosheets and then CVD to convert them to CH₃NH₃PbI₃ NSs	36 mA W⁻¹		320 ms/330 ms	635 nm laser light, 0.5 V voltage bias
Liu et al. [133]	CsPbBr₃ NPls	The CsPbBr₃ NPls were drop casted onto SiO₂/Si substrates followed by annealing at 60 °C.	Rigid	LARP	34 A W⁻¹	–	0.6 ms/0.9 ms	442 nm laser irradiation, 1.5 V
Shen et al. [138]	CsPbBr₃ NSs	The CsPbBr₃ NS solution were blended with PCBM and then dropped onto Si/SiO₂ and ITO/PET electrodes.	Flexible	LARP	10.85 A W⁻¹	–	44 μs/390 μs	442 nm laser irradiation, 1.5 V
Yang et al. [134]	CsPbBr₃ NSs	The CsPbBr₃ NSs were drop casted onto interdigitated electrodes and then annealed.	Rigid	Hot injection	0.53 A W⁻¹	10⁴	0.333 ms/0.418 ms	525 nm LED, 5 V
Yang et al. [139]	CsPbBr₃ NSs	The CsPbBr3 NSs were spin casted onto interdigitated electrodes and then annealed.	Flexible	Hot injection	11 A W⁻¹	11	2650 ms/4000 ms	365 nm LED, 1 V
Xin et al. [137]	CsPbBr₃ NSs	The CsPbBr₃ NSs’ solution were drop casted on the patterned Au/Ti/polyimide films substrates and then annealed.	Flexible	Hot injection	9.04 A W⁻¹	–	–	242
Mandal et al. [33]	CsPbBr_1.5I_1.5 NSs	CsPbBr_1.5I_1.5 NS solution was spin coated on the top of the HTL followed by dipping in a saturated solution of Pb(NO₃)₂ in methyl acetate for the removal of the excess ligands. Then the substrates transferred to thermal evaporation for the deposition of the electrodes.	Rigid	Hot injection	3946 A W⁻¹	–	116 ms/147 ms	AM 1.5 G solar illumination of power density 100 mW cm⁻²
Metal halide perovskite nanocrystals/2D materials heterostructures
Wang et al. [70]	CH₃NH₃PbBr₂I/GO	The perovskite nanoislands were grown directly on the graphene film that was deposited on Si/SiO₂ substrates and the electrodes were fabricated.	Rigid	Direct crystallization	6.0 × 10 5 A W⁻¹		120 ms/750 ms	405 nm laser, 1 V
He et al. [140]	CH₃NH₃PbI₃/rGO	CH₃NH₃PbI₃/rGO solution was drop-casted on Si/SiO₂ substrate, above which the Au/Cr electrodes were thermally deposited.	Rigid	In situ growth of nanocrystals on the 2D materials in LARP process	73.9 mA W⁻¹	23.5	40.9 ms/28.8 ms	Light irradiation at 520 nm, 5 V
Kwak et al. [40]	CsPbBr_3−xI_x/graphene	CsPbBr_3-xI_x nanocrystals were deposited on bilayer graphene mechanically exfoliated from the graphene flakes on the Si/SiO₂ substrate.	Rigid	Hot injection method	8.2 × 10⁸ A W⁻¹		0.81 s/3.65 s	405 nm at bias 1 V
Song et al. [141]	CsPbBr₃/MoS₂	Ligand-capped CsPbBr₃ NSs were drop-casted on MoS₂ monolayer film growth by CVD on SiO₂ substrate, which was followed by annealing the device at 60 °C.	Rigid	LARP	4.4 A W⁻¹	10⁴	0.72 ms/1.01 ms	442 nm laser, 10 V
Wu et al. [142]	CsPbI_3−xBr_x/MoS₂ (treated nanocrystals)	CsPbI_3−xBr_x nanocrystals were spin-coated onto MoS₂ layer and then annealed at 60 °C.	Rigid	Hot injection method and treatment with 1-octane/ethyl acetate	1.13 × 10⁵ A W⁻¹		0.42/0.19 s	532 nm illumination

Rigid photodetectors. The first photodetector using all-inorganic metal halide perovskite NSs was reported in 2016 by Lv et al. [110] The simple structured device was constructed as following: the photodetection element which was the CsPbBr₃ NSs synthesized by hot injection method was drop casted between two Au electrodes pre-patterned on SiO₂/Si wafers followed by drying (Figure 23(a)). The CsPbBr₃ NSs were selected due to their better stability against moisture compared to that of CsPbI₃. Time-dependent photocurrent was measured under a 1 Hz pulse laser (450 nm) at a fixed light intensity (13.0 mW/cm²) with a bias voltage of 1 V (Figure 23(b)). The optical switching and stability of the perovskite NS photodetector was confirmed by the prompt and reproducible photocurrent response to on/off cycles (Figure 23(c)). The rise time was determined to be 17.8 ms, while the decay times were determined to be 14.7 and 15.2 ms (Figure 23(d)). In the same year, a bit later, CH₃NH₃PbI₃ NSs have been used as photodetection element as well (Figure 23(e)) [129]. The NSs have been prepared by a combined solution process and vapor-phase conversion. 2D PbI₂ NSs were firstly nucleated onto the substrate by drop casted a saturated PbI₂ aqueous solution and subsequently heated at an elevated temperature and then the 2D CH₃NH₃PbI₃ NSs were formed by intercalating the CH₃NH₃I molecules into the interval sites of PbI₆ octahedron layers through a CVD process. The photodetector including these NSs found that was sensitive to a broad-band light from the ultraviolet to the entire visible spectral range and presented an effective optical switching (Figure 23(f)). Nevertheless, the 2D perovskite-based photodetector was sensitive to a broad-band light from the ultraviolet to the entire visible spectral range. Time dependent photocurrent was measured under the illumination of natural light (inset of Figure 26(f)). The rise and decay times for this device were found slightly higher (Figure 23(h)) than that of using CsPbBr₃ and reported by Lv et al. [110] while its photoresponsivities with a voltage bias of 1 V were calculated to be 22 AW⁻¹ under a 405 nm laser and 12 AW⁻¹ under a 532 nm laser (Figure 23(g)), higher than that of the devices included bulk perovskite film [130] and lower than that of perovskite microplates [131] of the same chemical phase. The dependence of the photoresponse as a function of NS thickness was studied by Niu et al. and the photodetector including NSs of 30–40 nm thickness showed the best electronic and optoelectronic performance (Figure 23(i)) [32]. Furthermore, the nanoplatelet-based devices demonstrated a relatively higher performance compared to that of the nanowires of the CH₃NH₃PbI₃ chemical phase [132].

Figure 23:

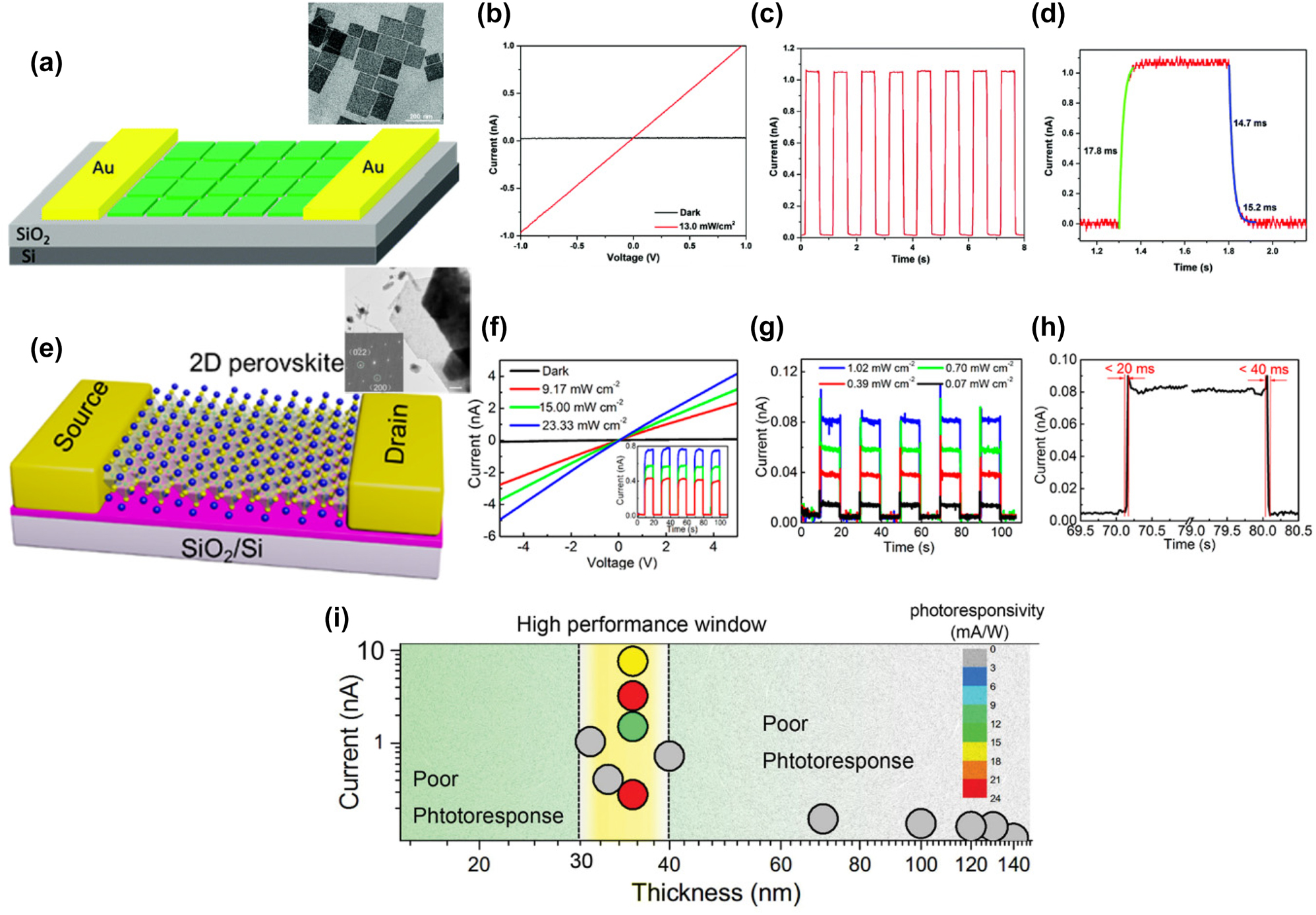

Photodetectors based on metal halide perovskite NPls. (a)–(d) Schematic of the first photodetector based on all inorganic metal halide perovskite (CsPbBr₃) NSs and its characteristic, I–V curves measured in the dark and under illumination using a 450 nm laser diode, photocurrent-time response measured in the dark and under pulsed laser (450 nm, 1 Hz) with a bias of 1 V (P = 13.0 mW/cm²) and rise and decay times of the photodetector. Reprinted with permission from Ref. [110], copyright 2016, The Royal Society of Chemistry. (e)–(h) Schematic of the first photodetector based on organic-inorganic metal halide perovskite NSs and its characteristic, I–V curves of the 2D perovskite-based device under the irradiation of natural light with different power, time-dependent photocurrent measurement on the 2D perovskite phototransistor under the different power of a 405 nm laser with a voltage bias of 1 V, temporal photocurrent response excited at 405 nm. Inset (f): Time-dependent photocurrent measurement over five on−off periods of operation under different power of natural light with a voltage bias of 1 V. Reprinted with permission from Ref. [129], copyright 2016, American Chemical Society. (i) Different electrical performances with perovskite NPls depending on different thickness. Derived bias is 1 V for both dark current and photoresponse. Reprinted with permission from Ref. [32], copyright 2016, Wiley.

Later, two works showed that the design of the photodetector (planar or vertical-type) and also the method that the 2D perovskites were fabricated were crucial for the final efficiency of the photodetector. Firstly, Li et al. fabricated a vertical-type photodetector to compare its efficiency with those of planar-type. The CH₃NH₃PbI₃ perovskite NSs used as photodetection elements were fabricated with the same method used previously by Liu et al. [129] The comparison revealed that the vertical-type photodetector showed the advantages of low-voltage operation and large responsivity compared to the planar-type design. Furthermore, photodetectors based on solution-processed scattered CsPbBr₃ NPls with lateral size of 10 μm developed though an ion-exchange soldering mechanism showed higher efficiency compared to that used NPls/NSs synthesized by different methods [133]. The large lateral size facilitated a single CsPbBr₃ NPl to bridge across the channel between two metal electrodes. In order to study the effect of using these scattered single NPls as photodetector elements, a drop casted densely packed NPls were also fabricated and tested. The photoresponsivities of these densely packed CsPbBr₃ NPls were approximately two orders of magnitude lower than the responsivities calculated from scattered single CsPbBr₃ NPls due to the significantly enhanced light absorption and the facilitated subsequent electron–hole transport directly between metal electrodes without boundaries among different NPls. Furthermore, post annealed procedure has been performed in order to obtain strongly coupled ligand-capped NSs films, to improve the charge transfer rate while maintaining their stability in the NSs film [134].

A comprehensive study of the effect of the thickness of the NSs on the photodetection capability using these materials were reported by Mandal et al. recently (Figure 24(a)) [33]. This investigation revealed that the CsPbBr_1.5I_1.5 NSs with thickness of ∼6.1 nm showed the best responsivity in photodetectors with in plane configuration. The photodetector’s properties including the CsPbBr_1.5I_1.5 NSs were improved compared to those of CsPbBr₃ or CsPbI₃ (Figure 24(b)) and nanocrystals having the same stoichiometry (Figure 24(c)). The current density, the responsivity and the detectivity between the different devices were illustrated in Figure 24(c)–(f) and the bar plots of the maximum obtained responsivity and detectivity at different applied biases were in Figure 27(h). The highest responsivity and detectivity at 2 V were demonstrated for device including the Br_1.5 I_1.5 NSs (2121 A W⁻¹) and 1.5 V (3.8 × 10¹⁰ Jones), respectively. In addition, the photodetector parameter found that can be enhanced by further altering the thickness of the NSs. While the NSs with 4.9 ± 0.5 nm were the thinner one prepared by using 18-carbon ligands, the NSs with 6.1 ± 0.3 by combining short-chain (8-carbon) ligands (octanoic acid and octylamine) showed the best photodetector performance (photocurrent, responsivity and detectivity) (Figure 24(g)–(i)). In addition, this device showed lower rise (116 ms) and decay time (147 ms) than the thinner Br_1.5I_1.5 NS devices (150 and 156 ms, respectively).

Figure 24:

Photodetectors based on metal halide perovskite NSs. (a) Schematic diagram of the CsPbX₃ (X = Br, Br/I, I) NSs photodetector device. (b) Top view FESEM images of the NSs film. (c)–(f) Responsivity plot, detectivity plot, and bar plot of the optimum values. (g)–(i) The corresponding diagrams for the optimum device including the NSs capped with short chain ligand (NSs thickness = 6.1 nm). Reprinted with permission from Ref. [33], copyright 2021, American Chemical Society.

Flexible photodetectors. The first flexible photodetector using similar structured materials was reported by Song et al. in 2016 [135]. All-inorganic CsPbBr₃ NS dispersion was used to assemble films by centrifugal casting on the patterned ITO/polyethylene terephthalate (PET) substrates to form the flexible device (Figure 25(a)). The responsivity of this flexible photodetector under 5 V at 517 nm reached the value of 0.25 A W⁻¹, which matched that of commercial Si photodetectors (<0.2 A W⁻¹). The reproducible character in response to the on-off cycles also revealed and extracted rise and decay times were 19 and 25 μm, respectively, which are much shorter than the previously reported rigid photodetectors including metal halide perovskite NSs. Also, the flexible photodetectors were stable at various bending curvatures even after bending for 10,000 times but also after irradiating for 12 h with a 442 nm laser (10 mW cm⁻²). The current fluctuations were <3%.

Figure 25:

Flexible photodetectors based on 2D metal halide perovskite NSs (CsPbBr₃) (a) and perovskite NSs/carbon nanotubes composite (b). Device structure and basic features. (a) Reprinted with permission from Ref. [135], copyright 2016, Wiley. (b) Reprinted with permission from Ref. [136], copyright 2017, American Chemical Society.

In order to improve the film conductivity of the CsPbBr₃ NSs and hence boost the performance of the flexible photodetector, the construction of perovskite NSs/carbon nanotubes (NSs/CNTs) composite has been proposed by Li et al. (Figure 25(b)) [136]. Such strategy would contribute to both high response speed and high responsivity. According to the energy level of CsPbBr₃ NSs and CNTs the photogenerated electrons would be extracted quickly to CNTs resulting in a fast response speed and efficient usage of excited electrons and also the electron transport could be improved as these could be drift along the CNTs smoothly with little scattering and recombination due to the high conductivity of them. Hence, the improved responsivity was 31.1 A W⁻¹ under a bias of 10 V, and the rise and decay times were 16 μs and 0.38 ms. The composite showed good flexibility (>10,000 bending cycles) and photostability (<3.8% after 10,000 on/off switching cycles). Smaller fluctuations in photocurrent (∼2%) after 10,000 bending cycles have been succeed using a “double solvent evaporation inducing self-patterning” strategy to generate high-quality patterned thin NSs films in selected areas automatically after drop-casting in flexible substrates [137]. This “self-patterning” approach led to large continuous area, micro-cracks-free, dense, and high-quality CsPbBr₃ NSs films and to photodetectors with responsivity of 9.04 A/W.

In a different approach, all-inorganic metal halide perovskite NSs were blended also with PCBM to form a photodetector element for flexible photodetectors [138]. The photodetectivity in the device using the hybrid element found much higher compared to that using the bare perovskites NSs. Efficient conductive layers such as CuSCN and NiO were employed also in order to increase the charge transfer rates [139].

4.2.2 Metal halide perovskite nanocrystals/2D materials heterostructures as photodetection element

Rigid photodetectors. The first photodetector including metal halide perovskite nanocrystals/2D materials heterostructures reported in 2015 by Wang et al. [70] In particular, a high performance phototransistor based on organic–inorganic metal halide perovksite nanocrystals/graphene heterostructure was constructed in which CH₃NH₃PbBr₂I perovskite islands instead of continuous film have been grown through a fast crystallization deposition method on monolayered graphene. Perovskite nanoislands with well-controlled size and distribution were grown directly on the graphene film that was deposited on Si/SiO₂ substrates. The electrodes were fabricated to facilitate the collection of photocarriers. The photodetector showed an extremely high responsivity 6.0 × 10⁵ A W⁻¹ and a photoconductive gain of ≈10⁹ electrons per photon because of effective photogating effect applied on graphene along with increased lifetime of trapped photocarriers in separate perovskite islands. This photodetector was also capable for broadband detection from 250 to 700 nm. Furthermore, almost simultaneously photodetector using heterostructured materials synthesized with wet chemistry approach was reported by He et al. [140]. In this device, CH₃NH₃PbI₃/rGO heterostructures were synthesized by in situ growth of the perovskite on the 2D materials through an LARP method. Then, this CH₃NH₃PbI₃/rGO solution was drop-casted on Si/SiO₂ substrate, above which the Au/Cr electrodes were thermally deposited. CH₃NH₃PbI₃/rGO hybrids formed p–n molecular junctions with rich interfaces, which led to efficient charge separation while the insertion of rGO lowered the energy offset between CH₃NH₃PbI₃ and Au, which facilitated charge collection. Thus, despite the dark current of the photodetectors including the pure CH₃NH₃PbI₃ and those including the perovskite/2D material heterostructure were very close, the second exhibited a photocurrent almost 6.5 times higher. In addition the ON/OFF ratio found 168, about 6 times higher than the CH₃NH₃PbI₃ photodetector (ON/OFF = 23.5) and the responsivity presented a 6-fold improvement (73.9 mA W⁻¹).

The photoresponsivity was improved by using all-inorganic perovskite nanocrystals/graphene materials heterostructures [40]. The hybrid photodetector CsPbBr_3−xI_x/graphene was resulted in responsivity as high as 8.2 × 10⁸ A W⁻¹ and detectivity of 2.4 × 10¹⁶ Jones at incident power of 0.07 μW/cm² under 405 nm illumination. The ligand-capped nanocrystals in this case were prepared by a hot injection method and then deposited on a bilayer graphene film mechanically exfoliated from the graphene flakes on the Si/SiO₂ substrate. The slow rise and decay time of the hybrid photodetector calculated in the order of seconds found that could be originated from the blockage of carrier transport due to the long-chain organic ligands on metal halide perovskite nanocrystals. Higher photoresponsivity found also by combining all inorganic metal halides (CsPbBr_3−xI_x) with MoS₂ compared to those using organic inorganic ones (CH₃NH₃PbBr₃) (Figure 26(a)) [55]. Much shorter rise and decay times were measured in the photodetectors based on CsPbBr₃/MoS₂ heterostructures [141].

Figure 26:

Phototransistor including metal halide perovskite nanocrystals/2D materials heterostructures. Effect of the chemical phase (a) and surface treatment (b) of the nanocrystals on the photodetector performance. (a) Reprinted with permission from Ref. [55], copyright 2018, Wiley and (b) Reprinted with permission from Ref. [142], copyright 2019, Wiley.

Moreover, a solution-processed surface ligand density control strategy has been proposed by Wu et al. to increase the interfacial charge carrier extraction and injection efficiency by removing the residue ligands that existed due to the fabrication approach used and therefore to improve the efficiency of the phototransistors based on CsPbI_3−xBr_x/MoS₂ heterostructures (Figure 26(b)) [142]. A treatment with 1-octane/ethyl of the perovskite nanocrystals was included in this approach and no effect on their stability was observed after the treatment. The improved photocurrent and photoresponsivity as well as the rise and decay time of the phototransistor were presented in Figure 26(b). These results can be attributed to the prevention of the carriers to be recombined at CsPbI_3-xBr_x nanocrystals/MoS₂ interfacial traps as well as to probable contribution from the reduced recombination rate in MoS₂ region via the n-doping effect of perovskite nanocrystals.

4.3 Photocatalysis

4.3.1 Metal halide perovskite NPls/NSs for photocatalysis

Photocatalysts for organic chemistry. Oxidation of toluene which is an organic pollutant into useful chemical products like benzaldehyde and benzoic acid as essential materials for organic synthesis, antibacterial, biological and pharmaceutical applications is of great interest nowadays [144]. The ligand on the surface of the nanoparticulate photocatalysts could limit their performance in photocatalytic conversion applications.

Lead-free bismuth-based metal halide perovskite platelets free of capping ligands used as active photocatalysts and found that can continuously and stably convert toluene to benzaldehyde with a high selectivity (≥88%) after 36 h light irradiation in air (Figure 27(a)) [35]. In the presence of dilute H₂SO₄ solution and ethyl acetoacetate as the directing agent, Cs₃Bi₂Br₉ platelet microcrystals with different thicknesses ranging from 100 to 500 nm could be formed after rapid cooling in liquid nitrogen within one minute. The high activity and long-term stability of the Cs₃Bi₂Br₉ platelet photocatalysts were revealed by time-dependent photocatalytic reaction experiments, in which 232 μmoles of toluene in total has been converted after 36 h light irradiation in air. In addition, a high selectivity (≥88%) toward benzaldehyde was achieved and benzyl alcohol was produced as the main byproduct, while less than 3% of benzoic acid was detected. The conversion rate was increased with the irradiation time during the first 8 h and stayed relatively stable for another 28 h. This high stability with the time was observed for the platelet’s morphology and not for the nanocrystals of the same chemical phase which have been deactivated after short reaction time (8 h) due to the complete hydrolysis of the bismuth halide perovskite to the BiOBr phase.

Figure 27:

Metal halide perovskite NPls/NSs as photocatalysts for (a) oxidation of toluene, (b) conversion of styrene into benzaldehyde and (c), (d) CO₂ reduction. (a) Reprinted with permission from Ref. [35], copyright 2021, Wiley. (b) Reprinted with permission from Ref. [145], copyright 2020, Frontiers. (c) Reprinted with permission from Ref. [36], copyright 2021, Wiley, (d) Reprinted with permission from Ref. [109], copyright 2021, American Chemical Society.

In the same direction, 2D metal halide perovskite morphologies have been used as visible light photocatalysts to convert styrene into benzaldehyde [145]. CsPbBr₃/Cs₄PbBr₆ NSs synthesized by LARP method have been chemically modified by ZrCl₄ to simultaneously achieve the Cl doping and the surface modification with Zr species (Figure 27(b)). The production rate of the modified NSs found to be 1098 μmol g⁻¹ h⁻¹, in comparison to the value of 372 μmol g⁻¹ h⁻¹ of the untreated NPls. Both the Cl doping and the surface treatment with the Zr species found that was crucial for the improvement of the catalytic performance. According to the proposed mechanism, the excitons were activated by the visible light, and the electrons generated by the separation of electron–holes pairs were moved to the surface of the platelets and react with the O₂. The activated oxygen species then selectively oxidized the cation radicals produced by the oxidation of the styrene by the holes leading to the formation of the benzaldehyde. The photocatalytic production rate of benzaldehyde was accelerated in the case of the treated platelets as the generation and transfer of excitons was promoted.

Photocatalytic CO₂ reduction. The room temperature synthesized nanosheet-like morphology of the metal halide perovskites due to their large proportion of low-coordinated metal atoms together with the short carrier diffusion distance proved that facilitates and improves the photocatalysis of the CO₂ reduction without any organic sacrificial agent compared to the nanocrystals of the same chemical phase [36]. The activity of the photocatalytic CO₂ reduction to CO seemed to be thickness dependent (Figure 27(c)). The generation rate of CO was decreased gradually along with the thickness reducing of the NSs and the highest CO generation rate found to be for the NSs with 4 nm thickness (21.6 μmol g⁻¹ h⁻¹). Furthermore, anion exchanged CsPbBr_3−xI_x NSs showed enhanced photocatalytic CO₂ reduction compared to that of CsPbBr₃ NSs, which can be attributed to the enhanced visible light-harvesting capacity of the mixed halide perovskites. The highest CO generation rate found for the CsPbBr_2.4I_0.6 NSs (electron consumption rate of 87.8 μmol g⁻¹ h⁻¹), which is over seven and two times higher than that of the CsPbBr₃ nanocrystals and CsPbBr₃ NSs. Also, the partially replacement of the Br⁻ with I⁻ only increased the photocatalytic activity without affecting their stability.

The first report on using lead-free 2D perovskite materials in photocatalytic CO₂ reduction was recently by Liu et al. (Figure 27(d)) [109]. The photocatalytic performance found enhanced in the case of Cs₂AgBiBr₆ NPls compared with their nanocube counterpart. Nearly no H₂ can be detected throughout the entire reaction, suggesting that the selectivity for the CO₂ reduction was >99%. Furthermore, both the CO and CH₄ production rates were significantly higher when using the NPls as catalysts compared to the nanocrystals.

4.3.2 Metal halide perovskite nanocrystals/2D materials heterostructures for photocatalysis

Metal halide perovskite nanocrystals/2D materials heterostructures are unique photocatalysts because they offer increased catalytic sites and sufficient charge separation compared to the pure perovskite nanocrystals and the 2D materials that are characterized from strong radiative recombination and insufficient stability limiting their catalytic performance and application.

Photocatalysts for CO₂ reduction. The first report of using metal halide perovskite/2D materials heterostructures for CO₂ reduction was in 2017 from Xu et al. [41] CsPbBr₃ quantum dots were conjugated on graphene oxide through a room temperature LARP method (Figure 28(a)). The CO₂ reduction experiments were conducted with ethyl acetate as solvent. Ethyl acetate was selected among different solvents because its mild polarity can stabilize the CsPbBr₃ quantum dots and the CO₂ is highly soluble in this. Light was provided by a 100-W Xe lamp with an AM 1.5 G filter to simulate solar light illumination. Figure 28(a) illustrates the amounts of the CH₄ and H₂ produced after 12 h of the photocatalytic reaction. The selectivity for CO₂ reduction was greater than 99%. Neither phase transformation nor degradation occurred after 12 h of the photocatalytic reaction. The rate of electron consumption for the heterostructure found to be 29.8 μmol/g h compared to the 23.7 μmol/g h for the individual CsPbBr₃ quantum dots. Much improved yield was observed for the conjugation of CsPbBr₃ nanocrystals with the NH_x-rich porous g-C₃N₄ nanosheets (Figure 28(c)) [47]. The photocatalytic CO₂ reduction reaction in the later heterostructure was carried out in acetonitrile/water or ethyl acetate/water mixture. Acetonitrile and ethyl acetate were chosen because CsPbBr₃ nanocrystals were more stable in them than in water and their CO₂ solubility is high under mild reaction conditions. The existence of the NH_x on the surface on the g-C₃N₄ found to be crucial for the formation of the N-Br bond leading to higher photocatalytic CO₂ reduction activity. The activity of heterostructured photocatalyst with 20% anchored nanocrystals for reduction of CO₂ to CO was calculated 15 and 3 times higher compared to the pure perovskite nanocrystals and 2D materials. The stability under consecutive runs had been also evaluated, and only 10.3 and 2.4% was incurred after three runs in acetonitrile/water and ethyl acetate/water, respectively. In addition, the yield of GO for the electrochemical CO₂ reduction was improved when organic–inorganic metal halide nanocrystals were conjugated on graphene oxide. In this case the yield of the products was 1.05 μmol cm⁻² h⁻¹ compared to that of the 0.268 μmol cm⁻² h⁻¹ of the net perovskite nanocrystals (Figure 28(b)) [62].

Figure 28:

Photocatalysts for CO₂ reduction based on metal halide perovskite nanocrystals/2D materials heterostructures. Reprinted with permission from Ref. [41], copyright 2017, American Chemical Society (a), Reprinted with permission from Ref. [62], copyright 2018, Elsevier (b), Reprinted with permission from Ref. [47], copyright 2018, Wiley (c), Reprinted with permission from Ref. [66], copyright 2018, Elsevier (d), Reprinted with permission from Ref. [65], copyright 2019, American Chemical Society (e).

Various 2D materials have been used in the heterostructures for catalysis except of GO [41, 62] and C₃N₄ [47] such as graphitic carbon nitride (containing titanium-oxide species) [44], SnS₂ nanosheets [65], MoS₂ [66] while the most of them are conjugated with CsPbBr₃ nanocrystals due to their higher stability at ambient conditions. The CsPbBr₃/MoS₂ heterostructure reached the high yield of products for CO of 25.0 μmol g⁻¹ h⁻¹ (Figure 28(d)) [66]. The only report found using lead-free perovskite nanocrystals reported by Wang et al. (Figure 28(e)) [65]. The Cs₂SnI₆/SnS₂ heterostructures showed 5.4-fold and 10.6-fold enhancements of the CO₂ reduction and photoelectrochemical performance compared to the unadorned SnS₂.

Photocatalysts for hydrogen splitting. Photoinduced splitting of hydrohalic acids (HX) to generate H₂ is a growing research field and effective photocatalysts of low cost and easily scalable fabrication process are demanded. In 2016 was the first report on a strategy for photocatalytic hydrogen iodide (HI) splitting using methylammonium lead iodide (MAPbI₃) in aqueous HI solution [67] while two years later the photocatalytic H₂ evolution of their heterostructures with rGO was evaluated [60]. These heterostructures showed 67 times faster H₂ evolution rate (93.9 μmol h⁻¹) than that of pristine MAPbI₃ nanocrystals under 120 mW cm⁻² visible-light (λ ≥ 420 nm) illumination. In addition, these heterostructured photocatalysts found that were highly stable showing no significant decrease in the catalytic activity after 200 h (i.e. 20 cycles) of repeated H₂ evolution experiments. The conjugation of the same perovskite materials with 2D few-layer black phosphorus yielded the superb hydrogen evolution reaction rate of 3742 μmol h⁻¹ g⁻¹ [146] while with MoS₂ the evolution rate of 206.19 μmol h⁻¹ [57].

Despite the high photocatalytic H₂ evolution of the pure metal halide nanocrystals or their heterostructures with 2D materials, the lead toxicity issue could limit their use in photocatalysis. Wang et al. reported the heterostructure of lead-free metal halide nanocrystals with rGO for application in H₂ evolution in saturated HBr aqueous solution [63]. Using the Cs₂AgBiBr₆/RGO heterostructure as photocatalyst, 489 μmol h⁻¹ H₂ could be produced within 10 h under visible light irradiation (λ ≥ 420 nm, 300 W Xe lamp). The heterostructure with 2.5% rGO found to be the optimum concentration and also showed the high stability of the 120 h. In addition, hydrogen evolution rate of 380 μmol h⁻¹ found for Cs₂AgBiBr₆/nitrogen-doped carbon heterostructures in aqueous HBr solution [68].

4.4 Low-dimensional perovskite solar cells

4.4.1 Metal halide perovskite NPls/NSs

The introduction of low-dimensional perovskite nanosheets in the field of solar cells was demonstrated by Bai et al. in 2018 [34]. The authors presented a recrystallization method for the formation of ultrathin high-quality lead-free Cs₃Bi₂I₉ perovskite NSs film. Figure 29(a)–(d) depict top-view scanning electron microscopy (SEM) images of different Cs₃Bi₂I₉ films. The morphology of the so-formed NSs was varied according to the concentration of DMF solvent during the recrystallization process. Namely, the NSs edge could reach a length of around 2 µm, whereas their thickness was about 400 nm [34]. The perovskite solar cell (PSC) devices with ultrathin Cs₃Bi₂I₉ NSs exhibited a remarkable improvement in the power conversion efficiency (PCE) and stability, when compared to the corresponding devices with typical films by means of conventional spin-coating methods. Figure 29(e) shows the developed PSC configuration along with the SEM cross-section of the fabricated device. A planar FTO/c-TiO₂/Cs₃Bi₂I₉/HTL/Au architecture was employed, while three types of hole transport layer (HTL) materials were tested. Figure 29(f) presents the indicative current density versus voltage plots for the PSCs with CuI, Spiro-OMeTAD, and PTAA polymers as HTL. The determined values of PCE for the three devices were 3.2%, 1.77%, and 2.30% (Table 6), respectively [34]. Notably, all values are improved when compared to the highest previously reported PCE of A₃Bi₂I₉-based devices without nanosheets (1.64%). More importantly, the nanosheet-based PSCs exhibit good PCE stability when exposed to ambient air of 45% relative humidity (RH) without encapsulation (Figure 29(g)). Indeed, the CuI device retained 57% of the initial PCE after 38 days of exposure.

Figure 29:

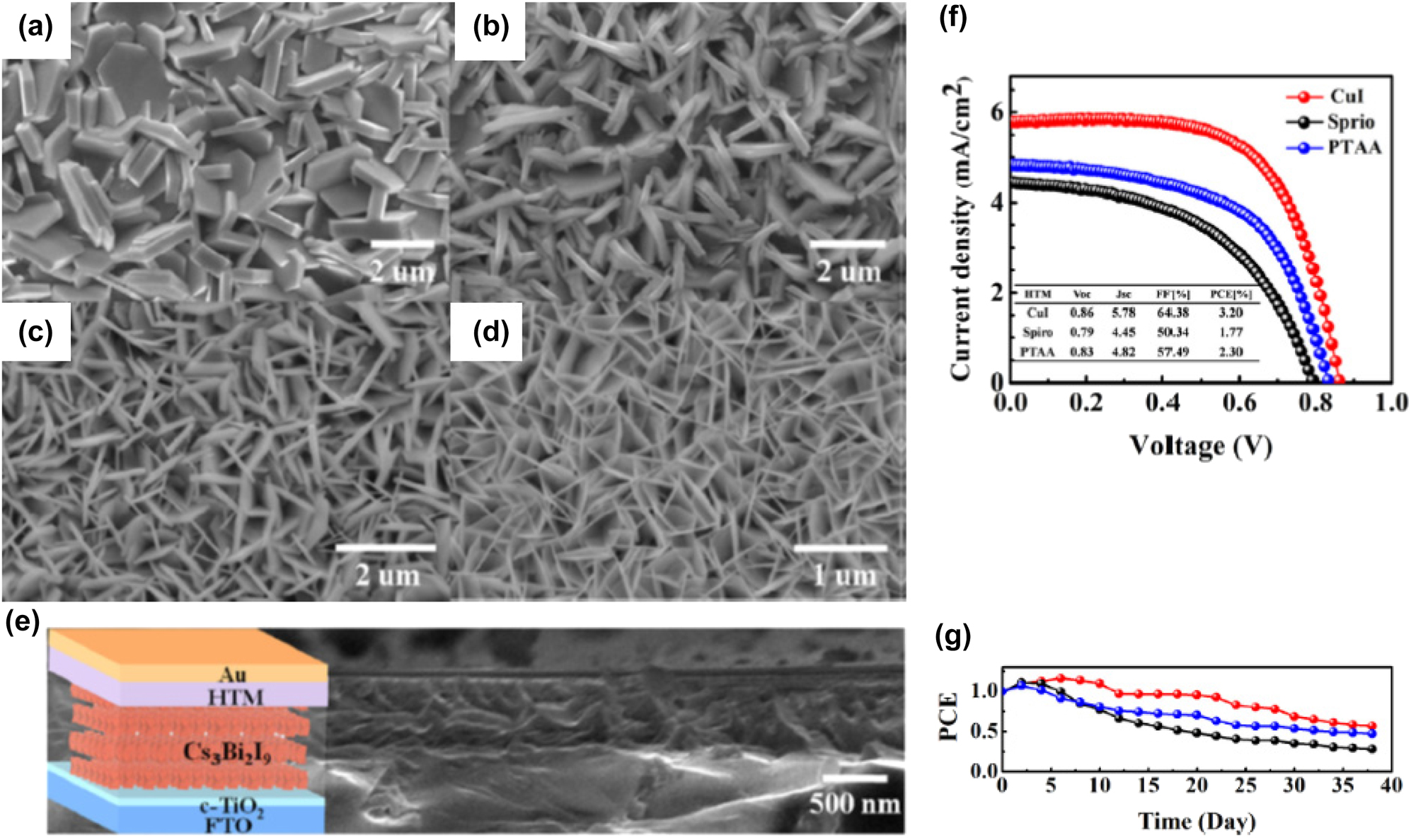

Top-view scanning electron microscopy (SEM) image of Cs₃Bi₂I₉ film obtained by means of conventional spin-coating process (a). Recrystallization films with different DMF concentrations 50 µL (b), 100 µL (c), and 200 µL (d). Schematic of the developed Cs₃Bi₂I₉ perovskite solar cells (PSCs) and SEM cross-section (e). Current density versus voltage (J–V) curves of the PSCs with CuI, spiro-OMeTAD, and PTAA as hole transport layer (HTL) (f). Normalized power conversion efficiency (PCE) of unencapsulated devices after subjected to ambient air (45% RH) (g). (a)–(g) have been reproduced from Ref. [34] with permission from Elsevier, copyright 2018.

Table 6:

Summary of low-dimensional perovskite configurations in advanced perovskite solar cells (PSCs). *NR stands for not reported.

Study-year	Synthesis protocol	PSC device configuration	PCE	Demonstrated PCE stability	Key features/remarks
Bai et al. [34]	Dissolution-recrystallization	FTO/c-TiO₂/Cs₃Bi₂I₉/HTL/Au	3.2%	57%, 38 days, 45% RH	Nanosheet films
Smith et al. [155]	Crystallographic slicing	FTO/TiO₂/(PEA)₂(CH₃NH₃)₂[Pb₃I₁₀]/Spiro-OMeTAD/Gold	4.73%	No	First-generation 2D PSC
Quan et al. [156]	Spin-coating	FTO/TiO₂/Perovskite/SpiroOMeTAD/Au	17.0%	From 17% to 11.3%, 1440 h, ambient	Low-dimensionality versus PCE, certified hysteresis-free
Zhang et al. [157]	NR	FTO/TiO2/Cs_x-2D Perovskites/Spiro-OMeTAD/Au	13.7%	89%, 1400 h, ambient >80%, 24 h, 65% and 85% RH >85%, thermal at 80 °C	Cation doping, negligible hysteresis
Zhang et al. [158]	One step spin-coating	ITO/(PEA)₂(MA)_n-1Pb_nI_3n+1/butyric acid methyl ester/bathocuproine/Ag	11.01%	78.5%, 160 h, 55% RH	PEA cation crystal orientation
Yang et al. [159]	Spin-coating, 3BBAI	ITO/PTAA/Perovskite/PCBM/Cr/Au	18.2%	82%, 2400 h, 40% RH	Multilayered quasi-2D perovskite film
Cho et al. [160]	Spin-coating, layer-by-layer deposition	FTO/TiO₂/(2D/3D) perovskites/Spiro-OMeTAD/Au	20,1%	96%, 450 h, inert gas 82%, 450 h, inert gas	Water repelling 2D/3D architecture
Abuhelaiqa et al. [161]	Spin-coating	FTO/TiO₂/3D perovskite/mixed-cation 2D perovskite/SpiroOMeTAD	21.17%	95%, 1000 h, inert gas	Mixed-cation 2D/3D configuration
Jang et al. [162]	Solid-phase in-plane growth (SIG)	FTO/SnO₂/3D perovskite/SIG (BA)₂PbI₄/Spiro-OMeTAD/Au	24.35%	95%, 1100 h, 85% RH 94%, 1056 h, 85 °C, 85% RH	2D/3D intact heterojunction
Huang et al. [163]	Spin-coating	Glass/ITO/SnO₂/GA₂MA₄Pb₅I₁₆/GABr/Spiro-OMeTAD/Ag	19.3%	94%, 3000 h, ambient	GABr interlayer
Ren et al. [164]	Spin-coating	ITO/PEDOT:PSS/(MTEA)₂(MA)₄Pb₅I₁₆/PC₆₁BM/Cr/Au	18.06%	87.1%, 1000 h, operational with 0.9 V, nitrogen	Sulfur-sulfur interactions in MTEA
Liang et al. [165]	Spin-coating	ITO/SnO₂/pure phase perovskite/Spiro-OMeTAD/Au/MoO₃	16.25%	>90%, 4680 h, 65% RH >90%, 558 h, 85 °C >90%, 1100 h, operational	Pure phase, vertically aligned grains
Li et al. [166]	Spin-coating	ITO/PTAA/RP-2D perovskite/BDAI₂/C₆₀/BCP/Ag	18.34%	98%, 800 h, 60 °C, inert gas 87%, 800 h, 60% RH	RP 2D/DJ 2D heterojunction
Li et al. [167]	Spin-coating	ITO/PEDOT:PSS/2D perovskite/PCBM/Au	18.3%	NR	I-I interactions, out-of-plane contractions
Liang et al. [168]	Alcoholic antisolvent deposition method	ITO/SnO₂/2D-3D perovskite/Spiro-OMeTAD/Ag	20.0%	98%, 2000 h, 30% RH 96%, 360 h, operational	Multilayered quasi-2D perovskite film
Shao et al. [169]	One-step hot-casting	ITO/PTAA/2D perovskite/PC₆₁BM/Ag	21.07%	97%, 1500 h, 85 °C, inert gas	FA/MA mixed 2D, PCE record

One year later, Liu et al. reported on the layer-by-layer self-assembly of two-dimensional (2D) perovskite NS building blocks into ordered Ruddlesden–Popper perovskite phases [147]. Figure 30(a) shows a schematic representation of the process where C₈H₁₇NH₃-capped CsPb₂Br₇ NSs self-assemble into layered (C₈H₁₇NH₃)₂CsPb₂Br₇ NSs superlattice nanocrystals. The disassembly of the blocks is achieved upon controllable sonication in toluene. Figures 30(b)–(e) presents the corresponding TEM images of the C₈H₁₇NH₃-capped CsPb₂Br₇ NSs in their initial state, and after several minutes where the superlattice intermediates (after 20 and 70 min), and the final nanocrystals have been formed (after 120 min) [147]. Following the self-assembling process, uniform superlattice nanocrystals with an average lateral size of around 500 nm were formed. EDX analysis revealed an atomic ratio of Cs:Pb:Br of approximately 1:2:7, which matches well with the two-dimensional (2D) layered Ruddlesden–Popper phase crystal stoichiometry. The developed method paves the way towards increasing order in a system of nanoparticles for the synthesis of multi-layered low-dimensional perovskite configurations for next-generation photovoltaic applications.

Figure 30:

Schematic illustration of the layer-by-layer self-assembly C₈H₁₇NH₃-capped CsPb₂Br₇ NSs into layered (C₈H₁₇NH₃)₂CsPb₂Br₇ superlattice nanocrystals (a). Transmission electron microscopy (TEM) image of the initial C₈H₁₇NH₃-capped CsPb₂Br₇ NSs (b). Superlattice nanocrystal intermediates after 20 min (c), and 70 min (d). Final (C₈H₁₇NH₃)₂CsPb₂Br₇ superlattice nanocrystals after 120 min (e). The scale bar is 500 nm. (a)–(e) have been reproduced from Ref. [147] with permission from American Chemical Society, copyright 2019.

Notably, the incorporation of other types of low-dimensional layered perovskites like Ruddlesden–Popper in solar cell architectures was pre-existing and motivated by their ability to form high crystalline films that appeared to exhibit better stability when compared to typical three-dimensional (3D) crystals, while an order of magnitude enhancement of the PCE was achieved [148–154]. Smith et al. back in 2014 demonstrated the first perovskite solar cell (PSC) device in which 2D perovskites were used as light absorber elements [155]. In particular, (PEA)₂(MA)₂[Pb₃I₁₀] layered perovskites were derived from the 3D crystals by means of slicing along specific crystallographic planes, whereas the interlayer spacing is controlled by the selection of organic cations. The first-generation devices of this type exhibited an open-circuit voltage (V_oc) of 1.18 V and power conversion efficiency (PCE) of 4.73% (Table 6) [155].

The importance of employing low-dimensionality organic–inorganic perovskites in solar cells was thoroughly considered by Quan et al. [156]. Namely, upon modifying the stoichiometry multiple PSCs with low-dimensional intermediates between 3D and 2D layered (PEA)₂(MA)_n-1Pb_nI_3n+1 perovskites were fabricated. Figure 31(a) shows the corresponding unit cell structures of (PEA)₂(MA)_n-1Pb_nI_3n+1 perovskites with different n values, while the energetics of perovskite formation and stability are also presented [156]. A clear picture emerges from Figure 31(a). Moving from the strict 2D structure with n = 1, to the quasi-2D with n > 1, and towards the cubic 3D perovskite with n = ∞, the perovskite stability deteriorates. On the other hand, the PCE increases drastically with n as depicted in Figure 31(b), with the n = 60 device exhibiting a PCE of around 17% (Table 6). Moreover, the same configuration with n = 60 was the first certified hysteresis-free planar PSC obtaining a certified 15.3% PCE. In terms of stability tests, the performance of the n = 60 device dropped to 11.3% after 60 days in low humidity atmosphere, whereas under humid air (55% RH) the PCE decreased to 13% after two weeks. Notably, the corresponding 3D perovskite device exhibited an initial PCE of 16.6%, but degraded to less than 3% after the same period under ambient air. Overall, a tradeoff between device stability and performance of 2D-based PSCs is generated (Figure 31(c)) [156]. Based on this, a great scientific challenge emerged, namely to discover methods and advanced device architectures in order to enhance more the PCE of the low-dimensional PSCs, while taking advantage of their remarkable stability when compared to conventional 3D perovskite-based devices.

Figure 31:

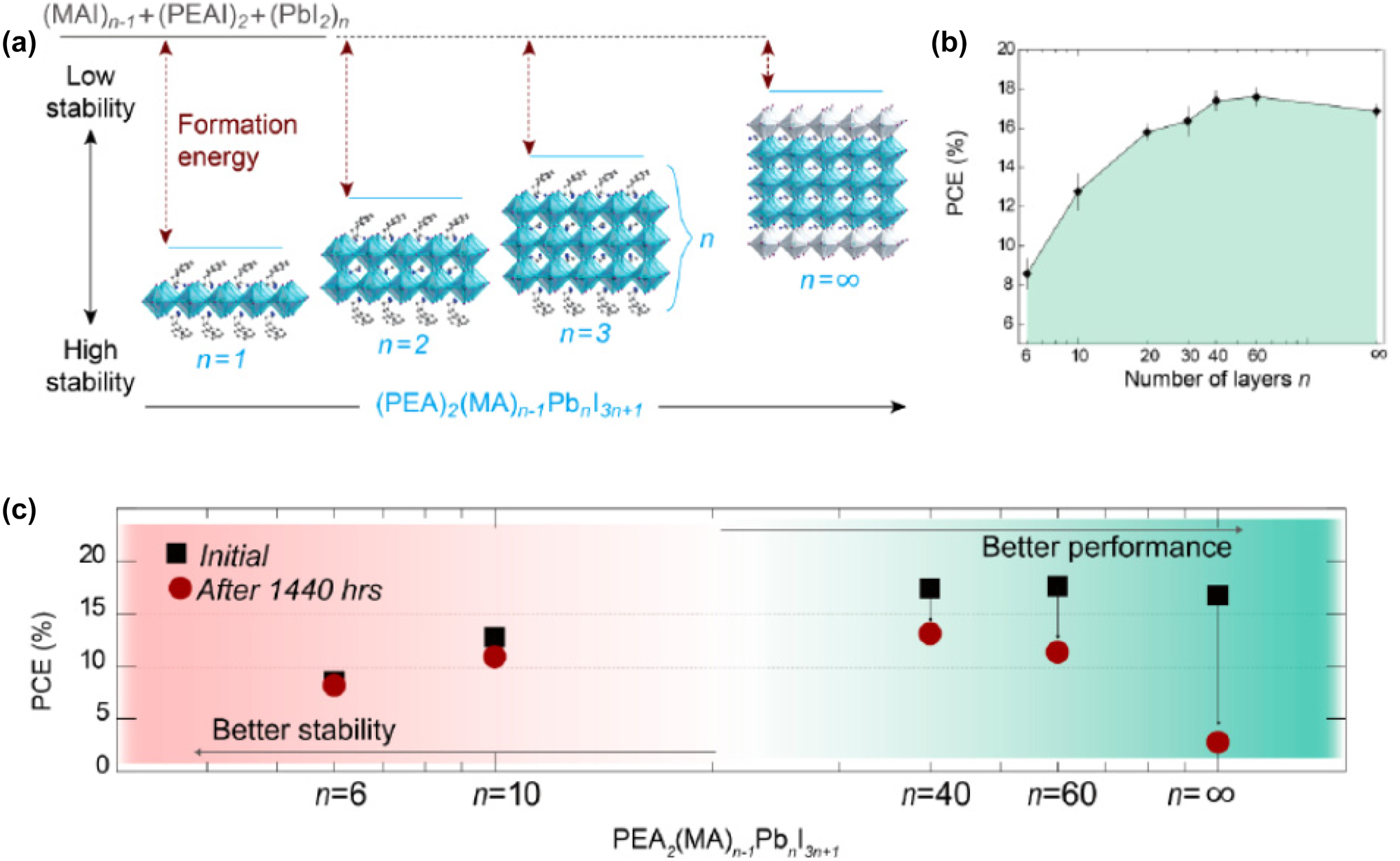

Unit cell structure of (C₈H₉NH₃)₂(CH₃NH₃)_n−1Pb_nI_3n+1 perovskites with different n values (a). Power conversion efficiency (PCE) of the perovskite solar cells (PSCs) versus number of layers (b). PSC device performance as a function of n value (c). (a)–(c) have been reproduced from Ref. [156] with permission from American Chemical Society, copyright 2016.

One year later, Zhang et al. reported on the development of stable and efficient PSCs upon introducing cesium cation (Cs⁺) doping of the main 2D (BA)₂(MA)₃Pb₄I₁₃ perovskite [157]. The Cs⁺ doped PSCs exhibited a PCE of 13.7% (Table 6), while showing excellent humidity resistance. The authors found that upon partially replacing MA⁺ cation with Cs⁺ the grain size and surface quality of the perovskite films were improved, and an almost ideal crystalline orientation was retained. As a result, the trap-state density is reduced, and the charge-carrier mobility is enhanced. Moreover, the fabricated devices maintain 89% of their initial PCE after 1400 operating hours under ambient conditions [157]. Impressive tolerance to high humidity conditions was also reported with the developed PSCs maintaining more than 80% of the initial PCE after several hours under 65% and 85% RH. More than 85% of the PCE was maintained also during a thermal stability test with the Cs-doped 2D perovskite device operating at 80 °C for several hours. On a rather difference approach, in the same year, Zhang et al. emphasized the importance of orientation regulation of the PEA cation within 2D PSCs [158]. For the formation of the 2D perovskite films, the authors employed one-step spin-coating method while using ammonium thiocyanate (NH₄SCN) additive. The addition of NH₄SCN intensified the crystallinity of the so-formed films, while resulted to the preferable vertical orientation growth with improved electron and hole mobility. The optimized 2D PSC of this study exhibited a PCE of 11.01% (Table 6), with an unsealed device maintaining 78.5% of the initial PCE after 160 h of storage in air atmosphere (55% RH) [158].

Rather differently, Yang et al. managed to improve significantly the PCE up to 18.2% (Table 6) [159], upon exploiting a combination of different quasi-2D crystalline configurations. The high performance was attributed to the formation of a self-assembled multilayered microstructured light absorber film, consisted of vertically oriented low-layers (small-n) covered by a layer of large-n perovskite components, as depicted schematically in Figure 32(a) [159]. Figure 32(b) shows a top view SEM image of the quasi-2D film. The synthesis of the quasi-2D multilayer perovskite structure relies on the use of 3-bromobenzylammonium iodide precursor. The reported unique configuration is energetically ordered so that improved charge transport and reduced nonradiative recombination occur within the devices. Good stability is also reported as 82% of the PCE is retained following 2400 h of storage at an RH of 40%, while only negligible hysteresis effects are noticed in the current–voltage plot (Figure 32(c)) [159].

Figure 32:

Schematic illustration of the self-assembled quasi-2D perovskite structure (a). Top view scanning electron microscopy (SEM) image of the quasi-2D self-assembled perovskite film (b). Current density versus voltage (J–V) curves of the developed PSC showing both forward and reverse scans (c). (a)–(c) have been reproduced from Ref. [159] with permission from Wiley Online Library, copyright 2018).

Along similar lines, Cho et al. demonstrated the benefits of using low-dimensional perovskites with an enhanced water-resistant character as a protective layer on top of typical 3D light absorber films in PSC devices [160]. The success of the proposed 2D/3D perovskite composites relies on a saturated highly fluorinated organic cation which is incorporated in the perovskites either by direct blending with the precursors, or by controlled in-situ layer-by-layer approach as depicted schematically in Figure 33(a). In both cases a thin layer of the fluorous low-dimensional perovskite resembles on the upper surface of the bulk 3D perovskite films (MFPI, MA_0.9FA_0.1PbI₃ and CFMPIB, Cs_0.1FA_0.74MA_0.13PbI_2.48Br_0.39). The crystalline structures of the fluorinated organic cation and the so-formed low-dimensional perovskites are also shown in Figure 33(a). The water-repelling characteristics upon the introduction of the low dimensional component were probed by contact angle (c.a.) measurements presented in Figure 33(b). The 3D MFPI film exhibits a c.a. of 55.3°, whereas the mixed and the layer-by-layer 2D/3D architectures show c.a. values of 83.8° and 98.4°. Moreover, the formation of the 2D layer enhances the PCE of the MFPI device from 17.98% to 20.13%, whereas for the CMFPIB device from 18.78% to 20.0% [160]. Impressively enough, the 2D/3D devices showed outstanding stability. Figure 33(c) presents the normalized PCE against exposure time under inert gas. Remarkably, the mixed 6% A43 device maintains around 82% of the initial PCE after 450 h, whereas the layer-by-layer device retains almost 96% of the original PCE (Table 6). Overall, the study of Cho et al., demonstrated an alternative role of the low-dimensional perovskites, namely, to act as water protective shield, apart from the ordinary role of being the main light absorber component of the PSC [160].

Figure 33:

Schematic diagram showing the incorporation method of low-dimensional fluorous perovskite on top of 3D perovskites (a). The crystal structures of the fluorous organic cation and the low-dimensional perovskites are also shown. Water contact angle measurements on top of pristine MFPI perovskite and the developed 2D/3D configurations (b). Normalized power conversion efficiency (PCE) over time upon exposure under inert gas (c). (a)–(c) have been reproduced from Ref. [160] with permission from American Chemical Society, copyright 2018.

On a similar manner, Abuhelaica et al. developed a 2D/3D configuration in which the 2D perovskite is formed upon mixing two alkyl-based cations [161]. The so-formed mixed 2D perovskite was placed between the 3D perovskite film and the hole transport layer polymer of the PSC, and found to improve the carrier dynamics and the photovoltaic efficiency of the devices. Jang et al. reported on another outstanding 2D/3D-based PSC design by means of a solvent-free solid-phase in-plane growth (SIG) fabrication route [162]. SIG allowed the successful formation of a stable and highly crystalline 2D (C₄H₉NH₃)₂PbI₄ film on top of a 3D film. The cross-sectional scanning electron microscopy (SEM) of the SIG-processed 2D/3D architecture is shown in Figure 34(a), while the device performance and stability tests are presented in Figure 34(b) and (c), respectively [162]. The intact 2D/3D perovskite heterojunction enhances the PCE of the device to a certified value of 24.35% (Table 6). Moreover, the unencapsulated device maintained around 95% of the initial PCE after subjected to 85% RH for 1100 h, whereas the encapsulated cell retained 94% of the initial PCE after 1056 h under the dump heat test (85 °C, 85% RH) [162]. Huang et al. presented another multilayer design towards the improvement and stability of 2D perovskite films [163]. Namely, the authors fabricated PSC devices in which guanidinium bromide (GABr) was placed on top of the 2D GA₂MA₄Pb₅I₁₆ perovskite light absorber. The proposed multifunctional interfacial engineering led to devices with PCE of 19.3%, while the GABr addition optimized stability since 94% of the initial PCE was retained following 3000 h exposure to ambient conditions.

Figure 34:

Cross-sectional scanning electron microscopy (SEM) image of the SIG-processed 2D/3D device (a). Photovoltaic performance of the devices as expressed by the current density versus voltage (J–V) curves (b). Normalized power conversion efficiency (PCE) over time of the unencapsulated device subjected to 85% relative humidity (RH), and damp heat test at 85 °C under 85% RH of the encapsulated device (c). (a)–(c) have been reproduced from Ref. [161] with permission from Nature, copyright 2021.

In the meantime, apart from the interlayer interactions, other authors explored the interaction effects on an atomic level towards improving performance and stability. As for instance, Ren et al. exploited sulfur-sulfur interactions within a newly employed alkylammonium [164], i.e. 2-(methylthio)ethylamine hydrochloride (MTEACL). It was shown that the interactions between sulfur atoms in the two MTEA molecules of the (MTEA)₂(MA)₄Pb₅I₁₆ perovskite, results to weaker van der Waals interactions and enhanced charged transport within the crystalline framework. Consequently, PSCs with PCE of 18.06% were developed, while having sufficient moisture tolerance up to 1512 h under 70% RH (Table 6) [164]. Similarly, Liang et al. focused on the effect of the ionic coordination of the employed n-butylamine salt within low-dimensional perovskites (layers n ≤ 5) [165]. The authors discovered that upon using n-butylamine acetate instead of the common n-butylamine iodide, a gel of a uniformly distributed intermediate phase is formed. Eventually this leads to the formation of high crystalline quality vertically aligned grains. By means of this approach the authors reported PCEs of 16.25%, while stability tests showed less than 10% deterioration after storing the devices for 4680 h under humid air (65% RH). The same holds when the devices were subjected to 85 °C for 558 h, and under realistic operational conditions with continuous light illumination for 1100 h [165].

Recently, Li et al. developed an all-2D perovskite heterojunction consisting of a 2D Ruddlesden–Popper and a 2D Dion–Jacobson perovskite [166]. The combination of these 2D perovskites was found to enhance the PCE of the device up to 18.34% due to enhanced interfacial charged extraction and suppressed surface charge recombination. The fabricated PSCs showed nearly zero degradation of the PCE after 800 h of continuous thermal aging at 60 °C. Other authors achieved similar PCE (18.3%) upon studying the role of light-activated interlayer contraction in 2D PSCs (Table 6) [167]. In particular, X-ray photoelectron spectroscopy revealed the accumulation of positive charges in the terminal iodine atoms, leading to I–I interactions across the organic barrier that activated out-of-plane contractions. Following this, an increased in charge carrier mobility is noticed, leading to the enhanced photovoltaic performance of the 2D perovskite devices. Liang et al. fabricated a high-quality FA-MA mixed 2D perovskite multilayer film, in which lower n-value phases are concentrated at the upper part of the film, while 3D-like phases are located in the film interior. An outstanding PCE value of 20.12% is achieved (Table 6) [168]. Finally, Shao et al. developed the 2D Ruddlesden–Popper perovskite-based solar cell that holds the PCE record of 21.07% (Table 6) [169]. Remarkably, such PCE is close to that of the current state-of-the-art 3D-based devices that exhibit 25%, i.e. approaching the Shockley-Queisser limit. In summary, the considered studies highlight the importance of employing 2D perovskite NCs and related multilayer heterostructures in PSCs, towards achieving PCEs that bring the technology closer to the market, while securing operational stability of the devices.

4.4.2 Metal halide perovskite nanocrystals/2D materials

Due to the strong coupling interactions between mixed halide perovskites and 2D materials, another promising method towards improving the performance and stability of next-generation PSCs relies on the introduction of advanced perovskite/2D materials heterostructures [39]. The 2D material is either incorporated within the perovskite light absorbing film, or as a separate interface layer within the device architecture. We will now consider some typical examples. Hadadian et al. back in 2016 introduced nitrogen-doped reduced graphene oxide (N-RGO) into an organic–inorganic FA_0.85MA_0.15Pb(I_0.85Br_0.15)₃ perovskite in order to enhance the PCE of the devices [170]. The 2D material additive improved the crystalline quality of the perovskite film, larger grains were formed, and the carrier dynamics of the device were improved. The crystalline quality of the light absorber film is a known factor towards advancing the charge carrier dynamics and the performance of PSCs [171, 172]. As result, the PCE efficiency of the N-RGO containing device was increased from 17.3% to 18.7%, while the hysteresis effects were diminished [170]. Along similar lines, enhancement of the PCE was achieved by Jiang et al. [173], and Guo et al. [174], upon incorporating g-C₃N₄ NSs and Ti₃C₂T_x NSs in the perovskite active layer, respectively. On a rather different manner, Wu et al. employed graphene oxide (GO) as hole transport layer (HTL) material in a PSC [175], whereas the same method was reported for RGO in other devices by Yeo et al. [176]. In both cases enhanced PCEs were observed when compared to the reference devices, i.e. without the 2D additives, pointing out the beneficial role of the perovskite/2D materials interlayer heterojunctions in PSCs.

Nevertheless, the employment of PNCs (NSs and NPls)/2D materials heterostructures in the field of solar cells appears to be limited until today. Interestingly enough though, the design of novel quantum dots (QDs) based heterostructures, appears to be promising for the development of efficient and stable devices when compared to the typical thin-film ones. Based on this approach, Zhao et al. reported on the fabrication of PSCs with enhanced photocarrier harvesting and performance [177]. Namely, the authors demonstrated the formation of inorganic and inorganic–organic perovskite QDs light absorption interlayers by means of layer-by-layer deposition. This resulted to improved charge carrier lifetime and better carrier mobility within the perovskite light absorption region of the device, leading to better charge extraction and enhanced photovoltaic performance when compared to the reference devices without the QDs-based interlayers. Moreover, the authors claim that this heterostructure approach can also be expanded to other 2D perovskite structures, thus maybe promising in the case of perovskite NSs and NPls among other cases [177, 178].

4.5 Sensing

4.5.1 Metal halide perovskite NPls/NSs as humidity and gas sensing elements

Ren et al. turned the disadvantage of the metal halide perovskite nanocrystals to be moisture sensitive to advantage and constructed a humidity detector based on high-quality CH₃NH₃PbI_3-xCl_x nanosheet arrays (Figure 35(a)) [37]. The vertically oriented NSs showed a terrace-like smooth surface, indicating that the NS may have grown epitaxially from a set of ultra-thin NSs (Figure 35(g) and (h)). The impressive sensitivity, repeatability and specificity were due the specific sensor device. Two advantageous considerations were involved in this design: (i) the perovskite NSs arrays showed greater morphological and orientational uniformity than did the previously reported perovskite nanostructures and (ii) the chlorine-based sensing element was decomposed less upon being exposed to moisture. In particular, the sensor device was very simple with two stripes of Ag electrodes deposited on its top surface (Figure 35(a)). This sensor was placed in a chamber whose humidity was monitored by using a psychrometer in order to evaluate the humidity sensing capability (Figure 35(b)). The I–V curves in static air of 30–90% RH at 27 °C showed a good linearity, indicating an ohmic contact between the sensing element and Ag. Interestingly, as the RH was increased, the current increased dramatically (Figure 35(c)). The resistance was calculated to sharply dropped from 1.28 × 10⁸ Ω to 7.39 × 10⁴ Ω, as the RH was increased from 30% to 90% and the sensitivity, defined from the ratio R_30%RH/R, was found to be increased dramatically, from 1 to 1422, as the RH was increased from 30% to 90% (Figure 35(d)). Similar results also observed for humidity below 30%. These results indicated a strong conductivity of the perovskite nanostructure arrays to the water molecules in the air and the device can also work in low-humidity conditions. The good reversibility of the sensor was revealed from the resistance plots by increasing and decreasing the humidity (Figure 35(e)) while the strictly modulation of the current by the changing the RH value indicating the high sensor’s efficiency (Figure 35(f)).

Figure 35:

Perovskite nanosheet array sensor. (a) Sensor structure. (b) System for testing the sensor device. (c) I–V curves of the sensor in atmospheres with various relative humidity values (RHs) from low humidity (30% RH) to 90% RH at 27 °C. (d) The average resistance of the sensor (black line) and the resistance response sensitivity, which is defined by R_30%RH/R (blue line), in the various RH conditions. A resistance hysteresis loop of the sensor. (f) Real-time current response properties of the sensor in different RH (35–65%) gases at 27 °C. Reprinted with permission from Ref. [37], copyright 2017, The Royal Society of Chemistry.

Metal halide perovskites NSs have been proposed also as sensing element for the detection of O₂. The CsPbBr₃ NSs showed PL enhancement in the presence of O₂ [38]. The fast and reproducible PL response indicating that the NSs could be effective sensing elements for these types of applications. Comparing the sensitivity of the NSs’ structures with single crystal materials of the same chemical phase revealed that the responsiveness is much higher in the case of the NSs as the single crystal materials is characterized by less surface defects.

4.5.2 Metal halide perovskite nanocrystals/2D materials heterostructures as gas sensing elements

The 2D materials loading with metal halide perovskite nanocrystals have been shown to be promising materials for sensing application due to synergetic effects and enhanced sensing capability. The presence of the perovskite nanocrystals found that enhanced the reactivity of the 2D materials that usually performed a poor sensing performance. For example graphene has been used as sensing element for the detection of the atmospheric pollutants such as NO₂ and NH₃ [179], Volatile Organic Compounds (VOCs) [180], H₂S [181], SO₂ [182], and CO [183]. The response of the metal halide perovskite nanocrystals/2D materials heterostructures has been attributed to the effect of the perovskite nanocrystals which play the role of the chemical receptor. The 2D materials play mainly the role of the efficient charge conductor, ensuring that the charges generated upon the interaction between gas molecules and perovskite nanocrystals reach the device electrodes [69]. Furthermore, the use of heterostructures in gas sensors can become a promising alternative to other gas sensitive materials, due to the protective character of graphene resulting from its high hydrophobicity [184].

The metal halide perovskite nanocrystals/2D materials heterostructures have been used as sensing element to detect toxic gases such as ammonia (NH₃) and nitrogen dioxide (NO₂) without requiring high working temperature or UV irradiation to activate the sensing process (Figure 36(a)) [61]. A film of graphene NPls was deposited onto quartz substrates by drop casting method and then the MAPbBr₃ nanocrystals were spin coated onto the film of the graphene. Graphene doped with perovskite nanocrystals presented a higher response (up to 3-fold) than bare graphene, even under a hundred ppb of NO₂ exposure. A slight decrease in the response towards 500 ppb of NO₂ was observed after 6 months of sensor operation indicating the stability of the perovskite nanocrystals which was originated from their protection by the hydrophobic graphene. Furthermore, the same sensor has been tested for detecting NH₃ at ppm level. The enhancement in the response when the heterostructures were exposed to the gases was associated with the creation of the electron–hole pairs by the perovskites. The NO₂ was getting absorbed on the graphene due of the interaction between the gas and the oxygen defects and functional groups of the graphene while the presence of the nanocrystals improved the sensitivity because the electron–hole pairs were separated. The holes generated at the nanocrystals were transferred to the graphene sheets. Inversely, by the interaction with an NH₃ (an electron–donating gas), an excess of electron was generated and transferred to graphene. The proposed mechanism is illustrated in Figure 35(a).

Figure 36:

Gas sensors based on metal halide perovskite nanocrystals/2D materials heterostructures. (a) Proposed sensing mechanism of the metal halide perovskite nanocrystals/2D materials heterostructures in the presence of NH₃ (electron donating gas) and NO₂ (electron withdrawing gas). Two adsorption processes are proposed, one at the graphene surface and another at the perovskite nanocrystals. During the exposure to an electron-donating gas, an excess of positive charges is neutralized at the defective perovskite surface and the local hole concentration of the p-type graphene is decreased, which results in an increase in film resistance. While during the exposure to an electron-withdrawing gas, positive charges (holes) in the nanocrystals are formed, which are transferred to the graphene layers from the NCs, decreasing the overall resistance of the heterostructures film. Reprinted with permission from Ref. [61], copyright 2019, MDPI. (b) Comparison of the sensing responses at room temperature toward NO₂ for Cs₃Cu₂Br₅ and Cs₂AgBiBr₆ nanocrystals supported on graphene under a dry and a humid (70% R.H.) environment and (c) electrical responses when detecting NO₂, H₂, NH₃, and H₂S at room temperature. All gases were tested in the ppm range except NO₂, which was detected at ppb concentrations. Blue and red lines correspond to Cs₃Cu₂Br₅ and Cs₂AgBiBr₆ supported on graphene. (b)–(c) Reprinted with permission from Ref. [185], copyright 2022, American Chemical Society, https://pubs.acs.org/doi/10.1021/acssensors.2c01581, further permissions related to the material excerpted should be directed to the ACS.

Recently, similar heterostructures including lead-free metal halide perovskites have been proposed by Casanova-Chafer et al. for the detection of H₂, H₂S, NH_3, and NO₂ [175]. This is the first time that a lead-free perovskite-based heterostructure as an alternative, environmentally friendly and harmless option has been used for the detection of gas pollutants. The use of nanocrystals enables achieving excellent sensitivity toward gas compounds and presents better properties than those of bulky perovskite thin films, owing to their quantum confinement effect and exciton binding energy. Two lead-free perovskite nanocrystals have been presented in this work: (a) Cs₃Cu₂Br₅ characterized by its direct band gap, outstanding stability, and nontoxicity of Cu(I) and (b) Cs₂AgBiBr₆ with its indirect band gap, nontoxic character, and remarkable thermal and environmental stability. The heterostructures produced by anchoring these perovskite nanocrystals on the graphene were found that exhibits the highest sensing performance to date among the lead-free perovskite sensing elements. H₂ and H₂S gases were detected for the first time by utilizing lead-free perovskites, and ultrasensitive detection of NO₂ was also achieved at room temperature (Figure 36(c)). In particular, the Cs₃Cu₂Br₅ nanocrystals/graphene heterostructures were present higher sensitivity towards gases than those included the Cs₂AgBiBr₆ nanocrystals (Figure 36(b)), showing lower Limit of Detection (LOD) and Limit of Quantification (LOQ) values for all the gases tested. Two main reasons could probably explain these experimental findings. On the one hand, the Cs₃Cu₂Br₅ nanocrystals were presented a direct band gap, which is favorable from the gas sensing point of view compared to the Cs₂AgBiBr₆ which is an indirect band gap semiconductor. On the other hand, the strength of exciton–phonon coupling of self-trapped excitons in both materials seemed that plays an important role, being stronger in the case of Cs₂AgBiBr₆ nanocrystals, limiting the efficient generation of separate charges and reducing the interaction with gas molecules.

Furthermore, such heterostructures have been evaluated to detect volatile organic compounds (VOCs) such as benzene and toluene at ppb level. Highly reproducible, reversible, sensitive, and ultrafast detection of VOCs at room temperature was achieved with such heterostructures. Additionally, in this study reported by Casanova-Chafer et al., the effect of the different cations (A) and halide anions (B) of the ABX₃ perovskite structure on the sensing capability of the heterostructures with the graphene has been elucidated [69]. Perovskite nanocrystals with three cations (methylammonium, MA (CH₃NH₃⁺); formamidinium, FA ((NH₂)₂CH⁺); and cesium (Cs⁺)), and three halide anions (Cl⁻, Br⁻ and I⁻) have been synthesized for the fabrication of the heterostructures with the graphene flakes. These nanocrystals were bound on the exfoliated graphene by mixing the two solutions in an ultrasonic bath. Furthermore, the sensing capability of the heterostructures including the mixed halide perovskite, MAPbBr_2.5I_0.5 has been tested instead of MAPbI₃ due to its non-stability even at room temperature. In particular, regarding the cations effect, MA showed a clear enhancement in the responses (up to 3-fold) against FA and Cs and in sensitivity (the slope of the calibration curve) (Figure 37) while for the different halide anions, revealed that the Br⁻ anions offer a higher response and sensitivity than the Cl⁻ and I⁻ anions. Equivalent behaviour was observed for toluene vapours. The different electrical response for the different heterostructures was originated from the energy level positions and the concentration of the trap states. The enhanced electrical response of the MAPbBr₃ perovskite/graphene heterostructure could be originated from the better energy-level alignment with the graphene for hole extraction, in comparison to the other two cation substituted perovskites (CsPbBr₃ and FAPbBr₃) and also the MAPbBr₃ nanocrystals have a higher trap density than CsPbBr₃ and FAPbBr₃ nanocrystals indicated from the slightly lower photoluminescence quantum yield. Increased active sites for interacting with vapor molecules were produced by increased number of defects thus increasing the electrical response. Nevertheless, MAPbBr₃ led to the best responses towards benzene and toluene vapours, despite of the fact that the MAPbBr_2.5I_0.5 perovskite showed a better energy-level alignment with the graphene material for hole extraction. This led that there is also another factor responsible for the high response except of the energy-level alignment between the nanocrystals and the graphene and the higher number of superficial defects. The addition factor was the difference in the carrier mobility for electrons and holes as a function of the halide anion used. FAPbBr₃ nanocrystals/graphene heterostructures showed also high response in NO₂ and no response in NH₃. Moreover, MAPbCl₃/graphene heterostructures showed 2-fold higher response to NH₃ compared to MAPbBr₃-based heterostructures.

Figure 37:

Response of metal halide perovskite nanocrystals/2D materials heterostructures using lead halide perovskites with different cations (a) and anions (b) in the detection of benzene. Reprinted with permission from Ref. [69], copyright 2020, The Royal Society of Chemistry.

4.6 Low-threshold lasers based on metal halide perovskite NPls and NSs

Finally, we would like to present a brief overview on the application of all-inorganic and hybrid quasi 2D perovskites for lasing features. Amplified spontaneous emission and a large-gain mechanism in lead halide perovskite materials were reported for the first time in 2004 in microcrystalline CsPbCl₃ films and found that was attributed to giant oscillator strength effect characteristic of excitonic superradiance [186]. It is worth noting that quasi 2D perovskites and quasi 2D/3D heterostructures appeared promising components for amplified spontaneous emission (ASE) and lasing devices. Indicatively, Alvarado-Leanos et al. demonstrated lasing features in 2D tin-based organic-inorganic perovskites [187]. By changing the spacer cation the authors were able to improve the optical gain properties of 2D PEA₂SnI₄ films, and obtain ASE with a low threshold of 30 µJ/cm², and a high optical gain above 4000 cm⁻¹ at 77 K. On a similar manner, Raghavan et al. showed low-threshold lasing from homogeneous 2D organic–inorganic Ruddlesden–Popper perovskite single crystals [188]. The reported high-quality 2D crystals were synthesized by means of a slow evaporation solution-growth approach, while different emission wavelengths were achieved within the visible upon tuning the perovskite composition. Zhang et al. reported on the formation of high-density large-area of 2D Ruddlesden–Popper perovskite micro-ring arrays that exhibit high quality lasing factors. Indeed, the reported gain coefficient for the developed 2D components was found four times larger than the corresponding values obtain for the typical 3D perovskites [189]. In addition, a few years ago Qin et al. obtained stable room-temperature continuous-wave lasing in quasi 2D-perovskite films [190]. The authors fabricated surface-emitting lasers upon creating structures of spin-coated 2D perovskite films onto substrates with 2D gratings. Remarkably, the authors were capable of tuning the emission wavelength of the FAPbBr₃-based perovskites by changing the grating period on the surface of the employed substrate. Moreover, Li et al. demonstrated fascinating lasing features from laminated quasi-2D/3D CsPbBr₃(BABr)_x/CsPbBr₃ perovskite planar heterostructures [191].

At the same time, whispering gallery mode lasing was demonstrated for the case of 2D metal halide perovskite NPls and NSs [192]. Zhang et al., demonstrated in 2014 planar room-temperature NIR nanolasers under femtosecond-pulsed laser excitation based on organic–inorganic perovskite CH₃NH₃PbI_3-aX_a (X = I, Br, Cl) NPls of well-defined hexagonal and triangular morphologies [193]. Adequate gain and efficient optical feedback for low-threshold optically pumped in-plane lasing with threshold of 37 μJ/cm² were ensured by the large exciton binding energies, long diffusion lengths, and naturally formed high-quality planar whispering-gallery mode cavities formed by the organic–inorganic metal halide perovskites NPls on Mica substrates (Figure 38). Two years later, Zhang et al. reported whispering-gallery-mode (WGM) microcavities using high-quality single-crystalline cesium lead halide perovskite, CsPbX₃ (X = Cl, Br, I) NPls [194]. By tuning the halide composition, multi-color (400–700 nm) WGM excitonic lasing was achieved at room temperature with low threshold (∼2.0 μJ/cm) and high spectra coherence (∼0.14–0.15 nm). Finally, square-like nanosheets of 2D all-inorganic metal halide perovskite (CsPbI₃) demonstrated one-photon and two-photon excitation-pumped lasing with low-threshold (0.3 mJ/cm²) and high-quality factor [195].

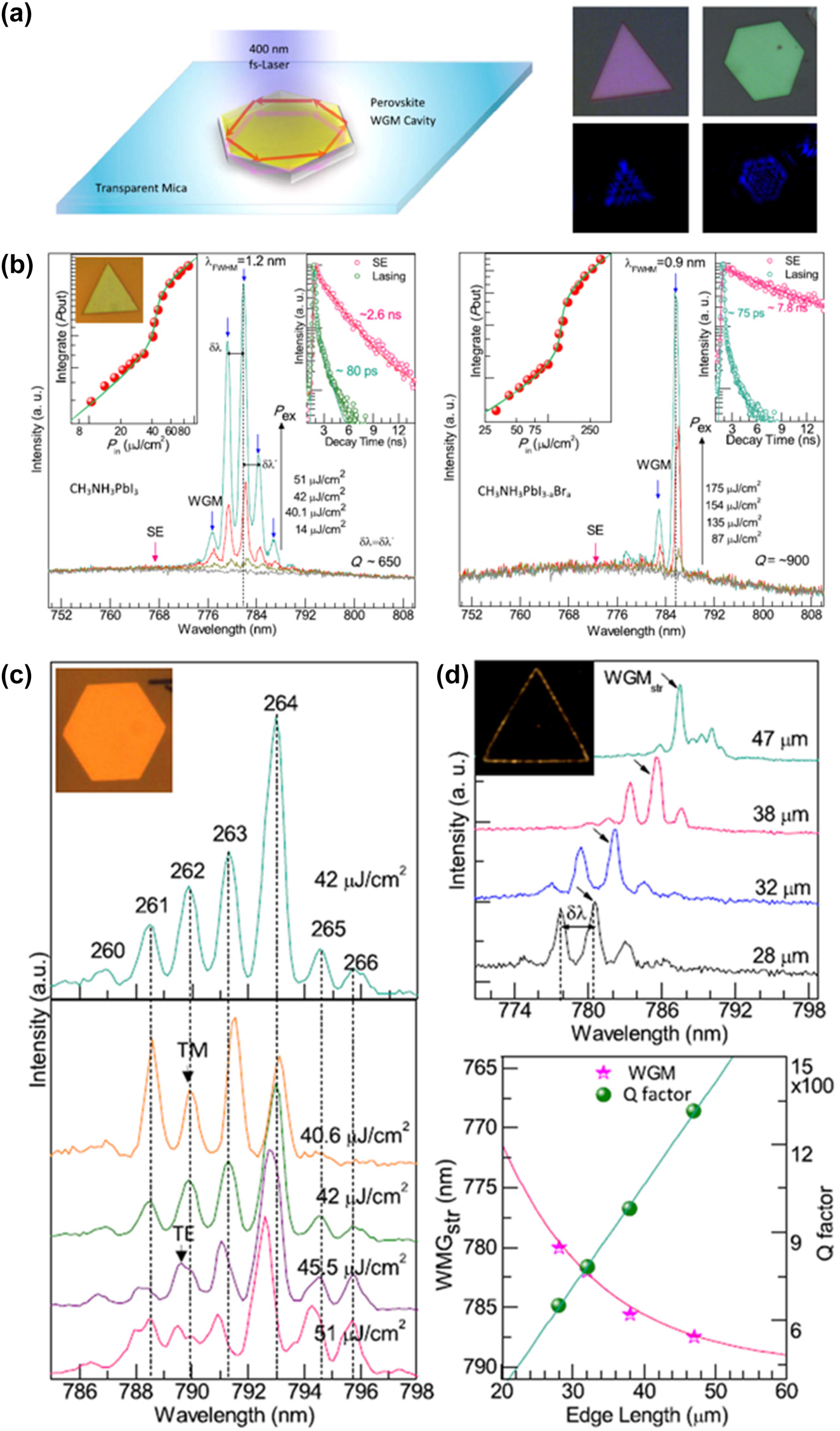

Figure 38:

Lasing characteristics of perovskites whispering-gallery-mode nanocavities. (a) Schematic of optical setup and Far-field optical image of the CH₃NH₃PbI₃ NPls under the illumination of white light (upper panel) and incidence laser (bottom panel). (b) The evolution from spontaneous emission (SE, ∼768 nm, peak center indicated by red arrow) to lasing (whispering-gallery modes indicated by blue arrows) and parallel steady-states SE, lasing and time-resolved photoluminescence measurement on in a typical CH₃NH₃PbI₃ triangular NPl. (c) Lasing spectra of hexagonal CH₃NH₃PbI₃ NPls and lasing mode evaluation as pumping fluence (bottom panel). (d) The wavelength of lasing modes (pink star dots) and Q-factor (dark yellow dots) as a function of the triangular cavity edge length. Reprinted with permission from Ref. [193], copyright 2014, American Chemical Society.

5 Conclusions and outlook

Exploring low-dimensional perovskites materials allows an alternative strategy towards the development of stable optoelectronic, photovoltaic and sensing devices with improved stability and performance. In general, low-dimensional perovskites can be confined quantum dots, colloidal NPls, NSs, and quasi-2D structures. The main difference between the two latter types is the type of insulating layers, which can be spacers or ligands [1]. More specifically, spacers separate the inorganic layer or lead halide octahedra of the perovskite, and thus, determining the number of layers (n) of the quasi-2D perovskites. Rather differently, in case of ligands, surface passivation occurs that determines the lateral dimensions and thickness of the formed NPls and NSs.

Despite great progress in the synthesis protocols for metal halide perovskite 2D morphologies, it is still challenging to achieve monodisperse 2D perovskite materials with a single PL peak and stable in their colloidal solutions. Degradation and fusion of the NPls and NSs were also observed after the cleaning and purification processes following the synthesis which are crucial steps for the removal of the residual chemicals that were not reacted and also a thermal/moisture-induced perovskite nanocrystal agglomeration was observed in nanocrystal films used in devices [11, 71]. This sensitivity of the NPls/NSs affects also the performance of the devices using these materials (LEDs and photodetectors) and improvement of the 2D materials stability is demanded. In the quest to improve the stability, metal halide perovskite nanocrystals/2D material heterostructures have been proposed exhibiting better stability against moisture, humidity, and high temperature stresses due to the suppression of the agglomeration by the 2D crosslinking [71]. These heterostructures combine the properties of the perovskite nanomaterials with their unique properties of the 2D materials and the large lateral dimensions. The large number of different perovskite nanocrystals together with the plethora of 2D materials (graphene-based materials, hexagonal boron nitride or Transition Metal Dichalcogenides) can result to heterostructures with designed functionalities [39]. Additionally, new physics and synergetic effects can emerge from the coupling between the two different materials and new or improved functionalities have been arisen due to the interfacial phenomena. The films of the perovskite nanocrystals/2D materials heterostructures provides not only an effective channel for carrier transport, as witnessed by much improved conductivity but also shows significantly better stability.

In addition, one of the drawbacks of the synthesis protocols described extensively in this review for both types of 2D perovskite-based structures is the low yield. The development of large-scale synthesis procedures which will be cheap and easy is still a real challenge.

Long-term stability at ambient conditions or more harsh environments such as high temperature, direct irradiation, light and humidity have to be carefully addressed when we are interested to use these materials in applications. The careful choice of a protective ligand or a shell proposed as an effective way to improve the stability of the perovskite nanocrystals but the effect of them on device performance is something that has to be studied as the conductivity and the PL is suppressed [196]. The encapsulation of the 2D perovskite-based materials in a matrix or a different material could be another way, but the sensitivity of these materials makes this more difficult [196]. Another notable future perspective worthy to be explored would be the development of composite inorganic oxide glasses upon encapsulating low-dimensional perovskite nanocrystals like NSs and NPls. The advantages of incorporating typical three-dimensional (3D) perovskite nanocrystals within transparent glasses towards improving stability while reducing toxicity have been demonstrated already [197]. The latter is of great importance if we consider that the toxic lead metal remains the main candidate for the majority of perovskite optoelectronic and photovoltaic devices. Along similar lines, polymers have been also employed as suitable hosts [198]. Moreover, the glass encapsulation approach offers an important tool for controlling the growth and morphology of the perovskite nanocrystals within the glass matrix by means of ultrafast pulsed and continuous wave laser sources. In particular, the formation of highly luminescent perovskite domains and micro-patterns within the glass matrices is achieved, paving the way towards advanced optoelectronic applications [197]. Also, it has been shown that the embedment of transition metal dichalcogenides 2D materials within silver-containing phosphate glasses results to the robust room-temperature B-exciton emission, as induced by the plasmon interactions between the randomly placed silver nanoparticles and the embedded few layers of the 2D material [199]. Thus, based on the above, it would be a great scientific achievement to incorporate 2D perovskite nanocrystals within glass matrices for three main reasons. First, the already improved stability of the 2D perovskite nanocrystals will be further enhanced. Second, upon using laser sources the crystalline morphology can be modified towards the development of advanced 2D and 2D-3D perovskite nanocrystal configurations. Finally, the induced interactions between glass components and the perovskite NSs and NPls are expected to induce interesting photoluminescence features that could be exploited towards next-generation optoelectronic and photonic devices.

Furthermore, the toxicity of the perovskite-based 2D materials in both NSs/NPls or heterostructured architectures due to the lead remain a major issue for using them in practical applications. To address the toxicity issues, significant efforts have been made to replace Pb²⁺ with other environmentally friendly metal cations such as Sn²⁺, Bi³⁺, Cu²⁺, Sb³⁺, and Ge²⁺. Last years the development of the lead-free perovskite nanocrystals is under investigation and new protocols and materials were emerged but the protocols on lead free NSs/NPls is still limited [107, 109]. The number of the reports on the lead-free perovskite nanocrystals/2D materials heterostructures is even less [63]. Beside this, the performances of them in optoelectronic or photocatalysis are still unsatisfactory compared with their Pb-based 2D materials [39]. Sn-based perovskites have appropriate bandgaps for optoelectronic applications, but they display very low stability due to the oxidation of Sn²⁺ to Sn⁴⁺ under ambient conditions while the Ge- and Bi-based perovskites which are stable possess a large bandgap, which limit the light absorption in long-wavelength range [200]. Therefore, it is high desirable to design new 2D Pb-free perovskite materials with appropriate bandgap and large absorption coefficient and high stability.

In many applications of the perovskite-based 2D materials, compact and smooth films of high quality, free of pinholes and cracks, is needed. This is real challenge as many factors during this fabrication remain unexplored and have to be controlled. Moreover, the removal of the capping ligands or treatment of the nanocrystal surface is a necessity in order to fabricate such films with enhanced electrical properties [201]. For such purposes, various methods for this treatment have been proposed, but many times are insufficient which result in the release of nanocrystals from the surface or cause their undesired growth of the nanocrystals. These processes are more trivial in the case of the sensitive 2D materials with only a few atomic layers thickness. These affect also the stability of the devices in which are utilized such materials. The development of new efficient strategies for the effective treatment without affecting their primary structural or morphological features is a requirement.

In the tremendously emerging field of LEDs, scientists have identified other key factors that appear to be critical for enhancing the external quantum efficiency of perovskite-based LED devices. Namely, such factors include radiative recombination in the emitter component, charge injection features, electron-hole coupling effects, and number of generated photons emitted out of the device [1]. In addition, the humidity and thermal stability of the perovskite nanocrystals has been enhanced with their conjugation with the 2D materials displaying better performance and higher color purity compared to the single perovskite nanocrystals in LEDs [49, 50]. Within the last five years or so, there has been great progress on putting together the pieces towards optimizing efficiency of LEDs. The great achievements on the design and fabrication of modern LED devices arise from the incredible progress on developing new synthesis routes that allow the facile control of dimensionality, size, and shape of stable 2D perovskite nanocrystals or by achieving strong coupling between the perovskite nanocrystals and the 2D materials in the heterostructures. Apart from the evolution of the synthesis methods, post-fabrication treatments and advanced device architectures play also an important role. Based on this, it is fair to say that the scientific community has resolved the aforementioned scientific challenges to a great extent. The future appears even more promising towards the design of LEDs with supreme efficiency throughout the visible spectral range.

According to the application of the 2D perovskite materials as photocatalysts, the long-term catalytic cycling and operational stability has to be improved [202]. To enhance the resistance to degradation, core−shell structures (e.g., oxide capping layers) will help to limit contact between the metal halide perovskites and any polar solvent. No core-shell structure including NPl as core is reported to date. 2D heterostructures found to be effective for the same reasons, increase the stability of the photocatalysts and they offer increased catalytic sites and sufficient charge separation compared to the pure perovskite nanocrystals and the 2D materials that are characterized from strong radiative recombination and insufficient stability. Interfacial engineering and strong coupling between the two materials will enhance further the photocatalytic performance.

In terms of perovskite solar cells based on low-dimensional perovskites, it becomes apparent that in order to achieve comparable power conversion efficiencies (PCEs) with the corresponding devices of typical 3D perovskites, the employment of quasi-2D perovskite films becomes a necessity. Nevertheless, as highlighted by Liu et al. [147], the formation of quasi-2D perovskites may be achieved in a controllable manner, by means of stacking together perovskite NSs. Thus, a great perspective would be to search for more strategies in order to transform the extremely stable perovskite NSs to advanced quasi-2D domains that appear to be drastically more efficient in energy conversion devices.

The transformation of the disadvantage of the metal halide perovskite nanocrystals to be moisture sensitive to advantage led Ran et al. to design a humidity detector based on CH₃NH₃PbI_3−xCl_x nanosheet arrays [37]. Also, the fact that the perovskite materials which are characterized by a high charge mobility can give an electrical readout as a result of variations in the environmental gas concentration result to gas sensors of ultra-low gas concentrations [203, 204]. These materials can be an alternative to metal oxide-based sensing elements demonstrated enhanced room temperature gas sensing ability without using an external triggering such as temperature or UV irradiation in order to operate. The use of heterostructures in gas sensors can become a promising alternative to other gas sensitive materials, due to the protective character of 2D materials resulting from its high hydrophobicity. The hydrophobic properties of the graphene can protect the perovskite counterpart, enabling their use for ambient monitoring. However a proof of concept to use them for breath analysis for the detection of health-related biomarkers was reported [184].

In summary, we believe that the 2D perovskites materials in the form of NSs/NPls or the nanocrystals/2D material heterostructures are a new family of structures with excellent tunability, highly dynamic structural features, and exciting optoelectronic properties [205]. The single-phase 2D perovskites need control of their thickness and homogeneity while the heterostructures need strong coupling between the two materials and interfacial engineering in order to achieve high performance in optoelectronic, photovoltaic sensing, or photocatalytic devices. Progress on the materials design is essential and elucidation of the synergetic effects and interfacial phenomena and good understanding of the underlying mechanisms are demanded as well.

Corresponding authors: Athanasia Kostopoulou, Ioannis Konidakis, and Emmanuel Stratakis, Foundation for Research & Technology – Hellas (FORTH), Institute of Electronic Structure & Laser (IESL), Vassilika Vouton, Heraklion 700 13, Greece, E-mail: akosto@iesl.forth.gr (A. Kostopoulou), ikonid@iesl.forth.gr (I. Konidakis), stratak@iesl.forth.gr (E. Stratakis) (A. Kostopoulou). (I. Konidakis). (E. Stratakis)

Funding source: ERA-NETS 2019b

Award Identifier / Grant number: MIS 5070514

Funding source: NFFA-Europe-Pilot project

Award Identifier / Grant number: 101007417

Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.
Research funding: This research was funded from FLAG-ERA Joint Transnational Call 2019 for transnational research projects in synergy with the two FET Flagships Graphene Flagship & Human Brain Project – ERA-NETS 2019b (PeroGaS: MIS 5070514) and by the European Union’s Horizon 2020 framework programme for research and innovation under the NFFA-Europe-Pilot project (grant agreement no. 101007417). Furthermore, we would like to aknowledge H2020 InComEss project-innovative polymer-based composite systems for high-efficient energy scavenging and storage (Project ID: 862,597) for support. IK would like to acknowledge support from the TheSmartMat project, “Laser-assisted development of composite thermochromic materials for energy smart and safe buildings”, EΣΠA 2014–2020, RIS3Crete, G.A. KPHP1-0032623.
Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

[1] C. Otero-Martínez, J. Ye, J. Sung, et al.., “Colloidal metal-halide perovskite nanoplatelets: thickness-controlled synthesis, properties, and application in light-emitting diodes,” Adv. Mater., vol. 34, no. 10, p. 2107105, 2022. https://doi.org/10.1002/adma.202107105.Search in Google Scholar PubMed

[2] A. Kostopoulou, K. Brintakis, N. K. Nasikas, and E. Stratakis, “Perovskite nanocrystals for energy conversion and storage,” Nanophotonics, vol. 8, no. 10, pp. 1607–1640, 2019. https://doi.org/10.1515/nanoph-2019-0119.Search in Google Scholar

[3] A. Kostopoulou, E. Kymakis, and E. Stratakis, “Perovskite nanostructures for photovoltaic and energy storage devices,” J. Mater. Chem. A, vol. 6, no. 21, pp. 9765–9798, 2018. https://doi.org/10.1039/C8TA01964A.Search in Google Scholar

[4] L. C. Schmidt, A. Pertegas, S. Gonzalez-Carrero, et al.., “Nontemplate synthesis of CH3NH3PbBr3 perovskite nanoparticles,” J. Am. Chem. Soc., vol. 136, no. 3, pp. 850–853, 2014. https://doi.org/10.1021/ja4109209.Search in Google Scholar PubMed

[5] M. V. Kovalenko, L. Protesescu, and M. I. Bodnarchuk, “Properties and potential optoelectronic applications of lead halide perovskite nanocrystals,” Science, vol. 358, no. 6364, pp. 745–750, 2017. https://doi.org/10.1126/science.aam7093.Search in Google Scholar PubMed

[6] N. Mondal, A. De, and A. Samanta, “Achieving near-unity photoluminescence efficiency for blue-violet-emitting perovskite nanocrystals,” ACS Energy Lett., vol. 4, no. 1, pp. 32–39, 2019. https://doi.org/10.1021/acsenergylett.8b01909.Search in Google Scholar

[7] G. Nedelcu, L. Protesescu, S. Yakunin, M. I. Bodnarchuk, M. J. Grotevent, and M. V. Kovalenko, “Fast anion-exchange in highly luminescent nanocrystals of cesium lead halide perovskites (CsPbX3, X = Cl, Br, I),” Nano Lett., vol. 15, no. 8, pp. 5635–5640, 2015. https://doi.org/10.1021/acs.nanolett.5b02404.Search in Google Scholar PubMed PubMed Central

[8] J. A. Sichert, Y. Tong, N. Mutz, et al.., “Quantum size effect in organometal halide perovskite nanoplatelets,” Nano Lett., vol. 15, no. 10, pp. 6521–6527, 2015. https://doi.org/10.1021/acs.nanolett.5b02985.Search in Google Scholar PubMed

[9] V. A. Hintermayr, A. F. Richter, F. Ehrat, et al.., “Tuning the optical properties of perovskite nanoplatelets through composition and thickness by ligand-assisted exfoliation,” Adv. Mater., vol. 28, no. 43, pp. 9478–9485, 2016. https://doi.org/10.1002/adma.201602897.Search in Google Scholar PubMed

[10] L. Polavarapu, B. Nickel, J. Feldmann, and A. S. Urban, “Advances in quantum-confined perovskite nanocrystals for optoelectronics,” Adv. Energy Mater., vol. 7, no. 16, p. 1700267, 2017. https://doi.org/10.1002/aenm.201700267.Search in Google Scholar

[11] Y. Bekenstein, B. A. Koscher, S. W. Eaton, P. Yang, and A. P. Alivisatos, “Highly luminescent colloidal nanoplates of perovskite cesium lead halide and their oriented assemblies,” J. Am. Chem. Soc., vol. 137, no. 51, pp. 16008–16011, 2015. https://doi.org/10.1021/jacs.5b11199.Search in Google Scholar PubMed

[12] Q. A. Akkerman, S. G. Motti, A. R. Srimath Kandada, et al.., “Solution synthesis approach to colloidal cesium lead halide perovskite nanoplatelets with monolayer-level thickness control,” J. Am. Chem. Soc., vol. 138, no. 3, pp. 1010–1016, 2016. https://doi.org/10.1021/jacs.5b12124.Search in Google Scholar PubMed PubMed Central

[13] Y. Wang, Y. Shi, G. Xin, J. Lian, and J. Shi, “Two-dimensional van der Waals epitaxy kinetics in a three-dimensional perovskite halide,” Cryst. Growth Des., vol. 15, no. 10, pp. 4741–4749, 2015. https://doi.org/10.1021/acs.cgd.5b00949.Search in Google Scholar

[14] W. Niu, A. Eiden, G. Vijaya Prakash, and J. J. Baumberg, “Exfoliation of self-assembled 2D organic-inorganic perovskite semiconductors,” Appl. Phys. Lett., vol. 104, no. 17, p. 171111, 2014. https://doi.org/10.1063/1.4874846.Search in Google Scholar

[15] L. Dou, A. B. Wong, Y. Yu, et al.., “Atomically thin two-dimensional organic-inorganic hybrid perovskites,” Science, vol. 349, no. 6255, pp. 1518–1521, 2015. https://doi.org/10.1126/science.aac7660.Search in Google Scholar PubMed

[16] M. A. Uddin, J. D. Glover, S. M. Park, J. T. Pham, and K. R. Graham, “Growth of highly stable and luminescent CsPbX3 (X = Cl, Br, and I) nanoplates via ligand mediated anion exchange of CsPbCl3 nanocubes with AlX3,” Chem. Mater., vol. 32, no. 12, pp. 5217–5225, 2020. https://doi.org/10.1021/acs.chemmater.0c01325.Search in Google Scholar

[17] A. Kostopoulou, K. Brintakis, M. Sygletou, et al.., “Laser-induced morphological and structural changes of cesium lead bromide nanocrystals,” Nanomaterials, vol. 12, no. 4, p. 703, 2022. https://doi.org/10.3390/nano12040703.Search in Google Scholar PubMed PubMed Central

[18] Y. Tong, E. Bladt, M. F. Ayguler, et al.., “Highly luminescent cesium lead halide perovskite nanocrystals with tunable composition and thickness by ultrasonication,” Angew. Chem., Int. Ed., vol. 55, no. 44, pp. 13887–13892, 2016. https://doi.org/10.1002/anie.201605909.Search in Google Scholar PubMed

[19] G. Almeida, L. Goldoni, Q. Akkerman, et al.., “Role of acid–base equilibria in the size, shape, and phase control of cesium lead bromide nanocrystals,” ACS Nano, vol. 12, no. 2, pp. 1704–1711, 2018. https://doi.org/10.1021/acsnano.7b08357.Search in Google Scholar PubMed PubMed Central

[20] A. Chakrabarty, S. Satija, U. Gangwar, and S. Sapra, “Precursor-mediated synthesis of shape-controlled colloidal CsPbBr3 perovskite nanocrystals and their nanofiber-directed self-assembly,” Chem. Mater., vol. 32, no. 2, pp. 721–733, 2020. https://doi.org/10.1021/acs.chemmater.9b03700.Search in Google Scholar

[21] J. Shamsi, Z. Dang, P. Bianchini, et al.., “Colloidal synthesis of quantum confined single crystal CsPbBr3 nanosheets with lateral size control up to the micrometer range,” J. Am. Chem. Soc., vol. 138, no. 23, pp. 7240–7243, 2016. https://doi.org/10.1021/jacs.6b03166.Search in Google Scholar PubMed PubMed Central

[22] Y. Wu, C. Wei, X. Li, et al.., “In situ passivation of PbBr64– octahedra toward blue luminescent CsPbBr3 nanoplatelets with near 100% absolute quantum yield,” ACS Energy Lett., vol. 3, no. 9, pp. 2030–2037, 2018. https://doi.org/10.1021/acsenergylett.8b01025.Search in Google Scholar

[23] O. Vybornyi, S. Yakunin, and M. V. Kovalenko, “Polar-solvent-free colloidal synthesis of highly luminescent alkylammonium lead halide perovskite nanocrystals,” Nanoscale, vol. 8, no. 12, pp. 6278–6283, 2016. https://doi.org/10.1039/C5NR06890H.Search in Google Scholar

[24] L. Protesescu, S. Yakunin, S. Kumar, et al.., “Dismantling the ‘red wall’ of colloidal perovskites: highly luminescent formamidinium and formamidinium–cesium lead iodide nanocrystals,” ACS Nano, vol. 11, no. 3, pp. 3119–3134, 2017. https://doi.org/10.1021/acsnano.7b00116.Search in Google Scholar PubMed PubMed Central

[25] G. H. Ahmed, J. Yin, R. Bose, et al.., “Pyridine-induced dimensionality change in hybrid perovskite nanocrystals,” Chem. Mater., vol. 29, no. 10, pp. 4393–4400, 2017. https://doi.org/10.1021/acs.chemmater.7b00872.Search in Google Scholar

[26] I. Levchuk, A. Osvet, X. Tang, et al.., “Brightly luminescent and color-tunable formamidinium lead halide perovskite FAPbX3 (X = Cl, Br, I) colloidal nanocrystals,” Nano Lett., vol. 17, no. 5, pp. 2765–2770, 2017. https://doi.org/10.1021/acs.nanolett.6b04781.Search in Google Scholar PubMed

[27] I. Lignos, L. Protesescu, D. B. Emiroglu, et al.., “Unveiling the shape evolution and halide-ion-segregation in blue-emitting formamidinium lead halide perovskite nanocrystals using an automated microfluidic platform,” Nano Lett., vol. 18, no. 2, pp. 1246–1252, 2018. https://doi.org/10.1021/acs.nanolett.7b04838.Search in Google Scholar PubMed

[28] J. Shamsi, A. S. Urban, M. Imran, L. De Trizio, and L. Manna, “Metal halide perovskite nanocrystals: synthesis, post-synthesis modifications, and their optical properties,” Chem. Rev., vol. 119, no. 5, pp. 3296–3348, 2019. https://doi.org/10.1021/acs.chemrev.8b00644.Search in Google Scholar PubMed PubMed Central

[29] H. Huang, Y. Li, Y. Tong, et al.., “Spontaneous crystallization of perovskite nanocrystals in nonpolar organic solvents: a versatile approach for their shape-controlled synthesis,” Angew. Chem., Int. Ed., vol. 58, no. 46, pp. 16558–16562, 2019. https://doi.org/10.1002/anie.201906862.Search in Google Scholar PubMed PubMed Central

[30] Y. Ding, T. Li, X. Li, et al.., “Tin-assisted growth of all-inorganic perovskite nanoplatelets with controllable morphologies and complementary emissions,” CrystEngComm, vol. 21, no. 14, pp. 2388–2397, 2019. https://doi.org/10.1039/C9CE00027E.Search in Google Scholar

[31] W. Zhai, J. Lin, Q. Li, et al.., “Solvothermal synthesis of ultrathin cesium lead halide perovskite nanoplatelets with tunable lateral sizes and their reversible transformation into Cs4PbBr6 nanocrystals,” Chem. Mater., vol. 30, no. 11, pp. 3714–3721, 2018. https://doi.org/10.1021/acs.chemmater.8b00612.Search in Google Scholar

[32] L. Niu, Q. Zeng, J. Shi, et al.., “Controlled growth and reliable thickness-dependent properties of organic–inorganic perovskite platelet crystal,” Adv. Funct. Mater., vol. 26, no. 29, pp. 5263–5270, 2016. https://doi.org/10.1002/adfm.201601392.Search in Google Scholar

[33] A. Mandal, A. Ghosh, D. Ghosh, and S. Bhattacharyya, “Photodetectors with high responsivity by thickness tunable mixed halide perovskite nanosheets,” ACS Appl. Mater. Interfaces, vol. 13, no. 36, pp. 43104–43114, 2021. https://doi.org/10.1021/acsami.1c13452.Search in Google Scholar PubMed

[34] F. Bai, Y. Hu, Y. Hu, T. Qiu, X. Miao, and S. Zhang, “Lead-free, air-stable ultrathin Cs3Bi2I9 perovskite nanosheets for solar cells,” Sol. Energy Mater. Sol. Cells, vol. 184, pp. 15–21, 2018. https://doi.org/10.1016/j.solmat.2018.04.032.Search in Google Scholar

[35] Y. Dai and H. Tüysüz, “Rapid acidic media growth of Cs3Bi2Br9 halide perovskite platelets for photocatalytic toluene oxidation,” Solar RRL, vol. 5, no. 7, p. 2100265, 2021. https://doi.org/10.1002/solr.202100265.Search in Google Scholar

[36] L.-Y. Wu, M. R. Zhang, Y. X. Feng, W. Zhang, M. Zhang, and T. B. Lu, “Two-dimensional metal halide perovskite nanosheets for efficient photocatalytic CO2 reduction,” Solar RRL, vol. 5, no. 8, p. 2100263, 2021. https://doi.org/10.1002/solr.202100263.Search in Google Scholar

[37] K. Ren, L. Huang, S. Yue, et al.., “Turning a disadvantage into an advantage: synthesizing high-quality organometallic halide perovskite nanosheet arrays for humidity sensors,” J. Mater. Chem. C, vol. 5, no. 10, pp. 2504–2508, 2017. https://doi.org/10.1039/C6TC05165K.Search in Google Scholar

[38] C. Rodà, A. L. Abdelhady, J. Shamsi, et al.., “O2 as a molecular probe for nonradiative surface defects in CsPbBr3 perovskite nanostructures and single crystals,” Nanoscale, vol. 11, no. 16, pp. 7613–7623, 2019. https://doi.org/10.1039/C9NR01133A.Search in Google Scholar PubMed

[39] Z. Zhang, S. Wang, X. Liu, et al.., “Metal halide perovskite/2D material heterostructures: syntheses and applications,” Small Methods, vol. 5, no. 4, p. 2000937, 2021. https://doi.org/10.1002/smtd.202000937.Search in Google Scholar PubMed

[40] D.-H. Kwak, D.-H. Lim, H.-S. Ra, P Ramasamy, and J.-S. Le, “High performance hybrid graphene–CsPbBr3−xIx perovskite nanocrystal photodetector,” RSC Adv., vol. 6, no. 69, pp. 65252–65256, 2016. https://doi.org/10.1039/C6RA08699C.Search in Google Scholar

[41] Y.-F. Xu, M. Z. Yang, B. X. Chen, et al.., “A CsPbBr3 perovskite quantum dot/graphene oxide composite for photocatalytic CO2 reduction,” J. Am. Chem. Soc., vol. 139, no. 16, pp. 5660–5663, 2017. https://doi.org/10.1021/jacs.7b00489.Search in Google Scholar PubMed

[42] X. Tang, Z. Zu, Z. Zang, et al.., “CsPbBr3/Reduced Graphene Oxide nanocomposites and their enhanced photoelectric detection application,” Sens. Actuators, B, vol. 245, pp. 435–440, 2017. https://doi.org/10.1016/j.snb.2017.01.168.Search in Google Scholar

[43] J.-S. Chen, T. L. Doane, M. Li, H. Zang, M. M. Maye, and M. Cotlet, “0D–2D and 1D–2D semiconductor hybrids composed of all inorganic perovskite nanocrystals and single-layer graphene with improved light harvesting,” Part. Part. Syst. Char., vol. 35, no. 2, p. 1700310, 2018. https://doi.org/10.1002/ppsc.201700310.Search in Google Scholar

[44] X.-X. Guo, S. F. Tang, Y. F. Mu, L. Y. Wu, G. X. Dong, and M. Zhang, “Engineering a CsPbBr3-based nanocomposite for efficient photocatalytic CO2 reduction: improved charge separation concomitant with increased activity sites,” RSC Adv., vol. 9, no. 59, pp. 34342–34348, 2019. https://doi.org/10.1039/C9RA07236E.Search in Google Scholar

[45] H. Huang, J. Li, Y. Yi, et al.., “In situ growth of all-inorganic perovskite nanocrystals on black phosphorus nanosheets,” Chem. Commun., vol. 54, no. 19, pp. 2365–2368, 2018. https://doi.org/10.1039/C8CC00029H.Search in Google Scholar

[46] S. Muduli, P. Pandey, G. Devatha, et al.., “Photoluminescence quenching in self-assembled CsPbBr3 quantum dots on few-layer black phosphorus sheets,” Angew. Chem., Int. Ed., vol. 57, no. 26, pp. 7682–7686, 2018. https://doi.org/10.1002/anie.201712608.Search in Google Scholar PubMed

[47] M. Ou, W. Tu, S. Yin, et al.., “Amino-assisted anchoring of CsPbBr3 perovskite quantum dots on porous g-C3N4 for enhanced photocatalytic CO2 reduction,” Angew. Chem., Int. Ed., vol. 57, no. 41, pp. 13570–13574, 2018. https://doi.org/10.1002/anie.201808930.Search in Google Scholar PubMed

[48] Q. Zhang, H. Nan, Y. Zhou, et al.., “In situ growth of α-CsPbI3 perovskite nanocrystals on the surface of reduced graphene oxide with enhanced stability and carrier transport quality,” J. Mater. Chem. C, vol. 7, no. 22, pp. 6795–6804, 2019. https://doi.org/10.1039/C9TC01012B.Search in Google Scholar

[49] L. Qiu, J. Hao, Y. Feng, et al.., “One-pot in situ synthesis of CsPbX3@h-BN (X = Cl, Br, I) nanosheet composites with superior thermal stability for white LEDs,” J. Mater. Chem. C, vol. 7, no. 14, pp. 4038–4042, 2019. https://doi.org/10.1039/C9TC00505F.Search in Google Scholar

[50] Y. Li, L. Dong, N. Chen, et al.., “Room-temperature synthesis of two-dimensional hexagonal boron nitride nanosheet-stabilized CsPbBr3 perovskite quantum dots,” ACS Appl. Mater. Interfaces, vol. 11, no. 8, pp. 8242–8249, 2019. https://doi.org/10.1021/acsami.8b20400.Search in Google Scholar PubMed

[51] Y. Pu, W. Liu, Y. Liu, et al.., “Enhancing effects of reduced graphene oxide on photoluminescence of CsPbBr3 perovskite quantum dots,” J. Mater. Chem. C, vol. 8, no. 22, pp. 7447–7453, 2020. https://doi.org/10.1039/D0TC01069C.Search in Google Scholar

[52] Md. S. Hassan, P. Basera, S. Bera, et al.., “Enhanced photocurrent owing to shuttling of charge carriers across 4-aminothiophenol-functionalized MoSe2–CsPbBr3 nanohybrids,” ACS Appl. Mater. Interfaces, vol. 12, no. 6, pp. 7317–7325, 2020. https://doi.org/10.1021/acsami.9b20050.Search in Google Scholar PubMed

[53] M. Peng, Y. Ma, L. Zhang, et al.., “All-inorganic CsPbBr3 perovskite nanocrystals/2D non-layered cadmium sulfide selenide for high-performance photodetectors by energy band alignment engineering,” Adv. Funct. Mater., vol. 31, no. 42, p. 2105051, 2021. https://doi.org/10.1002/adfm.202105051.Search in Google Scholar

[54] H. Bian, D. Li, S. Wang, J. Yan, and S. F. Liu, “2D-C3N4 encapsulated perovskite nanocrystals for efficient photo-assisted thermocatalytic CO2 reduction,” Chem. Sci., vol. 13, no. 5, pp. 1335–1341, 2022. https://doi.org/10.1039/D1SC06131C.Search in Google Scholar

[55] H. Wu, Z. Kang, Z. Zhang, et al.., “Interfacial charge behavior modulation in perovskite quantum dot-monolayer MoS2 0D-2D mixed-dimensional van der Waals heterostructures,” Adv. Funct. Mater., vol. 28, no. 34, p. 1802015, 2018. https://doi.org/10.1002/adfm.201802015.Search in Google Scholar

[56] H. Wu, H. Si, Z. Zhang, et al.., “All-inorganic perovskite quantum dot-monolayer MoS2 mixed-dimensional van der Waals heterostructure for ultrasensitive photodetector,” Adv. Sci., vol. 5, no. 12, p. 1801219, 2018. https://doi.org/10.1002/advs.201801219.Search in Google Scholar PubMed PubMed Central

[57] F. Wang, X. Liu, Z. Zhang, and S. Min, “A noble-metal-free MoS2 nanosheet-coupled MAPbI3 photocatalyst for efficient and stable visible-light-driven hydrogen evolution,” Chem. Commun., vol. 56, no. 22, pp. 3281–3284, 2020. https://doi.org/10.1039/D0CC00095G.Search in Google Scholar

[58] A. Kostopoulou, K. Brintakis, E. Serpetzoglou, and E. Stratakis, “Laser-assisted fabrication for metal halide perovskite-2D nanoconjugates: control on the nanocrystal density and morphology,” Nanomaterials, vol. 10, no. 4, p. 747, 2020. https://doi.org/10.3390/nano10040747.Search in Google Scholar PubMed PubMed Central

[59] Y.-C. Pu, H. C. Fan, T. W. Liu, and J. W. Chen, “Methylamine lead bromide perovskite/protonated graphitic carbon nitride nanocomposites: interfacial charge carrier dynamics and photocatalysis,” J. Mater. Chem. A, vol. 5, no. 48, pp. 25438–25449, 2017. https://doi.org/10.1039/C7TA08190A.Search in Google Scholar

[60] Y. Wu, P. Wang, X. Zhu, et al.., “Composite of CH3NH3PbI3 with reduced graphene oxide as a highly efficient and stable visible-light photocatalyst for hydrogen evolution in aqueous HI solution,” Adv. Mater., vol. 30, no. 7, p. 1704342, 2018. https://doi.org/10.1002/adma.201704342.Search in Google Scholar PubMed

[61] J. Casanova-Cháfer, R. Garcia-Aboal, P. Atienzar, and E. Llobet, “Gas sensing properties of perovskite decorated graphene at room temperature,” Sensors, vol. 19, no. 20, p. 4563, 2019. https://doi.org/10.3390/s19204563.Search in Google Scholar PubMed PubMed Central

[62] Q. Wang, L. Tao, X. Jiang, M. Wang, and Y. Shen, “Graphene oxide wrapped CH3NH3PbBr3 perovskite quantum dots hybrid for photoelectrochemical CO2 reduction in organic solvents,” Appl. Surf. Sci., vol. 465, pp. 607–613, 2019. https://doi.org/10.1016/j.apsusc.2018.09.215.Search in Google Scholar

[63] T. Wang, D. Yue, X. Li, and Y. Zhao, “Lead-free double perovskite Cs2AgBiBr6/RGO composite for efficient visible light photocatalytic H2 evolution,” Appl. Catal., B, vol. 268, p. 118399, 2020. https://doi.org/10.1016/j.apcatb.2019.118399.Search in Google Scholar

[64] H. Lee, H. Han, C. Park, et al.., “Halide perovskite nanocrystal-enabled stabilization of transition metal dichalcogenide nanosheets,” Small, vol. 18, no. 6, p. 2106035, 2022. https://doi.org/10.1002/smll.202106035.Search in Google Scholar PubMed

[65] X.-D. Wang, Y. H. Huang, J. F. Liao, et al.., “In situ construction of a Cs2SnI6 perovskite nanocrystal/SnS2 nanosheet heterojunction with boosted interfacial charge transfer,” J. Am. Chem. Soc., vol. 141, no. 34, pp. 13434–13441, 2019. https://doi.org/10.1021/jacs.9b04482.Search in Google Scholar PubMed

[66] X. Wang, J. He, L. Mao, X. Cai, C. Sun, and M. Zhu, “CsPbBr3 perovskite nanocrystals anchoring on monolayer MoS2 nanosheets for efficient photocatalytic CO2 reduction,” Chem. Eng. J., vol. 416, p. 128077, 2021. https://doi.org/10.1016/j.cej.2020.128077.Search in Google Scholar

[67] S. Park, W. J. Chang, C. W. Lee, H. Y. Ahn, and K. T. Nam, “Photocatalytic hydrogen generation from hydriodic acid using methylammonium lead iodide in dynamic equilibrium with aqueous solution,” Nat. Energy, vol. 2, no. 1, pp. 1–8, 2016. https://doi.org/10.1038/nenergy.2016.185.Search in Google Scholar

[68] Y. Jiang, K. Li, X. Wu, et al.., “In situ synthesis of lead-free halide perovskite Cs2AgBiBr6 supported on nitrogen-doped carbon for efficient hydrogen evolution in aqueous HBr solution,” ACS Appl. Mater. Interfaces, vol. 13, no. 8, pp. 10037–10046, 2021. https://doi.org/10.1021/acsami.0c21588.Search in Google Scholar PubMed

[69] J. Casanova-Chafer, R. Garcia-Aboal, P. Atienzar, and E. Llobet, “The role of anions and cations in the gas sensing mechanisms of graphene decorated with lead halide perovskite nanocrystals,” Chem. Commun., vol. 56, no. 63, pp. 8956–8959, 2020. https://doi.org/10.1039/D0CC02984J.Search in Google Scholar

[70] Y. Wang, Y. Zhang, Y. Lu, et al.., “Hybrid graphene–perovskite phototransistors with ultrahigh responsivity and gain,” Adv. Opt. Mater., vol. 3, no. 10, pp. 1389–1396, 2015. https://doi.org/10.1002/adom.201500150.Search in Google Scholar

[71] Q. Wang, Z. Jin, D. Chen, et al.., “µ-graphene crosslinked CsPbI3 quantum dots for high efficiency solar cells with much improved stability,” Adv. Energy Mater., vol. 8, no. 22, p. 1800007, 2018. https://doi.org/10.1002/aenm.201800007.Search in Google Scholar

[72] A. Dey, J. Ye, E. Debroye, S. K. Ha, E. Bladt, A. KshirsagarS., et al.., “State of the art and prospects for halide perovskite nanocrystals,” ACS Nano, vol. 15, no. 7, pp. 10775–10981, 2021. https://doi.org/10.1021/acsnano.0c08903.Search in Google Scholar PubMed PubMed Central

[73] M. Imran, V. Caligiuri, M. Wang, et al.., “Benzoyl halides as alternative precursors for the colloidal synthesis of lead-based halide perovskite nanocrystals,” J. Am. Chem. Soc., vol. 140, no. 7, pp. 2656–2664, 2018. https://doi.org/10.1021/jacs.7b13477.Search in Google Scholar PubMed PubMed Central

[74] Z. Yuan, Y. Shu, Y. Xin, and B. Ma, “Highly luminescent nanoscale quasi-2D layered lead bromide perovskites with tunable emissions,” Chem. Commun., vol. 52, no. 20, pp. 3887–3890, 2016. https://doi.org/10.1039/C5CC09762B.Search in Google Scholar

[75] M. C. Weidman, M. Seitz, S. D. Stranks, and W. A. Tisdale, “Highly tunable colloidal perovskite nanoplatelets through variable cation, metal, and halide composition,” ACS Nano, vol. 10, no. 8, pp. 7830–7839, 2016. https://doi.org/10.1021/acsnano.6b03496.Search in Google Scholar PubMed

[76] J. Cho, Y. H. Choi, T. E. O’Loughlin, L. De Jesus, and S. Banerjee, “Ligand-mediated modulation of layer thicknesses of perovskite methylammonium lead bromide nanoplatelets,” Chem. Mater., vol. 28, no. 19, pp. 6909–6916, 2016. https://doi.org/10.1021/acs.chemmater.6b02241.Search in Google Scholar

[77] S. Bhaumik, S. A. Veldhuis, Y. F. Ng, et al.., “Highly stable, luminescent core–shell type methylammonium–octylammonium lead bromide layered perovskite nanoparticles,” Chem. Commun., vol. 52, no. 44, pp. 7118–7121, 2016. https://doi.org/10.1039/C6CC01056C.Search in Google Scholar PubMed

[78] S. Kumar, J. Jagielski, S. Yakunin, et al.., “Efficient blue electroluminescence using quantum-confined two-dimensional perovskites,” ACS Nano, vol. 10, no. 10, pp. 9720–9729, 2016. https://doi.org/10.1021/acsnano.6b05775.Search in Google Scholar PubMed

[79] I. Levchuk, P. Herre, M. Brandl, et al.., “Ligand-assisted thickness tailoring of highly luminescent colloidal CH3NH3PbX3 (X = Br and I) perovskite nanoplatelets,” Chem. Commun., vol. 53, no. 1, pp. 244–247, 2016. https://doi.org/10.1039/C6CC09266G.Search in Google Scholar PubMed

[80] C. C. Stoumpos, D. H. Cao, D. J. Clark, et al.., “Ruddlesden–popper hybrid lead iodide perovskite 2D homologous semiconductors,” Chem. Mater., vol. 28, no. 8, pp. 2852–2867, 2016. https://doi.org/10.1021/acs.chemmater.6b00847.Search in Google Scholar

[81] J.-C. Blancon, H. Tsai, W. Nie, et al.., “Extremely efficient internal exciton dissociation through edge states in layered 2D perovskites,” Science, vol. 355, no. 6331, pp. 1288–1292, 2017. https://doi.org/10.1126/science.aal4211.Search in Google Scholar PubMed

[82] C. J. Dahlman, N. R. Venkatesan, P. T. Corona, et al.., “Structural evolution of layered hybrid lead iodide perovskites in colloidal dispersions,” ACS Nano, vol. 14, no. 9, pp. 11294–11308, 2020. https://doi.org/10.1021/acsnano.0c03219.Search in Google Scholar PubMed

[83] M. P. Hautzinger, D. Pan, A. K. Pigg, et al.., “Band edge tuning of two-dimensional ruddlesden–popper perovskites by A cation size revealed through nanoplates,” ACS Energy Lett., vol. 5, no. 5, pp. 1430–1437, 2020. https://doi.org/10.1021/acsenergylett.0c00450.Search in Google Scholar

[84] D. N. Minh, J. Kim, J. Hyon, et al.., “Room-temperature synthesis of widely tunable formamidinium lead halide perovskite nanocrystals,” Chem. Mater., vol. 29, no. 13, pp. 5713–5719, 2017. https://doi.org/10.1021/acs.chemmater.7b01705.Search in Google Scholar

[85] D. Yu, F. Cao, Y. Gao, Y. Xiong, and H. Zeng, “Room-temperature ion-exchange-mediated self-assembly toward formamidinium perovskite nanoplates with finely tunable, ultrapure green emissions for achieving rec. 2020 displays,” Adv. Funct. Mater., vol. 28, no. 19, p. 1800248, 2018. https://doi.org/10.1002/adfm.201800248.Search in Google Scholar

[86] H. Fang, W. Deng, X. Zhang, et al.., “Few-layer formamidinium lead bromide nanoplatelets for ultrapure-green and high-efficiency light-emitting diodes,” Nano Res., vol. 12, no. 1, pp. 171–176, 2019. https://doi.org/10.1007/s12274-018-2197-3.Search in Google Scholar

[87] S. Peng, Z. Wen, T. Ye, et al.., “Effective surface ligand-concentration tuning of deep-blue luminescent FAPbBr3 nanoplatelets with enhanced stability and charge transport,” ACS Appl. Mater. Interfaces, vol. 12, no. 28, pp. 31863–31874, 2020. https://doi.org/10.1021/acsami.0c08552.Search in Google Scholar PubMed

[88] X. Yang, J. Wu, T. Liu, and R. Zhu, “Patterned perovskites for optoelectronic applications,” Small Methods, vol. 2, no. 10, p. 1800110, 2018. https://doi.org/10.1002/smtd.201800110.Search in Google Scholar

[89] S.-Y. Liang, Y. Liu, S. Wang, et al.., “High-resolution patterning of 2D perovskite films through femtosecond laser direct writing,” Adv. Funct. Mater., vol. 32, no. 38, p. 0224957, 2022. https://doi.org/10.1002/adfm.202204957.Search in Google Scholar

[90] X. Li, Y. Wu, S. Zhang, et al.., “CsPbX3 quantum dots for lighting and displays: room-temperature synthesis, photoluminescence superiorities, underlying origins and white light-emitting diodes,” Adv. Funct. Mater., vol. 26, no. 15, pp. 2435–2445, 2016. https://doi.org/10.1002/adfm.201600109.Search in Google Scholar

[91] L. Protesescu, S. Yakunin, M. I. Bodnarchuk, et al.., “Nanocrystals of cesium lead halide perovskites (CsPbX3, X = Cl, Br, and I): novel optoelectronic materials showing bright emission with wide color gamut,” Nano Lett., vol. 15, no. 6, pp. 3692–3696, 2015. https://doi.org/10.1021/nl5048779.Search in Google Scholar PubMed PubMed Central

[92] S. Sun, D. Yuan, Y. Xu, A. Wang, and Z. Deng, “Ligand-mediated synthesis of shape-controlled cesium lead halide perovskite nanocrystals via reprecipitation process at room temperature,” ACS Nano, vol. 10, no. 3, pp. 3648–3657, 2016. https://doi.org/10.1021/acsnano.5b08193.Search in Google Scholar PubMed

[93] K.-H. Wang, L. Wu, L. Li, H. B. Yao, H. S. Qian, and S. H. Yu, “Large-scale synthesis of highly luminescent perovskite-related CsPb2Br5 nanoplatelets and their fast anion exchange,” Angew. Chem., Int. Ed., vol. 55, no. 29, pp. 8328–8332, 2016. https://doi.org/10.1002/anie.201602787.Search in Google Scholar PubMed

[94] A. Pan, B. He, X. Fan, et al.., “Insight into the ligand-mediated synthesis of colloidal CsPbBr3 perovskite nanocrystals: the role of organic acid, base, and cesium precursors,” ACS Nano, vol. 10, no. 8, pp. 7943–7954, 2016. https://doi.org/10.1021/acsnano.6b03863.Search in Google Scholar PubMed

[95] X. Sheng, G. Chen, C. Wang, et al.., “Polarized optoelectronics of CsPbX3 (X = Cl, Br, I) perovskite nanoplates with tunable size and thickness,” Adv. Funct. Mater., vol. 28, no. 19, p. 1800283, 2018. https://doi.org/10.1002/adfm.201800283.Search in Google Scholar

[96] F. Bertolotti, G. Nedelcu, A. Vivani, et al.., “Crystal structure, morphology, and surface termination of cyan-emissive, six-monolayers-thick CsPbBr3 nanoplatelets from X-ray total scattering,” ACS Nano, vol. 13, no. 12, pp. 14294–14307, 2019. https://doi.org/10.1021/acsnano.9b07626.Search in Google Scholar PubMed PubMed Central

[97] J. Shamsi, D. Kubicki, M. Anaya, et al.., “Stable hexylphosphonate-capped blue-emitting quantum-confined CsPbBr3 nanoplatelets,” ACS Energy Lett., vol. 5, no. 6, pp. 1900–1907, 2020. https://doi.org/10.1021/acsenergylett.0c00935.Search in Google Scholar PubMed PubMed Central

[98] Q. Zeng, Y. Du, J. Jiang, Q. Yu, and Y. Li, “Revealing the aging effect of metal-oleate precursors on the preparation of highly luminescent CsPbBr3 nanoplatelets,” J. Phys. Chem. Lett., vol. 12, no. 10, pp. 2668–2675, 2021. https://doi.org/10.1021/acs.jpclett.1c00300.Search in Google Scholar PubMed

[99] L. G. Bonato, R. F. Moral, G. Nagamine, et al.., “Revealing the role of tin(IV) halides in the anisotropic growth of CsPbX3 perovskite nanoplates,” Angew. Chem., Int. Ed., vol. 59, no. 28, pp. 11501–11509, 2020. https://doi.org/10.1002/anie.202002641.Search in Google Scholar PubMed

[100] J. Zhao, S. Cao, Z. Li, and N. Ma, “Amino acid-mediated synthesis of CsPbBr3 perovskite nanoplatelets with tunable thickness and optical properties,” Chem. Mater., vol. 30, no. 19, pp. 6737–6743, 2018. https://doi.org/10.1021/acs.chemmater.8b02396.Search in Google Scholar

[101] X. Zhang, X. Bai, H. Wu, et al.., “Water-assisted size and shape control of CsPbBr3 perovskite nanocrystals,” Angew. Chem., Int. Ed., vol. 57, no. 13, pp. 3337–3342, 2018. https://doi.org/10.1002/anie.201710869.Search in Google Scholar PubMed

[102] B. J. Bohn, Y. Tong, M. Gramlich, et al.., “Boosting tunable blue luminescence of halide perovskite nanoplatelets through postsynthetic surface trap repair,” Nano Lett., vol. 18, no. 8, pp. 5231–5238, 2018. https://doi.org/10.1021/acs.nanolett.8b02190.Search in Google Scholar PubMed

[103] D. Chen, X. Chen, J. Li, X. Li, and J. Zhong, “Ultrathin CsPbX3 (X = Cl, Br, I) nanoplatelets: solvothermal synthesis and optical spectroscopic properties,” Dalton Trans., vol. 47, no. 29, pp. 9845–9849, 2018. https://doi.org/10.1039/C8DT01720D.Search in Google Scholar PubMed

[104] Q. Pan, H. Hu, Y. Zou, et al.., “Microwave-assisted synthesis of high-quality ‘all-inorganic’ CsPbX3 (X = Cl, Br, I) perovskite nanocrystals and their application in light emitting diodes,” J. Mater. Chem. C, vol. 5, no. 42, pp. 10947–10954, 2017. https://doi.org/10.1039/C7TC03774K.Search in Google Scholar

[105] A. Wang, X. Yan, M. Zhang, et al.., “Controlled synthesis of lead-free and stable perovskite derivative Cs2SnI6 nanocrystals via a facile hot-injection process,” Chem. Mater., vol. 28, no. 22, pp. 8132–8140, 2016. https://doi.org/10.1021/acs.chemmater.6b01329.Search in Google Scholar

[106] A. B. Wong, Y. Bekenstein, J. Kang, et al.., “Strongly quantum confined colloidal cesium tin iodide perovskite nanoplates: lessons for reducing defect density and improving stability,” Nano Lett., vol. 18, no. 3, pp. 2060–2066, 2018. https://doi.org/10.1021/acs.nanolett.8b00077.Search in Google Scholar PubMed

[107] L. Lian, G. Zhai, F. Cheng, et al.., “Colloidal synthesis of lead-free all-inorganic cesium bismuth bromide perovskite nanoplatelets,” CrystEngComm, vol. 20, no. 46, pp. 7473–7478, 2018. https://doi.org/10.1039/C8CE01060A.Search in Google Scholar

[108] J. Huang, S. Zou, J. Lin, Z. Liu, and M. Qi, “Ultrathin lead-free double perovskite cesium silver bismuth bromide nanosheets,” Nano Res., vol. 14, no. 11, pp. 4079–4086, 2021. https://doi.org/10.1007/s12274-021-3343-x.Search in Google Scholar

[109] Z. Liu, H. Yang, J. Wang, et al.., “Synthesis of lead-free Cs2AgBiX6 (X = Cl, Br, I) double perovskite nanoplatelets and their application in CO2 photocatalytic reduction,” Nano Lett., vol. 21, no. 4, pp. 1620–1627, 2021. https://doi.org/10.1021/acs.nanolett.0c04148.Search in Google Scholar PubMed

[110] L. Lv, Y. Xu, H. Fang, et al.., “Generalized colloidal synthesis of high-quality, two-dimensional cesium lead halide perovskite nanosheets and their applications in photodetectors,” Nanoscale, vol. 8, no. 28, pp. 13589–13596, 2016. https://doi.org/10.1039/C6NR03428D.Search in Google Scholar PubMed

[111] Y. Zhang, R. Sun, X. Ou, et al.., “Metal halide perovskite nanosheet for X-ray high-resolution scintillation imaging screens,” ACS Nano, vol. 13, no. 2, pp. 2520–2525, 2019. https://doi.org/10.1021/acsnano.8b09484.Search in Google Scholar PubMed

[112] R. Sun, D. Zhou, P. Lu, et al.., “In situ preparation of two-dimensional ytterbium ions doped all-inorganic perovskite nanosheets for high-performance visual dual-bands photodetectors,” Nano Energy, vol. 93, p. 106815, 2022. https://doi.org/10.1016/j.nanoen.2021.106815.Search in Google Scholar

[113] E. Shi, B. Yuan, S. B. Shiring, et al.., “Two-dimensional halide perovskite lateral epitaxial heterostructures,” Nature, vol. 580, no. 7805, pp. 614–620, 2020. https://doi.org/10.1038/s41586-020-2219-7.Search in Google Scholar PubMed

[114] D. Pan, Y. Fu, N. Spitha, et al.., “Deterministic fabrication of arbitrary vertical heterostructures of two-dimensional Ruddlesden–Popper halide perovskites,” Nat. Nanotechnol., vol. 16, no. 2, pp. 159–165, 2021. https://doi.org/10.1038/s41565-020-00802-2.Search in Google Scholar PubMed

[115] J. Zhang, X. Zhu, M. Wang, and B. Hu, “Establishing charge-transfer excitons in 2D perovskite heterostructures,” Nat. Commun., vol. 11, no. 1, p. 2618, 2020. https://doi.org/10.1038/s41467-020-16415-1.Search in Google Scholar PubMed PubMed Central

[116] S. Parveen, K. K. Paul, and P. K. Giri, “Precise tuning of the thickness and optical properties of highly stable 2D organometal halide perovskite nanosheets through a solvothermal process and their applications as a white LED and a fast photodetector,” ACS Appl. Mater. Interfaces, vol. 12, no. 5, pp. 6283–6297, 2020. https://doi.org/10.1021/acsami.9b20896.Search in Google Scholar PubMed

[117] Y. Gao, C. Luo, C. Yan, W. Li, C. Liu, and W. Yang, “Copper-doping defect-lowered perovskite nanosheets for deep-blue light-emitting diodes,” J. Colloid Interface Sci., vol. 607, pp. 1796–1804, 2022. https://doi.org/10.1016/j.jcis.2021.09.061.Search in Google Scholar PubMed

[118] Y. Ling, Z. Yuan, Y. Tian, et al.., “Bright light-emitting diodes based on organometal halide perovskite nanoplatelets,” Adv. Mater., vol. 28, no. 2, pp. 305–311, 2016. https://doi.org/10.1002/adma.201503954.Search in Google Scholar PubMed

[119] J. Si, Y. Liu, Z. He, H. Du, K. Du, D. Chen, et al.., Efficient and High-Color-Purity Light-Emitting Diodes Based on in Situ Grown Films of CsPbX3 (X = Br, I) Nanoplates with Controlled Thicknesses, ACS Publications, 2017 [accessed July 22, 2022].10.1021/acsnano.7b05191Search in Google Scholar PubMed

[120] S. Kumar, J. Jagielski, N. Kallikounis, et al.., “Ultrapure green light-emitting diodes using two-dimensional formamidinium perovskites: achieving recommendation 2020 color coordinates,” Nano Lett., vol. 17, no. 9, pp. 5277–5284, 2017. https://doi.org/10.1021/acs.nanolett.7b01544.Search in Google Scholar PubMed

[121] D. Yang, Y. Zou, P. Li, L. Wu, H. Hu, Y. Xu, et al.., “Large-scale synthesis of ultrathin cesium lead bromide perovskite nanoplates with precisely tunable dimensions and their application in blue light-emitting diodes,” Nano Energy, vol. 47, pp. 235–242, 2018. https://doi.org/10.1016/j.nanoen.2018.03.019.Search in Google Scholar

[122] R. L. Z. Hoye, M. L. Lai, M. Anaya, et al.., “Identifying and reducing interfacial losses to enhance color-pure electroluminescence in blue-emitting perovskite nanoplatelet light-emitting diodes,” ACS Energy Lett., vol. 4, no. 5, pp. 1181–1188, 2019. https://doi.org/10.1021/acsenergylett.9b00571.Search in Google Scholar PubMed PubMed Central

[123] W. Yin, M. Li, W. Dong, et al.., “Multidentate ligand polyethylenimine enables bright color-saturated blue light-emitting diodes based on CsPbBr3 nanoplatelets,” ACS Energy Lett., vol. 6, no. 2, pp. 477–484, 2021. https://doi.org/10.1021/acsenergylett.0c02651.Search in Google Scholar

[124] H. Lin, Q. Wei, K. W. Ng, et al.., “Stable and efficient blue-emitting CsPbBr3 nanoplatelets with potassium bromide surface passivation,” Small, vol. 17, no. 43, p. 2101359, 2021. https://doi.org/10.1002/smll.202101359.Search in Google Scholar PubMed

[125] P. Tonkaev, S. Anoshkin, A. Pushkarev, et al.., “Acceleration of radiative recombination in quasi-2D perovskite films on hyperbolic metamaterials,” Appl. Phys. Lett., vol. 118, no. 9, p. 091104, 2021. https://doi.org/10.1063/5.0042557.Search in Google Scholar

[126] P. Guo, W. Huang, C. C. Stoumpos, et al.., “Hyperbolic dispersion arising from anisotropic excitons in two-dimensional perovskites,” Phys. Rev. Lett., vol. 121, no. 12, p. 127401, 2018. https://doi.org/10.1103/PhysRevLett.121.127401.Search in Google Scholar PubMed

[127] S. Heo, G. Seo, K. T. Cho, et al.., “Dimensionally engineered perovskite heterostructure for photovoltaic and optoelectronic applications,” Adv. Energy Mater., vol. 9, no. 45, p. 1902470, 2019. https://doi.org/10.1002/aenm.201902470.Search in Google Scholar

[128] N. Jiang, Z. Wang, Y. Zheng, et al.., “2D/3D Heterojunction perovskite light-emitting diodes with tunable ultrapure blue emissions,” Nano Energy, vol. 97, p. 107181, 2022. https://doi.org/10.1016/j.nanoen.2022.107181.Search in Google Scholar

[129] J. Liu, Y. Xue, Z. Wang, et al.., “Two-dimensional CH3NH3PbI3 perovskite: synthesis and optoelectronic application,” ACS Nano, vol. 10, no. 3, pp. 3536–3542, 2016. https://doi.org/10.1021/acsnano.5b07791.Search in Google Scholar PubMed

[130] X. Hu, X. Zhang, L. Liang, et al.., “High-performance flexible broadband photodetector based on organolead halide perovskite,” Adv. Funct. Mater., vol. 24, no. 46, pp. 7373–7380, 2014. https://doi.org/10.1002/adfm.201402020.Search in Google Scholar

[131] G. Wang, D. Li, H. C. Cheng, et al.., “Wafer-scale growth of large arrays of perovskite microplate crystals for functional electronics and optoelectronics,” Sci. Adv., vol. 1, no. 9, p. e1500613, 2015. https://doi.org/10.1126/sciadv.1500613.Search in Google Scholar PubMed PubMed Central

[132] X. Qin, Y. Yao, H. Dong, Y. Zhen, L. Jiang, and W. Hu, “Perovskite photodetectors based on CH3NH3PbI3 single crystals,” Chem. Asian J., vol. 11, no. 19, pp. 2675–2679, 2016. https://doi.org/10.1002/asia.201600430.Search in Google Scholar PubMed

[133] X. Liu, D. Yu, F. Cao, et al.., “Low-voltage photodetectors with high responsivity based on solution-processed micrometer-scale all-inorganic perovskite nanoplatelets,” Small, vol. 13, no. 25, p. 1700364, 2017. https://doi.org/10.1002/smll.201700364.Search in Google Scholar PubMed

[134] Z. Yang, M. Wang, H. Qiu, et al.., “Engineering the exciton dissociation in quantum-confined 2D CsPbBr3 nanosheet films,” Adv. Funct. Mater., vol. 28, no. 14, p. 1705908, 2018. https://doi.org/10.1002/adfm.201705908.Search in Google Scholar

[135] J. Song, L. Xu, J. Li, et al.., “Monolayer and few-layer all-inorganic perovskites as a new family of two-dimensional semiconductors for printable optoelectronic devices,” Adv. Mater., vol. 28, no. 24, pp. 4861–4869, 2016. https://doi.org/10.1002/adma.201600225.Search in Google Scholar PubMed

[136] X. Li, D. Yu, J. Chen, et al.., “Constructing fast carrier tracks into flexible perovskite photodetectors to greatly improve responsivity,” ACS Nano, vol. 11, no. 2, pp. 2015–2023, 2017. https://doi.org/10.1021/acsnano.6b08194.Search in Google Scholar PubMed

[137] B. Xin, Y. Pak, S. Mitra, et al.., “Self-patterned CsPbBr3 nanocrystals for high-performance optoelectronics,” ACS Appl. Mater. Interfaces, vol. 11, no. 5, pp. 5223–5231, 2019. https://doi.org/10.1021/acsami.8b17249.Search in Google Scholar PubMed

[138] Y. Shen, D. Yu, X. Wang, et al.., “Two-dimensional CsPbBr$\less$sub$\greater$3$\less$/sub$\greater$/PCBM heterojunctions for sensitive, fast and flexible photodetectors boosted by charge transfer,” Nanotechnology, vol. 29, no. 8, p. 085201, 2018. https://doi.org/10.1088/1361-6528/aaa456.Search in Google Scholar PubMed

[139] Z. Yang, J. Dou, M. Wang, J. Li, J. Huang, and J. Shao, “Flexible all-inorganic photoconductor detectors based on perovskite/hole-conducting layer heterostructures,” J. Mater. Chem. C, vol. 6, no. 25, pp. 6739–6746, 2018. https://doi.org/10.1039/C8TC02093K.Search in Google Scholar

[140] M. He, Y. Chen, H. Liu, J. Wang, X. Fang, and Z. Liang, “Chemical decoration of CH3NH3PbI3 perovskites with graphene oxides for photodetector applications,” Chem. Commun., vol. 51, no. 47, pp. 9659–9661, 2015. https://doi.org/10.1039/C5CC02282G.Search in Google Scholar PubMed

[141] X. Song, X. Liu, D. Yu, et al.., “Boosting two-dimensional MoS2/CsPbBr3 photodetectors via enhanced light absorbance and interfacial carrier separation,” ACS Appl. Mater. Interfaces, vol. 10, no. 3, pp. 2801–2809, 2018. https://doi.org/10.1021/acsami.7b14745.Search in Google Scholar PubMed

[142] H. Wu, Z. Kang, Z. Zhang, et al.., “Ligand engineering for improved all-inorganic perovskite quantum dot-MoS2 monolayer mixed dimensional van der Waals phototransistor,” Small Methods, vol. 3, no. 7, p. 1900117, 2019. https://doi.org/10.1002/smtd.201900117.Search in Google Scholar

[143] P. Li, B. N. Shivananju, Y. Zhang, S. Li, and Q. Bao, “High performance photodetector based on 2D CH3NH3PbI3 perovskite nanosheets,” J. Phys. D: Appl. Phys., vol. 50, no. 9, 2017, Art no. 094002. https://doi.org/10.1088/1361-6463/aa5623.Search in Google Scholar

[144] A. Mardani, F. Kazemi, and B. Kaboudin, “Photo-tunable oxidation of toluene and its derivatives catalyzed by TBATB,” J. Photochem. Photobiol., A, vol. 414, p. 113301, 2021. https://doi.org/10.1016/j.jphotochem.2021.113301.Search in Google Scholar

[145] P. Qiu, Q. Wang, Y. Zhao, et al.., “Fabricating surface-functionalized CsPbBr3/Cs4PbBr6 nanosheets for visible-light photocatalytic oxidation of styrene,” Front. Chem., vol. 8, p. 00130, 2020. https://doi.org/10.3389/fchem.2020.00130.Search in Google Scholar PubMed PubMed Central

[146] R. Li, X. Li, J. Wu, et al.., “Few-layer black phosphorus-on-MAPbI3 for superb visible-light photocatalytic hydrogen evolution from HI splitting,” Appl. Catal., B, vol. 259, p. 118075, 2019. https://doi.org/10.1016/j.apcatb.2019.118075.Search in Google Scholar

[147] Y. Liu, M. Siron, D. Lu, et al.., “Self-assembly of two-dimensional perovskite nanosheet building blocks into ordered ruddlesden–popper perovskite phase,” J. Am. Chem. Soc., vol. 141, no. 33, pp. 13028–13032, 2019. https://doi.org/10.1021/jacs.9b06889.Search in Google Scholar PubMed

[148] J. Yan, W. Qiu, G. Wu, P. Heremans, and H. Chen, “Recent progress in 2D/quasi-2D layered metal halide perovskites for solar cells,” J. Mater. Chem. A, vol. 6, no. 24, pp. 11063–11077, 2018. https://doi.org/10.1039/C8TA02288G.Search in Google Scholar

[149] C. Lan, Z. Zhou, R. Wei, and J. C. Ho, “Two-dimensional perovskite materials: from synthesis to energy-related applications,” Mater. Today Energy, vol. 11, pp. 61–82, 2019. https://doi.org/10.1016/j.mtener.2018.10.008.Search in Google Scholar

[150] P. Liu, N. Han, W. Wang, R. Ran, W. Zhou, and Z. Shao, “High-quality ruddlesden–popper perovskite film formation for high-performance perovskite solar cells,” Adv. Mater., vol. 33, no. 10, p. 2002582, 2021. https://doi.org/10.1002/adma.202002582.Search in Google Scholar PubMed

[151] E.-B. Kim, M. S. Akhtar, H. S. Shin, S. Ameen, and M. K. Nazeeruddin, “A review on two-dimensional (2D) and 2D-3D multidimensional perovskite solar cells: perovskites structures, stability, and photovoltaic performances,” J. Photochem. Photobiol., C, vol. 48, p. 100405, 2021. https://doi.org/10.1016/j.jphotochemrev.2021.100405.Search in Google Scholar

[152] X. Zhao, T. Liu, and Y.-L. Loo, “Advancing 2D perovskites for efficient and stable solar cells: challenges and opportunities,” Adv. Mater., vol. 34, no. 3, p. 2105849, 2022. https://doi.org/10.1002/adma.202105849.Search in Google Scholar PubMed

[153] E. Elahi, G. Dastgeer, A. S. Siddiqui, S. A. Patil, M. W. Iqbal, and P. R. Sharma, “A review on two-dimensional (2D) perovskite material-based solar cells to enhance the power conversion efficiency,” Dalton Trans., vol. 51, no. 3, pp. 797–816, 2022. https://doi.org/10.1039/D1DT02991F.Search in Google Scholar PubMed

[154] S. Miao, T. Liu, Y. Du, et al.., “2D material and perovskite heterostructure for optoelectronic applications,” Nanomaterials, vol. 12, no. 12, p. 2100, 2022. https://doi.org/10.3390/nano12122100.Search in Google Scholar PubMed PubMed Central

[155] I. C. Smith, E. T. Hoke, D. Solis-Ibarra, M. D. McGehee, and H. I. Karunadasa, “A layered hybrid perovskite solar-cell absorber with enhanced moisture stability,” Angew. Chem., Int. Ed., vol. 53, no. 42, pp. 11232–11235, 2014. https://doi.org/10.1002/anie.201406466.Search in Google Scholar PubMed

[156] L. N. Quan, M. Yuan, R. Comin, et al.., “Ligand-stabilized reduced-dimensionality perovskites,” J. Am. Chem. Soc., vol. 138, no. 8, pp. 2649–2655, 2016. https://doi.org/10.1021/jacs.5b11740.Search in Google Scholar PubMed

[157] X. Zhang, X. Ren, B. Liu, et al.., “Stable high efficiency two-dimensional perovskite solar cells via cesium doping,” Energy Environ. Sci., vol. 10, no. 10, pp. 2095–2102, 2017. https://doi.org/10.1039/C7EE01145H.Search in Google Scholar

[158] X. Zhang, G. Wu, W. Fu, et al.., “Orientation regulation of phenylethylammonium cation based 2D perovskite solar cell with efficiency higher than 11,” Adv. Energy Mater., vol. 8, no. 14, p. 1702498, 2018. https://doi.org/10.1002/aenm.201702498.Search in Google Scholar

[159] R. Yang, R. Li, Y. Cao, et al.., “Oriented quasi-2D perovskites for high performance optoelectronic devices,” Adv. Mater., vol. 30, no. 51, p. 1804771, 2018. https://doi.org/10.1002/adma.201804771.Search in Google Scholar PubMed

[160] K. T. Cho, Y. Zhang, S. Orlandi, et al.., “Water-repellent low-dimensional fluorous perovskite as interfacial coating for 20% efficient solar cells,” Nano Lett., vol. 18, no. 9, pp. 5467–5474, 2018. https://doi.org/10.1021/acs.nanolett.8b01863.Search in Google Scholar PubMed

[161] M. Abuhelaiqa, X. X. Gao, Y. Ding, et al.., “Mixed cation 2D perovskite: a novel approach for enhanced perovskite solar cell stability,” Sustain. Energy Fuels, vol. 6, no. 10, pp. 2471–2477, 2022. https://doi.org/10.1039/D1SE01721G.Search in Google Scholar

[162] Y.-W. Jang, S. Lee, K. M. Yeom, et al.., “Intact 2D/3D halide junction perovskite solar cells via solid-phase in-plane growth,” Nat. Energy, vol. 6, no. 1, pp. 63–71, 2021. https://doi.org/10.1038/s41560-020-00749-7.Search in Google Scholar

[163] Y. Huang, Y. Li, E. L. Lim, et al.., “Stable layered 2D perovskite solar cells with an efficiency of over 19% via multifunctional interfacial engineering,” J. Am. Chem. Soc., vol. 143, no. 10, pp. 3911–3917, 2021. https://doi.org/10.1021/jacs.0c13087.Search in Google Scholar PubMed

[164] H. Ren, S. Yu, L. Chao, et al.., “Efficient and stable Ruddlesden–Popper perovskite solar cell with tailored interlayer molecular interaction,” Nat. Photonics, vol. 14, no. 3, pp. 154–163, 2020. https://doi.org/10.1038/s41566-019-0572-6.Search in Google Scholar

[165] C. Liang, H. Gu, Y. Xia, et al.., “Two-dimensional Ruddlesden–Popper layered perovskite solar cells based on phase-pure thin films,” Nat. Energy, vol. 6, no. 1, pp. 38–45, 2021. https://doi.org/10.1038/s41560-020-00721-5.Search in Google Scholar

[166] K. Li, S. Yue, X. Li, et al.., “High efficiency perovskite solar cells employing quasi-2D ruddlesden-popper/dion-Jacobson heterojunctions,” Adv. Funct. Mater., vol. 32, no. 21, p. 2200024, 2022. https://doi.org/10.1002/adfm.202200024.Search in Google Scholar

[167] W. Li, S. Sidhik, B. Traore, et al.., “Light-activated interlayer contraction in two-dimensional perovskites for high-efficiency solar cells,” Nanotechnol, vol. 17, no. 1, pp. 45–52, 2022. https://doi.org/10.1038/s41565-021-01010-2.Search in Google Scholar PubMed

[168] J. Liang, Z. Zhang, Q. Xue, et al.., “A finely regulated quantum well structure in quasi-2D Ruddlesden–Popper perovskite solar cells with efficiency exceeding 20%,” Energy Environ. Sci., vol. 15, no. 1, pp. 296–310, 2022. https://doi.org/10.1039/D1EE01695D.Search in Google Scholar

[169] M. Shao, T. Bie, L. Yang, et al.., “Over 21% efficiency stable 2D perovskite solar cells,” Adv. Mater., vol. 34, no. 1, p. 2107211, 2022. https://doi.org/10.1002/adma.202107211.Search in Google Scholar PubMed

[170] M. Hadadian, J. P. Correa-Baena, E. K. Goharshadi, et al.., “Enhancing efficiency of perovskite solar cells via N-doped graphene: crystal modification and surface passivation,” Adv. Mater., vol. 28, no. 39, pp. 8681–8686, 2016. https://doi.org/10.1002/adma.201602785.Search in Google Scholar PubMed

[171] E. Serpetzoglou, I. Konidakis, G. Kakavelakis, T. Maksudov, E. Kymakis, and E. Stratakis, “Improved carrier transport in perovskite solar cells probed by femtosecond transient absorption spectroscopy,” ACS Appl. Mater. Interfaces, vol. 9, no. 50, pp. 43910–43919, 2017. https://doi.org/10.1021/acsami.7b15195.Search in Google Scholar PubMed

[172] I. Konidakis, T. Maksudov, E. Serpetzoglou, G. Kakavelakis, E. Kymakis, and E. Stratakis, “Improved charge carrier dynamics of CH3NH3PbI3 perovskite films synthesized by means of laser-assisted crystallization,” ACS Appl. Energy Mater., vol. 1, no. 9, pp. 5101–5111, 2018. https://doi.org/10.1021/acsaem.8b01152.Search in Google Scholar

[173] L.-L. Jiang, Z. K. Wang, M. Li, et al.., “Passivated perovskite crystallization via g-C3N4 for high-performance solar cells,” Adv. Funct. Mater., vol. 28, no. 7, p. 1705875, 2018. https://doi.org/10.1002/adfm.201705875.Search in Google Scholar

[174] Z. Guo, L. Gao, Z. Xu, et al.., “High electrical conductivity 2D MXene serves as additive of perovskite for efficient solar cells,” Small, vol. 14, no. 47, p. 1802738, 2018. https://doi.org/10.1002/smll.201802738.Search in Google Scholar PubMed

[175] Z. Wu, S. Bai, J. Xiang, et al.., “Efficient planar heterojunction perovskite solar cells employing graphene oxide as hole conductor,” Nanoscale, vol. 6, no. 18, pp. 10505–10510, 2014. https://doi.org/10.1039/C4NR03181D.Search in Google Scholar

[176] J.-S. Yeo, R. Kang, S. Lee, et al.., “Highly efficient and stable planar perovskite solar cells with reduced graphene oxide nanosheets as electrode interlayer,” Nano Energy, vol. 12, pp. 96–104, 2015. https://doi.org/10.1016/j.nanoen.2014.12.022.Search in Google Scholar

[177] Q. Zhao, A. Hazarika, X. Chen, et al.., “High efficiency perovskite quantum dot solar cells with charge separating heterostructure,” Nat. Commun., vol. 10, no. 1, p. 2842, 2019. https://doi.org/10.1038/s41467-019-10856-z.Search in Google Scholar PubMed PubMed Central

[178] Y. Hu, J. Schlipf, M. Wussler, et al.., “Hybrid perovskite/perovskite heterojunction solar cells,” ACS Nano, vol. 10, no. 6, pp. 5999–6007, 2016. https://doi.org/10.1021/acsnano.6b01535.Search in Google Scholar PubMed

[179] C. Travan and A. Bergmann, “NO2 and NH3 sensing characteristics of inkjet printing graphene gas sensors,” Sensors, vol. 19, no. 15, p. 3379, 2019. https://doi.org/10.3390/s19153379.Search in Google Scholar PubMed PubMed Central

[180] M. Rodner, D. Puglisi, S. Ekeroth, et al.., “Graphene decorated with iron oxide nanoparticles for highly sensitive interaction with volatile organic compounds,” Sensors, vol. 19, no. 4, p. 918, 2019. https://doi.org/10.3390/s19040918.Search in Google Scholar PubMed PubMed Central

[181] O. Ovsianytskyi, Y. S. Nam, O. Tsymbalenko, P. T. Lan, M. W. Moon, and K. B. Lee, “Highly sensitive chemiresistive H2S gas sensor based on graphene decorated with Ag nanoparticles and charged impurities,” Sens. Actuators, B, vol. 257, pp. 278–285, 2018. https://doi.org/10.1016/j.snb.2017.10.128.Search in Google Scholar

[182] Y. Ren, C. Zhu, W. Cai, et al.., “Detection of sulfur dioxide gas with graphene field effect transistor,” Appl. Phys. Lett., vol. 100, no. 16, p. 163114, 2012. https://doi.org/10.1063/1.4704803.Search in Google Scholar

[183] D. Panda, A. Nandi, S. K. Datta, H. Saha, and S. Majumdar, “Selective detection of carbon monoxide (CO) gas by reduced graphene oxide (rGO) at room temperature,” RSC Adv., vol. 6, no. 53, pp. 47337–47348, 2016. https://doi.org/10.1039/C6RA06058G.Search in Google Scholar

[184] J. Casanova-Chafer, R. Garcia-Aboal, P. Atienzar, C. Bittencourt, and E. Llobet, “Perovskite@Graphene nanohybrids for breath analysis: a proof-of-concept,” Chemosensors, vol. 9, no. 8, p. 215, 2021. https://doi.org/10.3390/chemosensors9080215.Search in Google Scholar

[185] J. Casanova-Chafer, R. Garcia-Aboal, P. Atienzar, and E. Llobet, “Unraveling the gas-sensing mechanisms of lead-free perovskites supported on graphene,” ACS Sens., vol. 7, no. 12, pp. 3753–3763, 2022. https://doi.org/10.1021/acssensors.2c01581.Search in Google Scholar PubMed PubMed Central

[186] S. Kondo, K. Suzuki, T. Saito, H. Asada, and H. Nakagawa, “Photoluminescence and stimulated emission from microcrystalline $\mathrm{Cs}\mathrm{Pb}{\mathrm{Cl}}_{3}$ films prepared by amorphous-to-crystalline transformation,” Phys. Rev. B, vol. 70, no. 20, p. 205322, 2004. https://doi.org/10.1103/PhysRevB.70.205322.Search in Google Scholar

[187] A. L. Alvarado-Leaños, D. Cortecchia, C. N. Saggau, et al.., “Lasing in two-dimensional tin perovskites,” ACS Nano, vol. 16, no. 12, pp. 20671–20679, 2022. https://doi.org/10.1021/acsnano.2c07705.Search in Google Scholar PubMed PubMed Central

[188] C. M. Raghavan, T. P. Chen, S. S. Li, et al.., “Low-threshold lasing from 2D homologous organic–inorganic hybrid ruddlesden–popper perovskite single crystals,” Nano Lett., vol. 18, no. 5, pp. 3221–3228, 2018. https://doi.org/10.1021/acs.nanolett.8b00990.Search in Google Scholar PubMed

[189] H. Zhang, Q. Liao, Y. Wu, et al.., “2D ruddlesden–popper perovskites microring laser array,” Adv. Mater., vol. 30, no. 15, p. 1706186, 2018. https://doi.org/10.1002/adma.201706186.Search in Google Scholar PubMed

[190] C. Qin, A. S. D. Sandanayaka, C. Zhao, et al.., “Stable room-temperature continuous-wave lasing in quasi-2D perovskite films,” Nature, vol. 585, no. 7823, pp. 53–57, 2020. https://doi.org/10.1038/s41586-020-2621-1.Search in Google Scholar PubMed

[191] Y. Li, J. Roger, I. Allegro, et al.., “Lasing from laminated quasi-2D/3D perovskite planar heterostructures,” Adv. Funct. Mater., vol. 32, no. 27, p. 2200772, 2022. https://doi.org/10.1002/adfm.202200772.Search in Google Scholar

[192] Z. Hu, Z. Liu, Z. Zhan, et al.., “Advances in metal halide perovskite lasers: synthetic strategies, morphology control, and lasing emission,” Adv. Photonics, vol. 3, no. 3, p. 034002, 2021. https://doi.org/10.1117/1.AP.3.3.034002.Search in Google Scholar

[193] Q. Zhang, S. T. Ha, X. Liu, T. C. Sum, and Q. Xiong, “Room-temperature near-infrared high-Q perovskite whispering-gallery planar nanolasers,” Nano Lett., vol. 14, no. 10, pp. 5995–6001, 2014. https://doi.org/10.1021/nl503057g.Search in Google Scholar PubMed

[194] Q. Zhang, R. Su, X. Liu, J. Xing, T. C. Sum, and Q. Xiong, “High-quality whispering-gallery-mode lasing from cesium lead halide perovskite nanoplatelets,” Adv. Funct. Mater., vol. 26, no. 34, pp. 6238–6245, 2016. https://doi.org/10.1002/adfm.201601690.Search in Google Scholar

[195] Z. Zheng, X. Wang, Y. Shen, et al.., “Space-confined synthesis of 2D all-inorganic CsPbI3 perovskite nanosheets for multiphoton-pumped lasing,” Adv. Opt. Mater., vol. 6, no. 22, p. 1800879, 2018. https://doi.org/10.1002/adom.201800879.Search in Google Scholar

[196] C. Zhang, J. Chen, L. Kong, et al.., “Core/shell metal halide perovskite nanocrystals for optoelectronic applications,” Adv. Funct. Mater., vol. 31, no. 19, p. 2100438, 2021. https://doi.org/10.1002/adfm.202100438.Search in Google Scholar

[197] I. Konidakis, A. Karagiannaki, and E. Stratakis, “Advanced composite glasses with metallic, perovskite, and two-dimensional nanocrystals for optoelectronic and photonic applications,” Nanoscale, vol. 14, no. 8, pp. 2966–2989, 2022. https://doi.org/10.1039/D1NR07711B.Search in Google Scholar

[198] S. N. Raja, Y. Bekenstein, M. A. Koc, et al.., “Encapsulation of perovskite nanocrystals into macroscale polymer matrices: enhanced stability and polarization,” ACS Appl. Mater. Interfaces, vol. 8, no. 51, pp. 35523–35533, 2016. https://doi.org/10.1021/acsami.6b09443.Search in Google Scholar PubMed

[199] A. S. Sarkar, I. Konidakis, I. Demeridou, E. Serpetzoglou, G. Kioseoglou, and E. Stratakis, “Robust B-exciton emission at room temperature in few-layers of MoS2:Ag nanoheterojunctions embedded into a glass matrix,” Sci. Rep., vol. 10, no. 1, p. 15697, 2020. https://doi.org/10.1038/s41598-020-72899-3.Search in Google Scholar PubMed PubMed Central

[200] Y. Tang, X. Cao, and Q. Chi, “Two-dimensional halide perovskites for emerging new- generation photodetectors,” in Two-Dimensional Materials for Photodetector, Croatia, IntechOpen, 2017.10.5772/intechopen.71032Search in Google Scholar

[201] F. Chen, M. Imran, L. Pasquale, M. Salerno, and M. Prato, “Long-term optical and morphological stability of CsPbBr3 nanocrystal-based films,” Mater. Res. Bull., vol. 134, p. 111107, 2021. https://doi.org/10.1016/j.materresbull.2020.111107.Search in Google Scholar

[202] H. Huang, B. Pradhan, J. Hofkens, M. B. J. Roeffaers, and J. A. Steele, “Solar-Driven metal halide perovskite photocatalysis: design, stability, and performance,” ACS Energy Lett., vol. 5, no. 4, pp. 1107–1123, 2020. https://doi.org/10.1021/acsenergylett.0c00058.Search in Google Scholar

[203] A. Argyrou, K. Brintakis, A. Kostopoulou, et al.., “Highly sensitive ozone and hydrogen sensors based on perovskite microcrystals directly grown on electrodes,” J. Mater., vol. 8, no. 2, pp. 446–453, 2021. https://doi.org/10.1016/j.jmat.2021.07.002.Search in Google Scholar

[204] K. Brintakis, E. Gagaoudakis, A. Kostopoulou, et al.., “Ligand-free all-inorganic metal halide nanocubes for fast, ultra-sensitive and self-powered ozone sensors,” Nanoscale Adv., vol. 1, no. 7, pp. 2699–2706, 2019. https://doi.org/10.1039/C9NA00219G.Search in Google Scholar PubMed PubMed Central

[205] E. Shi, Y. Gao, B. P. Finkenauer, A. Akriti, A. H. Coffey, and L. Dou, “Two-dimensional halide perovskite nanomaterials and heterostructures,” Chem. Soc. Rev., vol. 47, no. 16, pp. 6046–6072, 2018. https://doi.org/10.1039/C7CS00886D.Search in Google Scholar PubMed

Received: 2022-12-21

Accepted: 2023-03-03

Published Online: 2023-03-22

This work is licensed under the Creative Commons Attribution 4.0 International License.

Articles in the same Issue

https://doi.org/10.1515/nanoph-2022-0797

Keywords for this article

2D materials; energy conversion; energy storage; perovskite nanocrystals; photodetectors; sensing; synthesis routes

Creative Commons

BY 4.0
