EMIA: Emotion Model for Intelligent Agent

1 Introduction

Cognitive-emotive interactions have been the subject of extensive research in the past decades. Progress in cognitive psychology and cognitive science, in particular the delineation of distinct mechanisms comprising cognitive processing [29], such as attention, motivation, learning, memory, and decision making, has contributed to a more careful analysis of the effects of different emotions on cognition and vice versa. Recent research in neuroscience has shown that without emotions, we have difficulty in making even simple decisions, such as what clothes to wear in the morning [7]. In addition to decision-making and moral judgment tasks, Ortony, Clore, and Collins (OCC) [28] found that emotions can alter our perceptions and interpretations of the physical world. In an experiment conducted by the authors, they asked the participants to estimate the steepness of a hill after listening to either happy or sad music. Those who listened to Mahler – the prototypical “sad” music – rated the hill as significantly steeper than those who listened to Mozart (“happy” music).

As emotion influences most cognitive processes, it makes an agent’s behavior more human-like, more believable, and more intelligent. As a result, there is huge demand for cognitive-emotive centric applications of a wide range, like in education/learning, entertainment, sales and marketing, health care and well-being of old adults, games, counseling, and many more. Many researchers from different fields have proposed formal models that describe the processes related to emotion modeling [2, 6, 8, 12, 14, 20, 21, 27, 42]. Nevertheless, current emotion models in software agents are much simpler than the human emotional complexity. Although sufficient work has been carried out in emotion recognition and emotion expression, many studies are ongoing in the field of emotion modeling, regulation, and transition mechanisms.

In this article, we propose a domain-independent computational model of emotion modeling for intelligent agent (EMIA) situated in a virtual environment. It uses the concept of a fuzzy classifier to model more flexible and adaptive emotional behavior of an agent. The model, EMIA, addresses the computation of the type of emotion as well as its level of intensity. Moreover, much of the research focuses on emotion elicitation without considering the impact of the previous emotional state; however, in realistic situations, humans experience emotions in a continuous manner. To model this, EMIA has an emotion transition module that takes into consideration the elicitation of emotions based on a previous emotional state. The rules of OCC [28], Scherer [35], and Roseman et al. [33] cognitive theories of emotions are used for event appraisal and emotion elicitation. Furthermore, two types of emotion regulation are introduced: regulation based on decay of emotion over time and regulation based on the Gross theory [15] of emotion regulation. Although we are modeling five basic emotions (happy, sad, anger, fear, and surprise), as defined by Ekman [11] (excluding disgust), simultaneous elicitation of multiple emotions (called secondary emotion) is also supported by the model. Learning by experience is also incorporated in the model to make it adaptive. For that, it maintains three types of memory: perceptual memory, working memory, and long-term memory based on a multistore human memory model [1].

The article is organized as follows. Section 2 discusses the psychological background of our work. In Section 3, related work is discussed in brief. Section 4 explains the importance of fuzzy logic in this field. In Section 5, our proposed model, EMIA, is described in detail with an explanation for each module. In Section 6, scenario-based illustrations are demonstrated in the domain of a driver as an agent on the road. Section 7 concludes the article with a discussion and future scope.

2 Background

The objective of the design of intelligent agents is to create a virtual human situated in a simulated environment that can behave like us. As emotion plays an integral role in every cognitive process, an agent without emotions cannot mimic a human completely. Therefore, many studies are ongoing to incorporate emotions in an intelligent agent. Classically, an emotional intelligent agent follows the sense-appraise-act cycle [34], as shown in Figure 1.

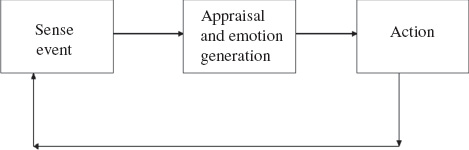

Figure 1.

Sense-Appraise-Act.

The agent senses the outer environment and evaluates it on various parameters. Depending on the effect of current events on the desired goal of the agent and the current emotional state, the next emotion state is generated and an action is triggered based on the intensity of the generated emotion in pursuit of its goal. This cycle repeats with the occurrence of an event. Several similar models for emotion modeling exist; however, each model has one or other limitations, such as domain dependency, modeling of only discrete emotions, lack of flexible emotional behavior modeling, and no emotion regulation mechanism.

The emotions of an agent living in a world are influenced by many factors, such as visible surrounding environment, personality traits, past memories, intuition, experiences, etc. EMIA is a closed-loop, event-based emotive model considering a visibly occurring event.

Emotion is defined in the literature [10, 11, 18, 23, 25, 31] in several manners. Of all the definitions, the closest to our common sense [18] defines emotion as “transient states, lasting for seconds or minutes, typically associated with well-defined triggering cues and characteristic patterns of expressions and behavior.” That is, the emotional state of an agent changes with the occurrence of an event, and it decays over time.

According to Reference [31], emotions can be categorized into two classes: primary (often felt) and secondary (sometimes felt). Primary emotions are the biological emotions with distinctive universal signals. They are the primitive emotions that a person feels first, unconsciously, on the occurrence of any event. Basically, there are six primary emotions as suggested by Ekman [11]: happiness, anger, fear, sadness, disgust, and surprise. He called them primary emotions as each of them is associated with a distinctive universal facial expression. In the literature, the secondary emotions are defined in two different ways. First, in an experiment conducted by Scherer and Ceschi [36], it was shown that some events may give rise to several simultaneous emotions [26]. Izard [19] and Plutchik [31] also argued that secondary emotions arise on combining some primary emotions. For example, jealousy is a secondary emotion that arises as a result of the simultaneous occurrence of sadness and anger. A second definition is given by Damasio [7] and is supported by Picard [30]. They defined secondary emotions as emotions triggered by the cognitive appraisal of an event, and they occur at a conscious level. Thus, throughout the article, the primary emotions are considered as the universally distinguished emotions and secondary emotions as the simultaneous occurrence of multiple primary emotions.

The appraisal theories of emotion [28, 33, 35] illustrate the elicitation of emotion whenever an agent evaluates the change in the environment (called an event) in terms of its well-being. Also, the quality and quantity (intensity) of the elicited emotion not only depends on the event but also on the agent’s evaluation of the event in terms the appraisal dimensions (variables) while taking care of its (agent’s) own capabilities, limitations, and available resources. Moreover, all these theories have a common consensus that a standard set of necessary variables should be used to underlie the appraisal process for an event. The appraisal process is highly dependent on the importance and consequences for the agent’s well-being and achieving the goal. In this article, five appraisal variables are used to evaluate an event. These appraisal variables are adopted from three appraisal theories of emotion, namely the OCC theory, Roseman theory, and Scherer theory. The OCC [28] model describes a hierarchy that classifies 22 emotion types. The model categorizes the emotions in three groups as (i) due to consequences of events (e.g., joy and pity), (ii) actions of agents (e.g., pride and reproach), and (iii) aspects of objects (e.g., love and hate). It provides a clear and convincing structure of the eliciting conditions of emotions and the variables that affect their intensities. However, it discusses only four emotions (distinct in expression): happy, sad, anger, and fear. The remaining two, surprise and disgust, are not defined. Thus, for the emotion surprise, the respective appraisal variables are adopted from the Roseman [33] and Scherer [35] theories. Additional two variables, outcome probability and suddenness, are adopted from Scherer. Once the occurred event is appraised, depending on the values of appraisal variables, emotions are elicited. EMIA is based on event-based triggering of emotions.

As emotion is continuous in nature, after the elicitation of an emotion, it keeps on changing from one emotional state to another depending on the input (percept) from the environment. This process of switching between two or more affective, emotional states is known as emotion transition. To date, work in the field of emotions has focused primarily on steady-state emotions rather than emotional transitions. A few researchers [13, 44] have analyzed the influence of emotional transitions on communal interactions and found that emotional transitions (e.g., the transition from happy to angry, or “becoming angry”) lead to consistently different outcomes than their corresponding steady-state emotions (e.g., steady-state anger, where one begins angry and stays at the same level of anger). The study conducted in Reference [13] has shown that emotional transitions influence the perceivers’ behavior through the same inferential and affective mechanisms, but with differing consequences than steady-state emotions. EMIA incorporates the idea of a continuous nature of emotions that leads to the realization of the emotion transition process.

As emotions are integral to effective decision making [16], they guide us away from choices that would hurt us and toward choices that benefit us. We learn from our past experience that certain choices produce unpleasant outcomes, and without emotional memory we would continue to make those choices again and again. As it is our emotions that give us a sense of self, through our emotions we can act with a sense of self-interest, i.e., we can act in our own best interests and toward our own survival. Sometimes, if the emotions are not generated at the correct time and with a correct intensity, it may harm us. At this point, emotion regulation plays an important role. Gross and Thompson [15] have proposed a theory of emotion regulation in which, broadly, they described two emotion regulation strategies: antecedent based and response based. This theory is discussed further in the subsequent section. Moreover, the intensity of emotions becomes reduced gradually over time. This process is known as emotion decay [41]. A few models have implemented a limited version of one or both [4, 5, 37]. The model, EMIA, addresses both emotion decay and emotion regulation using some strategies.

3 Related Work

In the last few decades, rapid growth has been seen in the field of modeling of emotions. Most of the computational models are influenced by different psychological theories of emotions that illustrate the elicitation of emotion whenever an agent evaluates the change in environment (called an event) in terms of its well-being. All these models share some common properties like being based on the sense-appraise-act cycle, the use of appraisal theories or appraisal variables, and the use of short-term and long-term memory. However, the approaches vary in terms of representation, method used, formulas for computation of values, features incorporated, etc. In this section, we highlight the models that have a significant influence.

In 2000, El-Nasr et al. [12] proposed a computational and adaptive model of emotions based on event appraisal called FLAME. It incorporates some learning components to increase the adaptation in modeling emotions. However, this model was dealing with filtering of emotions rather than mixing of emotions. Hudlicka [17] proposed a symbolic affective cognitive architecture (MAMID – Methodology for Analysis and Modeling of Individual Differences) that models a number of representative constructs and processes to implement many traits (temperament, personality, and emotional style) and states (emotion, affective states, and moods) based on behavioral phenomena. The theory of emotion and adaptation of Smith and Lazarus was formalized by Gratch and Marsella [14] into EMA, a model for creating agents that demonstrate and cope with (negative) affect. Jiang [20] proposed an emotional model called EBDI in which an emotional component is added to classical belief-desire-intention (BDI) theory, while considering both primary and secondary emotions together in decision making. Primary emotions are used for fast decision making and, if time permits, secondary emotions are used to give second-level thinking before making a decision. Dang et al. [8] introduced a generic model (GRACE – Generic Robotic Architecture To Create Emotions) for building a computational architecture to express emotions and personality. It defines its emotional process as a physiological emotional response triggered by an internal or external event. Dastani and Meyer [9] and Steunebrink et al. [38] gave the logic representation of four primary emotions (happiness, sadness, anger, and fear) and then presented the general structure of the deliberation process for agents with emotional state. The proposal is based on the BDI theory to be incorporated into 2APL, an agent programming language. However, they have reported about only emotion triggering. Popescu et al. [32] proposed an emotion engine called GAMYGDALA that allows the game developer to add emotions to non-player characters. It does not own any memory.

Table 1 summarizes the comparison of these models based on some common parameters. This table also mentions the features incorporated in the proposed model, EMIA. All these models are based on the OCC, Lazarus, and/or Scherer theories of emotion for the evaluation the external event and are implementing a working memory. However, only GRACE considered emotion as a continuous unit. Moreover, emotion regulation is addressed only in MAMID, but very abstractly. Nevertheless, none of them handles the simultaneous occurrence of multiple emotions. Past experience of an event/object for event appraisal is taken into account only by FLAME. In conclusion, no model considers all these important parameters in their design.

In conclusion, we propose a domain-independent computational model of emotion (EMIA) based on the OCC and Scherer theories, which consider emotion as a continuous entity. We have designed three types of memory for various processing and learning tasks, namely perceptual memory, working memory, and long-term memory. Moreover, experiential learning, appraisal based on past experience, and emotion regulation are incorporated in the model. Simultaneous occurrence of multiple emotions is also supported by our model.

4 Fuzzy Logic and Emotions

There has been considerable research on emotion modeling using fuzzy logic. Human emotions are very complex and uncertain (different people may express different emotions in the same environment, or a person can show different emotions in same environment at different times). Many researchers [3, 12, 39, 43, 45] have proved fuzzy logic to be the most promising tool for incorporating this uncertain nature of emotions and the vagueness of its description. Also, fuzzy logic provides a simple and easy solution to complex problems by using “if-then” rules instead of sophisticated mathematical equations. It allows us to describe the model with the help of linguistic variables that give us a feel of being close to our actual problem. The system designed with fuzzy logic can be upgraded by adding new rules. Moreover, fuzzy logic makes it possible to deal with multiple and conflicting emotions simultaneously using inference models.

5 EMIA: Computation Model of Emotion for Intelligent Agent

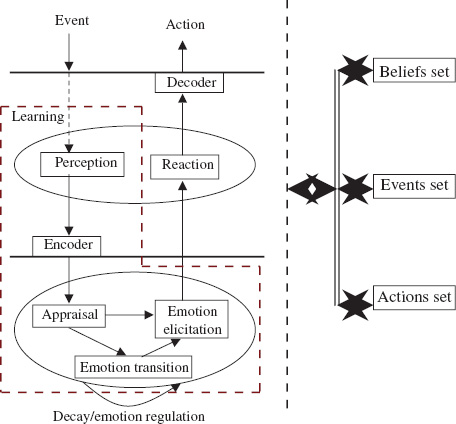

The computational emotion model (EMIA) has a three-layer architecture, as shown in Figure 2. The first layer deals with the external environment. It is where the event occurs and the behavioral action takes place. The second layer is where the domain-specific knowledge/data is encoded into domain-independent information for further processing, and the domain-independent information is decoded back to the domain-dependent data to perform an action against the event. The third layer is basically responsible for processing domain-independent data and eliciting emotions. It also allows emotion transition and emotion regulation (including decay).

Figure 2.

Architecture of EMIA.

Memory and Learning: The Atkinson and Shiffrin [1] model (also known as the multistore model) of memory is followed broadly to implement memories in EMIA (Figure 3). Three memories are used in the model to allow learning at different phases. These memories are perceptual memory, working memory (as short-term memory), and long-term memory. Perceptual memory works with a perception module and stores the information related to the relevant external event. Working memory is used to perform intermediate computation and stores the result temporarily. Upon completion of one cycle, the entire information is stored in long-term memory as past experience. This is called learning by experience [24].

Figure 3.

Multistore Human Memory Model (Atkinson and Shiffrin Model [1]).

In long-term memory, the belief set, event set, and action set are maintained. These sets are domain and agent specific. The belief set stores the agent’s own capabilities, available resources, beliefs, and view of the external world. Thus, it is agent dependent. This belief set gets updated each time one cycle is completed. This way, it stores or updates the past experience related to a certain object. For that, it maintains a tag (good or bad) with every object. This tagging helps the agent to appraise the event on the basis of past experience about the object. The event set maintains the possible set of events based on the knowledge of the external world and the domain to make the model closed-loop. The events are represented by an activity diagram in the form of directed acyclic graph (DAG). Each node represents an event along with a relative time stamp. Edges represent the dependency and ordering of events. The action set keeps the possible action choices for the agent, depending on the domain knowledge. It is represented by a behavior net.

Each module of the architecture is explained in detail below.

5.2 Appraisal

For event appraisal, the OCC [28], Scherer [35], and Roseman [33] cognitive theories of emotions are used. On the basis of these theories, five appraisal variables are adopted to evaluate an occurred event. The variables are Desirability, Expectedness, OutcomeProbability, Suddenness, and CauseHarm. Desirability is associated with each event as a measure of how desirable the event is in pursuit of the goal. Expectedness is the likelihood of that event to occur according to the agent’s world view or memory. OutcomeProbability is the measure of consequences (pleasant/unpleasant) of the event with respect to the goal. If the outcome of the event is not leading us toward the goal, then a value N will be assigned to it. Suddenness is if the event has occurred all of a sudden. CauseHarm is whether the current event is threatening to the agent presently or in the future, or not.

On receiving the message from the encoder, this module evaluates the event on the basis of these appraisal variables after assessing its (agent’s) own beliefs, capabilities, resources, and the influence of the event on goal, and from past experience. Moreover, it checks whether any tagging for the object OBJ is present in long-term memory or not. If tagging for the object is already there, depending on good or bad, the event is appraised. In the real world, it is not possible to assign a crisp value to these variables. To capture the imprecise and ambiguous information, the concept of fuzzy logic is used. First, these appraisal variables are fuzzified and distributed uniformly in the range of 0–100. Triangular function is used for its simplicity. The fuzzy set of each linguistic variable is defined as

• D={UD, N, LowD, MediumD, HighD}

• E={UE, N, LowE, MediumE, HighE}

• S={low, medium, high}

• OP={VUP, UP, N, P, VP}

• CH={noHarm, causeHarmL, causeHarmH, willcauseHarmL, willcauseHarmH}

.

The event can be undesirable, low desirable, medium desirable, or highly desirable. Similarly, an event can be unexpected, low expected, medium expected, or highly expected. The OutcomeProbability can be very unpleasant, unpleasant, pleasant, or very pleasant. It may also be possible that we have a neutral feel for an event as far as these appraisal events are concerned. To map the neutral feel corresponding to these variables, N can be assigned.

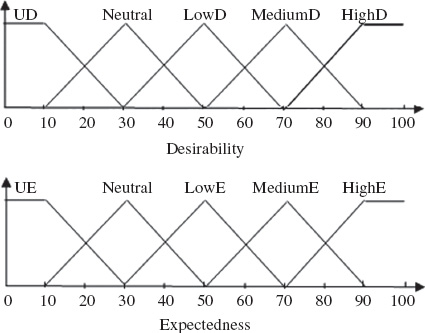

The membership functions of desirability and expectedness are depicted in Figure 4. Likewise, membership functions for other appraisal variables – OutcomeProbability, Suddenness, and CauseHarm – are designed.

Figure 4.

Membership Function of Desirability and Expectedness.

Example: Upon seeing a snake, if an agent has a belief that snakes are dangerous and on assessing the resources it is found that he has a stick that can be used to hit snake, then, at the time of appraisal, he will assign OutcomeProbability=UP and CauseHarm=willcauseHarmL. However, if he does not find anything to defend, the value of the appraisal variables will change, i.e., OutcomeProbability=VUP and CauseHarm=willcauseHarmH. If the event does not exert any influence on the agent’s goal or is not important in the pursuit of the goal, the value of Desirability and OutcomeProbability for the event becomes neutral (N).

After completing the appraisal process, this module generates a message including event id, time stamp, and fuzzified values of the appraisal variable as

<EV_ID, TS, OBJ, D, E, S, OP, CH>.

This message is passed on further to the emotion elicitation and emotion transition modules. At the same time, it stores this information in the working memory.

5.3 Emotion Elicitation

After event assessment, the next step is to elicit the emotions. EMIA allows the elicitation of multiple emotions known as simultaneous emotions elicitation. This elicitation of multiple emotions simultaneously results in secondary emotions [26, 31].

In this module, five basic emotions (given by Ekman [11], except disgust) are treated as linguistic variable and represented as a fuzzy set.

• Happy={VHighH, HighH, MediumH, LowH, Neutral}

• Sad={VHighS, HighS, MediumS, LowS, Neutral}

• Anger={VHighA, HighA, MediumA, LowA, Neutral}

• Fear={VHighF, HighF, MediumF, LowF, Neutral}

• Surprise(−)={VHighSr(−), HighSr−, MediumSr−, LowSr−, Neutral}

• Surprise(+)={VHighSr(+), HighSr+, MediumSr+, LowSr+, Neutral}

Fuzzy rules are designed to take care of nondeterministic nature of emotions. It does both qualitative and quantitative syntheses. It generates the emotion type as well as its intensity. The intensity of elicited emotions is represented by fuzzy values.

For the design of the emotion elicitor, a survey was conducted on a number of people from different domains. In the survey, participants were asked to recall two most memorable events in their life, appraise the events on the basis of five appraisal variables (i.e., Desirability, Expectedness, OutcomeProbability, Suddenness, and CauseHarm), and then tell the emotions generated at the time of event occurrence. On the basis of the appraisal theory of emotions (OCC theory, Roseman theory, and Scherer theory) and the information gathered from the survey, we concluded that the five appraisal variables selected for EMIA are closely associated with five primary emotions as explained in Table 2. As per the table, if a highly desirable event occurs, it will elicit some positive emotion. Moreover, if the occurred event was less expected, the intensity of positive emotion will increase. If the occurrence of the event is leading us toward the goal, then the OutcomeProbability will be pleasant and again will lead to positive emotion. On the basis of these observations, an exhaustive set of generalized rules (1875 rules) is proposed systematically for emotion elicitation.

Table 2.

Appraisal Variable to Emotion Mapping.

Appraisal variables	Relationship with emotions
Desirability
Expectedness
OutcomeProbability
CauseHarm	As this appraisal variable is checking for threat to one’s well being, it is directly related to the emotions “fear” and “anger” depending on the values of other appraisal variables.
Suddenness	Leads to “surprise” followed by some positive or negative emotion depending on the values of other appraisal variables.

The generalized form of emotion elicitation fuzzy rules is defined as

• if Desirability(EV_ID, TS) is A1

• and

• Expectedness(EV_ID, TS) is A2

• and

• Suddeness(EV_ID, TS) is A3

• and

• OutcomeProbability(EV_ID, TS) is A4

• and

• CauseHarm(EV_ID, TS) is A5

• then

• Curr_Emo₁is E₁and …. and Curr_Emo_Nis E_N

where A1 … A5 takes the values from the respective fuzzy sets. Curr_Emo_1…N is the list of multiple emotions generated simultaneously, and E₁ to E_N are their intensities. A sample of generated rules on the basis of appraisal theories is shown in Table 3.

Table 3.

A Sample of Generated Rules.

Appraisal variables/emotion	SAD
	VHighS	HighS	MediumS	LowS
Desirability	ND	UD	UD	LowD
Expectedness	UE	LowE	MediumE	HighE
Suddenness	High	High	Medium	Low
OutcomeProbability	VUP	VUP	UP	UP
CauseHarm	CauseHarmH/willCauseHarmH	CauseHarmH/willCauseHarmH	CauseHarmL/willCauseHarmL	CauseHarmL/willCauseHarmL

Example: Suppose an agent is walking in a park where reptiles like lizards and snakes are expected. While going from one point to another, he saw a snake lying in his path. On analyzing the resources, he found that he does not have any stick to hit the snake. Then, on analyzing his capabilities and resources and the current event, the agent appraises the event as

<E001A,  t,  Snake,  UD,  MediumE,  Low,  VUP,  willCauseHarmH>.

Then, the following fuzzy rule is fired:

• if Desirability(E001A, t) is UD

• and

• Expectedness(E001A, t) is MediumE

• and

• Suddeness(E001A, t) is Low

• and

• OutcomeProbability(E001A, t) is VUP

• and

• CauseHarm(E001A, t) is willCauseHarmH

• then

• FEAR is VHighF and SAD is MediumS.

Upon generating the emotions, it updates the working memory with this information as event id, time stamp, objects, and elicited emotions along with their intensity. It then generates a message for reaction module as <EV_ID, TS, OBJ, <Curr_Emo>>.

Finally, a crisp value of the intensity of emotion in the form of emotion vector, EI_t=<I_h, I_s, I_f, I_a, I_sur>, is computed using the Mamdani centroid defuzzification.

5.4 Emotion Transition

Emotion transition is, basically, the switching from one emotional state to another over time as series of events occur [44]. Research in this field mainly focuses on steady-state emotions rather than emotion transition. Reference [13] has shown how the transition from happy to angry or “becoming angry” has different outcomes from its steady-state counterpart (e.g., steady-state anger, where one begins angry and stays at the same level of anger). Emotion transition (shown in Figure 5) from one state to another is a function of current event and current emotion.

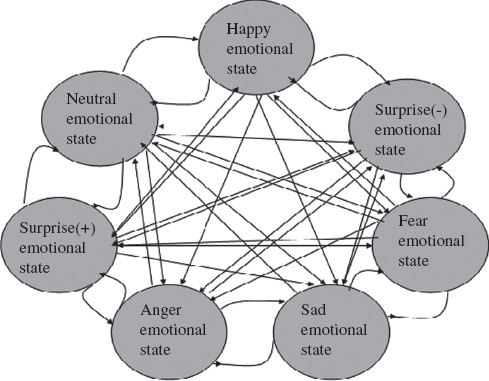

Figure 5.

State Diagram for Emotion Switching.

In the proposed model, depending on the application, the user can select either steady-state emotions or emotion transition. For the first time, it considers the current emotion, Curr_Emo=Neutral. Fuzzy rules are used to determine the intensity of generated emotions in terms of fuzzy values. As transition of emotion depends on the current emotion and current event, at every instance of the transition cycle, it takes input as <EV_ID, TS, OBJ, Curr_Emo, D, E, OP, S, CH> and generates output as <EV_ID, TS+1, OBJ, Next_Emo>. Thus, at the next instance of time, the Next_Emo becomes Curr_Emo and starts the next iteration of the cycle.

For example, at some instance of time t_i, Curr_Emo(agent) is fear and its intensity is High, then depending on the value of the appraised variable as shown below, the emotional state of the agent is changed from {High Fear} to {Medium Anger and VeryHigh Sad}.

The following examples illustrate how rules are defined linguistically:

• Rule 1: δ(EV001A, [Fear=HighF]t_i, <UD, MediumE, UP, CauseHarmH, LowS>)={MediumA, Neutral, VHighS, Neutral, Neutral, Neutral}t_i+1

  if (Fear is HighF) AND

  (desirability(EV001A, t_i) is UD) AND

  (expectedness(EV001A, t_i) is medium) AND

  (outcome(EV001A, t_i) is UP) AND

  (causeharmH(EV001A, t_i)

  then

  Anger is MediumA AND Sad is VHighS

• Rule 2: δ(EV002A, [Fear=HighF]t_i, <UD, MediumE, UP, CauseHarmH, LowS>)={Neutral, VHighH, Neutral, Neutral, Neutral, Neutral}t_i+1

  if (Fear is HighF) AND

  (desirability(EV002A, t_i) is UD) AND

  (expectedness(EV002A, t_i) is medium) AND

  (outcome(EV002A, t_i) is UP) AND

  (causeharmH(EV002A, t_i) and

  ∼E

  then

  Happy isVHighH

• Rule 3: δ(EV003A, [Happy=MediumH]t_i, <MediumD, UE, UP, NoHarm, HighS>)={Neutral, Neutral, Neutral, Neutral, Neutral, VHighS(-)}t_i+1AND {HighA, Neutral, MediumS, Neutral, Neutral, Neutral}t_i+2

  if (Happy is medium) AND

  (desirability(EV003A, t_i) is MediumD) AND

  (expectedness(EV003A, t_i) is UE) AND

  (suddenness(EV003A, t_i) is high)

  then

  Surprise is VHighSr

  Then at t_i+2,

  if outcome(EV003A, t_i) is UP then Anger is HighA and Sad is MediumS

  Else if willcauseharmH(EV003A, t_i) then Fear is HighF

  Else if causeharmH(EV003A, t_i) then Sad is HighS

In rule 3, surprise is the current emotion state after appraising the current event. We are following the fact that surprise can be negative or positive depending on the outcome. If the outcome is pleasant, the emotion at the next instance of time will be positive; otherwise, some negative emotions will be generated depending on the value of appraised variables.

After the emotion elicitation and emotion transition processes, it updates the working memory with the information as event id, time stamp, object, and elicited emotions along with their intensity. If the generated emotion is a positive emotion, the object will be assigned a “GOOD” tag; otherwise, it will be tagged as “BAD.” This tagging information is further updated in the belief set of long-term memory so that whenever, in the future, some event associated with that object occurs, the agent can judge the event on the basis of its past experience.

5.5 Emotion Regulation and Emotion Decay

Emotion arises when an agent perceives an event and finds it relevant toward achieving its goal. The generated emotion can be a negative or a positive emotion. It can hurt if it occurs at the wrong time with the wrong intensity. Thus, emotion regulation is the process humans undertake to affect their emotional response. According to Gross and Thompson [15], “Emotion regulation includes all of the conscious and non-conscious strategies we use to increase, maintain, or decrease one or more components of an emotional response.”

Emotion decay takes place on its own periodically or at the occurrence of the next event. Emotion regulation refers to strategy opted to change the emotion response.

EI_New = f(EI_Dec(e, t), EI_Reg) 

where EI_New is new emotion vector after regulation. It depends on the changed intensities of emotion after decay (EI_Dec(e,t)) and after strategy-based regulation (EI_Reg).

Emotion decay refers to the gradual decrease in intensity of emotion with time. According to Velasquez [40, 41], emotions do not disappear once their cause has disappeared; rather, they decay through time. In the literature, we can find variants of opinion about emotion decay. Some researchers say positive emotions decay faster than negative emotions, whereas some say negative emotions decay faster. This discrepancy has not been resolved to date. Thus, we conducted a survey and concluded that in most of the cases, positive emotions decay faster, which is also supported by Velasquez [40]. Following the same, emotion decay is represented by the Poisson distribution in our model. That is,

EI_Dec(e, t) = EIt(e) = EIt − 1(e) × exp(−0.1 × d(e) × t)  

where d(e)Є[0, 1], d(e) = [0.5, 1] for positive emotions and d(e) = [0.8, 1] for negative emotions.

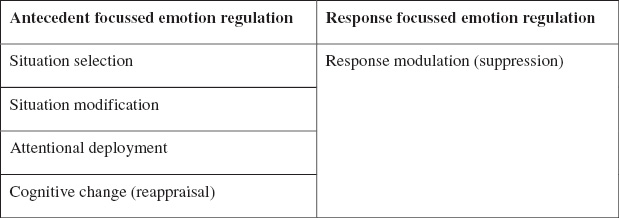

Emotion regulation follows some strategies for regulating the emotions. Gross proposed a process model of emotion regulation, as shown in Figure 6. Broadly, the model follows two types of emotion regulation strategies: antecedent-focused emotion regulation and response-focused emotion regulation. Antecedent-focused emotion regulation regulates the emotion before emotion generation, whereas response-focused emotion regulation regulates the emotion after its generation. There are five regulation strategies, four under antecedent-focused emotion regulation and one under response-focused emotion regulation. The first antecedent-focused regulation strategy in Gross theory is situation selection. This strategy is aimed at selecting a situation among available options that best meets with the desired level of a certain emotional response of the person. Situation modification is the second strategy in this category, and it does not try to change the world but rather to alter some controllable aspects of the situation. In attention deployment strategy, we try to focus on the positive and distract ourselves from the negative aspects of the current situation. In cognitive change, the person tries to look at undesired events from a different perspective to change the negative cognitive meaning of the events. As in the response-focused category, response modulation is an important strategy that can be applied after the manifestation of the emotion.

Figure 6.

Gross Model of Emotion Regulation.

EMIA uses reappraisal as an antecedent-focused emotion regulation strategy and suppression as a response-focused emotion regulation strategy. The complete regulation process is explained with the help of a flow chart in Figure 7. On the occurrence of an event and before emotion elicitation and decision making, the next event in the sequence is predicted. This can easily be done as the activity network (DAG) is used to store relevant events in the event set. Then, the expected event is appraised and the expected emotion (EI_Expected) is estimated using the same fuzzy rules as defined for the emotion elicitation process. The next step is to check whether regulation is required or not, using Algorithm 1 described below. If it is required, depending on the agent tolerance (α), the target emotion with intensity is estimated (EI_Target). Then Algorithm 2 is used to regulate the emotions either by reappraisal to generate EI_Target or by suppression of the current generated emotion.

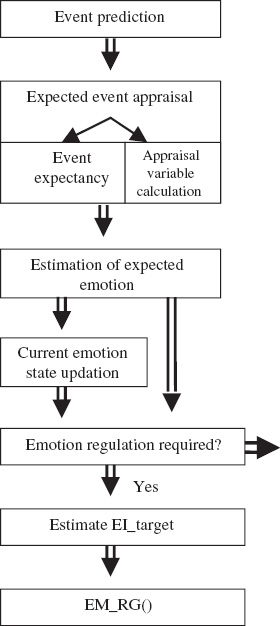

Figure 7.

Flow Chart of Emotion Regulation Process.

Algorithm 1

Update_Current_emotion()

 {

 if CUR_EMO is +ve and esti_em is +ve

  then increase (EI_cur)

 if CUR_EMO is –ve and esti_em is +ve

  then decrease (EI_cur)

 …

 }

where increase(EI_cur) or decrease(EI_cur)=f(EI_Expected, α), where αЄ[0, 1].

Algorithm 2

while(EI_target not achieved)

 {

 EI_Reg=f(EI_Expected, α)//antecedent-focused done by reappraisal

          or

 EI_Reg=f(EI_cur, α)//response-focused done by suppression

 }

6 Illustration

In EMIA, domain-independent appraisal variables are used to evaluate an event. Moreover, the fuzzy rules for event appraisal, emotion elicitation, and emotion transition are designed based on these variables. Hence, this model can be applied to any domain. To establish the validity of the model, EMIA, we demonstrate its work for a driver as an agent on the road, which works in a closed environment.

Event set={Traffic jams, Traffic light red, Traffic light green, Accidents on road, Brake lights of a preceding vehicle, Action of other agents, Traffic condition on road}

Action set={Apply brake, Accelerate the vehicle, De-accelerate the vehicle, Keep the same speed}

Belief set={Red light “BAD”; Green light “GOOD”; Traffic jam “BAD”; Accident “BAD”}

Goal={reach office safely and on time}

An agent driver is driving with a constant speed from his home to the office. The traffic signal turned green for 40 s when he is at some distance from the crossing. There is no obstacle/other vehicle nearby.

The perception module percepts this event and make this entry in the perceptual memory as

<EV001R,  Traffic light green AND Medium distance from crossing AND No obstacle on road,  driver, t1>.

Then, the encoder generates the message <EV001R, driver, t₁> and passes it to the appraisal module. The appraisal module valuates the event as <D, E, S, OP, CH>={HighD, MediumE, Low, P, noHarm} and passes the message <EV001R, t₁, HighD, MediumE, Low, P, noHarm> to the emotion elicitation module. As it is the first event in the sequence, the current emotion is considered as neutral. At this module, following rule is fired

• if Desirability(EV001R, t) is HighD

• and

• Expectedness(EV001R, t) is MediumE

• and

• Suddeness(EV001R, t) is Low

• and

• OutcomeProbability(EV001R, t) is P

• and

• CauseHarm(EV001R, t) is noHarm

• then

• Happy is VHighH and Fear is LowF

and generates a new message for the reaction module as <EV001R, t1, VhighH, LowF>.

7 Conclusion and Future Work

In this article, a domain-independent computational model of emotion agent is proposed. The model is based on appraisal theories of emotions and OCC elicitation conditions. The fact that emotions are contiguous (not discrete) led us to design an emotion transition process. Over time, the intensity of current emotion decreases gradually, which is also being taken into consideration as emotion decay. Moreover, emotion regulation is also incorporated following the strategies suggested by Gross. The whole work is carried out using fuzzy classifier and fuzzy rules as the main design tool to handle the uncertain and nondeterministic nature of emotions. Next, we will be working for further refinement of the emotion model and their influence on decision making and action selection.
