The crystal structure of 2-(4-methoxynaphthalen-1-yl)-4H-chromen-4-one, C20H14O3

  • Soon Young Shin , Ha-Jin Lee , Jiha Sung and Dongsoo Koh ORCID logo EMAIL logo
Published/Copyright: October 24, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 6

Abstract

C20H14O3, triclinic, P 1 ‾ (no. 2), a = 8.3085(10) Å, b = 8.3918(8) Å, c = 12.1359(14) Å, α = 91.691(5)°, β = 107.708(5)°, γ = 113.607(5)°, V = 727.42(14) Å3, Z = 2, R gt (F) = 0.0471, wRref (F 2) = 0.1235, T = 223(2) K.

CCDC no.: 2211996

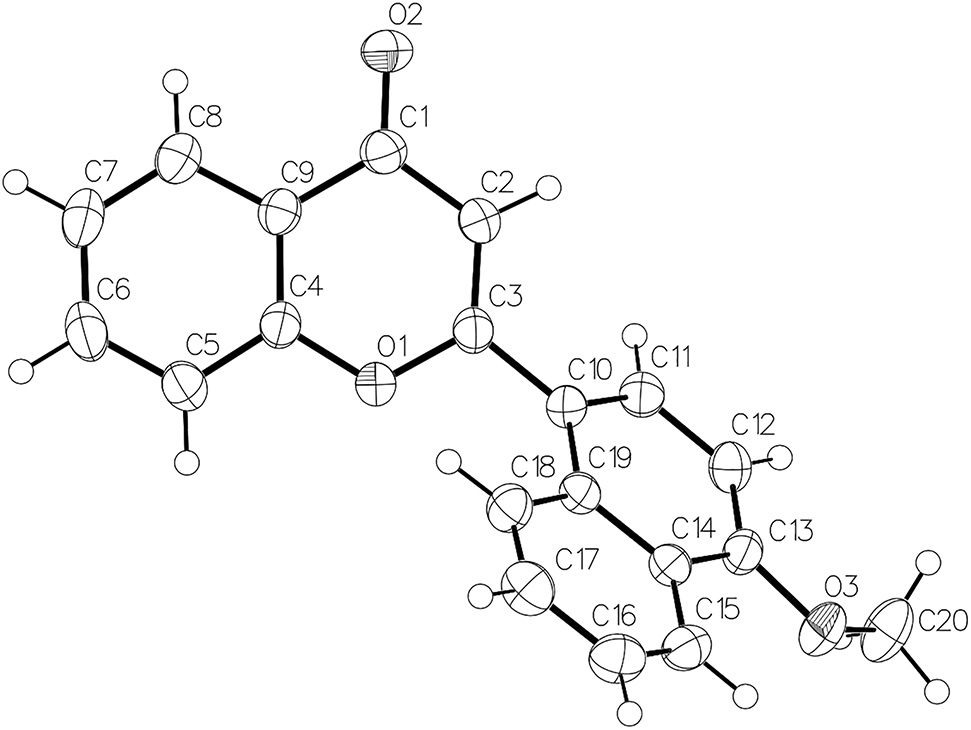

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.22 × 0.18 × 0.11 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.09 mm−1
Diffractometer, scan mode: PHOTON 100 CMOS, φ and ω
θ max, completeness: 28.6°, >99%
N(hkl)measured, N(hkl)unique, R int: 30,362, 3696, 0.046
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2605
N(param)refined: 209
Programs: Bruker [1], SHELX [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.7412 (2) 1.1182 (2) 0.35417 (14) 0.0337 (3)
C2 0.6748 (2) 0.9777 (2) 0.25696 (14) 0.0332 (3)
H2 0.7629 0.9547 0.2341 0.040*
C3 0.4921 (2) 0.8789 (2) 0.19809 (13) 0.0306 (3)
O1 0.35604 (15) 0.90392 (15) 0.22624 (10) 0.0378 (3)
C4 0.4064 (2) 1.0325 (2) 0.31913 (13) 0.0311 (3)
C5 0.2595 (2) 1.0474 (2) 0.34379 (15) 0.0412 (4)
H5 0.1346 0.9717 0.2992 0.049*
C6 0.3008 (3) 1.1747 (3) 0.43452 (16) 0.0451 (4)
H6 0.2032 1.1868 0.4522 0.054*
C7 0.4852 (3) 1.2861 (2) 0.50060 (15) 0.0419 (4)
H7 0.5116 1.3732 0.5623 0.050*
C8 0.6299 (2) 1.2698 (2) 0.47627 (14) 0.0373 (4)
H8 0.7545 1.3450 0.5218 0.045*
C9 0.5918 (2) 1.1410 (2) 0.38363 (13) 0.0302 (3)
O2 0.90816 (17) 1.21270 (18) 0.40833 (11) 0.0505 (4)
C10 0.4128 (2) 0.7363 (2) 0.09618 (13) 0.0301 (3)
C11 0.4745 (2) 0.7693 (2) 0.00315 (14) 0.0338 (4)
H11 0.5706 0.8804 0.0078 0.041*
C12 0.3991 (2) 0.6429 (2) −0.09910 (14) 0.0346 (4)
H12 0.4431 0.6703 −0.1621 0.042*
C13 0.2617 (2) 0.4801 (2) −0.10625 (13) 0.0315 (3)
C14 0.1989 (2) 0.4344 (2) −0.00934 (13) 0.0294 (3)
C15 0.0657 (2) 0.2631 (2) −0.01243 (15) 0.0369 (4)
H15 0.0155 0.1770 −0.0800 0.044*
C16 0.0089 (2) 0.2210 (2) 0.08119 (16) 0.0421 (4)
H16 −0.0788 0.1059 0.0781 0.050*
C17 0.0800 (2) 0.3477 (2) 0.18187 (16) 0.0416 (4)
H17 0.0399 0.3177 0.2461 0.050*
C18 0.2077 (2) 0.5153 (2) 0.18702 (14) 0.0359 (4)
H18 0.2536 0.5997 0.2549 0.043*
C19 0.2726 (2) 0.5645 (2) 0.09243 (13) 0.0289 (3)
O3 0.17446 (17) 0.34911 (15) −0.20199 (10) 0.0414 (3)
C20 0.2105 (3) 0.3948 (3) −0.30710 (15) 0.0524 (5)
H20A 0.1807 0.4929 −0.3278 0.079*
H20B 0.1338 0.2941 −0.3702 0.079*
H20C 0.3416 0.4284 −0.2948 0.079*

Source of material

The title compound of 2-(4-methoxynaphthalen-1-yl)-4H-chromen-4-one was prepared through a two-step reaction of chalcone formation followed by intramolecular oxidative cyclization reaction. To a mixture of 1-(2-hydroxyphenyl)ethanone (272 mg, 2 mmol) and 4-methoxy-1-naphthaldehyde (362 mg, 2 mmol) in 40 mL of ethanol, 3 ml of aq. KOH (50%) was added. The reaction mixture was stirred at room temperature for 24 h. After the completion of reaction, the reaction mixture was poured into crushed ice water (70 ml) and acidified with 3 N HCl (pH = 3) to give precipitations. After cooling to room temperature, the resulting solid was filtered, washed with water and purified form ethanol to afford chalcone intermediate. To a solution of the intermediate chalcone compound (152 mg, 0.5 mmol) in 5 ml of DMSO, catalytic amount of oxidant iodine (I2, 0.2 eq.) was added and mixture was refluxed for 4 h at 415 K. Then the mixture was cooled to room temperature. The reaction mixture was poured in crushed ice water (30 ml) and the resulting solid was separated by filtration and was washed with water. Recrystallization of the solid from ethanol solution gave crystals of title compound.

Experimental details

Data collections and reduction were carried out using the Bruker software APEX2 and SAINT including SADABS [1]. Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Cancer cells are known to exhibit relatively higher ROS levels than normal cells, so an increase in ROS in cancer cells has the effect of killing some types of cancer cells. By using this phenomenon to increase ROS in cancer cells, cancer cells can be selectively killed [5, 6]. Piperlongumin derivatives containing α, β-unsaturated carbonyl groups in the scavenge glutathione (GSH) from cancer cells, may cause an increase in intracellular ROS [7], [8], [9]. The α, β-unsaturated carbonyl group play an important role in removing GSH through the Michael addition reaction with the thiol group of GSH. Flavones are compounds containing an α, β-unsaturated carbonyl group in a chromone ring. In order to develop a compound with more effective ROS generating activity, the title flavone compound was synthesized based on our previous studies [10], [11], [12].

In the title compound, the C2=C3 double bond adopts a Z configuration (see the figure), which was defined by the dihedral angle of −0.2(3)° for C1–C2–C3–O1. The naphthlene ring ([C11–C19]; r.m.s. deviations 0.028 Å) is tilted at an angle of 53.2(2)° with respect to the chromone ring ([C1–C3, O1, C4–C9]; r.m.s. deviations 0.007 Å). The methoxy group in naphthlene ring is slightly twisted from the ring [C12–C13–O3–C20 = −9.6(2)°]. Bond lengths and angles are all in the expected ranges [13, 14].

In the crystal, pairs of weak C6–H6···O2 and C17–H17···O2 hydrogen bonds link the molecules into chains propagating along the b-axis direction.

Corresponding author: Dongsoo Koh, Department of Applied Chemistry, Dongduk Women’s University, Seoul 02748, Korea, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: The authors acknowledge financial support from the Basic Science Research Program (award No. NRF-2021R1F1A1052699). S. Y. Shin was supported by the KU Research Professor Program of Konkuk University.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2012.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8.10.1107/S2053229614024218Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341.10.1107/S0021889808042726Search in Google Scholar

5. Raj, L., Ide, T., Gurkar, A., Gurkar, A. U., Foley, M., Schenone, M., Li, X., Tolliday, N. J., Golub, T. R., Carr, S. A., Shamji, A. F., Stern, A. M., Mandinova, A., Schreiber, S. L., Lee, S. W. Selective killing of cancer cells by a small molecule targeting the stress response to ROS. Nature 2011, 475, 231–234.10.1038/nature10167Search in Google Scholar PubMed PubMed Central

6. Perillo, B., Di Donato, M., Pezone, A., Di Zazzo, E., Giovannelli, P., Galasso, G., Castoria, G., Migliaccio, A. ROS in cancer therapy: the bright side of the moon. Exp. Mol. Med. 2020, 52, 192–203.10.1038/s12276-020-0384-2Search in Google Scholar PubMed PubMed Central

7. Adams, D. J., Dai, M., Pellegrino, G., Wagner, B. K., Stern, A. M., Shamji, A. F., Schreiber, S. L. Synthesis, cellular evaluation, and mechanism of action of piperlongumine analogs. Proc. Natl. Acad. Sci. USA 2012, 109, 15115–15120.10.1073/pnas.1212802109Search in Google Scholar PubMed PubMed Central

8. Franco, R., Cidlowski, J. A. Apoptosis and glutathione: beyond an antioxidant. Cell Death Differ. 2009, 16, 1303–1314.10.1038/cdd.2009.107Search in Google Scholar PubMed

9. Shan, F., Shao, Z., Jiang, S., Cheng, Z. Erlotinib induces the human non-small-cell lung cancer cells apoptosis via activating ROS-dependent JNK pathways. Cancer Med. 2016, 5, 3166–3175.10.1002/cam4.881Search in Google Scholar PubMed PubMed Central

10. Shin, S. Y., Jung, E., Lim, Y., Lee, H. J., Rhee, J. H., Yoo, M., Ahn, S., Koh, D. Synthesis, crystal structure, Hirshfeld surface analysis and docking studies of a novel flavone–chalcone hybrid compound demonstrating anticancer effects by generating ROS through glutathione depletion. Crystals 2022, 12, 108.10.3390/cryst12010108Search in Google Scholar

11. Shin, S. Y., Lee, J. M., Lee, M. S., Koh, D., Jung, H., Lim, Y., Lee, Y. H. Targeting cancer cells via the reactive oxygen species-mediated unfolded protein response with a novel synthetic polyphenol conjugate. Clin. Cancer Res. 2014, 20, 4302–4313.10.1158/1078-0432.CCR-14-0424Search in Google Scholar PubMed

12. Lee, K., Lee, D. H., Kim, J.-H., Shin, S. Y., Lee, Y. H., Koh, D. The chalcone derivative HymnPro generates reactive oxygen species through depletion of intracellular glutathione. Appl. Biol. Chem. 2016, 59, 391–396.10.1007/s13765-016-0168-5Search in Google Scholar

13. Sung, J. 6-Methoxy-2-(2-methoxynaphthalen-1-yl)-4H-chromen-4-one. IUCrData 2018, 3, x181277.10.1107/S2414314618012774Search in Google Scholar

14. Ahn, S., Lim, Y., Koh, D. Crystal structure of 2-(2,3-dimethoxynaphthalen-1- yl)-3-hydroxy-6-methoxy-4H-chromen-4-one. Acta Crystallogr. 2015, E71, o842–o843.10.1107/S2056989015018861Search in Google Scholar PubMed PubMed Central

Received: 2022-09-06
Accepted: 2022-10-10
Published Online: 2022-10-24
Published in Print: 2022-12-16
