The crystal structure of 4-chloro-1-methylpiperidin-1-ium chloride, C6H13Cl2N

  • Kina Muller , Eric C. Hosten ORCID logo and Richard Betz ORCID logo EMAIL logo
Published/Copyright: November 12, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 2

Abstract

C6H13Cl2N, orthorhombic, P212121 (no. 19), a = 6.0087(3) Å, b = 10.1176(6) Å, c = 14.3532(7) Å, V = 872.58(8) Å3, Z = 4, Rgt(F) = 0.0304, wRref(F2) = 0.0632, T = 200 K.

CCDC no.: 2041498

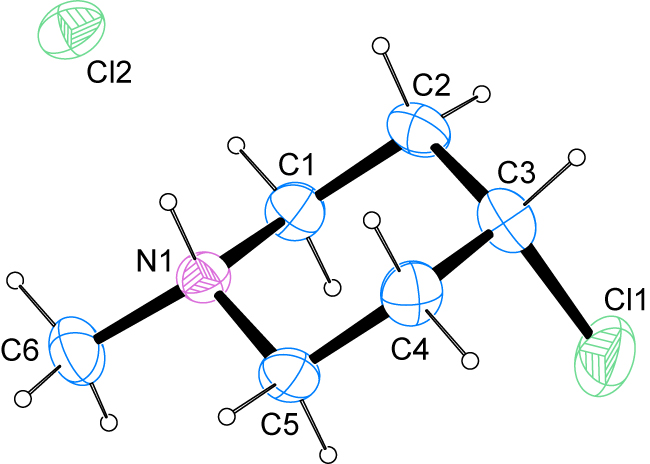

The molecular structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless platelet
Size:0.25 × 0.12 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.67 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:8227, 2165, 0.028
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1874
N(param)refined:88
Programs:Bruker [1], [2], SHELX [3], WinGX/ORTEP [4], Mercury [5], PLATON [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cl10.75355 (13)−0.11634 (8)0.47932 (5)0.0507 (2)
N10.4071 (3)0.05003 (19)0.28772 (13)0.0261 (4)
H710.313 (4)0.123 (3)0.2987 (18)0.037 (7)*
C10.6381 (4)0.0916 (2)0.31382 (17)0.0298 (5)
H1A0.6839040.1676200.2748460.036*
H1B0.7428080.0179700.3019320.036*
C20.6483 (4)0.1300 (2)0.41544 (16)0.0329 (5)
H2A0.5594910.2113340.4250130.039*
H2B0.8044640.1502340.4321890.039*
C30.5619 (4)0.0230 (3)0.47933 (18)0.0347 (6)
H30.5509280.0591120.5440290.042*
C40.3342 (4)−0.0237 (3)0.44861 (17)0.0340 (6)
H4A0.2244600.0477120.4593870.041*
H4B0.289568−0.1006700.4868670.041*
C50.3302 (4)−0.0623 (2)0.34651 (17)0.0309 (5)
H5A0.428250−0.1396620.3364300.037*
H5B0.177013−0.0875510.3283360.037*
C60.3910 (5)0.0191 (3)0.18688 (16)0.0377 (6)
H6A0.501090−0.0486400.1708010.057*
H6B0.4199390.0992390.1505170.057*
H6C0.241342−0.0137860.1727440.057*
Cl20.12300 (10)0.29376 (6)0.30651 (5)0.03429 (15)

Source of material

The compound was obtained commercially (Fluka).

Experimental details

Carbon-bound H atoms were placed in calculated positions (C–H 0.99 Å for methylene groups and C–H 1.00 Å for methine groups) and were included in the refinement in the riding model approximation, with U(H) set to 1.2Ueq(C). The H atoms of the methyl group were allowed to rotate with a fixed angle around the C–C bond to best fit the experimental electron density (HFIX 137 in the SHELX program suite [3]), with U(H) set to 1.5Ueq(C). The nitrogen-bound H atom was located on a difference Fourier map and refined freely. The compound was refined as an inversion twin with volume ratios of 6.64 and 93.36%.

Comment

Among the many effects that can be attributed to the spatial requirements of counterions have been the glass transition temperature in ionomers [7], surfactant modifying properties [8], the charge transfer in radical ions [9] and polymer-modified electrodes [10] as well as the structural and vibrational spectroscopic behaviour of DNA building blocks [11]. Furthermore, the benefit of choosing the adequate size of counterions to crystallize ionic compounds has been confirmed on many occasions [12]. In continuation of our interest in metrical features of large cations [13], [14], [15] the structure of the title compound has been determined. A comparable molecular connectivity pattern has been characterized structurally previously in form of the chloride [16] and perchlorate [17] salts of 4-chloro quinuclidinium.

The structure shows the presence of the chloride salt of a piperidinium derivative. The nitrogen atom is methylated while the intracyclic carbon atom in para position to the pnicogen atom features a chlorine substituent. N–C bond lengths span a range of 1.484(3)–1.498(3) Å with the shortest bond apparent to the exocyclic carbon atom. The C–Cl distance of 1.820(3) Å is in good agreement with the common values deposited with the Cambridge Structural Database [18]. While the methyl group on the tetrahedral nitrogen atom adopts an equatorial position on the central six-membered ring the chlorine atom is found to occupy an axial position. A conformational analysis of the heterocycle according to Cremer & Pople [19] shows the ring to adopt a 1C4 conformation on atoms N1 and C3 [20].

In the crystal, classical hydrogen bonds of the N–H···Cl type are observed next to C–H···Cl contacts whose range falls by more than 0.1 Å below the sum of van-der-Waals radii of the atoms participating in them. While the acceptor for all aforementioned interactions is invariably found in the chloride counterion, the C–H···Cl contacts are only supported by one hydrogen atom of the methyl group as well as the hydrogen atom of the chlorine-substituted intracyclic methylene group. In terms of graph-set analysis [21], [22], the descriptor for these contacts is DDD on the unary level.

Corresponding author: Dr. Richard Betz, Department of Chemistry, Nelson Mandela University, Summerstrand Campus (South), University Way, Summerstrand, PO Box 77000, Port Elizabeth 6031, South Africa, E-mail:

Funding source: National Research Foundation

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: National Research Foundation.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2; Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Search in Google Scholar

2. Bruker. SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2008.Search in Google Scholar

3. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. https://doi.org/10.1107/s0108767307043930.Search in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854. https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

5. Macrae, C. F., Bruno, I. J., Chisholm, J. A., Edgington, P. R., McCabe, P., Pidcock, E., Rodriguez–Monge, L., Taylor, R., van de Streek, J., Wood, P. A. Mercury CSD 2.0 – new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470. https://doi.org/10.1107/s0021889807067908.Search in Google Scholar

6. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155. https://doi.org/10.1107/s090744490804362x.Search in Google Scholar

7. Enokida, J. S., Hu, W., Fang, H., Morgan, B. F., Beyer, F. L., Winter, H. H., Coughlin, E. B. Modifying the structure and dynamics of ionomers through counterion sterics. Macromolecules 2020, 53, 1767–1776. https://doi.org/10.1021/acs.macromol.9b02116.Search in Google Scholar

8. Oh, S. G., Shah, D. O. Effect of counterions on the interfacial tension and emulsion droplet size in the oil/water/dodecyl sulfate system. J. Phys. Chem. 1993, 97, 284–286. https://doi.org/10.1021/j100104a003.Search in Google Scholar

9. Piotrowiak, P., Miller, J. R. Counterion effects in intramolecular charge transfer in radical anions. J. Phys. Chem. 1993, 97, 13052–13060, https://doi.org/10.1021/j100152a004.Search in Google Scholar

10. Mathias, M. F., Haas, O. Effect of counterion type on charge transport at redox polymer-modified electrodes. J. Phys. Chem. 1993, 97, 9217–9225, https://doi.org/10.1021/j100138a025.Search in Google Scholar

11. Minguirbara, A., Vamhindi, B. S. D. R., Koyambo-Konzapa, S. J., Nsangou, M. Effects of counterions and solvents on the geometrical and vibrational features of dinucleoside-monophosphate (dNMP): case of 3′,5′-dideoxycytidine-monophosphate (dDCMP). J. Mol. Model. 2020, 26, 99. https://doi.org/10.1007/s00894-020-04369-6.Search in Google Scholar

12. Roof, L. C., Kolis, J. W. New developments in the coordination chemistry of inorganic selenide and telluride ligands. Chem. Rev. 1993, 93, 1037–1080. https://doi.org/10.1021/cr00019a010.Search in Google Scholar

13. Hosten, E. C., Betz, R. Redetermination of the crystal structure of benzyltriethylammoniumchloride monohydrate at 200 K – localization of hydrogen atoms, C13H24ClNO. Z. Kristallogr. NCS 2015, 230, 21–22. https://doi.org/10.1515/ncrs-2014-9024.Search in Google Scholar

14. Abrahams, A., van Brecht, B., Betz, R. Bis(pyridin-2-ylmethyl)ammonium nitrate. Acta Crystallogr. 2013, E69, o661. https://doi.org/10.1107/s1600536813008593.Search in Google Scholar

15. Betz, R., Gerber, T., Hosten, E., Siddaraju, B. P., Yathirajan, H. S. Opipramol dihydrochloride. Acta Crystallogr. 2011, E67, o2994–o2995. https://doi.org/10.1107/s1600536811042280.Search in Google Scholar

16. Kurahashi, M., Engel, P., Nowacki, W. The crystal structures of quinuclidinium chloride and 4-haloquinuclidinium chlorides. Z. Kristallogr. Cryst. Mater. 1980, 152, 147–156. https://doi.org/10.1524/zkri.1980.152.1-2.147.Search in Google Scholar

17. Kurahashi, M., Engel, P., Nowacki, W. The crystal structures of 4-haloquinuclidinium perchlorates. Z. Kristallogr. Cryst. Mater. 1980, 152, 135–146. https://doi.org/10.1524/zkri.1980.152.1-2.135.Search in Google Scholar

18. Allen, F. H. The Cambridge Structural Database: a quarter of a million crystal structures and rising. Acta Crystallogr. 2002, B58, 380–388. https://doi.org/10.1107/s0108768102003890.Search in Google Scholar

19. Cremer, D., Pople, J. A. General definition of ring puckering coordinates. J. Am. Chem. Soc. 1975, 97, 1354–1358. https://doi.org/10.1021/ja00839a011.Search in Google Scholar

20. Boeyens, J. C. A. The conformation of six-membered rings. J. Cryst. Mol. Struct. 1978, 8, 317–320. https://doi.org/10.1007/bf01200485.Search in Google Scholar

21. Bernstein, J., Davis, R. E., Shimoni, L., Chang, N.-L. Patterns in hydrogen bonding: functionality and graph set analysis in crystals. Angew. Chem., Int. Ed. Engl. 1995, 34, 1555–1573. https://doi.org/10.1002/anie.199515551.Search in Google Scholar

22. Etter, M. C., MacDonald, J. C., Bernstein, J. Graph-set analysis of hydrogen-bond patterns in organic crystals. Acta Crystallogr 1990, B46, 256–262.10.1107/S0108768189012929Search in Google Scholar PubMed

Received: 2020-10-03
Accepted: 2020-10-30
Published Online: 2020-11-12
Published in Print: 2021-03-26
