Crystal structure of (E)-4-bromo-N-(pyridin-2-ylmethylene)aniline, C12H9BrN2

  • Nyameka Diko , Sizwe J. Zamisa ORCID logo EMAIL logo , Holger B. Friedrich and Mzamo L. Shozi
Published/Copyright: July 27, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C12H9BrN2, monoclinic, P21/c (no. 14), a = 19.2197(12) Å, b = 4.8579(3) Å, c = 11.4679(9) Å, β = 106.880(4)°, V = 1024.60(12) Å3, Z = 4, Rgt(F) = 0.0449, wRref(F2) = 0.1257, T = 100(2) K.

CCDC no.: 1939854

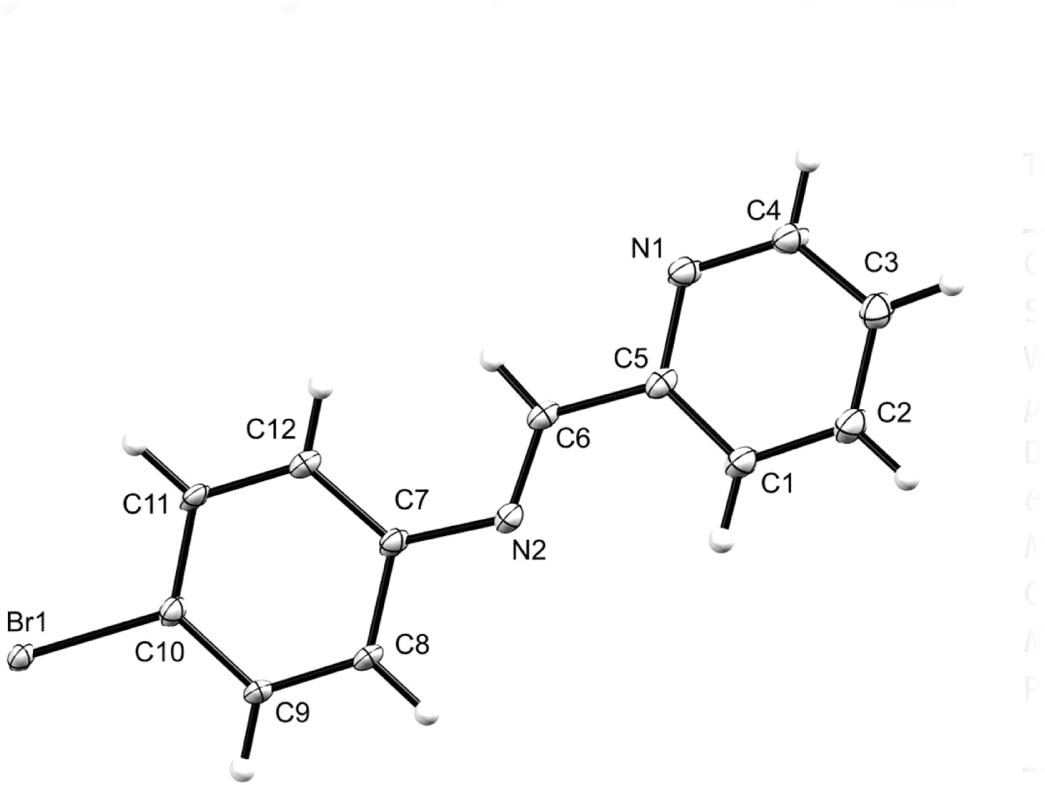

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.29 × 0.21 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.98 mm−1
Diffractometer, scan mode:Bruker SMART APEX-II, φ and ω
θmax, completeness:28.5°, 98%
N(hkl)measured, N(hkl)unique, Rint:25389, 2527, 0.066
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2166
N(param)refined:136
Programs:Bruker [1], SHELX [2], [3], Mercury [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.04566(2)1.42267(7)0.35506(3)0.01610(14)
N10.38153(17)0.0788(7)0.6529(3)0.0209(7)
N20.25245(17)0.5885(6)0.6725(3)0.0184(6)
C10.3501(2)0.2097(8)0.8336(3)0.0227(7)
H10.3223570.3230490.8708100.027*
C20.3990(2)0.0194(10)0.9019(3)0.0263(8)
H20.4054170.0007660.9867840.032*
C30.4387(2)−0.1440(9)0.8442(3)0.0240(8)
H30.471805−0.2791120.8880650.029*
C40.4281(2)−0.1026(8)0.7204(3)0.0223(8)
H40.455978−0.2107460.6812730.027*
C50.34250(18)0.2314(8)0.7095(3)0.0179(7)
C60.29112(19)0.4255(7)0.6300(3)0.0173(7)
H60.2867310.4293970.5453400.021*
C70.20549(18)0.7756(7)0.5917(3)0.0163(6)
C80.1497(2)0.8906(8)0.6324(3)0.0176(7)
H80.1452460.8390720.7097810.021*
C90.10111(19)1.0775(7)0.5619(3)0.0166(7)
H90.0622351.1479860.5886800.020*
C100.11014(18)1.1601(8)0.4516(3)0.0161(6)
C110.1658(2)1.0554(7)0.4098(3)0.0163(7)
H110.1712491.1136860.3338300.020*
C120.21327(19)0.8651(8)0.4805(3)0.0183(7)
H120.2517650.7941420.4528460.022*

Source of material

An ethanolic solution of 2-pyridinecarboxaldehyde (1.07 g, 10 mmol) was added to a solution of 4-bromoaniline (1.72 g, 10 mmol) in ethanol and the solution was refluxed for 6 hours. The reaction mixture was then cooled to room temperature and MgSO4 was added to remove excess water. The MgSO4 was filtered off and the filtrate was dried overnight under reduced pressure. This gave an off-white powder (1.92 g, 73%). Mp: 69–69.4 °C. Crystals were grown through a slow evaporation of an ethanol solution at 25 °C.

Experimental details

The structure was solved by the direct method using the SHELXS [2] program and refined. The visual crystal structure information was performed using Mercury [4] system software. All hydrogen atoms were placed in idealized positions and refined in riding models with Uiso assigned the values of 1.2 times those of their parent atoms and the distances of C—H were constrained to 0.95 Å for all the aromatic H atoms.

Comment

Schiff bases were described by Hugo Schiff in 1864 as a condensation reaction of imines and aldehydes. Their ease of synthesis, ability to coordinate to various metals with different oxidation states and influence the way a metal reacts in various catalytic transformations has led to remarkable use of these N,N′- bidentate ligands. Ligand design has enabled chemists to explore the steric and electronic properties of these ligands on various catalytic platforms [5], [6], [7]. Metal complexes of these pyridyl imine ligands have been found to perform various catalytic transformations such as alcohol oxidation [8] and transfer hydrogenation of ketones [9].

The asymmetric unit has one molecular unit of the title compound (cf. the figure). The compound exhibits an E conformation around the N2=C6 bond which is comparable to related compounds in literature [10], [11], [12], [13], [14]. The analogous compound with a methyl group instead of the bromo substituent forms an isotypic structure [15]. The dihedral angle between the phenyl and pyridyl moieties was measured to be 19.2°, whilst all bond parameters appear normal. The crystal packing contains intermolecular C10—Br1⋯Cgphenyli interactions crystal packing with Br1⋯Cgphenyli distance of 3.601(2) Å and C10—Br1⋯Cgphenyli angle of 89.97(1)° (symmetry code: (i) = x, 1 + y, z). Short Br1⋯Br1ii,iii contacts (symmetry codes: (ii) = −x, −1/2 + y, 1/2 − z; (iii) = −x, 1/2 + y, 1/2 − z) with distances of 3.5115(6) Å were also observed. The two types of intermolecular interactions observed in the crystal packing link together neighboring molecules to form a one dimensional supramolecular structure which propagates along the crystallographic b axis.

Acknowledgements

We would like to thank the DST- National Research Foundation Centre of Excellence in Catalysis C* change for financial support.

References

1. Bruker. APEXII. Bruker AXS Inc, Madison, WI, USA (2009).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Macrae, C. F.; Bruno, I. J.; Chisholm, J. A.; Edgington, P. R.; McCabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; van de Streek, J.; Wood, P. A.: Mercury CSD 2.0 – new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 41 (2008) 466–470.10.1107/S0021889807067908Search in Google Scholar

5. Pioquinto-Mendoza, J. R.; Rosas-Ortiz, J. A.; Reyes-Martínez, R.; Conelly-Espinosa, P.; Toscano, R. A.; Germán-Acacio, J. M.; Avila-Sorrosa, A.; Baldovino-Pantaleón, O.; Morales-Morales, D.: Synthesis, characterization and molecular structures of Ni(II) complexes derived from Schiff base pyridylimine ligands. Inorg. Chim. Acta 438 (2015) 146–152.10.1016/j.ica.2015.09.016Search in Google Scholar

6. Kadwa, E.; Bala, M. D.; Friedrich, H. B.: Base metal Schiff base complexes applied as catalysts for the oxidation of n-octane. Inorg. Chim. Acta 463 (2017) 112–117.10.1016/j.ica.2017.04.032Search in Google Scholar

7. Mondal, J.; Mukherjee, A.; Patra, G. K.: CuX (X=I, Br and Cl) based coordination polymers of azino-pyridyl ligand and PPh3: structural, spectral, electro-chemical, and DFT studies. Inorg. Chim. Acta 463 (2017) 44–53.10.1016/j.ica.2017.03.031Search in Google Scholar

8. Gichumbi, J. M.; Friedrich, H. B.; Omondi, B.: Synthesis and characterization of some new half-sandwich ruthenium(II) complexes with bidentate N,N′-ligands and their application in alcohol oxidation. Inorg. Chim. Acta 456 (2017) 55–63.10.1016/j.ica.2016.11.014Search in Google Scholar

9. Gichumbi, J.; Friedrich, H.; Omondi, B.: Synthesis and characterization of half-sandwich ruthenium(II) complexes with N-alkyl pyridyl-imine ligands and their application in transfer hydrogenation of ketones. Transition Met. Chem. 41 (2016) 867–877.10.1007/s11243-016-0089-5Search in Google Scholar

10. Saphu, W.; Chainok, K.: Crystal structure of 4-nitro-N-[(pyridin-2-yl)methylidene]aniline. Acta Crystallogr. E71 (2015) o760.10.1107/S2056989015016928Search in Google Scholar PubMed PubMed Central

11. Marjani, K.; Mousavi, M.; Namazian, F.: Crystal structure of N-(2-pyridylmethylene)benzene-1,4-diamine. J. Chem. Crystallogr. 41 (2011) 1451–1455.10.1007/s10870-011-0120-9Search in Google Scholar

12. Zheng, Z. N.; Lee, S. W.: (E)-2-{4-[(Pyridin-2-yl)methylideneamino]phenyl}acetic acid. Acta Crystallogr. E68 (2012) o774.10.1107/S1600536812006472Search in Google Scholar PubMed PubMed Central

13. Biewer, C.; Hamacher, C.; Kaiser, A.; Vogt, N.; Sandleben, A.; Chin, M. T.; Yu, S.; Vicic, D. A.; Klein, A.: Unsymmetrical N-aryl-1-(pyridin-2-yl)methanimine ligands in organonickel(II) complexes: more than a blend of 2,2′-bipyridine and N,N-diaryl-α-diimines?. Inorg. Chem. 55 (2016) 12716–12727.10.1021/acs.inorgchem.6b01874Search in Google Scholar PubMed

14. Tzimopoulos, D.; Czapik, A.; Gdaniec, M.; Bakas, T.; Isab, A. A.; Varvogli, A.-C.; Akrivos, P. D.: Synthesis and study of triorganostannyl esters of 3-,4-and 3,5-pyridinylimino substituted aminobenzoic acids: crystal structures of dimorphs of aqua-trimethyltin 3-pyridinyliminobenzoate. J. Mol. Struct. 965 (2010) 56–64.10.1016/j.molstruc.2009.11.038Search in Google Scholar

15. Yu-Wei Dong, Y.-W.; Fan, R.-Q.; Wang, X.-M.; Wang, P.; Zhang, H.-J.; Wei, L.-G.; Song, Y.; Du, X.; Chen, W.; Yang, Y.-L.: Topological evolution in mercury(II) Schiff base complexes tuned through alkyl substitution –- synthesis, solid-state structures, and aggregation-induced emission properties. Eur. J. Inorg. Chem. 2016 (2016) 3598–3610.10.1002/ejic.201600231Search in Google Scholar

Received: 2019-04-10
Accepted: 2019-07-12
Published Online: 2019-07-27
Published in Print: 2019-09-25

©2019 Nyameka Diko et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
