Nonlinear optical properties of anisotropic two-dimensional layered materials for ultrafast photonics
-
Huanhuan Liu
and
Tingyun Wang
Abstract
The discovery of graphene has intrigued the significant interest in exploring and developing the two-dimensional layered materials (2DLMs) for the photonics application in recent years. Unlike the isotropic graphene, a number of 2DLMs possess the in-plane anisotropic crystal structure with low symmetry, enabling a new degree of freedom for achieving the novel polarization-dependent and versatile ultrafast photonic devices. In this review article, we focus on the typical anisotropic 2DLMs including BP, ReS2, ReSe2, SnS, and SnSe and summarize the recent development of these anisotropic 2DLMs in the pulsed laser and the optical switch applications. First, we introduce the fabrication methods as well as the material characterization of the anisotropic 2DLMs by analyzing the polarized Raman configuration. Second, we discuss the anisotropic nonlinear optical properties of the anisotropic 2DLMs and concentrate on the anisotropic nonlinear absorption response. Next, we sum up state of the art of the anisotropic 2DLMs in the application of pulse lasers and optical switches. This review ends with perspectives on the challenge and outlook of the anisotropic 2DLMs for ultrafast photonics applications.
1 Introduction
The discovery of graphene marks an important milestone and has opened a new era in the exploration and development of the two-dimensional layered materials (2DLMs) in recent years. In addition to graphene, various 2D materials have attracted much attention including topological insulators [1], [2], [3], [4], [5], [6], [7], transition metal dichalcogenides (TMDCs) [8], [9], [10], [11], [12], [13], [14], [15], [16], [17], [18], black phosphorus (BP) [19], [20], [21], [22], [23], [24], [25], [26], [27], [28], [29], [30], [31], MXenes [32], [33], [34], [35], [36], [37], [38], [39], IV–VI chalcogenides [40], [41], [42], [43], [44], group VA material [45], [46], [47], metal phosphorus trichalcogenides (MPTs) [48], 2D metal–organic frameworks (2DMOFs) [49], 2D metal–halide perovskite [50], 2D nonlayered materials [51], [52], [53], [54], and so on. Graphene has zero bandgap, whereas TMDCs have the bandgap with a range of 1–2.5 eV [55], [56], [57], [58], [59]. Black phosphorus has a direct bandgap between 0.3 and 1.5 eV, depending on material thickness, filling the space of bandgap between graphene and TMDCs. For 2DLMs, atoms are strongly bonded within the same plane but weakly attached to the above and below layers by van der Waals forces [60], [61]. The weak interlayer interaction leads to the feasible extraction of monolayer or a few layers of atoms. Recently, the research of 2D materials has made a rapid progress in the optoelectronic and photonic applications including photodetectors [62], [63], [64], [65], [66], [67], [68], [69], [70], [71], [72], [73], [74], [75], optical modulators [76], [77], [78], optical switches [79], [80], [81], [82], pulsed lasers [83], [84], [85], [86], [87], [88], [89], and so on. Such 2DLMs could enable high-performance nanophotonic devices equipped with the highly integrated, miniaturized, and portable features [90], [91].
When an incident light interacts with 2DLMs, either the intensity or the phase of incident light could be altered because of the linear and nonlinear optical responses of 2DLMs [92]. Indeed, the polarization is also an important degree of freedom for the light to be controlled. As the example shown in Figure 1A, it is much more attractive to achieve the polarization-dependent pulse shaping by 2DLMs. Unlike the in-plane isotropic graphene, a number of 2DLMs possess the in-plane anisotropic crystal structure with low symmetry. For example, because of the different bond angles, BP exhibits the strong in-plane anisotropy between the armchair and the zigzag directions [93], [97], [98], [99]. Figure 1B plots schematically the bulk BP with the orthorhombic crystal structure, showing that each layer of BP has puckered lattice structure. Other emerging anisotropic 2DLMs contain ReS2 [94], [95], [100], [101], ReSe2 [95], [102], SnS [96], [103], SnSe [104], [105], and so on. As shown in Figure 1C and D, ReSe2 and ReS2 have a distorted 1T structure with triclinic symmetry, forming Re chains aligned along the b-axis. Similar to the orthorhombic crystal structure of BP, SnSe and SnS consist of puckered honeycomb layered crystal structure as shown in Figure 1E and F, and thus they are named as the BP analogy materials. Because of the anisotropic feature, the crystal orientation–dependent carrier mobility [106], optical absorption [94], [105], [107], and even valence bands [108] of these 2DLMs are found to be anisotropic. Such unique advantage of anisotropic feature brings a new degree of freedom for exploring the 2DLMs to be novel polarization-dependent photonic devices that are impossible with the in-plane isotropic 2DLMs.

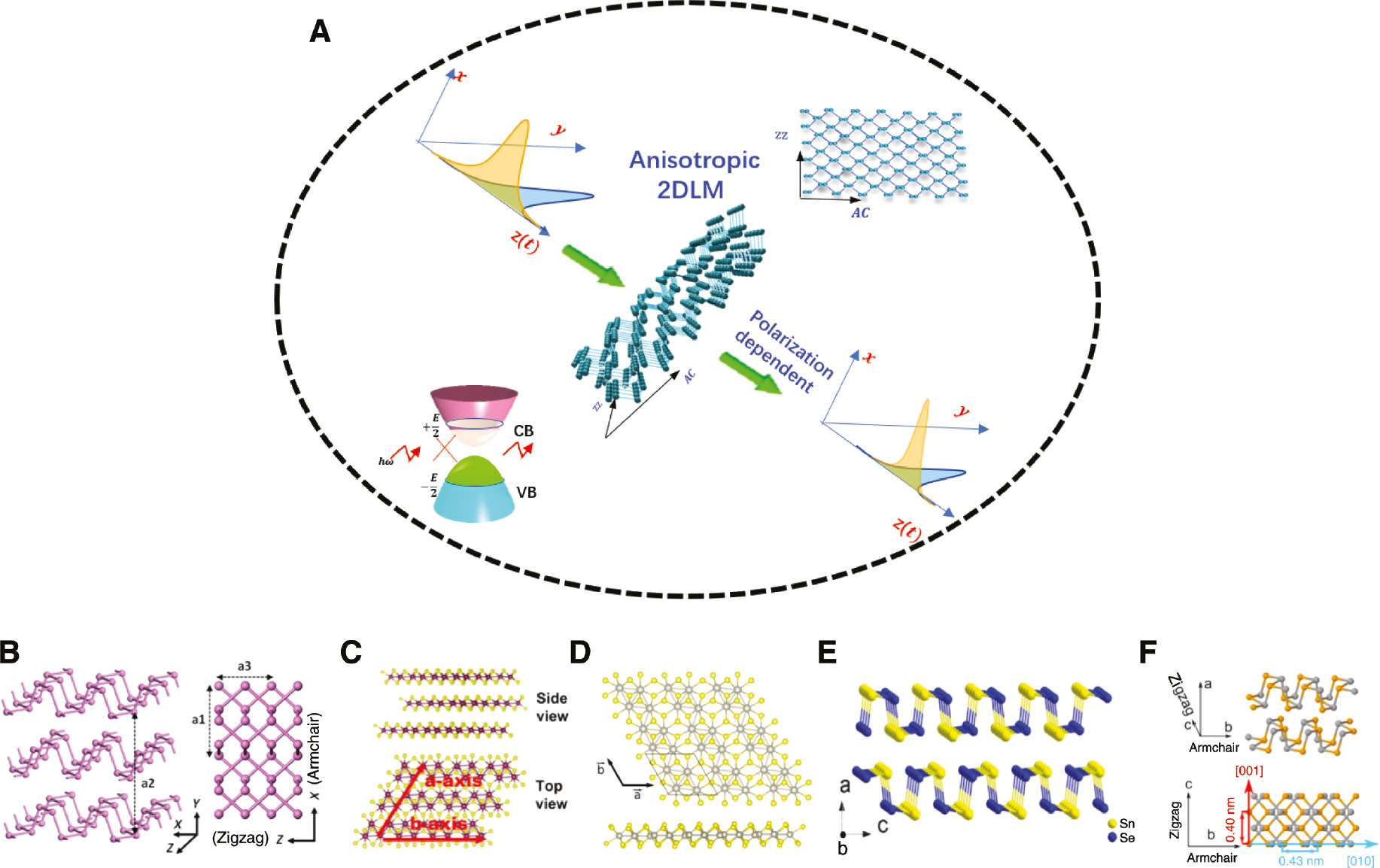

![Figure 1: Anisotropic 2DLMs for ultrafast application.(A) Schematic diagram of polarization-dependent pulse shaping by anisotropic 2DLMs. The crystal structure of typical anisotropic 2DLMs. (B) Orthorhombic black phosphorus (BP). Reproduced with permission from Ling et al. [93]. (C) Triclinic ReS2. Reproduced with permission from Meng et al. [94]. (D) Triclinic ReSe2. Reproduced with permission from Echeverry and Gerber [95]. (E) Orthorhombic SnSe. Reproduced with permission from Ye et al. [40]. (F) Orthorhombic SnS. Reproduced with permission from Tian et al. [96].](/document/doi/10.1515/nanoph-2019-0573/asset/graphic/j_nanoph-2019-0573_fig_001.jpg)
Anisotropic 2DLMs for ultrafast application.
(A) Schematic diagram of polarization-dependent pulse shaping by anisotropic 2DLMs. The crystal structure of typical anisotropic 2DLMs. (B) Orthorhombic black phosphorus (BP). Reproduced with permission from Ling et al. [93]. (C) Triclinic ReS2. Reproduced with permission from Meng et al. [94]. (D) Triclinic ReSe2. Reproduced with permission from Echeverry and Gerber [95]. (E) Orthorhombic SnSe. Reproduced with permission from Ye et al. [40]. (F) Orthorhombic SnS. Reproduced with permission from Tian et al. [96].
Currently, the nonlinear optical properties of the anisotropic 2DLMs have been studied, exhibiting the polarization dependence. Wu et al. [109] have experimentally investigated the power, polarization, and thickness dependence of the third-harmonic generation in the multilayer BP. The anisotropic optical properties of the layered ReS2 and ReSe2 have been theoretically investigated [95], and its polarization-dependent second- and third- harmonic generations have been demonstrated [100], [110]. Moreover, a number of anisotropic 2DLMs have been found with the polarization-dependent saturable absorption (SA) properties, such as BP [107], SnSe [105], SnS [111], ReS2 [94], ReSe2 [95], and so on. However, the review of the polarization-dependent optical properties of 2DLMs for the ultrafast photonic applications has rarely been reported.
Herein, we focus on the polarization-dependent optical properties of anisotropic 2DLMs and present the recent development of anisotropic 2DLMs for the pulsed lasers and optical switches application. For different crystal structures, the representative anisotropic 2DLMs attempted in ultrafast photonics application have been summarized: orthorhombic BP, orthorhombic SnSe and SnS, triclinic ReS2, and ReSe2. In the first part, the fabrication methods and the material characterization of the anisotropic 2DLMs by the polarized Raman configuration are discussed. In the second part, we summarize the anisotropic nonlinear optical properties of the anisotropic 2DLMs and focus on the anisotropic nonlinear absorption response. In the third part, the recent progress of the photonic application of the anisotropic 2DLMs in pulse lasers and optical switches is included. This review offers outlook and perspectives for the potential applications of the anisotropic 2DLMs. It is expected that this review can stimulate further interest in exploring the potential of anisotropic 2DLMs for ultrafast photonics applications.
2 The preparation and characterization
2.1 Preparation of anisotropic 2DLMs
The difference between the anisotropic and the isotropic 2DLMs lies mainly in the in-plane structure and properties. Because the layers of 2DLMs are stacked by van der Waals force, the fabrication methods of the anisotropic 2DLMs are similar to that of the isotropic 2DLMs. The typical fabrication methods are mainly classified into two schemes: the top-down method and the bottom-up method. The former commonly includes mechanical exfoliation (ME), liquid-phase exfoliation (LPE), and lithium ion intercalation exfoliation (LIE); the latter commonly includes chemical vapor deposition (CVD), physical vapor transportation (PVT), and so on. The key procedures of the above methods are briefly introduced as follows.
2.1.1 Top-down methods
By overcoming the van der Waals force between the layers, it is possible to exfoliate the monolayer or multilayer 2DLMs from the bulk crystal. Among the top-down methods, the ME method is relatively convenient to achieve monolayer or multilayer samples, because it only requires tape to exfoliate bulk crystals repeatedly. Moreover, the ME method allows for clean surface and high quality, which benefits for the material investigation as well the as the device application. For example, two high-quality BP flakes with different thicknesses of ~15 and 25 layers are prepared by the ME method and further explored as optical saturable absorbers in the fiber laser application [112]. However, the sample fabrication efficiency by the ME method is low, and the control of sample thickness is difficult, limiting the application of ME method in large-scale industrialization [61], [113].
Different from the ME method, both LPE and LIE methods need solution processing. The LPE is a pure physical process, requiring the dispersion of the crystal powder through a liquid-phase dispersion solvent. Common solvents include ethanol, NMP (N-methyl-2-pyrrolidone), DMF (dimethyl formamide), IPA (isopropyl alcohol), acetone, and surfactant sodium cholate. In order to break the van der Waals force between the layers of 2DLMs, the strong ultrasonic treatment is required to create microbubbles in the material. Then the centrifuging force is applied to separate the exfoliated materials from the residual unexfoliated material flakes by mass difference. For example, in virtue of the LPE method, Zhang et al. [114] have fabricated the high-quality BP nanosheets with ~5 nm (~8 layers) as saturable-absorber mirrors (SAMs). Even though the LPE method can prepare abundant samples with the atomic-layer thickness, the layer number of samples is not evenly distributed, and thus the sample quality is relatively poor. To some extent, the LIE method is similar to the LPE method. The LIE method also needs ultrasonication and centrifugation. However, the main difference is that the LIE method needs lithium ions as intercalation to expand the interlayer separation of the bulk material in solvent, which is widely used to prepare single-layer 2DLMs [115], [116]. However, the LIE method usually causes defects such as structural changes in the sample, and sometimes it requires reprocessing to improve the quality of samples.
2.1.2 Bottom-up methods
The bottom-up methods can directly synthesize the molecular-level 2DLMs, which are completely different from the top-down methods by breaking the van der Waals force between the layers of bulk materials. The CVD method is commonly used to fabricate high-quality 2DLMs. The principle is to use redox between reactants to generate solid depositions to form thin films. During the CVD process, the temperature, the air pressure, and the size of air flow all influence the formation quality. The film-formation status can be controlled by changing these parameters. As an example, the large-scale ReS2 with the thickness of ~2.2 nm and ReSe2 with the thickness of ~3.7 nm can be directly synthesized on a sapphire substrate by the CVD method [117]. Generally, the quality of 2DLMs prepared by the CVD method is high, but the corresponding cost and complexity is also high.
Unlike the CVD method, the PVT method does not need to undergo the redox process but the physical processes such as the evaporation and deposition. The PVT method is suitable for preparing the materials such as transition metal sulfides and metals with lower sublimation temperatures. For example, Tian et al. [96] have synthesized the SnS film with the thickness of 6 nm (~10 layers) by PVT method. Because the accessible 2DLMs are the base for any further device application, it is hoped that the advanced fabrication method can be developed to prepare the anisotropic 2DLMs with high quality, large scale, and low cost.
2.2 Characterization of anisotropic 2DLMs
In order to characterize the crystal orientation and the anisotropy of 2DLMs, the high-resolution transmission microscopy (HRTEM) images and the diffraction patterns are widely utilized [93], [102], [103]. Besides the optical image, a powerful tool is the angle-resolved polarized Raman spectroscopy.
2.2.1 Raman spectrum
By taking the BP crystal as an example, in theory, the Raman tensors for the Ag and B2g modes can be given by [118], [119]
in which the elements a, b, c, and f are complex values, determined by the light absorption of material. The intensity of the Raman modes can be calculated by
where
For the parallel backscattering configuration, θ=γ, so
where Φca refers to the phase difference between the complex Raman tensor elements c and a. From (4), we can see that the polarized Raman intensity profile is a function of |c/a| and Φca. Whether the axis is parallel to the zigzag direction or the armchair direction is determined by |c/a|>1 or |c/a|<1. Typically, the measured angle-resolved intensity of vibrational mode is plot in the polar coordination, and thus the twofold or the fourfold rotational symmetry might be observed.
In the experimental measurement, the angle-resolved polarized Raman spectroscopy not only relates to the anisotropy of 2DLMs, but also the measurement configuration. According to the angle between the polarization of incident and scattered light, there are three different configurations: only the incident light (PI); the incident light is parallel to the scattered light (PI//PS), and the incident light is perpendicular to the scattered light (PI⊥PS). Here, PI and PS represent the polarizations of incident light and scattered light, respectively.
The polarized Raman spectra of BP samples under the parallel configuration (the case of PI//
PS) at 633 nm are shown in Figure 2A, with the angle of 0°–180° [93]. Here, by taking the HRTEM images, the zigzag direction of BP is figured out paralleling to the incident light polarization of 0°. Three typical Raman peaks corresponding to

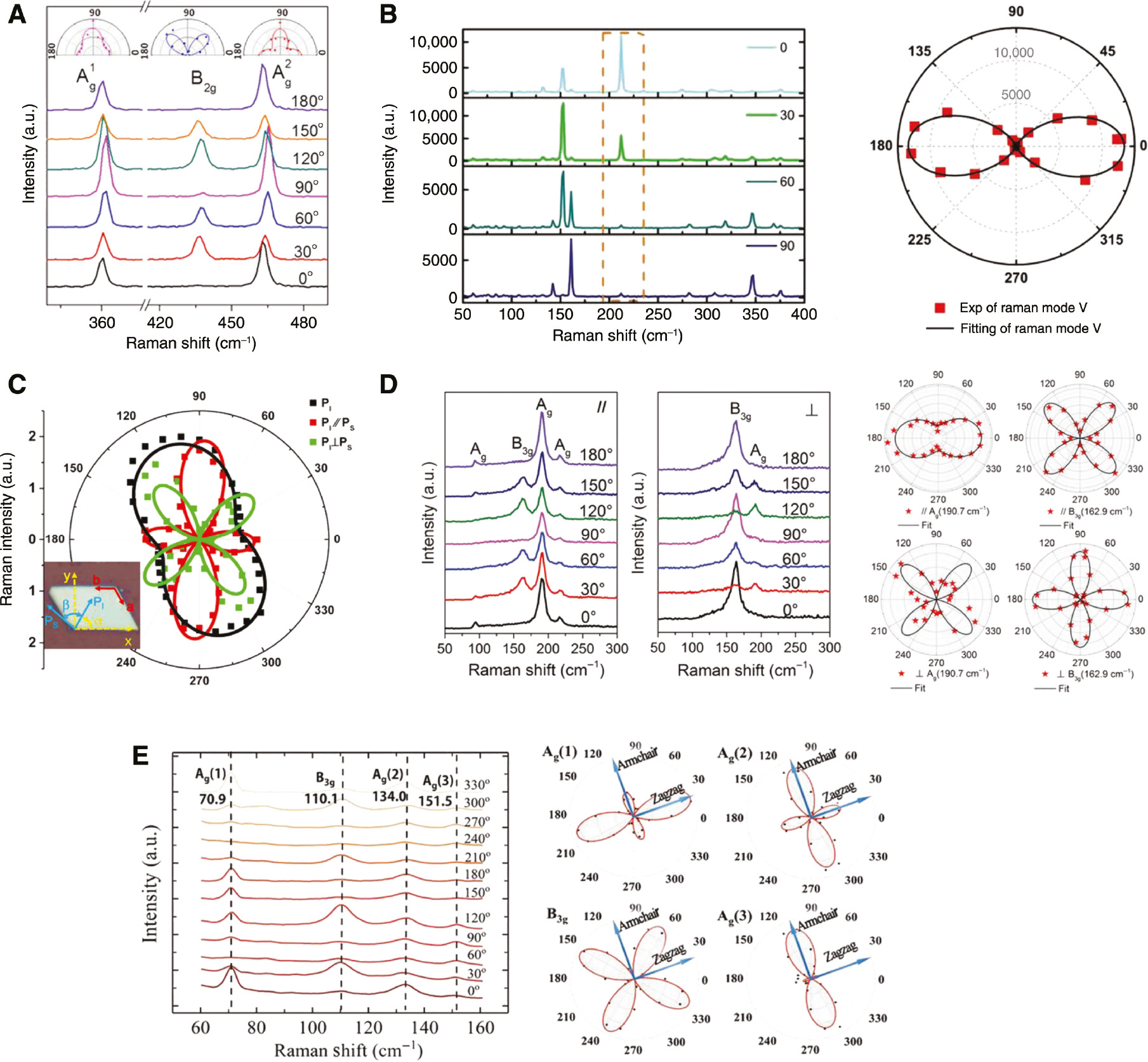

![Figure 2: The angle-resolved polarized Raman spectroscopy of the anisotropic 2DLMs.(A) BP flake (the insert shows the corresponding polar plots). Reproduced with permission from Ref. Ling et al. [93]. (B) ReS2: the angle-resolved polarized Raman spectroscopy with V-mode highlighted in orange and corresponding polar plot of the Raman intensity of V-mode. Reproduced with permission from Meng et al. [94]. (C) ReSe2: polar plots of the extracted angular-dependent intensity at Raman peak 238 cm−1 under “only incident,” “parallel,” and “perpendicular” configurations. Reproduced with permission from Zhang et al. [102]. (D) SnS: Raman spectra of 14.6-nm SnS flake with 532-nm incident laser under parallel and perpendicular polarization configurations (left figure); the polar plots of intensity of Ag and B3g under parallel and perpendicular polarization (right figure), respectively. Reproduced with permission from Xia et al. [120]. (E) SnSe: the angle-resolved polarized Raman spectroscopy (left figure); angular dependence of the Raman intensities of Ag(1), B3g, Ag(2), and Ag(3) modes (right figure). Reproduced with permission from Zhang et al. [105].](/document/doi/10.1515/nanoph-2019-0573/asset/graphic/j_nanoph-2019-0573_fig_002.jpg)
The angle-resolved polarized Raman spectroscopy of the anisotropic 2DLMs.
(A) BP flake (the insert shows the corresponding polar plots). Reproduced with permission from Ref. Ling et al. [93]. (B) ReS2: the angle-resolved polarized Raman spectroscopy with V-mode highlighted in orange and corresponding polar plot of the Raman intensity of V-mode. Reproduced with permission from Meng et al. [94]. (C) ReSe2: polar plots of the extracted angular-dependent intensity at Raman peak 238 cm−1 under “only incident,” “parallel,” and “perpendicular” configurations. Reproduced with permission from Zhang et al. [102]. (D) SnS: Raman spectra of 14.6-nm SnS flake with 532-nm incident laser under parallel and perpendicular polarization configurations (left figure); the polar plots of intensity of Ag and B3g under parallel and perpendicular polarization (right figure), respectively. Reproduced with permission from Xia et al. [120]. (E) SnSe: the angle-resolved polarized Raman spectroscopy (left figure); angular dependence of the Raman intensities of Ag(1), B3g, Ag(2), and Ag(3) modes (right figure). Reproduced with permission from Zhang et al. [105].
The polarized Raman spectra of a 328-nm-thick ReS2 sample under the parallel configuration (PI//PS) at 532 nm are plotted in Figure 2B, showing that the V-mode at ~212 cm−1 changes periodically from 0° to 360° [94]. By extracting the angular-dependent Raman intensity at V-mode, we can obtain the twofold symmetry in polar plots. The direction of the maximum V mode intensity at 0° is aligned with the b-axis of exfoliated ReS2 sample.
The extracted angle-resolved Raman intensity of 7-nm ReSe2 at Raman peak of 238 cm−1 under three configurations of PI, PI//PS, PI⊥PS is shown in Figure 2C [102]. Under the first configuration, the polar plot presents twofold symmetry. Under the configurations of PI//PS and PI⊥PS, it is observed that the two corresponding polar plots present the fourlobed shape, which are orthogonal to each other and decomposed of the twofold symmetry polar plot.
The polarized Raman spectra of SnS with the two configurations of PI//PS and PI⊥PS are shown in Figure 2D [120]. There are two typical Raman modes: Ag mode (190.7 cm−1) and B3g mode (162.9 cm−1). The extracted Raman intensities of Ag and B3g modes are obviously angle-dependent. The intensities of B3g mode become zero along the armchair and the zigzag directions under PI//PS, but achieve the maximum under PI⊥PS.
Similarly, the two configurations of PI//PS and PI⊥PS of angle-resolved polarized Raman spectroscopy are explored to characterize SnSe [105]. As shown in Figure 2E, the polarized Raman spectra present the four typical Raman peaks corresponding to Ag(1), B3g, Ag(2), and Ag(3) modes at 70.9, 110.1, 134, and 151.5 cm−1, respectively. The Ag mode shows a clear 180° periodic variation against angle. On the contrary, a period of 90° is found for the B3g mode with a fourfold symmetry. Under the configuration of PI//PS, when the incident light polarization is parallel to the zigzag direction of SnSe, the maximum Raman intensity of the Ag(3) mode always takes place regardless of the excitation wavelength or the sample thickness. Note that the angle-resolved polarized Raman spectra might be affected by the thickness of 2DLMs, so that one needs to combine both the angle-resolved polarized Raman spectroscopy and optical images to identify the crystal orientation and properties.
2.2.2 Polarized absorption
When the vector light irradiates an anisotropic material, the optical absorption depends on the structure of the material [101], [102], [105], [121]. In theory, based on Fermi’s Golden rule, the optical absorption probability can be modeled by the absorption coefficient α [93], [105]:
where EL refers to the incident photon energy; Ef and Ei are the energies of the final and the initial states. 〈f|Hop|i|〉 represents the electron–photon matrix element of perturbation Hop between the final and initial states. The element of 〈f|Hop|i|〉 determines an optical transition from state i to f, which can be estimated within the dipole approximation:
where P refers to the polarization vector of the incident photon; Dfi is dipole vector. From (5) and (6), we can see clearly that the absorption coefficient α is polarization-dependent.
In the optical measurement, the polarized optical absorption spectra of the anisotropic 2DLMs are believed to be thickness-dependent. Figure 3A shows the transmittance of two BP samples with the thicknesses of 25 and 1100 nm at 1.55 μm [121]. When the polarization changes, both 25- and 1100-nm BP samples exhibit a period change in transmission, showing a period of 180°. On the one hand, the transmission of the 25-nm BP sample is always higher than that of the 1100-nm BP sample, because the former has the shorter interaction length with the less absorption than that the latter does. On the other hand, the transmission modulation of 1100-nm BP is ~29.6%, which is much higher than that of 25-nm BP with a modulation of ~4.8%. The estimated sixfold ratio clearly shows that the thickness of BP plays an important role in the anisotropic optical absorption. The results indicate that an increase in the layer thickness can enhance the anisotropic strength. But in turn, the high transmission is sacrificed. One needs to balance between the transmission and the anisotropic strength in the practical application.

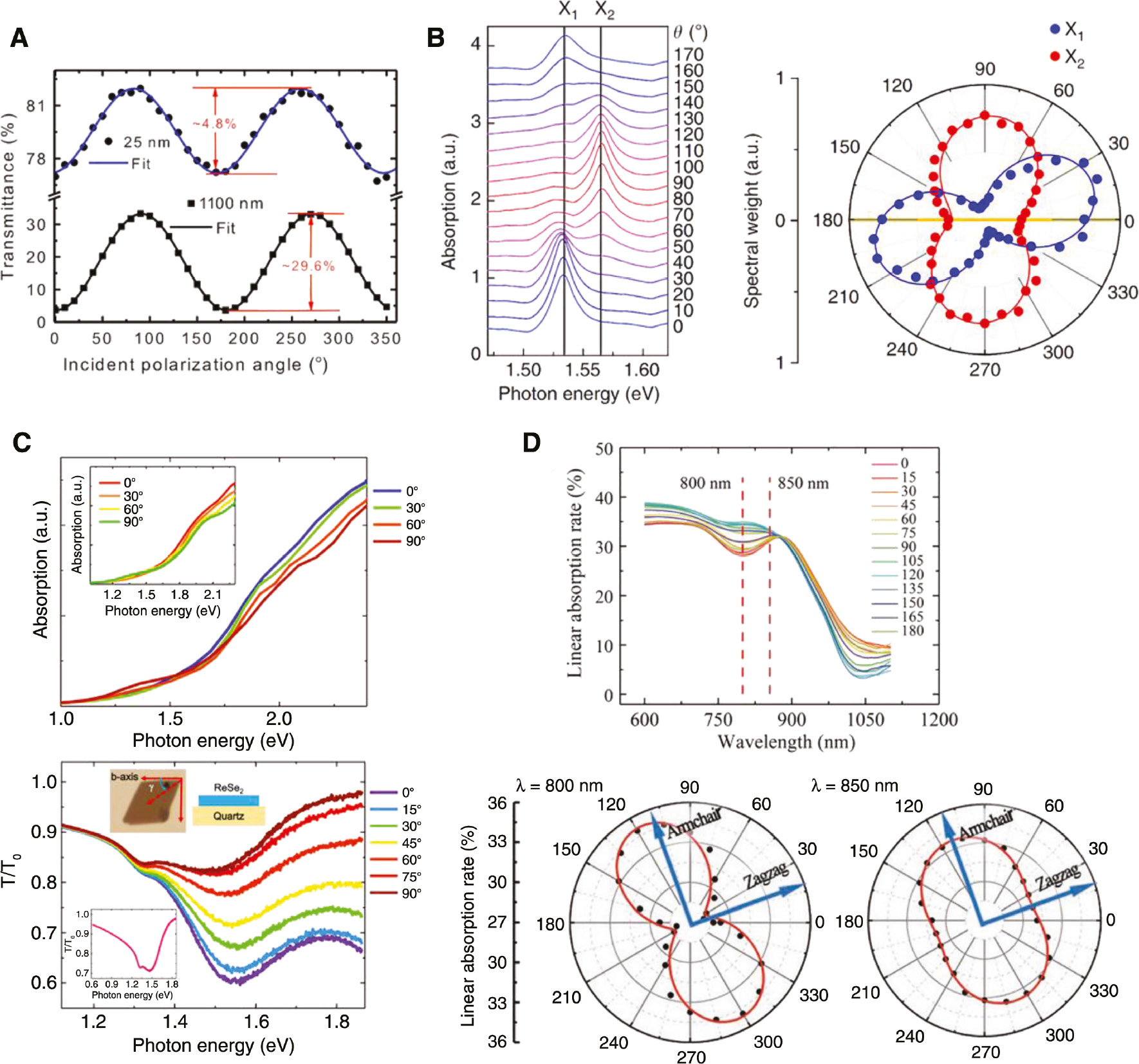

![Figure 3: The angle-resolved linear absorption spectra of the anisotropic 2DLMs.(A) The transmittance of the BP films with the thickness of 25 nm (the blue curve) and 1100 nm (the black curve), showing the anisotropic absorption behaviors. Reproduced with permission from Li et al. [121]. (B) Left figure: the absorption spectra of seven- to eight-layer ReS2; right: the corresponding spectral intensities of X1 (blue dots) and X2 (red dots) in polar plot. Reproduced with permission from Sim et al. [101]. (C) The absorption spectra of bulk ReSe2. Top figure: the theoretical calculation of angle-resolved optical absorption spectra of the bulk ReSe2 (the insert shows the calculated optical absorption spectra of monolayer ReSe2); bottom figure: the measured polarization-dependent optical absorption spectra of ReSe2 (the insert shows the experimental transmission spectra in a wider range with unpolarized light). Reproduced with permission from Zhang et al. [102]. (D) Top figure: the polarization-dependent linear absorption spectra of SnSe flake sample; bottom figure: the polar plots of the linear absorption rate of SnSe flake sample at 800 and 850 nm, respectively. Reproduced with permission from Zhang et al. [105].](/document/doi/10.1515/nanoph-2019-0573/asset/graphic/j_nanoph-2019-0573_fig_003.jpg)
The angle-resolved linear absorption spectra of the anisotropic 2DLMs.
(A) The transmittance of the BP films with the thickness of 25 nm (the blue curve) and 1100 nm (the black curve), showing the anisotropic absorption behaviors. Reproduced with permission from Li et al. [121]. (B) Left figure: the absorption spectra of seven- to eight-layer ReS2; right: the corresponding spectral intensities of X1 (blue dots) and X2 (red dots) in polar plot. Reproduced with permission from Sim et al. [101]. (C) The absorption spectra of bulk ReSe2. Top figure: the theoretical calculation of angle-resolved optical absorption spectra of the bulk ReSe2 (the insert shows the calculated optical absorption spectra of monolayer ReSe2); bottom figure: the measured polarization-dependent optical absorption spectra of ReSe2 (the insert shows the experimental transmission spectra in a wider range with unpolarized light). Reproduced with permission from Zhang et al. [102]. (D) Top figure: the polarization-dependent linear absorption spectra of SnSe flake sample; bottom figure: the polar plots of the linear absorption rate of SnSe flake sample at 800 and 850 nm, respectively. Reproduced with permission from Zhang et al. [105].
ReS2 also exhibits the anisotropic absorption due to the distorted 1T crystal structure. The angle-resolved linear absorption spectra of the seven- to eight-layer ReS2 samples are plotted in Figure 3B [101]. Here, the angle represents the polarization direction with respect to the b-axis. Two resonance bands at ~1.53 eV (~810.5 nm) and ~1.56 eV (~794.9 nm) labeled as X1 and X2 are polarization-dependent. The two resonance peaks originate from the two lowest, energetically nondegenerate direct exaction states near Γ point [101], [122]. Notably, the absorption peaks arise at different polarization directions: ~19° for 810.5 nm and ~87° for 794.9 nm. The results indicate the feasibility of switching the individual exaction states by adjusting the light polarization.
Different from ReS2 presenting the switchable resonant absorption peaks under different polarization, ReSe2 demonstrates a relatively broadband polarized absorption. As shown in Figure 3C, both the theoretical and the experimental investigations reveal the polarized absorption of ReSe2 over a broadband waveband [102], especially in a range of 1.7–2.4 eV. By computing the dielectric function, the calculated optical absorption spectra indicate a linear dichroism behavior in ReSe2 [122], [123]. In the experimental investigation, beyond the photon energy of 1.32 eV, the transmission spectra present a large decrease with incident light polarization paralleling to the b-axis of the ReSe2. The results show the great potential of ReSe2 to be broadband polarized devices in the infrared waveband.
The polarization-dependent absorption spectra of SnSe flake sample are shown in Figure 3D [105]. By changing the polarization direction, the absorption rate at 850 nm can be reduced from 33.7% to 30.8%, whereas the absorption rate at 800 nm can be reduced from 35% to 28%. The polar plots of the linear absorption of SnSe flak against polarization at 800 and 850 nm are provided for comparison. The linear absorption reaches the maximum and the minimum along the armchair and the zigzag directions, respectively. Obviously, different anisotropies are observed at 800 and 850 nm against the polarization of the incident light. Because more energy bands contribute to different anisotropies, the polarization-dependent transition possibility could vary with the photon energy [105].
3 Anisotropic nonlinear optical properties
Under the high intensity of incident light, the nonlinear effects could take place. The optical response of an optical medium is typically determined by the polarization P(t) in terms of the optical field E(t) [124], [125]:
where ε0 is the vacuum permittivity; χ(n) is the nth-order nonlinear optical susceptibility; and χ(1) refers to the linear optical effects including the absorption and the refraction. When the optical light is intense or the nonlinear optical susceptibility is large, the higher order (n>2) terms becomes significant. χ(2) responds for the two-frequency effects including second-harmonic generation [41], [42], [110], [126], [127], [128], [129], sum- and different- frequency generation [124], [125], [130], [131], the Pockels effect [124], [125], and optical rectification [132]. However, the presence of second-order and other even-order nonlinear optical effects needs a material having no center of inversion symmetry [124], [125]. On the contrary, the third-order nonlinear effects can take place in all materials [43], [100], [126], [133], [134]. The χ(3) responds for the three-frequency effects, such as third-harmonic generation and four-wave mixing. The real part of Re(χ(3)) represents the optical Kerr effect that is the intensity-dependent refractive index change, while the imaginary part of Im(χ(3)) refers to the nonlinear absorption under the strong incident light, known as SA. The mechanism of SA is related to the Pauli-blocking principle [135]. At high incident power, because of the state filling effect at conduction band minimum (CBM) or the deletion in valence band maximum (VBM), additional photons cannot induce additional carrier excitation, leading to a reduction in absorption.
Taking into account the SA, the absorption coefficient (α) of an optical medium can be modeled by [136], [137], [138]:
where αs and αns are the SA coefficient and the non-SA coefficient, respectively; I is the input light intensity; and Is is the saturation intensity. Thus, the intensity-dependent transmittance T can be given as [136], [139]:
where δT=αsL is modulation depth.
3.1 Anisotropic nonlinear absorption response
Because of the reduced symmetry of anisotropic 2DLMs, not only the linear optical absorption but also the nonlinear absorption response is polarization-dependent. In order to investigate the impact of the polarization on the nonlinear absorption response, the polarization azimuth of the measurement beam irradiating on the anisotropic 2DLMs is adjusted. Figure 4A gives an example of the measured transmittance of the exfoliated BP samples, showing the nonlinear power-dependent transmission and the polarization-dependent SA [107]. The modulation depth varies in the range of 0.6%–4.6%. When the polarization is parallel to the y-axis (zigzag direction) of BP lattice structure, the highest transmittance is obtained. A roll-off effect is observed as the input fluence increases, named as the reserved SA (RSA). Here, the RSA is explained to be originated from the two-photon absorption (TPA) [140], [141]. Generally, the TPA response is determined by the third-order nonlinear susceptibility term, which is typically observed at high peak power due to small TPA absorption cross-section [94]. When the TPA response exists, (8) can be modified by

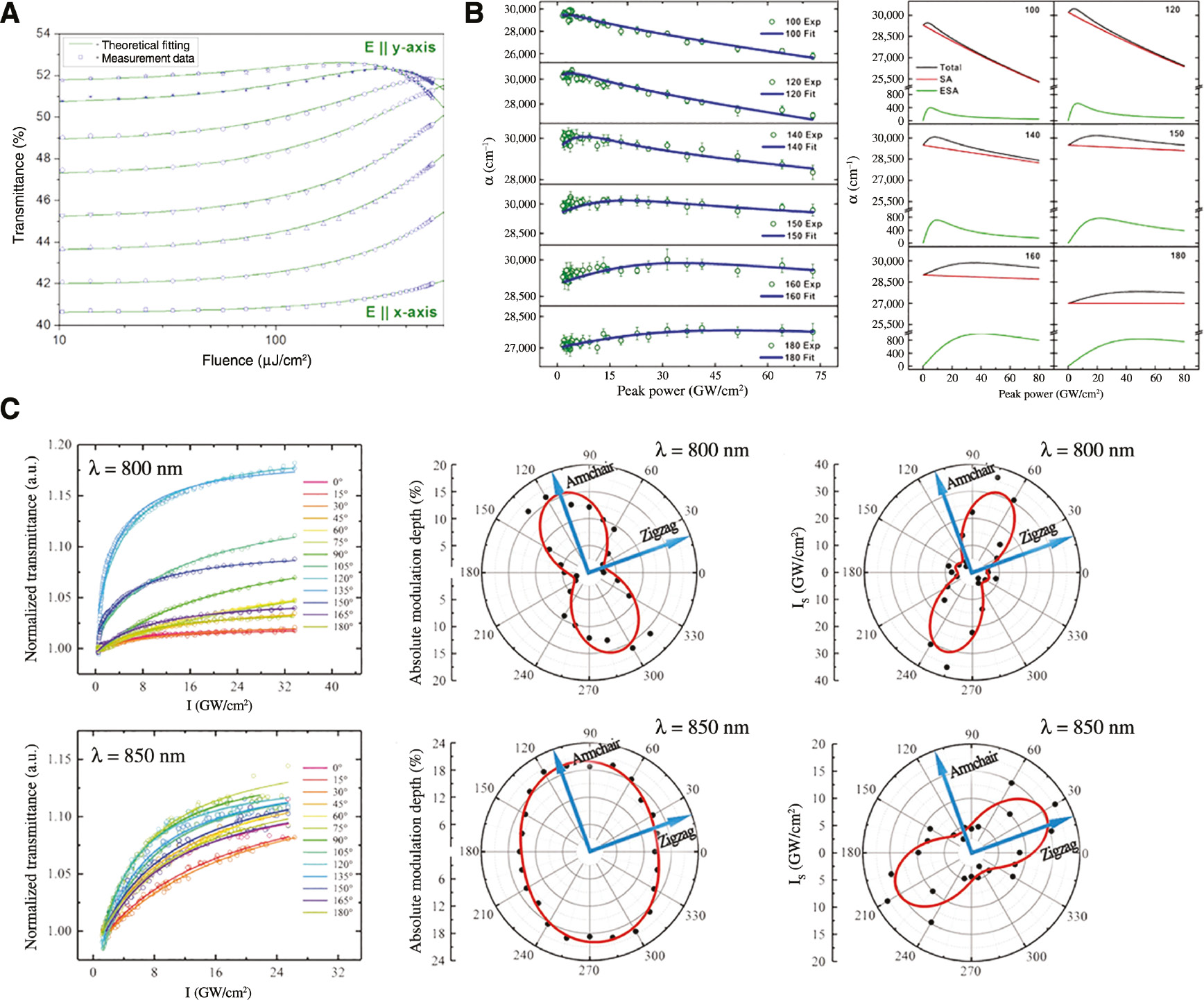

![Figure 4: The measured power-dependent transmittance against different polarization.(A) The exfoliated BP. Reproduced with permission from Sotor et al. [107]. (B) ReS2: the angle-resolved absorption coefficient against power and the involved mechanisms including the saturation absorption and excited saturation absorption. Reproduced with permission from Meng et al. [94]. (C) SnSe: the normalized transmission against intensity at 800 and 850 nm; the corresponding polar plots of the absolute modulation depth as well as saturation intensity in terms of polarization. Reproduced with permission from Zhang et al. [105].](/document/doi/10.1515/nanoph-2019-0573/asset/graphic/j_nanoph-2019-0573_fig_004.jpg)
The measured power-dependent transmittance against different polarization.
(A) The exfoliated BP. Reproduced with permission from Sotor et al. [107]. (B) ReS2: the angle-resolved absorption coefficient against power and the involved mechanisms including the saturation absorption and excited saturation absorption. Reproduced with permission from Meng et al. [94]. (C) SnSe: the normalized transmission against intensity at 800 and 850 nm; the corresponding polar plots of the absolute modulation depth as well as saturation intensity in terms of polarization. Reproduced with permission from Zhang et al. [105].
in which β is the TPA coefficient.
The RSA response against polarization angles has been found in ReS2 [94]. Instead of the power-dependent transmission, the absorption coefficients are plotted as a function of laser peak power. As shown in Figure 4B, at polarization angle of 100o, the absorption drops monotonically with laser peak power, indicating a strong SA. On the contrary, at 180o, the absorption starts to rise at low peak power, indicating the RSA effect. The originality of the RSA effect is complicated that may involve distinct mechanisms: the free carrier absorption (FCA), the excited-state absorption (ESA), and the TPA. The FCA belongs to an intraband absorption process, requiring preexisting electron at CBM or holes at VBM. The FCA needs the assistance of phonons or impurities to conserve the momentum. If the 2DLMs are undoped with negligible purities, the FCA can be safely omitted. To some extent, the ESA is similar to the TPA, but the ESA can occur along with the single-photon absorption, whereas the TPA usually does not. In Meng et al. [94], as the RSA is observed at low peak power, it is believed that the RSA originated from the ESA. Previous reports have suggested that such RSA effect can benefit for ultrafast high-repetition rate lasers [142]; thereby, the RSA allows anisotropic BP for femtosecond-GHz pulsed lasers.
Recently, researchers have investigated the polarization-dependent SA of SnSe at dual wavelength as shown in Figure 4C [105]. The SnSe samples exhibit different anisotropies at 800 and 850 nm. By fitting the transmission results according to (9), δT can be extracted and plotted in a polar diagram as shown in Figure 4C. Compared with the SA response at 850 nm, the anisotropic ratio of δT at 800 nm can be achieved to be 6.7 between the armchair and the zigzag directions. It is observed that the saturation intensity is also polarization-dependent at 800 and 850 nm. According to the optical transition selection rules, the polarization and the photon energy of the incident light can induce a variation to the permitted transition rate. The final excited states density is thus changed, leading to the polarization-dependent saturation intensity.
3.2 Polarization-dependent transient absorption
In order to study the dynamical response of the anisotropic 2DLMs, time-resolved pump-probe spectroscopy is widely used. The anisotropic response of 2DLMs is related to the convolution of pump-probe pulse as well as the polarization of incident light. Figure 5A shows the polarization dependence of the carrier dynamic process of BP with thickness of 16 nm [98]. A 730-nm linear polarized laser pulse is used as pump to induce photocarriers in BP, with the pulse duration of 100 fs and the peak fluence of 10 μJ/cm2. The 810-nm and 100-fs probe pulse arrives at different delay time with respect to the pump pulse. The differential reflection (ΔR/R0) of signal refers to the pump-induced relative change in the probe reflection, which is given by [105], [143]
![Figure 5: Time-resolved differential reflection signal from BP and SnSe samples and its angular dependence.(A) BP. Top figure: the measured differential reflection signals as a function of probe delay (the red line indicates the fitting with a time constant of ~100 ps, and the inset shows the peak signal against the pump influence); bottom figure: the peak differential reflection signals as a function of angle with the pump-probe polarization orientation of horizontal–vertical (H–V), horizontal–horizontal (H–H), and vertical–vertical (V–V), respectively. Reproduced with permission from He et al. [98]. (B) SnSe. The measured differential reflection signals as a function of probe delay at 800 and 850 nm; the corresponding polar plots of the peak differential reflection signals and carrier relaxation time. Reproduced with permission from Zhang et al. [105].](/document/doi/10.1515/nanoph-2019-0573/asset/graphic/j_nanoph-2019-0573_fig_005.jpg)
Time-resolved differential reflection signal from BP and SnSe samples and its angular dependence.
(A) BP. Top figure: the measured differential reflection signals as a function of probe delay (the red line indicates the fitting with a time constant of ~100 ps, and the inset shows the peak signal against the pump influence); bottom figure: the peak differential reflection signals as a function of angle with the pump-probe polarization orientation of horizontal–vertical (H–V), horizontal–horizontal (H–H), and vertical–vertical (V–V), respectively. Reproduced with permission from He et al. [98]. (B) SnSe. The measured differential reflection signals as a function of probe delay at 800 and 850 nm; the corresponding polar plots of the peak differential reflection signals and carrier relaxation time. Reproduced with permission from Zhang et al. [105].
where R0 and R are the probe reflection of the sample modulated without and with the pump pulse, respectively. Generally, the biexponential function can be used to fit the decay of the signal:
The short-time constant (τ1) is related to the motion of carriers from the detection window to the band edge in the process of thermalization. The long-time constant (τ2) is attributed to the carrier lifetime. As shown in Figure 5A, the ΔR/R0 achieves the maximum around zero probe delay. After time delay of ~20 ps, the carrier lifetime can be fitted with τ2=100 ps. The peak ΔR/R0 is found to be linearly proportional to the pump fluence.
The bottom figure in Figure 5A shows the ΔR/R0 of BP sample under different pump-probe polarization configurations: horizontal–vertical (H–V), horizontal–horizontal (H–H), and vertical–vertical (V–V) directions [98]. The results not only indicate the anisotropic response of BP sample, but also enable us to figure out the crystalline direction. Figure 5B shows the polarization-dependent transient absorption of the anisotropic SnSe flake [105]. The polar plots of peak ΔR/R0 against polarization at both 800 and 850 nm are given. When the polarization direction of the pump is parallel to the armchair direction, obviously, the peak ΔR/R0 reaches the maximum value. Especially, with respect to the 800-nm probe pulse, by comparing the peak ΔR/R0 values, it is deduced that the pump-injected carrier density along the armchair direction is approximately 4.6 times that along the zigzag direction. However, the carrier relaxation time exhibits little anisotropy, which is 380 and 320 ps for the probe at 800 and 850 nm, respectively. Such anisotropic optical absorption as well as the isotropic relaxation time confirms the remarkable ultrafast, polarization-dependent properties of anisotropic 2DLMs, showing the great potential of the anisotropic 2DLMs for the functionally optical modulation.
In addition to BP and SnSe, the differential reflection signal of bulk ReSe2 has been investigated [144], measured with a 620-nm pump and 820-nm probe pulses. The photocarrier light is obtained at approximately 80 ps and drops slightly by increasing the carrier lifetime. By rotating the sample orientation, the peak signals take place when the long edge of the sample is either parallel or perpendicular to horizontal direction. This happens because the absorption coefficient of ReSe2 is the largest when the Re chains are along the light polarization. An interesting phenomenon of fourfold symmetry in the polar plots is observed. The authors attribute the fourfold symmetry to the potential compensation between the maximum absorption coefficient and the minimum transient absorption response in the parallel and the vertical directions [144]. Similar to BP and SnSe, although the magnitude of the signal is dependent on angle, its time evolution is angle-independent.
The key parameters used to evaluate the anisotropic properties of 2DLMs are summarized in Table 1. By rotating the incident light polarization, the modulation depth, the saturation intensity, and the absorption coefficient of anisotropic 2DLMs vary. Even the switch from SA to RSA can be observed for BP and ReS2 by adjusting the polarization. The polarization-dependent nonlinear optical absorption of the anisotropic 2DLMs is totally different from that of the isotropic 2DLMs including graphene [146], [147], NiPS3 [48], TiS2 [17], antimonene [45], [47], bismuthene [46], and 2DMOFs [49], whose nonlinear properties are insensitive to the incident light polarization. Such polarization-dependent nonlinear optical absorption response of anisotropic 2DLMs allows for the pulse shaping with a new degree of freedom.
Summary of the SA properties of anisotropic 2DLMs.
| Anisotropic 2DLMs | Thickness | Fabrication method | Anisotropic properties of 2DLMs under different polarizations | |||||
|---|---|---|---|---|---|---|---|---|
| Modulation depth | Saturation intensity (GW/cm2) | Absorption coefficient (cm−1) | Carrier lifetime | SA to RSA | Peak ΔR/R0 (×10−4) | |||
| BP | 16 nm [98] | ME [98], [107] | 0.6%–4.6% [107] | Varied [107] | – | 100±5 ps [98] | Y [107] | 13–72 [98] |
| 300 nm [107] | ||||||||
| ReS2 | 328 nm [94] | CVD [94], [117] | – | 500±71–182,000± 16,717 [94] | 27,000±75–30,200± 480 [94] | – | Y [94] | – |
| 2.2 nm [117] | ME [145] | |||||||
| 21 nm [145] | ||||||||
| ReSe2 | 1.5 nm [144] | LPE [144] | – | – | – | –80 ps [144] | – | 0.3–1.65 [144] |
| SnSe | 175 nm [105] | ME [105] LPE [40] | 2.4%–12.9% at 800 nm [105] | 5.858–14.137 at 800 nm [105] | 1383–7384 at 800 nm [105] | 380 ps at 800 nm [105] | – | 5.4–25 at 800 nm [105] |
| 9.5 nm [40] | 15.4%–19.6% at 850 nm [105] | 4.577–15.249 at 850 nm [105] | 8784–111,129 at 850 nm [105] | 320 ps at 850 nm [105] | 17–27 at 850 nm [105] | |||
| 6 nm [40] | ||||||||
| 2.5 nm [40] | ||||||||
4 Ultrafast photonics applications
The application of 2DLMs in pulsed laser systems has become a hot topic in recent years because of the advantages of 2DLMs including the wide bandwidth operation, the fast carrier dynamics, compactness, and so on. [61], [91], [92], [105], [148], [149]. The pulse formation in laser systems incorporating 2DLM-based saturable absorber mainly involves two mechanisms: passive Q-switching and passive mode locking. For the passively Q-switched lasers, the cavity energy is constantly accumulated by pumping when the saturation of saturable absorber is not reached. Once the saturation of SA reaches, a giant pulse could be lasing at the threshold that the cavity gain is larger than the cavity loss. The separation between the consecutive pulses or the repetition rate of the Q-switched pulse train is mainly determined by the lifetime of gain medium and the pump power. Typically, the Q-switched fiber laser has the tunable repetition rate of kilohertz. Different from the Q-switched laser, the passively mode-locked laser produces pulses with a fixed repetition rate determined by the cavity length. When the initial pulses from amplified spontaneous emission pass through the saturable absorber, the wings of pulses with low intensity experience much higher loss than the peak part of pulses with high intensity does. Based on the power-dependent optical transmission of saturable absorber, the pulse is reshaped where the single-to-noise ratio can be improved. The circulated reshaped pulse is further amplified by the gain medium, and the peak power of the pulse is enhanced. After hundreds of round trips, stable pulse trains with high repetition rate (MHz to GHz), ultrashort pulse duration (ps to fs), and high peak power can be produced from the laser cavity under the balance among the laser gain, loss, dispersion, and nonlinearity [91], [150]. By managing the net cavity dispersion, the traditional soliton, the stretched pulses, similariton, and dissipative soliton can be formed in the mode-locked lasers. The pulsed light sources have shown great potential in micromachining, laser physics, medicine, and so on [8], [9], [52], [85], [147], [151], [152], [153], [154], [155], [156], [157], [158], [159], [160], [161], [162], [163], [164]. Compared with the isotropic 2DLMs, the anisotropic 2DLMs have a new degree of freedom to control the light polarization. Next, we introduce the application of the anisotropic 2DLMs in the Q-switched and the mode-locked lasers. Both the fiber lasers and the solid-state lasers are introduced. In addition, the application of anisotropic 2DLMs in optical switches has been introduced, showing the feasibility of the anisotropic 2DLMs as optical modulators.
4.1 Laser application
The incorporation of the anisotropic 2DLMs in fiber laser is expected to produce polarized pulses. In order to characterize the polarization of laser output, the degree of polarization (DOP) of laser output is given by:
where Pmin and Pmax refer to the measured minimum and maximum power, respectively.
Taking BP as an example, Li et al. [121] have reported the BP-based Q-switched and mode-locked lasers. The applied BP sample has a thickness of 1100 nm, showing transmission difference of 29.6% between the zigzag and armchair directions. The laser setup is shown in Figure 6A, which consists of 1-m-long erbium-doped fiber (EDF) pumped by a 980-nm laser diode through a wavelength division multiplexer. When the pump power is 23 mW, a stable pulse train can be achieved as shown in Figure 6B. When the pump power ranges from 23 to 55 mW, the repetition rate of the pulse train increases from ~26 to ~40 kHz, and the pulse duration reduces from ~9.5 μs to ~3.1 μs. The repetition rate and the pulse duration against the pump power are shown in Figure 6C, which is a typical Q-switching operation. The output polarization is characterized by placing a rotatable polarizer between the laser output and the power meter. The obtained Q-switched pulse is fully linearly polarized with DOP of ~99%.

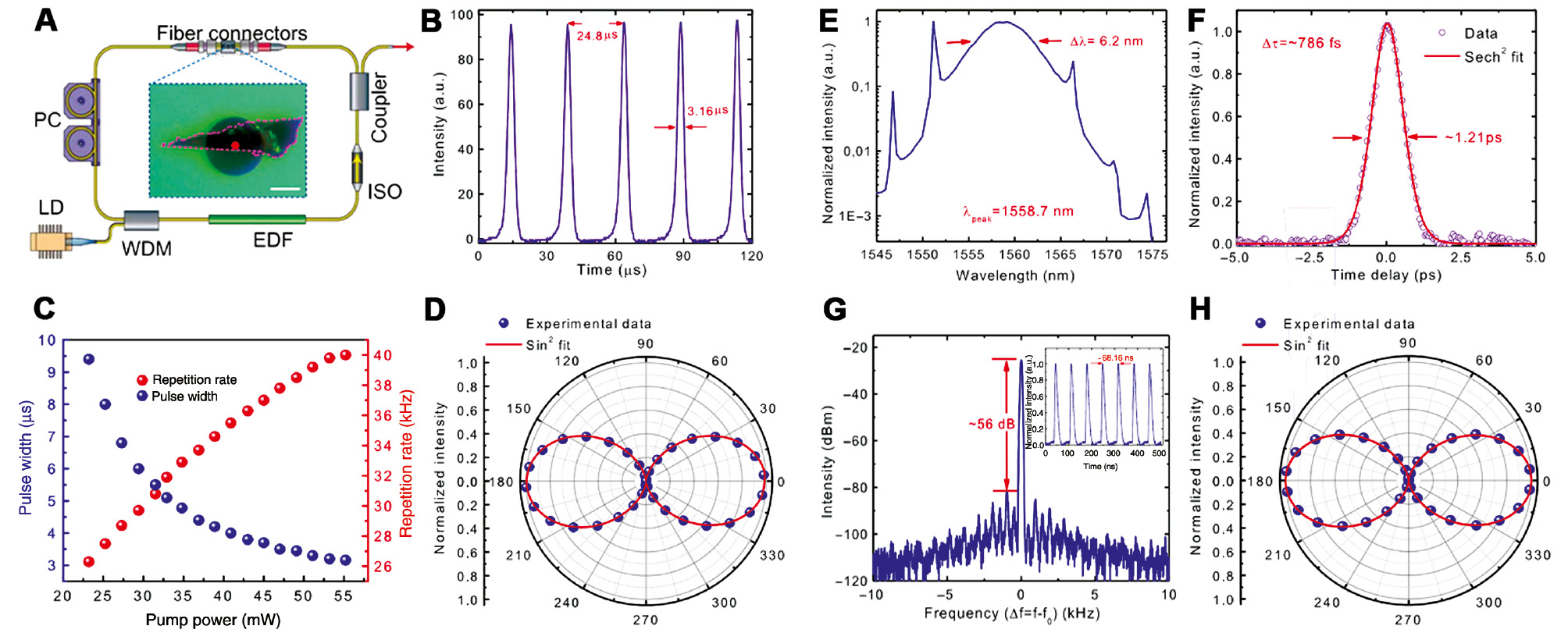

![Figure 6: The linearly polarized Q-switched and mode-locked fiber lasers incorporating BP-based saturable absorber.(A) Experimental setup. (B) Q-switched pulse train. (C) The pulse duration as well as repetition rate against the pump power. (D) Output polarization property of Q-switched fiber laser. (E) Optical spectrum of mode-locked laser. (F) The corresponding autocorrelation trace and (G) RF spectrum. (H) Output polarization property of mode-locked fiber laser. Reproduced with permission from Li et al. [121].](/document/doi/10.1515/nanoph-2019-0573/asset/graphic/j_nanoph-2019-0573_fig_006.jpg)
The linearly polarized Q-switched and mode-locked fiber lasers incorporating BP-based saturable absorber.
(A) Experimental setup. (B) Q-switched pulse train. (C) The pulse duration as well as repetition rate against the pump power. (D) Output polarization property of Q-switched fiber laser. (E) Optical spectrum of mode-locked laser. (F) The corresponding autocorrelation trace and (G) RF spectrum. (H) Output polarization property of mode-locked fiber laser. Reproduced with permission from Li et al. [121].
The mode-locking operation can be achieved by adding an additional 3-m-long single-mode fiber (SMF-28) in the cavity, and the laser has a net anomalous cavity dispersion of −0.25 ps2 [121]. Figure 6E–H manifest the mode-locking performance. The spectral bandwidth is 6.2 nm at the center wavelength of 1558.7 nm. The Kelly sidebands are superimposed on the spectrum, indicating the generation of traditional soliton. The corresponding pulse duration and the repetition rate are ~786 fs and ~14.7 MHz, respectively. It is worth to mention that the obtained ultrashort pulses are also linearly polarized with the DOP of ~98%. The obtained results have proved that the anisotropic BP-based saturation absorber can contribute to the linearly polarized ultrashort pulse generation.
4.1.1 Q-switched laser
The Q-switched fiber lasers have advantages of high pulse energy, high beam quality, compactness, robustness, low cost, and so on. [29], [165], [166]. For different gain fibers, such as ytterbium-doped fiber (YDF), EDF, and thulium/holmium-doped fiber laser (THDF), the anisotropic 2DLMs can assist fiber lasers to generate Q-switched pulses at the center wavelength at 1, 1.5, and 2 μm. Compared with fiber lasers, the solid-state lasers could generate pulses at shorter and longer wavelength. For different gain mediums, such as Pr:YLF crystal, Nd:YAG crystal, Ti:sapphire, and Er:YAP crystal, the anisotropic 2DLMs can assist the solid-state lasers to generate pulses at the center wavelength ranging from 640 nm to 3 μm. The state of art about the Q-switched fibers and the solid-state lasers incorporating the anisotropic 2DLMs is summarized in Table 2.
Summary of Q-switched lasers with anisotropic 2DLMs.
| Anisotropic 2DLMs | Gain medium | Center wavelength (nm) | Repetition rate (kHz) | Pulse duration (μs) | Max. pulse energy (nJ) | Ref. |
|---|---|---|---|---|---|---|
| BP | Pr3+-doped ZBLAN fiber | 635 | 108.8–409.8 | 0.383–1.56 | 27.6 | [167] |
| Yb:LuYAG | 1029 | 63.9 | 1.73 | 0.09 | [168] | |
| Yb:CaYAlO4 | 1046 | 87.7–113.6 | 0.62–1.2 | 325.7 | [169] | |
| Yb3+:ScBO3 | 1063.6 | 20–30.6 | 0.4955–1.393 | 1400 | [170] | |
| YDF | 1069.4 | 8.2–32.9 | 10.8–17.9 | 328 | [171] | |
| EDF | 1550 | 31.53–82.85 | 5.52–9.36 | 51 | [172] | |
| EDF | 1556.9 | 5.73–31.07 | 3.59–25.77 | 142.6 | [173] | |
| EDF | 1561.9 | 7.86–34.32 | 2.96–55 | 194 | [174] | |
| EDF | 1562.8 | 6.983–15.78 | 29.84–310.3 | 94.3 | [112] | |
| EDF | 1595 | 13.33–26.6 | 7.11–10.67 | 468.03 | [29] | |
| THDF | 1912 | 69.4–113.3 | 1.42–0.731 | 632.4 | [175] | |
| Tm:CaYAlO4 | 1930 | 17.7 | 3.1 | 680 | [168] | |
| Tm:YAP | 1988 | 10.85–19.25 | 1.78–4.05 | 7840 | [176] | |
| Tm:YAG | 2009 | 6.1–11.6 | 2.9–9.1 | 3320 | [177] | |
| Cr:ZnSe | 2400 | 98–176 | 0.189–0.396 | 205 | [178] | |
| Er:Y2O3 | 2720 | 12.6 | 4.47 | 480 | [168] | |
| Er:ZBLAN fiber | 2800 | 39–63 | 1.18–2.1 | 7700 | [179] | |
| Er:CaF2 | 2800 | 26.5–41.93 | 0.9548–2.38 | 4250 | [180] | |
| Er:Lu2O3 | 2840 | 60–107 | 0.359–0.72 | 7100 | [181] | |
| ReS2 | Pr:YLF | 640 | 80–525 | 0.17–1 | 103 | [182] |
| Nd:YAG | 1064.5 | 70–165 | 0.834–2.6 | 491 | [183] | |
| YDF | 1047 | 52–134 | 1.56–3.32 | 13.02 | [145] | |
| Nd:YAG | 1064 | 275–504 | 0.1216–0.29 | 130 | [184] | |
| Nd:YAG | 1064 | 130–650 | 0.16–0.65 | 186 | [182] | |
| Nd:YAG | 1318 | 10–308.4 | 0.111–0.4 | 330 | [184] | |
| Nd:YAG | 1329 | 69–214 | 0.403–1.071 | 420 | [185] | |
| EDF | 1532 | 43–64 | 2.1–7.4 | 38 | [186] | |
| EDF | 1557.3 | 12.6–19 | 5.496–23 | 6280 | [187] | |
| Tm:YAP | 1991 | 36–68 | 0.41–0.985 | 3620 | [182] | |
| Er:SrF2 | 2790 | 24–49 | 0.508–1.625 | 1210 | [188] | |
| Er:YSGG | 2796 | 47–126 | 0.324–1.1 | 825 | [189] | |
| Ho,Pr:LiLuF4 | 2950.5 | 25.48–91.49 | 0.676.7–1.233 | 1130 | [190] | |
| ReSe2 | YDF | 1065 | 17.89–39.86 | 2.27–5.92 | 31 | [191] |
| Nd:Y3Al5O12 | 1066.5 | 204–274 | 1.08–1.53 | 2500 | [192] | |
| YDF | 1054.2 | 31.6–68.7 | 2.87–3.77 | 81.62 | [193] | |
| EDF | 1566 | 6.64–21.04 | 4.98–16.5 | 36 | [76] | |
| Er:YAP | 1937.8 | 19.5–89.4 | 0.9258–1.8 | 17,600 | [194] | |
| Er:YAP | 2796 | 110–244.6 | 0.2028–0.6375 | 2200 | [195] |
For the BP-incorporated Q-switched fiber lasers, Yu et al. [175] have prepared the BP-based saturable absorber with modulation depth of ~24% and demonstrated the stable Q-switching in THDF laser at 2 μm. The repetition rates of obtained pulse train changes from 69.4 to 113.3 kHz. The maximum pulse energy is 632.4 nJ. This is the first report of 2-μm BP-incorporated Q-switched fiber laser with the highest repetition rate, shortest pulse duration, and largest pulse energy. For BP-incorporated Q-switched solid-state laser, the BP-based saturable absorber fabricated by LPE method has been successfully applied in a Q-switched solid-state laser at 2 μm for the first time [176]. The maximum average power of output pulses is 151 mW, corresponding to the pulse energy of 7.84 μJ, with the pulse duration and repetition rate of 1.78 μs and 19.25 kHz, respectively. Wang et al. [178] have prepared the SAM based on the multilayer BP with the modulation depth and the saturation power intensity of 10.7% and 0.96 MW/cm2, respectively. Based on such BP-SAM, a stable Q-switched pulse with the pulse energy of 205 nJ can be generated from 2.4-μm solid-state laser.
For the ReS2-incorporated Q-switched fiber laser, Mao et al. [187] have fabricated the few-layer ReS2 nanosheets by LPE method. The ReS2-PVA film shows the modulation depth of 0.12% with the saturable intensity of 74 MW/cm2 at 1.55 μm. They have demonstrated the passive Q-switching with the maximum pulse energy of 62.8 μJ. For ReS2-incorporated Q-switched solid-state laser, Su et al. [182] have prepared ReS2-based saturable absorber by LPE method. They have achieved the broadband Q-switched solid-state lasers at center wavelengths of 0.64, 1.064, and 1.991 μm. Meanwhile, the femtosecond pulses have been generated from the solid-state laser incorporating the ReS2 saturable absorber at 1.06 μm for the first time.
For the ReSe2-incorporated Q-switched fiber laser, Wang et al. [193] have fabricated the ReSe2-based saturable absorber by ME method, demonstrating the saturation intensity, modulation depth, and nonsaturable loss of 9.56 MW/cm2, 28%, and 64%, respectively. The repetition rates of obtained pulse train change from 31.6 to 68.7 kHz. The obtained maximum pulse energy is 81.62 nJ. For ReSe2-incorporated Q-switched solid-state laser, Yao et al. [195] have prepared ReSe2-based saturable absorber by LPE method with the modulation depth and the saturation intensity of 7.5% and 14.5 μJ/cm2, respectively. By using the prepared ReSe2-based saturable absorber, a Q-switched Er:YAP solid-state laser near ~3 μm is developed with the shortest pulse duration of 202.8 ns and the highest repetition rate of 244.6 kHz for the first time. The obtained pulse peak power and the pulse energy are 10.6 W and 2.2 μJ, respectively.
4.1.2 Mode-locked laser
Compared with the Q-switched lasers, the passively mode-locked lasers involve the soliton formation. By adjusting the cavity dispersion and nonlinearity, the ultrashort pulse could be produced [17], [19], [136], [196], [197], [198], [199], [200]. The state of art about performance of the mode-locked lasers incorporating the anisotropic 2DLMs is summarized in Table 3.
Summary of mode-locked lasers with anisotropic 2DLMs.
| Anisotropic 2DLMs | Gain medium | Center wavelength (nm) | 3-dB bandwidth (nm) | Repetition rate (MHz) | Pulse duration (ps) | Average power (mW) | Pulse energy (pJ) | Ref. |
|---|---|---|---|---|---|---|---|---|
| BP | YDF | 1030.6 | 0.11 | 46.3 | <400 | 32.5 | 701.9 | [201] |
| Nd:YVO4 | 1064.1 | 0.288 | 140 | 6.1 | 460 | 3290 | [114] | |
| YDF | 1085.5 | 0.23 | 13.5 | 7.54 | 10 | 5930 | [202] | |
| EDF | 1555 | 4.6 | 37.8 | 0.687 | 1.38 | 36.5 | [203] | |
| EDF | 1557.7 | 1 | 1.65 | 9.41 | 2.1 | 1270 | [204] | |
| EDF | 1558.1 | 1.25 | 15.59 | 2.18 | 0.0776 | 4.98 | [205] | |
| EDF | 1560.5 | 10.2 | 28.2 | 0.272 | 0.5 | 17.73 | [107] | |
| EDF | 1560.7 | 6.4 | 6.88 | 0.57 | 5.1 | 740 | [206] | |
| EDF | 1561 | 0.985 | 1 | 2.66 | 1.224 | 7350 | [172] | |
| EDF | 1562 | 4.5 | 12.5 | 0.635 | – | – | [207] | |
| EDF | 1564.6 | 5.7 | 3.47 | 0.69 | – | – | [21] | |
| EDF | 1566.5 | 3.39 | 4.96 | 0.94 | – | – | [22] | |
| EDF | 1569.2 | 9.35 | 60.5 | 0.28 | – | – | [208] | |
| EDF | 1571.4 | 2.9 | 5.96 | 0.946 | – | – | [112] | |
| EDF | 1579.4 | 5.8 | 12 | 0.686 | 0.77 | 64.17 | [26] | |
| THDF | 1898 | 3.9 | 19.2 | 1.58 | 2.5 | 130.2 | [209] | |
| TDF | 1910 | 5.8 | 36.8 | 0.739 | 1.5 | 40.7 | [154] | |
| HDF | 2094 | 4.2 | 29.1 | 1.3 | 11 | 379 | [210] | |
| Er:ZBLAN fiber | 2783 | 2.8 | 24.27 | 42 | 613 | 25.5 | [211] | |
| ReS2 | Yb:CALGO | 1060 | 4.23 | 50.71 | 0.323 | 350 | 6903 | [182] |
| EDF | 1563.3 | 8.2 | 1.78 | 3.8 | – | – | [212] | |
| EDF | 1556 | 1.85 | 5.48 | 1.6 | 0.4 | 72.99 | [187] | |
| EDF | 1565 | 1 | 1.896 | 2.549 | – | – | [213] | |
| ReSe2 | Ti:sapphire | 1064 | 1.3 | 6514 | 29 | 259 | 20 | [214] |
| EDF | 1561.2 | 3.4 | 14.97 | 0.862 | 0.5 | 33.4 | [215] | |
| SnS | EDF | 1567.9 | 1.8 | 459 | 1.02 | – | – | [216] |
| SnSe | EDF | 1559 | 5.3 | 15.5 | 0.61 | 0.1 | 6.45 | [217] |
For the BP-incorporated mode-locked fiber laser, Sotor et al. [107] have reported an EDF laser incorporating BP-based saturable absorber prepared by the ME method to generate ultrashort pulses with 272 fs at 1560.5 nm. They have also observed the TPA effect of exfoliated layers BP; the coefficient of TPA is approximately 500 cm/MW. Zhao et al. [204] have prepared BP-based SA with the modulation depth and the saturation intensity of 12.4% and 2.16 μJ/cm2, respectively. A synchronous triwavelength mode-locked EDF laser has been achieved with the repetition rate of 1.65 MHz. For mode locking at the longer wavelength, Qin et al. [211] have used Er:ZBLAN fiber as gain medium and fabricated a BP-SAM to generate pulses with the duration of 42 ps at 2.8 μm.
For the ReSe2-incorporated mode-locked fiber laser, the prepared ReSe2-based saturable absorber has a modulation depth and saturation power of ~3.9% and ~42 W, respectively, for the transverse electric mode, whereas for the transverse magnetic mode the modulation depth and the saturation power are little different, which are ~2.4% and ~53 W, respectively [215]. The stable pulses with the pulse duration of ~862 fs have been generated from an EDF laser. This is the first report of femtosecond mode-locked pulse generation based on ReSe2 saturable absorber. For ReSe2-incorporated mode-locked waveguide laser, Li et al. [214] have demonstrated the continuous-wave mode-locking operation with pulse duration of 29 ps at 1 μm. As the SAMs are directly integrated on the gain waveguide, the fundamental repetition rate of 6.5 GHz can be achieved in a monolithic waveguide platform [214].
For the SnS-incorporated mode-locked fiber laser, Feng et al. [216] have prepared the SnS-based saturable absorber with the modulation depth of 5.8%. By designing the laser cavity with the largely net anomalous cavity dispersion, the developed laser can produce the 105th harmonic soliton molecule near 1.5 μm for the first time.
For the SnSe-incorporated mode-locked fiber laser, Jhon et al. [217] have fabricated the SnSe-based saturable absorber with the modulation depth of 7.1% and demonstrated the ultrashort pulse generation with the pulse duration of 610 fs at 1560 nm for the first time.
4.2 Optical switch
The polarization-dependent SA of the anisotropic 2DLMs can be further explored in optical switches. When the anisotropic 2DLM is irradiated by ultrashort pulses, plenty of excited electrons fill the conduction band. Subsequently, the absorption of signal will decrease based on the Pauli-blocking principle. In the meantime, as the optical transition selection rules imply, the incident polarization direction will affect the energy level into which the electrons are transported [105]. Thereby, the change of polarization direction controls the transmission of the signal light. Thus, the “ON/OFF” states of the signal light can be switched by controlling the angle between the incident light and the armchair direction. As shown in Figure 7, an optical switch is demonstrated based on the polarization-dependent SA of SnSe [105]. Figure 7A shows the normalized transmittance of signal light (633 nm, CW, 13 μW) with or without switching light (800 nm, 65 fs, 1 kHz, 34 GW/cm2), at the polarization direction that is parallel or perpendicular to the armchair direction. Compared with the case without switching light, in the presence of switching light, the transmittance of SnSe along the armchair direction as well as the zigzag direction is higher. An ON/OFF ratio is introduced, representing the difference of the normalized transmittance between the “ON” and “OFF” states. It is found that the ON/OFF ratio is 16% for incident polarization paralleling to the armchair direction and 8% for incident polarization paralleling to the zigzag direction. By keeping the switching light on and adjusting the angle of the switching light between 105° and 15°, the normalized transmission of signal light is modulated with a contrast of ~45%. Such anisotropic 2DLM provides a new perspective for all-optical switches.

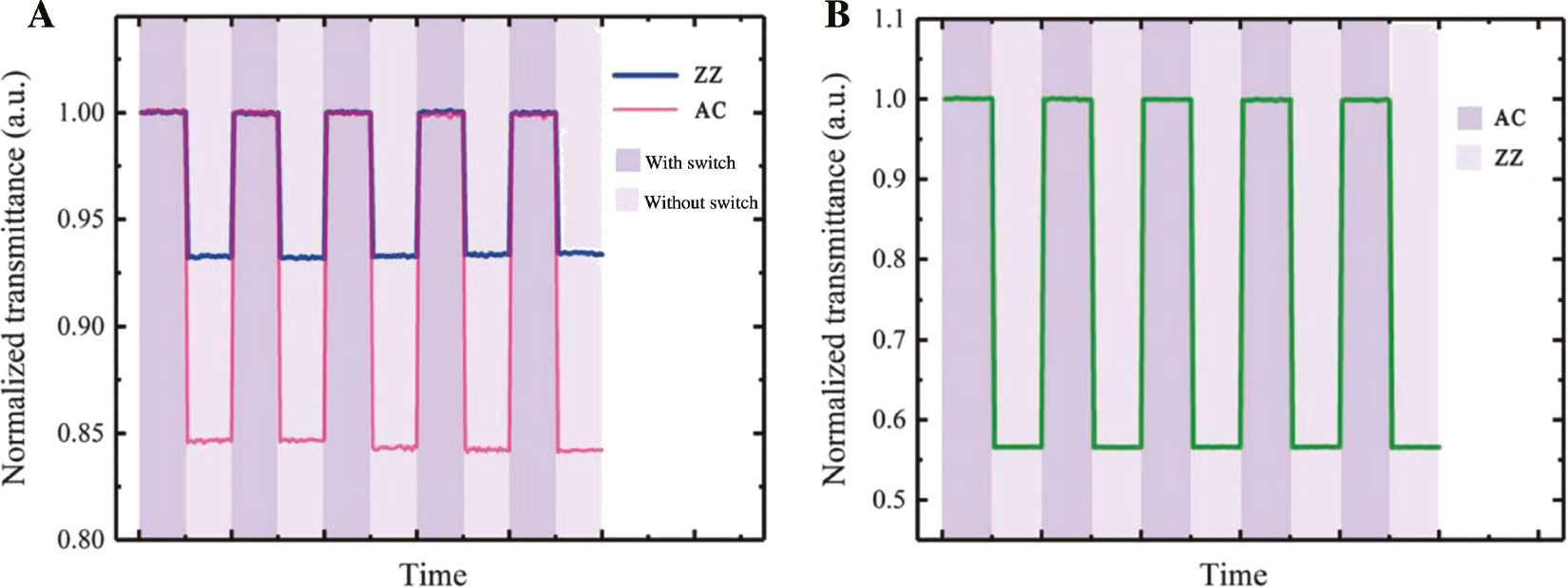

![Figure 7: The characterization of the SnSe-based all-optical switch.(A) The time evolution of normalized transmission of 175-nm SnSe along zigzag and armchair directions when the switch light is “on” and “off”. (B) The time evolution of normalized transmission of SnSe along zigzag and armchair directions when the polarization of switch light is 105°/15°. Reproduced with permission from Zhang et al. [105].](/document/doi/10.1515/nanoph-2019-0573/asset/graphic/j_nanoph-2019-0573_fig_007.jpg)
The characterization of the SnSe-based all-optical switch.
(A) The time evolution of normalized transmission of 175-nm SnSe along zigzag and armchair directions when the switch light is “on” and “off”. (B) The time evolution of normalized transmission of SnSe along zigzag and armchair directions when the polarization of switch light is 105°/15°. Reproduced with permission from Zhang et al. [105].
5 Conclusions and perspectives
Various investigations toward the anisotropic 2DLMs have demonstrated the remarkable polarization-dependent light modulation property of the anisotropic 2DLMs, providing a new degree of freedom for future photonics applications. In addition to the representative five anisotropic 2DLMs including BP, SnSe, SnS, ReS2, and ReSe2, there still are other kinds of anisotropic 2DLMs such as WTe2, GeP, GeS2, and so on. Song et al. [218] have reported the polarization-dependent anisotropic Raman response of few-layer and bulk WTe2, and scholars have demonstrated WTe2 as saturable absorbers to generate ultrashort pulses [219], [220], [221]. GeP also exhibits low-symmetry crystal structure as a member of group IV–V compounds [222], which has been developed for saturable absorbers, optical switches, and photodetectors [223], [224]. GeS2, as a member of binary IV–VI chalcogenides, is another kind of low-symmetry material that crystallizes in a layered monoclinic structure. Yang et al. [225] have reported polarized photodetection from visible to UV region based on the anisotropic GeS2. Although we have focused on the representative five anisotropic 2DLMs, the scope of materials can be further enlarged for the 2D materials that exhibit the polarization-dependent nonlinear SA. Such unique advantage of polarization manipulation in 2D materials allows for the broadband, versatile, ultrafast, polarization-sensitive photonic devices, showing great potential in highly polarized pulse generation. However, the challenges of the anisotropic 2DLMs for ultrafast photonics include the following:
With respect to the anisotropic 2DLM-based devices, the first challenge might be short light–matter interaction length. This challenge also exists in most of 2DLMs. The short interaction length might result in the limited polarization-dependent nonlinear optical absorption. In order to strengthen the nonlinear optical absorption, one straightforward way is to increase the number of layers. However, the stacked layers will inevitably cause an increase in nonsaturable loss. An alternative solution to balance the absorption might be heterostructure, stacking by different 2DLMs with reasonable absorption. Once the anisotropic 2DLMs are given, in order to further enhance the polarization-dependent nonlinear optical absorption, the anisotropic 2DLMs can be integrated with cavity resonators [226].
The second challenge of applying the anisotropic 2DLMs could arise from the system integration. Even though the anisotropic 2DLMs can achieve polarization manipulation, the difficulty is how the pulsed laser systems maintain the manipulated polarization state in the whole optical path. In other words, the pulsed laser systems consist of not only the saturable absorber but also the gain, the pump, and the cavity feedback. Any perturbation from the intracavity components to light polarization might deplete the DOP of the laser. In order to achieve high DOP, in addition to the anisotropic 2DLM-based saturable absorber, the rest of the laser cavity components are suggested to be polarization-maintaining.
This review is aimed to intrigue further interest in study and application of anisotropic 2DLMs in the future. Potential research directions in anisotropic 2DLM-incorporated pulsed laser include the following:
The van der Waals heterostructures: compared with the single 2DLM, the heterostructures based on 2DLMs display great properties with the suitable bandgap and high carrier mobility [227]. For example, the combinations of BP with ReS2 [228] or graphene [229] bring the heterostructures’ excellent properties while maintain its anisotropic property [228], [229]. Although the isotropic 2D materials are thought to be polarization-independent, the heterostructures by the combination of isotropic 2D materials with anisotropic 2D materials can also be ideal saturable absorbers for highly polarized pulse lasers. Such isotropic 2DLMs could include the group VA material [45], [46], [47], MPTs [48], to 2DMOFs [49]. Based on the van der Waals epitaxy growth method [230], even 2D-layered materials can be combined with 2D nonlayered materials such as selenium [51] and tellurium nanosheets [52]. Note that the combination of 2D materials is meaningful only if the performance of the device is improved.
Highly polarized pulsed laser: benefiting from the unique advantage of polarization manipulation, the anisotropic 2DLM-based saturable absorbers can assist the generation of polarized pulses from the laser systems equipped with highly integrated, miniaturized, and portable features.
Mode-locked multi-GHz lasers: because of polarization-dependent SA and even the reverse SA effect, by controlling the light polarization properly, a reasonable loss modulation from anisotropic 2DLM-based saturable absorbers can assist pulse split, leading to high-repetition-rate mode-locked laser.
All-optical switch/modulators: based on polarization-dependent SA of the anisotropic 2DLMs, by adjusting the polarization of switching light, the normalized transmission of signal light can be optically modulated, showing a great potential for all-optical switches.
Indeed, the applications of the anisotropic 2DLMs in ultrafast photonic are not limited to the above suggestions. It is expected that the transformation of experimental research into industrial application will benefit the future photonics technology.
Funding source: National Natural Science Foundation of China
Award Identifier / Grant number: 61605108
Award Identifier / Grant number: 61635006
Award Identifier / Grant number: 61735009
Funding statement: This project is financially supported by the National Natural Science Foundation of China (61605108, 61635006, 61735009, Funder Id: http://dx.doi.org/10.13039/501100001809), Shanghai Young Oriental Scholar (QD2016025), Shuguang Program (16SG35), and Open Fund of the State Key Laboratory of Integrated Optoelectronics (IOSKL2019KF07).
Conflict of interest: The authors declare no competing financial interest.
References
[1] Zhao C, Zhang H, Qi X, et al. Ultra-short pulse generation by a topological insulator based saturable absorber. Appl Phys Lett 2012;101:211106.10.1063/1.4767919Search in Google Scholar
[2] Chen Y, Zhao C, Huang H, et al. Self-assembled topological insulator: Bi2Se3 membrane as a passive Q-switcher in an erbium-doped fiber laser. J Lightwave Technol 2013;31:2857–63.10.1109/JLT.2013.2273493Search in Google Scholar
[3] Chen Y, Wu M, Tang P, et al. The formation of various multi-soliton patterns and noise-like pulse in a fiber laser passively mode-locked by a topological insulator based saturable absorber. Laser Phys Lett 2014;11:055101.10.1088/1612-2011/11/5/055101Search in Google Scholar
[4] Zyuzin A, Alidoust M, Klinovaja J, Loss D. Supercurrent reversal in two-dimensional topological insulators. Phys Rev B 2015;92:174515.10.1103/PhysRevB.92.174515Search in Google Scholar
[5] Rachel S. Interacting topological insulators: a review. Rep Prog Phys 2018;81:116501.10.1088/1361-6633/aad6a6Search in Google Scholar PubMed
[6] Zhao Y, Su J. Cloaking magnetic field and generating electric field with topological insulator and high permeability material. Chin J Phys 2019;57:14–20.10.1016/j.cjph.2018.12.017Search in Google Scholar
[7] Wang C, Potter AC, Senthil T. Classification of interacting electronic topological insulators in three dimensions. Science 2014;343:629–31.10.1126/science.1243326Search in Google Scholar PubMed
[8] Zhang H, Lu SB, Zheng J, et al. Molybdenum disulfide (MoS2) as a broadband saturable absorber for ultra-fast photonics. Opt Express 2014;22:7249–60.10.1364/OE.22.007249Search in Google Scholar PubMed
[9] Jiang XT, Gross S, Withford MJ, et al. Low-dimensional nanomaterial saturable absorbers for ultrashort-pulsed waveguide lasers. Opt Mater Express 2018;8:3055–71.10.1364/OME.8.003055Search in Google Scholar
[10] Shree S, George A, Lehnert T, et al. High optical quality of MoS2 monolayers grown by chemical vapor deposition. 2D Mater 2020;7:015011.10.1088/2053-1583/ab4f1fSearch in Google Scholar
[11] Luo Y, Zhang S, Pan H, et al. Unsaturated single atoms on monolayer transition metal dichalcogenides for ultrafast hydrogen evolution. ACS Nano 2019;14:767–76.10.1021/acsnano.9b07763Search in Google Scholar PubMed
[12] Choi JH, Jhi SH. Origin of robust out-of-plane ferroelectricity in d1T-MoS2 monolayer. J Phys Condes Matter 2020;32:045702.10.1088/1361-648X/ab4c67Search in Google Scholar PubMed
[13] Rosati R, Perea-Causin R, Brem S, Malic E. Negative effective excitonic diffusion in monolayer transition metal dichalcogenides. Nanoscale 2020;12:356–63.10.1039/C9NR07056GSearch in Google Scholar PubMed
[14] Agafonov V, Nargeliene V, Balakauskas S, et al. Single variable defined technology control of the optical properties in MoS2 films with controlled number of 2D-layers. Nanotechnology 2020;31:025602.10.1088/1361-6528/ab4753Search in Google Scholar PubMed
[15] Donnelly GE, Velicky M, Hendren WR, Bowman RM, Huang F. Achieving extremely high optical contrast of atomically-thin MoS2. Nanotechnology 2019;31:145706.10.1088/1361-6528/ab6237Search in Google Scholar PubMed
[16] Liu H, Li Z, Song W, Yu Y, Pang F, Wang T. MoS2/graphene heterostructure incorporated passively mode-locked fiber laser: from anomalous to normal average dispersion. Opt Mater Express 2020;10:46–56.10.1364/OME.10.000046Search in Google Scholar
[17] Ge Y, Zhu Z, Xu Y, et al. Broadband nonlinear photoresponse of 2D TiS2 for Ultrashort pulse generation and all-optical thresholding devices. Adv Opt Mater 2018;6:1701166.10.1002/adom.201701166Search in Google Scholar
[18] Yuan J, Mu H, Li L, et al. Few-layer platinum diselenide as a new saturable absorber for ultrafast fiber lasers. ACS Appl Mater Inter 2018;10:21534–40.10.1021/acsami.8b03045Search in Google Scholar PubMed
[19] Wang Y, Huang G, Mu H, Lin S, Chen J, Xiao S, Bao Q, He J. Ultrafast recovery time and broadband saturable absorption properties of black phosphorus suspension. Appl Phys Lett 2015;107:091905.10.1063/1.4930077Search in Google Scholar
[20] Zhang S, Li Y, Zhang X, et al. Slow and fast absorption saturation of black phosphorus: experiment and modelling. Nanoscale 2016;8:17374–82.10.1039/C6NR06076ESearch in Google Scholar
[21] Na D, Park K, Park KH, Song Y. Passivation of black phosphorus saturable absorbers for reliable pulse formation of fiber lasers. Nanotechnology 2017;28:475207–8.10.1088/1361-6528/aa9429Search in Google Scholar PubMed
[22] Luo Z, Liu M, Guo Z, et al. Microfiber-based few-layer black phosphorus saturable absorber for ultra-fast fiber laser. Opt Express 2015;23:20030–9.10.1364/OE.23.020030Search in Google Scholar PubMed
[23] Illarionov YY, Waltl M, Rzepa G, et al. Long-term stability and reliability of black phosphorus field-effect transistors. ACS Nano 2016;10:9543–9.10.1021/acsnano.6b04814Search in Google Scholar PubMed
[24] Tran V, Soklaski R, Liang Y, Yang L. Layer-controlled band gap and anisotropic excitons in few-layer black phosphorus. Phys Rev B 2014;89:235319.10.1103/PhysRevB.89.235319Search in Google Scholar
[25] Qiao J, Kong X, Hu Z, Yang F, Ji W. High-mobility transport anisotropy and linear dichroism in few-layer black phosphorus. Nat Commun 2014;5:4475.10.1038/ncomms5475Search in Google Scholar PubMed PubMed Central
[26] Ge Y, Chen S, Xu Y, et al. Few-layer selenium-doped black phosphorus: synthesis, nonlinear optical properties and ultrafast photonics applications. J Mater Chem C 2017;5:6129–35.10.1039/C7TC01267ESearch in Google Scholar
[27] Buscema M, Groenendijk DJ, Blanter SI, Steele GA, van der Zant HSJ, Castellanos-Gomez A. Fast and Broadband Photoresponse of Few-Layer Black Phosphorus Field-Effect Transistors. Nano Lett 2014;14:3347–52.10.1021/nl5008085Search in Google Scholar PubMed
[28] Luo Z, Maassen J, Deng Y, et al. Anisotropic in-plane thermal conductivity observed in few-layer black phosphorus. Nat Commun 2015;6:8572–8.10.1038/ncomms9572Search in Google Scholar PubMed PubMed Central
[29] Liu H, Song W, Yu Y, Jiang Q, Pang F, Wang T. Black phosphorus-film with drop-casting method for high-energy pulse generation from Q-switched Er-doped fiber laser. Photonic Sens 2019;9:1–7.10.1007/s13320-019-0549-6Search in Google Scholar
[30] Guo Z, Zhang H, Lu S, et al. From black phosphorus to phosphorene: basic solvent exfoliation, evolution of Raman scattering, and applications to ultrafast photonics. Adv Funct Mater 2015;25:6996–7002.10.1002/adfm.201502902Search in Google Scholar
[31] Liang X, Ye X, Wang C, et al. Photothermal cancer immunotherapy by erythrocyte membrane-coated black phosphorus formulation. J Control Release 2019;296:150–61.10.1016/j.jconrel.2019.01.027Search in Google Scholar PubMed
[32] Xu M, Lei S, Qi J, et al. Opening magnesium storage capability of two-dimensional MXene by intercalation of cationic surfactant. ACS Nano 2018;12:3733–40.10.1021/acsnano.8b00959Search in Google Scholar PubMed
[33] Kurra N, Ahmed B, Gogotsi Y, Alshareef HN. MXene-on-paper coplanar microsupercapacitors. Adv Energy Mater 2016;6:1601372–8.10.1002/aenm.201601372Search in Google Scholar
[34] Srivastava P, Mishra A, Mizuseki H, Lee KR, Singh AK. Mechanistic insight into the chemical exfoliation and functionalization of Ti3C2 MXene. ACS Appl Mater Interfaces 2016;8:24256–64.10.1021/acsami.6b08413Search in Google Scholar PubMed
[35] Chang T, Zhang T, Yang H, et al. Controlled crumpling of two-dimensional titanium carbide (MXene) for highly stretchable, bendable, efficient supercapacitors. ACS Nano 2018;12: 8048–59.10.1021/acsnano.8b02908Search in Google Scholar PubMed
[36] Shen J, Liu G, Ji Y, et al. 2D MXene nanofilms with tunable gas transport channels. Adv Funct Mater 2018;28:1801511–3.10.1002/adfm.201801511Search in Google Scholar
[37] Liu Y, Zhang P, Sun N, et al. Self-assembly of transition metal oxide nanostructures on MXene nanosheets for fast and stable lithium storage. Adv Mater 2018;30:1707334–9.10.1002/adma.201707334Search in Google Scholar PubMed
[38] Nan J, Guo X, Xiao J, et al. Nanoengineering of 2D MXene-based materials for energy storage applications. Small 2019;6:8572.10.1002/smll.201902085Search in Google Scholar PubMed
[39] Jiang X, Liu S, Liang W, et al. Broadband nonlinear photonics in few-layer MXene Ti3C2Tx (T= F, O, or OH). Laser Photon Rev 2018;12:1700229.10.1002/lpor.201700229Search in Google Scholar
[40] Ye Y, Xian Y, Cai J, et al. Linear and nonlinear optical properties of few-layer exfoliated SnSe nanosheets. Adv Opt Mater 2019;7:1800579.10.1002/adom.201800579Search in Google Scholar
[41] Panday SR, Fregoso BM. Strong second harmonic generation in two-dimensional ferroelectric IV-monochalcogenides. J Phys Condes Matter 2017;29:43–5.10.1088/1361-648X/aa8bfcSearch in Google Scholar PubMed
[42] Wang H, Qian X. Giant optical second harmonic generation in two-dimensional multiferroics. Nano Lett 2017;17:5027–34.10.1021/acs.nanolett.7b02268Search in Google Scholar PubMed
[43] Xie Z, Zhang F, Liang Z, et al. Revealing of the ultrafast third-order nonlinear optical response and enabled photonic application in two-dimensional tin sulfide. Photonics Res 2019;7:494–502.10.1364/PRJ.7.000494Search in Google Scholar
[44] Xie Z, Wang D, Fan T, et al. Black phosphorus analogue tin sulfide nanosheets: synthesis and application as near-infrared photothermal agents and drug delivery platforms for cancer therapy. J Mater Chem B 2018;6:4747–55.10.1039/C8TB00729BSearch in Google Scholar PubMed
[45] Lu L, Tang X, Cao R, et al. Broadband nonlinear optical response in few-layer antimonene and antimonene quantum dots: a promising optical Kerr media with enhanced stability. Adv Opt Mater 2017;5:1700301.10.1002/adom.201700301Search in Google Scholar
[46] Lu L, Liang Z, Wu L, et al. Few-layer bismuthene: sonochemical exfoliation, nonlinear optics and applications for ultrafast photonics with enhanced stability. Laser Photon Rev 2018;12:1700221.10.1002/lpor.201700221Search in Google Scholar
[47] Zhang F, Jiang X, He Z, Liang W, Xu S, Zhang H. Third-order nonlinear optical responses and carrier dynamics in antimonene. Opt Mater 2019;95:109209.10.1016/j.optmat.2019.109209Search in Google Scholar
[48] Liu J, Li X, Xu Y, et al. NiPS3 nanoflakes: a nonlinear optical material for ultrafast photonics. Nanoscale 2019;11:14383–91.10.1039/C9NR03964CSearch in Google Scholar
[49] Jiang X, Zhang L, Liu S, et al. Ultrathin metal–organic framework: an emerging broadband nonlinear optical material for ultrafast photonics. Adv Opt Mater 2018;6:1800561.10.1002/adom.201800561Search in Google Scholar
[50] Zhang Y, Lim CK, Dai Z, et al. Photonics and optoelectronics using nano-structured hybrid perovskite media and their optical cavities. Phys Rep 2019;795:1–51.10.1016/j.physrep.2019.01.005Search in Google Scholar
[51] Xing C, Xie Z, Liang Z, et al. 2D nonlayered selenium nanosheets: facile synthesis, photoluminescence, and ultrafast photonics. Adv Opt Mater 2017;5:1700884.10.1002/adom.201700884Search in Google Scholar
[52] Guo J, Zhao J, Huang D, et al. Two-dimensional tellurium-polymer membrane for ultrafast photonics. Nanoscale 2019;11:6235–42.10.1039/C9NR00736ASearch in Google Scholar PubMed
[53] Xie Z, Chen S, Duo Y, et al. Biocompatible two-dimensional titanium nanosheets for multimodal imaging-guided cancer theranostics. ACS Appl Mater Interfaces 2019;11:22129–40.10.1021/acsami.9b04628Search in Google Scholar PubMed
[54] Xie Z, Xing C, Huang W, et al. Ultrathin 2D nonlayered tellurium nanosheets: facile liquid-phase exfoliation, characterization, and photoresponse with high performance and enhanced stability. Adv Funct Mater 2018;28:1705833.10.1002/adfm.201705833Search in Google Scholar
[55] Choi W, Choudhary N, Han G, Park J, Akinwande D, Lee Y. Recent development of two-dimensional transition metal dichalcogenides and their applications. Mater Today 2017;20:116–30.10.1016/j.mattod.2016.10.002Search in Google Scholar
[56] Jariwala D, Sangwan V, Lauhon LJ, Marks TJ, Hersam MC. Emerging device applications for semiconducting two-dimensional transition metal dichalcogenides. ACS Nano 2014;8:1102–20.10.1021/nn500064sSearch in Google Scholar PubMed
[57] Wang Q, Kalantar-Zadeh K, Kis A, Coleman JN, Strano MS. Electronics and optoelectronics of two-dimensional transition metal dichalcogenides. Nat Nanotechnol 2012;7:699–712.10.1038/nnano.2012.193Search in Google Scholar PubMed
[58] Lee HS, Min SW, Chang YG, et al. MoS2 nanosheet phototransistors with thickness-modulated optical energy gap. Nano Lett 2012;12:3695–700.10.1021/nl301485qSearch in Google Scholar PubMed
[59] Mak KF, Lee C, Hone J, Shan J, Heinz TF. Atomically thin MoS2: a new direct-gap semiconductor. Phys Rev Lett 2012;105:136805.10.1103/PhysRevLett.105.136805Search in Google Scholar PubMed
[60] Fan Q, Huang J, Dong N, et al. Liquid exfoliation of two-dimensional PbI2 nanosheets for ultrafast photonics. ACS Photonics 2019;6:1051–7.10.1021/acsphotonics.9b00122Search in Google Scholar
[61] Zhang M, Wu Q, Zhang F, et al. 2D black phosphorus saturable absorbers for ultrafast photonics. Adv Opt Mater 2019;7:1800224.10.1002/adom.201800224Search in Google Scholar
[62] Goel N, Kumar R, Roul B, Kumar M, Krupanidhi SB. Wafer-scale synthesis of a uniform film of few-layer MoS2 on GaN for 2D heterojunction ultraviolet photodetector. J Phys D Appl Phys 2018;51:374003.10.1088/1361-6463/aad4e8Search in Google Scholar
[63] Wu G, Wang X, Chen Y, et al. Ultrahigh photoresponsivity MoS2 photodetector with tunable photocurrent generation mechanism. Nanotechnology 2018;29:485204.10.1088/1361-6528/aae17eSearch in Google Scholar PubMed
[64] Yu M, Li H, Liu H, et al. Synthesis of two-dimensional alloy Ga0.84In0.16Se nanosheets for high-performance photodetector. ACS Appl Mater Interfaces 2018;10:43299–304.10.1021/acsami.8b15317Search in Google Scholar PubMed
[65] Wang X, Cui Y, Li T, Lei M, Li J, Wei Z. Recent advances in the functional 2D photonic and optoelectronic devices. Adv Opt Mater 2019;7:1801274.10.1002/adom.201801274Search in Google Scholar
[66] Cheng J, Wang C, Zou X, Liao L. Recent advances in optoelectronic devices based on 2D Materials and their heterostructures. Adv Opt Mater 2019;7:1800441.10.1002/adom.201800441Search in Google Scholar
[67] Wu E, Wu D, Jia C, et al. In situ fabrication of 2D WS2/Si type-II heterojunction for self-powered broadband photodetector with response up to mid-infrared. ACS Photonics 2019;6:565–72.10.1021/acsphotonics.8b01675Search in Google Scholar
[68] Kwak DH, Ramasamy P, Lee YS, Jeong MH, Lee JS. High-performance hybrid InP QDs/black phosphorus photodetector. ACS Appl Mater Interfaces 2019;11:29041–6.10.1021/acsami.9b07910Search in Google Scholar PubMed
[69] Vabbina P, Choudhary N, Chowdhury AA, et al. Highly sensitive wide bandwidth photodetector based on internal photoemission in CVD grown p-type MoS2/graphene Schottky junction. ACS Appl Mater Interfaces 2015;7:15206–13.10.1021/acsami.5b00887Search in Google Scholar PubMed
[70] Xin B, Wu Y, Liu X, Zhang N, Yu H, Feng W. High performance UV photodetector based on 2D non-layered CuGaS2 nanosheets. Semicond Sci Technol 2019;34:055007.10.1088/1361-6641/ab0bdfSearch in Google Scholar
[71] Li P, Shivananju BN, Zhang Y, Li S, Bao Q. High performance photodetector based on 2D CH3NH3PbI3 perovskite nanosheets. J Phys D Appl Phys 2017;50:094002–6.10.1088/1361-6463/aa5623Search in Google Scholar
[72] Ma P, Flory N, Salamin Y, et al. Fast MoTe2 waveguide photodetector with high sensitivity at telecommunication wavelengths. ACS Photonics 2018;5:1846–52.10.1021/acsphotonics.8b00068Search in Google Scholar
[73] Huang W, Xie Z, Fan T, et al. Black-phosphorus-analogue tin monosulfide: an emerging optoelectronic two-dimensional material for high-performance photodetection with improved stability under ambient/harsh conditions. J Mater Chem C 2018;6:9582–93.10.1039/C8TC03284JSearch in Google Scholar
[74] Fan T, Xie Z, Huang W, Li Z, Zhang H. Two-dimensional non-layered selenium nanoflakes: facile fabrications and applications for self-powered photo-detector. Nanotechnology 2019;30:114002–8.10.1088/1361-6528/aafc0fSearch in Google Scholar PubMed
[75] Xing C, Huang W, Xie Z, et al. Ultrasmall bismuth quantum dots: facile liquid-phase exfoliation, characterization, and application in high-performance UV–Vis photodetector. ACS Photonics 2018;5:621–9.10.1021/acsphotonics.7b01211Search in Google Scholar
[76] Du L, Jiang G, Miao L, et al. Few-layer rhenium diselenide: an ambient-stable nonlinear optical modulator. Opt Mater Express 2018;8:926–35.10.1364/OME.8.000926Search in Google Scholar
[77] Zhao G, Hou J, Wu Y, He J, Hao X. Preparation of 2D MoS2/graphene heterostructure through a monolayer intercalation method and its application as an optical modulator in pulsed laser generation. Adv Opt Mater 2015;3:937–42.10.1002/adom.201500012Search in Google Scholar
[78] Zheng J, Tang X, Yang Z, et al. Few-layer phosphorene-decorated microfiber for all-optical thresholding and optical modulation. Adv Opt Mater 2017;5:1700026.10.1002/adom.201700026Search in Google Scholar
[79] Wu L, Chen K, Huang W, et al. Perovskite CsPbX3: a promising nonlinear optical material and its applications for ambient all-optical switching with enhanced stability. Adv Opt Mater 2018;6:1800400–8.10.1002/adom.201800400Search in Google Scholar
[80] Danilyan AV, Shulgin VA, Chernov VE. Optimization of the input losses in fiber-optic communications with an acousto-optic all-optical switch. Appl Optics 2006;45:4319–24.10.1364/AO.45.004319Search in Google Scholar
[81] Liu W, Wang L, Fang C. In-situ weak-beam and polarization control of multidimensional laser sidebands for ultrafast optical switching. Appl Phys Lett 2014;104:111114–5.10.1063/1.4869466Search in Google Scholar
[82] Wu L, Xie Z, Lu L, et al. Few-layer tin sulfide: a promising black-phosphorus-analogue 2D material with exceptionally large nonlinear optical response, high stability, and applications in all-optical switching and wavelength conversion. Adv Opt Mater 2018;6:1700985.10.1002/adom.201700985Search in Google Scholar
[83] Zhang H, Tang D, Zhao L, Bao Q, Loh KP. Vector dissipative solitons in graphene mode locked fiber lasers. Opt Commun 2010;283:3334–8.10.1016/j.optcom.2010.04.064Search in Google Scholar
[84] Long H, Shi Y, Wen Q, Tsang YH. Ultrafast laser pulse (115 fs) generation by using direct bandgap ultrasmall 2D GaTe quantum dots. J Mater Chem C 2019;7:5937–44.10.1039/C9TC00554DSearch in Google Scholar
[85] Song Y, Liang Z, Zhang H, et al. Period-doubling and quadrupling bifurcation of vector soliton bunches in a graphene mode locked fiber laser. IEEE Photonics J 2017;9:4502308–9.10.1109/JPHOT.2017.2734163Search in Google Scholar
[86] Long H, Liu S, Wen Q, et al. In2Se3 nanosheets with broadband saturable absorption used for near-infrared femtosecond laser mode locking. Nanotechnology 2019;30:465704.10.1088/1361-6528/ab33d2Search in Google Scholar PubMed
[87] Sun X, Zhang B, Yan B, et al. Few-layer Ti3C2Tx (T=O, OH, or F) saturable absorber for a femtosecond bulk laser. Opt Lett 2018;43:3862–5.10.1364/OL.43.003862Search in Google Scholar PubMed
[88] Guo P, Li X, Chai T, et al. Few-layer bismuthene for robust ultrafast photonics in C-band optical communications. Nanotechnology 2019;30:354002–8.10.1088/1361-6528/ab2150Search in Google Scholar PubMed
[89] Hui Z, Xu W, Li X, Guo P, Zhang Y, Liu J. Cu2S nanosheets for ultrashort pulse generation in the near-infrared region. Nanoscale 2019;11:6045–51.10.1039/C9NR00080ASearch in Google Scholar PubMed
[90] Xie Z, Peng Y, Yu L, et al. Solar-inspired water purification based on emerging two-dimensional materials: status and challenges. Sol RRL 2020;190040028.10.1002/solr.201900400Search in Google Scholar
[91] Liu X, Guo Q, Qiu J. Emerging low-dimensional materials for nonlinear optics and ultrafast photonics. Adv Mater 2017;29:1605886.10.1002/adma.201605886Search in Google Scholar PubMed
[92] Zhou Z, Cui Y, Tan P, Liu X, Wei Z. Optical and electrical properties of two-dimensional anisotropic materials. J Semicond 2019;40:061001.10.1088/1674-4926/40/6/061001Search in Google Scholar
[93] Ling X, Huang S, Hasdeo EH, et al. Anisotropic electron–photon and electron–phonon interactions in black phosphorus. Nano Lett 2016;16:2260–7.10.1021/acs.nanolett.5b04540Search in Google Scholar PubMed
[94] Meng X, Zhou Y, Chen K, et al. Anisotropic saturable and excited-state absorption in bulk ReS2. Adv Opt Mater 2018;6:1800137–8.10.1002/adom.201800137Search in Google Scholar
[95] Echeverry JP, Gerber IC. Theoretical investigations of the anisotropic optical properties of distorted 1T ReS2 and ReSe2 monolayers, bilayers, and in the bulk limit. Phys Rev B 2018;97:075123.10.1103/PhysRevB.97.075123Search in Google Scholar
[96] Tian Z, Guo C, Zhao M, Li R, Xue J. Two-dimensional SnS: a phosphorene analogue with strong in-plane electronic anisotropy. ACS Nano 2017;11:2219–26.10.1021/acsnano.6b08704Search in Google Scholar PubMed
[97] Wu J, Mao N, Xie L, Xu H, Zhang J. Identifying the crystalline orientation of black phosphorus using angle-resolved polarized Raman spectroscopy. Angew Chem Int Edit 2015;54:2366–9.10.1002/anie.201410108Search in Google Scholar PubMed
[98] He J, He D, Wang Y, et al. Exceptional and anisotropic transport properties of photocarriers in black phosphorus. ACS Nano 2015;9:6436–42.10.1021/acsnano.5b02104Search in Google Scholar PubMed
[99] Ge S, Li C, Zhang Z, et al. Dynamical evolution of anisotropic response in black phosphorus under ultrafast photoexcitation. Nano Lett 2015;15:4650–6.10.1021/acs.nanolett.5b01409Search in Google Scholar PubMed
[100] Cui Q, Muniz RA, Sipe JE, Zhao H. Strong and anisotropic third-harmonic generation in monolayer and multilayer ReS2. Phys Rev B 2017;95:165406.10.1103/PhysRevB.95.165406Search in Google Scholar
[101] Sim S, Lee D, Noh M, et al. Selectively tunable optical Stark effect of anisotropic excitons in atomically thin ReS2. Nat Commun 2016;7:13569–6.10.1038/ncomms13569Search in Google Scholar PubMed PubMed Central
[102] Zhang E, Wang P, Li Z, et al. Tunable ambipolar polarization-sensitive photodetectors based on high-anisotropy ReSe2 nanosheets. ACS Nano 2016;10:8067–77.10.1021/acsnano.6b04165Search in Google Scholar PubMed
[103] Li M, Wu Y, Li T, et al. Revealing anisotropy and thickness dependence of Raman spectra for SnS flakes. RSC Adv 2017;7:48759–65.10.1039/C7RA09430BSearch in Google Scholar
[104] Yang S, Liu Y, Wu M, et al. Highly-anisotropic optical and electrical properties in layered SnSe. Nano Res 2018;11:554–64.10.1007/s12274-017-1712-2Search in Google Scholar
[105] Zhang C, Ouyang H, Miao R, et al. Anisotropic nonlinear optical properties of a SnSe flake and a novel perspective for the application of all-optical switching. Adv Opt Mater 2019;7:1900631.10.1002/adom.201900631Search in Google Scholar
[106] Zhou M, Chen X, Li M, Du A. Widely tunable and anisotropic charge carrier mobility in monolayer tin(II) selenide using biaxial strain: a first-principles study. J Mater Chem C 2017;5:1247–54.10.1039/C6TC04692DSearch in Google Scholar
[107] Sotor J, Sobon G, Macherzynski W, Paletko P, Abramski KM. Black phosphorus saturable absorber for ultrashort pulse generation. Appl Phys Lett 2015;107:051108.10.1063/1.4927673Search in Google Scholar
[108] Pletikosic I, von Rohr F, Pervan P, et al. Band structure of the IV–VI black phosphorus analog and thermoelectric SnSe. Phys Rev Lett 2018;120:156403–5.10.1103/PhysRevLett.120.156403Search in Google Scholar PubMed
[109] Wu H, Yen Y, Liu C. Observation of polarization and thickness dependent third-harmonic generation in multilayer black phosphorus. Appl Phys Lett 2016;109:261902.10.1063/1.4972869Search in Google Scholar
[110] Song Y, Hu S, Lin M, Gan X, Tan P, Zhao J. Extraordinary second harmonic generation in ReS2 atomic crystals. ACS Photonics 2018;5:3485–91.10.1021/acsphotonics.8b00685Search in Google Scholar
[111] Banai RE, Burton LA, Choi SG, et al. Ellipsometric characterization and density-functional theory analysis of anisotropic optical properties of single-crystal alpha-SnS. J Appl Phys 2014;116:013511–7.10.1063/1.4886915Search in Google Scholar
[112] Chen Y, Jiang G, Chen S, et al. Mechanically exfoliated black phosphorus as a new saturable absorber for both Q-switching and mode-locking laser operation. Opt Express 2015;23:12823–33.10.1364/OE.23.012823Search in Google Scholar PubMed
[113] Wu K, Chen B, Zhang X, et al. High-performance mode-locked and Q-switched fiber lasers based on novel 2D materials of topological insulators, transition metal dichalcogenides and black phosphorus: review and perspective (invited). Opt Commun 2018;406:214–29.10.1016/j.optcom.2017.02.024Search in Google Scholar
[114] Zhang B, Lou F, Zhao R, et al. Exfoliated layers of black phosphorus as saturable absorber for ultrafast solid-state laser. Opt Lett 2015;40:3691–4.10.1364/OL.40.003691Search in Google Scholar PubMed
[115] Aharon E, Albo A, Kalina M, Frey GL. Stable blue emission from a polyfluorene/layered-compound guest/host nanocomposite. Adv Funct Mater 2006;16:980–6.10.1002/adfm.200500458Search in Google Scholar
[116] Zeng Z, Yin Z, Huang X, et al. Single-layer semiconducting nanosheets: high-yield preparation and device fabrication. Angew Chem Int Edit 2011;50:11093–7.10.1002/anie.201106004Search in Google Scholar PubMed
[117] Liu F, Zhao X, Yan X, et al. Ultrafast nonlinear absorption and carrier relaxation in ReS2 and ReSe2 films. J Appl Phys 2019;125:173105–8.10.1063/1.5093757Search in Google Scholar
[118] Ribeiro HB, Pimenta MA, Matos C, et al. Unusual angular dependence of the Raman response in black phosphorus. ACS Nano 2015;9:4270–6.10.1021/acsnano.5b00698Search in Google Scholar PubMed
[119] Ling X, Liang L, Huang S, et al. Low-frequency interlayer breathing modes in few-layer black phosphorus. Nano Lett 2015;15:4080–8.10.1021/acs.nanolett.5b01117Search in Google Scholar PubMed
[120] Xia J, Li X, Huang X, et al. Physical vapor deposition synthesis of two-dimensional orthorhombic SnS flakes with strong angle/temperature-dependent Raman responses. Nanoscale 2016;8:2063–70.10.1039/C5NR07675GSearch in Google Scholar PubMed
[121] Li D, Jussila H, Karvonen L, et al. Polarization and thickness dependent absorption properties of black phosphorus: new saturable absorber for ultrafast pulse generation. Sci Rep 2015;5:15899.10.1038/srep15899Search in Google Scholar PubMed PubMed Central
[122] Zhong H, Gao S, Shi J, Yang L. Quasiparticle band gaps, excitonic effects, and anisotropic optical properties of the monolayer distorted 1T diamond-chain structures ReS2 and ReSe2. Phys Rev B 2015;92:115438.10.1103/PhysRevB.92.115438Search in Google Scholar
[123] Clark SJ, Segall MD, Pickard CJ, et al. First principles methods using CASTEP. Z Kristall 2005;220:567–70.10.1524/zkri.220.5.567.65075Search in Google Scholar
[124] Shen YR. The Principles of Nonlinear Optics. New York, Wiley-Interscience, 1984:575.Search in Google Scholar
[125] Boyd RW. Nonlinear Optics. Amsterdam: Elsevier; 2003.Search in Google Scholar
[126] Karvonen L, Saynatjoki A, Mehravar S, et al. Investigation of second- and third-harmonic generation in few-layer gallium selenide by multiphoton microscopy. Sci Rep 2015;5: 10334–8.10.1038/srep10334Search in Google Scholar PubMed PubMed Central
[127] Zhou X, Cheng J, Zhou Y, et al. Strong second-harmonic generation in atomic layered GaSe. J Am Chem Soc 2015;137: 7994–7.10.1021/jacs.5b04305Search in Google Scholar PubMed
[128] Lin C, Tao H, Zheng X, Pan R, Zang H, Zhao X. Second-harmonic generation in IR-transparent beta-GeS2 crystallized glasses. Opt Lett 2009;34:437–9.10.1364/OL.34.000437Search in Google Scholar PubMed
[129] Beams R, Cancado LG, Krylyuk S, et al. Characterization of few-layer 1T’ MoTe2 by polarization-resolved second harmonic generation and Raman scattering. ACS Nano 2016;10: 9626–36.10.1021/acsnano.6b05127Search in Google Scholar PubMed PubMed Central
[130] Li D, Xiong W, Jiang L, et al. Multimodal nonlinear optical imaging of MoS2 and MoS2-based van der Waals heterostructures. ACS Nano 2016;10:3766–75.10.1021/acsnano.6b00371Search in Google Scholar PubMed
[131] Geng A, Bo Y, Yang X, et al. Intracavity sum-frequency generation of 3.23 W continuous-wave yellow light in an Nd:YAG laser. Opt Commun 2005;255:248–52.10.1016/j.optcom.2005.06.026Search in Google Scholar
[132] Huang Y, Zhu L, Zhao Q, et al. Surface optical rectification from layered MoS2 crystal by THz time domain surface emission spectroscopy. ACS Appl Mater Interfaces 2017;9: 4956–65.10.1021/acsami.6b13961Search in Google Scholar PubMed
[133] Youngblood N, Peng R, Nemilentsau A, Low T, Li M. Layer-tunable third-harmonic generation in multilayer black phosphorus. ACS Photonics 2017;4:8–14.10.1021/acsphotonics.6b00639Search in Google Scholar
[134] Hipolito F, Pedersen TG. Optical third harmonic generation in black phosphorus. Phys Rev B 2018;97:035431–9.10.1103/PhysRevB.97.035431Search in Google Scholar
[135] You J, Bongu SR, Bao Q, Panoiu NC. Nonlinear optical properties and applications of 2D materials: theoretical and experimental aspects. Nanophotonics 2019;8:63–97.10.1515/nanoph-2018-0106Search in Google Scholar
[136] Wang S, Yu H, Zhang H, et al. Broadband few-layer MoS2 saturable absorbers. Adv Mater 2014;26:3538–44.10.1002/adma.201306322Search in Google Scholar PubMed
[137] Zhang J, Jiang T, Zhou T, et al. Saturated absorption of different layered Bi2Se3 films in the resonance zone. Photonics Res 2018;6:C8–14.10.1364/PRJ.6.0000C8Search in Google Scholar
[138] Wang K, Szydlowska BM, Wang G, et al. Ultrafast nonlinear excitation dynamics of black phosphorus nanosheets from visible to mid-infrared. ACS Nano 2016;10:6923–32.10.1021/acsnano.6b02770Search in Google Scholar PubMed
[139] Wang S, Zhang Y, Zhang R, Yu H, Zhang H, Xiong Q. High-order nonlinearity of surface plasmon resonance in Au nanoparticles: paradoxical combination of saturable and reverse-saturable absorption. Adv Opt Mater 2015;3:1342–8.10.1002/adom.201500240Search in Google Scholar
[140] Driggers RG. Encyclopedia of Optical Engineering. Boca Raton: CRC Press; 2003.Search in Google Scholar
[141] Tiwari A. Innovative Graphene Technologies: Evaluation and Applications. Akron: Smithers Rapra; 2013.Search in Google Scholar
[142] Grange R, Haiml M, Paschotta R, et al. New regime of inverse saturable absorption for self-stabilizing passively mode-locked lasers. Appl Phys B Lasers Opt 2005;80:151–8.10.1007/s00340-004-1622-3Search in Google Scholar
[143] Hao H, Xu Z, Jiang T, et al. Visualized charge transfer processes in monolayer composition-graded WS2xSe2(1-x) lateral heterojunctions via ultrafast microscopy mapping. Opt Express 2018;26:15867–86.10.1364/OE.26.015867Search in Google Scholar PubMed
[144] He J, Zhang L, He D, Wang Y, He Z, Zhao H. Ultrafast transient absorption measurements of photocarrier dynamics in monolayer and bulk ReSe2. Opt Express 2018;26:21501–9.10.1364/OE.26.021501Search in Google Scholar PubMed
[145] Lu B, Wen Z, Huang K, et al. Passively Q-switched Yb3+-doped fiber laser with ReS2 saturable absorber. IEEE J Sel Top Quantum Electron 2019;25:1600104.10.1109/JSTQE.2018.2885493Search in Google Scholar
[146] Bao Q, Zhang H, Wang Y, et al. Atomic-layer graphene as a saturable absorber for ultrafast pulsed lasers. Adv Funct Mater 2009;19:3077–83.10.1002/adfm.200901007Search in Google Scholar
[147] Song Y, Zhang H, Tang D, Shen D. Polarization rotation vector solitons in a graphene mode-locked fiber laser. Opt Express 2012;20:27283–9.10.1364/OE.20.027283Search in Google Scholar PubMed
[148] Autere A, Jussila H, Dai Y, Wang Y, Lipsanen H, Sun Z. Nonlinear optics with 2D layered materials. Adv Mater 2018;30:1705963.10.1002/adma.201705963Search in Google Scholar PubMed
[149] Wang G, Chen G, Li W, Zhang W, Zeng C, Zhao W. Indium selenide as a saturable absorber for a wavelength-switchable vector-soliton fiber laser. Opt Mater Express 2019;9:449–56.10.1364/OME.9.000449Search in Google Scholar
[150] Song Y, Shi X, Wu C, Tang D, Zhang H. Recent progress of study on optical solitons in fiber lasers. Appl Phys Rev 2019;6:021313.10.1063/1.5091811Search in Google Scholar
[151] Zhang Y, Li X, Qyyum A, et al. PbS nanoparticles for ultrashort pulse generation in optical communication region. Part Part Syst Charact 2018;35:1800341–6.10.1002/ppsc.201800341Search in Google Scholar
[152] Song Y, Liang Z, Jiang X, et al. Few-layer antimonene decorated microfiber: ultra-short pulse generation and all-optical thresholding with enhanced long term stability. 2D Mater 2017;4:045010–3.10.1088/2053-1583/aa87c1Search in Google Scholar
[153] Song Y, Chen S, Zhang Q, et al. Vector soliton fiber laser passively mode locked by few layer black phosphorus-based optical saturable absorber. Opt Express 2016;24:25933–42.10.1364/OE.24.025933Search in Google Scholar PubMed
[154] Sotor J, Sobon G, Kowalczyk M, Macherzynski W, Paletko P, Abramski KM. Ultrafast thulium-doped fiber laser mode locked with black phosphorus. Opt Lett 2015;40:3885–8.10.1364/OL.40.003885Search in Google Scholar PubMed
[155] Liu J, Li X, Guo Y, et al. SnSe2 nanosheets for subpicosecond harmonic mode-locked pulse generation. Small 2019:1902811–7.10.1364/CLEO_AT.2020.JW2F.37Search in Google Scholar
[156] Liu S, Zhang X, Gu X, Ming D. Photodetectors based on two dimensional materials for biomedical application. Biosens Bioelectron 2019;143:111617.10.1016/j.bios.2019.111617Search in Google Scholar PubMed
[157] Chang K, Tsai T, Huang K, et al. Thermal response of a dental tissue induced by femtosecond laser pulses. Appl Optics 2013;52:6626–35.10.1364/AO.52.006626Search in Google Scholar PubMed
[158] Liu H, Yu Y, Song W, Jiang Q, Pang F, Wang T. Spectrally flat supercontinuum generation in a ZBLAN fiber pumped by erbium-doped mode-locked fiber laser. Photonic Sens 2019;9:302–8.10.1007/s13320-019-0552-ySearch in Google Scholar
[159] Liu H, Yu Y, Song W, Jiang Q, Pang F. Recent development of flat supercontinuum generation in specialty optical fibers. Opto-Electron Adv 2019;2:180020–9.10.29026/oea.2019.180020Search in Google Scholar
[160] Wang C, Zhang X, Wang Q, et al. Extracavity pumped BaWO4 anti-Stokes Raman laser. Opt Express 2013;21:26014–26.10.1364/OE.21.026014Search in Google Scholar PubMed
[161] Chen X, Li P, Zhang X, et al. Eye-safe Raman laser at 1532 nm with BaWO4 crystal under direct 880 nm pumping. Laser Physics 2012;22:60–3.10.1134/S1054660X11230022Search in Google Scholar
[162] Ming N, Tao S, Yang W, et al. Mode-locked Er-doped fiber laser based on PbS/CdS core/shell quantum dots as saturable absorber. Opt Express 2018;26:9017–26.10.1364/OE.26.009017Search in Google Scholar PubMed
[163] Liu Z, Xie Y, Cong Z, et al. 110 mW single-frequency Yb:YAG crystal-derived silica fiber laser at 1064 nm. Opt Lett 2019;44:4307–10.10.1364/OL.44.004307Search in Google Scholar PubMed
[164] Wang S, Zhao Z, Kobayashi Y. Wavelength-spacing controllable, dual-wavelength synchronously mode locked Er:fiber laser oscillator based on dual-branch nonlinear polarization rotation technique. Opt Express 2016;24:28228–38.10.1364/OE.24.028228Search in Google Scholar PubMed
[165] Zhang H, Liu J. Gold nanobipyramids as saturable absorbers for passively Q-switched laser generation in the 1.1 μm region. Opt Lett 2016;41:1150–2.10.1364/OL.41.001150Search in Google Scholar PubMed
[166] Xu N, Ming N, Han X, Man B, Zhang H. Large-energy passively Q-switched Er-doped fiber laser based on CVD-Bi2Se3 as saturable absorber. Opt Mater Express 2019;9:373–83.10.1364/OME.9.000373Search in Google Scholar
[167] Wu D, Cai Z, Zhong Y, et al. Compact passive Q-switching Pr3+-doped ZBLAN fiber laser with black phosphorus-based saturable absorber. IEEE J Sel Top Quantum Electron 2017;23:7–12.10.1109/JSTQE.2016.2550560Search in Google Scholar
[168] Kong L, Qin Z, Xie G, et al. Black phosphorus as broadband saturable absorber for pulsed lasers from 1 μm to 2.7 μm wavelength. Laser Phys Lett 2016;13:045801–5.10.1088/1612-2011/13/4/045801Search in Google Scholar
[169] Ma J, Lu S, Guo Z, et al. Few-layer black phosphorus based saturable absorber mirror for pulsed solid-state lasers. Opt Express 2015;23:22643–8.10.1364/OE.23.022643Search in Google Scholar PubMed
[170] Lu D, Pan Z, Zhang R, et al. Passively Q-switched ytterbium-doped ScBO3 laser with black phosphorus saturable absorber. Opt Eng 2016;55:081312–5.10.1117/1.OE.55.8.081312Search in Google Scholar
[171] Al-Masoodi AHH, Ahmed MHM, Latiff AA, Arof H, Harun SW. Q-switched ytterbium-doped fiber laser using black phosphorus as saturable absorber. Chin Phys Lett 2016;33:054206.10.1088/0256-307X/33/5/054206Search in Google Scholar
[172] Ismail EI, Kadir NA, Latiff AA, Ahmad H, Harun SW. Black phosphorus crystal as a saturable absorber for both a Q-switched and mode-locked erbium-doped fiber laser. RSC Adv 2016;6:72692–7.10.1039/C6RA14008DSearch in Google Scholar
[173] Feng T, Mao D, Cui X, et al. A filmy black-phosphorus polyimide saturable absorber for Q-switched operation in an erbium-doped fiber laser. Materials 2016;9:917–9.10.3390/ma9110917Search in Google Scholar PubMed PubMed Central
[174] Mu H, Lin S, Wang Z, et al. Black phosphorus-polymer composites for pulsed lasers. Adv Opt Mater 2015;3:1447–53.10.1002/adom.201500336Search in Google Scholar
[175] Yu H, Zheng X, Yin K, Cheng X, Jiang T. Nanosecond passively Q-switched thulium/holmium-doped fiber laser based on black phosphorus nanoplatelets. Opt Mater Express 2016;6:603–9.10.1364/OME.6.000603Search in Google Scholar
[176] Chu Z, Liu J, Guo Z, Zhang H. 2 μm passively Q-switched laser based on black phosphorus. Opt Mater Express 2016;6: 2374–9.10.1364/OME.6.002374Search in Google Scholar
[177] Xie Y, Kong L, Qin Z, Xie G, Zhang J. Black phosphorus-based saturable absorber for Q-switched Tm:YAG ceramic laser. Opt Eng 2016;55:081307.10.1117/1.OE.55.8.081307Search in Google Scholar
[178] Wang Z, Zhao R, He J, et al. Multi-layered black phosphorus as saturable absorber for pulsed Cr:ZnSe laser at 2.4 μm. Opt Express 2016;24:1598–603.10.1364/OE.24.001598Search in Google Scholar PubMed
[179] Qin Z, Xie G, Zhang H, et al. Black phosphorus as saturable absorber for the Q-switched Er:ZBLAN fiber laser at 2.8 μm. Opt Express 2015;23:24713–8.10.1364/OE.23.024713Search in Google Scholar PubMed
[180] Li C, Liu J, Guo Z, et al. Black phosphorus saturable absorber for a diode-pumped passively Q-switched Er:CaF2 mid-infrared laser. Opt Commun 2018;406:158–62.10.1016/j.optcom.2017.05.052Search in Google Scholar
[181] Fan M, Li T, Zhao S, et al. Multilayer black phosphorus as saturable absorber for an Er:Lu2O3 laser at ~3 μm. Photonics Res 2016;4:181–6.10.1364/PRJ.4.000181Search in Google Scholar
[182] Su X, Zhang B, Wang Y, et al. Broadband rhenium disulfide optical modulator for solid-state lasers. Photonics Res 2018;6:498–505.10.1364/PRJ.6.000498Search in Google Scholar
[183] Han S, Zhou S, Liu X, Liu Y, Zhang S, Yang X. Rhenium disulfide-based passively Q-switched dual-wavelength laser at 0.95 μm and 1.06 μm in Nd:YAG. Laser Phys Lett 2018;15:085804–6.10.1088/1612-202X/aac983Search in Google Scholar
[184] Liu S, Wang M, Yin S, et al. Nonlinear optical properties of few-layer rhenium disulfide nanosheets and their passively Q-switched laser application. Phys Status Solidi A Appl Mat 2019;216:1800837.10.1002/pssa.201800837Search in Google Scholar
[185] Lin M, Peng Q, Hou W, Fan X, Liu J. 1.3 μm Q-switched solid-state laser based on few-layer ReS2 saturable absorber. Opt Laser Technol 2019;109:90–3.10.1016/j.optlastec.2018.07.062Search in Google Scholar
[186] Xu X, Jiang M, Li D, Wang R, Ren Z, Bai J. Passive Q-switching based on ReS2 saturable absorber in Er-doped fiber laser at 1532 nm. Opt Quantum Electron 2018;50:39.10.1007/s11082-017-1281-3Search in Google Scholar
[187] Mao D, Cui X, Gan X, et al. Passively Q-switched and mode-locked fiber laser based on an ReS2 saturable absorber. IEEE J Sel Top Quantum Electron 2018;24:1–6.10.1109/JSTQE.2017.2713641Search in Google Scholar
[188] Fan M, Li T, Zhao J, et al. Continuous wave and ReS2 passively Q-switched Er:SrF2 laser at similar to 3 μm. Opt Lett 2018;43:1726–9.10.1364/OL.43.001726Search in Google Scholar PubMed
[189] Su X, Nie H, Wang Y, et al. Few-layered ReS2 as saturable absorber for 2.8 μm solid state laser. Opt Lett 2017;42:3502–5.10.1364/OL.42.003502Search in Google Scholar PubMed
[190] Zuo C, Cao Y, Yang Q, He J, Zhang B. Passively Q-switched 2.95-μm bulk laser based on rhenium disulfide as saturable absorber. IEEE Photonics Technol Lett 2019;31:206–9.10.1109/LPT.2018.2886784Search in Google Scholar
[191] Li Y, Lou Y, He J, et al. Q-switched ytterbium fiber laser based on rhenium diselenide as a saturable absorber. J Phys D Appl Phys 2019;52:465101–7.10.1088/1361-6463/ab3883Search in Google Scholar
[192] Xue Y, Li L, Zhang B, et al. ReSe2 passively Q-switched Nd:Y3Al5O12 laser with near repetition rate limit of microsecond pulse output. Opt Commun 2019;445:165–70.10.1016/j.optcom.2019.04.032Search in Google Scholar
[193] Wang N, Lu B, Qi X, et al. Passively Q-switched ytterbium-doped fiber laser with ReSe2 saturable absorber. Opt Laser Technol 2019;116:300–4.10.1016/j.optlastec.2019.03.043Search in Google Scholar
[194] Yao Y, Li X, Song R, et al. The energy band structure analysis and 2 μm Q-switched laser application of layered rhenium diselenide. RSC Adv 2019;9:14417–21.10.1039/C9RA02311ASearch in Google Scholar PubMed PubMed Central
[195] Yao Y, Cui N, Wang Q, et al. Highly efficient continuous-wave and ReSe2 Q-switched similar to 3 μm dual-wavelength Er:YAP crystal lasers. Opt Lett 2019;44:2839–42.10.1364/OL.44.002839Search in Google Scholar
[196] Liu H, Chow KK. Enhanced stability of dispersion-managed mode-locked fiber lasers with near-zero net cavity dispersion by high-contrast saturable absorbers. Opt Let 2014;39:150–3.10.1364/OL.39.000150Search in Google Scholar PubMed
[197] Wang T, Jin X, Yang J, et al. Ultra-stable pulse generation in ytterbium-doped fiber laser based on black phosphorus. Nanoscale Adv 2019;1:195–202.10.1039/C8NA00221ESearch in Google Scholar
[198] Du J, Zhang M, Guo Z, et al. Phosphorene quantum dot saturable absorbers for ultrafast fiber lasers. Sci Rep 2017;7:42357.10.1038/srep42357Search in Google Scholar PubMed PubMed Central
[199] Liu M, Jiang X, Yan Y, et al. Black phosphorus quantum dots for femtosecond laser photonics. Opt Commun 2018;406:85–90.10.1016/j.optcom.2017.04.020Search in Google Scholar
[200] Xu Y, Wang Z, Guo Z, et al. Solvothermal synthesis and ultrafast photonics of black phosphorus quantum dots. Adv Opt Mater 2016;4:1223–9.10.1002/adom.201600214Search in Google Scholar
[201] Song H, Wang Q, Zhang Y, Li L. Mode-locked ytterbium-doped all-fiber lasers based on few-layer black phosphorus saturable absorbers. Opt Commun 2017;394:157–60.10.1016/j.optcom.2017.01.016Search in Google Scholar
[202] Hisyam MB, Rusdi MFM, Latiff AA, Harun SW. Generation of mode-locked ytterbium doped fiber ring laser using few-layer black phosphorus as a saturable absorber. IEEE J Sel Top Quantum Electron 2017;23:39–43.10.1109/JSTQE.2016.2532270Search in Google Scholar
[203] Zhang S, Zhang X, Wang H, et al. Size-dependent saturable absorption and mode-locking of dispersed black phosphorus nanosheets. Opt Mater Express 2016;6:3159–68.10.1364/OME.6.003159Search in Google Scholar
[204] Zhao R, Li J, Zhang B, et al. Triwavelength synchronously mode-locked fiber laser based on few-layered black phosphorus. Appl Phys Express 2016;9:092701–4.10.7567/APEX.9.092701Search in Google Scholar
[205] Park K, Lee J, Lee YT, Choi WK, Lee JH, Song YW. Black phosphorus saturable absorber for ultrafast mode-locked pulse laser via evanescent field interaction. Ann Phys 2015;527:770–6.10.1002/andp.201500245Search in Google Scholar
[206] Ahmed MHM, Latiff AA, Arof H, Harun SW. Ultrafast erbium-doped fiber laser mode-locked with a black phosphorus saturable absorber. Laser Phys Lett 2016;13:095104–7.10.1088/1612-2011/13/9/095104Search in Google Scholar
[207] Xu Y, Jiang X, Ge Y, et al. Size-dependent nonlinear optical properties of black phosphorus nanosheets and their applications in ultrafast photonics. J Mater Chem C 2017;5:3007–13.10.1039/C7TC00071ESearch in Google Scholar
[208] Chen Y, Chen S, Liu J, Gao Y, Zhang W. Sub-300 femtosecond soliton tunable fiber laser with all-anomalous dispersion passively mode locked by black phosphorus. Opt Express 2016;24:13316–24.10.1364/OE.24.013316Search in Google Scholar PubMed
[209] Yu H, Zheng X, Yin K, Cheng X, Jiang T. Thulium/holmium-doped fiber laser passively mode locked by black phosphorus nanoplatelets-based saturable absorber. Appl Optics 2015;54:10290–4.10.1364/AO.54.010290Search in Google Scholar PubMed
[210] Pawliszewska M, Ge Y, Li Z, Zhang H, Sotor J. Fundamental and harmonic mode-locking at 2.1 μm with black phosphorus saturable absorber. Opt Express 2017;25:16916–21.10.1364/OE.25.016916Search in Google Scholar PubMed
[211] Qin Z, Xie G, Zhao C, Wen S, Yuan P, Qian L. Mid-infrared mode-locked pulse generation with multilayer black phosphorus as saturable absorber. Opt Lett 2016;41:56–9.10.1364/OL.41.000056Search in Google Scholar PubMed
[212] Xu X, He M, Quan C, et al. Saturable absorption properties of ReS2 films and mode-locking application based on double-covered ReS2 micro fiber. J Lightwave Technol 2018;36: 5130–6.10.1109/JLT.2018.2870433Search in Google Scholar
[213] Lu F. Passively harmonic mode-locked fiber laser based on ReS2 saturable absorber. Mod Phys Lett B 2017;31:1750206.10.1142/S0217984917502062Search in Google Scholar
[214] Li Z, Dong N, Zhang Y, Wang J, Yu H, Chen F. Invited article: mode-locked waveguide lasers modulated by rhenium diselenide as a new saturable absorber. APL Phontonics 2018;3:080802–8.10.1063/1.5032243Search in Google Scholar
[215] Lee J, Lee K, Kwon S, Shin B, Lee JH. Investigation of nonlinear optical properties of rhenium diselenide and its application as a femtosecond mode-locker. Photonics Res 2019;7: 984–93.10.1364/PRJ.7.000984Search in Google Scholar
[216] Feng J, Li X, Qyyum A, et al. SnS nanosheets for 105th harmonic soliton molecule generation. Ann Phys 2019;531:1900273–7.10.1002/andp.201900273Search in Google Scholar
[217] Jhon YI, Lee J, Seo M, Lee JH, Jhon YM. van der Waals layered tin selenide as highly nonlinear ultrafast saturable absorber. Adv Opt Mater 2019;7:1801745–9.10.1002/adom.201801745Search in Google Scholar
[218] Song Q, Wang H, Xu X, et al. The polarization-dependent anisotropic Raman response of few-layer and bulk WTe2 under different excitation wavelengths. RSC Adv 2016;6:103830–7.10.1039/C7RA90007DSearch in Google Scholar
[219] Wang J, Jiang Z, Chen H, et al. Magnetron-sputtering deposited WTe2 for an ultrafast thulium-doped fiber laser. Opt Lett 2017;42:5010–3.10.1364/OL.42.005010Search in Google Scholar PubMed
[220] Koo J, Jhon YI, Park J, Lee J, Jhon YM, Lee JH. Near-infrared saturable absorption of defective bulk-structured WTe2 for femtosecond laser mode-locking. Adv Funct Mater 2016;26:7454–61.10.1002/adfm.201602664Search in Google Scholar
[221] Chen L, Li X, Zhang H, Xia W. Passively Q-switched 1.989 μm all-solid-state laser based on a WTe2 saturable absorber. Appl Optics 2018;57:10239–42.10.1364/AO.57.010239Search in Google Scholar PubMed
[222] Li L, Wang W, Gong P, et al. 2D GeP: an unexploited low-symmetry semiconductor with strong in-plane anisotropy. Adv Mater 2018;30:1706771.10.1002/adma.201706771Search in Google Scholar PubMed
[223] Guo J, Huang D, Zhang Y, et al. 2D GeP as a novel broadband nonlinear optical material for ultrafast photonics. Laser Photon Rev 2019;13:1900123.10.1002/lpor.201900123Search in Google Scholar
[224] Yu T, Nie H, Wang S, et al. Two-dimensional GeP-based broad-band optical switches and photodetectors. Adv Opt Mater 2019;9:1901490.10.1002/adom.201901490Search in Google Scholar
[225] Yang Y, Liu S, Wang X, et al. Polarization-sensitive ultraviolet photodetection of anisotropic 2D GeS2. Adv Funct Mater 2019;29:1900411.10.1002/adfm.201900411Search in Google Scholar
[226] Fryet T, Zhan A, Majumdar A. Cavity nonlinear optics with layered materials. Nanophotonics 2018;7:355–70.10.1515/nanoph-2017-0069Search in Google Scholar
[227] Guo S, Zhang Y, Ge Y, Zhang S, Zeng H, Zhang H. 2D V–V binary materials: status and challenges. Adv Mater 2019;31:1902352.10.1002/adma.201902352Search in Google Scholar PubMed
[228] Li X, Gao X, Su B, et al. Polarization-dependent photocurrent of black phosphorus/rhenium disulfide heterojunctions. Adv Mater Interfaces 2018;51800960.10.1002/admi.201800960Search in Google Scholar
[229] Cai Y, Xu K, Feng N, Guo R, Lin H, Zhu J. Anisotropic infrared plasmonic broadband absorber based on graphene-black phosphorus multilayers. Opt Express 2019;27:3101–12.10.1364/OE.27.003101Search in Google Scholar PubMed
[230] Zhou N, Yang R, Zhai T. Two-dimensional non-layered materials. Mater Today Nano 2019;8:100051.10.1016/j.mtnano.2019.100051Search in Google Scholar
© 2020 Fufei Pang et al., published by De Gruyter, Berlin/Boston
This work is licensed under the Creative Commons Attribution 4.0 International License.
Articles in the same Issue
- Editorial
- 2D Xenes: from fundamentals to applications
- Reviews
- Monolayer MoS2 for nanoscale photonics
- 2D photonic memristor beyond graphene: progress and prospects
- MXenes: focus on optical and electronic properties and corresponding applications
- Advances in photonics of recently developed Xenes
- Nonlinear optical properties of anisotropic two-dimensional layered materials for ultrafast photonics
- Tunable electronic structure of two-dimensional transition metal chalcogenides for optoelectronic applications
- Recent advances in graphene and black phosphorus nonlinear plasmonics
- Fabrication, optical properties, and applications of twisted two-dimensional materials
- Novel layered 2D materials for ultrafast photonics
- 2D organic-inorganic hybrid perovskite materials for nonlinear optics
- Fine structures of valley-polarized excitonic states in monolayer transitional metal dichalcogenides
- MXenes for future nanophotonic device applications
- Two-dimensional nanomaterials for Förster resonance energy transfer–based sensing applications
- 2D materials integrated with metallic nanostructures: fundamentals and optoelectronic applications
- Graphene plasmonic devices for terahertz optoelectronics
- Research Articles
- Real-time dynamics of soliton collision in a bound-state soliton fiber laser
- Ultra-strong anisotropic photo-responsivity of bilayer tellurene: a quantum transport and time-domain first principle study
- Topological insulator overlayer to enhance the sensitivity and detection limit of surface plasmon resonance sensor
- Magnons scattering induced photonic chaos in the optomagnonic resonators
- Quantum confinement-induced enhanced nonlinearity and carrier lifetime modulation in two-dimensional tin sulfide
- Phosphorene-assisted silicon photonic modulator with fast response time
- High-performance monolayer MoS2 photodetector enabled by oxide stress liner using scalable chemical vapor growth method
- Enhancing the generating and collecting efficiency of single particle upconverting luminescence at low power excitation
- Biexcitons in 2D (iso-BA)2PbI4 perovskite crystals
- Broadband nonlinear optical response in GeSe nanoplates and its applications in all-optical diode
- Plasmonic nanocavity enhanced vibration of graphene by a radially polarized optical field
- Facile synthesis of sulfur@titanium carbide Mxene as high performance cathode for lithium-sulfur batteries
- The pump fluence and wavelength-dependent ultrafast carrier dynamics and optical nonlinear absorption in black phosphorus nanosheets
- Indium selenide film: a promising saturable absorber in 3- to 4-μm band for mid-infrared pulsed laser
- Temperature-stable black phosphorus field-effect transistors through effective phonon scattering suppression on atomic layer deposited aluminum nitride
- Real-time and noninvasive tracking of injectable hydrogel degradation using functionalized AIE nanoparticles
- MXene-Ti3C2 assisted one-step synthesis of carbon-supported TiO2/Bi4NbO8Cl heterostructures for enhanced photocatalytic water decontamination
- Nanofocusing of acoustic graphene plasmon polaritons for enhancing mid-infrared molecular fingerprints
- Effects of gap thickness and emitter location on the photoluminescence enhancement of monolayer MoS2 in a plasmonic nanoparticle-film coupled system
Articles in the same Issue
- Editorial
- 2D Xenes: from fundamentals to applications
- Reviews
- Monolayer MoS2 for nanoscale photonics
- 2D photonic memristor beyond graphene: progress and prospects
- MXenes: focus on optical and electronic properties and corresponding applications
- Advances in photonics of recently developed Xenes
- Nonlinear optical properties of anisotropic two-dimensional layered materials for ultrafast photonics
- Tunable electronic structure of two-dimensional transition metal chalcogenides for optoelectronic applications
- Recent advances in graphene and black phosphorus nonlinear plasmonics
- Fabrication, optical properties, and applications of twisted two-dimensional materials
- Novel layered 2D materials for ultrafast photonics
- 2D organic-inorganic hybrid perovskite materials for nonlinear optics
- Fine structures of valley-polarized excitonic states in monolayer transitional metal dichalcogenides
- MXenes for future nanophotonic device applications
- Two-dimensional nanomaterials for Förster resonance energy transfer–based sensing applications
- 2D materials integrated with metallic nanostructures: fundamentals and optoelectronic applications
- Graphene plasmonic devices for terahertz optoelectronics
- Research Articles
- Real-time dynamics of soliton collision in a bound-state soliton fiber laser
- Ultra-strong anisotropic photo-responsivity of bilayer tellurene: a quantum transport and time-domain first principle study
- Topological insulator overlayer to enhance the sensitivity and detection limit of surface plasmon resonance sensor
- Magnons scattering induced photonic chaos in the optomagnonic resonators
- Quantum confinement-induced enhanced nonlinearity and carrier lifetime modulation in two-dimensional tin sulfide
- Phosphorene-assisted silicon photonic modulator with fast response time
- High-performance monolayer MoS2 photodetector enabled by oxide stress liner using scalable chemical vapor growth method
- Enhancing the generating and collecting efficiency of single particle upconverting luminescence at low power excitation
- Biexcitons in 2D (iso-BA)2PbI4 perovskite crystals
- Broadband nonlinear optical response in GeSe nanoplates and its applications in all-optical diode
- Plasmonic nanocavity enhanced vibration of graphene by a radially polarized optical field
- Facile synthesis of sulfur@titanium carbide Mxene as high performance cathode for lithium-sulfur batteries
- The pump fluence and wavelength-dependent ultrafast carrier dynamics and optical nonlinear absorption in black phosphorus nanosheets
- Indium selenide film: a promising saturable absorber in 3- to 4-μm band for mid-infrared pulsed laser
- Temperature-stable black phosphorus field-effect transistors through effective phonon scattering suppression on atomic layer deposited aluminum nitride
- Real-time and noninvasive tracking of injectable hydrogel degradation using functionalized AIE nanoparticles
- MXene-Ti3C2 assisted one-step synthesis of carbon-supported TiO2/Bi4NbO8Cl heterostructures for enhanced photocatalytic water decontamination
- Nanofocusing of acoustic graphene plasmon polaritons for enhancing mid-infrared molecular fingerprints
- Effects of gap thickness and emitter location on the photoluminescence enhancement of monolayer MoS2 in a plasmonic nanoparticle-film coupled system
