An Overview of the Shared Task on Machine Translation in Indian Languages (MTIL) – 2017

1 Introduction

Machine translation (MT), a sub-field of natural language processing (NLP), is a task of translating a text in one language to another with the help of computers. The first practical idea of translation dates back to 1949 [7], [19]. The most famous approach for MT until 2014 was a phrase-based statistical machine translation (SMT). The era of deep learning has introduced a new approach for MT called sequence-to-sequence learning or neural machine translation (NMT) [2], [4], [11], [17]. The MT scenario for Indian languages is not so promising. Lack of data results in poor system performance. Major MT systems for Indian languages such as ANGLABHARTI, ANUBHARATI and Anuvadaksh [1] are all based either on statistical or rule-based or hybrid method. The performance of all these systems is not at the expected level. The research progress in MT for Indian languages was also stalled over the years.

To encourage research in MT for Indian languages, we organized a shared task, Machine Translation in Indian Languages (MTIL), where researchers were asked to build an MT system for English to Indian languages, namely Hindi, Tamil, Malayalam and Punjabi. The MTIL parallel corpora (available at: http://nlp.amrita.edu/nlpcorpus.html) provided was enough to build a decent SMT or NMT system.

The main contributions of the article are as follows: (a) to create the benchmark parallel corpora for English to four Indian languages (Tamil, Malayalam, Hindi and Punjabi) and make it openly available; (b) to conduct the shared task on MTIL to promote the research activities; (c) to investigate the best method to translate English into Indian languages; and (d) to introduce the human evaluation for evaluating the participant’s output.

2 Existing Parallel Corpora for Indian Languages

There are several open-source parallel data sets available for the English-Hindi language pair such as GNOME, KDE4, Tanzil, Tatoeba, Open Subtitles, WMT-news and Global voices. These data sets are available for download at “the open parallel corpus” website [18]. No manual corrections are done on these data. Other than the aforementioned data set, there is TDIL Programme, India corpus [8], Gyan Nidhi Parallel corpus by Indian government bodies. The IIT Bombay NLP team has combined the above-mentioned data set with some more data sets such as TED talks, Indic-multi-parallel corpus [14], and judicial domain corpus. All these collections of the parallel corpus are available at their website. The parallel corpus for the Punjabi language is very sparse in nature. The only available data sets are EMILLE [6], Gyan Nidhi Parallel Corpus and TDIL corpus. The EMILLE and TDIL corpus are freely available. There are few open-source parallel corpora available for English-Tamil languages. Most of the existing corpora are collected from news articles. EnTam [16], an open-source parallel corpus, covers texts from Bible, cinema and news domains. The collection of six Indian languages’ parallel corpora containing four way redundant crowd sourced translations is presented in [14]. Similar to the English-Hindi parallel corpus, English-Malayalam bilingual texts are available at the “the open parallel corpus” website. This also covers various topics such as GNOME, KDE4, Tanzil, Tatoeba and Open Subtitles. Apart from the open parallel corpus, the EMILLE corpus and TDIL corpus [14] contain bilingual sentences in English and Malayalam.

3 Parallel Corpora Creation for MTIL-2017 Shared Task

Corpora creation plays a vital role in any NLP shared task. This section describes the source of the parallel corpora which are collected and their detailed statistics. Apart from the created in-house parallel corpora (AmritaPC), the well-known TDIL corpora were included in the training corpora of the MTIL shared task. The existing TDIL corpora in various domains such as tourism, health and agriculture were collected and used as parallel corpora for the shared task. We have not used the Indian Language Corpora Initiative corpora because of their translation quality. We have collected parallel sentences from various resources and cleaned with the help of postgraduate students and research scholars. Around 60k parallel sentences for English-Hindi were collected from Tanzil, Open Subtitles and Tatoeba. Other than that we crawled data sets from several freely available websites. We crawled 53k parallel corpora for English-Punjabi from various freely available websites including the religious text.

Malayalam corpus was created by collecting sentences from various domains such as entertainment, health, technology, agriculture and from different sources including books, open-source database, news websites, Bhagavat Gita, Bible, Quran, etc. These sentences were not readily usable for research due to the presence of noise. Noise cancellation in the sentences collected from online resources was done by removing unwanted characters. The main difficulty which we encountered was collecting bilingual sentences from books (out of print) which are available in English and Malayalam. So, we followed the steps described in [15] for collecting and cleaning sentences obtained from books. Finally, we cleaned a parallel corpus of size 40k sentences for the English-Malayalam language pair. For English-Tamil, 47k parallel sentences were collected from the freely available content of school textbooks [10]. Table 1 explains the size of the parallel corpora released for training the participant’s MT system. For testing, we have given 562 English sentences which cover all the domains in the training corpora. Since the human evaluation is proposed in this shared task, we stick on to the small size for testing and made common for all the four language pairs.

4 System Descriptions

A total of 29 teams registered for the MTIL-2017 shared task and 19 teams submitted the (TDIL) data agreement form for receiving the MTIL-2017 parallel corpora. Out of the 19 teams, only 7 teams submitted their final outputs. Tamil received the maximum number (5 teams) of submissions followed by the Hindi language (4 teams). Two teams’ outputs and the results were not considered because of the high similarity with the Google translate output. Finally, only 5 teams’ results were considered for analysis and comparisons. Figure 1 shows the registered and participated team count.

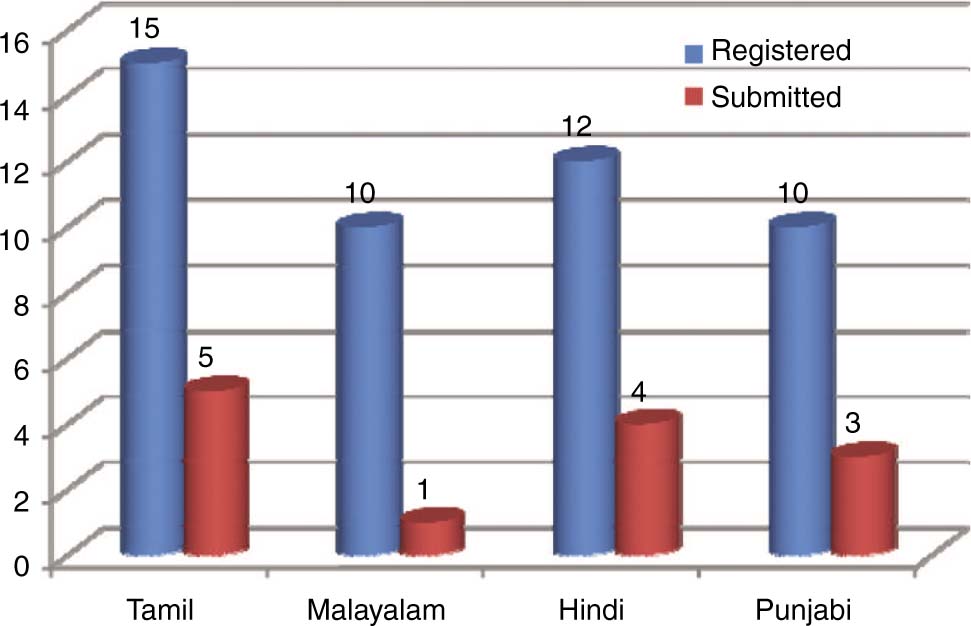

Figure 1:

Registered and Submitted Team Count.

The teams were from CDAC-Mumbai, Hans from SSN and New York University, IIT-Bombay, Jadavpur University and NIT-Mizoram. In that only CDAC-Mumbai participated in all the four languages.

The team “JU” (Jadavpur University) participated only in the English-Hindi MT system. They used recursive neural networks (RNN) over traditional SMT to improve the performance of the automatic translation system. They followed the architecture proposed by Cho et al. [4], which learns to encode a variable-length sequence into a fixed-length vector representation and to decode a given fixed-length vector representation back into a variable length sequence. They also tried different experiments in the SMT system using Neural Probabilistic Language Model language model for the sake of comparison.

The team “Hans” (from SSN and New York University) participated only in the development of English-Tamil MT system. They attempted an interesting model for handling the morphological richness dispute in the MT system between the morphologically diverged languages English and Tamil. They proposed an RNN Long Short Term Memory (LSTM) bi-directional encoder and attention decoder architecture incorporated with morpheme vectors. They segmented the Tamil words into words and suffixes and used the well-known Word2Vec embedding for vectorization. They showed that the proposed method improves the translation results by 7.05 BLEU (Bilingual Evaluation Understudy) points over the RNNSearch. This method also reduces the target vocabulary size by a factor of 8. The main drawback of the proposed model is morphological segmentation used in the pre-processing stage, and it does not include a morphological agglutination in post-processing.

The team “IIT-B” (IIT Bombay) submitted their outputs for English-Hindi and English-Punjabi language pairs. They investigated to improve the performance of the NMT system using byte pair encoding (BPE) where the words of the source sentence are broken into BPE sub-words. The NMT system receives the source BPE sub-words as input and produces an output of BPE sub-words in the target language. Finally, BPE sub-words are combined to produce words in order to get the actual output in the target language. They considered 2000 sentences of MTIL-2017 corpora as a development set and achieved 22.65 BLEU score for English-Hindi and 13.19 score for English Punjabi. The development set BLEU score is closer to the score they achieved for the MTIL shared task.

The “NIT-Mz” (NIT, Mizoram) team participated in English-Tamil, English-Hindi and English-Punjabi translation systems. They tuned the existing OpenNMT system [9] architecture and developed the system for the shared task. They trained a sequence-to-sequence recurrent neural network model, using the attention mechanism, for predicting the translation. For encoder and decoder, they used two-layer LSTM with 500 hidden units in each layer. A subset of 4000 instances from MTIL training data is used as validation data to check the convergence of training. This team tried different experiments to analyze the system’s performance from different perspectives. They varied the training data and testing data size and evaluated the prediction results using BLEU scores. Apart from these experiments, they analyzed the BLEU score achieved by the NMT system for different sentence lengths. This team ranked first in English to Punjabi translations from a human evaluation perspective.

The team “CDAC-Mumbai” (CDAC, Mumbai) participated in all the four language pairs. This team built SMT using pre-ordering and suffix separation. They transferred the structure of the source sentences prior to training using the pre-ordering rules to tackle the structural divergence. The morphological divergence between English and agglutinative languages is tackled using suffix separation. They split the MTIL training data into train, test and development sets. They transliterated the Out-Of-Vocabulary words to the target language using transliteration. They used a factored SMT training where the source and target side stem has to be aligned. Stemming for Hindi, Punjabi, Tamil and Malayalam has been done using a modified version of lightweight stemmer. In the MTIL evaluation, this team performed significantly better than the other submissions for English-Hindi, English-Tamil and English-Malayalam. This team received the Sarwan award in MTIL-2017.

5 Results and Discussion

This section explains the evaluation method followed in the MTIL shared task and the participants’ results are discussed in detail.

6 Conclusions

The shared task on MTIL-2017 opened up many avenues of research in the automatic translation of Indian languages. Though there were good response and enthusiasm in participating in the workshop, the number of system submissions was not in laudable terms. Only four language pairs traveled with us to the end. Initially, we attempted to collect the domain-specific multilingual parallel corpora for considering the Indian language to Indian language translation systems also. But we failed to collect it, so we narrow down to English to Indian languages and general domain too. The participants’ performance and scores are not credible though not discouraging. The main inference from the participants’ results is that along the machine learned feature the linguistic features are also necessary to achieve the reasonable performance in Indian languages. The highlight of the program is that it is the first of its kind in many ways. For the first time, manual evaluation is done on the results of the MT shared task. It helped us to understand the present state of the art of MTIL. Though the participation is small, its range is wider as you can see from the participants of the shared task. As a future scope, the shared task can be extended to translate English into other Indian languages and Indian languages into Indian languages.
