Rare earth element geochemistry of sediments from the southern Okinawa Trough since 3 ka: Implications for river-sea processes and sediment source

3.1 Chronology and grain size composition

The depositional age at the bottom of Core S3 (420 cm) is estimated to be 2995 a BP, which indicates that a nearly 3 ka sedimentary record is well preserved by this core. The linear sedimentation rate (LSR) and sample resolution of S3 were calculated based on the radiocarbon dating results (Table 1). The LSR presents an obviously increasing trend from the bottom to the top of S3 (Table 1, Figure 2), which is different from that of the nearby ODP Hole 1202B [54] and higher than that of sediment cores from the northern and central OT [17, 18, 19, 20, 21, 22]. Because of the high sedimentation rate and the 1 cm sampling interval, the average time resolutions in this study(3-14years) were higher than those of other studies in the OT [25, 26, 34], thus providing relatively higher-resolution materials for sediment depositional processes study.

Figure 2

Calendar age, linear sedimentation rate, grain composition [55], mean grain size [55] and sorting of Core S3.

The sediments in Core S3 are mainly composed of silt (2–63 μm) and clay (<2 μm), and sand is present in only a few layers (Figure 2). Two small turbidite layers with extremely high contents of sand are found at 313-316 cm and 388-390 cm. With the exception of the two turbidite layers, the mean grain size (Mz) values of sediments in S3 range from 11.18 to 19.33 μm, with an average value of 12.91 μm (n=208). The values of the sorting coefficient change from 0.95 to 1.33, with a mean value of 1.10 (n=208). The low values of the sorting coefficient probably indicate that most of the sediments in S3 are well sorted. Overall, no significant change can be observed in the vertical variations in the clay fraction and the silt fraction (Figure 2). The clay fraction changes by approximately 13.08% (n=208) and varies between 9.04 and 17.00%, whereas the silt fraction lies in the range of 83.00-90.96% and overall fluctuates near 87.00% (n=208).

3.2 REE partitioning in the residual fractions and bulk sediments

The REE composition of the residual fractions from Core S3 are shown in Figure 3 and Table 2. Additionally, the REE composition of the bulk sediments from S3 are cited for comparison (Figure 3, Table 2) [55]. According to the vertical changes in the REE contents and characteristic parameters, the depth profiles can be approximately divided into four sedimentary units (Figure 3): Unit 1 (2995-1442 a), Unit 2 (1442-694 a), Unit 3 (694-293 a) and Unit 4 (293 a-present).

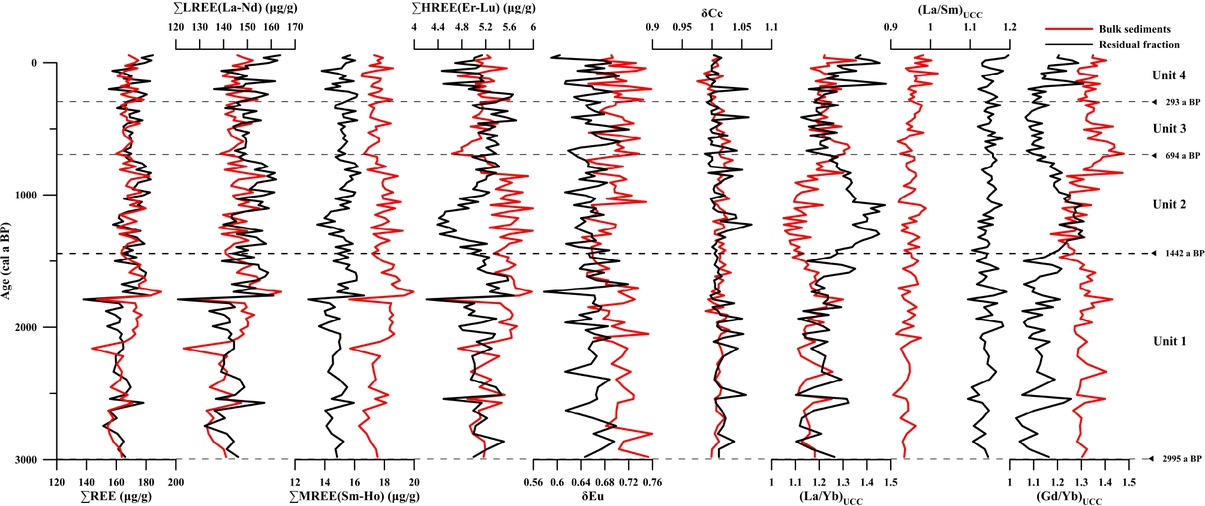

Figure 3

Downcore variations in REE fractionation parameters between the residual fractions and bulk sediments of Core S3.

For all layers, the mean ΣREE (the sum from La to Lu) in the residual fractions and in bulk sediments are similar, i.e., 168.68 ± 8.39 μg/g and 168.23 ± 6.96 μg/g (n=106), respectively. Among most of the layers, the residues show higher Σ LREE contents (the sum from La to Nd) (mean=148.49±7.64 μg/g, n=106) compared to those in the bulk sediments (mean=145.18±6.09 μg/g, n=106). LREEs in the residual fraction from Unit 2 and Unit 4 (152.05±6.17 μg/g and 151.83±7.76 μg/g, respectively) are more enriched than those in Unit 1 and Unit 3 (144.31±8.08 and 148.1±3.48 μg/g, respectively). MREEs are more prone to be leached by dilute HCl than other REEs, and the Σ MREE values (the sum from Sm to Ho) in the residual samples (12.89-16.63 μg/g in range; mean=15.10±0.69 μg/g) are distinctly lower than those in the bulk samples (15.64-19.95 μg/g in range; mean=17.72 ± 0.74 μg/g). In the residual fractions, the Σ HREE values (the sum from Er to Lu) are lower in Unit 2 (4.92±0.30 μg/g, n=31) than in Units 1, 3 and 4 (means 5.13±0.29, 5.31±0.19 and 5.08±0.32 μg/g, respectively). Clearly, the HREE contents in the residues from Unit 2 are lower than those in the bulk sediments (5.51±0.25 μg/g), which differs from the results of other units (Figure 3, Table 2).

Ce³⁺ is generally known to be oxidized to Ce⁴⁺ under surface conditions, and Eu³⁺ is reduced to Eu²⁺ under strongly reducing environments and/or when the temperature is extraordinarily high, while the other REEs remain in the form of trivalent cations [63, 64]. The redox processes mentioned above may lead to the fractionation of Ce and Eu from the remaining REEs. The fractionation of Ce from other REEs generally occurs in response to an oxidation reaction. Because Ce⁴⁺ is more insoluble than Ce³⁺, Ce⁴⁺ can be removed from solution and then incorporated into authigenic mineral phases [63, 64, 65]. The fractionation of Eu from other REEs generally occurs in response to a reduction reaction. Eu²⁺ can easily replace Ca²⁺ because of their similar crystal chemical properties; hence Eu²⁺ can be separated from REEs³⁺ and be involved in other processes [63, 64, 65]. Ce anomalies (δCe) and Eu anomalies (δEu), as vital characteristic parameters for quantitatively assess the extent of the Ce and Eu fractionations, are defined as δCe=Ce_N/(La_N×Pr_N)^0.5 and δEu=Eu_N/(Sm_N×Gd_N)^0.5, respectively, where the subscript N indicates normalization by chondritic values [66]. Ce anomalies are nearly absent in the bulk sediments and present values ranging from 0.98 to 1.04 (mean=1.01±0.01, n=106). The values of Ce anomalies in the residues vary in a wider range compared with that of the bulk sediments (range from 0.99 to 1.07; mean=1.01±0.02), and many samples exhibit relatively remarkable positive Ce anomalies. Both the bulk and residual fractions show moderate negative Eu anomalies, whereas the anomalous degrees of the residual samples (0.58-0.72 in range; mean=0.66±0.03, n=106) are relatively more obvious than those of bulk samples (0.64-0.76 in range; mean=0.70±0.03, n=106) (Figure 3, Table 2).

3.3 Characteristics of UCC-normalized REE patterns

The REE composition of the bulk and residual sediments in Core S3 was normalized by the upper continental crust (UCC) [67] to further assess the possible modification effects of river-marine systems on the original sediment during the erosion, transport and sedimentation processes (Figure 3, Figure 4, Table 2).

Figure 4

UCC-normalized patterns of REEs in the bulk sediments (a) and residual fractions (b) of Core S3; comparisons of REE patterns between the potential end-members and the residual fraction in Core S3 (c-f). Notes: CJ=Changjiang [38]; TW=Taiwan rivers [4]; HH=Huanghe [38]; VR=volcanic rocks [99]; and U1ave, U2ave, U3ave and U4ave=average of Unit 1, Unit 2, Unit 3 and Unit 4, respectively.

The REE parameters in the residual fraction are characterized by extremely high (La/Sm)_UCC ratios (1.09-1.20 in range; mean=1.15±0.02, n=106) relative to those in the bulk sediments (0.91-1.02 in range; mean=0.95±0.02, n=106). The (La/Yb)_UCC and (Gd/Yb)_UCC values of the bulk and residual sediments in Core S3 exhibit diverse characteristics with marked changes occurring in Unit 2. The (La/Yb)_UCC ratios in Unit 2 of the residues are higher than those in the bulk sediments (means=1.35±0.06 and 1.14±0.06, respectively, n=31), and the (La/Yb)_UCC ratios in the residues from other units are close to those of the bulk sediments. By contrast, the (Gd/Yb)_UCC values in the residual fractions and the bulk sediments from Unit 2 are similar (means=1.23±0.05 and 1.28±0.06, respectively, n=31), and these values in the residual fractions from other units are significantly lower than those in the bulk sediments (Figure 3, Table 2).

The UCC-normalized REE patterns of the bulk sediments and the residual fractions show completely different characteristics (Figures 4a and 4b). The bulk sediments are characterized by convex-up patterns with strong enrichment in MREEs (especially Gd and Eu) relative to LREEs and HREEs. The residual fractions, however, show relatively flat REE distribution patterns. Substantial variations can be observed in the fractionation degree of REEs among different units of the residual fractions (Figures 4c-4f); for instance, the (Gd/Yb)_UCC ratios in Units 1 and 3 are similar (1.12±0.06 and 1.10±0.03, respectively) but apparently lower than those in Units 2 and 4 (1.23±0.05 and 1.18±0.07, respectively) (Table 2). Clear positive gadolinium (Gd) anomalies appear in the UCC-normalized patterns of both the bulk sediments and the residual fractions (Figures 4a and 4b), and they were assumed to have originated from human factors in previous studies [68]; however, Yang et al. [38] studied the REE composition of Chinese fluvial sediments and suggested that this behavior reflects the fractionation of MREEs associated with specific minerals.

3.4 Heavy mineral assemblages of sediments in Core S3

Heavy mineral analysis results were obtained from 2-4 layers in each of the four units. We use the average mineral composition of different layers to represent the overall mineral composition characteristics of each unit. The heavy mineral types and contents of the sediments in the four units of Core S3 are listed in Table 2. The heavy mineral assemblages in sediments from potential sources, such as Changjiang, Huanghe and Taiwan rivers, are also listed in Table 3. The main heavy mineral assemblage in the sediments in the four units is amphibole, epidote, zircon, pyrite and magnetic minerals.

4.1 Influence of river-sea processes on the source sediments of S3 over the past 3000 years

The OT, located at the East Asian continental margin, has experienced continuous deposition of late Quaternary terrigenous sediments delivered mainly from the major rivers of mainland China and partly from Taiwan rivers [3, 4, 23, 24, 25, 33, 69]. Sediments deposited in the submarine trough feature complicated mineral compositions because of the complex transport processes of weathering products from the source regions. As mentioned earlier, the residual fraction is mainly composed of silicates, aluminosilicate minerals and a small number of heavy minerals that are insoluble in dilute HCl [42]. In contrast, bulk sediments also include acid-leachable phases (i.e., carbonates, phosphates, Mn-Fe (hydr)oxides and organic matter) in addition to the residual fraction [57]; hence, the geochemical characteristics of the bulk sediments from the marine environment should reflect the interactions among seawater, parent rock, weathering and sorting processes [70, 71, 72, 73]. Therefore, variations in the REE composition between the residual fractions and the bulk sediments are expected to reflect the possible effects of river-sea processes on detrital sediments transported from the source regions over the past 3 ka.

In general, REEs can be scavenged from seawater and bound to the surfaces of Mn-Fe (hydr)oxides, bound to carbonates, fixed and coagulated in organic materials, and stabilized and precipitated after the formation of REE-enriched phosphates [38, 46, 74, 75, 76, 77, 78, 79, 80]. The most noticeable REE composition difference between the bulk sediments and residual fractions is that the Σ MREE values in the bulk samples are relatively higher in all units of Core S3 than those in the residues (Figure 3, Table 2). Furthermore, the bulk sediments are characterized by convex-up REE patterns with strong enrichment in MREEs, while the residual fractions show relatively flat REE patterns (Figure 4a and 4b). MREEs can be concentrated in carbonate, apatite, Fe–Mn oxides, and organic matter, as has been well documented by earlier studies [81, 82]. Among the four units, the bulk sediment and the residual fraction in Unit 1 tend to have the largest gap in MREE values, which corresponds well to the relatively high apatite content in Unit 1 (Table 3), suggesting that the high content of MREE-enriched apatite in Unit 1 may be one of the main factors contributing to the MREE bulge in the REE pattern of Unit 1. The MREE bulges in the REE patterns of other units may be related to other MREE-enriched minerals. Sequential leaching experiments for Fe–Mn oxide phases suggest that the MREE enrichment present in sediments from Chinese rivers and East China Sea shelves is closely associated with amorphous Fe oxide minerals formed in suboxic and/or anoxic environments [38, 42, 57, 82]. These results indicate that a high proportion of MREE-enriched fractions, such as authigenic carbonate and Fe–Mn oxides, were also added to the terrigenous sediments in Core S3 during the river-sea processes, causing a MREE compositional enrichment that is essentially unrelated to the initial detrital compositions from the source region. The MREE contents in the leachable components vary among the different depositional units (Figure 3), which may result from two factors: the availability of MREEs adsorbed by the acid-leachable phases in the bulk sediments varied over time; or the leachable fractions with different depositional ages are composed of Mn-Fe (hydr)oxides, organic materials, carbonates and phosphates in different proportions.

The differences in the proportions of various accessory minerals or the bulk mineralogical composition may be responsible for the distinctive REE patterns [42]. More obvious LREE enrichment can be observed in the UCC-normalized patterns of the residual fractions relative to the bulk samples (Figures 4a and 4b). We argue that the minerals (e.g., carbonates) that have dilution effects on the REE contents in the bulk sediments were removed by the treatment process; consequently, the percentages of the LREE-enriched minerals (e.g., monazite, sphene, allanite, and epidote) in the residues increased, which may be responsible for the LREE enrichment features in the residues (Figure 4).

The HREE contents in the residues from Unit 2 are relatively lower than those in other units (Figure 3), which may be associated with a relatively low proportion of heavy minerals, such as zircon and garnet, which generally contain high abundances of HREEs [38]. However, our heavy mineral analysis results show that the sediment in Unit 2 has a relatively higher proportion of zircon and garnet than other units (Table 3), suggesting that zircon and garnet are not the main factors affecting the HREE contents in Unit 2. REEs are preferentially associated with the clay mineral fraction in offshore sediments [83], while heavy minerals contribute only approximately 10–20% of the total REE concentration [38, 84]. Thus, we infer that the low HREE contents in this unit might be attributed to variations in fine-grained weathering products in the source area and that the sediment source of this unit may be different from those of the other units.

The soluble carbonate complexes and authigenic minerals formed by particulate-water reaction processes [85] can also contribute to sediments, causing a compositional change/modification in original clastic composition [42]. The similar HREE contents in the bulk sediments from different layers of Unit 2 (Figure 3) clearly suggest that the original REE composition of the sediments were modified by unstable fractions formed in complex physical-chemical conditions.

Many studies have confirmed that the element Ce is sensitive to variations in the redox conditions, the presence of Fe-Mn oxides, and the types of clay mineral [86, 87, 88]. In our study, Ce anomalies are nearly absent in the profile of the bulk sediments (Figure 3); however, the δCe values of the residues vary within a relatively wide range, and slightly positive Ce anomalies are observed in the residual fraction from many layers (Figure 3), which demonstrates that the initial clastic sediments transported from the source areas were likely homogenized by the river-sea processes that weakened the degree of REE fractionation [61]. According to the δEu values, clearer Eu anomalies are found in the residues than in the bulk samples, further illustrating that the REE fractionation of river sediments was likely weakened by river-sea processes.

Apparently, the original chemical composition of the terrigenous material deposited in Core S3 was altered by multiple complex geochemical and physicochemical conditions during the transport and deposition processes from the source area to the SOT, and similar phenomenon has also been observed in other study areas [45, 46, 47, 48, 50]. The residual fraction is relatively stable under conventional geochemical and physicochemical conditions, while the acid-leachable fractions are easily modified by changes in the environment [82]. Our results indicate that MREEs are more labile than LREEs and HREEs and that the MREEs enriched in the acid-leachable fractions could be released to the water or move back to the particulates during particulate-water interaction processes. Therefore, identifying the sediment source of Core S3 using the REE composition of the MREE-enriched bulk sediments is not straightforward because of the modifying effects of the acid-leachable fraction on the REE composition related to river-sea processes, as documented by earlier studies [42, 57, 61]. However, further research is needed to evaluate the effects of each unstable fraction on the bulk REE composition under the premise that the REEs present in slightly resistant REE-bearing minerals are not released during the sequential extraction procedure.

4.2 Main factors controlling the REE contents in the residual fraction of Core S3

Variations occurring in the REE composition of sediments from marginal seas generally result from various factors, including the composition of parent rocks, the intensity of chemical weathering, the effect of hydrological sorting, differences in mineral assemblage, etc. [25, 34, 38]. However, the sediment provenance can be identified as the predominant factor controlling the REE components [38, 57, 67], which is supported by recent studies in the middle and northern OT [25, 26, 34].

Many studies have shown that REEs tend to be enriched in fine-grained fractions and depleted in coarse-grained fractions because of the dilution action of quartz and carbonate minerals, which is commonly called the grain size effect [36, 89, 90, 91]. Arecent study on the transport pattern of river sediment suggests that REEs are greatly influenced by hydraulic sorting even before arriving at the continental margin [61]. Therefore, to better discriminate the sediment source, we tested the possible effects of hydraulic sorting on the REE composition and fractionation parameters of the sediments in Core S3 by performing a correlation analysis of the REE contents with the average grain size (Figure 5a). However, no obvious correlations were observed in either the mean grain size vs. Σ LREE plot or the mean grain size vs. Σ HREE plot, thus implying that grain size is not a significant factor controlling the REE composition of the residual fractions. Consequently, the REE contents in the sediments collected from the SOT were not dominated by hydraulic sorting.

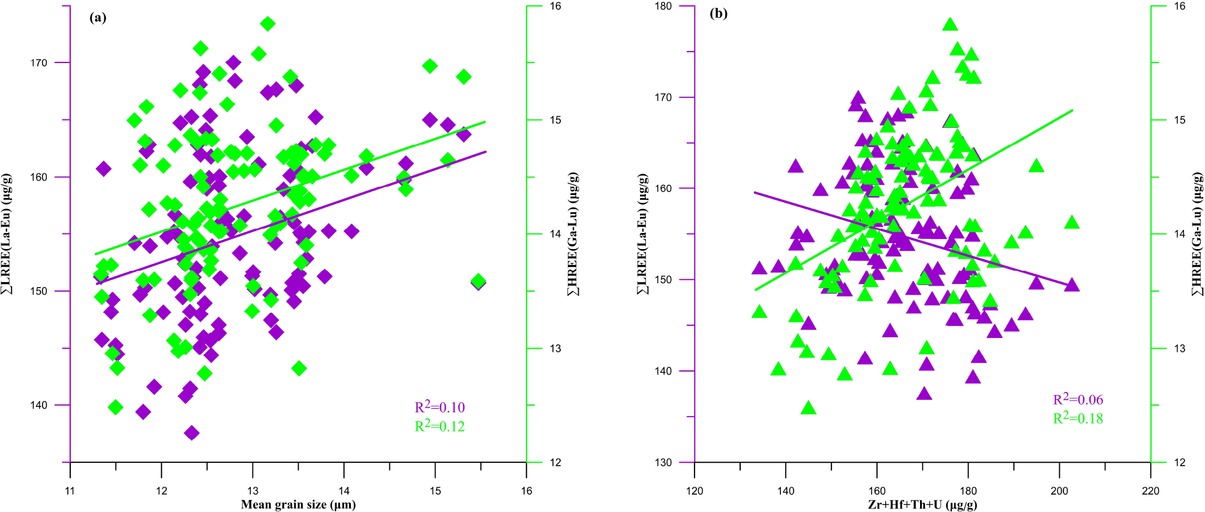

Figure 5

Correlation plots of the mean grain size and REE contents (a); correlation plots of heavy mineral-associated elements (Zr+Hf+Th+U) and REE contents (b).

The bulk sediments in the study area are usually composed of two parts: one part is the acid-leachable fraction, which mainly consists of Mn-Fe (hydr)oxide, biogenic or detrital carbonates and apatite; and the other part is the insoluble fraction, which consists mostly of silicates and aluminosilicates. A majority of the mobile fraction was removed effectively during the pretreatment procedure with dilute HCl [25, 38, 56, 57, 59]; therefore, the REE composition of the residual fraction measured in this study can generally be regarded as the contribution from the siliciclastic fraction. According to the above reasoning, we suggest that chemical weathering plays a negligible role in controlling the REE composition of the residual fraction from Core S3 [25, 34]. In addition to the siliciclastic fraction, the residual fraction usually contains a few accessory heavy minerals (e.g., zircon, garnet, monazite, allanite, and titanite), which may cause notable fractionation of the bulk REE composition because REEs are usually enriched in these minerals [36, 67, 92, 93]. To evaluate the potential effects of heavy minerals on the REE contents of the residual fraction, a correlation analysis was performed with the contents of REEs and elements associated with heavy minerals. As shown in Figure 5b, no evident correlation was recognized between the contents of elements associated with heavy minerals (the sum of Zr, Hf, Th and U) and Σ LREE, and only a weak correlation was found between elements associated with heavy minerals and the Σ HREE values of the residues. Moreover, previous studies implied that heavy minerals contributed only 10-20% of the total REE contents in riverine sediments [38, 84]. The mean grain size of sediments in Core S3 is considerably smaller than that of sediments in the surrounding rivers. Therefore, we infer that the contribution of heavy minerals to the REE composition of the residual fraction was extremely limited and heavy minerals may not have been a dominant factor controlling the REE contents of the sediments in core S3.

Based on the above interpretations, our results suggest that the differences in REE contents and fractionation parameters of the siliciclastic sediments can be used as reliable tracers for discriminating the sediment source of Core S3.

4.3 Application of the REE characteristics in the residual fractions for discriminating the source of Core S3

The REE geochemical characteristics of river sediments could be used as tracers for identifying the source of marine sediments because of their highly conservative geochemical behavior in hypergene environments [41]. However, the geochemical characteristics of source rocks are modified by complicated chemical and physical procedures within river-sea systems [36, 61, 94]. In addition, many studies have shown that REE composition is greatly influenced by in-river processes, such as, hydrodynamic sorting and sediment-water synergy [61, 95]. Our results also suggest an evident modifying effect of transport and deposition processes on the elemental composition of initial terrigenous materials in the SOT. Therefore, discriminating sediment source by using the REE contents of bulk sediments does not provide unequivocal proof, whereas the measured REE composition of the residual fraction dominated by silicate detritus is advantageous for source discrimination. The residues separated from the bulk sediments by treatment with dilute HCl were subjected to REE content measurements. Accordingly, most of the soluble fractions, such as Mn-Fe (hydr)oxide, carbonates and apatite, were removed from the bulk sediments [56, 57, 90]. Consequently, we infer that the REE composition of the residues mainly reflects the contributions of detrital silicate minerals, which are principally derived from eroded terrigenous and volcanic materials and contain reliable information for the identification of sediment source.

Only by fully understanding the potential source regions and material end-members can we reasonably determine the sediment source [4]. Previous studies have suggested that terrigenous particulate matter in the OT is generally associated with terrigenous sediment carried by the Changjiang, Huanghe and Taiwan rivers [23, 25, 96, 97, 98], which means that sediments discharged from the estuaries of the largest rivers are vital sedimentary end-members for Core S3. The locations of the Changjiang and Huanghe estuaries have not changed since the late Holocene [20]; thus, modern samples from these locations are suitable for constraining the sediment source of Core S3. In this study, REE data for the Changjiang and Huanghe residual sediments, processed using with pretreatment methods similar to those in this study, are cited as two end-members [38]. Because most of the previous studies on Taiwan river sediments were limited to bulk sediments samples [41], the REE data of detrital sediments in the nearby Hole 1202B over the last 3000 years are cited as the Taiwan river sediment end-member, because studies on isotopes and clay minerals have confirmed that these sediments mainly originated from Taiwan rivers [4, 32]. Considering that eruption products produced by submarine volcanoes and volcanic material conveyed from Japanese island volcanoes exert an important control on the siliciclastic sediments in the OT [28], data from volcanic rocks in the OT are cited as another potential material end-member [99].

Here, we compare the UCC-normalized REE patterns of Core S3 with those of the potential sources (Figures 4c-4f). Obviously, the sediments in S3 have patterns similar to those of river sediments but completely different from those of volcanic rocks (Figures 4c-4f); thus, we suggest that the influence of volcanic materials on sedimentation in the SOT is minimal because of the dominance of fluvial input. The patterns of samples from Units 1 and 3 are characterized by relative enrichment in HREEs and depletion in LREEs (Figures 4c and 4e). In addition, large differences in the REE composition and fractionation characteristics can be observed among these units (Figure 3). Such features indicate that the sources of sediments in different units of Core S3 may have changed over time.

In this paper, a discrimination diagram based on (La/Sm)_UCC vs. (Gd/Yb)_UCC is applied to constrain the sediment sources in Core S3 (Figure 6) and has been successfully used in previous studies [25, 34, 41]. Samples in the oldest unit (Unit 1, deposited from 2995-1442 a) mainly fall in the area of Changjiang sediments, and only a few points are close to the Taiwan riverine sediments, which indicates that the siliciclastic sediments in Unit 1 mainly originated from Changjiang and that the influence of Taiwan rivers was limited (Figure 6a). However, the (La/Sm)_UCC and (Gd/Yb)_UCC values of Unit 2 (deposited from 1442-694 a) are consistent with those of Taiwan sediments, and only a few points are similar to Changjiang sediments; thus, we infer that sediments from Taiwan Island were the dominant contributors to Unit 2 and that Changjiang-derived sediments were secondary contributors (Figure 6b). Furthermore, Figure 6c shows that samples from Unit 3 mainly fall in a cluster close to Changjiang sediments, implying that Unit 3 (deposited from 694-293 a) was primarily sourced from sediments carried by Changjiang. In the scatter plot for the uppermost unit (Unit 4, deposited from 293 a-present), one group of points is distributed in the region of Taiwan river sediments, and the other falls in the area of Changjiang sediments, suggesting that the sediments in Unit 4 represent a mixture of sediment from Changjiang and Taiwan Island (Figure 6d). Bentahila et al. [35] argued that 30% of the sediment in the SOT is derived from Chinese loess (the main component of Huanghe-derived sediment). However, distinct differences are observed between the scatter plot of Huanghe sediments and the plot of S3 sediments, implying that sediments carried by Huanghe were an insignificant contributor to the siliciclastic sediments in S3. This finding is in accordance with the results of a previous study showing that Huanghe-derived sediments could not be transported to the SOT freely in the modern ocean current system [100]. The REE composition of the volcanic rocks was quite different from that of Core S3 (Figure 6), which probably means that volcanic materials have a negligible impact on the sediments found in S3. Additionally, no identifiable volcanic debris or volcanic ash layers were found in Core S3, similar to a previous study on the nearby ODP Hole 1202B [101]. Therefore, volcanic detritus transported from nearby areas was not a major factor controlling the sediments deposited in the SOT, at least over the past 3000 years.

Figure 6

Discrimination plots of (La/Sm)_UCC and (Gd/Yb)_UCC for the sediments in Core S3. Values for Changjiang and Huanghe riverine sediments [38], Taiwan river sediments [4], and volcanic rocks [99] are also cited for comparison.

Evidence from clay minerals and radiogenic isotopes in the detrital sediment collected at ODP Hole 1202B in the SOT suggests that the sediment source of the SOT has been dominated by Taiwan-derived sediments since the Holocene [4, 32]. However, the grain size compositions and the average bulk sedimentation rates differ markedly between Core S3 and ODP Hole 1202B (the sand and clay fractions are relatively low in S3, and the estimated depth corresponding to 3 ka is 4.2 m below the seafloor (mbsf) in Core S3 and 11.5 mbsf in Hole 1202B) [32, 54]. Therefore, the depositional environments of these two sites have been quite different since the late Holocene. Thus, it is not surprising that our REE data show clear changes in sediment source, with Units 1 and 3 dominated by Changjiang-derived sediments and Units 2 and 4 featuring higher Taiwan-derived sediment fluxes.

Heavy mineral assemblages are considered sensitive indicators for sediment source discrimination [38, 102, 103]. The heavy mineral composition is generally inherited from the source rocks and hardly changes during weathering and transport processes; thus, the heavy mineral assemblage can be used to determine the characteristics of source rocks directly [102]. The major heavy mineral assemblage in sediment from the Changjiang estuary is characterized by amphibole and epidote (Table 3) [104]. The sum of amphibole and epidote in Unit 1 (52.57%) and Unit 3 (40.8%) was significantly higher than that in Unit 2 (24.21%) and Unit 4 (31.72%) (Table 2), indicating that Changjiang-derived sediment contributed significantly to the sediment in Units 1 and 3. The heavy mineral assemblage characteristics of sediment at the mouths of Taiwan rivers are characterized by zircon and pyrite (Table 3) [103]. The sum of zircon and pyrite in Unit 2 (11.33%) is evidently higher than those in other units (Table 3), suggesting that the flux of Taiwan-derived sediment was remarkably higher during deposition of Unit 2 than during the deposition of the other units. The sum of amphibole and epidote in Unit 4 is lower than those in Units 1 and 3 but higher than in Unit 2 (Table 3), which may indicate mixed contributions from both Changjiang and Taiwan rivers. The heavy mineral composition of sediment from Huanghe catchment mainly consists of biotite, amphibole, and epidote (Table 3) [105], which is different from the heavy mineral assemblages in the four units of Core S3, suggesting that Huanghe-derived sediment was not a significant source of the sediment in S3. The heavy mineral composition of the sediment in Core S3 also suggests that Units 1 and 3 are composed mainly of Changjiang-derived sediment, whereas Units 2 and 4 contain higher proportions of Taiwan-derived sediment. This conclusion further supports our understanding of the sediment source transition in Core S3 based on REE composition.

4.4 The possible transport patterns of the terrigenous sediment deposited in the SOT during the last 3 ka

The temporal variations in the REE composition of the sediment in Core S3 (Figure 3) suggest that the detrital sediments in S3 might be derived from different sources and might have resulted from different transport patterns over the past 3 ka. The transport processes for detrital sediments deposited in the study area are mainly controlled by changes in sea level, oceanic circulation and the monsoon climate [106]. Only a slight reduction in the global sea level has occurred since the late Holocene (Figure 7a) [107], suggesting a decrease in sea level did not play a significant role in changes in the transport processes and that the Changjiang-derived sediments in Core S3 were not supplied directly from the river mouth.

Figure 7

Temporal variations in sea-level change (a) [107], δ¹⁸O records from Dongge caves (b) [112], and Kuroshio Current proxy (c) [111].

The time at which the KC re-entered the OT is still controversial (between 16 ka and 7.3 ka BP), despite the examination of many proxy records [15, 16, 21, 32]. However, the location of the main stream of the KC has remained stable since the late Holocene. The modern oceanic circulation patterns in the ECS fully developed during the middle Holocene (Figure 1) [21, 25]. Sedimentation in the OT since the late Holocene has been closely associated with the competing processes of the KC and the oceanic circulation in the ECS [25, 31].

The REE composition in Units 1 and 3 are very similar to that of Changjiang-derived sediments. Some evidence suggests that the KC and Taiwan Warm Current can block terrigenous materials originating from mainland China and deliver Taiwan river sediments to the SOT and even to the central and northern parts of the OT [3, 25, 26, 33]. Furthermore, these currents can erode the CSECS and cause the redeposition of the shelf sediments at the same time [108]. Therefore, we deduce that the siliciclastic sediments in Units 1 and 3 were transported from the CSECS laterally via strong reworking and erosion of the continental shelf edge composed of paleo-Changjiang sediments by ocean currents during these periods. Studies based on sediment trap experiments have confirmed that a large quantity of suspended or resuspended terrigenous particles from the outer CSECS could be transported to the OT [23, 96]. Due to a lack of ECS samples subjected to the same pretreatment methods, a comprehensive comparison of REE characteristics cannot be performed between the sediments in Core S3 and those from CSECS.

In contrast, the REE composition of the sediment in Unit 2 is similar to that of the Taiwan-derived sediment, implying that the siliciclastic sediments deposited in Unit 2 were mainly sourced from Taiwan and transported by northward ocean currents to the SOT. The REE composition of sediment in Unit 4 presents a mixture of the compositions of Changjiang and Taiwan sediments, and this mixture may have result from two transport patterns: Taiwan-derived sediments carried by ocean currents were mixed with reworked shelf sediments of Changjiang origin in the depositional area or far-traveled Changjiang-derived sediment transported by the coastal current were initially mixed with the suspended sediment from western Taiwan rivers in the Taiwan Strait [109] and then the sediment mixture was transported to the SOT by the Taiwan Warm Current [110].

The proxy records based on planktonic foraminifera have been determined to reflect the intensity of KC (Figure 7c) [111]. Units 1 and 3 tend to correspond to stronger

KC intensities than Units 2 and 4 during the last 3 ka (Figure 7c). Therefore, because the intensity and erosive power of the KC was relatively strong during the periods of Units 1 and 3, the sediment deposited in the SOT may have been mainly resuspended terrigenous sediment eroded from the CSECS by ocean currents. The intensity and erosive power of the KC was relatively weak during the periods of Units 2 and 4, and the sediment flux from Taiwan carried by the KC and its tributaries therefore dominated the sediment flux in the SOT.

The climate in the study area is dominated by the East Asian monsoon system, and stalagmite δ¹⁸O records suggest a weak and stable East Asian summer monsoon during the late Holocene (Figure 7b) [112]. Thus, variability in the climate may have played a second order role in the transport patterns of the terrigenous sediment deposited in the SOT. To investigate the effect of climate changes on the long-distance transport of sediment from source regions need more geochemical and mineralogical proxies, which is beyond the scope of this study.

Overall, our REE data suggest that the reworked shelf sediments of Changjiang origin represent an important fraction of the fine-grained sediments that in Core S3 collected from the SOT and that Taiwan-derived sediments also played an important (but much smaller than previously thought) role in this area. The temporal variations in sediment sources in Core S3 can be roughly constrained by our discrimination plot (Figure 6). Nevertheless, regional studies based on single sites and methods are not persuasive, and comprehensive studies of the transport patterns and river-sea interactions require additional investigations of the geochemical and mineralogical proxies in samples on different spatial and temporal scales.
