A novel behavioral health care dataset creation from multiple drug review datasets and drugs prescription using EDA

2.1 Overview

In this section, the overview of the data preprocessing is described in detail and how it is relevant to the proposed work. Next, the two clean datasets are obtained after the preprocessing work is completed. In the next section, the dataset merging process is explained in detail, and the process is depicted in Figure 2. In addition, the general framework of the proposed work is demonstrated in Figure 3.

Figure 2

Process of combining two drug review datasets.

Figure 3

Overview of the proposed work.

2.2 Dataset preparation

The dataset is prepared by Kallumadi and Grer available at [11] with 215,063 samples. The various attributes of the data are drug name, date, useful count, condition, review, and rating. The dataset consists of text and multivariate data where the related tasks are classification, clustering, and regression. The main objectives of the dataset are (i) transfer of dataset model to another dataset based on the health condition, and (ii) sentiment analysis on side effects and effectiveness based on drug experience using natural language processing. The dataset is provided at the URL for research purpose https://archive.ics.uci.edu/dataset/462/drug+review+dataset+drugs+com. The second available dataset is prepared by the same people and is available in the study by Kallumadi and Grer [12]. The number of instances are 4,143 with the columns urlDrugName, condition, benefitsReview, sideEffectsReview, commentsReview, rating, and effectiveness. The objectives of the dataset are similar to the aforementioned dataset. The dataset is freely available at https://archive.ics.uci.edu/dataset/461/drug+review+dataset+druglib+com.

2.3 Data cleaning

Data cleaning, which can also be referred to as data cleansing or data scrubbing, is an essential phase in the data mining process. This process includes detecting and rectifying errors, inconsistencies, and inaccuracies within the dataset to ensure that the data are of superior quality and appropriate for analysis [13]. Clean data are essential for accurate and reliable results in data mining. Here are key aspects of data cleaning in data mining.

2.4 Data integration

This mechanism includes merging and bringing data to a central point from several sources to build a strong and cohesive dataset for analysis [15]. The important aspects of data integration are error reduction, contribution to decision-making, data efficiency, and data collaboration. Data for data mining can come from databases, spreadsheets, text files, application programming interfaces, and more. These sources may include different data types, structures, and representations. The key steps in data integration (DI) are the collection of requirements, data profiling, the identification of the gaps between the requirements and the evaluation, the implementation of the DI process, and finally the verification, validation, and monitoring of the results of the DI process. The proposed datasets include two types of data: text and integers.

1. Concatenation: Combining datasets by appending rows or columns.

2. Merging/joining: Combining datasets based on common attributes.

3. Aggregation: Combining data by summarizing or aggregating values.

2.5 Data transformation

Data transformation is a crucial step in the data mining process, where raw data are converted to a suitable format for analysis [16]. The main intention of data transformation is to strengthen the quality of the data, making it more appropriate for the specific requirements, and to perform statistical analysis of the data mining algorithms. Further, these are some key aspects of data transformation in the context of data mining. Data transformation often involves data cleaning to handle NaN values, empty cells, outliers, and inconsistencies. Techniques like imputation, removal of duplicates, and handling of outliers are applied during this phase. The strengths of these techniques are faster query response, enhanced data quality, data management, better data usage, and data organization.

1. Normalization and standardization: Normalization involves scaling numerical attributes to a standard range, typically between 0 and 1, to ensure that different scales do not affect the performance of certain algorithms. Standardization involves transforming numerical attributes to have a mean of 0 and a standard deviation of 1.

2. Encoding categorical data: Many data mining algorithms work with numerical data, so categorical variables need to be transformed into a numerical format through techniques such as one-hot encoding or label encoding.

3. Aggregation and discretization: Aggregation involves combining multiple data values into a single value, often for summarization purposes. Discretization involves converting continuous numerical attributes into discrete intervals or categories.

4. Variable transformation: Transforming variables can include mathematical operations (e.g., logarithmic transformations) to handle skewed distributions and make relationships between variables more linear. Creating new variables based on existing ones through feature engineering.

2.6 Data reduction

Reducing the dimensionality of the dataset using techniques such as principal component analysis (PCA) or feature selection. Dimensionality reduction can help simplify the dataset and speed up analysis. Data reduction in data mining refers to the process of reducing the volume but producing the same or similar analytical results as explored in the study by Huang et al. [17]. It involves selecting, transforming, or simplifying the data to make it more manageable but still representative of the underlying patterns and trends. Data reduction has potential applications when dealing with large datasets, as it helps to improve the efficiency of mining algorithms, reduces computational complexity, and mitigates the risk of overfitting. Here are some common techniques used for data reduction in data mining.

1. Principal component analysis (PCA): PCA is a technique that transforms the original variables into a new set of uncorrelated variables, known as principal components. It helps reduce the dimensionality of the data while retaining as much variability as possible.

2. Feature selection: Identify and select the most relevant features (attributes or variables) for the analysis, based on statistical measures, information gain, or other criteria. Removing redundant or irrelevant features can simplify the dataset. The features such as uniqueID, date, and useful count are removed using the drop() function in the Python library. Similarly, the columns such as sideEffectsReview and commentsReview are removed from the second dataset.

3. Histograms and clustering: Representing data using histograms can help reduce the number of data points by grouping them into intervals, making it easier to analyze trends and patterns. Grouping similar instances into clusters and representing each cluster by its centroid or other summary statistics. This can significantly reduce the number of data points while maintaining the overall structure of the data.

4. Binning: Grouping continuous data into bins or intervals. This helps reduce the impact of outliers and simplifies the data representation.

5. Numerosity reduction: The alternative representation of data to reduce the data capacity. There are two popular methods: (i) parametric methods based on models such as log-linear and regression and (ii) nonparametric methods such as histograms, sampling, and clustering without any modeling approach.

6. Wavelet transforms: These techniques are useful in signal processing and multiresolution analysis. The essence of wavelet transforms exists in the analysis of details at every level.

7. Sampling: Sampling is a methodology used to select a subset of data from a larger dataset for analysis. The purpose of sampling is to make analysis more manageable, reduce computational complexity, and often provide faster results [18]. There are various sampling methods, and the choice of a particular method depends on the nature of the data, the goals of the analysis, and the available resources. Here are some common sampling techniques in data mining: (a) random, (b) systematic, (c) stratified, (d) cluster, (e) strategic, (f) sequential, (g) reservoir, (h) under, and oversampling.

2.7 Discretization

Discretization, or feature (attribute) discretization, is a data preprocessing technique in data mining that converts continuous data into smaller intervals or bins, hence the name binning. The purpose of discretization is to display the data in a more manageable and understandable way [19]. This process is specifically useful for certain types of data mining algorithms that work more effectively with categorical or discrete data. Here are key aspects of discretization in data mining. The motivation for discretization lies in handling algorithm requirements, such as decision trees or association rule mining algorithms, which may perform better with categorical or discrete data rather than continuous data. Discretization may be applied to mitigate the impact of skewed distributions in continuous variables. Discretized data can be easier to interpret, especially when presenting results to nonexpert stakeholders.

Types of discretization:

1. Equal width binning: Divides the range of continuous values into equal-width intervals. For example, if values range from 0 to 100, and you want five bins, each bin would cover a range of 20 (0–20, 21–40, etc.).

2. Equal frequency binning: Divides the data into intervals containing approximately the same number of instances. This approach helps ensure that each bin has a similar distribution of data points. As the side effects and effectiveness are categorized into five object types, to handle the condition and rating effectively, the range of both these features is numbered from 0–4.

3. Clustering-based discretization: Using clustering algorithms to group similar values together, creating intervals based on the clusters identified.

4. Decision tree-based discretization: Involves the construction of a decision tree to find suitable split points that maximize information gain or other criteria. The decision tree identifies thresholds to create intervals.

5. Unsupervised discretization: Does not use the target variable for determining bins. Equal width, equal frequency, and clustering-based discretization fall into this category.

6. Supervised discretization: Takes the target variable into account during the discretization process. Decision tree-based methods, for example, involve finding split points that improve the predictive accuracy of the model.

2.8 Feature extraction

Feature extraction is a decisive technique in various fields such as data analysis, data mining, and machine learning, as analyzed in the study by Tran et al. [20]. The main motive is to transform the data from an actual source into a new representation that highlights the discriminative features needed for a specific task. It acts as a wrapper for the entire data mining process. The goal of feature extraction is dimensionality reduction, paying attention to key attributes, and improving the performance of data mining approaches. Feature extraction is a completely necessary step in the data preparation pipeline that contributes to a more compact and useful representation of the data. The technique used is determined by the dataset’s features and the goals of the data mining or machine learning task.

Here are key aspects of feature extraction in data mining:

1. Dimensionality reduction: In this technique, the primary objective of feature extraction is to reduce the number of features in the dataset. Dimensionality reduction helps overcome the curse of dimensionality, making the data more manageable and improving the efficiency of algorithms.

2. Feature selection vs feature extraction: Feature selection involves choosing a subset of original features based on their relevance to the task. Selected features are retained, and others are discarded [21]. However, feature extraction involves transforming the original features into a new set of features, often using mathematical transformations. The new features are a combination of the original ones.

3. Benefits of feature extraction: To begin with, extracting features can enhance the performance of ML models by focusing on the most relevant elements of the data. Secondly, a reduced feature set leads to faster training and prediction times. Finally, extracted features are often more amenable to visualization, aiding in the interpretation of the data.

4. Considerations and challenges: Feature extraction involves summarizing or transforming data, which can lead to data loss. In addition, the selection of a particular attribute may affect the performance of algorithms in different ways. Furthermore, depending on the task, it is necessary to observe the data mobility from training to prediction, that is, the causes and effects of the decision.

5. Splitting a dataset into training and testing sets: As part of the development, construction, and evaluation of machine learning models, data are divided into three categories: training, validation, and testing sets. The reason for this division is to evaluate the model’s ability to generalize to unfamiliar data. The following are the essential components of dividing a dataset into training and testing sets:

   1. Training set: The training set is the subset of the dataset used to train the machine learning model. The model recognizes patterns, correlations, and features based on this selection of data. Typically, the training set accounts for a significant portion of the total dataset, often 70–80%.

   2. Testing set: The testing set is set aside to evaluate the model’s performance on new, previously unknown data. The testing set is used to assess the model’s ability to generalize and predict data that they were not exposed to during training. The testing set is critical for determining the model’s performance and detecting any overfitting. The test set should be kept confidential during model development. Model adjustments based on test set performance can lead to overfitting the test set, compromising its ability to provide an unbiased evaluation.

6. Scaling features: Transforming numerical features through scaling ensures that all features have a similar scale or range, preventing any single feature from dominating the learning process or negatively impacting the performance of specific algorithms.

2.9 Preparation of the integrated dataset

As we have seen in the aforementioned sections, the working of EDA in data science, after completion of the EDA process, a clean and proper dataset is formed in the two csv files. The two files have different column names and different column positions. The column positions are rearranged, and the names are changed in common to the first dataset. Hence, the merged dataset consists of 34,589 instances with six attributes. The attributes are defined as drugName, condition, review, rating, date, and usefulCount.

3.1 EDA results

In this section, the EDA results are described from the integrated datasets. After integration, the dataset has six important columns named as drugName, rating, effectiveness, sideEffects, condition, and review. Further, the respective data types are object, integer, integer, integer, object, and object type. The drugs with the highest and lowest rating for the two datasets are shown in Figures 4, 5, 6, 7 respectively. After merging the dataset, the results are given as Figures 8 and 9 for the lowest and highest rating. In addition, the distribution of drugs before and after merging is denoted in Figures 10, 11, 12. The diagrammatic representation indicates that the first dataset and the resultant dataset have a better distribution than the second. The uniformity increases to a certain extent after the merging process.

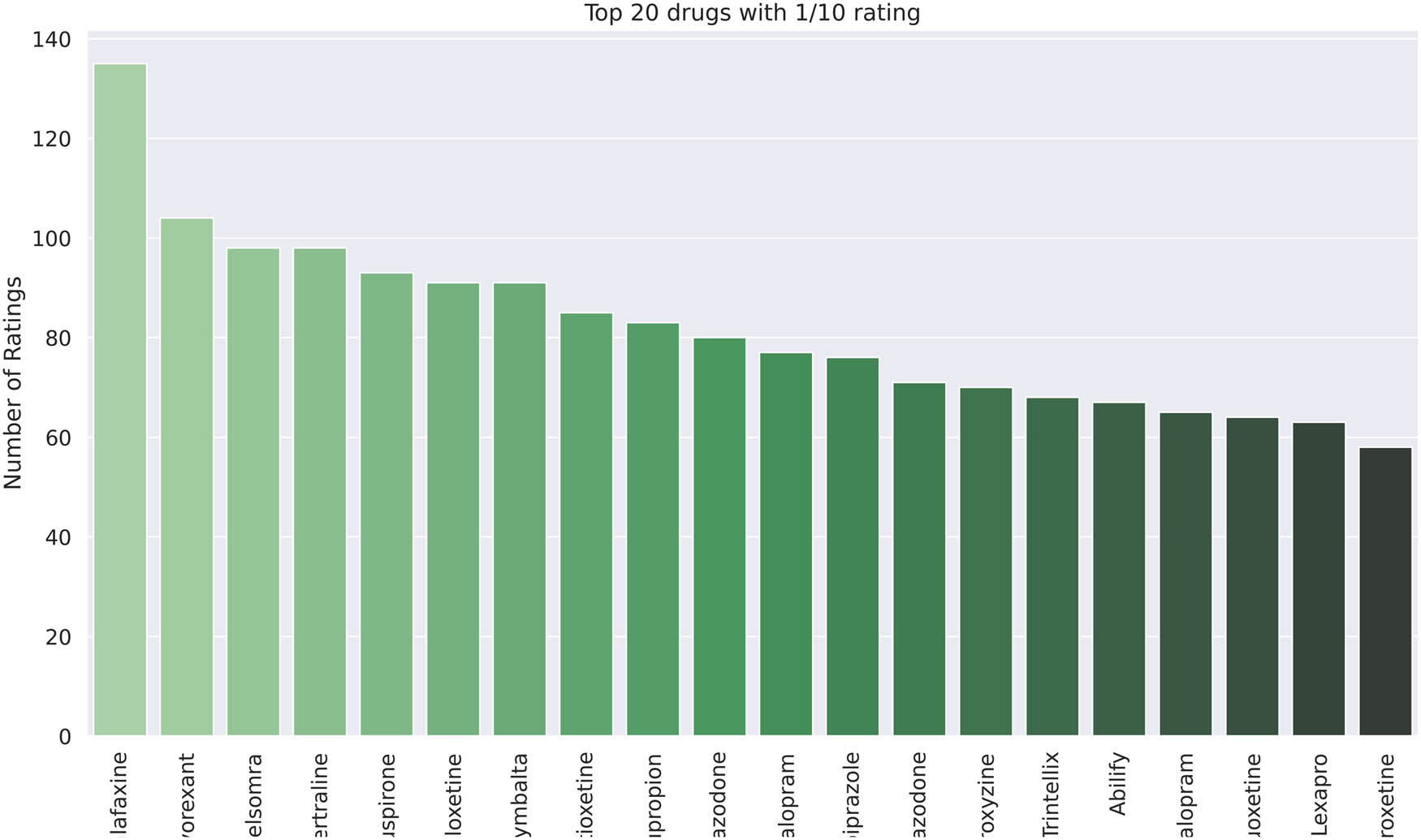

Figure 4

First drug review dataset with one rating for twenty drugs.

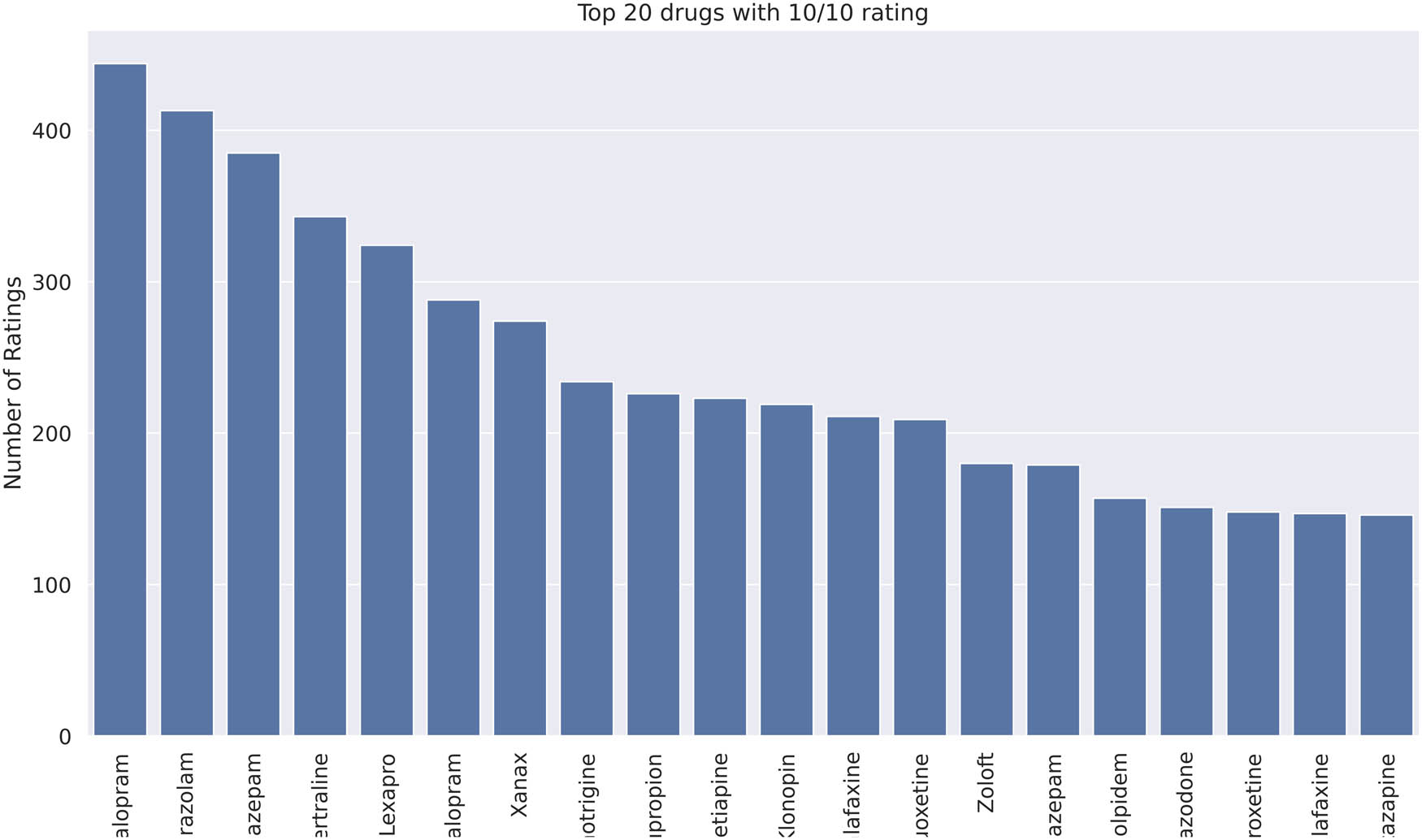

Figure 5

First drug review dataset with ten rating for 20 drugs.

Figure 6

Second drug review dataset with one rating for 20 drugs.

Figure 7

Second drug review dataset with ten rating for 20 drugs.

Figure 8

Integrated drug dataset with one rating for 20 drugs.

Figure 9

Integrated drug dataset with ten rating for 20 drugs.

Figure 10

Distribution of rating for the first drug review dataset.

Figure 11

Distribution of rating for the second drug review dataset.

Figure 12

Distribution of rating for the integrated drug review dataset.

3.2 Classification algorithms

The various classifiers used for classification are multi-layer perceptron (MLP), naive Bayes classifier (NBC), random forest classifier, and logistic regression classifier (LRC). First, MLP is based on neurons, layers, etc., whereas NBC depends on the Bayes theorem and probabilities. On the other hand, random forest classifier (RFC) is based on the number of nodes and trees with a huge impact on the large dataset. Finally, the LRC depends on the logistic function to finalize the value of the dependent variable. All algorithms are formulated in the Python language in Google colaboratory, and the metrics and accuracy values are referred to in Tables 1 and 2 respectively. The results in the table prove that MLP has greater dominance than traditional approaches. NBC and LRC are less effective for the large dataset and need more computational resources. Finally, the popular drugs used by most people are Venlafaxine, Lamotrigine, Clomipramine, Alprazolam, Quetiapine, Klonopin, Gabapentin, Pristiq, Parnate, and Xanax.

3.3 Analysis of results and algorithms

The values in Tables 1 and 2 indicate the good performance of the integrated dataset with the MLP technique due to the diversity and sample size of the dataset. The MLP shows the highest performance because of the layered architecture and robustness in handling the diverse data. The NBC gives poor performance because of the independence nature of attributes and simple assumptions with the dataset features. Finally, the proposed work is compared with three review techniques in Table 3 such as as by Askr et al., Qiu et al., and Vo et al. [22–24]. The aforementioned approaches were implemented with multiple drug dataset.
